Whirlpool EKAH 3460 IN PROGRAM CHART

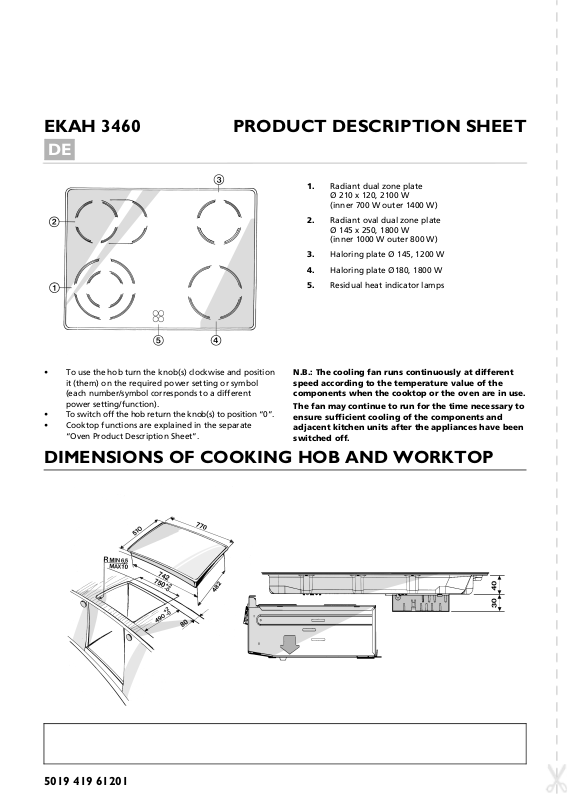

EKAH 3460 PRODUCT DESCRIPTION SHEET

DE

1.

Radiant dual zone plate
Ø 210 x 120, 2100 W
(inner 700 W outer 1400 W)

2.

Radiant oval dual zone plate
Ø 145 x 250, 1800 W
(inner 1000 W outer 800 W)

3.

Haloring plate Ø 145, 1200 W

4.

Haloring plate Ø180, 1800 W

5.

Residual heat indicator lamps

 To use the hob turn the knob(s) clockwise and position

it (them) on the required power setting or symbol
(each number/symbol corresponds to a different

power setting/function).
 To switch off the hob return the knob(s) to position 0.
 Cooktop functions are explained in the separate

Oven Product Description Sheet.

N.B.: The cooling fan runs continuously at different
speed according to the temperature value of the
components when the cooktop or the oven are in use.

The fan may continue to run for the time necessary to
ensure sufficient cooling of the components and
adjacent kitchen units after the appliances have been
switched off.

DIMENSIONS OF COOKING HOB AND WORKTOP

5019 419 61201
