EK 4470 |
|

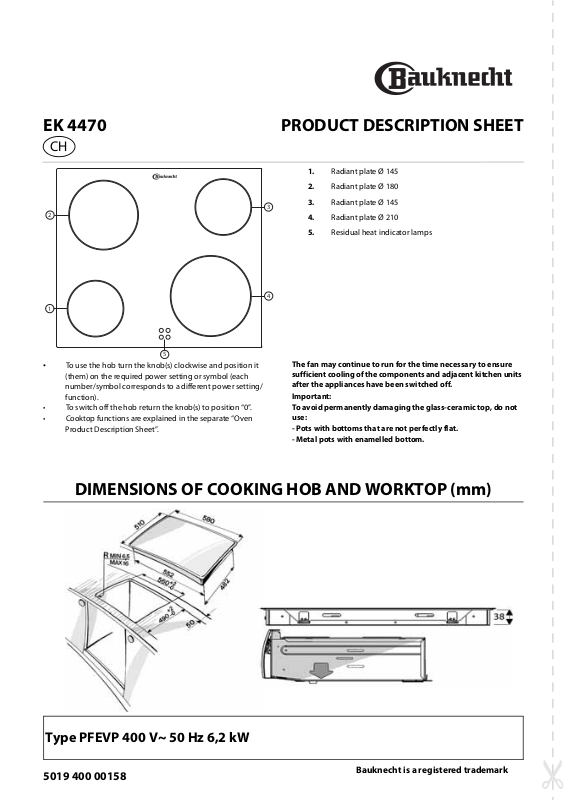

PRODUCT DESCRIPTION SHEET |
|
|||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
CH |
1. |
Radiant plate Ø 145 |
|
|||
|
||||||
|
|
|
|
|||
|
|
|
|
|||
|
|
|
|
|||
|
|
|
2. |
Radiant plate Ø 180 |
|
|
|
|
|
|
|||
|
|
|
3. |
Radiant plate Ø 145 |
|
|
|
|
|
|
|||
2 |
|
|
|
3 |
|
|
|
|
|
|
|
||
|
|
4. |
Radiant plate Ø 210 |
|
||
|
|
|
5. |
Residual heat indicator lamps |
|
|
|
|
|
|
|||
|
|
|
|
|||
4
1
5
•To use the hob turn the knob(s) clockwise and position it (them) on the required power setting or symbol (each number/symbol corresponds to a different power setting/ function).
•To switch off the hob return the knob(s) to position “0”.
•Cooktop functions are explained in the separate “Oven Product Description Sheet”.
The fan may continue to run for the time necessary to ensure sufficient cooling of the components and adjacent kitchen units after the appliances have been switched off.
Important:
To avoid permanently damaging the glass-ceramic top, do not use:
-Pots with bottoms that are not perfectly flat.
-Metal pots with enamelled bottom.
DIMENSIONS OF COOKING HOB AND WORKTOP (mm)
Type PFEVP 400 V~ 50 Hz 6,2 kW
Bauknecht is a registered trademark
5019 400 00158
