Whirlpool EK 3460 BR, EK 3460 WS, EK 3460 IN, EK 3460 SW, EK 3460-1 WS PROGRAM CHART
...

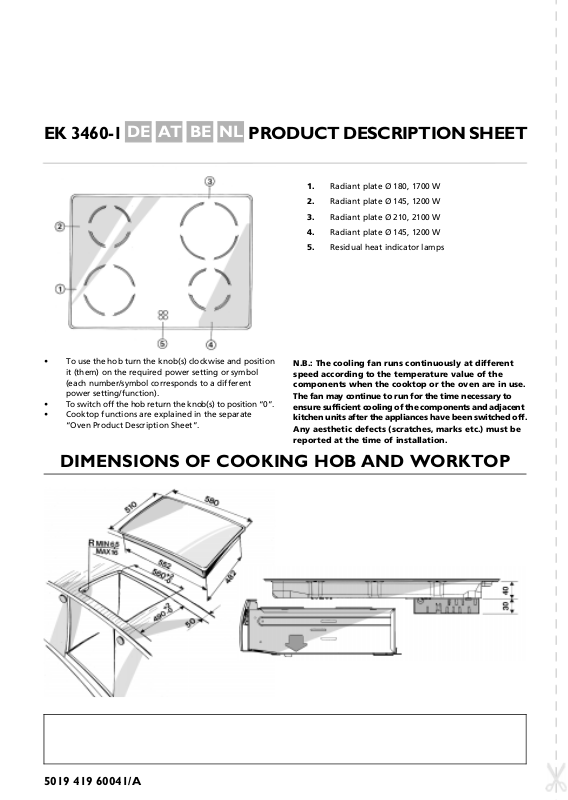

EK 3460-1 PRODUCT DESCRIPTION SHEET
DE AT BE NL
1. Radiant plate Ø 180, 1700 W
2. Radiant plate Ø 145, 1200 W
3. Radiant plate Ø 210, 2100 W
4. Radiant plate Ø 145, 1200 W
5. Residual heat indicator lamps
To use the hob turn the knob(s) clockwise and position
it (them) on the required power setting or symbol
(each number/symbol corresponds to a different
power setting/function).
To switch off the hob return the knob(s) to position 0.
Cooktop functions are explained in the separate
Oven Product Description Sheet.
N.B.: The cooling fan runs continuously at different
speed according to the temperature value of the
components when the cooktop or the oven are in use.
The fan may continue to run for the time necessary to
ensure sufficient cooling of the components and adjacent
kitchen units after the appliances have been switched off.
Any aesthetic defects (scratches, marks etc.) must be
reported at the time of installation.
DIMENSIONS OF COOKING HOB AND WORKTOP
5019 419 60041/A
