BEFORE USING THE GLASS CERAMIC HOB

• To make the most of your new appliance,

please read the user instructions carefully and
keep them to hand for future consultation.

INSTALLATION

Hob

• The hob must be set into a worktop between 20 mm
and 50 mm deep

• There must be nothing between the hob and the oven
(cross rails, brackets, etc.).

• The distance between the lower face of the glass
ceramic hob and the cupboard or separating panel
must be at least 20 mm.

• If the hob is to be installed next to a column unit, leave
a distance of at least 100 mm from the edge of the hob.

• Make an opening in the worktop of the dimensions shown in

the Product Description Sheet supplied separately.

• Apply the supplied gasket to the hob (unless it has already
been fitted), after having cleaned its surface.

Important

In order to prevent the electronic circuits from overheating, and
therefore from being damaged, we recommend the following:

• Do not install the hob near a dishwasher or washing
machine, so that the electronic circuits do not come
into contact with steam or moisture, which could
damage them.

If an oven (from our range of ovens) is installed beneath the hob,
make sure that it is equipped with a cooling system.

If the temperature of the electronic circuits exceeds the
maximum permitted temperature, the hob will switch off
automatically; in this case, wait for a few minutes until the
internal temperature of the electronic circuits reaches a tolerable
level, at which point it will be possible to switch the hob on again.

• Switch the hob off after use.

Front

A

Rear wall

13

41902030GB.fm Page 14 Monday, October 11, 2010 11:22 AM

INSTALLATION

Assembly

A) If the worktop is made of wood, use the appropriate

brackets, spring clips and screws provided.

• Position the 4 clips (A), if not already fitted, around the hob
frame, in the slots provided, see Fig. 1

• Measure the centre of the vertical sides of the cut-out as
shown in Fig. 2.

• Position the centre of the brackets (C) on the centre of the
side previously identified.

• The upper edge of the brackets must be flush with the
worktop surface.

• Secure by means of the 4 screws (B) provided, using the
pre-drilled holes.

• Insert the hob into the pre-prepared hole ensuring that the
clips (A) lodge into the bracket slots provided
(C Fig. 4 and 5).

Fig. 1

A

Fig. 2

C

B) If the worktop is made of marble or other materials

(plastic compounds, ceramics, stone, etc.), the hob

must be fitted by means of brackets, code 4819 310 1852.
(to be ordered from After-sales Service if not provided).

• Install the cooking hob in the worktop.

• Position the brackets (C) as shown in the figure, in

accordance with the thickness of the worktop.

• Secure the screws (E) in holes (D).

Fig. 3

Fig. 4

Fig. 5

To p mi n . 20

B

A

To p ma x . 50

14

41902030GB.fm Page 15 Monday, October 11, 2010 11:22 AM

ELECTRICAL CONNECTIONS

Electrical connection must be made before connecting the
appliance to the electricity supply. The appliance must be
installed by a qualified electrician who is fully aware of current
safety and installation regulations. Specifically, installation must be
carried out in compliance with the regulations of the local
electricity supply company. Make sure that the voltage indicated
on the rating plate corresponds to the voltage in your home.
Regulations require that the appliance be earthed: use
conductors (including the earth conductor) of the appropriate
size only. The manufacturer declines all liability for injury to
persons or animals and for damage to property resulting from
failure to observe the above regulations. For the electrical
connection use a H05RR-F type cable as indicated in the table
below:

Power supply voltage.

Conductors Amount x size

230V ~

+

230-240V ~ +

230V 3~

+

400V 3N ~ +

400V 2N ~ +

3 X 2.5 mm

3 X 2.5 mm2 (Australia only)

4 X 1.5 mm

5 X 1.5 mm

4 X 1.5 mm

2

2

2

2

B

A

The appliance must be connected to the electricity supply
by means of an all-pole disconnect switch with minimum
contact gap of 3 mm.

Attention: the power supply cable must be long enough to allow

the hob to be removed from the worktop and must be
positioned so as to avoid damage or overheating caused by
contact with the base.

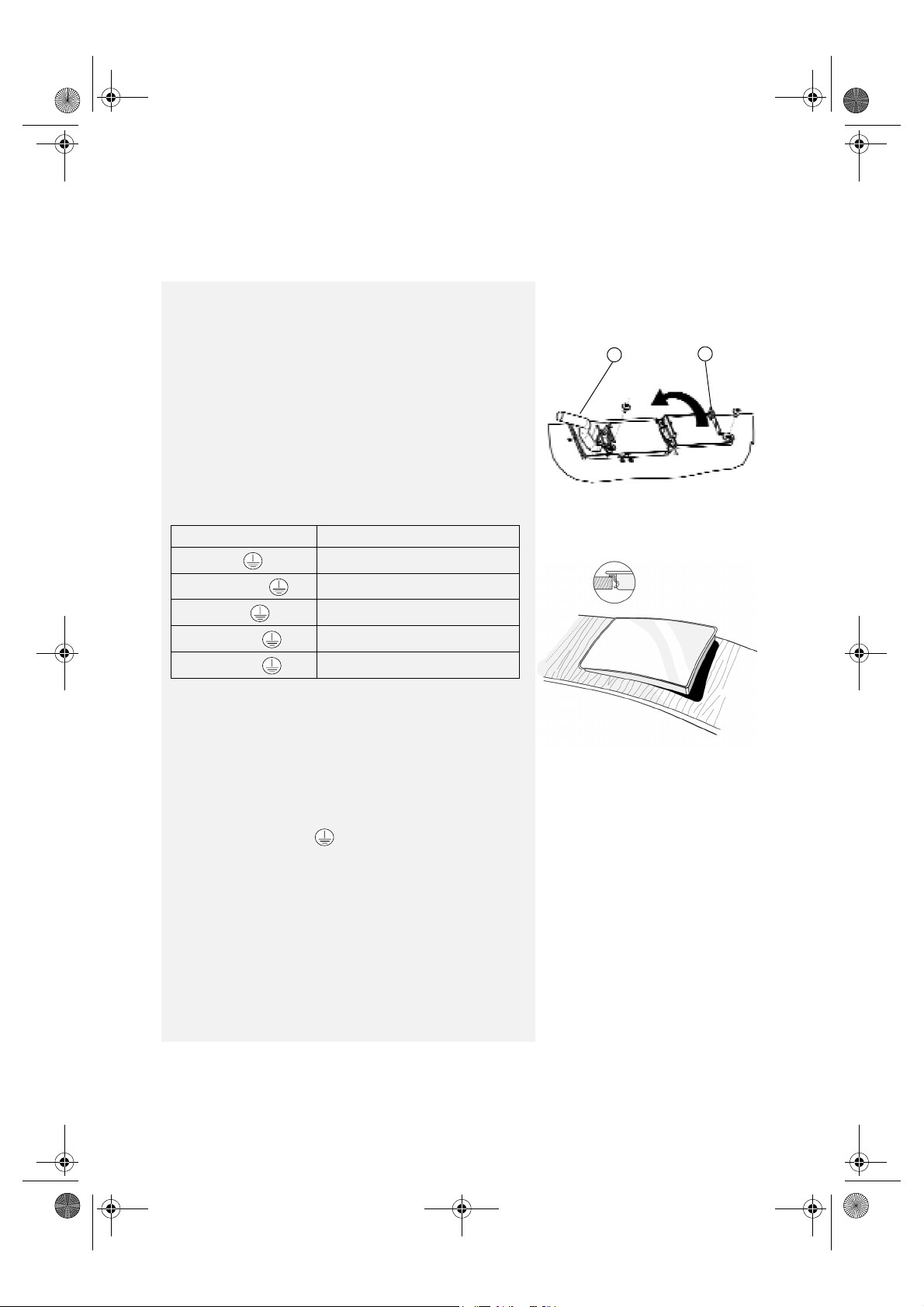

Connecting to the terminal board
Note: the yellow/green earth wire must be connected to the

terminal with the symbol and must be longer than the other
wires.

• Remove approx. 70 mm of the cable sheath from the power
supply cable (B).

• Strip approx. 10 mm of sheath from the wires. Then insert the
power supply cable into the cable clamp and connect the
wires to the terminal block as indicated in the connection
diagram placed close to the terminal block itself.

• Secure the power supply cable (B) by means of the cable
clamp.

• Close the terminal board with the cover (A) securing it with
the screw provided.

• After the electrical connection, fit the hob from the top and
hook it to the support springs, following the diagram.

15

41902030GB.fm Page 16 Monday, October 11, 2010 11:22 AM

ENERGY SAVING TIPS

• Use pots and pans whose bottom diameter is equal to that of

the cooking zone or slightly larger.

• Only use flat-bottomed pots and pans.

• If possible, keep pot lids on when cooking.

• Cook vegetables, potatoes, etc. with little water in order to

cut down cooking time.

• A pressure cooker allows you to save even more energy and
time.

NO!

SAFEGUARDING THE ENVIRONMENT

1. Packing

• The packaging material is 100% recyclable and

marked with the recycling symbol ( ).

2. Products

This appliance is marked in compliance with
European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring that this appliance is scrapped
suitably, you can help prevent potentially
damaging consequences for the environment
and health.

The symbol on the appliance or
accompanying documentation indicates that

this product should not be disposed of as
unsorted municipal waste but must be taken to
a collection point for the treatment of WEEE.
Disposal must be carried out in accordance
with local environmental regulations for waste
disposal.
For more detailed information about
treatment, recovery and recycling of this
product, please contact your local authority,
the household waste disposal service or the
shop where you purchased the product.

Declaration of conformity

• This cooktop is suitable for contact with

foodstuffs and complies with EEC (CE)
Regulation n. 1935/2004.

• The appliances are designed solely for use as
cooking appliances. Any other use of the
appliances (e.g. for room heating) is considered
as improper use and potentially dangerous.

• The appliances are designed, built and sold in
compliance with:

• safety objectives of the “Low Voltage”
Directive 2006/95/EC (which replaces
73/23/EEC and subsequent amendments)

• the protection requirements of Directive
“EMC” 2004/108/EC;

• the requirements of Directive 93/68/EEC.

16

41902030GB.fm Page 17 Monday, October 11, 2010 11:22 AM

PRECAUTIONS AND GENERAL
RECOMMENDATIONS

WARNING: Accessible parts become very hot
when the equipment is in operation. Keep
children away from the appliance in order to
avoid the risk of scalding and burns.

This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge unless they
have been given initial supervision or
instruction concerning use of the appliance by
a person responsible for their safety.

Make sure children do not play with the
appliance.

• Before any maintenance on the appliance,

disconnect it from the electrical power supply.

• Keep children away form the appliance when it
is in use and also when it has been just switched
off.

• The appliances must be repaired or adjusted
exclusively by a qualified technician.

• Make sure that the electrical wires of other
electrical appliances near the hob do not come
into contact with hot parts.

• Do not switch on the hotplates/cooking
zones when there is no pan in position.

• Avoid the use of high pressure water or steam

cleaning equipment.

• If liquid spills or boils over, the hob may switch
off: to enable it to be switched back on again,
carefully dry the controls zone.

• The cooktop features different size hotplates/
cooking zones. Use pots whose base diameter
is the same as that of the hotplate/cooking
zone.

To avoid permanently damaging the glass
ceramic cooktop, do not use:

- pots with bottoms that are not perfectly

flat;

- Metal pots with enamelled bottom.

- When finished cooking, press

button .

• Do not use the cooktop as a work surface or a

support surface.

• Do not leave the appliance unattended when
frying food -risk of fire.

• If the glass ceramic surface should break or
crack due to violent impact (falling objects, etc.)
do not use it and call the After-Sales Service
immediately.

• Do not place food wrapped in aluminium foil,
plastic containers or cloths on the hot cooking
zones.

• Do not drag pans across the glass-ceramic
surface - risk of scratches.

• Avoid spilling sugar and similar substances on
the cooktop. If necessary, clean the cooktop
immediately following the care and
maintenance instructions in this handbook.

• If the hob is fitted with halogen lamps, do not
stare at the bulbs directly.

• The appliance is not intended to be operated by
means of an external timer or separate remote­control system.

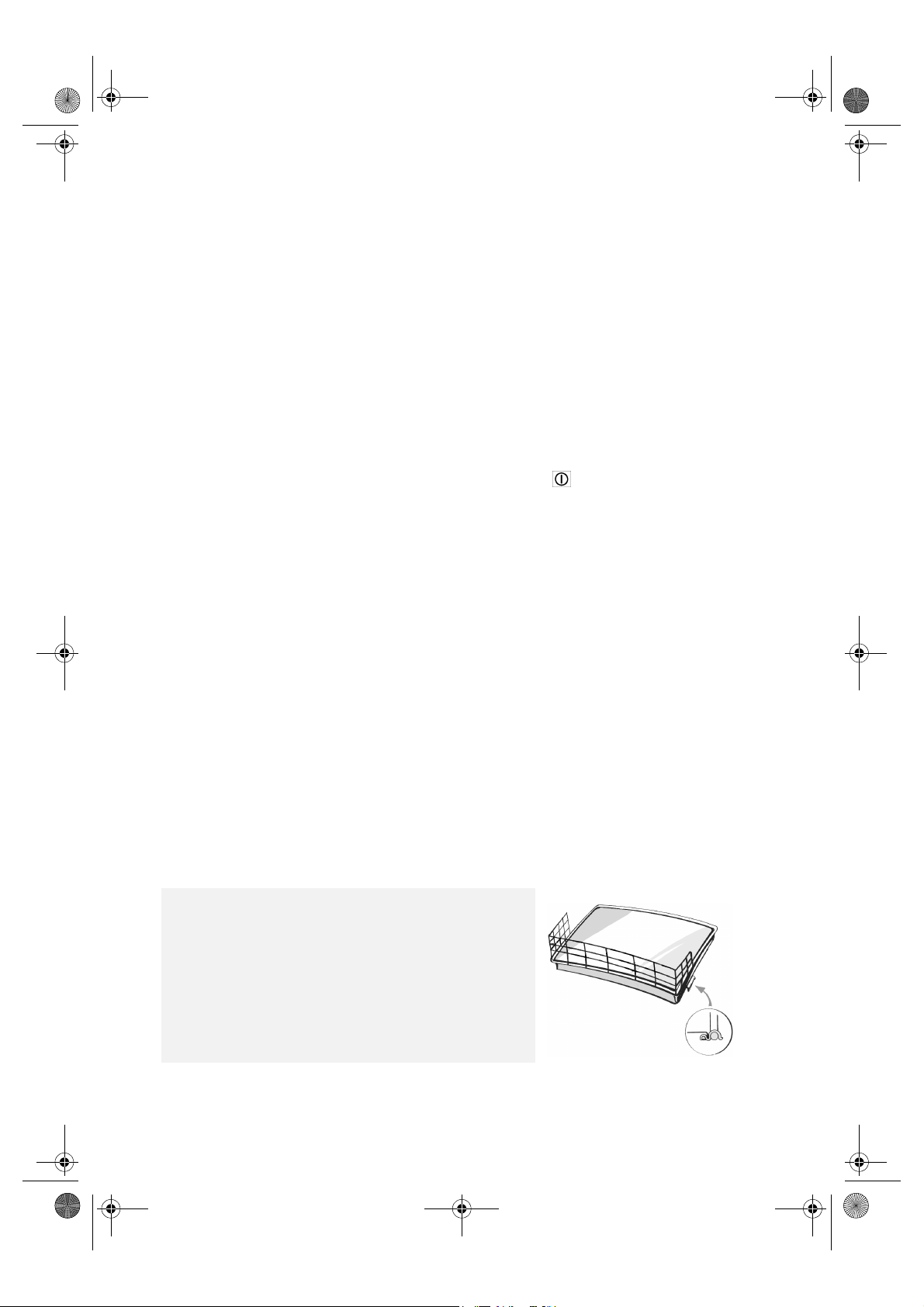

HOB ACCESSORIES

Child guard accessory AMH 122

This accessory can be obtained from the After-sales Service under
Part N° 4819 310 18436.

17

41902030GB.fm Page 18 Monday, October 11, 2010 11:22 AM

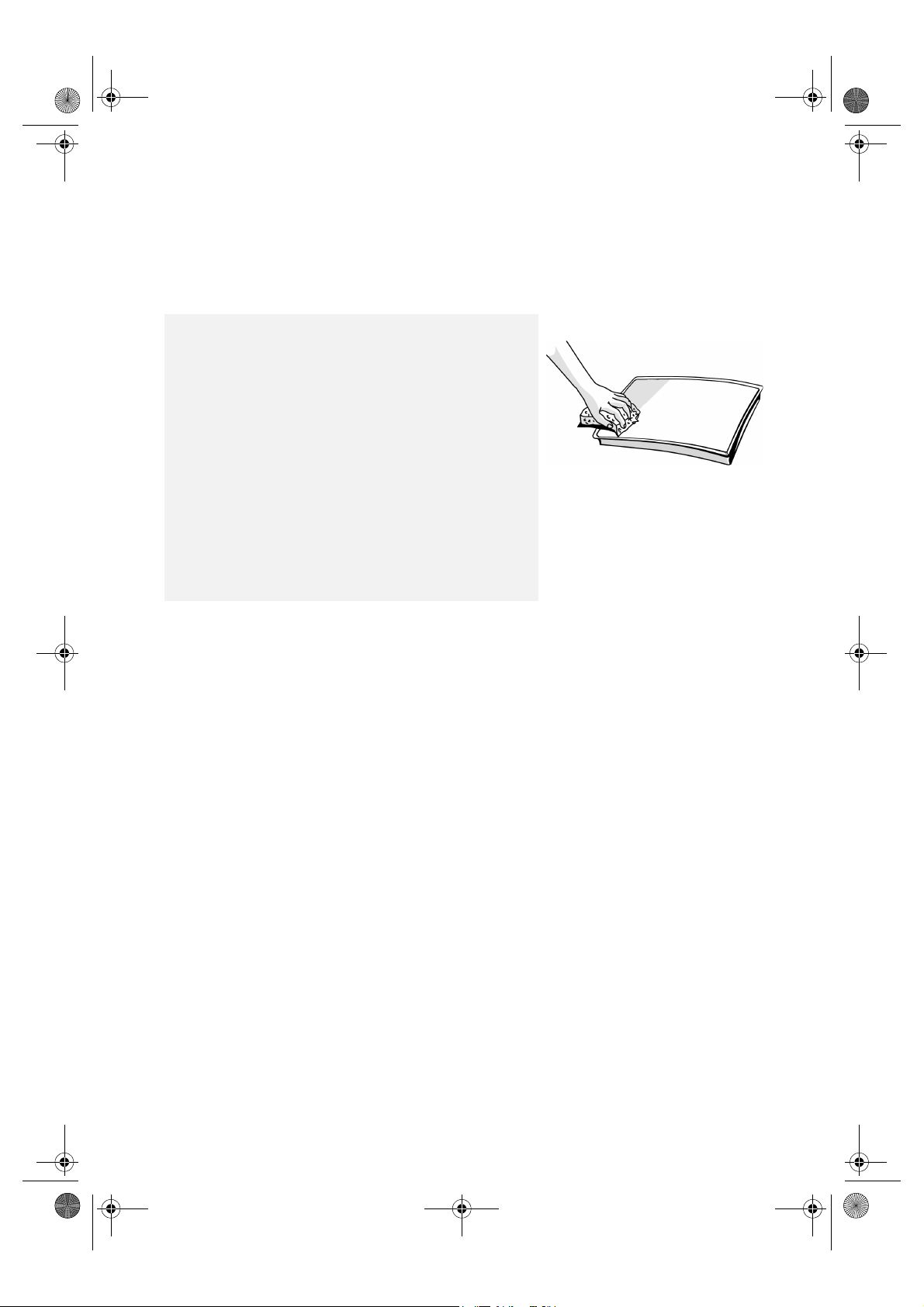

CARE AND MAINTENANCE OF THE GLASS
CERAMIC HOB

Clean the hob, when it is cool, after each use. This will prevent the
build-up of dirt and make cleaning easier.
Important: never clean the appliance with high pressure water or
steam cleaning equipment.

• Use a clean cloth, absorbent kitchen wipes and washing up
liquid or a specific glass ceramic cleaner.

• Remove baked-on dirt with the special scraper tool
(if provided) and specific cleaning products.

• Food spills should be cleaned off before they bake onto the
glass ceramic surface.

• Foods with high sugar content (toffee, fruit juice, jam, etc.)
that boil over while cooking, or spattered sugar stains must be
immediately removed using a scraper.

• Do not use abrasive products, bleach, oven-cleaner spray or
pan scourers.

The hob should be treated periodically with a proprietary brand
of protective wax for glass ceramic hobs.

TROUBLESHOOTING GUIDE

hob not working

• When pressing the control buttons, did you
follow the instructions in the section
“Using the hob” in the enclosed “Product
Description Sheet”?

• Is there perhaps a power failure?

• Did you dry the hob carefully after cleaning it?

1. If a cooking zone has been selected and an “F”
or an “ER” appear on the display followed
by a number, contact the After Sales
Service and inform them.

- With the exception of the message “F03”

or “ER03” that identifies the incorrect

cleaning of the controls area.

- To solve the problem follow the instructions

in the “Cleaning and maintenance of the
glass-ceramic hobI paragraph”.

2. If one of the following codes is displayed
when the hob On button is pressed: F12,

F13, F22, F25, F31, F36, F47, E2, E5, E6,
E7, E9 contact the After-sales Service and

inform them of the code displayed.

3. If the hob does not work following intensive
use, the hob internal temperature is too high.
Wait a few minutes until the hob cools down.
The display shows the code “F21”.

Important!

If you are not able to turn the glass ceramic hob off
after using it, disconnect it immediately from the
power supply.

18

41902030GB.fm Page 19 Monday, October 11, 2010 11:22 AM

AFTER-SALES SERVICE

Before contacting After-sales Service

1. Try to solve the problem

(see “Troubleshooting Guide”).

2. Turn off the appliance and switch it back on
again to see if the fault persists.

If after the above checks the fault persists,
contact the nearest After-sales Service.

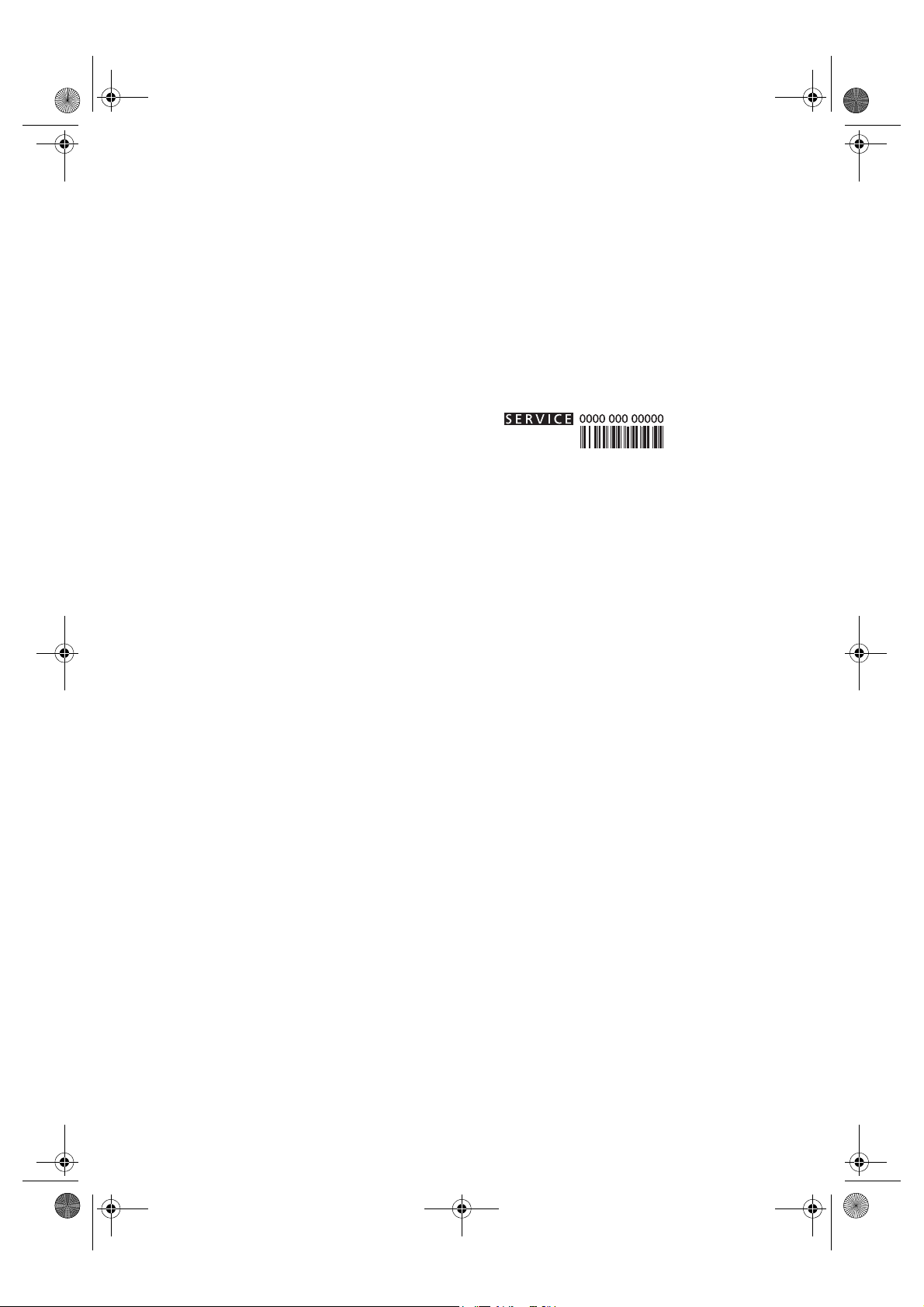

Always specify:

• a brief description of the fault,

• the precise type and model of the appliances,

• the service number (the number after the word

“Service” on the data plate), located under the
hob or on the Product Description Sheet. The
service number is also indicated on the
warranty booklet,

• your complete address and phone number.

If any repairs are required, please contact an
authorized After-sales Service as indicated in the
warranty.

Failure to comply with these instructions may
compromise the safety and quality of the
product.

19
