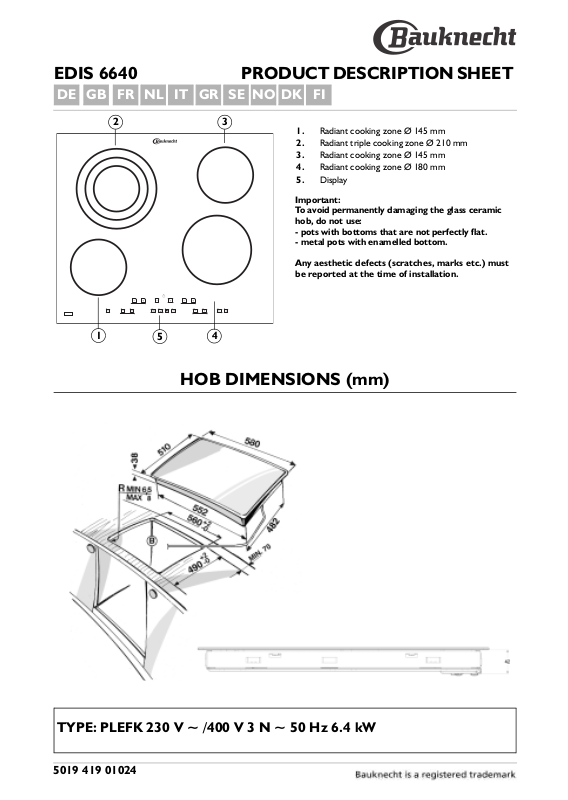

EDIS 6640 |
|
|
|
|
|
PRODUCT DESCRIPTION SHEET |
||||||||||||||
|
DE |
|
GB |
|
FR |
|
NL |
|
IT |
|
GR |
|
SE |
|
NO |
|
DK |
|
FI |
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
2 |
|
|
3 |
|
|
|
|
|
|
|
||||||||||
1. Radiant cooking zone Ø 145 mm
2. Radiant triple cooking zone Ø 210 mm
3. Radiant cooking zone Ø 145 mm
4. Radiant cooking zone Ø 180 mm
5. Display
Important:
To avoid permanently damaging the glass ceramic hob, do not use:
- pots with bottoms that are not perfectly flat. - metal pots with enamelled bottom.
Any aesthetic defects (scratches, marks etc.) must be reported at the time of installation.
1 |
5 |
4 |
HOB DIMENSIONS (mm)
TYPE: PLEFK 230 V ~ /400 V 3 N ~ 50 Hz 6.4 kW
5019 419 01024
HOW TO USE YOUR HOB
E
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
F |
C |
D |
C |
B A |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
A |
On/Off |
|
|
D |
Special functions bar |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
B |
Pause |
|
|
E |
Timer bar |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
C |
Select cooking zone and set level |
|
|
F |
Child safety device |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
Special functions bar
Multiple zone function
Enables the outer rims of the hotplates as well.
Gentle heat function
Temperature is kept low evenly across the cooking zone. Recommended cooking times are provided for the following foods (in containers): to leaven dough, to soften butter, to warm baby milk or baby food, to make yohgurt and to melt chocolate.
Fast boiling function
A more powerful setting to bring water rapidly to the boil.
Time switch
The time switch function can be used as a short-time alarm or to programme a specific cooking zone.
General use
To switch on the hob, press and hold the
key for at least two seconds. A dot lights up next to the key. A beep sounds when the hob switches on. The display shows 0 for each cooking zone. It the hob has already been on and the cooking zones have not cooled to the appropriate temperature, an Hsymbol is shown on the display for any cookings zones that are still hot. Select the required cooking zone within 25 seconds, by pressing the
or
keys to switch it on.
The cooking zone will stay selected for 6 seconds. After this, you need to select it again by pressing
o
. The hob features special functions for each different cooking zone.
If within about 25 seconds none of the cooking zones are used, the hob switches itself off automatically for safety reasons.
IMPORTANT: for safety reasons, the hob is equipped with an automatic cut-off function after 1 hour at the maximum power setting or after 6 hours at minimum power or gentle heat setting.
During normal use of the cooking zones, once a zone has been selected the power level can be set from level 1 to 9 using the
or
keys. Pressing the
key from 0 will set the hob straight to 9.
Pressing the
and
keys at the same time switches off the cooking zone.
After the cooking zone has been switched off, an H appears on the associated display to indicate that it is still hot.
This will stay on until the temperature in the cooking zone falls to a safe level.
