CABINET PARTS
REFRIGERATOR
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
05−08 Printed In U.S.A. (jdc)(bay)
1
Part No. W10184151 Rev. C
Page 2
CABINET PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10123713
W10162444
W10142162
2220407 Modular Icemaker
2216001 Instruction Sheet
2 4386774 Front Roller (2)
3 3400517 Screw
4 2196236 Rear Roller (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top (RC)
10 3400113 Screw
11 8281227 Screw
12 Hinge Cover (FC)
W10138576
W10138578
W10138577
W10138579
Energy Guide
Owner’s Manual
Service & Wiring
Sheet
Service Sheet
(Door Removal)
White
Biscuit
Black
Apollo Grey
Illus. Part
No. No. DESCRIPTION
13 Hinge Bottom
W10138965
2303141 FC
14 Filler, Wrapper
2304846 White
2304849 Biscuit
2304848 Black
2304932AP
15 Grille
2323580W White
2323580T Biscuit
2323580B Black
2323580MG
16 489497 Screw
17 489464 Screw
18 2304888 Drain Fitting
19 2304937 Extension Tube
20 1108439 Clip, Drain Tube
21 2188755 Cover, Unit
22 Cabinet (Not A
23 Hinge Cover (RC)
W10138581
W10138583
W10138582
W10138584
24 549193 Clamp, Service
RC
Apollo Grey
Midnight Grey
Serviceable Part)
White
Biscuit
Black
Apollo Grey
Cord
Illus. Part
No. No. DESCRIPTION
25 489084 Screw
26 Door Closer
2155311 RC
2223751 FC
27 489483 Screw
28 2260507 Housing, Water
Filter
29 4396841 Water Filter
30 Cap, Water
Filter
2260502W White
2260502T Biscuit
2260502B Black
2260502MG
31 489500 Screw
32 2260519 Block, Housing
33 Button, Water
2260503W White
2260503T Biscuit
2260503B Black
2260503MG
34 2255153 Tube, Filter
35 2319867 Tube, Filter
36 2203770 Hinge Top (FC)
Midnight Grey
Support
Filter
Midnight Grey
Outlet
Inlet
2
W10184151
Page 3
REFRIGERATOR LINER PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket,
Dual Crisper
Light
6 2311637 Wire Harness,
Dual Crisper
7 2319866 Shelf Ladder
8 489478 Screw
W10004810
9
10 2256085 Bracket Retainer
11 489290 Screw
W10151374
12
13 2152019 Air Diffuser
14 2150331 Cover, Wiring
15 2162085 Socket
16 2307107 Reservoir
17 2255743 Light Bulb
18 2209769 Light Lens
19 488280 Screw
Screw (2)
Air Diffuser
Assembly
Cover
W10184151
3
Page 4
REFRIGERATOR SHELF PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
Illus. Part
No. No. DESCRIPTION
1 2196485 Stud Assembly
2 2188655 Snack Bin
3 2209698 Cover, Crisper
4 3400894 Screw
5 2196483 Stud Assembly
6 2179259 Glass, Meat Cover
7 2174150 Glass, Cover
8 2311726 Cover, Meat Pan
9 8281158 Screw
10 2188652 Crisper Pan
11 2179343 Body, Humidity
Control
12 2179342 Slide, Humidity
Control
13 2255593 Trim, Handle
14 2188654 Meat Pan
15 2179350 Deflector
16 2255592 Trim, Handle
W10141750
17
18 2179243 Trim, Handle
W10141749
19
Shelf, Snack Bin
Shelf Assembly,
Spillguard (2)
4
W10184151
Page 5
FREEZER LINER PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
W10184151
5
Page 6
FREEZER LINER PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2211746K Shelf, Slide Out
Upper
3 Track, Basket−Dual
2301291 Right
2301292 Left
4 2211742K Shelf, Slide Out
5 2182971 Freezer Bin
6 3400893 Screw
7 Shelf Track
2301289 Right Side
2301290 Left Side
8 2205837K Shelf (2)
W10004810
9
10 842534 Clip, Air Duct (2)
11 2198587 Cover, Emitter
12 2198635 Spring
13 2198634 Pin
14 1115373 Switch, Rocker Arm
15 2220398 P.C. Board
16 2255588 Cover, Ice Maker
17 2212321 Slide, Ice Maker
18 489478 Screw
19 489214 Screw
20 2162085 Light Socket
21 2255743 Light Bulb
22 8281185 Screw
23 2198633 Flipper
24 2255558 Cover, Receiver
25 2255562 Slide, Ice Maker
26 2255114 P.C. Board,
27 2198643 Lens
28 2198589 Light Shield
29 2212340 Light Lens
30 2198641 Bracket, Ice Maker
31 2155597 Socket, Light
32 Ladder
2198609 Left Side
2198610 Right Side
33 2303234 Shield, Wiring
Screw (8)
Emitter
Mounting
Shut Off
Receiver
Cover
6
W10184151
Page 7
MOTOR AND ICE CONTAINER PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
W10184151
7
Page 8
MOTOR AND ICE CONTAINER PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2317254 Crusher Bin
3 2317240 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6 2317248 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
19 2317262 Latch, Bin
20 2198608 Spring, Latch
21 8281163 Screw
22 2188919 Holder
23 2317243 Wiper
24 2198628 Seal
25 2317250 Divider, Chamber
26 2188916 Drive Shaft
27 2322488 Enclosure, Motor
28 2322580 Dispenser, Motor
29 2212305 Cover
30 489478 Screw
31 2315559 Sleeve, Coupling
100 2317251 Ice Container
(Complete)
8
W10184151
Page 9

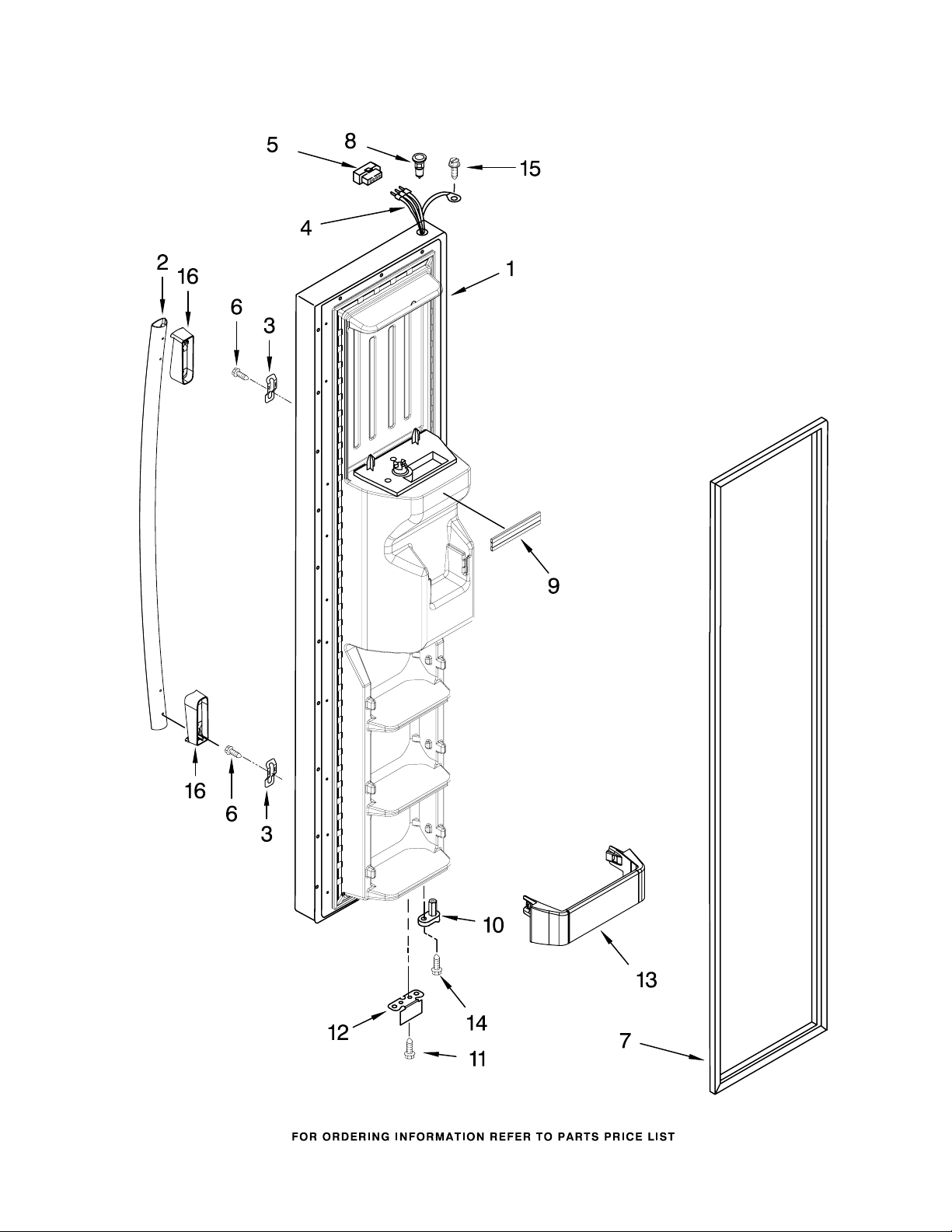

REFRIGERATOR DOOR PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
W10184151
9
Page 10
REFRIGERATOR DOOR PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
W10169197
W10169199
W10169198
W10169200
W10169203
W10169201
2 2256101 Compartment Door
3 2304235K Shelf Bin (3)
4 3400012 Screw
5 2255411 Clip
6 Door Gasket,
2221302 Mist Beige
2221313 Black
2326338 Apollo Grey
7 2156022 Shelf Bin
8 Handle, Extr
W10127808
W10127810
W10127809
W10127811
W10155511
9
10 2182178 Door Closer,
11 489420 Screw
12 Bracket, Door Stop
2323534 Chrome
2323534B Black
13 2301049 Thimble−Top
14 2255121 Nameplate
15 Handle, Endcap
W10127813
W10127815
W10127814
W10152864
White
Biscuit
Black
Stainless Steel
Mono Stainless
Mono Satina
Magnetic
White
Biscuit
Black
Stainless, All
Screw (4)
Upper Cam
White
Biscuit
Black
Stainless, All
10
W10184151
Page 11
FREEZER DOOR PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
W10184151
11

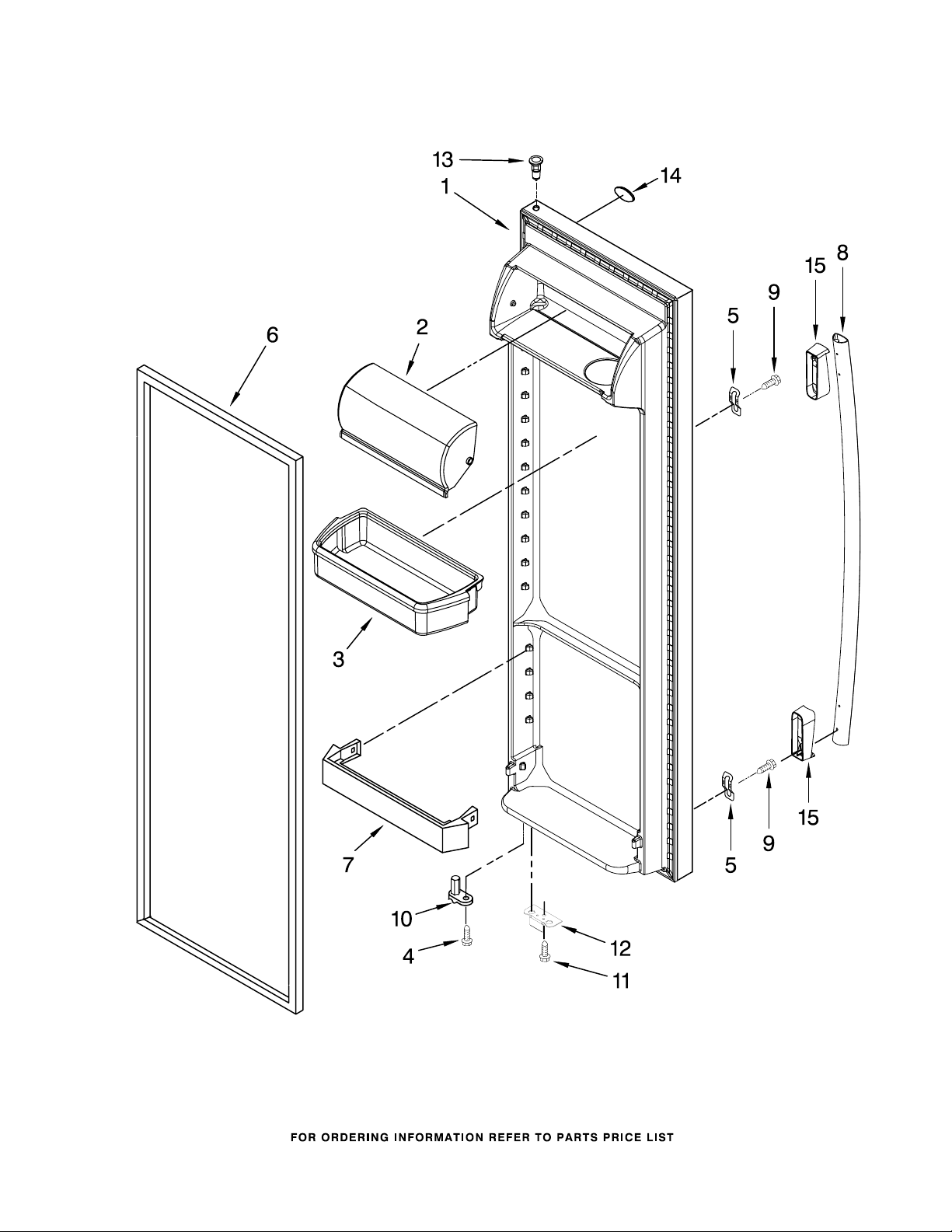

Page 12
FREEZER DOOR PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
W10141323
W10141325
W10141324
W10141327
W10177270
W10177269
2 Handle, Extr
W10127808
W10127810
W10127809
W10127811
3 2255411 Clip
4
W10167528
5 2154473 Connector
W10155511
6
7 Door Gasket,
2221303 Mist Beige
2221314 Black
2326339 Apollo Grey
8 Thimble−Top
2301049 For White, Black,
2308091 For Stainless
9 2219982 Trim, Door Shelf
10 2182179 Door Closer,
11 489420 Screw
12 Bracket, Door Stop
2323534 Chrome
2323534B Black
13 2171157K Trivet−FC
14 3400012 Screw
15 488500 Screw
16 Handle, Endcap
W10127813
W10127815
W10127814
W10152864
White
Biscuit
Black
Stainless Steel
Mono Stainless
Mono Satina
White
Biscuit
Black
Stainless, All
Dispenser Harness
Screw (4)
Magnetic
Biscuit and
Stainless VCM
Models
Steel Model
Upper Cam
White
Biscuit
Black
Stainless, All
12
W10184151
Page 13
DISPENSER FRONT PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
W10184151
13

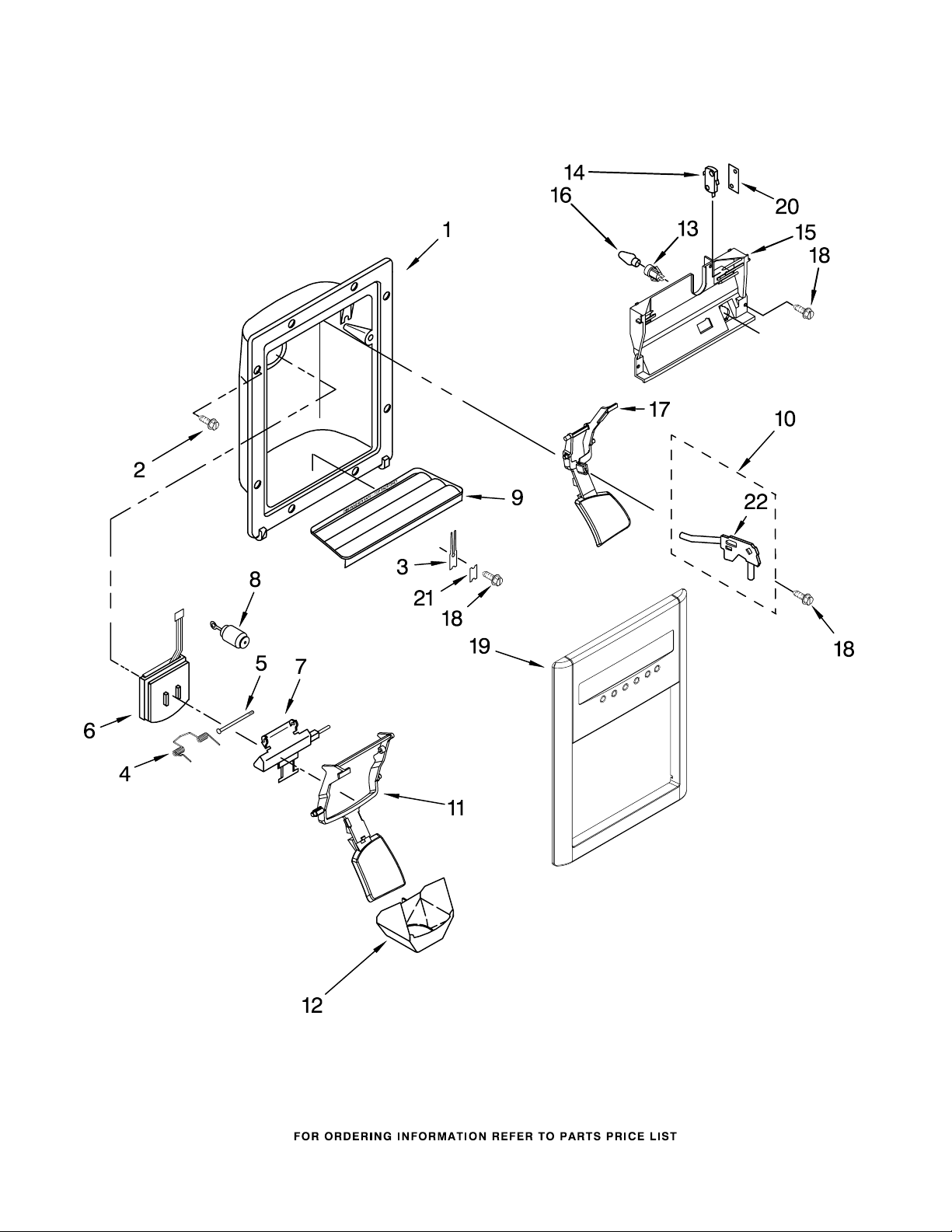

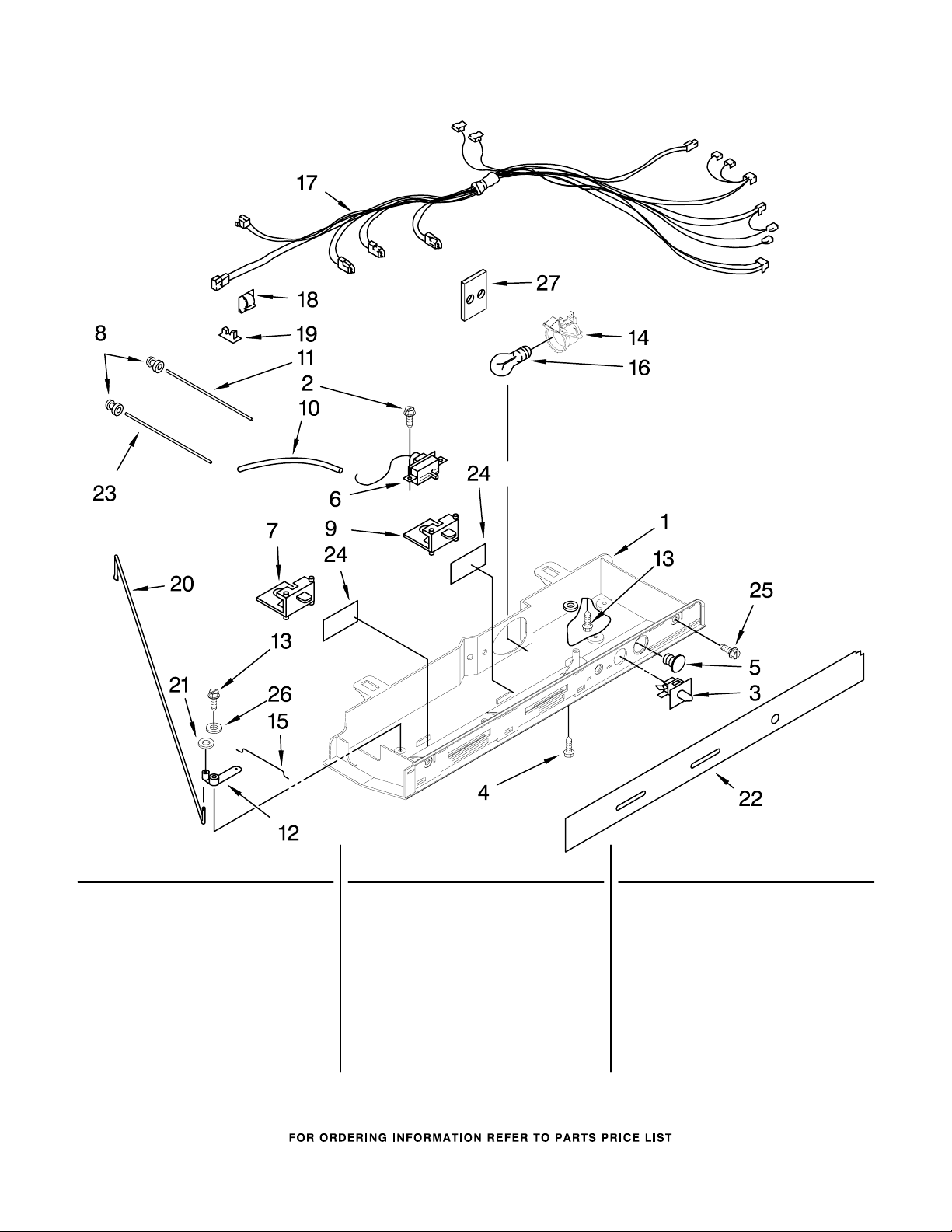

Page 14
DISPENSER FRONT PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2304772 Spring, Torsion
5 2196195 Pin
6 2180353 Door, Ice
7 2304355 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2206670W White
2206670T Biscuit
2206670B Black
W10171993
10 2304317 Water Fitting
11 Lever, Ice
W10152853
W10152855
W10152854
W10155161
12 2180224 Guide, Ice
13 2180200 Lamp Holder
14 2162361 Switch
15 2183771 Bracket, Control
16 3406124 Bulb, Light
17 Lever, Water
W10152858
W10152860
W10152859
W10155162
18 489000 Screw
19 Front Cover
W10157646
W10157648
W10157647
W10157650
W10172006
20 625834 Spacer, Switch (2)
21 2195051 Strain Relief
22 2304673 Bracket, Dispenser
Stainless
Assembly (Includes
Water Tube)
Dispenser
White
Biscuit
Black
Apollo Grey
Dispenser
White
Biscuit
Black
Apollo Grey
Assembly
White
Biscuit
Black
Stainless,
Mono Satina (SS)
Mono Stain (NO)
14
W10184151

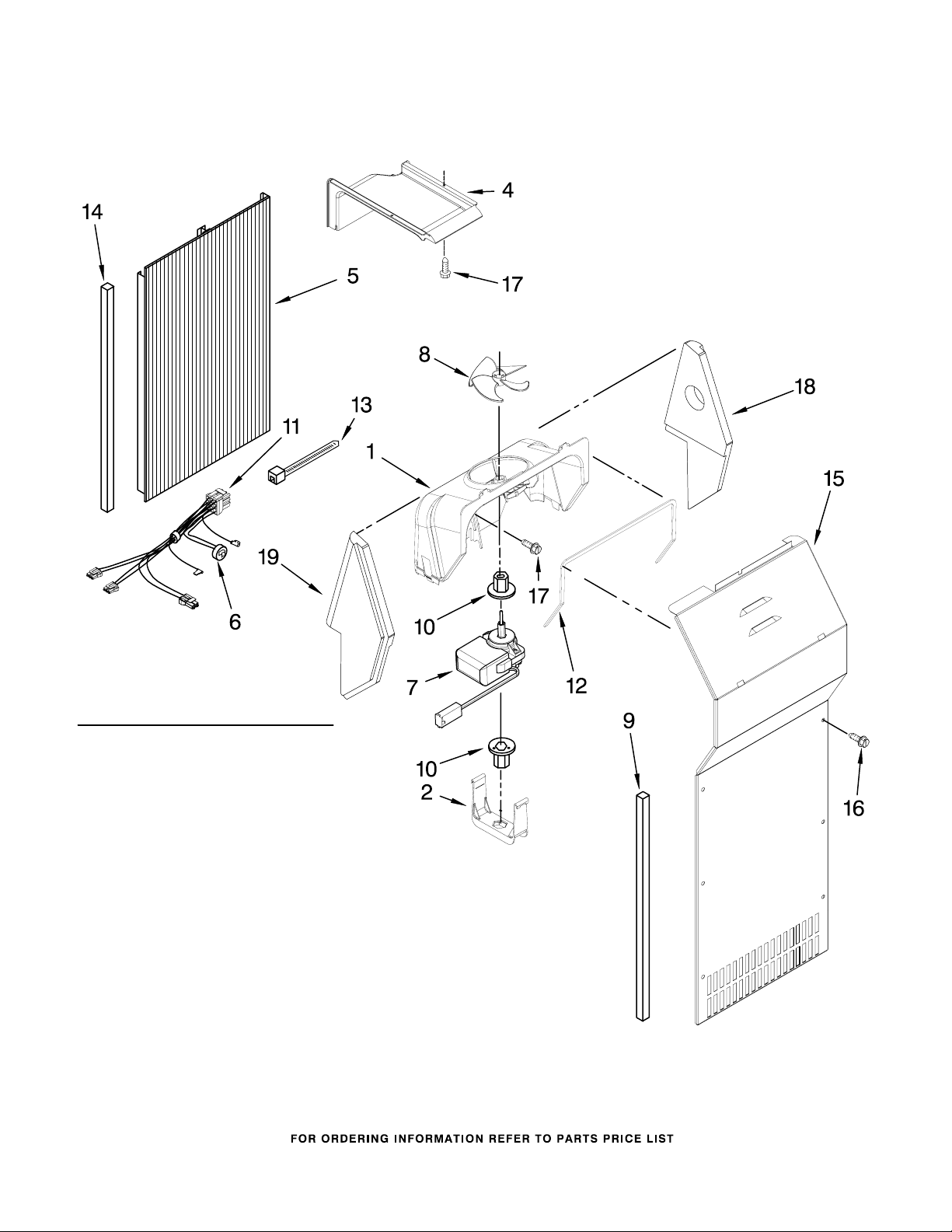

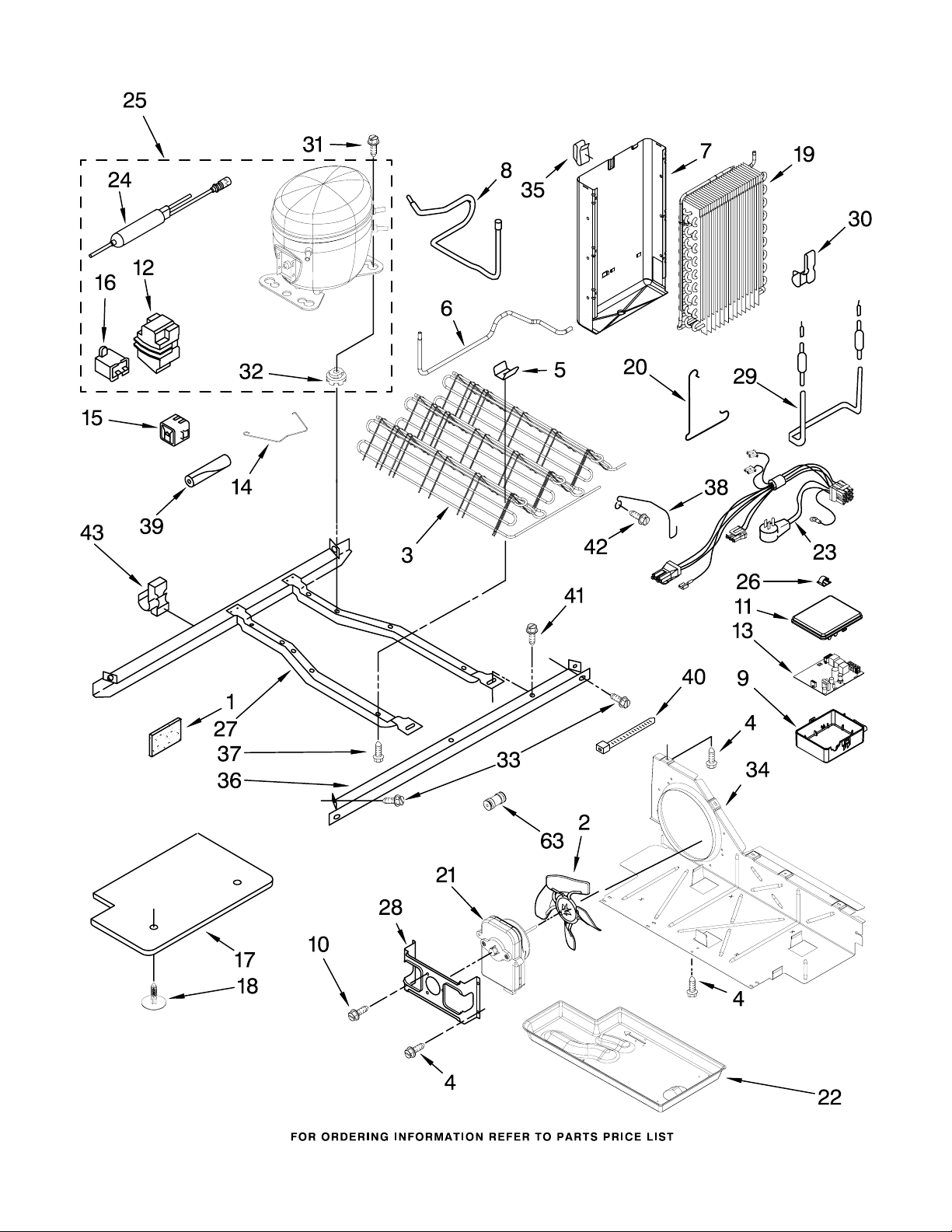

Page 15
AIR FLOW PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer
Fan Motor
4 2313359 Air Duct, Upper
5 2198580 Air Duct Freezer
6 2321799 Bi−Metal, Defrost
7 2315549 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2176759 Fan Grommet (2)
W10129815
11
12 2155789 Gasket, Fan Scroll
13 2172840 Strap
14 2203876 Gasket
15 2206314 Cover, Evaporator
16 8281159 Screw (6)
17 489478 Screw
18 2203595 Support, R.S.
19 2203596 Support, L.S.
Harness, Fan
Evaporator
(Includes #6)
(Includes #9)
W10184151
15
Page 16
CONTROL PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
Illus. Part
No. No. DESCRIPTION
1 2181737 Control Box
2 489214 Screw (2)
3 2149705 Switch, Light
4 489398 Screw (2)
5 940014 Hole Plug
6 2315562 Thermostat
7 2181741 Slide, Air Control
8 2172906 Grommet, Light
Bar (4)
9 2161466 Slide, Thermostat
10 2196001 Tube Barrier
Illus. Part
No. No. DESCRIPTION
11 2179920 Light Bar (RC)
12 2161306 Pivot Arm
13 627068 Screw
14 2162085 Light Socket
15 2161307 Connecting Rod,
Short
16 2255743 Light Bulb
17 2206511 Control Box
Harness
18 1115374 Clip, Wiring
16
Illus. Part
No. No. DESCRIPTION
19 1115375 Clip, Wiring
20 2161308 Connecting Rod
21 489391 Fastner, Push−On
W10176424
22
23 2179921 Light Bar (FC)
24 2175513 Window
25 489084 Screw (2)
26 489203 Spring Washer
27 2172931 Heat Shield
Escutcheon,
Control Box
W10184151
Page 17
UNIT PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
W10184151
17
Page 18
UNIT PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
Illus. Part
No. No. DESCRIPTION
1 2169104 Insulation, Sound
2 12825802 Fan, Blade
3
W10121484
4 489464 Screw
5 2216914 Clip, Condenser
6 2161341 Tube, Condenser to
7 2256150 Heat Shield
8 2205765 Tube Suction
9 2326982 Control Box
10 8533993 Screw
11 2255624 Box Cover
12 4387731 Cover
13 2322572 Elec. Control
14 2223314 Clip, Retaining
15 2304885 Start−Device,
16 Capacitor
2169373 Production
2264017 Service
17 2304899 Unit Cover, Bottom
18 489396 Clip
19 2188823 Evaporator
20 2161324 Clip
21 2188874 Motor, Fan
22 1105523 Tray, Evaporator
23
W10163019
Condenser Assembly
Heat Loop
And Drain Pan
(Service Only)
Combination
(Start Relay and
Overload)
Harness, Unit
Illus. Part
No. No. DESCRIPTION
24 Drier
2319825 Production
2317845 Service
25 2320138 Compressor
(Includes Items
12, 13, 17, 18,
19 & 27)
(Also Order
876765 Tube Kit)
26 1115374 Clip, Wiring
27 2304904 Unit Mounting
Frame
28 2181929 Bracket, Fan Motor
29 2323198 Heater, Defrost
30 2304287 Clip, Heater
31 489373 Screw
32 Grommet (4)
1100826 Production
4387558 Service
33 489340 Screw
34 2196202 Air Baffle
35 2155547 Clip, Heat
36 2305374 Unit Mounting
Rail
37 8281232 Screw
38 2186495 Guard, Fan
39 2161302 Sleeve
40 2172840 Wire Tie
41 489427 Screw
42 489478 Screw
43
W10169512
63 2320322 Union
Clip, Wire & Tube
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)
18
W10184151
Page 19

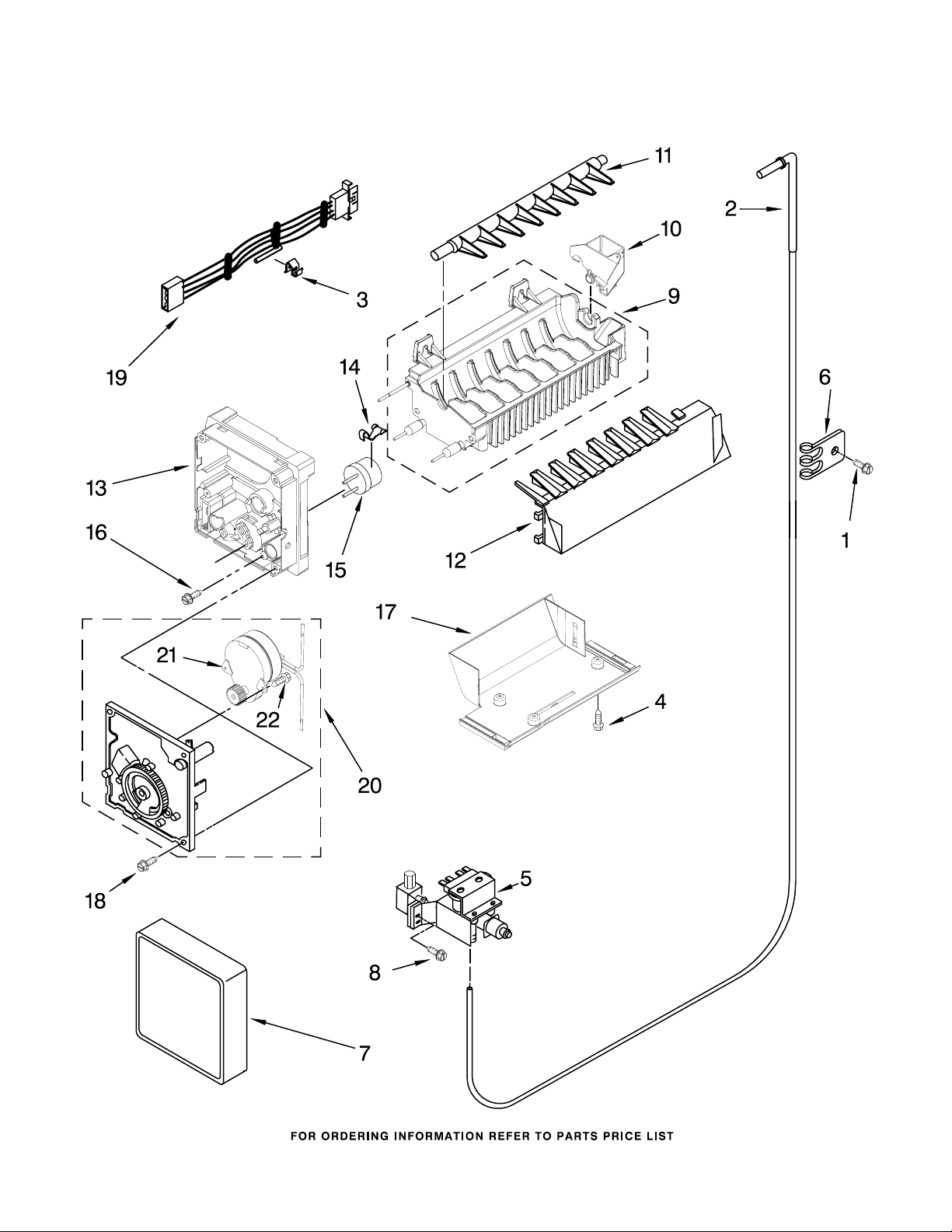

ICEMAKER PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
W10184151
19
Page 20
ICEMAKER PARTS
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2303216 Fitting, Water
Tube
3 628379 Clip, Fuse
4 489478 Screw
5 2315534 Filter Valve Asm
6 2208136 Clip, Tube
7 2174358 Cover
8 488649 Screw
W10122527
9
10 2304969 Cup−Water Fill
11 627843 Ejector
12 2198598 Ice Stripper
13 2194712 Support
14 2315522 Retainer,
15 627985 Thermostat (Also
16 8533917 Screw
17 2303583 Bracket, Ice Maker
18 489276 Screw
19 2187467 Harness, Wiring
20 626691 Module Assembly
21 626683 Motor
22 489136 Screw
100
W10122502
Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
Thermostat
Order 542369
Cement
Alumilastic)
Mounting
(Includes Items
21 & 22)
Icemaker Assembly
20
W10184151
Page 21
OPTIONAL PARTS (NOT INCLUDED)
For Models: ED5FHAXVQ00, ED5FHAXVT00, ED5FHAXVB00, ED5FHAXVS00, ED5FHAXVY00, ED5FHAXVA00
(White) (Biscuit) (Black) (Stainless Steel) (Mono Satina) (Mono Stainless)
Illus. Part
No. No. DESCRIPTION
PAINT, BULK (1 qt.)
350942 Primer, White
350939 Black
350930 White
4392901 Biscuit
8171357 Graphite
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
72032 Black
80051 Graphite
Important:
not to be used where the paint
may make contact with the door
gaskets.
The spray paint is
Illus. Part
No. No. DESCRIPTION
PAINT, BULK (1 qt.)
799340 Black
799344 White
4392900 Biscuit
8171358 Graphite
Miscellaneous
8129 Coil Brush
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
505587 Sealer, Mastic
(1 Qt.)
503695 Cork, Sealer
(1/4 Pound)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
833938 Kit, Terminal
Connector
Illus. Part
No. No. DESCRIPTION
TORX SCREW WRENCH
1117510 Torx Key
W10184151
21
Loading...
