Page 1
CABINET PARTS
For Models: ED2LHEXTD00
(Universal Silver)
REFRIGERATOR
05−07 Litho In U.S.A. (mat)
1
Part No. W10143042 Rev. A
Page 2

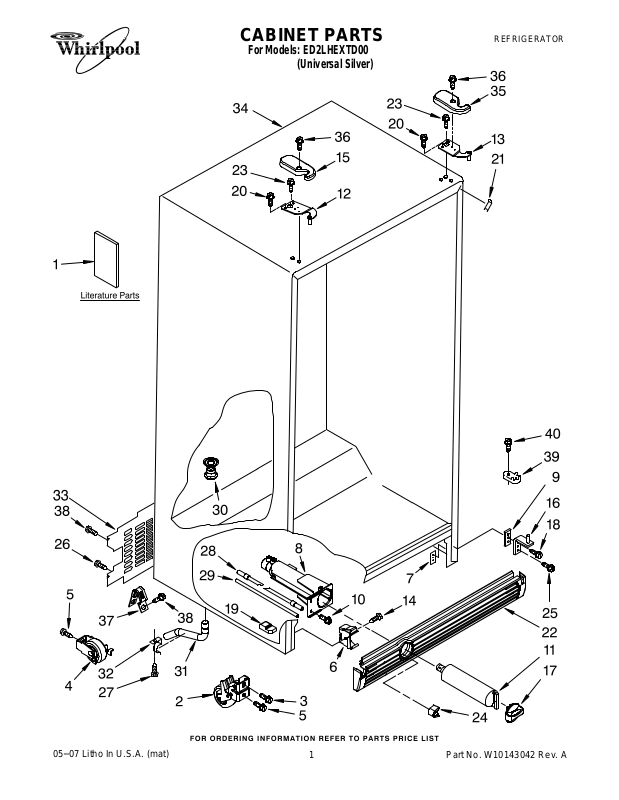

CABINET PARTS
For Models: ED2LHEXTD00
(Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2309541 Use & Care Guide
2311814 Service & Wiring
Sheet
2325847 Energy Label
2261037 Instruction Sheet,
Door Removal
628370 Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 2304249 Plate, Screw
8 2260507 Housing, Water
Filter
9 2209697 Shim (2)
10 489500 Screw (2)
11 4396841 Water Filter
12 2203770 Hinge Top (FC)
Illus. Part
No. No. DESCRIPTION
13 2203771 Hinge, Top (RC)
14 488500 Screw
15 Hinge Cover
2203407B Black
16 2217075 Hinge Bottom (2)
17 Cap, Water
Filter
2260518B Black
18 3400113 Screw (4)
19 2260519 Block, Housing
Support
20 3400858 Screw
21 Filler, Wrapper
2201017 Black
22 Grille
2260501B Black
23 489497 Screw
24 Button, Water
Filter
2260503B Black
25 3400103 Screw (2)
26 489290 Screw
Illus. Part
No. No. DESCRIPTION
27 489464 Screw
28 2319867 Tube, Filter
Inlet
29 2304708 Tube, Filter
Outlet
30 2304888 Drain Fitting
31 1108438 Extension Tube
32 1108439 Clip, Drain Tube
33 2188734 Cover, Unit
34 Cabinet (Not A
Serviceable Part)
35 Hinge Cover
2203408B Black
36 8281227 Screw
37 549193 Clamp, Service
Cord
38 489084 Screw
39 2155311 Door Closer,
Lower Cam (2)
40 489483 Screw (2)
2
W10143042
Page 3
REFRIGERATOR LINER PARTS
For Models: ED2LHEXTD00
(Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
2 2257741 Louver
3 2256035 Bracket, Dual
4 489084 Screw (2)
5 2311637 Wire Harness,
6 2311612 Clip, Control
7 2209753 Air Diffuser
8 2152019 Air Diffuser
9 2150331 Cover, Conduit
10 486298 Screw
11 2162085 Socket
12 2256126 Reservoir
13 2311792 Light Bulb
14 2209769 Light Lens
15 488280 Screw (2)
Serviceable Part)
Crisper Light
Crisper Light
Box (2)
Assembly
Cover
W10143042
3
Page 4
REFRIGERATOR SHELF PARTS
For Models: ED2LHEXTD00
(Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 2309518 Snack Pan
2 2311980 Glass, Cover
3 2209698 Cover, Crisper
4 2255593 Trim, Pan
5 2179259 Glass, Cover
6 2309519 Trim, Handle
7 2179234 Trim, Meat Pan
8 2179342 Slide, Humidity
9 2188652 Crisper Pan
10 2188654 Meat Pan
11 2196485 Stud Assembly
12 3400894 Screw
13 2179343 Housing, Humidity
14 2196483 Stud Assembly
15 8281158 Screw
16 2309561 Shelf Assembly,
Control
Control
Spillguard (3)
4
W10143042
Page 5
FREEZER LINER PARTS
For Models: ED2LHEXTD00
(Universal Silver)
W10143042
5
Page 6
FREEZER LINER PARTS
For Models: ED2LHEXTD00
(Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 1115380 Slide, Ice Door
3 2171712 Door, Ice
Compartment
4 2309634 Shelf, Wire
5 489478 Screw
6 842534 Clip, Air Duct (2)
7 2196206 Support, Stud (4)
8 2163762 Cup, Shelf
Mounting (12)
9 2309758 Freezer Bin
10 1115373 Switch, Rocker Arm
11 2309633 Shelf, Wire
12 Slide, Container
1119237 Left Side
1119293 Right Side
13 489100 Screw (4)
14 3400893 Screw
15 2309632 Shelf, Wire
6
W10143042
Page 7
MOTOR AND ICE CONTAINER PARTS
For Models: ED2LHEXTD00
(Universal Silver)
W10143042
7
Page 8

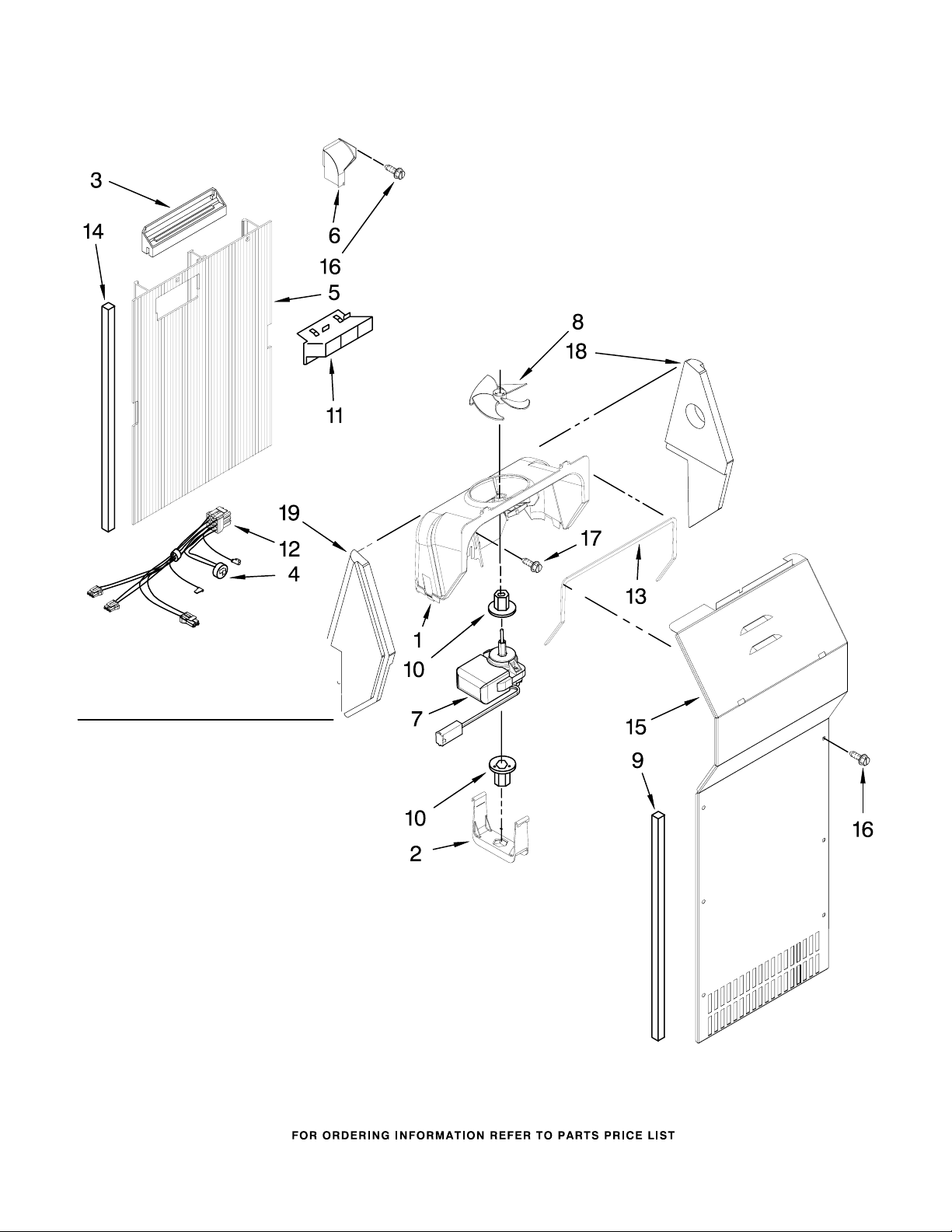

MOTOR AND ICE CONTAINER PARTS
For Models: ED2LHEXTD00
(Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 2183728 Bracket, Motor
2 2188385 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
5 489355 Screw (2)
6 2311639 Wiring Assembly,
Ice Dispenser
7 489399 Screw (6)
8 2205716 Coupling, Motor
9 489478 Screw
10 2162085 Socket, Light
11 2196089 Ice Container
12 1119005 Spacer, Step (3)
13 1119007 Spacer, Flat (2)
14 2257022 Blade, Rotary
15 2257023 Blade, Rotary
16 2257024 Blade, Rotary
17 489235 Washer, Plain
18 1119009 Blade, Fixed (2)
19 2157405 Block, Blade
20 489229 Roll Pin
21 2196295 Auger
22 2305377 Drum
23 2171682 Floating Baffle
24 1119018 Nut, Bearing
25 2155231 Control Arm
26 1119020 Spring, Return
27 1119021 Retainer Clip, Rod
28 488886 Screw
29 2180348 Housing, Crusher
30 1119017 Deflector, Ice
31 489234 Washer, Plain
32 489236 Retainer Ring
33 2171709 Front Cover,
Ice Container
34 2311792 Light Bulb
35 2171706 Light Lens,
Dispenser
100 2209779 Ice Container
(Complete)
8
W10143042
Page 9
REFRIGERATOR DOOR PARTS
For Models: ED2LHEXTD00
(Universal Silver)
W10143042
9
Page 10

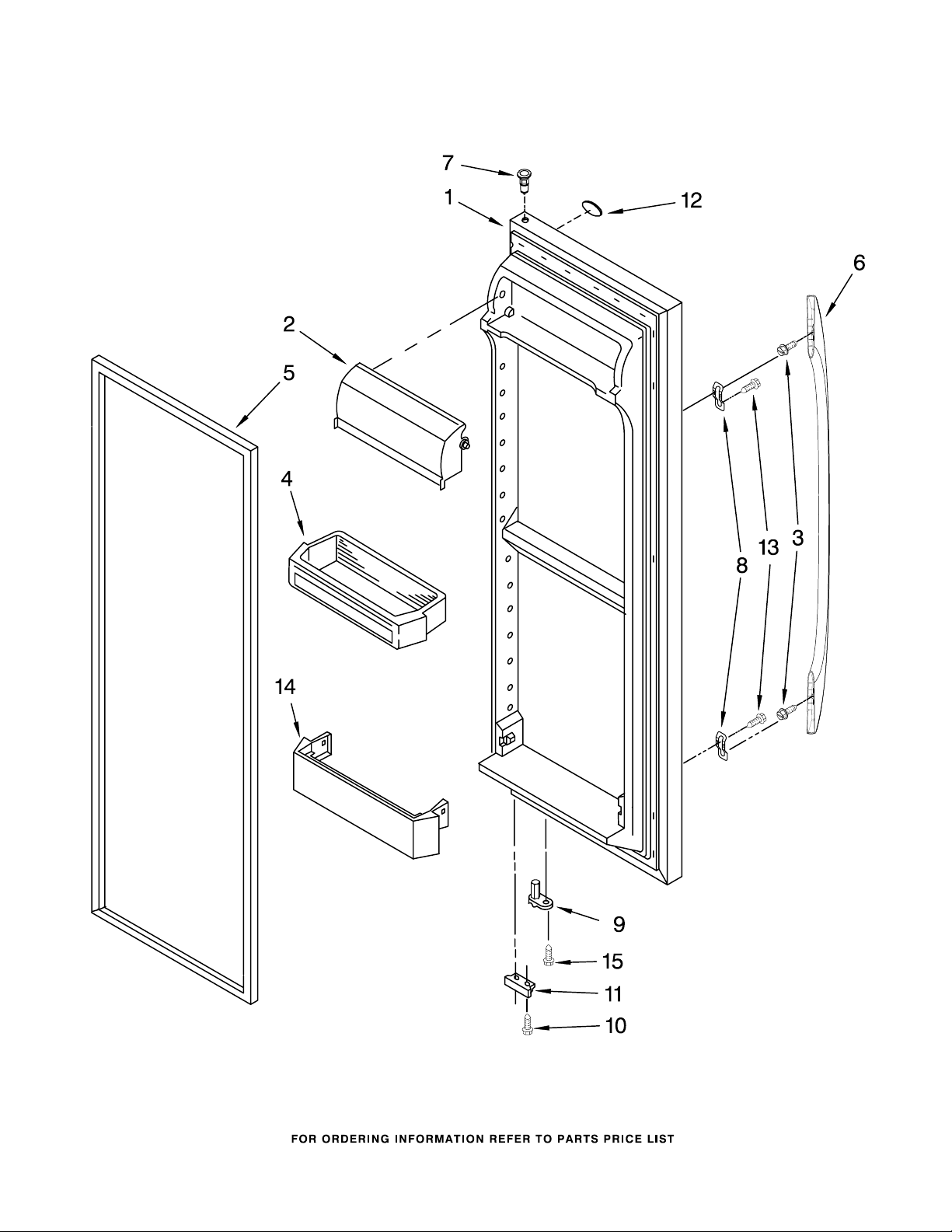

REFRIGERATOR DOOR PARTS
For Models: ED2LHEXTD00
(Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item 5)
2311657US
2 2256101 Door, Compartment
3 489491 Screw
4 2187172 Door Bin (3)
5 Door Gasket,
2309653 Black
6 Handle
2313345B Black
7 2308091 Thimble−Top
8 2255411 Clip
9 2182178 Door Closer,
10 489420 Screw
11 Bracket, Door Stop
2206629B Black
12 2255121 Nameplate
13 8533920 Screw
14 2177962 Trivet
15 3400012 Screw
Universal Silver
Magnetic
Upper Cam
10
W10143042
Page 11
FREEZER DOOR PARTS
For Models: ED2LHEXTD00
(Universal Silver)
W10143042
11
Page 12

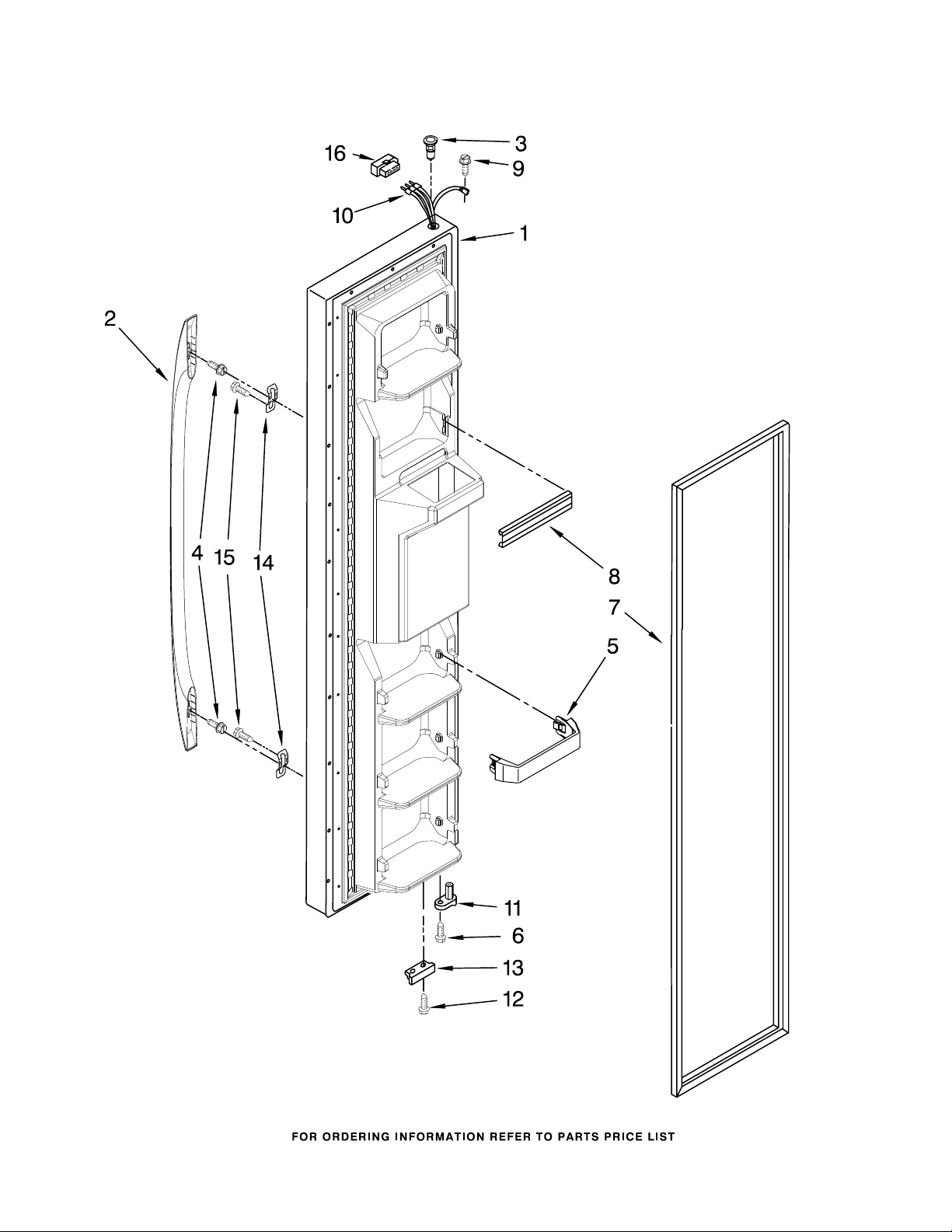

FREEZER DOOR PARTS
For Models: ED2LHEXTD00
(Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes Item 7
And Dispenser
Front Parts)
2325844US
2 Handle
2313345B Black
3 2182181 Thimble−Top
4 8533920 Screw
5 2309717 Trivet (4)
6 3400012 Screw
7 Door Gasket,
2309654 Black
8 2209680 Trim, Door Shelf
9 488500 Screw
10 2311642 Wire Harness
11 2182179 Door Closer,
12 489420 Screw
13 Bracket, Door Stop
2206629B Black
14 2255411 Clip
15 489491 Screw
16 2154473 Connector
Universal Silver
Magnetic
Upper Cam
12
W10143042
Page 13
DISPENSER FRONT PARTS
For Models: ED2LHEXTD00
(Universal Silver)
W10143042
13
Page 14

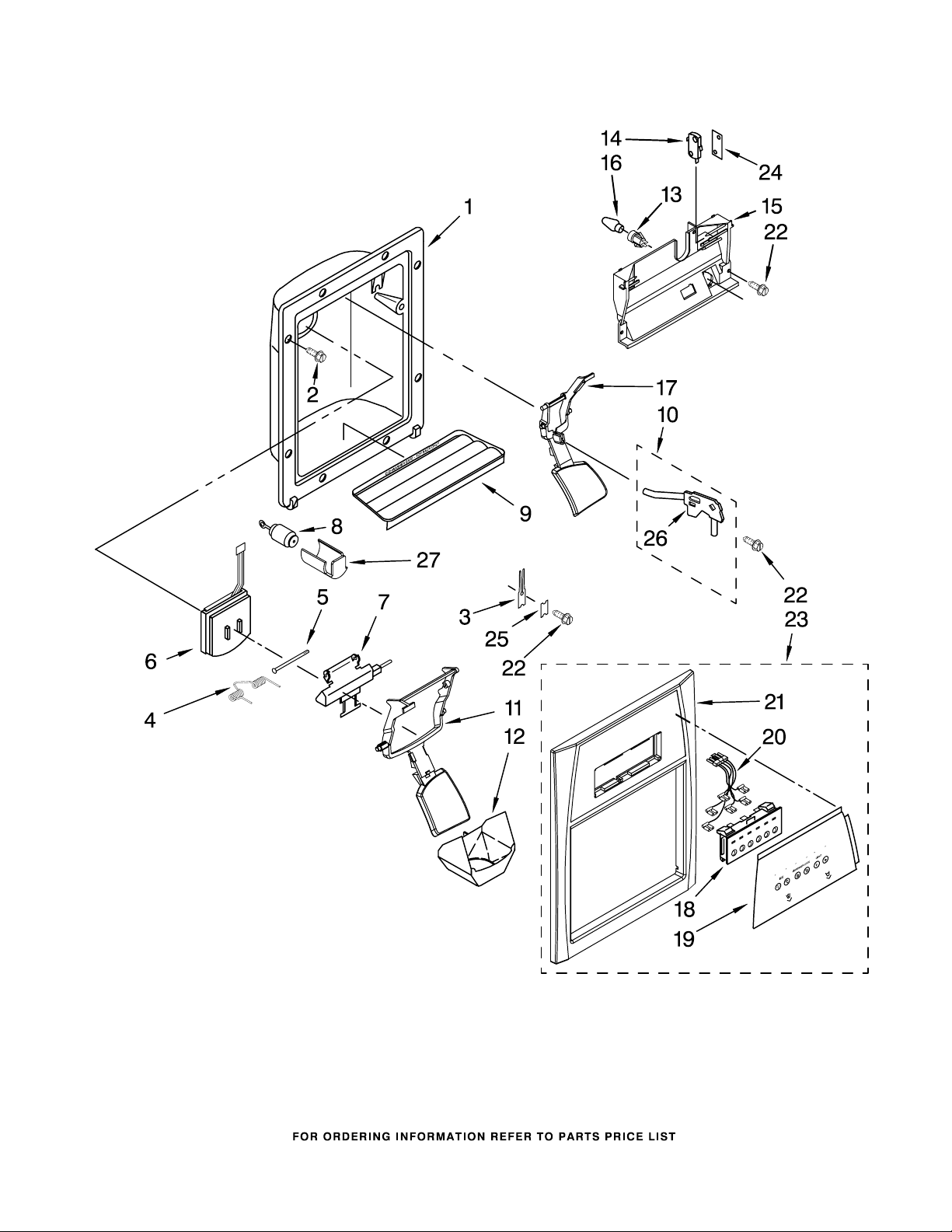

DISPENSER FRONT PARTS
For Models: ED2LHEXTD00
(Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2304772 Spring, Torsion
5 2196195 Pin
6 2180353 Door, Ice
7 2304355 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2206671B Black
10 2304317 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2255431B Black
12 2180224 Guide, Ice
13 2180200 Lamp Holder
14 2162361 Switch (2)
15 2183771 Bracket, Control
16 3406124 Bulb, Light
17 Lever, Water
Dispenser
2255432B Black
18 Switch Assembly
(Not Available
Order #23)
19 Overlay, Front
Cover
(Not Available
Order #23)
20 2311639 Wire Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
18, 19, 20 & 21)
2311691B Black
24 625834 Spacer, Switch (2)
25 2195051 Strain Relief
26 2304673 Bracket, Dispenser
27 2252127 Sleeve, Delay
Mechanism
14
W10143042
Page 15
UNIT PARTS
For Models: ED2LHEXTD00
(Universal Silver)
W10143042
15
Page 16

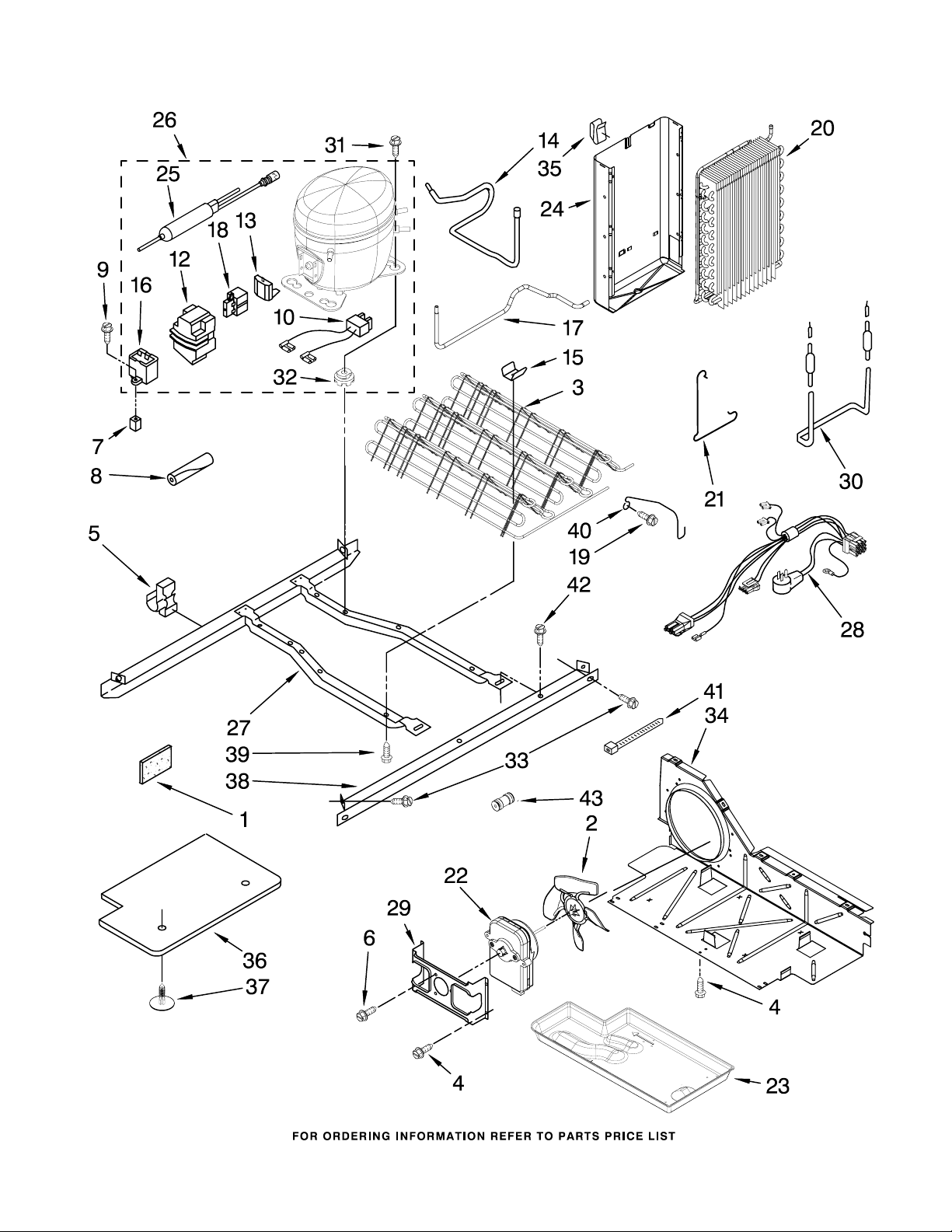

UNIT PARTS
For Models: ED2LHEXTD00
(Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 2169104 Insulation, Sound
2 2225834 Fan, Blade
3 2304902 Condenser
Assembly
4 489464 Screw
5 2208280 Clip, Wire
6 8533993 Screw
7 509812 Grommet
8 2161302 Sleeve
9 488687 Screw
10 Wire, Capacitor
2325306 Production
4387765 Service
12 Cover, Terminal
2217635 Production
4387731 Service
13 Overload
2162216 Production
2187145 Service
14 2220642 Tube Suction
15 2311725 Clip, Condenser(2)
16 Capacitor
2255130 Production
1118576 Service
17 2261599 Tube, Condenser to
Heat Loop
18 Relay
2262182 Production
2183454 Service
19 489478 Screw
20 2188822 Evaporator
21 2161324 Clamp
Illus. Part
No. No. DESCRIPTION
22 2188874 Fan, Motor
23 1105523 Tray, Evaporator
24 2217195 Heat Shield
25 Drier
2319825 Production
2317845 Service
26 2255011 Compressor
(Includes Items
10, 12, 13, 16,
18 & 25)
(Also Order
876765 Tube Kit)
27 2304903 Unit Mounting
Frame
28 2325300 Unit, Harness
(Includes Power
Cord)
29 2181929 Fan, Motor Bracket
30 2188174 Heater, Defrost
31 489373 Screw (4)
32 Grommet (4)
1100826 Production
4387558 Service
33 489340 Screw (5)
34 2196202 Air Baffle
35 2155547 Clip, Heat Shield
36 2182057 Unit Cover, Bottom
37 489396 Clip
38 2149718 Unit Mounting
Rail
Illus. Part
No. No. DESCRIPTION
39 8281232 Screw
40 2260516 Guard, Fan
41 2263990 Strap
42 489427 Screw
43 2209709 Union
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)
16
W10143042
Page 17
AIR FLOW PARTS
For Models: ED2LHEXTD00
(Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 2182119 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2149544 Diffuser, Air Duct
4 2188824 Bi−Metal, Defrost
5 2203591 Air Duct Freezer
6 2161231 Air Scoop
7 2162404 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2176759 Fan Grommet (2)
11 2182146 Duct, Icemaker
12 2310114 Harness, Fan
Evaporator
(Includes #4)
13 2155788 Gasket, Fan Scroll
14 2203875 Gasket
15 2203840 Cover, Evaporator
(Includes #9)
16 8281159 Screw (6)
17 489478 Screw
18 2203595 Support, R.S
19 2203596 Support, L.S
W10143042
17
Page 18

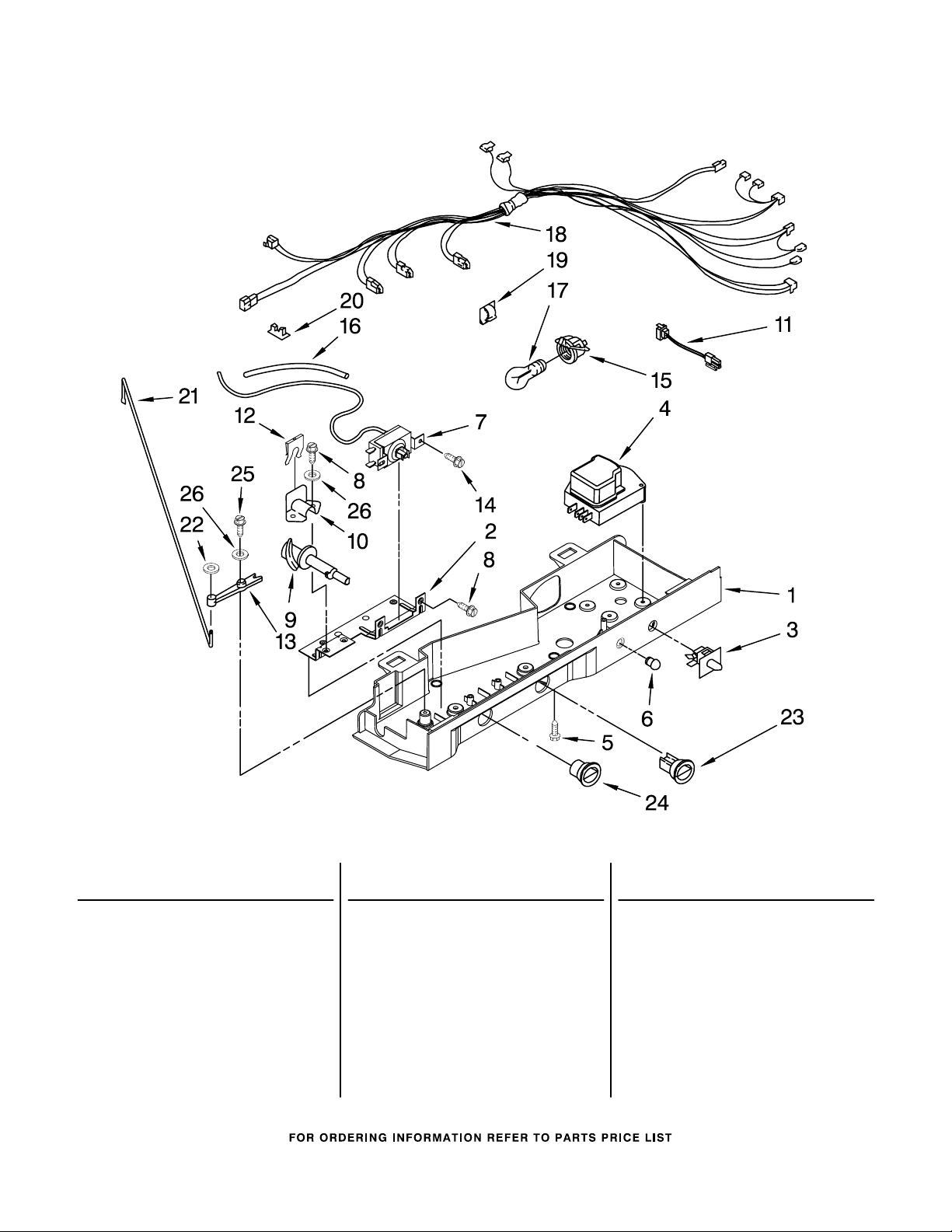

CONTROL PARTS
For Models: ED2LHEXTD00
(Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 2311623 Control Box
2 2311611 Mounting Bracket
3 2219875 Light Switch
4 2303824 Electronic
Control
5 489398 Screw (2)
6 2200096 Cover, Light Lens
7 2198202 Thermostat
8 3196537 Screw
9 2182195 Cam Assembly
Illus. Part
No. No. DESCRIPTION
10 1110560 Bearing Body
11 2213462 Led and Connector
Assembly
12 2196062 Damper Control
13 1110559 Pivot Arm
14 487869 Screw
15 2162085 Light Socket
16 2196001 Tube Barrier,
Thermostat
17 2311792 Light Bulb
18 2311633 Control Box
Harness
18
Illus. Part
No. No. DESCRIPTION
19 1115374 Clip, Wiring
20 1115375 Clip, Wiring
21 2311631 Connecting Rod
22 489285 Fastener, Push−On
23 2311614 Thermostat Knob
24 2311615 Control Knob
25 627068 Screw
26 489203 Spring Washer
W10143042
Page 19
ICEMAKER PARTS
For Models: ED2LHEXTD00
(Universal Silver)
W10143042
19
Page 20

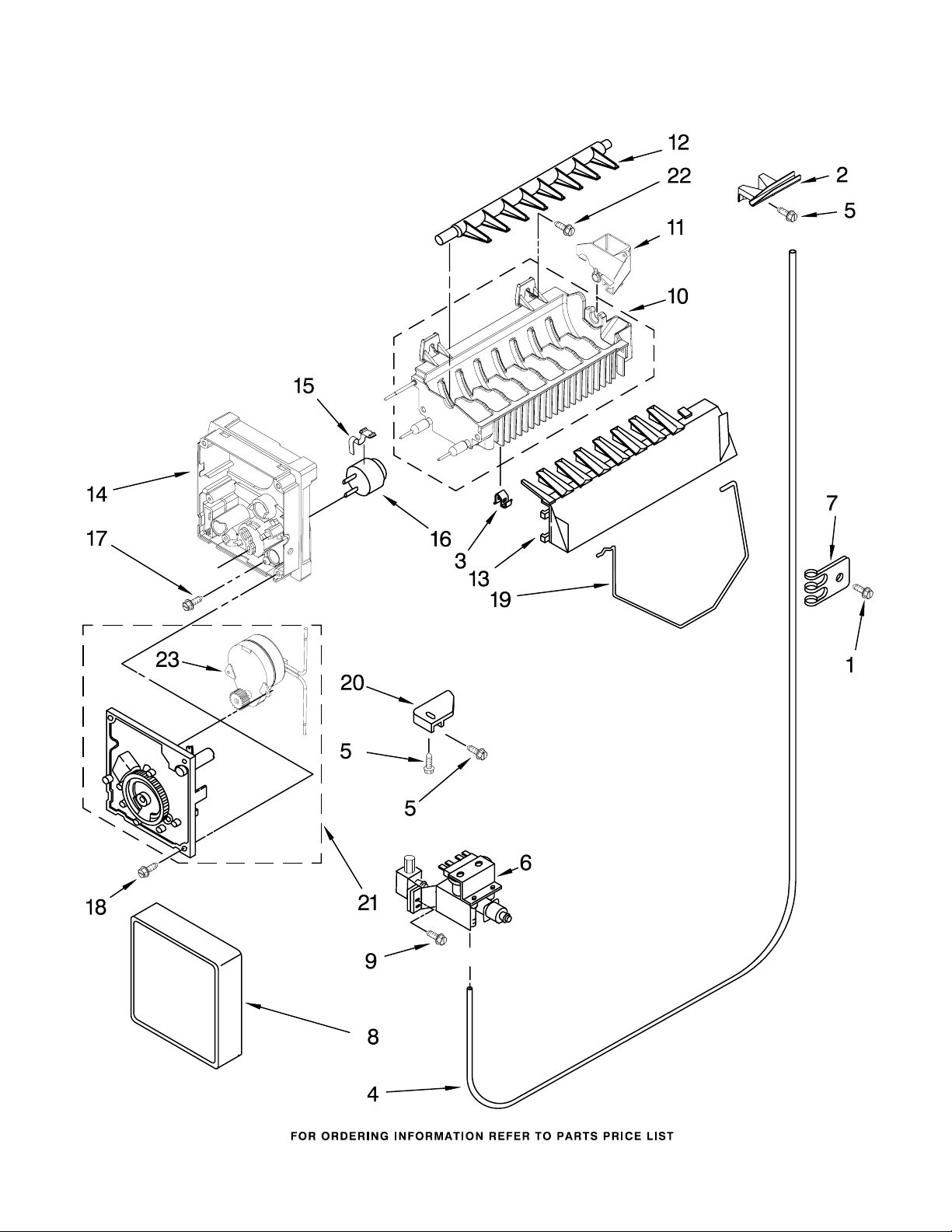

ICEMAKER PARTS
For Models: ED2LHEXTD00
(Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2209774 Chute, Water
3 628379 Clip, Fuse
4 2304859 Tube, Water
5 489478 Screw
6 2188708 Filter Valve Asm
7 2208136 Tube Clip
8 2174155 Cover
9 488649 Screw (2)
10 628228 Mold & Heater
Assembly (Also
Order 542638
11 628515 Cup, Water Fill
12 627843 Ejector
13 2182124 Ice Striper
14 2194712 Support
15 2315522 Retainer,
Thermostat
16 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
17 8533917 Screw
18 489276 Screw
19 2304354 Shut Off Arm
20 628320 Bracket
21 626691 Module Assembly
22 488208 Screw
23 Motor
(Not Serviced,
Order #21)
100
W10122507
Complete Icemaker
Assembly
20
W10143042
Page 21
OPTIONAL PARTS (NOT INCLUDED)
For Models: ED2LHEXTD00
(Universal Silver)
Illus. Part
No. No. DESCRIPTION
PAINT, PRESSURIZED SPRAY
(12 oz.)
350942 Primer, White
350939 Black
350930 White
8171357 Graphite
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
80051 Graphite
W10134625
Important:
not to be used where the paint
may make contact with the door
gaskets.
Apollo Grey
The spray paint is
Illus. Part
No. No. DESCRIPTION
PAINT, BULK (1 qt.)
799340 Black
799344 White
8171358 Graphite
Illus. Part
No. No. DESCRIPTION
Miscellaneous
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
505587 Sealer, Mastic
(1 Qt.)
503695 Cork, Sealer
(1/4 Pound)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
833938 Kit, Terminal
Connector
TORX SCREW WRENCH
1117510 Torx Key
W10143042
21
Loading...
