Whirlpool GS5SHAXTB00, ES2FHAXSQ01, GS5SHAXTS00, GS5SHAXTQ00, GS5SHAXTL00 Owner’s Manual

REFRIGERATORUSE&CAREGUIDE

MANUALDEUSOYCUIDADODELREFRIGERADOR

p p

GUIDED'UTILISATIONETD'ENTRETIENDUREFRIGERATEUR

Tableof Contents/Indice / Tabledes matibres

ASSISTANCE OR SERVICE ............................ 1

REFRIGERATOR SAFETY ............................... 2

INSTALLATION INSTRUCTIONS ................... 3

REFRIGERATOR USE ..................................... 5

REFRIGERATOR CARE ................................... 8

TROUBLESHOOTING ...................................... 9

WATER FILTER CERTIFICATIONS .............. 11

PRODUCT DATA SHEETS ............................ 12

WARRANTY .................................................... 13

If you need assistance or service, first see the "Troubleshooting"
section. Additional help is available. Call us at 1-800-253-1301

from anywhere in the U.S.A., or write:

Whirlpool Corporation

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Information may also be obtained by visiting our website at

www.whirlpool.com.

In Canada, for assistance, installation or service, call us at
1-800-807-6777, or write:

Whirlpool Canada LP

Customer Interaction Centre

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

In Canada, visit www.whirlpool.ca.
Please include a daytime phone number in your correspondence.

Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.

AYUDA O SERVICIO TF:CNICO .................... 14

SEGURIDAD DEL REFRIGERADOR ............ 14

INSTRUCCIONES DE INSTALACION .......... 15

USO DE SU REFRIGERADOR ...................... 18

CUIDADO DE SU REFRIGERADOR ............. 21

SOLUCION DE PROBLEMAS ....................... 22

HOJA DE DATOS DEL PRODUCTO ............ 25

GARANTiA ...................................................... 26

Assistance or Service

Write down the following information about your appliance to help
you obtain assistance or service if you ever need it. You will need

to know your complete model number and serial number. You can
find this information on the model and serial number label, located
on the inside wall of the refrigerator compartment.

Dealer name
Serial number

Address
Phone number

Model number
Purchase date

Toorder replacement filters, call 1-800-442-9991 and ask for the
appropriate part number listed below or contact your authorized

Whirlpool dealer. In Canada, call 1-800-807-6777.
Stainless Steel Cleaner and Polish: Order Part #4396095

Standard Filter: Order Part #4396710 (T1RFWB2)

ASSISTANCE OU SERVICE .......................... 27

S¢CURITF: DU RCFRIGCRATEUR ................ 27

INSTRUCTIONS D'INSTALLATION .............. 28

UTILISATION DU RleFRIGleRATEUR ........... 31

ENTRETIEN DU RleFRIGleRATEUR ............. 34

DlePANNAGE .................................................. 35

FEUILLES DE DONNleES SUR

LE PRODUlT ................................................... 38

GARANTIE ...................................................... 39

2318584

;0O0 L0 eUE IMA6INAS"

REFRIGERATORSAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow
instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

• Plug into a grounded 3 prong outlet.

• Do not remove ground prong.

• Do not use an adapter.

• Do not use an extension cord.

• Disconnect power before servicing.

• Replace all parts and panels before operating.

• Remove doors from your old refrigerator.

SAVE THESE INSTRUCTIONS

• Use nonflammable cleaner.

• Keep flammable materials and vapors, such as gasoline,
away from refrigerator.

• Use two or more people to move and install refrigerator.

• Disconnect power before installing ice maker (on ice maker

kit ready models only).

• Use a sturdy glass when dispensing ice (on some models).

ProperDisposalofYourOldRefrigerator

Suffocation Hazard

Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous

- even if they will sit for "just a few days." If you are getting rid of
your old refrigerator, please follow these instructions to help

prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

• Take off the doors.

• Leave the shelves in place so that children may not easily
climb inside.

INSTALLATIONINSTRUCTIONS

NOTE: It is recommended that you do not install the refrigerator
near an oven, radiator, or other heat source. Do not install in a
location where the temperature will fall below 55°F (13°C).

Excessive Weight Hazard

Use two or more people to move and install
refrigerator.

Failure to do so can result in back or other injury.

If the ice storage bin is located on the door, remove the
temporary shield from underneath the ice storage bin. See

"Ice Maker and Storage Bin."
Remove packaging materials. Do not use sharp instruments,

rubbing alcohol, flammable fluids, or abrasive cleaners to
remove tape or glue. These products can damage the surface

of your refrigerator. For more information, see "Refrigerator
Safety."

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator
for cleaning or service, be sure to protect the floor.
Always pull the refrigerator straight out when moving it.

Do not wiggle or "walk" the refrigerator when trying to move

it, as floor damage could occur.

important information to know about glass shelves

and covers:

Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to

sudden temperature changes or impact, such as bumping.

For your protection, tempered glass is designed to shatter

into many small, pebble-size pieces. This is normal. Glass

shelves and covers are heavy. Use special care when

removing them to avoid impact from dropping.

_Jl,

/

,Z

/

1/2" (1.25 crn) /

II -- I';I

/

J

/

2" {5.08 cm)

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.
Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,
fire, or electrical shock.

Explosion Hazard

Keep flammable materials and vapors, such as
gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

To ensure proper ventilation for your refrigerator, allow for 1/2"

(1.25 cm) space on each side and at the top. When installing your
refrigerator next to a fixed wall, leave 2" (5.08 cm) minimum on
each side (depending on your model) to allow for the door to

swing open. If your refrigerator has an ice maker, allow extra
space at the back for the water line connections.

Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet

that cannot be turned off by a switch. Do not use an
extension cord.

NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, turn the control (Thermostat, Refrigerator or
Freezer Control depending on the model) to OFF and then

disconnect the refrigerator from the electrical source. When you
are finished, reconnect the refrigerator to the electrical source and
reset the control (Thermostat, Refrigerator or Freezer Control

depending on the model) to the desired setting.

Gathertherequiredtoolsandpartsbeforestartinginstallation.
Readandfollowtheinstructionsprovidedwithanytoolslisted

here.

TOOLS NEEDED:

• Flat-blade screwdriver • %" Drill bit

• 7/16"and 1/2"Open-end or two • Hand drill or electric drill
adjustable wrenches (properly grounded)

• 1/4"nut driver

NOTE: Your refrigerator dealer has a kit available with a 1/4"
(6.35 mm) saddle-type shutoff valve, a union, and copper tubing.
Before purchasing, make sure a saddle-type valve complies with

your local plumbing codes. Do not use a piercing-type or 3/16"

(4.76 mm) saddle valve which reduces water flow and clogs more
easily.

IMPORTANT:

• All installations must meet local plumbing code requirements.

• Use copper tubing and check for leaks. Install copper tubing
only in areas where the household temperatures will remain
above freezing.

Water Pressure

A cold water supply with water pressure of between 30 and

120 psi (207 and 827 kPa) is required to operate the water
dispenser and ice maker. If you have questions about your water
pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a

reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 30 and 120 psi (207 and
827 kPa).

If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the water pressure to the reverse osmosis system is less than
40 to 60 psi (276 to 414 kPa):

• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.

• Allow the storage tank on the reverse osmosis system to refill
after heavy usage.

• If your refrigerator has a water filter, it may further reduce the
water pressure when used in conjunction with a reverse
osmosis system. Remove the water filter. See "Water Filtration

System."

If you have questions about your water pressure, call a licensed,
qualified plumber.

Read all directions before you begin.
IMPORTANT: Ifyou turn the refrigerator on before the water line is

connected, turn the ice maker OFR

• Horizontal pipe will work, but drill on the top side of the
pipe, not the bottom. This will help keep water away from
the drill and normal sediment from collecting in the valve.

Determine the length of copper tubing you need. Measure
from the connection on the lower rear corner of refrigerator to

the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use 1/4"
(6.35 mm) O.D. (outside diameter) copper tubing. Be sure both
ends of copper tubing are cut square.

5.

Using a grounded drill, drill a 1/4"(6.35 mm) hole in the cold
water pipe you have selected.

...................A

A. Cold waterpipe E.Compression sleeve
B.Pipe clamp F.Shutoff valve
C.Copper tubing G.Packing nut
D.Compression nut

6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the 1/4"(6.35 mm)

drilled hole in the water pipe and that the washer is under the
pipe clamp. Tighten the packing nut. Tighten the pipe clamp
screws slowly and evenly so the washer makes a watertight
seal. Do not overtighten or you may crush the copper tubing.

7. Slip the compression sleeve and compression nut on the
copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw the compression
nut onto outlet end with adjustable wrench. Do not

overtighten.

8. Place the free end of the tubing in a container or sink, and turn
ON the main water supply. Flush the tubing until water is clear.

Turn OFF the shutoff valve on the water pipe. Coil the copper
tubing.

Connect to Refrigerator

Style 1

1. Unplug refrigerator or disconnect power.

2. Attach the copper tube to the valve inlet using a compression
nut and sleeve as shown. Tighten the compression nut. Do not

overtighten.

3. Use the tube clamp on the back of the refrigerator to secure
the tubing to the refrigerator as shown. This will help prevent

damage to the tubing when the refrigerator is pushed back
against the wall.

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any connections (including
connections at the valve) or nuts that leak.

A

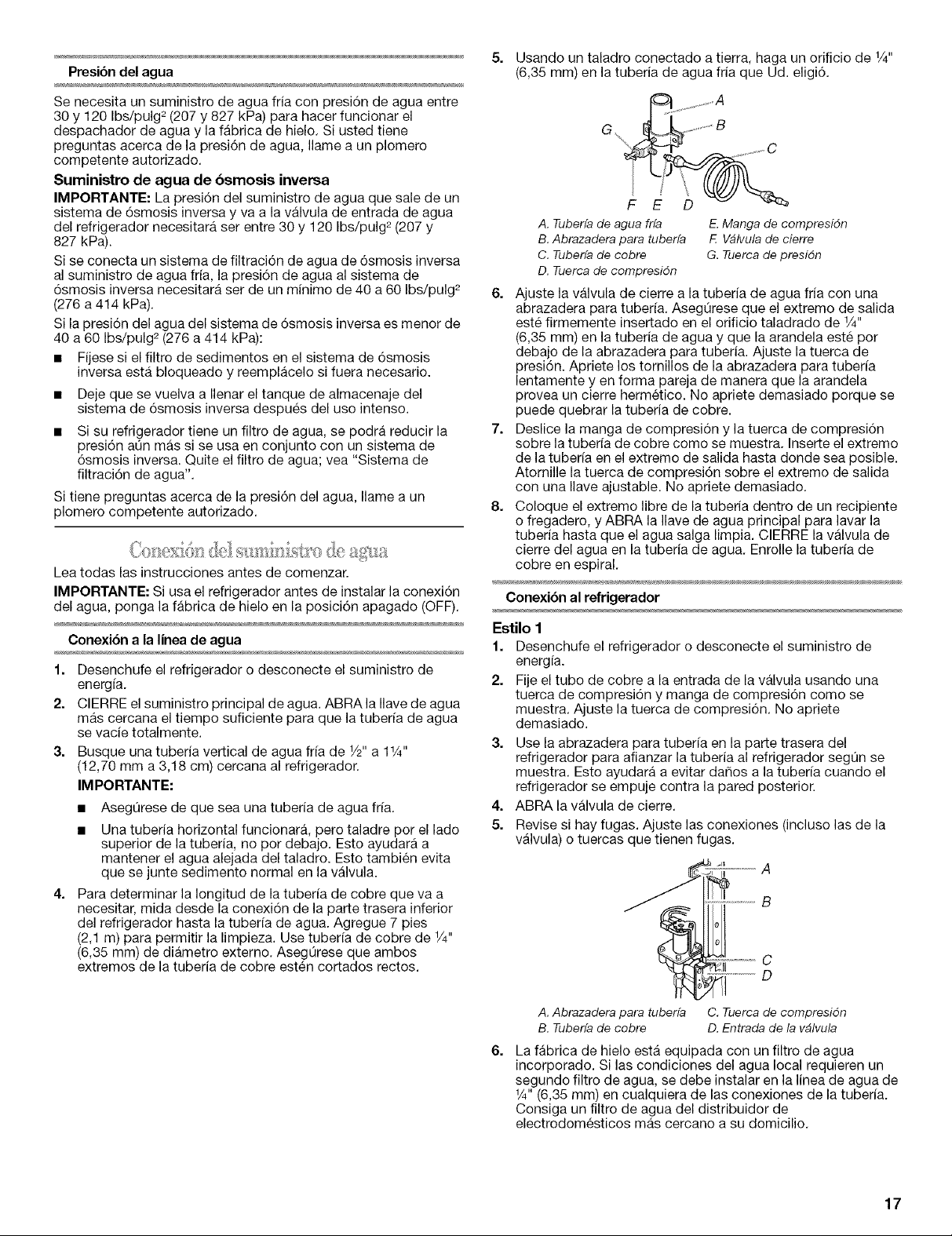

Connect to Water Line

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.

3. Locate a 1/2"(12.70 mm) to 11/4'' (3.18 cm) vertical cold water
pipe near the refrigerator.

IMPORTANT:

• Make sure it is a cold water pipe.

A. Tube clamp
B. Copper tubing

The ice maker is equipped with a built-in water strainer. If your
water conditions require a second water strainer, install it in
the 1/4"(6.35 mm) water line at either tube connection. Obtain

a water strainer from your nearest appliance dealer.

C. Compression nut
D. Valve inlet

Style 2

1. Unplug refrigerator or disconnect power•

2. Remove and discard the shipping tape and the black nylon
plug from the gray, coiled water tubing on the rear of the

refrigerator•

3. If the gray water tube supplied with the refrigerator is not long
enough, a 1/4"x 1/4"(6.35 mm x 6.35 mm) coupling is needed in

order to connect the water tubing to an existing household
water line. Thread the provided nut onto the coupling on the
end of the copper tubing.

NOTE: Tighten the nut by hand. Then tighten it with a wrench
two more turns. Do not overtighten.

A B C

A. Refrigerator water tubing

B. Nut (provided)

C. Bulb
D. Coupling (purchased)

4.

Turn shutoff valve ON.

5.

Check for leaks. Tighten any nuts or connections (including
connections at the valve) that leak.

D E F G

E•Ferrule (purchased)
F. Nut (purchased)

G. Household water line

Style 3

1. Unplug refrigerator or disconnect power•

2. Remove and discard the shipping tape and the black nylon
plug from the gray, coiled water tubing on the rear of the
refrigerator•

3. Thread the provided nut onto the water valve as shown.
NOTE: Tighten the nut by hand. Then tighten it with a wrench

two more turns. Do not overtighten.

Complete the Installation

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.
Do not use an adapter.

Do not use an extension cord,

Failure to follow these instructions can result in death,
fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

2. Flush the water system. See the "Water and Ice Dispensers"
section.

NOTE: Allow 24 hours to produce the first batch of ice. Allow
3 days to completely fill ice container.

REFRIGERATORUSE

For your convenience, your refrigerator controls are preset at the
factory• When you first install your refrigerator, make sure that the

controls are still preset. The Refrigerator Control and the Freezer
Control should both be set to the "mid-settings."

Style I

FREEZER

n

REFRIGERATOR

|

• 3 4 ,

A•Bulb
B.Nut (provided)

4.

Turn shutoff valve ON.

5.

Check for leaks. Tighten any nuts or connections (including
connections at the valve) that leak.

A

B

COLD COLDER COLD

1 6 COLDER

Style 2

IMPORTANT:

• Your product will not cool when the REFRIGERATOR Control

is set to OFR

• The Refrigerator Control adjusts the refrigerator compartment
temperature. The Freezer Control adjusts the freezer
compartment temperature. Higher numbered settings make
the compartment colder. Lower numbered settings make the
temperature less cold.

• Wait 24 hours before you put food into the refrigerator. If you
add food before the refrigerator has cooled completely, your
food may spoil.

5

Style 1

Turn the control to the right (clockwise) to make the compartment

colder or to the left (counterclockwise) to make it less cold.
Style 2

1. Push control button on the side of the control box and
release it.

2. The control will pop out. Turn the control to the desired
setting.

3. Push the control in to lock it into place.

NOTE: Adjusting the Refrigerator and Freezer Controls to a higher
(colder) than recommended setting will not cool the

compartments any faster.

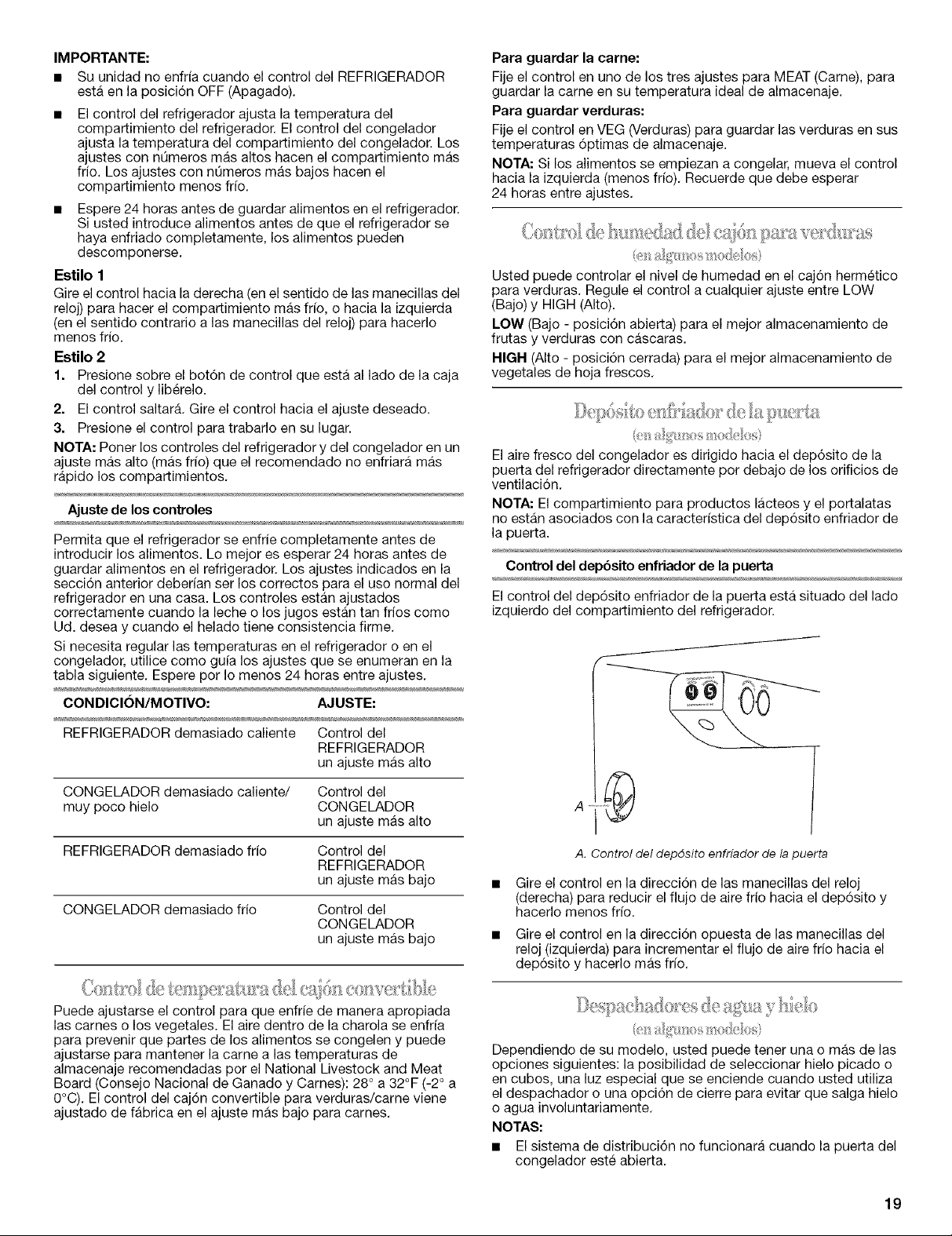

Adjusting Controls

Give the refrigerator time to cool down completely before adding

food. It is best to wait 24 hours before you put food into the

refrigerator. The settings indicated in the previous section should
be correct for normal household refrigerator usage. The controls

are set correctly when milk or juice is as cold as you like and when
ice cream is firm.

If you need to adjust temperatures in the refrigerator or freezer,
use the settings listed in the chart below as a guide. Wait at least

24 hours between adjustments.

CONDITION/REASON: ADJUSTMENT:

REFRIGERATOR too warm REFRIGERATOR Control

one setting higher

FREEZER too warm/ FREEZER Control
too little ice one setting higher

REFRIGERATOR too cold REFRIGERATOR Control

one setting lower

FREEZER too cold FREEZER Control

one setting lower

Cool air from the freezer is directed to the refrigerator door bin
directly beneath the vents.

NOTE: The dairy compartment and can rack are not associated
with the Chilled Door Bin feature.

Chilled Door Bin Control

The chilled door bin control is located on the left-hand side of the
refrigerator compartment.

A. Chilled door bin control

Turn the control clockwise (right) to reduce the flow of cold air
to the bin and make it less cold.

Turn the control counterclockwise (left) to increase the flow of
cold air to the bin and make it colder.

_ s'_ :_" _ _'_,

The control can be adjusted to properly chill meats or vegetables.
The air inside the pan is cooled to prevent "spot" freezing and can

be set to keep meats at the National Livestock and Meat Board
recommended storage temperatures of 28° to 32°F (-2° to 0°C).

The convertible vegetable/meat drawer control comes preset at
the lowest meat setting.

To store meat:

Set the control to one of the three MEAT settings to store meat at
its optimal storage temperature.

To store vegetables:

Set the control to VEG to store vegetables at their optimal storage

temperatures.

NOTE: If food starts to freeze, move the control to the left (less
cold). Remember to wait 24 hours between adjustments.

You can control the amount of humidity in the moisture-sealed
crisper. Adjust the control to any setting between LOW and HIGH.

LOW (open) for best storage of fruits and vegetables with skins.
HIGH (closed) for best storage of fresh, leafy vegetables.

Depending on your model, you may have one or more of the
following options: the ability to select either crushed or cubed ice,
a special light that turns on when you use the dispenser, or a lock

option to avoid unintentional dispensing.

NOTES:

• The dispensing system will not operate when the freezer door
is open.

• After connecting the refrigerator to a water source, flush the
water system by dispensing water into a sturdy container until

you draw and discard 1.5 gal. (5.4 L) of water, or for
approximately 3 minutes after the water begins dispensing.

The flushing process cleans the water system and clears air
from the lines. As the air is cleared from the lines, water may
spurt out of the dispenser.

• Allow 24 hours for the refrigerator to cool down and chill
water.

• Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.

The Water Dispenser

IMPORTANT: Dispense enough water every week to maintain a
fresh supply.

To Dispense Water:

1. Press a sturdy glass against the water dispenser lever.

2. Remove the glass to stop dispensing.

The Ice Dispenser

The Dispenser Lock (on some models)

The dispensing system will not operate when the freezer door is

open. Ice dispenses from the ice maker storage bin in the freezer
when the dispenser lever is pressed.

NOTE: Some models dispense both cubed and crushed ice.
Before dispensing ice, select which type of ice you prefer.

For crushed ice, cubes are crushed before being dispensed. This
may cause a slight delay when dispensing crushed ice. Noise

from the ice crusher is normal, and pieces of ice may vary in size.

When changing from crushed to cubed, a few ounces of crushed
ice will be dispensed along with the first cubes.

To Dispense Ice:

1. If the ice storage bin is located on the door, remove the
temporary shield from underneath the ice storage bin. See
"Ice Maker and Storage Bin."

2. Press the button to select the desired type of ice.

Cut Hazard

Use a sturdy glass when dispensing ice.
Failure to do so can result in cuts.

3. Press a sturdy glass against the ice dispenser lever. Hold the
glass close to the dispenser opening so ice does not fall
outside of the glass.

IMPORTANT: You do not need to apply a lot of pressure to the
lever in order to activate the ice dispenser. Pressing hard will
not make the ice dispense faster or in greater quantities.

4. Remove the glass to stop dispensing.

The Dispenser Light

Style 1: The dispenser light can be turned on by pressing the ON
button.

Style 2: When you use the dispenser, the lever will automatically

turn the light on. If you want the light to be on continuously, you

may choose either ON or NIGHT LIGHT.
ON: Press the LIGHT button to turn on the dispenser light.

NIGHT LIGHT: Press the LIGHT button a second time to select

the Night Light. The dispenser light will automatically adjust to

become brighter as the room brightens, dimmer as the room
darkens.

OFF: Press the LIGHT button a third time to turn off the dispenser
light.

The dispenser lights are LEDs which should not need to be

changed. If it appears that your dispenser lights are not working,
be sure that the light sensor is not blocked (in Night Light mode).

See "Troubleshooting" for more information.

Your dispenser can be turned off for easy cleaning or to prevent
unintentional dispensing by small children and pets.

NOTE: The lock feature does not shut off power to the product, to
the ice maker, or to the dispenser light. It simply deactivates the
dispenser levers. The ice and water dispensers will not work.

Style 1: Press the LOCK button to lock the dispenser. Press the
UNLOCK button to unlock the dispenser.

Style 2: Press and hold the LOCK OUT button to lock the
dispenser. Press and hold the LOCK OUT button a second time to

unlock the dispenser.

Turning the Ice Maker On/Off

The On/Off switch is located on the top right-hand side of the
freezer compartment.

Toturn on the ice maker, slide the control to the ON (left) position.
To manually turn off the ice maker, slide the control to the OFF

(right) position.
NOTE: Your ice maker has an automatic shutoff. The ice maker

sensors will automatically stop ice production, but the control will
remain in the ON (left) position.

REMEMBER:

• Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.

• The quality of your ice will be only as good as the quality of the
water supplied to your ice maker. Avoid connecting the ice

maker to a softened water supply. Water softener chemicals
(such as salt) can damage parts of the ice maker and lead to
poor quality ice. If a softened water supply cannot be avoided,
make sure the water softener is operating properly and is well

maintained.

• Do not use anything sharp to break up the ice in the storage
bin. This can cause damage to the ice container and the
dispenser mechanism.

• Do not store anything on top of or in the ice maker or storage
bin.

Removing and Replacing Ice Storage Bin

1. Hold the base of the storage bin with both hands and press
the release button to lift the storage bin up and out.

NOTE: It is not necessary to turn the ice maker control to the
OFF (right) position when removing the storage bin. The
sensor cover ("flipper door") on the left wall of the freezer

stops the ice maker from producing ice if the door is open or
the storage bin is removed.

2. Replace the storage bin on the door and push down to make
sure it is securely in place.

Donotusewithwaterthatismicrobiologicallyunsafeor
ofunknownqualitywithoutadequatedisinfectionbefore
orafterthesystem.Systemscertifiedforcystreduction
maybeusedondisinfectedwatersthatmaycontain
filterablecysts.

Water Filter Status Light (on some models)

The filter status light will help you know when to change your

water filter. The light will change from green to yellow. This tells
you that it is almost time to change the filter. It is recommended
that you replace the filter when the status light changes to red OR

water flow to your water dispenser or ice maker decreases

noticeably.
After changing the filter, reset the filter status light by pressing the

button. The status light will change from red to green when the

system is reset.

Non-indicator Water Filter (on some models)

If your refrigerator does not have the status light, you should

change the water filter every 6 months depending upon your

usage. If the water flow to the water dispenser or ice maker

decreases noticeably before 6 months have passed, replace the

water filter more often.

REFRIGERATORCARE

Explosion Hazard

Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.

Changing the Water Filter

1. Press the eject button to release the filter from the base grille.

2. Pull the filter straight out.

3. Turn the cap counterclockwise to remove it from the filter.
IMPORTANT: Do not discard the cap. It is part of your

refrigerator. Keep the cap to use with the replacement filter.

4. Align the ridge on the cap with the arrow on the new filter and
turn the cap until it snaps into place.

NOTE: You can run the dispenser without a filter. Your water
will not be filtered. Simply insert the cap all of the way into the
base grille and rotate the cap until it is firmly in place.

5. Remove the protective covers from the O-rings. Be sure the
O-rings are still in place after the covers are removed.

6. Push the filter into the base grille. The eject button will pop
back out when the filter is fully engaged.

7. Flush the water system. See "Water and Ice Dispensers."

3=

Wash stainless steel and painted metal exteriors with a clean
sponge or soft cloth and a mild detergent in warm water.

4.

There is no need for routine condenser cleaning in normal
home operating environments. If the environment is
particularly greasy or dusty, or there is significant pet traffic in
the home, the condenser should be cleaned every 2 to
3 months to ensure maximum efficiency.

If you need to clean the condenser:

• Removethe base grille.

• Use a vacuum cleaner with a soft brush to clean the grille,

the open areas behind the grille and the front surface area
of the condenser.

• Replace the base grille when finished.
Plug in refrigerator or reconnect power.

Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to prevent
odors from building up. Wipe up spills immediately.

IMPORTANT: Because air circulates between both sections, any
odors formed in one section will transfer to the other. You must

thoroughly clean both sections to eliminate odors. To prevent

odor transfer and drying out of food, wrap or cover foods tightly.
To Clean Your Refrigerator:

NOTE: Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, cleaning waxes,

concentrated detergents, bleaches or cleansers containing
petroleum products on plastic parts, interior and door liners or
gaskets. Do not use paper towels, scouring pads, or other harsh

cleaning tools.

1. Unplug refrigerator or disconnect power.

2. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a

mild detergent in warm water.

NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the
bulb with one of the same size, shape and wattage. On some
models, the dispenser light requires a heavy duty 10-watt bulb. All

other lights require a 40-watt bulb. Replacement bulbs are
available from your dealer.

1. Unplug refrigerator or disconnect power.

2. Remove light shield when applicable.
NOTE: To clean the light shield, wash it with warm water and

liquid detergent. Rinse and dry the shield well.

3. Remove light bulb and replace with one of the same size,
shape and wattage.

4. Replace light shield when applicable.

5. Plug in refrigerator or reconnect power.

TROUBLESHOOTING

Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.

The refrigerator will not operate

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.

Do not use an extension cord.
Failure to follow these instructions can result in death,

fire, or electrical shock.

• Power cord unplugged? Plug into a grounded 3 prong outlet,

• Is outlet working? Plug in a lamp to see if the outlet is
working.

• Household fuse blown or circuit breaker tripped? Replace
the fuse or reset the circuit breaker. Ifthe problem continues,

call an electrician,
Are controls on? Make sure the refrigerator controls are on,

See "Using the Controls."
New installation? Allow 24 hours following installation for the

refrigerator to cool completely.
NOTE: Adjusting the temperature controls to coldest setting

will not cool either compartment more quickly.

• Rattling - flow of refrigerant, water line, or from items placed
on top of the refrigerator

• Sizzling/Gurgling - water dripping on the heater during
defrost cycle

• Popping - contraction/expansion of inside walls, especially
during initial cool-down

• Water running - may be heard when water melts during the
defrost cycle and runs into the drain pan

• Creaking/Cracking - occurs as ice is being ejected from the
ice maker mold,

The doors will not close completely

• Door blocked open? Move food packages away from door.

• Bin or shelf in the way? Push bin or shelf back in the correct
position.

The doors are difficult to open

Explosion Hazard

Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.

Are the gaskets dirty or sticky? Clean gaskets with mild soap
and warm water.

The motor seems to run too much

Your new refrigerator may run longer than your old one due to its
high-efficiency compressor and fans. The unit may run even
longer if the room is warm, a large food load is added, doors are

opened often, or if the doors have been left open.

The refrigerator is noisy

Refrigerator noise has been reduced over the years. Due to this
reduction, you may hear intermittent noises from your new
refrigerator that you did not notice from your old model. Below are

listed some normal sounds with an explanation.

• Buzzing - heard when the water valve opens to fill the ice
maker

• Pulsating - fans/compressor adjusting to optimize
performance

The lights do not work

• Is a light bulb loose in the socket or burned out? See
"Changing the Light Bulbs."

• Is the dispenser light set to ON? The dispenser light will
operate only when the levers are pressed. If you want the

dispenser light to stay on continuously, set the dispenser light
to ON, or NIGHT LIGHT or AUTO. See "Water and Ice
Dispensers."

• Is the dispenser light set to NIGHT LIGHT or AUTO? If the
dispenser is set to the NIGHT LIGHT or AUTO mode, be sure
the dispenser light sensor is not blocked. See "Water and Ice
Dispensers."

Off-taste, odor or gray color inthe ice

Temperature is too warm

• New installation? Allow 24 hours following installation for the
refrigerator to cool completely.

• Door(s} opened often or left open? Allows warm air to enter
refrigerator. Minimize door openings and keep doors fully

closed.

• Large load of food added? Allow several hours for
refrigerator to return to normal temperature.

• Controls set correctly for the surrounding conditions?
Adjust the controls a setting colder. Check temperature in
24 hours, See "Using the Controls,"

There is interior moisture buildup

NOTE: Some moisture buildup is normal,

• Humid room? Contributes to moisture buildup.

• Door(s) opened often or left open? Allows humid air to enter
refrigerator. Minimize door openings and keep doors fully

closed.

The ice maker is not producing ice or not enough ice

• Refrigerator connected to a water supply and the supply
shutoff valve turned on? Connect refrigerator to water
supply and turn water shutoff valve fully open,

• Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line,

• Ice maker turned on? Make sure wire shutoff arm or switch
(depending on model) is in the ON position.

• New installation? Wait 24 hours after ice maker installation
for ice production to begin. Wait 72 hours for full ice

production,

• Large amount of ice recently removed? Allow 24 hours for
ice maker to produce more ice.

• Ice cube jammed in the ice maker ejector arm?
Remove ice from the ejector arm with a plastic utensil.

• Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure.

See "Water Supply Requirements" in either the Installation
Instruction booklet or the Use & Care Guide.

• New plumbing connections? New plumbing connections
can cause discolored or off-flavored ice.

• Ice stored too long? Discard ice. Wash ice bin. Allow
24 hours for ice maker to make new ice.

• Odor transfer from food? Use airtight, moisture proof
packaging to store food.

• Are there minerals (such as sulfur) in the water? A water
filter may need to be installed to remove the minerals.

• Is there a water filter installed on the refrigerator? Gray or
dark discoloration in ice indicates that the water filtration

system needs additional flushing.

The ice dispenser will not operate properly

• If the ice storage bin is located on the door, remove the
temporary shield from underneath the ice storage bin. See

"Ice Maker and Storage Bin."

• Freezer door closed completely? Close the door firmly. If it
does not close completely, see "The doors will not close
completely."

• Ice bin installed correctly? Be sure the ice bin is firmly in
position.

• New installation? Wait 24 hours after ice maker installation
for ice production to begin. Wait 72 hours for full ice
production.

• Ice stuck in the delivery chute? Use a plastic utensil to clear
the delivery chute.

• Has the wrong ice been added to the bin? Use only cubes
produced by the current ice maker.

• Has the ice melted around the auger (metal spiral} in the
ice bin? Dump the ice cubes and clean the ice bin.

Cut Hazard

Use a sturdy glass when dispensing ice.
Failure to do so can result in cuts.

The ice cubes are hollow or small

NOTE: This is an indication of low water pressure.

• Water shutoff valve not fully open? Turn the water shutoff
valve fully open.

• Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line,

• Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure.
See "Water Supply Requirements."

• Questions remain regarding water pressure? Call a
licensed, qualified plumber.

10

• Is the ice dispenser stalling while dispensing "crushed"
ice? Change the ice button from "crushed" to "cubed," If

cubed ice dispenses correctly, depress the button for
"crushed" ice and begin dispensing again.

• Has the dispenser arm been held in too long? Ice will stop
dispensing when the arm is held in too long. Wait 3 minutes

for dispenser motor to reset before using again,

The water dispenser will not operate properly

• Freezer door closed completely? Close the door firmly. If it
does not close completely, see "The doors will not close

completely."

• Refrigerator connected to a water supply and the supply
shutoff valve turned on? Connect refrigerator to water
supply and turn water shutoff valve fully open.

• Is the water pressure at least 30 psi (207 kPa)? The water
pressure to the home determines the flow from the dispenser.
See "Water Supply Requirements."

Kink in the home water source line? Straighten the water
source line.

New installation? Flush and fill the water system.

Water filter installed on the refrigerator? The filter may be

clogged or incorrectly installed.
Is a reverse osmosis water filtration system connected to

your cold water supply? See "Water Supply Requirements"
in either the Installation Instructions or the Use & Care Guide.

Water is leaking from the dispenser

WATERFILTERCERTIFICATIONS

Slate of Cahlorma

Department of Health Services

Water Treatment Device

Certificate Number

04- 1635

l)at_, Is,uc,d At_t(l 8 20fM

I)alc Rtwl_ed A_rl[ 6. PO03

rrad_mark \lodel Deslgna[ion

Wharlp ol Advanced t I WB2

wh,_- ol AdwmccdT]WB2[

l'urbldliy

Or_anieCon_anfinams

Rcol_cenlent 1121ot_lont_

NOTE: One or two drops of water after dispensing is normal.

• Glass not being held under the dispenser long enough?
Hold the glass under the dispenser 2 to 3 seconds after
releasing the dispenser lever.

• New installation? Flush the water system. See "Water and
Ice Dispensers."

• Recently changed water filter? Flush the water system. See
"Water and Ice Dispensers."

The dispenser water is not cool enough

NOTE: Water from the dispenser is chilled to only 50°F (10°C).

• New installation? Allow 24 hours after installation for the
water supply to cool completely.

• Recently dispensed large amount of water? Allow 24 hours
for water supply to cool completely.

• Water not been recently dispensed? The first glass of water
may not be cool. Discard the first glass of water.

• Refrigerator connected to a cold water pipe? Make sure
the refrigerator is connected to a cold water pipe. See "Water
Supply Requirements."

I_nd_l)
Elhyll_.nL_n_

_ndan_

MotL_whlorohcn_vr_

t_trachloroethy_ene

T_xaphene

RatedServiceCapacity: 2(X_ gals Rated Service Flow: 05gpm

Do _tol ase w_crc waler is lmc_obiologic_l]y unsafe _r wi_ wate_ of tmknowl/qualily, e×cc_ till systems c_rtil_cd _
cyst reduction may be used on disinl_led waters _at m_ conl_un filIcrable cys_

Conditions of Certification:

11

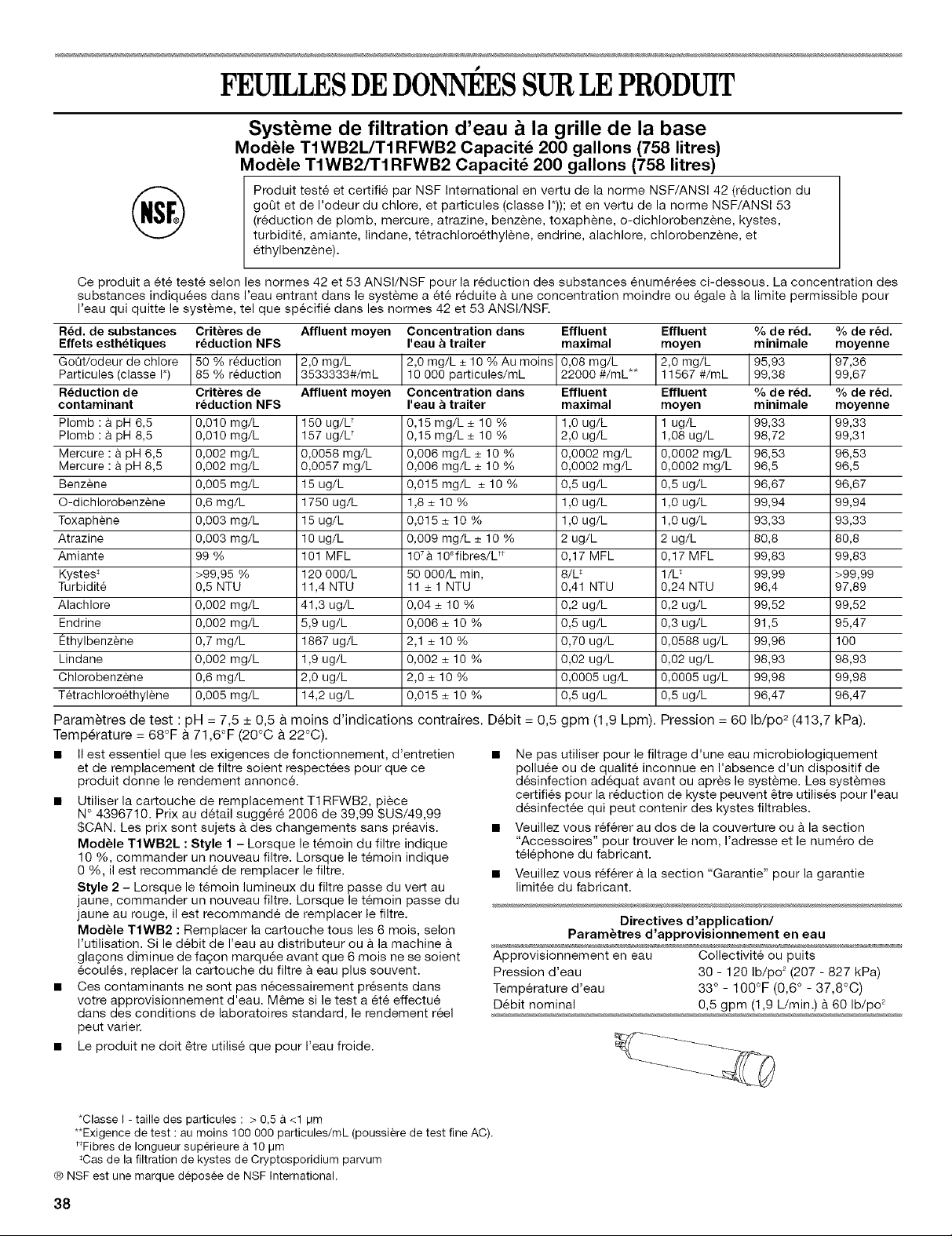

PRODUCTDATASHEETS

Base Grille Water Filtration System

Model TlWB2LfTIRFWB2 Capacity 200 Gallons (758 Liters)

Model TlWB2/TIRFWB2 Capacity 200 Gallons (758 Liters)

Tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of

Chlorine Taste and Odor, Particulate Class I*; and against NSF/ANSl Standard 53 for the
reduction of Lead, Mercury, Atrazine, Benzene, Toxaphene, O-Dichlorobenzene, Cysts, Turbidity,

Asbestos, Lindane, Tetrachloroethylene, Endrin, Alachlor, Monochlorobenzene and

Ethyl benzene.

This system has been tested according to NSF/ANSl 42/53 for the reduction of the substances listed below. The concentration of the

indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water
leaving the system, as specified in NSF/ANSl 42/53.

Substance Reduction NSF Reduction Average Influent Challenge Maximum Average Minimum % Average %

Aesthetic Effects Requirements Influent Concentration Effluent Effluent Reduction Reduction

Chlorine Taste/Odor 50% reduction 2.0 mg/L 2.0 mg/L _+10% 0.08 mg/L ** 2.0 mg/L 95.93 97.36
Particulate Class I* 85% reduction 3533333#/mL At east 10,000 part c es/mL 22000 #/mL 11567 #/mL 99.38 99.67

Contaminant NSF Reduction Average Influent Challenge Maximum Average Minimum % Average %
Reduction Requirements Influent Concentration Effluent Effluent Reduction Reduction

Lead: @ pH 6.5 0.010 mg/L 150 ug/L 0.15 mg/L _+10% 1.0 ug/L 1 ug/L 99.33 99.33
Lead: @ pH 8.5 0.010 mg/L 157 ug/L 0.15 mg/L _+10% 2.0 ug/L 1.08 ug/L 98.72 99.31

Mercury: @ pH 6.5 0.002 mg/L 0.0058 mg/L 0.006 mg/L _+10% 0.0002 mg/L 0.0002 mg/L 96.53 96.53
Mercury: @ pH 8.5 0.002 mg/L 0.0057 mg/L 0.006 mg/L _+10% 0.0002 mg/L 0.0002 mg/L 96.5 96.5

Benzene 0.005 mg/L 15 ug/L 0.015 mg/L _+10% 0.5 ug/L 0.5 ug/L 96.67 96.67
O-Dichlorobenzene 0.6 mg/L 1750 ug/L 1.8 _+10% 1.0 ug/L 1.0 ug/L 99.94 99.94

Toxaphene 0.003 mg/L 15 ug/L 0.015 _+10% 1.0 ug/L 1.0 ug/L 93.33 93.33
Atrazine 0.003 mg/L 10 ug/L 0.009 mg/L _+10% 2 ug/L 2 ug/L 80.8 80.8

Asbestos 99% 101 MFL 107to 108fibers/L *t 0.17 MFL 0.17 MFL 99.83 99.83

Live Cysts* >99.95% 120,000/L 50,000/L min. 8/L; 1/L_ 99.99 >99.99

Turbidity 0.5 NTU 11.4 NTU 11 _+1 NTU 0.41 NTU 0.24 NTU 96.4 97.89
Alachlor 0.002 mg/L 41.3 ug/L 0.04 _+10% 0.2 ug/L 0.2 ug/L 99.52 99.52

Endrin 0.002 mg/L 5.9 ug/L 0.006 _+10% 0.5 ug/L 0.3 ug/L 91.5 95.47
Ethylbenzene 0.7 mg/L 1867 ug/L 2.1 _+10% 0.70 ug/L 0.0588 ug/L 99.96 100

Lindane 0.002 mg/L 1.9 ug/L 0.002 _+10% 0.02 ug/L 0.02 ug/L 98.93 98.93
Monochlorobenzene 0.6 mg/L 2.0 ug/L 2.0 _+10% 0.0005 ug/L 0.0005 ug/L 99.98 99.98

Tetrachloroethylene 0.005 mg/L 14.2 ug/L 0.015 _+10% 0.5 ug/L 0.5 ug/L 96.47 96.47

Test Parameters: pH = 7.5 _+0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa).

Temp. = 68°F to 71.6°F (20°C to 22°C).

• It is essential that operational, maintenance, and filter
replacement requirements be carried out for the product to

perform as advertised.

• Use replacement cartridge T1RFWB2, part #4396710.
2006 suggested retail price of $39.99 U.S.A./S49.99 Canada.
Prices are subject to change without notice.

Model T1WB2L: Style 1 - When the filter indicator reads 10%,
order a new filter. When the filter indicator reads 0%, it is

recommended that you replace the filter.
Style 2 - When the filter indicator light changes from green to

yellow, order a new filter. When the filter indicator light changes
from yellow to red, it is recommended that you replace the filter.

Model TIWB2: Change the water filter cartridge every 6 months
depending upon your usage. If the water flow to the water
dispenser or ice maker decreases noticeably before 6 months

have passed, replace the water filter cartridge more often.

• These contaminants are not necessarily in your water supply.
While testing was performed under standard laboratory
conditions, actual performance may vary.

• The product is for cold water use only.

• Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the

system. Systems certified for cyst reduction may be used on
disinfected waters that may contain filterable cysts.

• Refer to the back cover or "Accessories" section for the
Manufacturer's name, address and telephone number.

• Refer to the "Warranty" section for the Manufacturer's limited
warranty.

Application Guidelines/Water Supply Parameters

Water Supply City or Well
Water Pressure 30 - 120 psi (207 - 827 kPa)

Water Temperature 33 ° - 100°F (0.6 ° - 37.8°C)
Service Flow Rate 0.5 gpm (1.9 L/min.) @ 60 psi.

*Class I particle size: >0.5 to <1 um

**Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.

*_Fibers greater than 10 um in length

*Based on the use of Cryptosporidium parvum oocysts

(¢ NSF is a registered trademark of NSF International.

12
