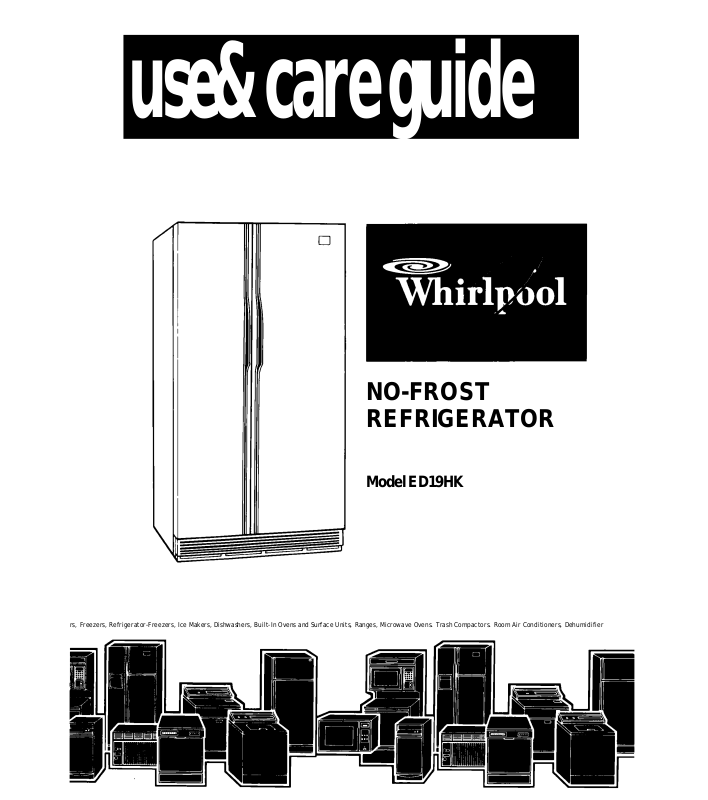

Whirlpool ED19HK User Manual

use&care guide

NO-FROST REFRIGERATOR

Model ED19HK

rs, Freezers, Refrigerator-Freezers, Ice Makers, Dishwashers, Built-In Ovens and Surface Units, Ranges, Microwave Ovens. Trash Compactors. Room Air Conditioners, Dehumidifier

Please read this Use and Care Guide before you do anything else...

This booklet tells you how to start your refrig

erator, clean it, move shelves and adjust con trols. It even tells you what new sounds to expect from your refrigerator.

Treat your new refrigerator with care. Use it

only to do what home refrigerators are de signed to do.

Parts and features

Copy your Model and Serial Numbers here...

have this information ready:

2. Purchase date from sales slip.

book, your warranty and sales slip together in a handy place.

When you need service or call with a question.

1. Complete Model and Sériai Numbers [from the

plate located as shown).

Copy this information in these spaces. Keep this

Model Number

Serial Number

Purchase Date

Service Company and Telephone Number

SAFETY FIRST BEFORE YOU PLUG IT IN

Install Properly Level Refrigerator-Freezer

Remove Sales Labels ...................

Clean It , . . . . 4

Plug It In ........................................

USING YOUR REFRIGERATOR

Setting the Controls Changing the Control Settings . . . Power Saving Control Adjusting Meat Pan Temperature , Adjusting the Shelves Removing the Crisper, Meat Pan

and Covers.................................

Removing the Freezer Shelves. . . .

Removing the Freezer Bin

.................................

...............

...............................

...........

......

......................

...................

....................

.............

.......

Safety first

Contents

Page 3 3 4 4 4

4 CLEANING YOUR REFRIGERATOR 5 5 5 5 6 6

6 7 3, If You Need Service 7

Ice Cube Trays

Changing the Light Bulbs......................

Removing the Base Grille Optional Automatic Ice Maker Sounds You May Hear

Energy Saving Tips...............................

Cleaning Chart

FOOD STORAGE GUIDE

Storing Fresh Food

Freezing and Storing Frozen Foods. .., VACATION AND MOVING CARE IF YOU NEED SERVICE OR ASSISTANCE

1. Before Calling for Assistance

2. If You Need Assistance.....................

4. If You Have a Problem

....................................

.....................

..........................

.....................................

........................

..............................

..........................

......................

...............

......

............

..........

Page , 7 , 7 . 7 . 8 . 8 , 8 . 9 . 9 . 10 . 10 . 11 . 14 . 15 . 15 . 15 , 15 . 15

Child entrapment, and suffocation, are not things of the past. Junked or abandoned refrigerators are still dangerous...even if they will "just sit in the garage for a few days.”

If you are getting rid of your old refrigerator, do it safely. Please read the enclosed safety booklet from the Associa tion of Home Appliance Manufacturers. Help prevent accidents.

Before you plug it in

IMPORTANT

Before using your refrigerator, you are personally responsible for making sure that it,..

• is installed and leveled on a floor that will hold the weight, and in an area suitable for its size and use.

• is connected only to the right kind of outlet, with the right electric supply and grounding.

• is used only for jobs expected of home refrigerators.

• is not near an oven, radiator or other heat source.

• is properly maintained.

• is out of the weather,

• is used in an area where the room temperature will not fall below 55° F (13° C).

• is not run where there are explosive fumes.

• is not used by children or others who may not

understand how it should be used.

• is not loaded with food before it has time to get properly cold.

Install properly...

1. Allow '/2 inch (1.25 cm] space on each side and at the top of the refrigerator for ease of installation,

2. If the refrigerator is to be against a wall, you might want to leave extra space so the door can be opened wider.

3. The refrigerator back can be flush against the wall.

Remove sales labels...

Remove the Consumer Buy Guide label, tape and

any inside labels before using the refrigerator

To remove any remaining glue:

1. Rub briskly with thumb to make a ball then remove.

2. Soak area with dishwashing detergent solution (1 teaspoon detergent in 1 quart warm water) before removing glue as described in step 1.

DO NOT USE rubbing alcohol or flammable or

toxic solvents, such as acetone, gasoline, car bon tetrachloride, etc. These can damage the material.

NOTE: DO NOT REMOVE ANY PERMANENT IN

STRUCTION LABELS INSIDE YOUR REFRIGERATOR.

Do not remove the Tech Sheet fastened under

the refrigerator at the front.

Clean it...

Clean your refrigerator before using it. See cleaning instructions

on page 9.

Plug it in...

3-prong grounding type wall receptacle

Level refrigerator-freezer.

1. Remove base grille (see page 7).

2. To raise front, turn each screw to the right.

3. To lower front, turn each screw to the left.

4. Check with level.

3-prong grounding plug

Refrigerator

Power Cord

RECOMMENDED GROUNDING METHOD

A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused and properly grounded electrical supply is re quired. It is recommended that a separate circuit serving only this appliance be provided.

Do not use an extension cord. Use a recep tacle which cannot be turned off with a switch or pull ohain. See individual electrical require

ments and grounding instruotion sheet in your liter ature package.

Using your refrigerator

:aiDiiiDiDii

Air Control

Air Outlet

ef/iCEi*rO*

ruffZfe

и(д/ Oe SuMwHi US*GI

^PCWEB Saving 11 wFt

Power Saving Control

Temperature Control

TONIBCn СС:МГВ01

At U B £

WhÌTjp2)l

Setting the controls...

The Temperature Control is in the refrigerator and the Air Control is in the freezer section. When the refrigerator is plugged in for the first time..

1. Set the TEMPERA

TURE CONTROL to 3.

2. Set the AIR CON TROL to3.

Changing the control settings...

If you need to adjust temperatures in the refriger ator or freezer, use the settings listed in the chart below.

QUESTIONS?

...call your COOL-LINE service assistance telephone number (page 15).

CONDITION:

if Refrigerata Section is TOO WARM

if Freezer Door opened often Section is TOO WARM

If Refrigerata Controls not set carectly Section is

TOO COLD If ICE isn't

MADE FAST ENOUGH Very cold room temperature

If BOTH SECTIONS Door opened often are TOO WARM

REASONS:

Door opened often Large amount of food added Room temperature too warm

Large amount of food added Very cold room temperature (can't cycle often enough)

fa your conditions

Heavy ice usage (can't cycle often enough)

Large amount of food added Very warm a very cold room temperatures

Give the refrigerator time to cool down com

pletely before adding food. (This may take sev

eral hours.)

These settings should be about right for normal household refrigerator usage.

The controls will be set about right when milk or

juice is as cold as you like and when ice cream

is firm.

Do not block the air outlet on the control panel

Blocking it can slow the air movement needed to

keep temperatures at the level you set.

• Adjust the Temperature Control first.

• Wait at least 24 hours between adjustments.

• Then adjust the Air Control, if needed.

RECOMMENDED SETTINGS:

Temperature Control Air Control

Temperature Control 3 Air Control

Temperature Control Air Control

2 3

3 2

4 3

Power Saving Control...

The Power Saving Control on the Control Con sole operates electric heaters around the door openings. These heaters help keep moisture from forming on the outside of the refrigerator.

OFF^___________

И Ж Х \^

1. Use the "OFF" set ting when humidity

is low.

_________________

_________

2. Use the "ON"setting if moisture fams

on the outside of the refrigerator.

^ON
