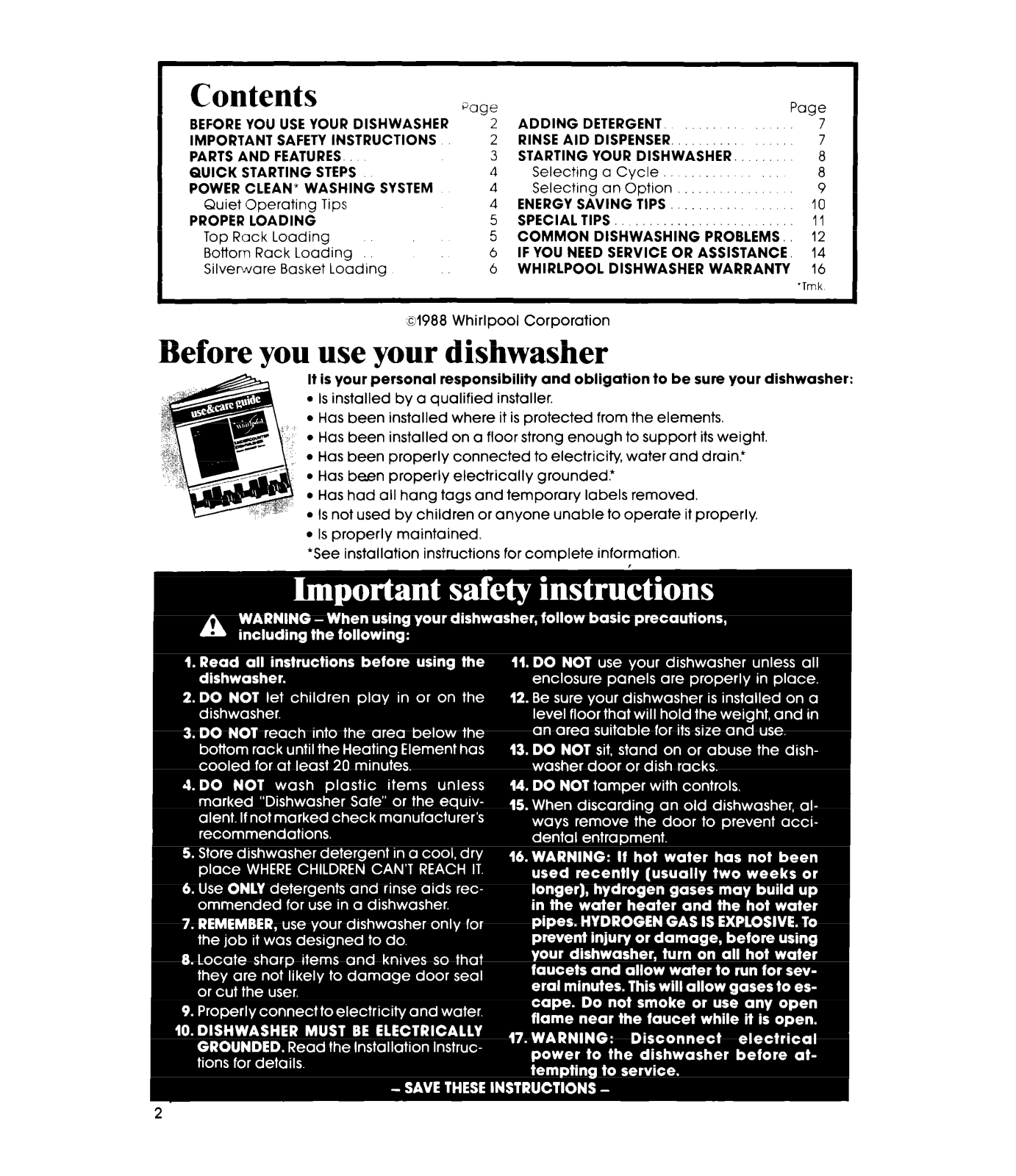

Contents

BEFORE YOU USE YOUR DISHWASHER IMPORTANT SAFETY INSTRUCTIONS

PARTS AND FEATURES.. QUICK STARTING STEPS POWER CLEAN* WASHING SYSTEM

Quiet Operating Tips

PROPER LOADING

Top Rack Loading Bottom Rack Loading Silverware Basket Loading 6

%ge

ADDING DETERGENT

RINSE AID DISPENSER. : : :

STARTING YOUR DISHWASHER. :

Selecting a Cycle

Selecting an Option :

ENERGY SAVING TIPS 10

SPECIAL TIPS : 11

COMMON DISHWASHING PROBLEMS,, 12

IF YOU NEED SERVICE OR ASSISTANCE. 14 WHIRLPOOL DISHWASHER WARRANTY 16

~1988 Whirlpool Corporation

Before you use your dishwasher

It is Your personal responsibility and obligation to be sure your dishwasher:

Is installed by a qualified installer.

Has been installed where it is protected from the elements.

Has been installed on a floor strong enough to support its weight.

Has been properly connected to electricity, water and drain.’

Has been properly electrically grounded.*

Has had all hang tags and temporary labels removed.

Is not used by children or anyone unable to operate it properly.

Is properly maintained.

*See installation instructions for comolete information.

Page

7 7 8 8

‘Tmk

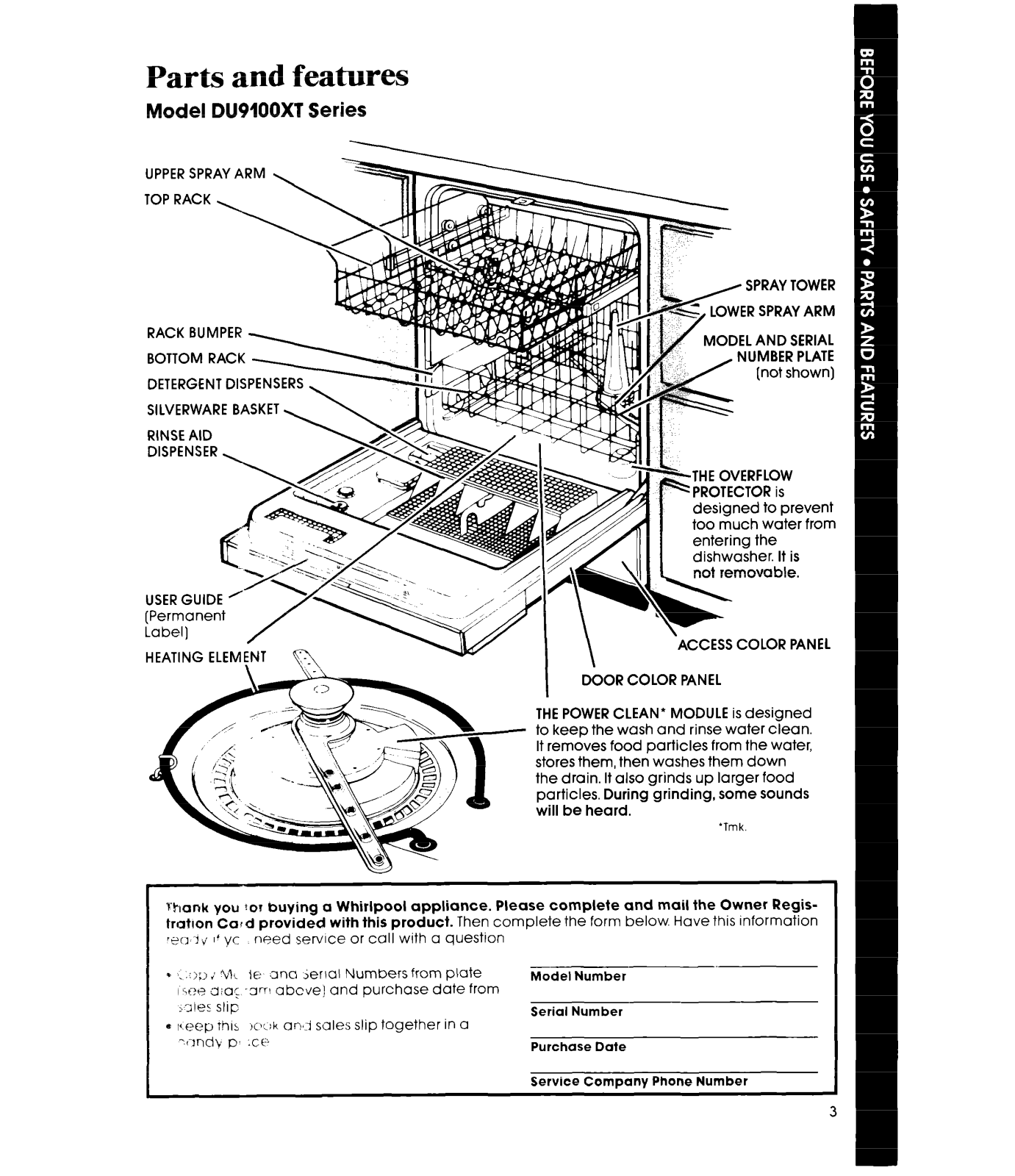

Parts and features

Model DU9100XT Series

RACK BUMPER BOTTOM RACK DETERGENT DIS SILVERWARE BASKET RINSE AID

THE OVERFLOW

ACCESS COLOR PANEL

DOOR COLOR PANEL

THE POWER CLEAN’ MODULE is designed to keep the wash and rinse water clean. It removes food particles from the water, stores them, then washes them down the drain. It also grinds up larger food particles. During grinding, some sounds will be heard.

l’hank

you

ror

tratlon Card provided with this product. Then complete the form below. Have this information

buying

yo 7~ I’ yc

t ‘. .:?:I i VI,. ie .IW jerlal NumDers from plate

ws a;ac -3~ abcvej and purchase date from

,3les slid

* tiecp :hls

Y)rKi\ p, .cF’

need sewIce or call with a question

,Cl::k CIWY sales slip together in a

a Whirlpool appliance. Please complete and mail the Owner Regis-

Model Number Serial Number Purchase Date Service Company Phone Number

‘Tmk.

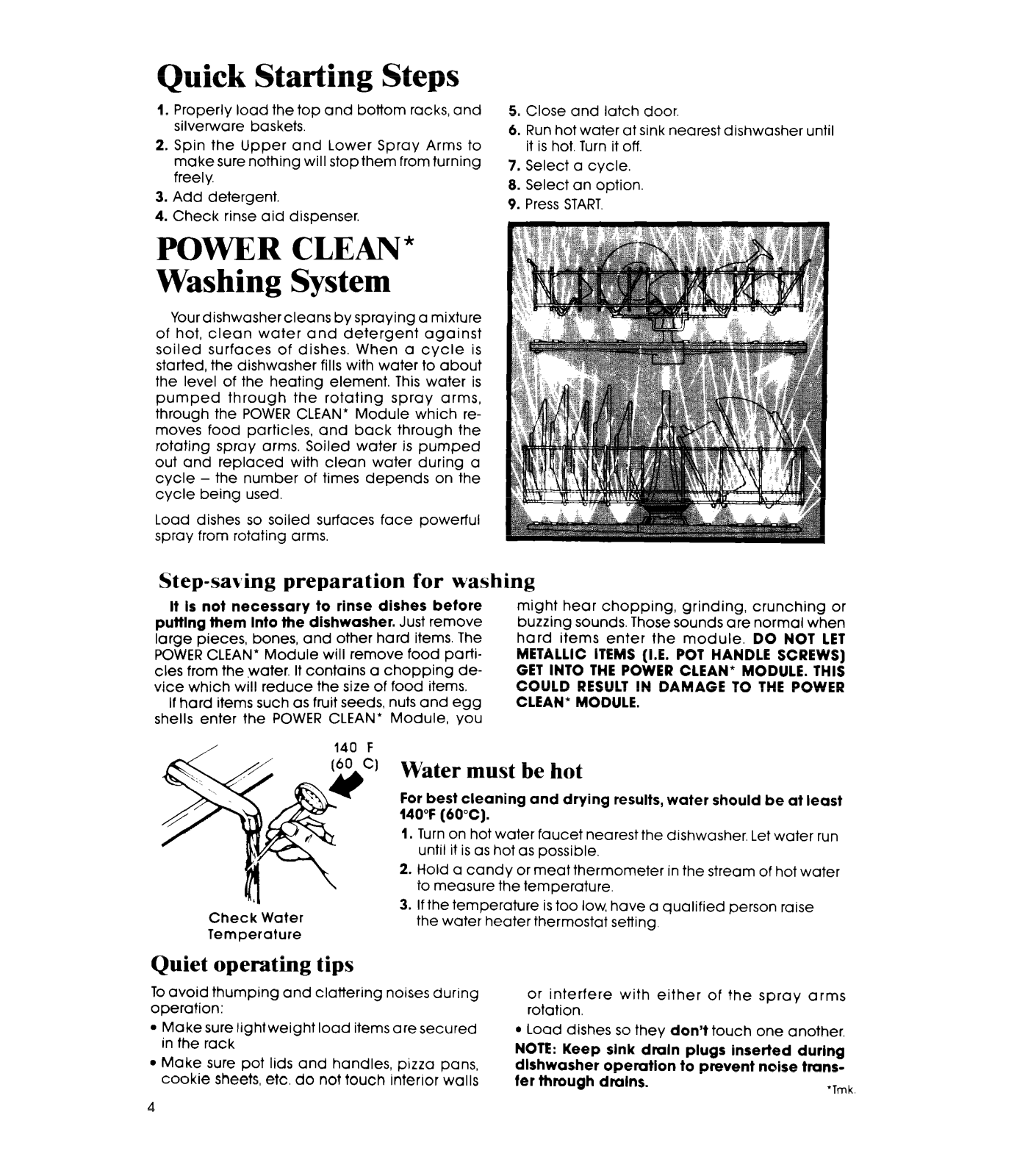

Quick Starting Steps

1. Properly load the top and bottom racks, and silverware baskets.

2. Spin the Upper and Lower Spray Arms to make sure nothing will stop them from turning freely.

3. Add detergent.

4. Check rinse aid dispenser.

POWER CLEAN* Washing System

Your dishwasher cleans by spraying a mixture of hot, clean water and detergent against soiled surfaces of dishes. When a cycle is started, the dishwasher fills with water to about the level of the heating element. This water is pumped through the rotating spray arms, through the POWER CLEAN* Module which removes food particles, and back through the rotating spray arms. Soiled water is pumped out and replaced with clean water during a cycle - the number of times depends on the cycle being used.

Load dishes so soiled surfaces face powerful spray from rotating arms.

5. Close and latch door.

6. Run hot water at sink nearest dishwasher until it is hot. Turn it off.

7. Select a cycle.

8. Select an option.

9. Press START.

Step-saving preparation for washing

It is not necessary to rinse dishes betore putting them Into the dishwasher. Just remove large pieces, bones, and other hard items. The POWER CLEAN* Module will remove food pani-

cles from the water. It contains a chopping device which w/II reduce the size of food items.

If hard items such as fruit seeds,

shells enter the POWER CLEAN* Module,

nuts

and egg

YOU

‘I Water must be hot

For best cleaning and drying results, water should be at least 140°F (60°C).

1. Turn on hot water faucet nearest the dishwasher. Let water run until it is as hot as possible.

2. Hold a candy or meat thermometer in the stream of hot water to measure the temperature.

Check Water Temperature

3. If the temperature is too low, have a qualified person raise the water heater thermostat setting

Quiet operating tips

To avoid thumping and clattering noises during operation:

Makesurelightweight load itemsaresecured in the rack

Make sure pot lids and handles, pizza pans, cookie sheets, etc. do not touch intenor walls

might hear chopping, grinding, crunching or buzzing sounds. Those sounds are normal when hard items enter the module. DO NOT LET METALLIC ITEMS (I.E. POT HANDLE SCREWS)

GET INTO THE POWER CLEAN* MODULE. THIS COULD RESULT IN DAMAGE TO THE POWER CLEAN’ MODULE.

or interfere with either of the spray arms rotation.

Load dishes so they don’t touch one another.

NOTE: Keep slnk dmln plugs inserted durtng dlshwasher operation to prevent noise tmnsfer through dmlns.

‘Tmk

Proper loading

Always load dishes so soiled surfaces are reached by spray from rotating spray arms. Water must be able to drain off completely for best drying results. Be careful to separate items so sprav can reach all surfaces.

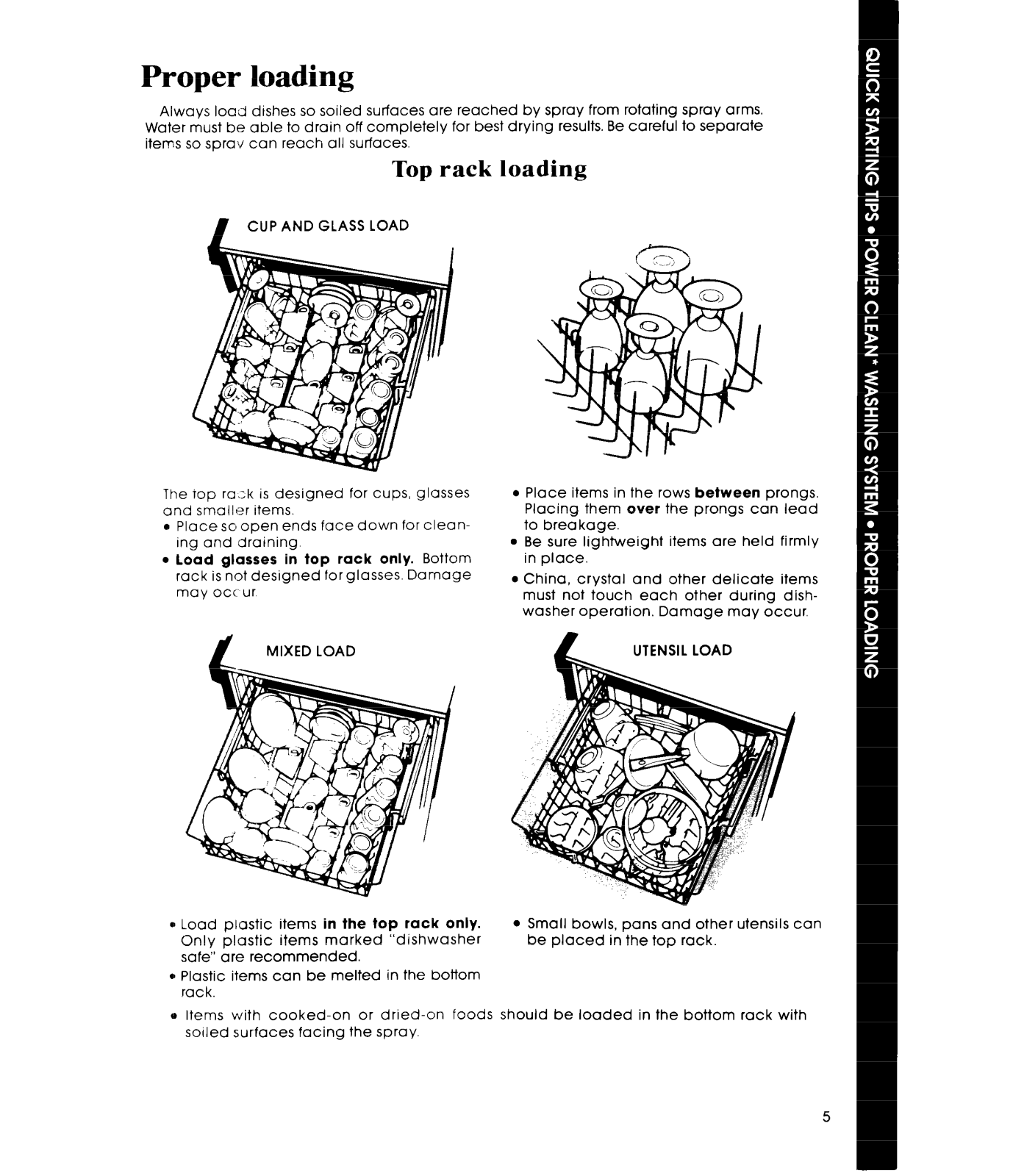

Top rack loading

CUP AND GLASS LOAD

The Top razk is designed for cups, glasses and smaller items.

Place so open ends face down for cleaning and draining

load glasses in top rack only. Bottom

rack is not designed for glasses. Damage mav occur

Place items in the rows between prongs. Placing them over the prongs can lead

to breakage.

Be sure lightweight items are held firmly in place.

China, crystal and other delicate items

must

not touch each other during dish-

washer operation. Damage may occur.

UTENSIL LOAD

a Load plastic items in the top rack only.

Only plastic items marked “dishwasher

Small bowls, pans and other utensils can be placed in the top rack.

safe” are recommended.

e Plastic items can be melted in the bottom

rack.

o Items with cooked-on or dried-on foods should be loaded in the bottom rack with

solled surfaces facing the spray.

+ 11 hidden pages
