Page 1

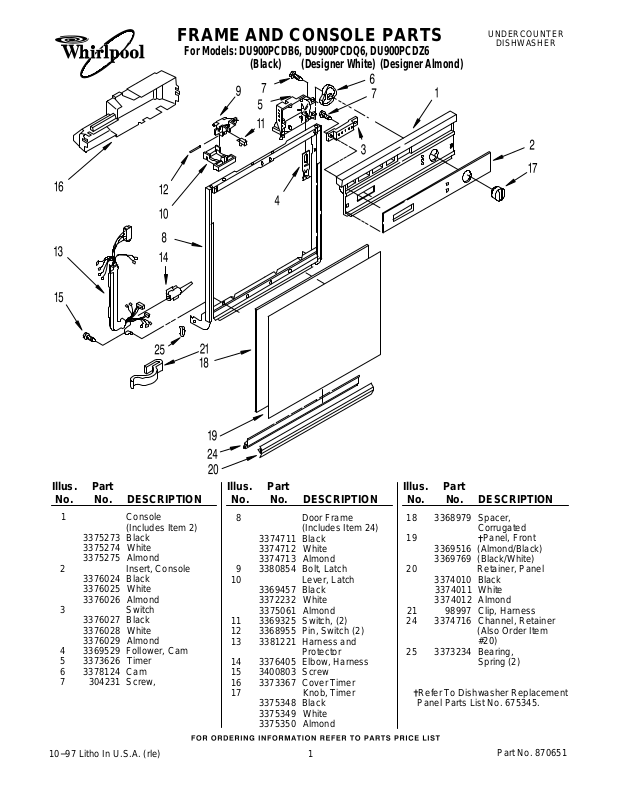

FRAME AND CONSOLE PARTS
UNDERCOUNTER
For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6
(Black) (Designer White) (Designer Almond)
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Console
(Includes Item 2)
3375273 Black
3375274 White
3375275 Almond
2 Insert, Console
3376024 Black
3376025 White
3376026 Almond
3 Switch
3376027 Black
3376028 White
3376029 Almond
4 3369529 Follower, Cam
5 3373626 Timer
6 3378124 Cam
7 304231 Screw,
10−97 Litho In U.S.A. (rle)
Illus. Part
No. No. DESCRIPTION
8 Door Frame
(Includes Item 24)
3374711 Black
3374712 White
3374713 Almond
9 3380854 Bolt, Latch
10 Lever, Latch
3369457 Black
3372232 White
3375061 Almond
11 3369325 Switch, (2)
12 3368955 Pin, Switch (2)
13 3381221 Harness and
Protector
14 3376405 Elbow, Harness
15 3400803 Screw
16 3373367 Cover Timer
17 Knob, Timer
3375348 Black
3375349 White
3375350 Almond
1
Illus. Part
No. No. DESCRIPTION
18 3368979 Spacer,
Corrugated
19
3369516 (Almond/Black)
3369769 (Black/White)
20 Retainer, Panel
3374010 Black
3374011 White
3374012 Almond
21 98997 Clip, Harness
24 3374716 Channel, Retainer
25 3373234 Bearing,
Refer To Dishwasher Replacement
Panel Parts List No. 675345.
Panel, Front
(Also Order Item
#20)
Spring (2)
Part No. 870651
Page 2
INNER DOOR PARTS
For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6
(Black) (Designer White) (Designer Almond)
Illus. Part
No. No. DESCRIPTION
1 3371481 Inner Door
(Also Order Latch
Door Kit 676413)
2 3376066 Latch, Detergent
Dispenser
3 3369061 Snap, Detergent
Dispenser
4 3369055 Actuator Assembly
5 3368967 Wet Agent,
6 3369000 Draw Bar (Upper
Dispenser)
7 3369602 Draw Bar (Lower
Dispenser)
8 3368999 Spring (Draw
9 3378138 Lid Assembly
10 300106 Spring, Lid
11 3372028 Pin (Lid Hinge)
(Also Order
Item #10)
12 3371710 Screen, Vent
13 3369512 Wet−Agent Cap
Assembly
14 3369155 Seal (Wet−Cap)
15 3400815 Screw (8)
16 3371569 Cover, Drip
Dispenser
Bar)
2
870651
Page 3
TUB ASSEMBLY PARTS
For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6
(Black) (Designer White) (Designer Almond)
870651
3
Page 4
TUB ASSEMBLY PARTS
For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6
(Black) (Designer White) (Designer Almond)
Illus. Part
No. No. DESCRIPTION
1 3379349 Tub Assembly
2 3380371 Tub, Wheel
Assembly (8)
3 3368933 Runner (2)
4 3376439 Leveler (2)
5 3370389 Screw, Shoulder
6 302819 Wheel (2)
7 343641 Screw,
8 3374719 Plate, Latch
9 3374720 Screw
10 3376927 Gasket
11 Retainer, Access
Panel
3372412 Black
3372413 White
3372414 Almond
12 3369052 Deflector (2)
13 3379487 Heater
(Includes Item 14)
14 717273 Washer, Rubber (2)
15 3378706 Nut (2)
(Heater Terminal)
16 3378779 Water Valve
17 304392 Screw
Illus. Part
No. No. DESCRIPTION
18 3369777 Thermostat,
Hi−Limit
20 301958 Clamp
22 3378595 Bracket,
Thermostat
23 3370225 Screw
24 3369447 Relay
25 304231 Screw
28 3374343 Spring, Door (2)
29 3369048 Housing, Float
Switch
30 3369067 Switch, Float
31 3369049 Cover, Switch
Housing
32 3376397 Float & Washer
Assembly
33 717488 Nut
34 Toe Panel
3368942 Black
9742861 White
9742862 Almond
35 Panel, Access
3369193 Black
3369614 White
3377698 Almond
Illus. Part
No. No. DESCRIPTION
36 302868 Screw
37 3369414 Hose, Inlet
39 3379740 Support, Heater (2)
40 3381230 Sound Shield
41 3378131 Terminal Box
42 300068 Cover Assembly,
Terminal Box
43
3369527 (Almond/Black)
3370868 (Black/White)
44 3369526 Spacer, Corrugated
45 3374728 Extension & Clip
48 304666 Retainer, Push (2)
49 3370307 Strain Relief
50 3378128 Washer
51 3400014 Screw
52 3369138 Screw
53 3378123 Clip, Grounding
Refer To Dishwasher
Replacement
Panel Parts List No. 675345.
Access Panel
Assembly
4
870651
Page 5

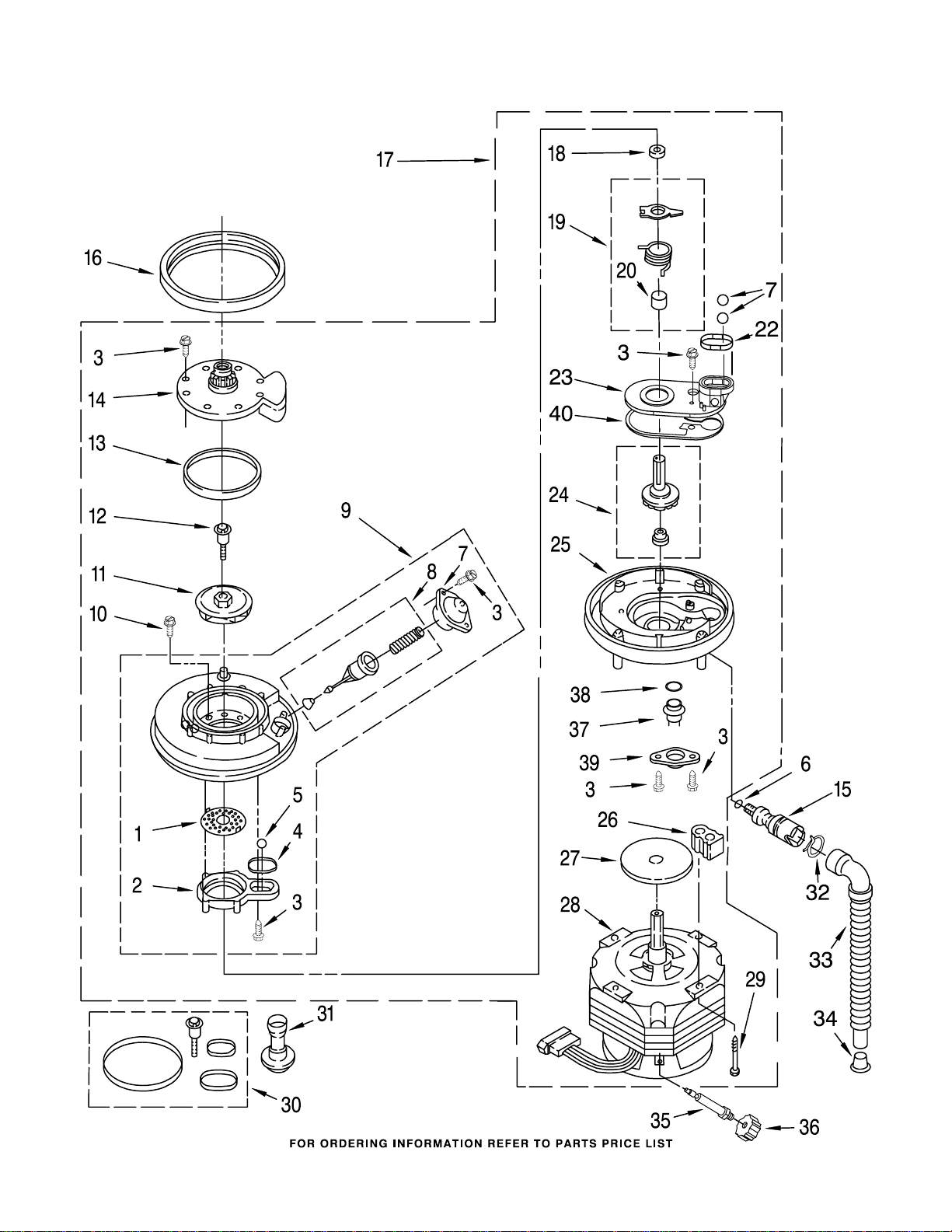

PUMP AND MOTOR PARTS
For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6
(Black) (Designer White) (Designer Almond)
Note: The Pump Gasket
Must Be Replaced Anytime
The Pump Assembly Is
Removed And Reinstalled
In The Dishwasher.
870651
Pump Centering Tool Required
For Pump Re−Assembling
Order Item 31.
5
Page 6
PUMP AND MOTOR PARTS
For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6
(Black) (Designer White) (Designer Almond)
Illus. Part
No. No. DESCRIPTION
1 9740982 Plate, Perforated
(Includes Item 5)
(Also Order
Item 30)
See Note A.
2 3367173 Base, Inlet
(Includes Items
1 & 5)
(Also Order
Item 30)
See Note A.
3 9741232 Screw
4 302710 Seal, Inlet Base
5 302709 Ball, Check
6 95080 "O" Ring
7 302721 Cover, Valve
8 302738 Valve Stem Kit
(Includes Items
12, 13 & 22)
See Note A.
9 303882 Separator Assembly
(Includes Items
12, 13 & 22)
See Note A.
10 3400001 Screw
11 303510 Impeller, Wash
(Includes Items
12 & 13)
12 3371152 Screw & Seal
13 302711 Seal, Pump Outlet
14 3369478 Outlet, Pump
(Includes Item 13)
Illus. Part
No. No. DESCRIPTION
15 3369482 Check Valve
(Includes Item 6)
16 717000 Gasket, Pump
17 3376752 Pump & Motor
Assembly
(Includes Item 16)
18 302707 Bushing, Grind
19 302718 Chopper Kit
(Also Order
Item 30)
See Note A.
20 3378139 Sleeve, Drain
Impeller
22 302704 Seal, Drain Cover
23 3378207 Cover, Drain
(Also Order
Item 30)
See Note A.
24 303539 Impeller,
Drain Kit
(Also Order
Item 30)
See Note A.
25 3376157 Base, Pump
(Also Order
Item 30)
See Note A.
26 3367197 Support, Pump
Mounting (4)
27 3368270 Slinger
(See Note A.)
Illus. Part
No. No. DESCRIPTION
28 3379364 Motor & Fan
Assembly
(Includes Item 27)
(Also Order
Item 30)
See Note A.
29 3369331 Screw
30 675505 Pump Seal Kit
(Includes Items
4, 12, 13 & 22)
31 303918 Tool, Pump
Centering
32 356138 Clamp, Hose
33 3374077 Hose, Drain
34 3371748 Cap, Drain
35 3374757 Shaft, Absorber
36 3378202 Weight, Absorber
37 3378083 Thermostat
38 3376723 Seal, O−Ring
39 3376358 Retainer,
Thermostat
40 9740674 Gasket, Drain
Cover
NOTE A:
Pump Centering Tool Required
For Pump Re−Assembling
Order Item 31.
6
870651
Page 7

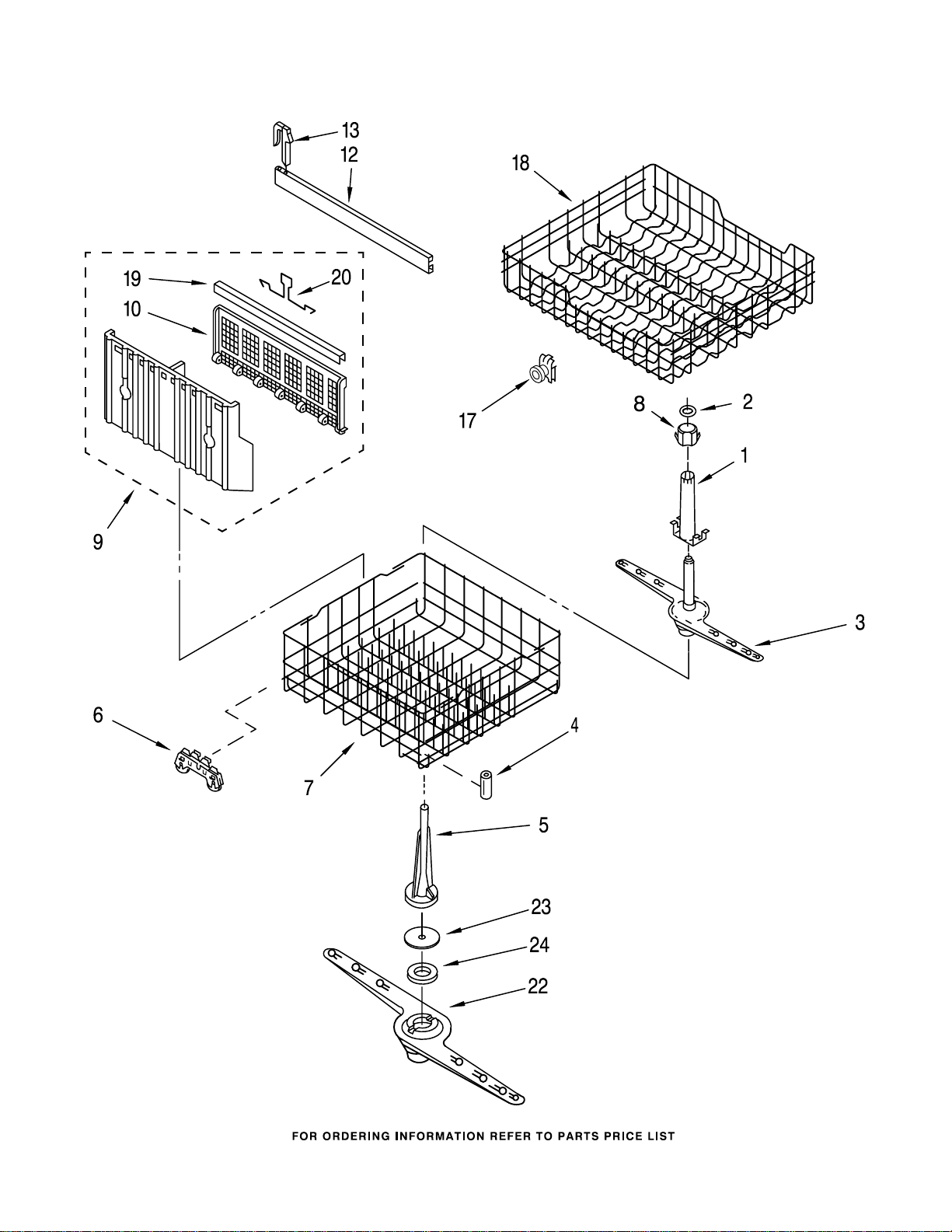

DISHRACK PARTS
For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6
(Black) (Designer White) (Designer Almond)
870651
7
Page 8
DISHRACK PARTS
For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6
(Black) (Designer White) (Designer Almond)
Illus. Part
No. No. DESCRIPTION
1 3368290 Support, Arm
(Also Order
Items 2 & 8)
2 303722 Clip
3 3377274 Spray Arm, Upper
(Also Order Item 8)
4 3368006 Bumper (2)
5 300848 Tower, Pressure
6 3376961 Wheel & Transport
Assembly (4)
7 3370490 Dishrack, Lower
(Includes Items 4 & 6)
8 3374702 Support Lock,
Spray Arm
9 3369488 Silverware
Basket Assembly
10 3369485 Cover, Basket
12 9742998 Track
13 3379941 Stop, Track (4)
17 3380863 Wheel & Axle
Assembly (4)
18 3371663 Dishrack,
Upper
19 717528 Trim, Basket
20 300086 Handle, Basket
22 3369347 Sprayarm, Lower
23 3367910 Cap, Nozzle
24 719576 Bearing, Nozzle
8
870651
Page 9

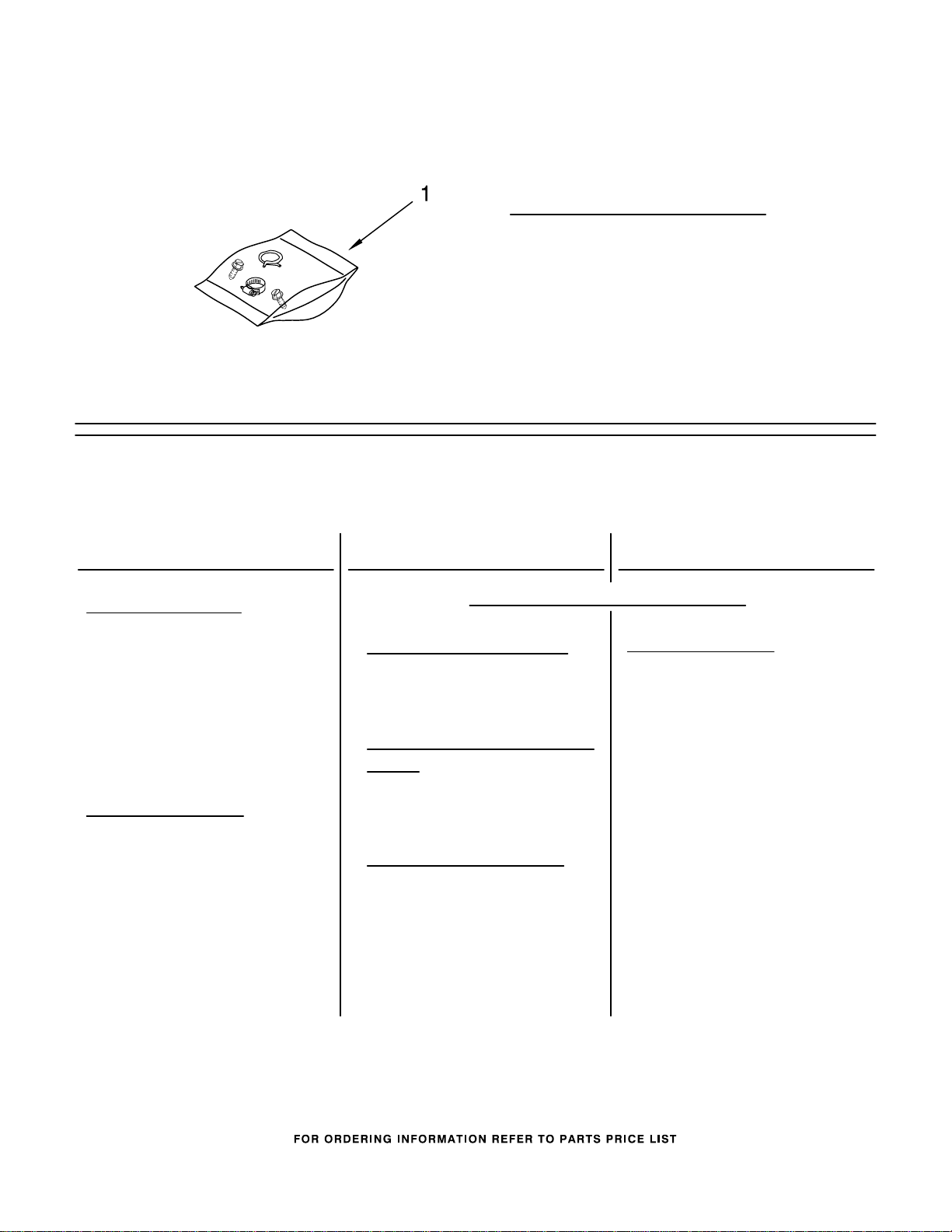

MISCELLANEOUS PARTS
For Models: DU900PCDB6, DU900PCDQ6, DU900PCDZ6
(Black) (Designer White) (Designer Almond)
Illus. Part
No. No. DESCRIPTION
1 3369816 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
LITERATURE AND OPTIONAL PARTS
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
4317925 White
4317929 Almond
4318050 Heavy Duty
LITERATURE PARTS
LIT3380268
LIT3367007
LIT3381327
LIT3376832
LIT3379192
LIT0677967
Instructions,
Installation
Instructions,
Installation
(Supplement)
(Locating Your
Water Supply)
Energy Guide
Guide, Use & Care
Wiring Diagram
Do−It Yourself,
Manual
Illus. Part
No. No. DESCRIPTION
OPTIONAL PARTS NOT INCLUDED
PAINT, TOUCH−UP (1/2oz.)
72017 White
72107 Almond
72032 Black
PAINT, PRESSURIZED SPRAY
(13 oz.)
350956 Almond
285006 Superior Black
350942 Primer (White)
PAINT, TOUCH−UP (1 qt.)
978883 Almond (Uncut)
799340 Black (Uncut)
Illus. Part
No. No. DESCRIPTION
DISHRACK REPAIR
675576 Vinyl Touch−Up
(Blue)
675677 Tine Tip Repair
Kit (Blue−−
Enough For Two
Complete
Dishracks)
676453 Vinyl Touch−Up
(White)
675679 Tine Tip Repair
Kit (White−−
Enough For Two
Complete
Dishracks)
676455 Vinyl Touch−Up
(Grey)
676458 Tine Tip Repair
Kit (Grey−−
Enough For Two
Complete
Dishracks)
870651
9
