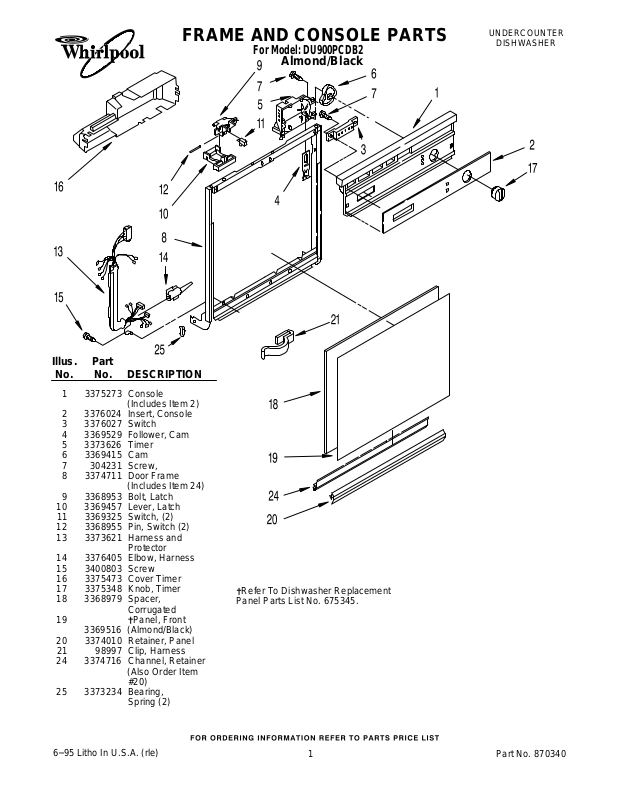

Page 1
FRAME AND CONSOLE PARTS
For Model: DU900PCDB2
Almond/Black
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 3375273 Console
(Includes Item 2)
2 3376024 Insert, Console
3 3376027 Switch
4 3369529 Follower, Cam
5 3373626 Timer
6 3369415 Cam
7 304231 Screw,
8 3374711 Door Frame
(Includes Item 24)
9 3368953 Bolt, Latch
10 3369457 Lever, Latch
11 3369325 Switch, (2)
12 3368955 Pin, Switch (2)
13 3373621 Harness and
Protector
14 3376405 Elbow, Harness
15 3400803 Screw
16 3375473 Cover Timer
17 3375348 Knob, Timer
18 3368979 Spacer,
Corrugated
19
3369516 (Almond/Black)
20 3374010 Retainer, Panel
21 98997 Clip, Harness
24 3374716 Channel, Retainer
25 3373234 Bearing,
Panel, Front
(Also Order Item
#20)
Spring (2)
Refer To Dishwasher Replacement
Panel Parts List No. 675345.
6−95 Litho In U.S.A. (rle)
1
Part No. 870340
Page 2
INNER DOOR PARTS
For Model: DU900PCDB2
Almond/Black
Illus. Part
No. No. DESCRIPTION
1 3371481 Inner Door
(Also Order Latch
Door Kit 676413)
2 3376066 Latch, Detergent
Dispenser
3 3369061 Snap, Detergent
Dispenser
4 3369055 Actuator Assembly
5 3368967 Wet Agent,
Dispenser
6 3369000 Draw Bar (Upper
Dispenser)
7 3369602 Draw Bar (Lower
Dispenser)
8 3368999 Spring (Draw
Bar)
9 3376404 Lid Assembly
10 300106 Spring, Lid
11 3372028 Pin (Lid Hinge)
(Also Order
Item #10)
12 3371710 Screen, Vent
13 3369512 Wet−Agent Cap
Assembly
14 3369155 Seal (Wet−Cap)
15 3369051 Screw
16 3371569 Cover, Drip
2
870340
Page 3
TUB ASSEMBLY PARTS
For Model: DU900PCDB2
Almond/Black
870340
3
Page 4
TUB ASSEMBLY PARTS
For Model: DU900PCDB2
Almond/Black
Illus. Part
No. No. DESCRIPTION
1 3375130 Tub Assembly
2 3369078 Tub, Wheel
Assembly (8)
3 3368932 Runner (2)
4 3374849 Leveler (2)
5 3370389 Screw, Shoulder
6 302819 Wheel (2)
7 343641 Screw,
8 3374719 Plate, Latch
9 3374720 Screw
10 3368994 Gasket
11 3372412 Retainer, Access
Panel
12 3369052 Deflector (2)
13 3375558 Heater
14 717273 Washer, Rubber (2)
15 3369073 Nut (2)
(Heater Terminal)
16 3374621 Water Valve
17 304392 Screw
18 3369777 Thermostat,
Hi−Limit
Illus. Part
No. No. DESCRIPTION
19 3373359 Thermostat
20 301958 Clamp
21 3376149 Shield, Thermostat
22 3370555 Bracket,
Thermostat
23 3370225 Screw
24 3369447 Relay
25 304231 Screw
28 3374343 Spring, Door (2)
29 3369048 Housing, Float
Switch
30 3369067 Switch, Float
31 3369049 Cover, Switch
Housing
32 3376397 Float & Washer
Assembly
33 717488 Nut
34 3368942 Toe Panel
35 3369193 Panel, Access
36 302868 Screw
37 3369414 Hose, Inlet
Illus. Part
No. No. DESCRIPTION
39 3368987 Support, Heater
40 3374765 Sound Shield
41 3370292 Terminal Box
42 300068 Cover Assembly,
Terminal Box
43
3369527 (Almond/Black)
44 3369526 Spacer, Corrugated
45 3374728 Extension & Clip
48 304666 Retainer, Push (2)
49 3370307 Strain Relief
50 3371579 Nut
51 3371578 Screw
52 3369138 Screw
53 3374718 Clip, Grounding
Refer To Dishwasher
Replacement
Panel Parts List No. 675345.
Access Panel
Assembly
4
870340
Page 5

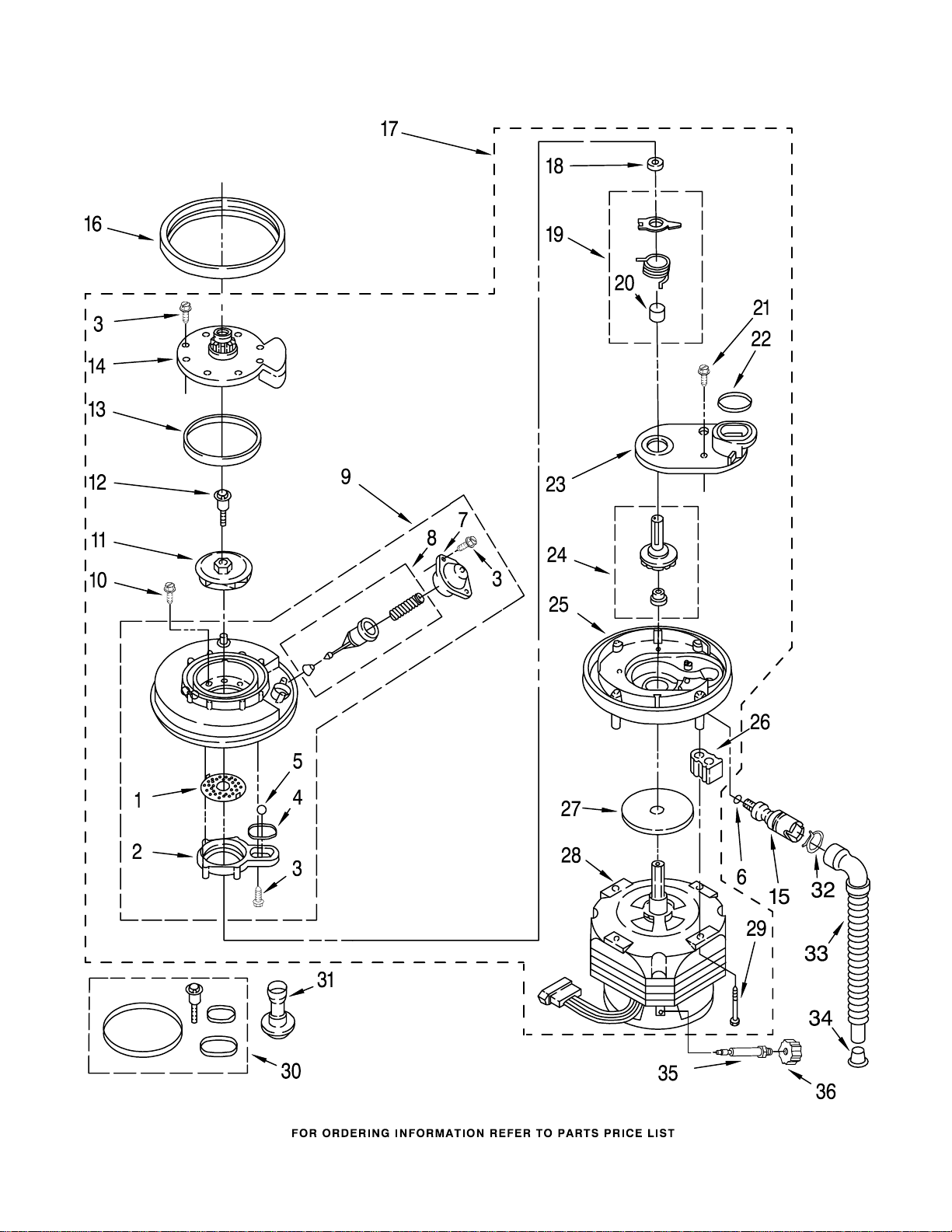

PUMP AND MOTOR PARTS
For Model: DU900PCDB2
Almond/Black
Note: The Pump Gasket
Must Be Replaced Anytime
The Pump Assembly Is
Removed And Reinstalled
In The Dishwasher.
870340
Pump Centering Tool Required
For Pump Re−Assembling
Order Item 31.
5
Page 6
PUMP AND MOTOR PARTS
For Model: DU900PCDB2
Almond/Black
Illus. Part
No. No. DESCRIPTION
1 9740982 Plate, Perforated
(Includes Item 5)
(Also Order
Item 30)
See Note A.
2 3367173 Base, Inlet
(Includes Items
1 & 5)
(Also Order
Item 30)
See Note A.
3 9741232 Screw
4 302710 Seal, Inlet Base
5 302709 Ball, Check
6 95080 "O" Ring
7 302721 Cover, Valve
8 302738 Valve Stem Kit
(Includes Items
12, 13 & 22)
See Note A.
9 303883 Separator Assembly
(Includes Items
12, 13 & 22)
See Note A.
10 3400001 Screw
11 3376402 Impeller, Wash
(Includes Items
12 & 13)
Illus. Part
No. No. DESCRIPTION
12 3371152 Screw & Seal
13 302711 Seal, Pump Outlet
14 3369478 Outlet, Pump
(Includes Item 13)
15 3369482 Check Valve
(Includes Item 6)
16 717000 Gasket, Pump
17 3375493 Pump & Motor
Assembly
(Includes Item 16)
18 302707 Bushing, Grind
19 302718 Chopper Kit
(Also Order
Item 30)
See Note A.
20 302705 Sleeve, Drain
Impeller
21 9741321 Screw
22 302704 Seal, Drain Cover
23 302723 Cover, Drain
(Also Order
Item 30)
See Note A.
24 303539 Impeller,
Drain Kit
(Also Order
Item 30)
See Note A.
Illus. Part
No. No. DESCRIPTION
25 3376151 Base, Pump
(Also Order
Item 30)
See Note A.
26 3367197 Support, Pump
Mounting (4)
27 3368270 Slinger
(See Note A.)
28 3374753 Motor
(Includes Item 27)
(Also Order
Item 30)
See Note A.
29 3369331 Screw
30 675505 Pump Seal Kit
(Includes Items
4, 12, 13 & 22)
31 303918 Tool, Pump
Centering
32 356138 Clamp, Hose
33 3368781 Hose, Drain
34 3371748 Cap, Drain
35 3374757 Shaft, Absorber
36 3374756 Weight, Absorber
NOTE A:
Pump Centering Tool Required
For Pump Re−Assembling
Order Item 31.
6
870340
Page 7

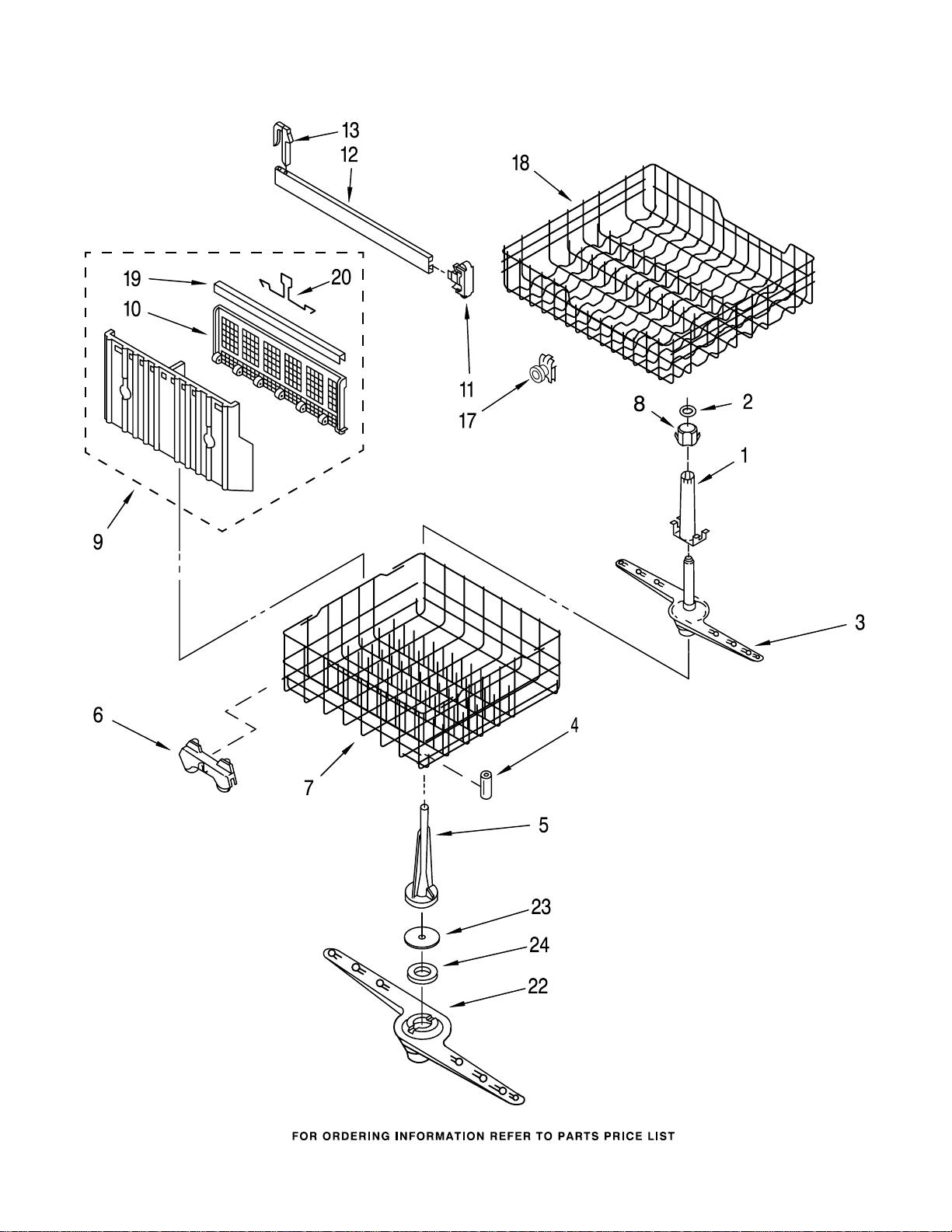

DISHRACK PARTS
For Model: DU900PCDB2
Almond/Black
870340
7
Page 8
DISHRACK PARTS
For Model: DU900PCDB2
Almond/Black
Illus. Part
No. No. DESCRIPTION
1 3368290 Support, Arm
(Also Order
Items 2 & 8)
2 303722 Clip
3 3368300 Spray Arm, Upper
(Also Order
Items 2 & 8)
4 3368006 Bumper (2)
5 300848 Tower, Pressure
6 3369509 Wheel & Transport
Assembly (4)
7 3370490 Dishrack, Lower
(Includes Items 4 & 6)
8 3374702 Support Lock,
Spray Arm
9 3369488 Silverware
Basket Assembly
10 3369485 Cover, Basket
11 300845 End Cap
(Front or Rear)
12 3369071 Track
13 3374701 Stop, Track (2)
17 3371581 Wheel & Axle
Assembly (4)
18 3371663 Dishrack,
Upper
19 717528 Trim, Basket
20 300086 Handle, Basket
22 3369347 Sprayarm, Lower
23 3367910 Cap, Nozzle
24 719576 Bearing, Nozzle
Illus. Part
No. No. DESCRIPTION
OPTIONAL PARTS NOT INCLUDED
PAINT, TOUCH−UP (1/2oz.)
72017 White
72107 Almond
72032 Black
PAINT, PRESSURIZED SPRAY
(13 oz.)
350956 Almond
285006 Superior Black
350941 Primer (White)
PAINT, TOUCH−UP (1 qt.)
978883 Almond (Uncut)
799340 Black (Uncut)
DISHRACK REPAIR
675576 Vinyl Touch−Up
(Blue)
675677 Tine Tip Repair
Kit (Blue−−
Enough For Two
Complete
Dishracks)
676453 Vinyl Touch−Up
(White)
675679 Tine Tip Repair
Kit (White−−
Enough For Two
Complete
Dishracks)
676455 Vinyl Touch−Up
(Grey)
676458 Tine Tip Repair
Kit (Grey−−
Enough For Two
Complete
Dishracks)
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
4317925 White
4317926 Avocado
4317927 Gold
4317929 Almond
4317930 Toast
4317931 Platinum
4318050 Heavy Duty
LITERATURE PARTS
LIT3369679
LIT3367007
LIT3373484
LIT3373751
LIT3373631
LIT0677967
Instructions,
Installation
Instructions,
Installation
(Supplement)
(Locating Your
Water Supply)
Energy Guide
Guide, Use & Care
Wiring Diagram
Do−It Yourself,
Manual
Following Parts Not Illustrated
and Optional Parts Not Included
1 3369816 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
8
870340
