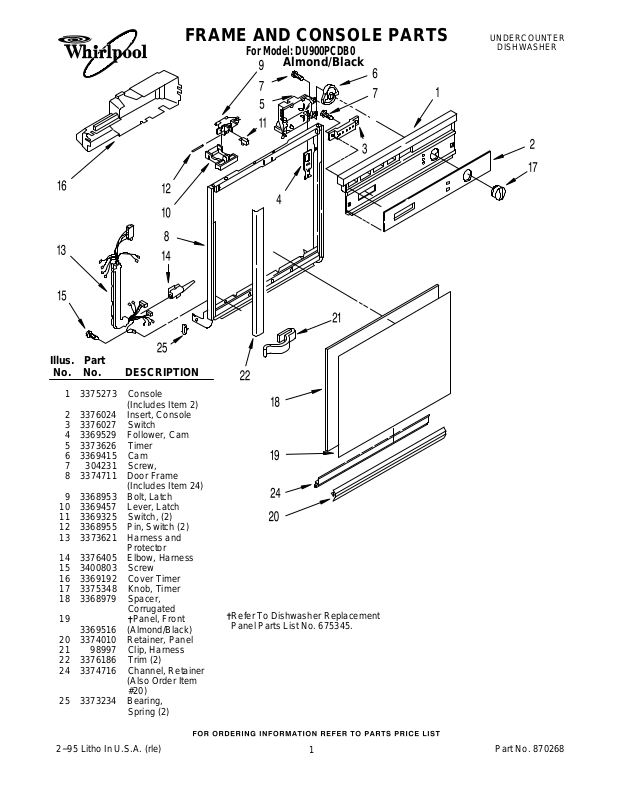

FRAME AND CONSOLE PARTS
For Model: DU900PCDB0
Almond/Black
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 3375273 Console
(Includes Item 2)
2 3376024 Insert, Console
3 3376027 Switch
4 3369529 Follower, Cam
5 3373626 Timer
6 3369415 Cam
7 304231 Screw,
8 3374711 Door Frame
(Includes Item 24)
9 3368953 Bolt, Latch
10 3369457 Lever, Latch
11 3369325 Switch, (2)
12 3368955 Pin, Switch (2)
13 3373621 Harness and
Protector
14 3376405 Elbow, Harness
15 3400803 Screw
16 3369192 Cover Timer
17 3375348 Knob, Timer
18 3368979 Spacer,
Corrugated
19
3369516 (Almond/Black)
20 3374010 Retainer, Panel
21 98997 Clip, Harness
22 3376186 Trim (2)
24 3374716 Channel, Retainer
25 3373234 Bearing,
Panel, Front
(Also Order Item
#20)
Spring (2)
Refer To Dishwasher Replacement
Panel Parts List No. 675345.
2−95 Litho In U.S.A. (rle)
1
Part No. 870268
INNER DOOR PARTS
For Model: DU900PCDB0
Almond/Black
Illus. Part
No. No. DESCRIPTION
1 3371481 Inner Door
(Also Order Latch
Door Kit 676413)
2 3376066 Latch, Detergent
Dispenser
3 3369061 Snap, Detergent
Dispenser
4 3369055 Actuator Assembly
5 3368967 Wet Agent,
Dispenser
6 3369000 Draw Bar (Upper
Dispenser)
7 3369602 Draw Bar (Lower
Dispenser)
8 3368999 Spring (Draw
Bar)
9 3376404 Lid Assembly
10 300106 Spring, Lid
11 3372028 Pin (Lid Hinge)
(Also Order
Item #10)
12 3371710 Screen, Vent
13 3369512 Wet−Agent Cap
Assembly
14 3369155 Seal (Wet−Cap)
15 3369051 Screw
16 3371569 Cover, Drip
2
870268

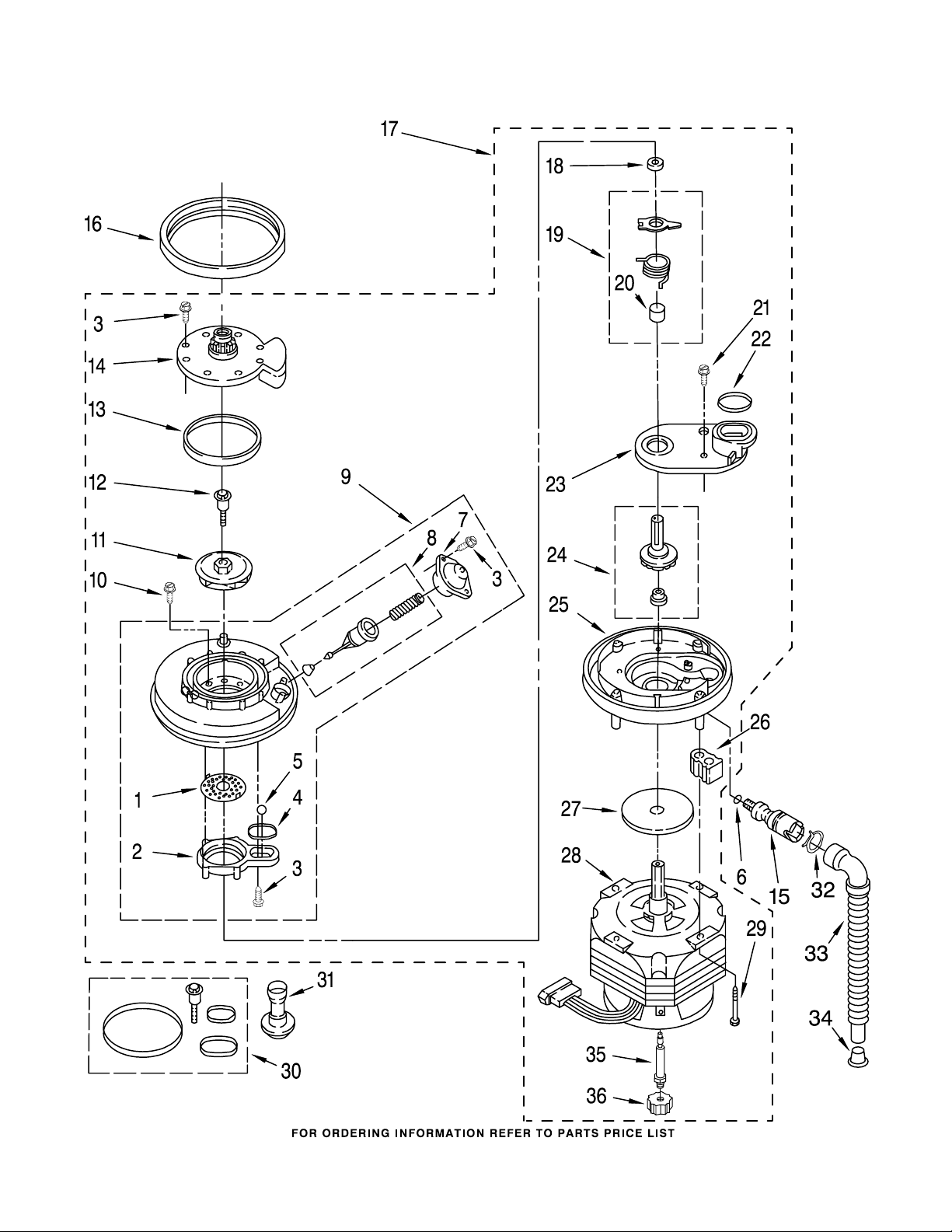

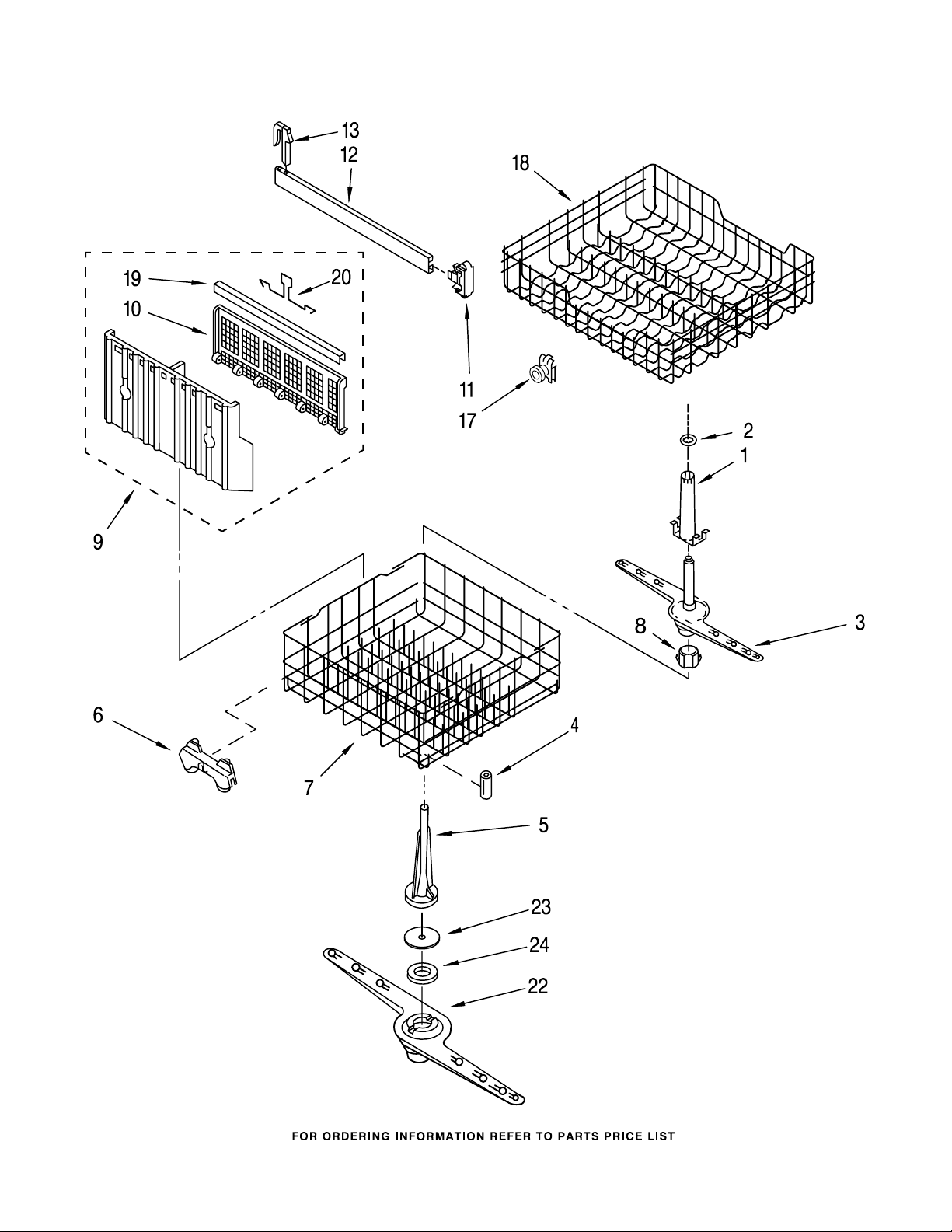

TUB ASSEMBLY PARTS
For Model: DU900PCDB0
Almond/Black
870268
3
