Whirlpool DU850, DU810, DU811 User Manual

®
DISHWASHER
Use & Care Guide
For questions about features, operation/performance,
parts, accessories or service, call: 1-800-253-1301
or visit our website at www.whirlpool.com
In Canada, for assistance, installation or service,
call: 1-800-807-6777 or visit our website at
www.whirlpool.ca
Guide d’utilisation
et d’entretien
Au Canada, pour assistance, installation ou service,
composez le 1-800-807-6777
ou visitez notre site web à
www.whirlpool.ca
W10039800B
Table of Contents/Table des matières................2
Models/Modèles DU810, DU811, DU850
TABLE OF CONTENTS
TABLE DES MATIÈRES
DISHWASHER SAFETY .................................................................3
Before Using Your Dishwasher....................................................4
PARTS AND FEATURES................................................................5
Control Panels.............................................................................. 6
START-UP GUIDE ..........................................................................6
Using Your New Dishwasher .......................................................6
Stopping Your Dishwasher ..........................................................7
DISHWASHER LOADING.............................................................. 7
Loading Suggestions ...................................................................7
Loading Top Rack........................................................................7

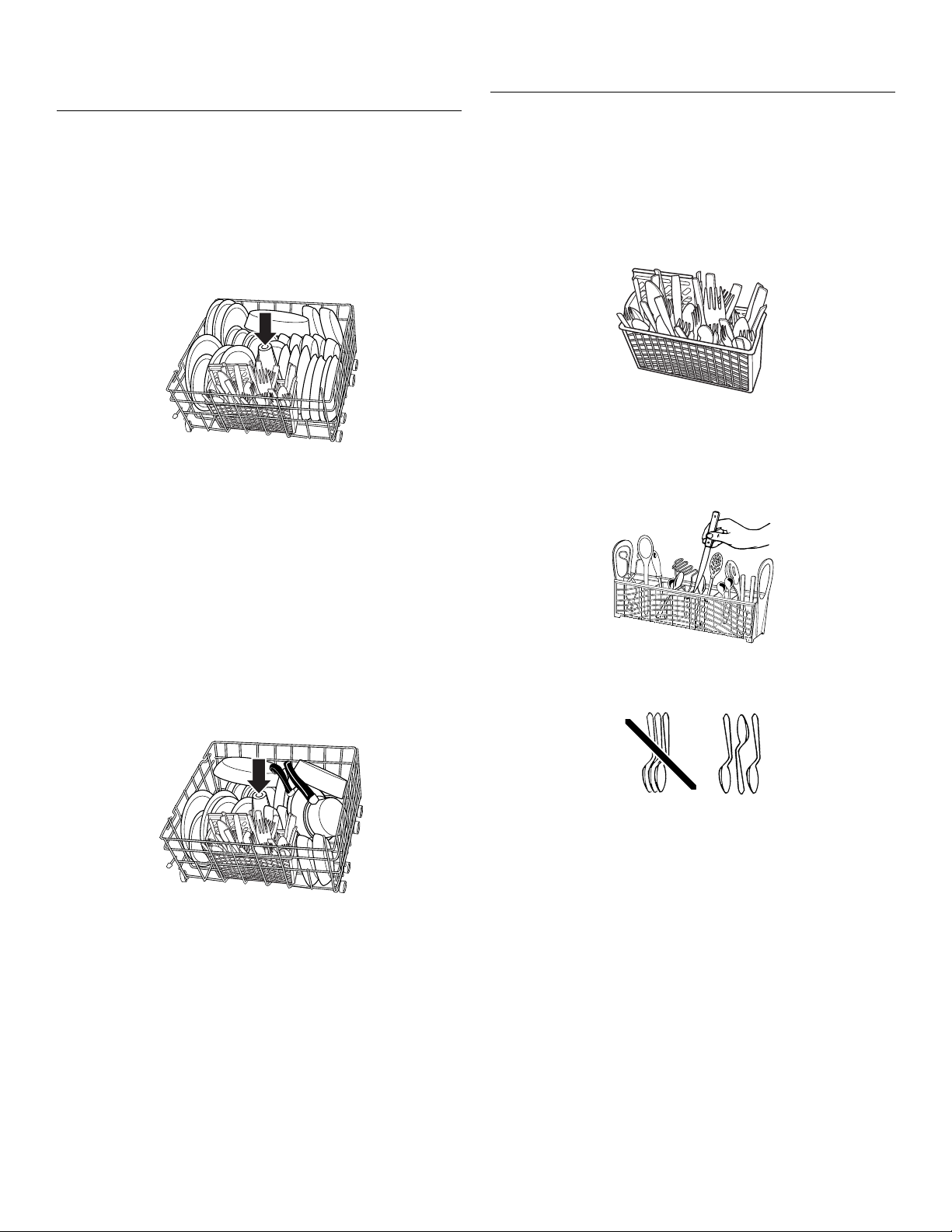

Loading Bottom Rack ..................................................................8
Loading Silverware Basket ..........................................................8
DISHWASHER USE........................................................................9
Detergent Dispenser ....................................................................9
Rinse Aid Dispenser...................................................................10
Dishwasher Efficiency Tips ........................................................10
Cycle Selection Charts...............................................................11
Canceling a Cycle ......................................................................11
Changing a Cycle or Setting ......................................................11
Adding Items During a Cycle .....................................................11
Option Selections.......................................................................12
Drying System............................................................................12
Overfill Protection Float..............................................................12
WASHING SPECIAL ITEMS.........................................................13

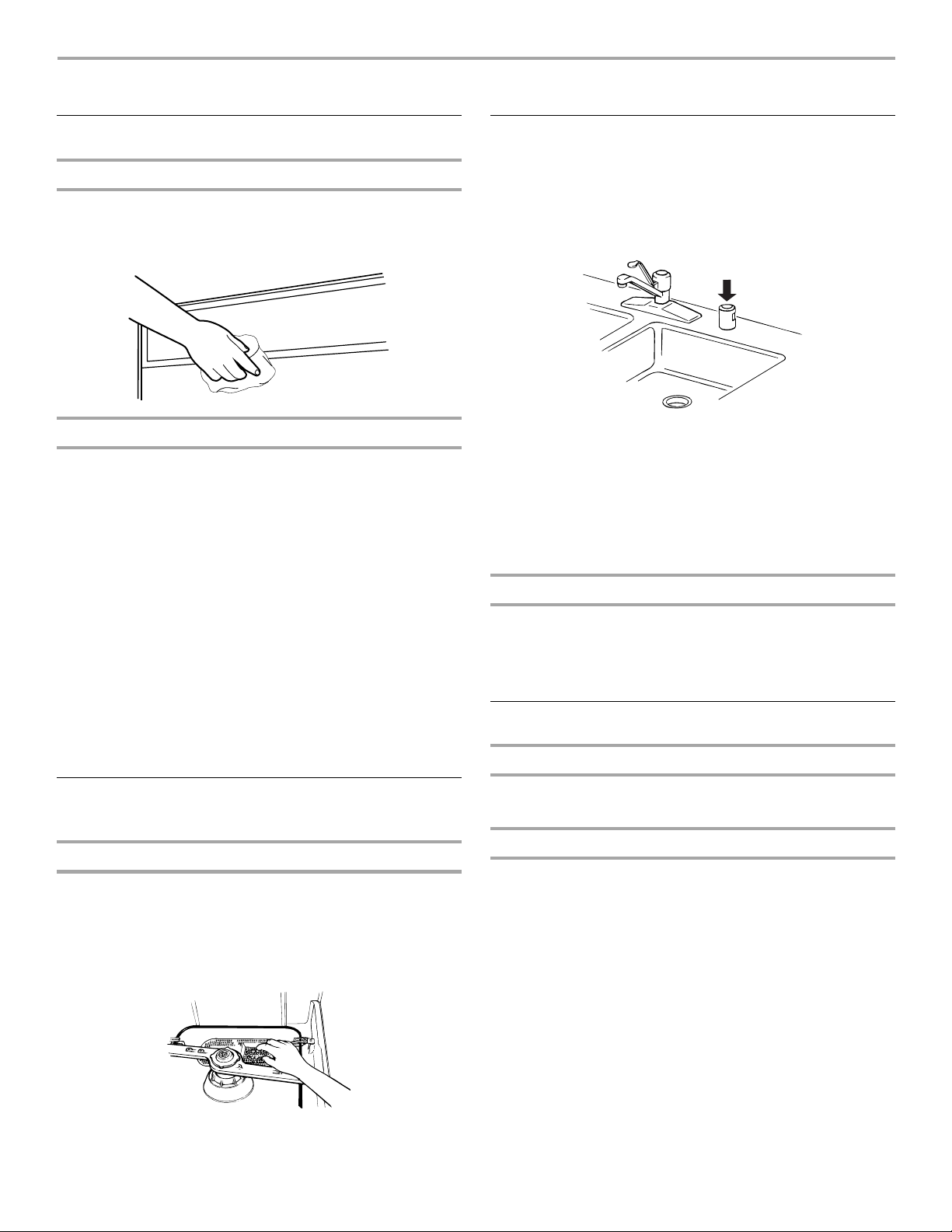

DISHWASHER CARE ...................................................................14
Cleaning......................................................................................14
Cleaning the Filter Screen..........................................................14
Drain Air Gap..............................................................................14
Storing........................................................................................14
TROUBLESHOOTING ..................................................................15
ASSISTANCE OR SERVICE.........................................................17
In the U.S.A. ...............................................................................17
In Canada ...................................................................................17
WARRANTY ..................................................................................18
SÉCURITÉ DU LAVE-VAISSELLE...............................................20
Avant d’utiliser le lave-vaisselle .................................................21
PIÈCES ET CARACTÉRISTIQUES ..............................................22
Tableaux de commande ............................................................23
GUIDE DE MISE EN MARCHE ....................................................23
Utilisation de votre nouveau lave-vaisselle................................23
Arrêt du lave-vaisselle ................................................................24
CHARGEMENT DU LAVE-VAISSELLE.......................................24
Suggestions de chargement......................................................24
Chargement du panier supérieur ...............................................24
Chargement du panier inférieur .................................................25
Chargement du panier à couverts .............................................25
UTILISATION DU LAVE-VAISSELLE...........................................26
Distributeur de détergent ...........................................................26
Distributeur d’agent de rinçage..................................................27
Conseils d’efficacité pour le lave-vaisselle ................................27
Tableaux de sélection de programmes .....................................28
Annulation d’un programme ......................................................28
Changement d’un programme ou réglage ................................28
Addition de vaisselle durant un programme..............................29
Sélection d’options.....................................................................29
Système de séchage..................................................................29
Dispositif de protection contre le débordement........................29
LAVAGE D’ARTICLES SPÉCIAUX ..............................................30
ENTRETIEN DU LAVE-VAISSELLE.............................................31
Nettoyage ...................................................................................31
Nettoyage de l’écran du filtre.....................................................31
Dispositif anti-refoulement .........................................................31
Remisage....................................................................................31
DÉPANNAGE.................................................................................32
ASSISTANCE OU SERVICE.........................................................34
Aux États-Unis............................................................................34
Au Canada..................................................................................34
GARANTIE.....................................................................................35
®
2
DISHWASHER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
When using the dishwasher, follow basic precautions, including the following:
follow instructions.
can be killed or seriously injured if you don't
You instructions.
follow
Read all instructions before using the dishwasher.
Use the dishwasher only for its intended function.
Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children.
When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal; and
2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.
Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
Do not touch the heating element during or immediately after use.
Do not operate the dishwasher unless all enclosure panels are properly in place.
SAVE THESE INSTRUCTIONS
Do not tamper with controls.
Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.
To reduce the risk of injury, do not allow children to play in or on the dishwasher.
Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.
3
Before Using Your Dishwasher
WARNING
Tip Over Hazard
Do not use dishwasher until completely installed. Do not push down on open door. Doing so can result in serious injury or cuts.
WARNING
Electrical Shock Hazard Electrically ground dishwasher. Connect ground wire to green ground connector in
terminal box. Do not use an extension cord. Failure to follow these instructions can result in death,
fire, or electrical shock.
GROUNDING INSTRUCTIONS
For a grounded, cord-connected dishwasher:
The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.
WARNING: Improper connection of the
equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
For a permanently connected dishwasher:
The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment­grounding conductor must be run with the circuit conductors and connected to the equipment­grounding terminal or lead on the dishwasher.
SAVE THESE INSTRUCTIONS
Install where dishwasher is protected from the elements.
Protect against freezing to avoid possible rupture of fill valve. Such ruptures are not covered by the warranty. See “Storing” section for winter storage information.
Install and level dishwasher on a floor that will hold the
weight, and in an area suitable for its size and use.
Remove all shipping plugs from hoses and connectors (such
as the cap on the drain outlet) before installing. See Installation Instructions for complete information.
4

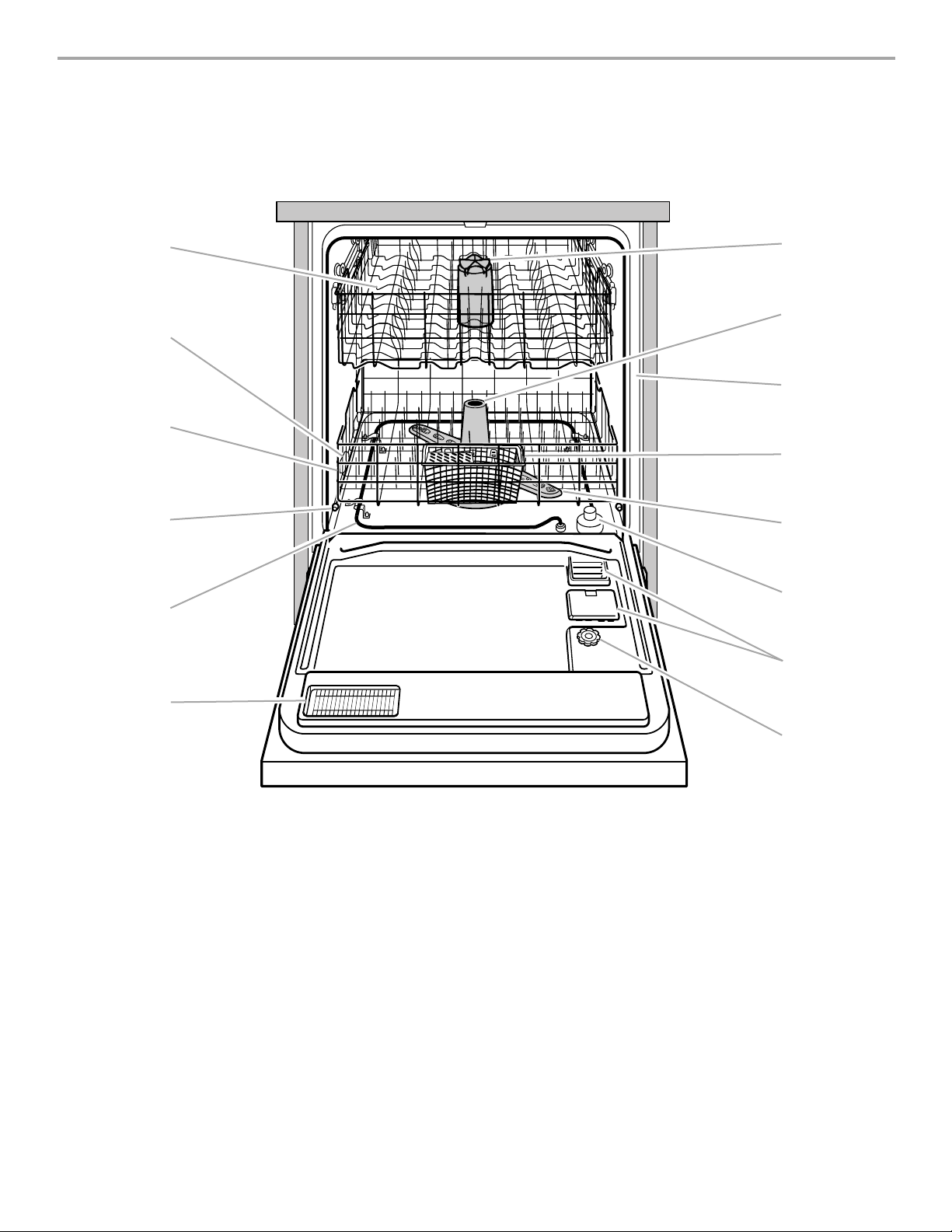

PARTS AND FEATURES
G
This manual covers several different models. The dishwasher you have purchased may have some or all of the parts and features listed below.
A
H
B
I
C
J
D
E
F
A. Top rack B. Water inlet opening C. Bottom rack D. Rack bumper E. Heating element
F. V e n t G. Third level wash (on some models) H. Spray tower and protector
I. Model and serial number label
K
L
M
N
J. Silverware basket
K. Spray arm
L. Overfill protection float
M. Detergent dispenser
N. Rinse aid dispenser
5
DU810, DU811
DU850

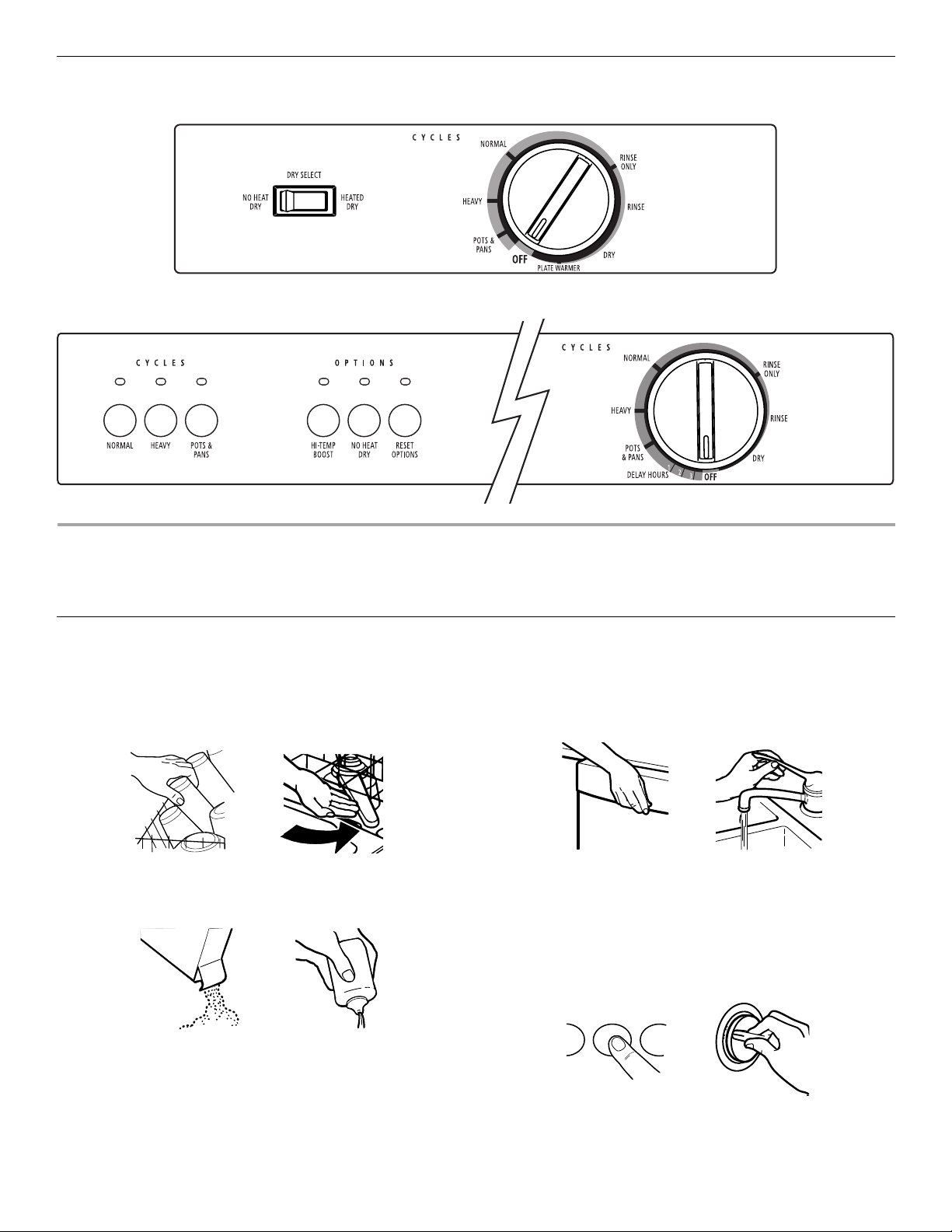

Control Panels
START-UP GUIDE
Before using your dishwasher, remove all packaging materials. Read this entire Use and Care Guide. You will find important safety information and useful operating tips.
Using Your New Dishwasher
1. Scrape large food soil and hard items (toothpicks or bones)
from dishes.
2. Properly load the dishwasher. (See “Dishwasher Loading.”)
Make sure nothing keeps the spray arm(s) from spinning freely.
3. Add detergent and check the rinse aid dispenser. Add rinse
aid if needed. (See Dishwasher Use.”)
4. Push door firmly closed. The door latches automatically. Run
hot water at the sink nearest your dishwasher until the water is hot. (See Dishwasher Efficiency Tips.) Turn off water.
5. Select a drying option. NOTE: Use No Heat Dry for the Rinse Only cycle.
6. For DU850: Press the desired cycle and option selections.
(See Dishwasher Use.) Turn the cycle control knob to the desired cycle to start.
6
Stopping Your Dishwasher
You can stop your dishwasher anytime during a cycle.
1. Open the door slightly.
2. Wait for the spraying action to stop. Then open the door all
the way, if needed.
3. Close the door to continue the cycle.
DISHWASHER LOADING
OR
1. Turn the cycle control knob slowly clockwise until you hear
water draining. Let the dishwasher drain completely.
2. Open the door.
3. Turn the cycle control knob to Off.
Loading Suggestions
Remove leftover food, bones, toothpicks and other hard
items from the dishes. NOTE: If hard items such as fruit seeds, nuts, and eggshells
enter the wash module, you might hear chopping, grinding, crunching, or buzzing sounds. These sounds are normal when hard items enter the module. To avoid damage to the dishwasher, do not let metallic items (such as pot handle screws) get into the wash module.
It is important for the water spray to reach all soiled surfaces.
Load dishes so they are not stacked or overlapping, if
possible. For best drying, water must be able to drain from all surfaces.
Make sure pot lids and handles, pizza pans, cookie sheets,
etc., do not interfere with the spray arm rotation.
Run a rinse cycle to keep dishes moist if you do not plan to
wash them soon. Foods such as eggs, rice, pasta, spinach, and cooked cereals may be hard to remove if they are left to dry over a period of time.
Quiet operating tips
To avoid thumping/clattering noises during operation:
Make sure lightweight load items are secured in the racks.
Make sure pot lids and handles, pizza pans, cookie sheets,
etc., do not touch interior walls or interfere with the rotation of the spray arm.
Load dishes so they do not touch one another.
NOTE: For built-in models, keep sink drain plugs closed during dishwasher operation to avoid noise transfer through drains.

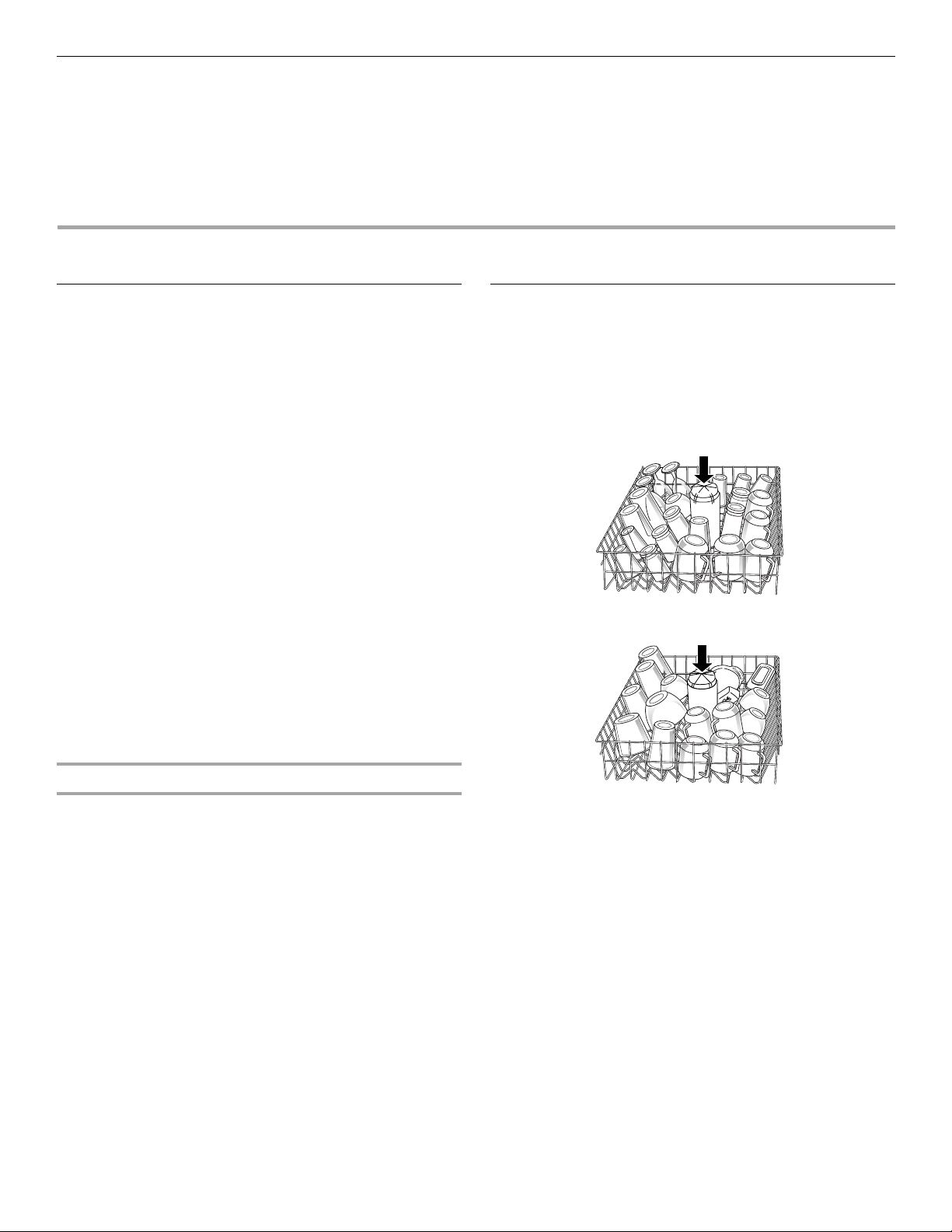

Loading Top Rack
The top rack is designed for cups, glasses, and smaller items. (See recommended loading patterns shown.)
NOTE: The features on your dishwasher rack may vary from the drawings shown.
Do not cover third level wash (on some models). See arrow.
Cup and glass load
Mixed load
Place items so open ends face down for cleaning and
draining.
Load glasses and cups in top rack only. The bottom rack is
not designed for glasses and cups. Damage can occur.
Place cups and glasses in the rows between tines. Placing
them over the tines can lead to breakage.
To avoid chipping, do not let stemware touch other items.
China, crystal, and other delicate items must not touch each
other during dishwasher operation. Damage can occur.
Wedge lightweight items against one another or overlap them
with heavier dishes.
Load plastic items securely in the top rack only. Wash only
plastic items marked dishwasher safe.
Small bowls, pans, and other utensils can be placed in the
top rack. Load bowls in the center section for best stability.
7
Loading Bottom Rack
The bottom rack is designed for plates, pans, casseroles, and utensils. Items with cooked-on or dried-on food should be loaded with soiled surfaces facing inward to the spray. (See recommended loading patterns shown.)
NOTE: The features on your dishwasher rack may vary from the drawings shown.
Do not cover spray tower. See arrow.
Mixed load
Do not load glasses, cups, or plastic items in the bottom
rack. Load small items in the bottom rack only if they are secured in place.
Load plates, soup bowls, etc., between tines and facing
inward to the spray.
Overlap the edges of plates for large loads.
Load soup, cereal, and serving bowls in the rack in a variety
of ways depending upon their size and shape. Load bowls securely between the rows of tines. Do not nest bowls because the spray will not reach all surfaces.
Loading Silverware Basket
Load the silverware basket while it is in the bottom rack or take the basket out for loading on a counter or table.
NOTE: Unload or remove the basket before unloading the racks to avoid spilling water droplets on the silverware.
Style 1 (on some models)
Place small items such as baby bottle caps, jar lids, corncob holders, etc., in the covered section. Close the cover to hold small items in place.
Style 2 (on some models)
Mix items in each section of the basket with some pointing up and some down to avoid nesting. Spray cannot reach nested items.
Utensil load
Load cookie sheets, cake pans, and other large items at the
sides and back. Loading such items in front can keep the water spray from reaching the detergent dispenser and silverware basket.
Secure heavily soiled cookware face down in the rack.
Make sure pot handles and other items do not stop rotation
of the spray arm(s). The spray arm(s) must move freely.
Do not load items between the bottom rack and the side of
the dishwasher tub because they might block the water inlet opening.
NOTE: If you have removed the bottom rack for unloading or cleaning, replace it with the bumpers in front.
IMPORTANT: Always load items (knives, skewers, etc.) pointing down.
NOTES:
Do not load silver or silver-plated silverware with stainless
steel. These metals can be damaged by contact with each other during washing.
Some foods (such as salt, vinegar, milk products, fruit juices,
etc.) can pit or corrode silverware. Run a rinse cycle if you do not have a full load to wash immediately.
8
DISHWASHER USE

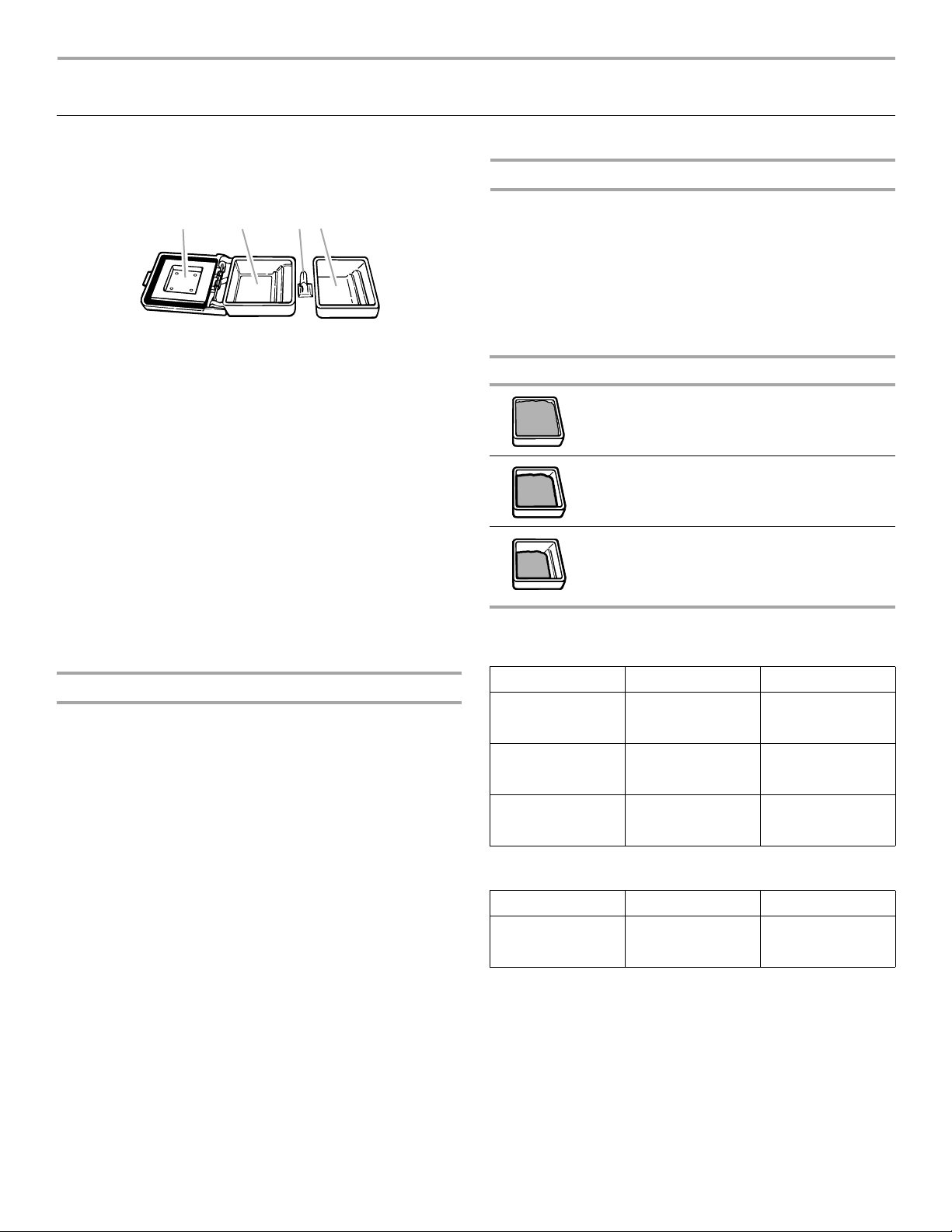

Detergent Dispenser
The detergent dispenser has 2 sections. The Pre-Wash section empties detergent into the dishwasher when you close the door.
How much detergent to use
ABCD
A. Cover B. Main Wash section C. Cover latch D. Pre-Wash section
The larger Main Wash section automatically empties detergent into the dishwasher during the main wash. (See the “Cycle Selection Charts.”)
Use automatic dishwashing detergent only. Other detergents
can produce excessive suds that can overflow out of the dishwasher and reduce washing performance.
Add detergent just before starting a cycle.
Store tightly closed detergent in a cool, dry place. Fresh
automatic dishwasher detergent results in better cleaning.
NOTE: Do not use detergent if you have selected a rinse cycle.
Filling the dispenser
1. If the dispenser cover is closed, open the cover by pushing
the cover latch.
2. Fill the Main Wash section with detergent. See How much
detergent to use.
3. Fill the Pre-Wash section if needed. (See “Cycle Selection
Charts.”)
4. Close the dispenser cover. The cover will open during the cycle to dispense the detergent.
The amount of detergent to use depends on the hardness of
your water and the type of detergent. If you use too little, dishes wont be clean. If you use too much in soft water, glassware will etch.
Water hardness can change over a period of time. Find out
your waters hardness by asking your local water department, water softener company, or county extension agent.
Where to fill
Top of 3rd step (9 tsp or 45 mL)
Top of 2nd step (6 tsp or 30 mL)
Top of 1st step (3 tsp or 15 mL)
Soft to Medium Water (0-6 grains per U.S. gallon)
[typical water softener water and some city water]
Soil Level Main Wash Pre-Wash
Lightly soiled/Pre­rinsed dish loads
Normally soiled dish loads
Heavily soiled dish loads
Medium to Hard Water (7-12 grains per U.S. gallon)
[well water and some city water]
Soil Level Main Wash Pre-Wash
All soil types 9 tsp (45 mL)
3 tsp (15 mL)
[top of 1st step]
6 tsp (30 mL)
[top of 2nd step]
9 tsp (45 mL)
[top of 3rd step]
[top of 3rd step]
3 tsp (15 mL)
[top of 1st step]
6 tsp (30 mL)
[top of 2nd step]
6 tsp (30 mL)
[top of 2nd step]
6 tsp (30 mL)
[top of 2nd step]
NOTE: Fill amounts shown are for standard powdered detergent. Amounts may vary if you use liquid or concentrated powdered detergent. Tablet detergents should be placed in the main wash section of the detergent dispenser with the cover closed. Follow instructions on the package when using liquid dishwasher detergent, concentrated powdered detergent or tablet detergent.
IMPORTANT: See “Cycle Selection Charts for which detergent dispenser sections to use with each cycle.
9

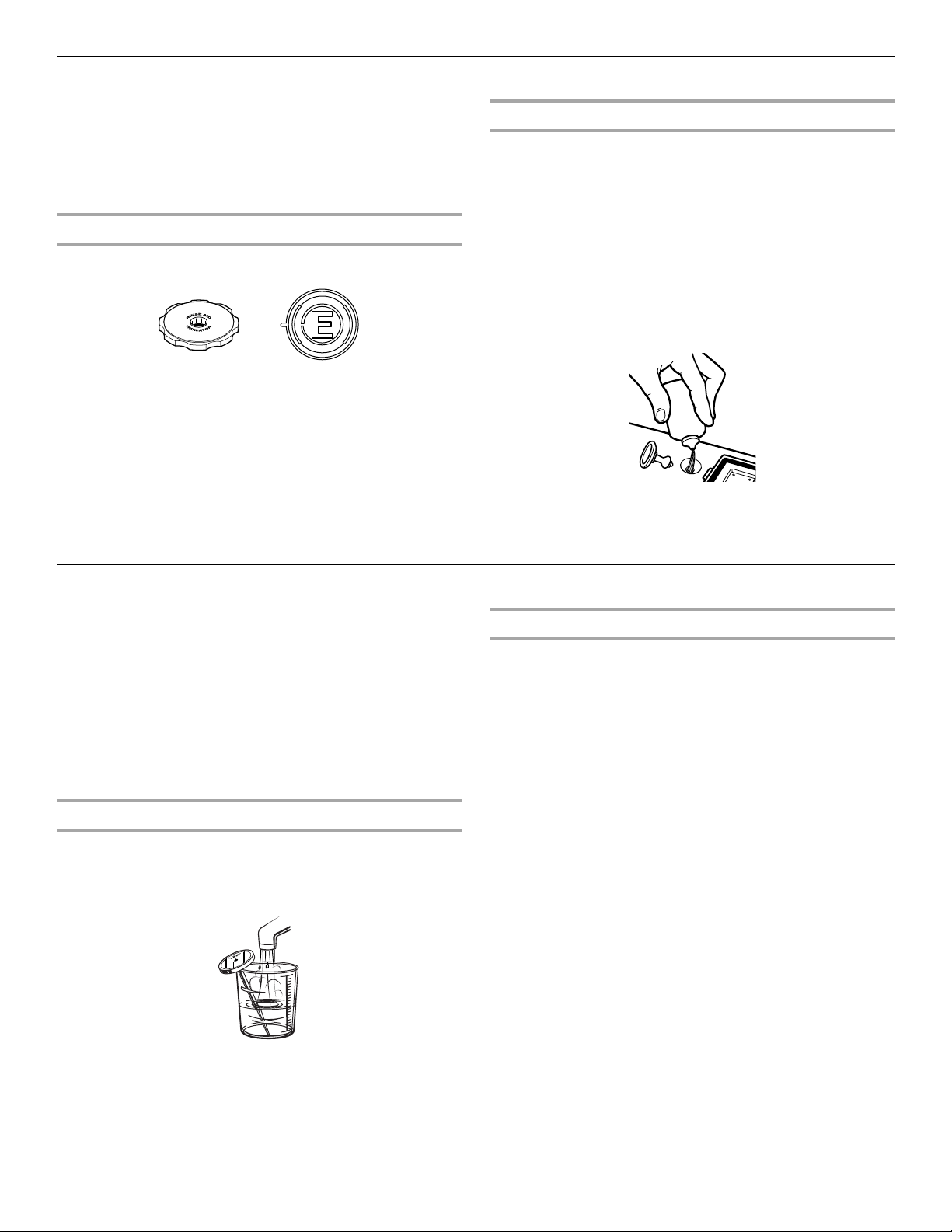

Rinse Aid Dispenser
Rinse aids keep water from forming droplets that can dry as spots or streaks. They also improve drying by allowing water to drain off of the dishes during the final rinse by releasing a small amount of the rinse aid into the rinse water. Your dishwasher is designed to use a liquid rinse aid. Do not use a solid or bar-type rinse aid.
Checking the dispenser
Check the center of the fill indicator cap. Clear means it needs filling.
Or you can remove the fill indicator cap. If an “E” is visible, the dispenser is empty.
Dishwasher Efficiency Tips
Hot water dissolves and activates the dishwashing detergent. Hot water also dissolves grease on dishes and helps glasses dry spot-free. For best dishwashing results, water should be 120°F (49°C) as it enters the dishwasher. Loads may not wash as well if the water temperature is too low. Water that is too hot can make some soils harder to remove and cause certain detergent ingredients not to function. If your water heater is located far from the dishwasher, it may be necessary to run the hot water at the faucet closest to the dishwasher to minimize the amount of cold water in the water line.
To check water temperature
1. Run hot water at the faucet closest to your dishwasher for at
least 1 minute.
2. Place a candy or meat thermometer in a glass measuring
cup.
Filling the dispenser
The rinse aid dispenser holds 6 oz (175 mL) of rinse aid. Under normal conditions, this will last for about 3 months. You do not have to wait until the dispenser is empty to refill it. Try to keep it full, but be sure not to overfill it.
1. Make sure the dishwasher door is completely open.
2. Remove the fill indicator cap.
3. Add rinse aid. Fill to the smallest opening in the lower part of
the dispenser. Overfilling can cause the rinse aid to leak out, and could cause oversudsing.
4. Clean up any spilled rinse aid with a damp cloth.
5. Replace the fill indicator cap. Close tightly.
Additional efficiency tips
Use a delay feature (on some models) to run your dishwasher
during off-peak hours. Local utilities recommend avoiding heavy usage of energy at certain times of day.
During the summer, run your dishwasher at night. This
reduces daytime heat buildup in the kitchen.
Use the energy-saving dry option whenever possible. Allow
longer drying times (overnight) when using these options. Use a rinse aid to improve drying.
Use cycles or options that add extra heat to the wash or rinse
portion of the cycle only when needed.
Run your dishwasher with full loads. Run a rinse cycle after
meals until the dishwasher is full.
If your home is equipped with a water softener, you may want
to avoid starting the dishwasher during the regeneration of the softener, since this may contribute to poor wash performance.
3. Check the temperature on the thermometer as the water is
running into the cup.
10
Cycle Selection Charts
For DU810, DU811:
Turn the cycle control knob to the desired cycle. If the door is latched, you will hear the cycles start and stop as the cycle control knob passes each cycle mark. This is normal and does not hurt the dishwasher. If you prefer, you can set the cycle control knob with the door unlatched.
For DU850:
Press the desired cycle. Turn the cycle control knob to the desired cycle. If the door is latched, you will hear the cycles start and stop as the cycle control knob passes each cycle mark. This is normal and does not hurt the dishwasher. If you prefer, you can set the cycle control knob with the door unlatched.
To use Rinse Only, press HEAVY WASH or NORMAL WASH and turn the cycle control knob to Rinse Only.
A shows what steps are in each cycle. Water usage is shown in U.S. gallons/liters. These models meet the ENERGY STAR
efficiency. Cycle time includes dry time.
Pots & Pans
Use this cycle for hard-to-clean, heavily soiled pots, pans, casseroles, and regular tableware.
Use both detergent dispenser sections.
Wash Rinse Rinse Main
●●●●●●●98 8.6/32.7
Wash
Rinse Final
®
guidelines for energy
Rinse
Dry Time
(min)
Water
Usage (gal/L)
Rinse Only
Use this cycle for rinsing dishes, glasses, and silverware that will not be washed right away.
Do not use detergent with this cycle.
Wash Rinse Rinse Main
Wash
Rinse Final
Rinse
●● 20 2.9/10.9
Dry Time
(min)
Water
Usage (gal/L)
Canceling a Cycle
You can cancel a cycle at any time.
1. Turn the cycle control knob slowly clockwise until you hear
water draining. Let the dishwasher drain completely.
2. Open the door.
3. Turn the cycle control knob to Off.
Changing a Cycle or Setting
You can change a cycle anytime during a cycle.
1. Lift the door latch to stop the cycle.
2. Turn the cycle control knob clockwise.
3. Check the detergent dispensers. They must be filled properly
for the new cycle. NOTE: Turning the cycle control knob can cause the covered
detergent dispenser section to open and release the detergent. Check the covered section if the cycle uses detergent in both sections.
4. Close the door firmly until it latches. The dishwasher starts a
new cycle.
Heavy Wash
Use this cycle for loads with with heavy food soil.
Use both detergent dispenser sections.
Wash Rinse Rinse Main
●●●●● 90 7.2/27.2
Wash
Rinse Final
Rinse
Dry Time
(min)
Water
Usage (gal/L)
Normal Wash
Use this cycle for loads with normal amounts of food soil. (The energy-usage label is based on this cycle.)
Use covered detergent dispenser section.
Wash Rinse Rinse Main
Rinse Final
Wash
●●●●81 4.3/16.3
Rinse
Dry Time
(min)
Water
Usage (gal/L)
Adding Items During a Cycle
You can add an item anytime before the main wash starts, or the cycle control knob reaches Normal Wash.
1. Lift up the door latch to stop the cycle. Wait for the spraying
action to stop before opening the door.
2. Open the door and add the item.
3. Close the door, but do not latch it. Wait 30 seconds for the air
in the dishwasher to warm up. This reduces the amount of moisture escaping from the vent when restarting a cycle.
4. Close the door firmly until it latches. The dishwasher resumes
the cycle.
11
Loading...
+ 25 hidden pages
