Whirlpool GU1200, DU640 User Manual

DISHWASHER

Model Series/Modèles des séries GU1200, GU1500, DUL300, DU640

Use & Care Guide

For questions about features, operation/performance

parts, accessories or service, call:

In Canada, call for assistance

www.whirlpool.com

and service, call:

or visit our website at...

1-800-253-1301

1-800-461-5681

1-800-807-6777

www.whirlpool.com/canada

, for installation

LAVE-VAISSELLE

Guide d’utilisation

et d’entretien

Au Canada, pour assistance, composez le

Table of Contents/Table des matières............. 2

installation ou service

ou visitez notre site web à

www.whirlpool.com/canada

1-800-461-5681

1-800-807-6777

, pour

3381184A

TABLE OF CONTENTS

TABLE DES MATIÈRES

DISHWASHER SAFETY .................................................................3

Before Using Your Dishwasher....................................................4

PARTS AND FEATURES................................................................5

START-UP GUIDE ..........................................................................6

Using Your New Dishwasher .......................................................6

Stopping Your Dishwasher ..........................................................7

DISHWASHER LOADING.............................................................. 7

Loading Suggestions ...................................................................7

Loading Top Rack........................................................................7

Loading Bottom Rack ..................................................................8

Loading Silverware Basket ........................................................10

DISHWASHER USE.....................................................................11

Detergent Dispenser ..................................................................11

Rinse Aid Dispenser...................................................................12

Dishwasher Efficiency Tips ........................................................12

Cycle Selection Charts...............................................................13

Canceling a Cycle ......................................................................14

Changing a Cycle or Setting ......................................................14

Adding Items During a Cycle .....................................................14

Option Selections.......................................................................14

Cycle Status Indicators..............................................................16

Active Vent .................................................................................16

Drying System............................................................................16

Overfill Protection Float..............................................................16

WASHING SPECIAL ITEMS.........................................................17

DISHWASHER CARE ...................................................................17

Cleaning......................................................................................17

Drain Air Gap..............................................................................18

Storing........................................................................................18

TROUBLESHOOTING ..................................................................18

WASH MODULE ...........................................................................20

ASSISTANCE OR SERVICE.........................................................21

In the U.S.A. ...............................................................................21

In Canada ...................................................................................21

WARRANTY ..................................................................................22

LA SÉCURITÉ DU LAVE-VAISSELLE .........................................23

Avant d’utiliser le lave-vaisselle .................................................24

PIÈCES ET CARACTÉRISTIQUES ..............................................25

GUIDE DE MISE EN MARCHE ....................................................26

Utilisation de votre nouveau lave-vaisselle................................26

Arrêt du lave-vaisselle................................................................27

CHARGEMENT DU LAVE-VAISSELLE.......................................27

Suggestions de chargement......................................................27

Chargement du panier supérieur ...............................................28

Chargement du panier inférieur .................................................29

Chargement du panier à couverts .............................................30

UTILISATION DU LAVE-VAISSELLE...........................................31

Distributeur de détergent ...........................................................31

Distributeur d’agent de rinçage..................................................33

Conseils d’efficacité pour le lave-vaisselle ................................33

Tableaux de sélection de programmes .....................................34

Annulation d’un programme ......................................................35

Changement d’un programme ou réglage ................................35

Addition de vaisselle durant un programme..............................35

Sélection d’options.....................................................................36

Indicateurs d’état d’avancement du programme......................37

Évent actif...................................................................................38

Système de séchage..................................................................38

Dispositif de protection contre le débordement........................38

LAVAGE D’ARTICLES SPÉCIAUX ..............................................38

ENTRETIEN DU LAVE-VAISSELLE.............................................39

Nettoyage ...................................................................................39

Dispositif anti-refoulement .........................................................39

Remisage....................................................................................39

DÉPANNAGE.................................................................................40

MODULE DE LAVAGE..................................................................42

ASSISTANCE OU SERVICE.........................................................42

Aux États-Unis............................................................................42

Au Canada..................................................................................42

GARANTIE.....................................................................................43

DISHWASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or

“WARNING.” These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

can be killed or seriously injured if you don't

You follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Before Using Your Dishwasher

Tip Over Hazard Do not use dishwasher until completely installed. Do not push down on open door. Doing so can result in serious injury or cuts.

Electrical Shock Hazard Electrically ground dishwasher. Connect ground wire to green ground connector

in terminal box. Do not use an extension cord. Failure to follow these instructions can result in

death, fire, or electrical shock.

■

Install where dishwasher is protected from the elements. Protect against freezing to avoid possible rupture of fill valve. Such ruptures are not covered by the warranty. See “Storing” in the “Dishwasher Care” section for winter storage information.

■

Install and level dishwasher on a floor that will hold the weight, and in an area suitable for its size and use.

■

Remove all shipping plugs from hoses and connectors (such as the cap on the drain outlet) before installing. See Installation Instructions for complete information.

PARTS AND FEATURES

This manual covers several different models. The dishwasher you have purchased may have some or all of the parts and features listed below.

1 2

11 12

4 5

6 7

16 17

Upper level wash

2-position adjuster [on some models]

Top ra ck

Bottom rack

FLIP AWAY™ plate holders

Water inlet opening [in tub wall]

Heating element

Silverware basket

Detergent dispenser

10.

Active vent

11.

Flexible tines [on some models]

12.

Cup shelves [on some models]

13.

Top spray arm

14.

Utensil rack [on some models]

15.

Model and serial number label

16.

Lower spray arm

17.

Filter module

18.

Overfill protection float

19.

Rinse aid dispenser

Other features your dishwasher may have

Light item clips

GU1200, DU640

GU1500

DUL300

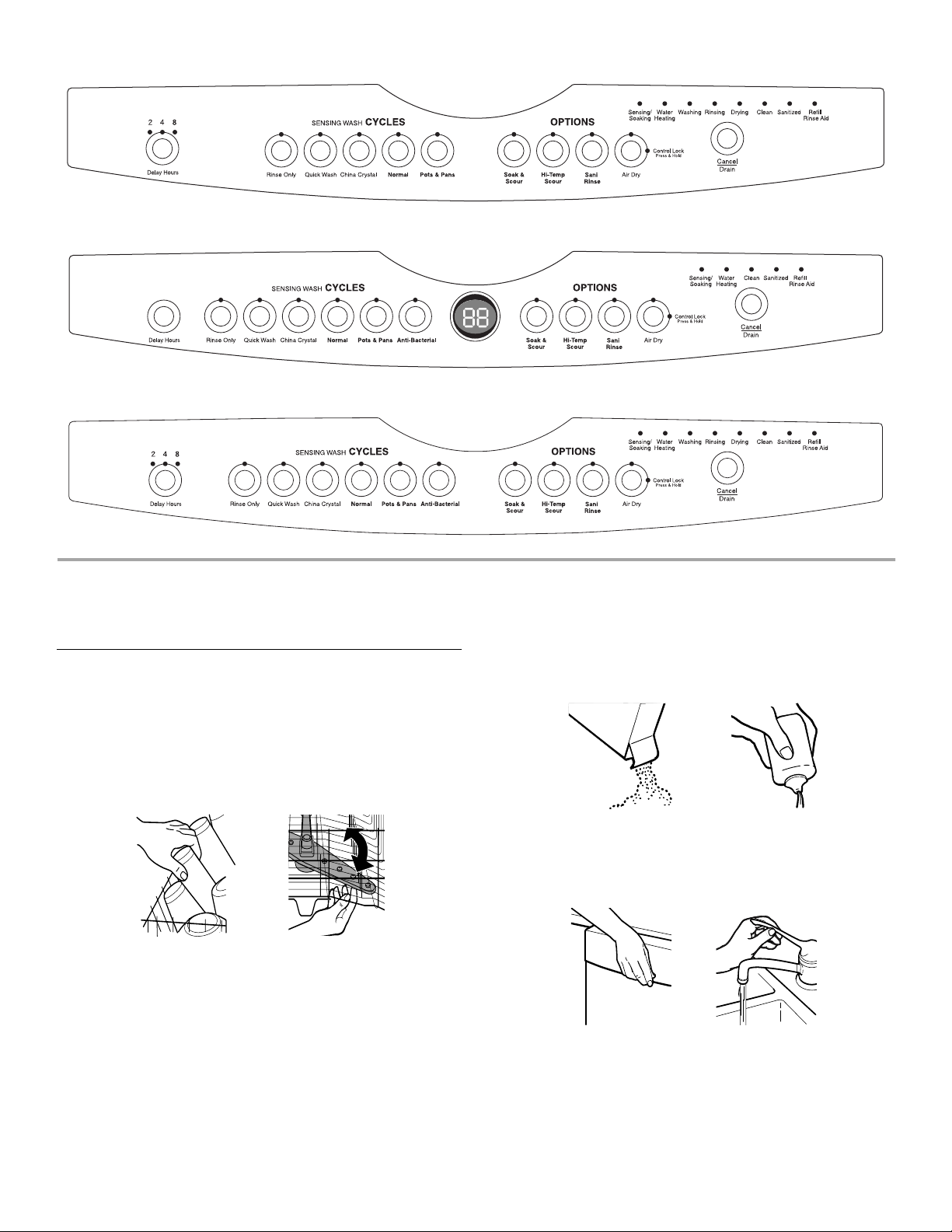

START-UP GUIDE

Before using your dishwasher, remove all packaging materials. Read this entire Use and Care Guide. You will find important safety information and useful operating tips.

Push door firmly closed. The door latches automatically. Run

Using Your New Dishwasher

Scrape large food soil and hard items (toothpicks or bones)

from dishes. Properly load the dishwasher. (See “Dishwasher Loading.”)

Make sure nothing prevents the spray arm(s) from spinning freely.

Add detergent and check the rinse aid dispenser. Add rinse

aid if needed. (See “Dishwasher Use.”)

hot water at the sink nearest your dishwasher until the water is hot. (See “Dishwasher Efficiency Tips.”) Turn off water.

Press the desired cycle and option selections. The

dishwasher starts filling when you press a cycle. You can select options as the machine fills. (See “Dishwasher Use.”)

IMPORTANT (on some models):

■

When the cycle starts, you will see a rotating pattern of lights in the display window indicating that the unit is operating.

This pattern will continue for up to 6 minutes while the multiple sensors check the incoming water temperature, rinse aid usage and soil level on dishes and cookware. The sensors then determine the ideal cycle for your dish load. After sensing is complete, the display will show the number of minutes left in the cycle and the cycle countdown will begin.

■

The cycle countdown pauses and the water heating light glows while the dishwasher heats the water to a set temperature. (See “Cycle Selection Charts.”)

Stopping Your Dishwasher

You can stop your dishwasher anytime during a cycle.

Open the door slightly.

Wait for the spraying action to stop. Then open the door all the way, if needed.

Close the door to continue the cycle.

Press CANCEL/DRAIN. A 2-minute drain starts.

Quiet operating tips

To avoid thumping/clattering noises during operation:

■

Make sure lightweight load items are secured in the racks.

■

Make sure pot lids and handles, pizza pans, cookie sheets, etc., do not touch interior walls or interfere with the rotation of the spray arm.

■

Load dishes so they do not touch one another.

NOTE:

For built-in models, keep sink drain plugs closed during

dishwasher operation to prevent noise transfer through drains.

Loading Top Rack

The top rack is designed for cups, glasses, and smaller items. Many items, up to 9 in. (22 cm), fit in the top rack. (See recommended loading patterns shown.)

NOTE:

The features on your dishwasher rack may vary from the

drawings shown.

10 place setting

DISHWASHER LOADING

Loading Suggestions

■

Remove leftover food, bones, toothpicks and other hard items from the dishes. It is not necessary to rinse the dishes before putting them into the dishwasher. The wash module removes food particles from the water. The module contains a chopping device which will reduce the size of food items.

NOTE:

If hard items such as fruit seeds, nuts, and egg shells enter the wash module, you might hear chopping, grinding, crunching, or buzzing sounds. These sounds are normal when hard items enter the module. Do not let metallic items (such as pot handle screws) get into the wash module. Damage can occur.

■

It is important for the water spray to reach all soiled surfaces.

■

Load dishes so they are not stacked or overlapping, if possible. For best drying, water must be able to drain from all surfaces.

■

Make sure pot lids and handles, pizza pans, cookie sheets, etc., do not interfere with the spray arm rotation.

■

Run a rinse cycle to keep dishes moist if you do not plan to wash them soon. Foods such as eggs, rice, pasta, spinach, and cooked cereals may be hard to remove if they are left to dry over a period of time.

12 place setting

■

Place items so open ends face down for cleaning and draining.

■

Load glasses in top rack only. The bottom rack is not designed for glasses. Damage can occur.

■

Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage and water spots.

■

China, crystal, and other delicate items must not touch each other during dishwasher operation. Damage may occur.

■

Load lightweight plastic items in the top rack only. Only plastic items marked “dishwasher safe” are recommended.

■

Load plastic items so the force of the spray does not move them during the cycle.

■

To avoid chipping, do not let stemware touch other items.

■

Small bowls, pans, and other utensils can be placed in the top rack. Load bowls in the center section for best stability.

Cup shelves (on some models)

Fold down the extra shelf on the left or right side of the top rack to hold additional cups, stemware or long items such as utensils and spatulas.

Adjustable 2-position top rack (on some models)

You can raise or lower the top rack to fit tall items in either the top or bottom rack. Raise the top rack to accommodate items up to 9 in. (22 cm) in the top rack and 13 in. (33 cm) in the bottom rack, or lower the top rack to accommodate items up to 11 in. (28 cm) in both the top and bottom racks. Adjusters are located on each side of the top rack.

Flexible tines (on some models)

The row of tines on the left and right sides of the top rack can be adjusted to make room for a variety of dishes.

To adjust the flexible tines

Grasp the tip of the tine that is in the tine holder.

Gently push the tine out of the holder.

Lay the tines down, toward the center of the rack.

Light item clips (on some models)

The light item clips hold lightweight plastic items such as cups, lids, or bowls in place during washing.

To raise the top rack

Lift the rack on either, or both, sides until the rack is level.

The top rack adjusters MUST be level.

NOTE: To lower the top rack

Press both rack adjusters and slide the rack back to its original position.

Loading Bottom Rack

The bottom rack is designed for plates, pans, casseroles, and utensils. Many items, up to 13 in. (33 cm) tall, fit in the bottom rack. (See recommended loading patterns shown.)

The features on your dishwasher rack may vary from the

NOTE:

drawings shown.

10 place setting

To move a clip

Pull the clip up and off the tine.

Reposition the clip on another tine.

12 place setting

■

Do not load glasses, cups, or plastic items in the bottom rack. Load small items in the bottom rack only if they are secured in place.

■

Load plates, soup bowls, etc., between tines.

■

Overlap the edges of plates for large loads.

■

Load soup, cereal, and serving bowls in the rack in a variety of ways depending upon their size and shape. Load bowls securely between the rows of tines. Do not nest bowls because the spray will not reach all surfaces.

Fold away the plate tines to hold many bowls.

Utensil load

■

Load cookie sheets, cake pans, and other large items at the sides and back. Loading such items in front can keep the water spray from reaching the detergent dispenser.

Mixed load

■

Secure heavily soiled cookware face down in the rack.

■

Make sure pot handles and other items do not stop rotation of the spray arm(s). The spray arm(s) must move freely.

■

Do not load items between the bottom rack and the side of the dishwasher tub because they might block the water inlet opening.

Fold away the entire row of both plate and bowl tines to make room for larger pans or roasters.

Utensil rack (on some models)

Use the Utensil rack to hold specialty cooking items (wooden spoons, spatulas, and similar items).

The Utensil rack lies on the two supports in the right lower rack. Load the rack tray while it is in the dishwasher or remove it for loading on a counter or table top.

When not in use, the utensil rack may be left in the dishwasher and tilted out of the way.

FLIP AWAY™ plate holders

You can fold up all, or part, of the row of V-shaped flexible tines at the back of the bottom rack. This is useful when washing a variety of dishes, pots and pans, or roasters.

Place the entire row of tines in the down position when washing a large number of plates.

You can also remove the utensil rack from the dishwasher. Swing the two supports out of the way for easier bottom rack loading.

Loading Silverware Basket

Load the silverware basket while it is in the dishwasher or take the basket out for loading on a counter or table.

NOTE:

Unload or remove the basket before unloading the racks

to avoid spilling water droplets on the silverware.

To open the silverware basket

Unlock the latch.

NOTE:

Be sure the cover is completely latched before pulling out

the bottom rack and before closing the dishwasher door.

■

Place small items such as baby bottle caps, jar lids, corncob holders, etc., in the section(s) with hinged cover(s). Close the cover to hold small items in place.

■

The silverware basket can be hung on the door or on the bottom rack (see illustration).

■

The silverware basket can also be placed inside the bottom rack.

To remove the basket from the door

Grasp the silverware basket by the handle. Slide it toward the top of the door.

■

Mix items in each section of the basket with some pointing up and some down to avoid nesting. Spray cannot reach nested items.

IMPORTANT:

Always load sharp items (knives, skewers, etc.)

pointing down.

Lift the basket off the holding buttons.

To replace the basket in the door

Set the silverware basket on the holding buttons.

Slide the basket toward the bottom of the door until it locks in place.

NOTES:

■

Do not load silver or silver-plated silverware with stainless steel. These metals can be damaged by contact with each other during washing.

■

Some foods (such as salt, vinegar, milk products, fruit juices, etc.) can pit or corrode silverware. Run a rinse cycle if you do not have a full load to wash immediately.

DISHWASHER USE

Detergent Dispenser

The detergent dispenser has 2 sections. The smaller Pre-Wash section empties detergent into the dishwasher when you close the door.

How much detergent to use

■

The amount of detergent to use depends on the hardness of your water and the type of detergent. If you use too little, dishes won’t be clean. If you use too much in soft water, glassware will etch.

■

Water hardness can change over a period of time. Find out your water’s hardness by asking your local water department, water softener company, or county extension agent.

■

Different brands of dishwasher detergent have different amounts of phosphorus for softening water. If you have hard water and use a detergent with a phosphorous content of less than 8.7%, you might need to use more detergent, or use a detergent with a phosphorous content higher than 8.7%.

1. Cover latch

2. Main Wash section

3. Pre-Wash section

4. Cover

The larger Main Wash section automatically empties detergent into the dishwasher during the wash. (See the “Cycle Selection Charts.”)

■

Use automatic dishwashing detergent only. Other detergents can produce excessive suds that can overflow out of the dishwasher and reduce washing performance.

■

Add detergent just before starting cycle.

■

Store tightly closed detergent in a cool, dry place. Fresh automatic dishwasher detergent results in better cleaning.

NOTE:

Do not use detergent with a rinse cycle.

Filling the dispenser

If the dispenser cover is closed, open the cover by rotating the cover latch.

Fill the Main Wash section with detergent. See “How much detergent to use.”

Fill the Pre-Wash section, if needed.

Close the dispenser cover.

Water Hardness Amount of Detergent

Soft to Medium Hard Water

0 to 6 grains per gallon

Medium to Hard Water

7 to 12 grains per gallon

Very Hard Water

13 grains per gallon and above

NOTE:

It might be necessary to use the Pots Pans cycle, or a normal cycle with the Hi Temp Scrub option for best wash performance with very hard water.

NOTE:

Fill amounts shown are for standard powdered detergent. Amounts may vary if you use liquid or concentrated powdered detergent. Follow instructions on the package when using liquid dishwasher detergent or concentrated powdered detergent.

For normally soiled loads

■

Partially fill the Main Wash section (6 tsp or 30 g)

■

Fill the Pre-Wash section (4 tsp or 20 g)

NOTE:

Add only 2 tsp or 10 g of detergent to the Pre-Wash section if dishes are pre-rinsed or the water is very soft (0 to 2 grains per gallon).

For heavily soiled loads

■

Partially fill the Main Wash section (7 tsp or 35 g)

■

Fill the Pre-Wash section (4 tsp or 20 g)

For normal and heavily soiled loads

■ Partially fill the Main Wash

section (7 tsp or 35 g)

■

Fill the Pre-Wash section (4 tsp or 20 g)

For normal and heavily soiled loads

■

Fill the Main Wash section (8 tsp or 40 g)

■

Fill the Pre-Wash section (4 tsp or 20 g)

■

Turn the rinse aid dispenser to a higher setting. See “Rinse Aid Dispenser” later in this section.

It is normal for the cover to open partially when dispensing detergent.

NOTE:

Use both sections for cycles with 2 washes. Use only the covered section for cycles with 1 wash. See the “Cycle Selection Charts” for more details.

Rinse Aid Dispenser

Rinse aids prevent water from forming droplets that can dry as spots or streaks. They also improve drying by allowing water to drain off of the dishes during the final rinse by releasing a small amount of the rinse aid into the rinse water. Your dishwasher is designed to use a liquid rinse aid. Do not use a solid or bar-type.

Filling the dispenser

The rinse aid dispenser holds 4.8 oz (145 mL) of rinse aid. Under normal conditions, this will last for about three months. You do not have to wait until the dispenser is empty to refill it. Try to keep it full, but be careful not to overfill it.

Make sure the dishwasher door is fully open.

Open the dispenser by pushing the cover latch.

1. Cover latch

2. Rinse aid dispenser

3. Indicator window

Add rinse aid until the indicator window looks full.

Clean up any spilled rinse aid with a damp cloth.

Close the cover.

The cover latch clicks when the cover is closed and

NOTE:

latched.

Rinse aid setting

The amount of rinse aid released into the final wash can be adjusted. The factory setting is at 2. For most water conditions, set the adjuster to 1 or 2. If there are rings or calcium (hard water) spots on dishes, try a higher setting.

To adjust the setting

Open the dispenser cover. Turn the adjuster inside the dispenser to the desired setting.

Dishwasher Efficiency Tips

Hot water dissolves and activates the dishwashing detergent. Hot water also dissolves grease on dishes and helps glasses dry spot-free. For best dishwashing results, water should be 120°F (49°C) as it enters the dishwasher. Loads may not wash as well if the water temperature is too low. Water that is too hot can make some soils harder to remove and cause certain detergent ingredients not to function. If your water heater is located far from the dishwasher, it may be necessary to run the hot water at the faucet closest to the dishwasher to minimize the amount of cold water in the water line.

To check water temperature

Run hot water at the faucet closest to your dishwasher for at

least 1 minute. Place a candy or meat thermometer in a glass measuring

cup.

Check the temperature on the thermometer as the water is

running into the cup.

■

To save water, energy and time, do not rinse dishes before putting them into the dishwasher.

■

Use a low energy, quick, or short cycle whenever possible. These cycles use less hot water and energy than a normal cycle.

■

Use a delay feature (on some models) to run your dishwasher during off-peak hours. Local utilities recommend avoiding heavy usage of energy at certain times of day.

■

During the summer, run your dishwasher at night. This reduces daytime heat buildup in the kitchen.

■

Use the energy-saving dry option whenever possible. Allow longer drying times (overnight) when using these options. Use a rinse aid to improve drying.

■

Use cycles or options that add extra heat to the wash or rinse portion of the cycle only when needed.

■

Run your dishwasher with full loads. Run a rinse cycle after meals until the dishwasher is full.

■

If your home is equipped with a water softener, you may want to avoid starting the dishwasher during the regeneration of the softener, as this may contribute to poor wash performance.

Cycle Selection Charts

Select the wash cycle and options desired. The dishwasher starts filling once you press a cycle, unless you select a delay wash. You can select an option as the machine is filling.

After a wash cycle, the dishwasher remembers the options used and uses the same options in the next wash cycle unless new options are selected or Cancel/Drain is selected.

A “●” shows what steps are in each cycle. Your model may have some or all of the cycles shown.

Display time is for models with the dual digit display on the console.

Temperatures indicate where extra heat is added. Water usage is shown in

NOTE:

Cycle time includes dry time. An asterisk ( * ) by the cycle time indicates the cycle time might be longer depending on the soil level on dishes and temperature of the water entering the dishwasher. The cooler the water, the longer the cycle time. If the water is already hot enough, the cycle time will be as shown.

Your electronic dishwasher senses the soil level on your dishes. Soil level determines the length of some cycles, the amount of heat added to a wash or rinse, and the number of washes and rinses in a cycle.

Cycle time depends upon the soil on the dishes, and water usage may be higher for large amounts of soil.

U.S.

gallons/liters.

Wash Main

Wash

● ●

140°F

(60°C)

Wash

● ● ●

Use this cycle for loads with normal amounts of food soil. (The energyusage label is based on this cycle.) Initial display time after rotating clock pattern: 82-90 min

Rinse Rinse Final

● ●

Heated

Rinse

140°F (60°C)

Use this cycle for china and crystal. This cycle uses a light wash and gentle dry. During the heated dry, the heating element cycles on and off. Initial display time after rotating clock pattern: 65-73 min

Rinse

or Purge

Rinse Final

Heated

Rinse

135°F (57°C)

Use both detergent dispenser sections.

Dry Time

(min)

●

Light

87*

soil

Water Usage (gal/L)

6.9-10.1/

26.2-38.2

Use main detergent dispenser section.

Dry Time

●

cycled

(min)

Water Usage (gal/L)

70* 5.5-8.6/

20.8-32.6

Wash Main

130°F

(54°C)

Wash Main

130°F

(54°C)

Wash

●

145°F

(63°C)

Wash

●

140°F (60°C)

Use this cycle for all day-to-day soil types, including both normal and heavy soils, giving you exceptional cleaning performance combined with reassuring sanitization. Initial display time after rotating clock pattern: 86-94 min

Rinse Rinse Final

● ●

Heated

Rinse

160°F (71°C)

Use this cycle for hardto-clean, heavily-soiled pots, pans, casseroles, and regular tableware. Initial display time after rotating clock pattern: 84-92 min

Rinse Rinse Final

● ●

Heated

Rinse

140°F (60°C)

Use both detergent dispenser sections.

Dry Time

(min)

●

Light

91*

soil

Water Usage (gal/L)

6.9-10.4/

26.2-39.4

Use both detergent dispenser sections.

Dry Time

(min)

●

Light

89*

soil

Water

Usage (gal/L)

6.9-10.4/

26.2-39.4

First Fill

Water Te mp .

Greater

135°F (57°C)

Wash Main

than

Less than

Wash Main

Use this cycle for prerinsed or lightly-soiled loads. This cycle automatically adds a fill and brief pre-wash, purging the hot water line and improving wash

Use main detergent dispenser section.

results, without adding time for water heating periods. Initial display time after rotating clock pattern: 42-46 min

Rinse Rinse Final

Wash

● ● ● ●

● ● ● ● ●

Heated

Rinse

Use this rinse cycle for rinsing dishes, glasses, and silverware that will not be washed right away. Initial display time after rotating clock pattern:

Do not use detergent with this cycle.

4 min

Wash

Rinse Rinse Final

Heated

Rinse

●

Dry Time

(min)

48* 5.2-6.7/

44* 6.9-8.4/

(min)

10 1.8-2.1/

Water Usage (gal/L)

19.7-25.4

26.1-31.8

Water Usage (gal/L)

6.8-7.9

Canceling a Cycle

Anytime during a cycle, press

If your dishwasher has a dual-digit display, it shows

Your dishwasher starts a 2-minute drain (if needed). Let the dishwasher drain completely. The light turns off after 2 minutes.

NOTE:

If your dishwasher does not need draining, the light turns

off. Select a new cycle and options.

To stop the drain

You can press Cancel/Drain again to stop the drain immediately. Remember to drain the dishwasher before starting a new cycle.

To clear the indicators

Press Cancel/Drain before starting the dishwasher to clear all options and cycles.

Changing a Cycle or Setting

During the first fill of a cycle

Press a new cycle and/or options.

Check the detergent dispensers. They must be filled properly for the new cycle.

After the first fill of a cycle

Press

Adding Items During a Cycle

You can add an item anytime before the main wash starts. Open the door and check the detergent dispenser. If the cover is still closed, you can add items.

To add items

Lift up the door latch to stop the cycle. Wait for the spraying action to stop before opening the door.

Open the door. If the detergent dispenser cover is still closed, add the item.

Close the door firmly until it latches. The dishwasher resumes the cycle after about a 5-second pause.

Option Selections

You can customize your cycles by pressing an option. If you change your mind, press the option again to turn the option off, or select a different option if desired.

You can change an option anytime before the selected option begins. For example, you can press an unheated drying option any time before drying begins.

After a wash cycle, the dishwasher remembers the options used and uses the same options in the next wash cycle, unless you select new options or press Cancel/Drain.

Soak & Scour

Select this option to pre-soak your dishes for 4 hours in your dishwasher instead of pre-soaking them in the sink. When you select Soak & Scour, the dishwasher fills and then sprays for 8 minutes. It will then pause for 16 minutes while dishes soak, and then spray for 90 seconds to keep dishes wet. Pausing for 16 minutes and spraying for 90 seconds are repeated for 4 hours. At the end of the 4 hours, the dishwasher drains and then starts the cycle you have selected. This pre-soaking uses only one additional fill of water and does not require special detergent. Use standard detergent per cycle recommendations.

If your dishwasher has a dual-digit display, it shows

Your dishwasher starts a 2-minute drain (if needed). Let the dishwasher drain completely. The light turns off after 2 minutes.

NOTE:

If your dishwasher does not need draining, the light

turns off.

Check the detergent dispensers. They must be filled properly for the new cycle.

Close the door.

Press a new cycle and/or options.

If your dishwasher has a dual-digit display, it will show the hours remaining in the soaking period before the cycle starts, beginning with

showing 4 hours remaining.

NOTE:

Soak & Scour is an option for the Anti-Bacterial (available on some models) or Pots & Pans cycles. If Hi-Temp Scour is also selected, only the Soak & Scour option is actually used.

+ 30 hidden pages
