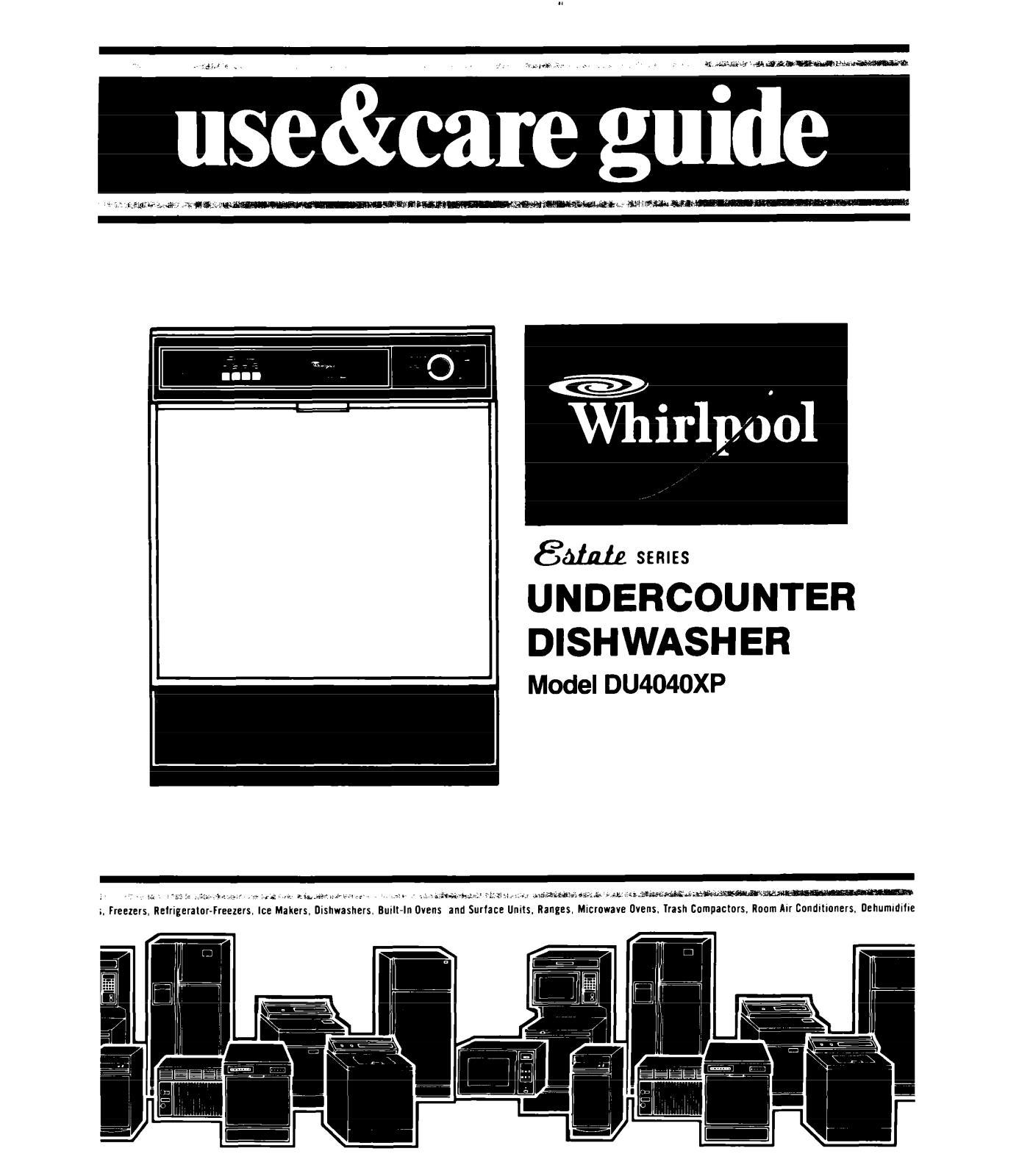

Whirlpool DU4040XP User Manual
&t&k!& SERIES
UNDERCOUNTER
DISHWASHER
i, Freezers, Relrigeralor-Freezers, Ice Makers, Dishwashers, Built-In Ovens and Surface Units, Ranges, Microwave Ovens. Trash Compactors, Roam AH Condltloners. Oehumldlfle
bt :c ..::.,- .*.c ,,.,I ,- ri, ,w. rly.,e- /wdlri. .:
.I. I .ea_.L=.
.;::. .1 +%m%arx *ii&s >.a <rss%d~&;wi
.

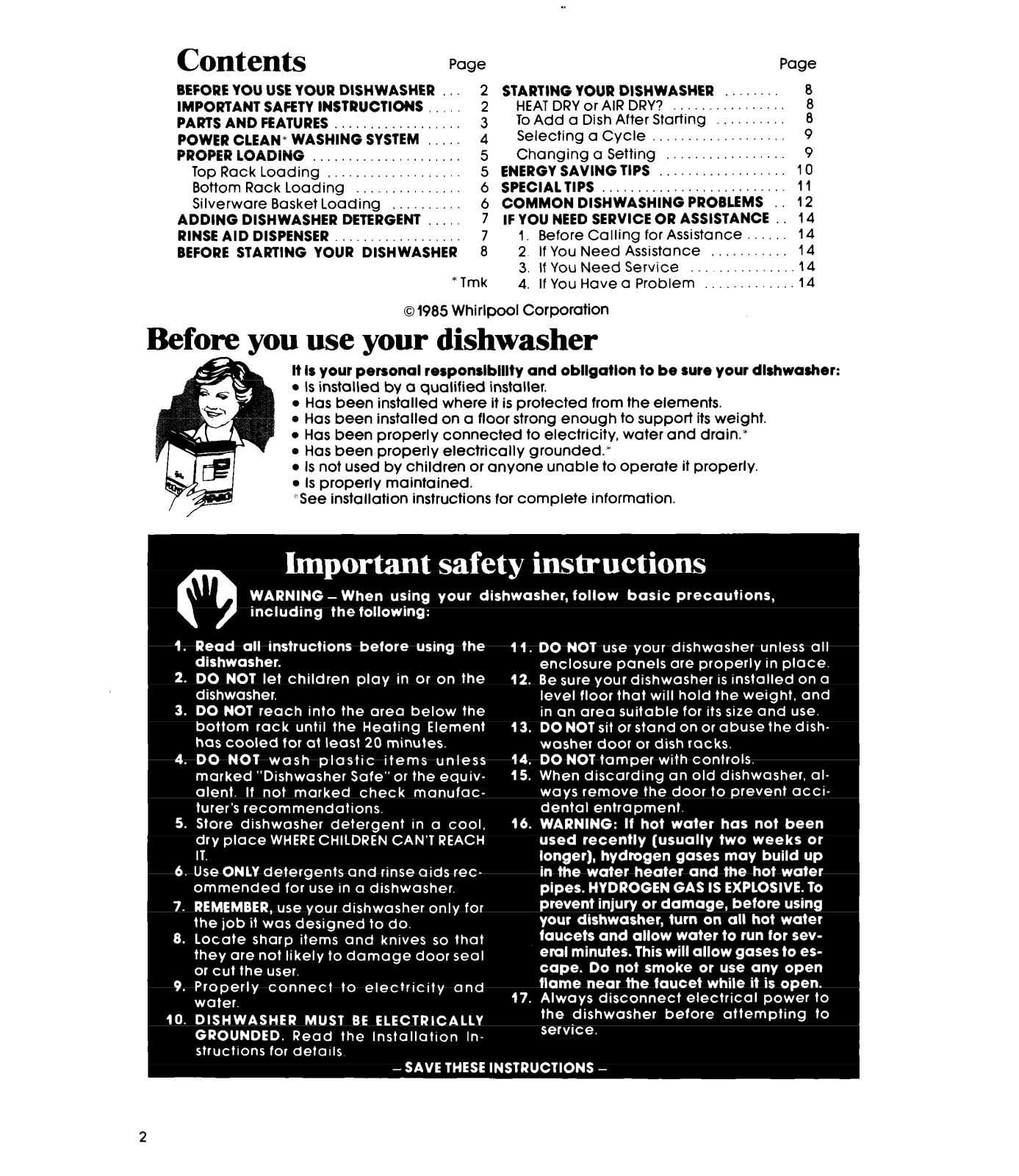

Contents
BEFORE YOU USE YOUR DISHWASHER
IMPORTANT SAFETY INSTRUCTIONS
PARTS AND FEATURES ,
POWER CLEAN* WASHING SYSTEM 4
PROPERLOADING . ..._...,,,..,,,..
Top Rack Loading

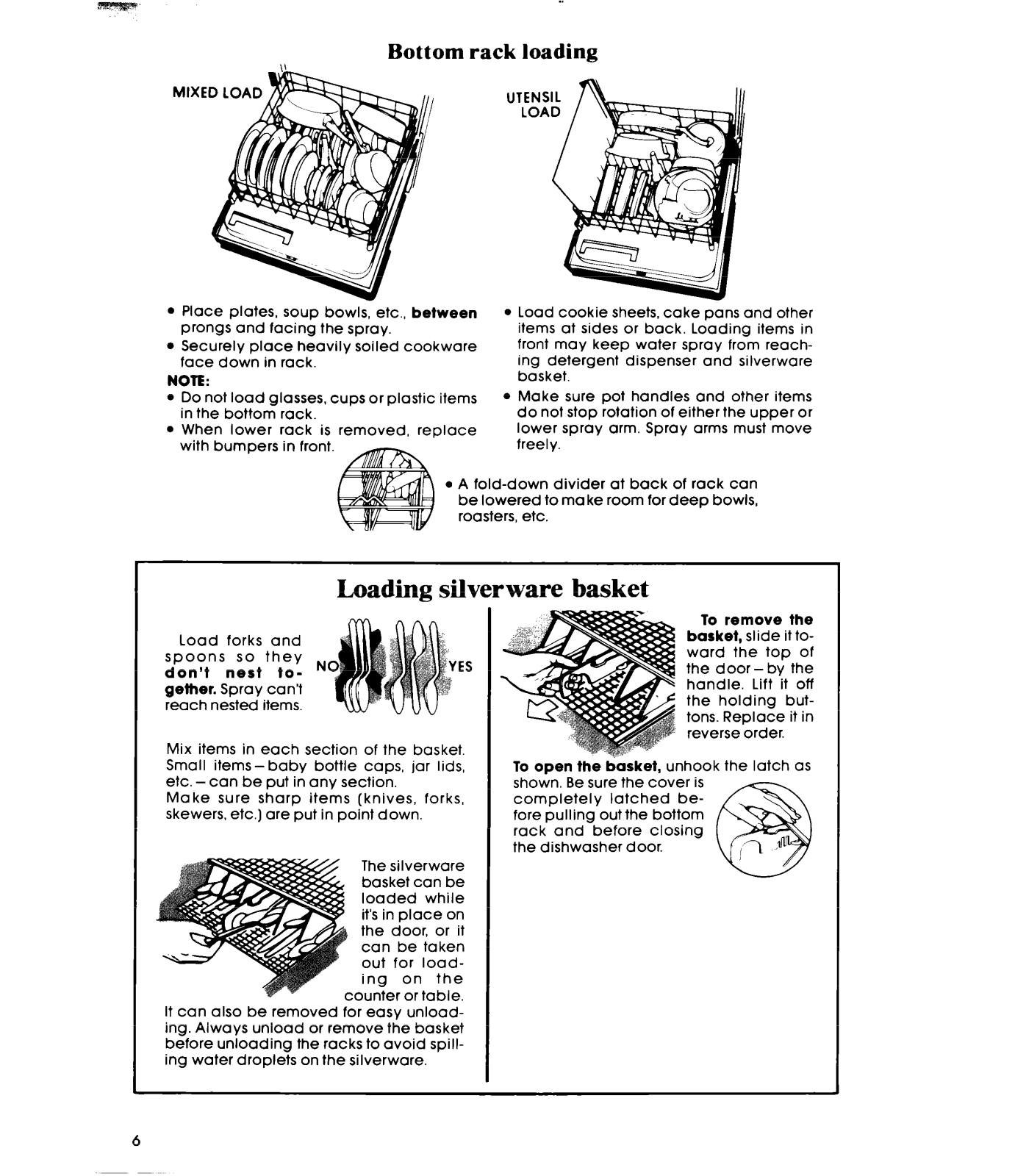

Bottom Rack Loading
Silverware Basket Loading

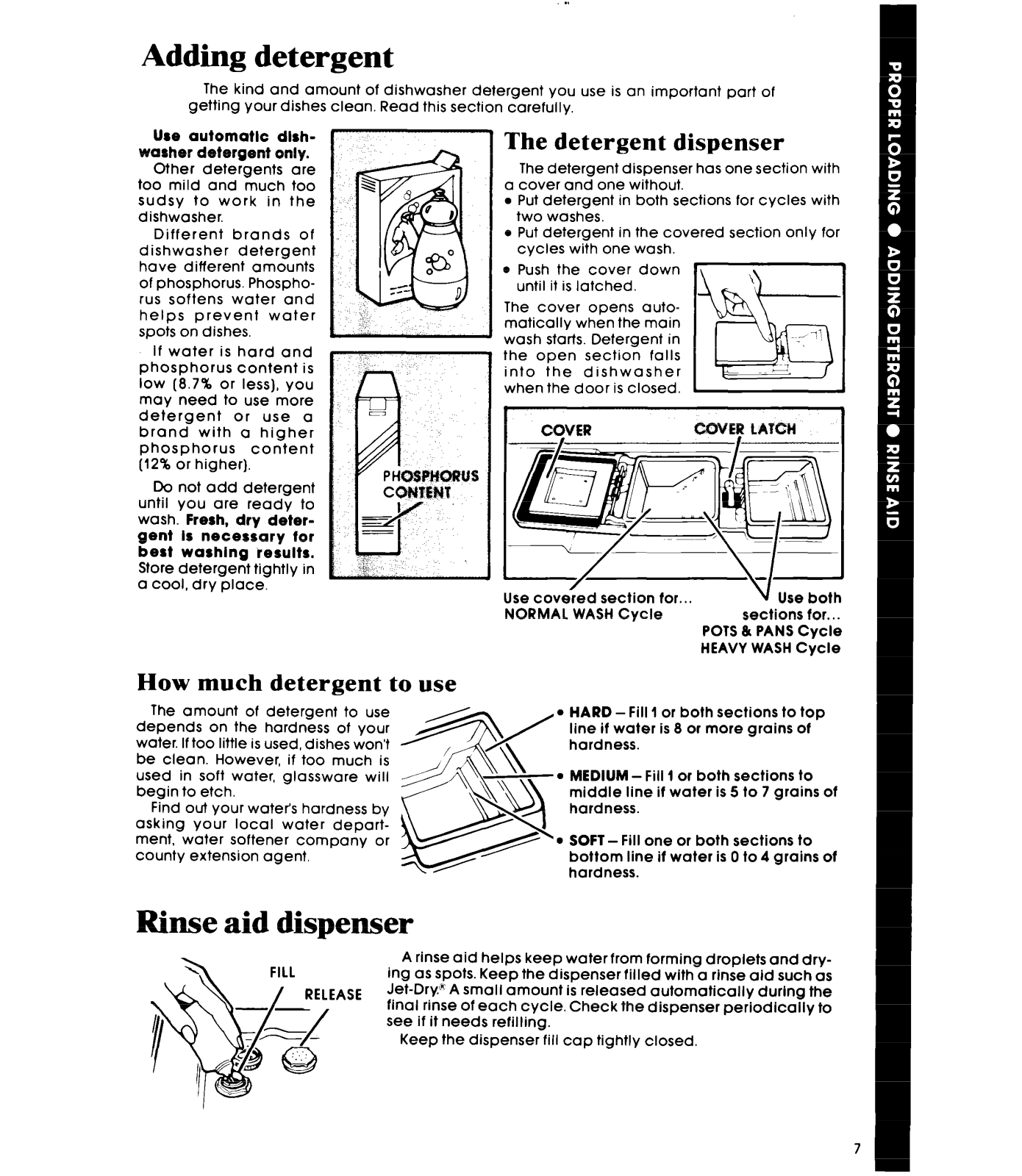

ADDING DISHWASHER DETERGENT
RINSE AID DISPENSER 7

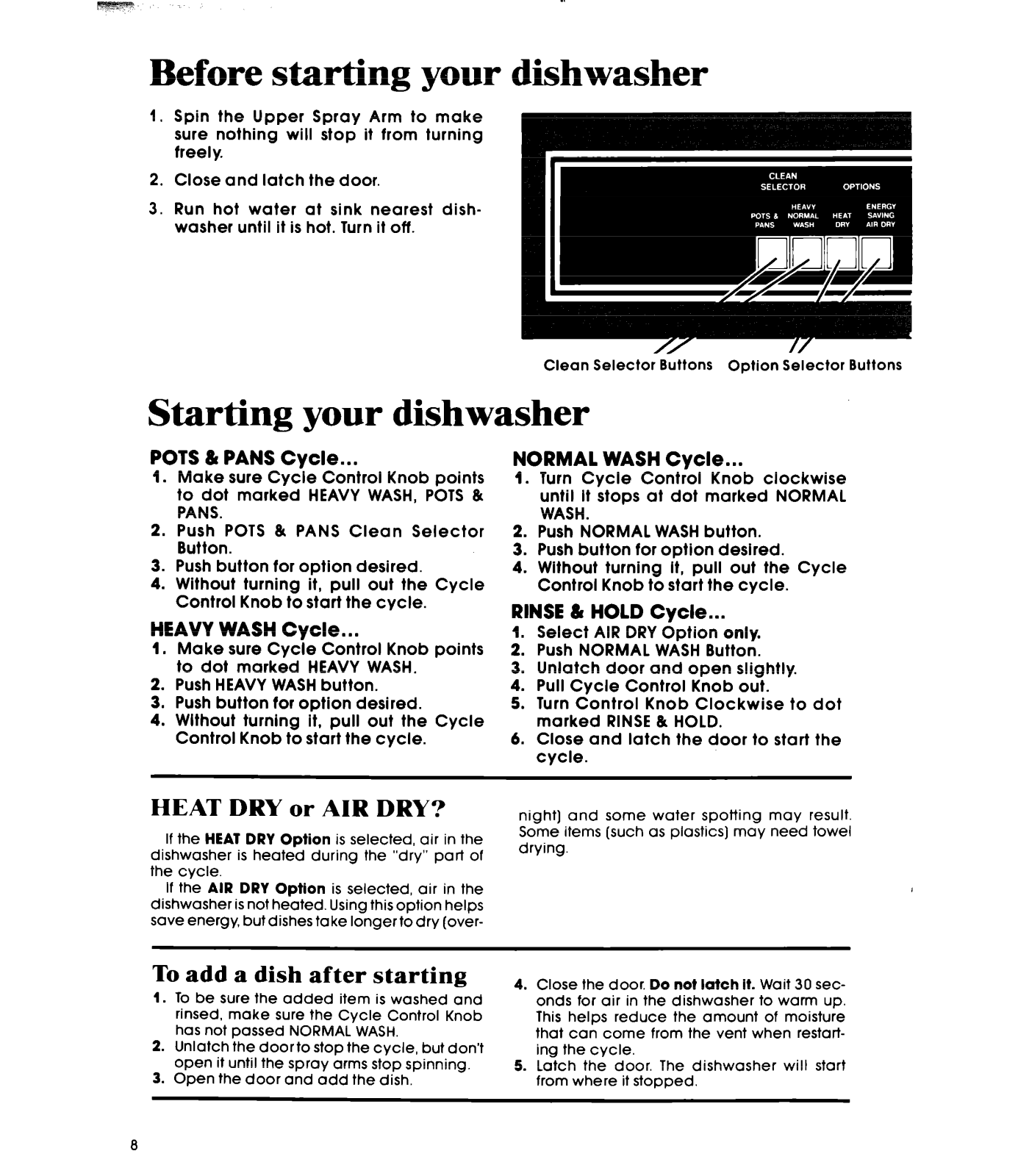

BEFORE STARTING YOUR DISHWASHER 8
Page
2 STARTING YOUR DISHWASHER
HEAT DRY or AIR DRY?
2
To Add a Dish After Starting
3

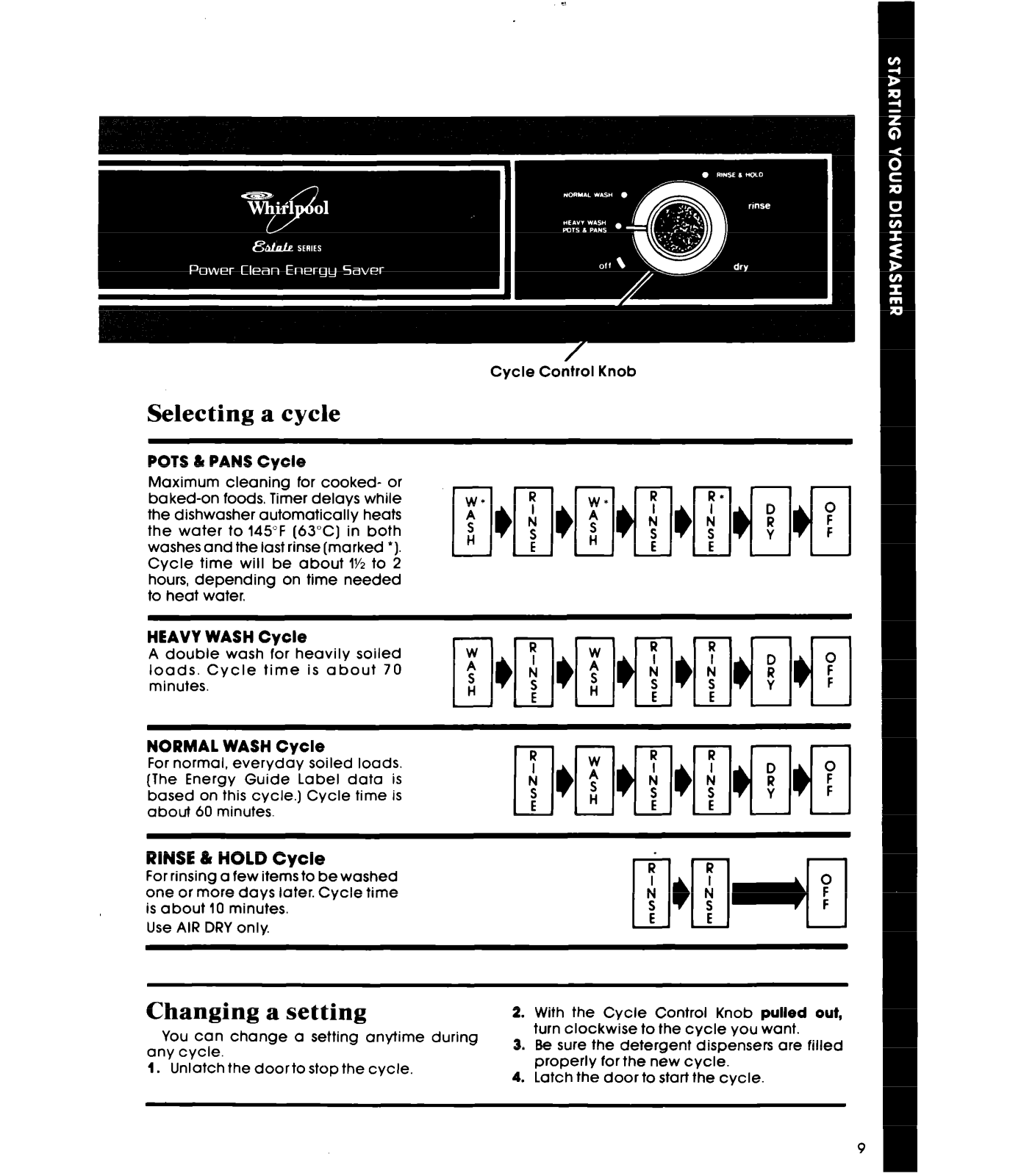

Selecting a Cycle 9
Changing a Setting 9
5

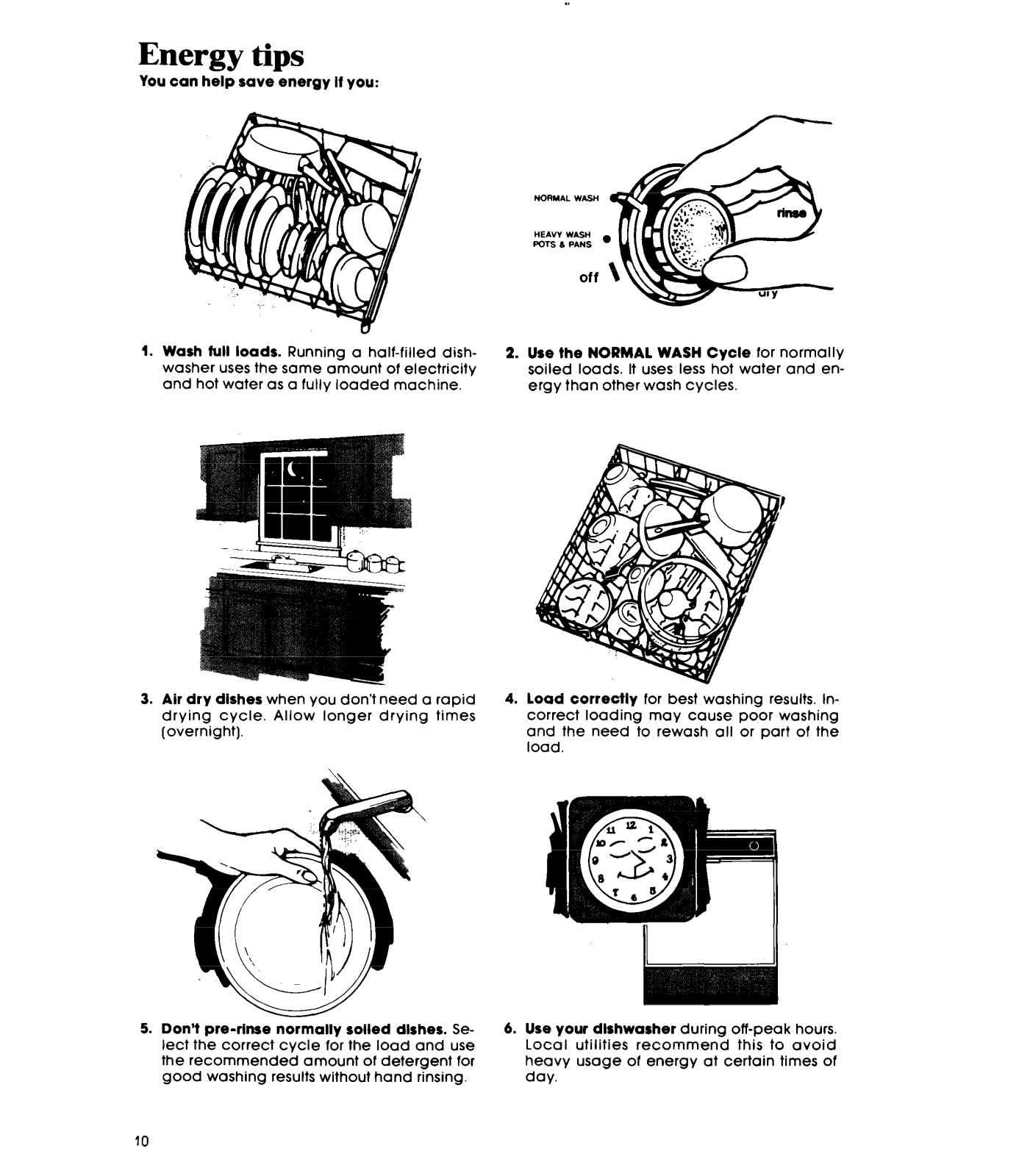

5 ENERGY SAVING TIPS 10

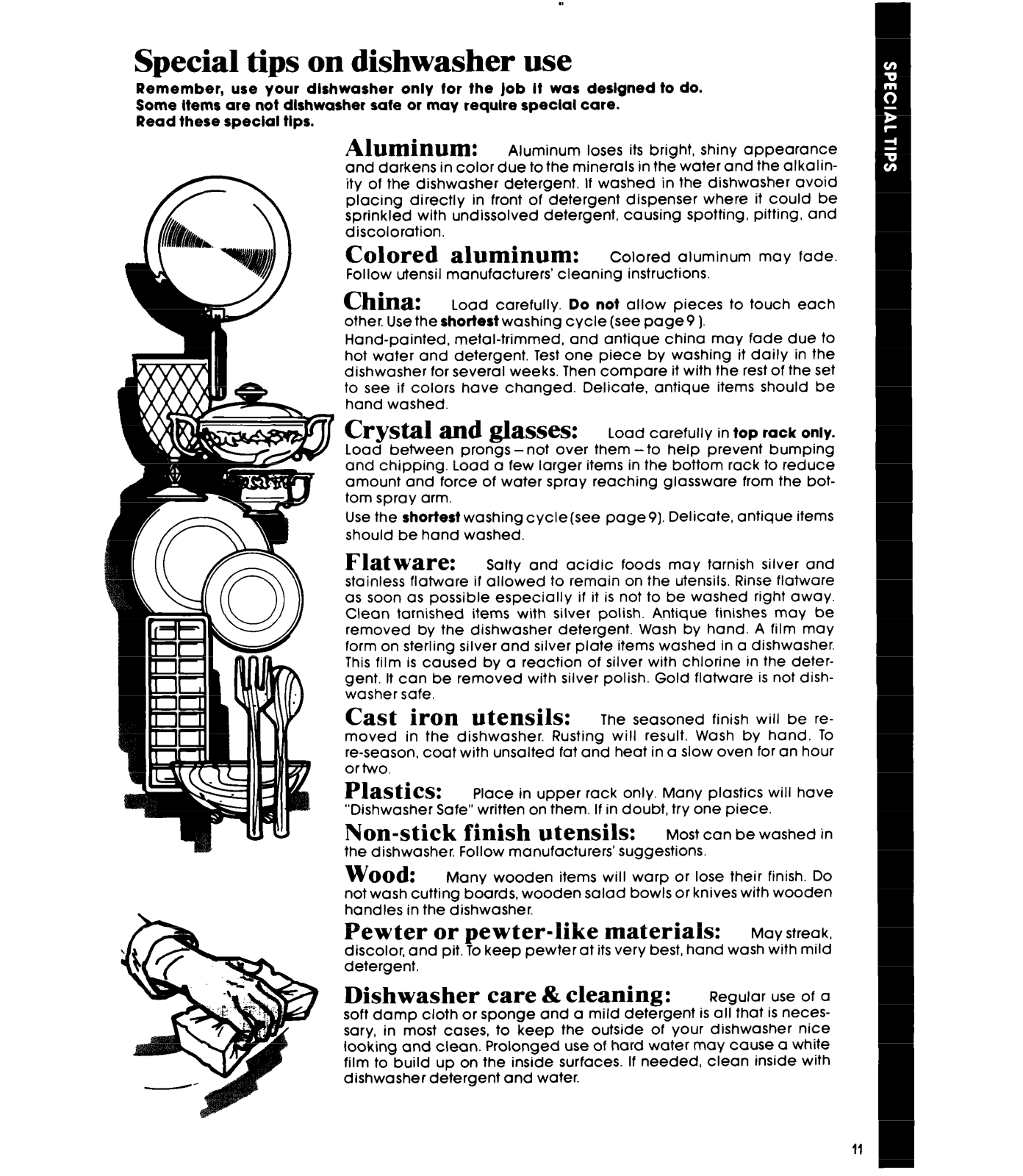

6 SPECIALTIPS 11

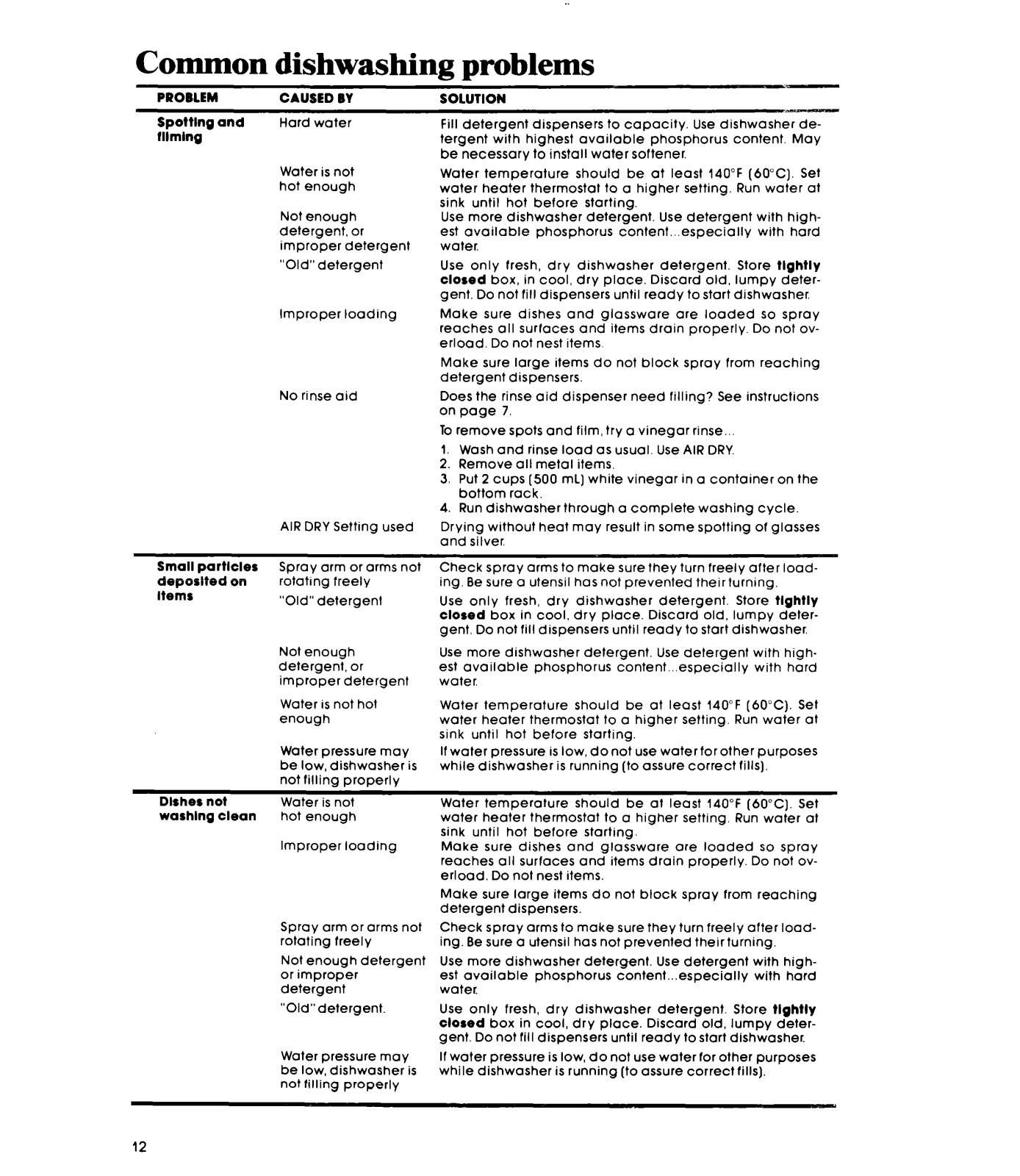

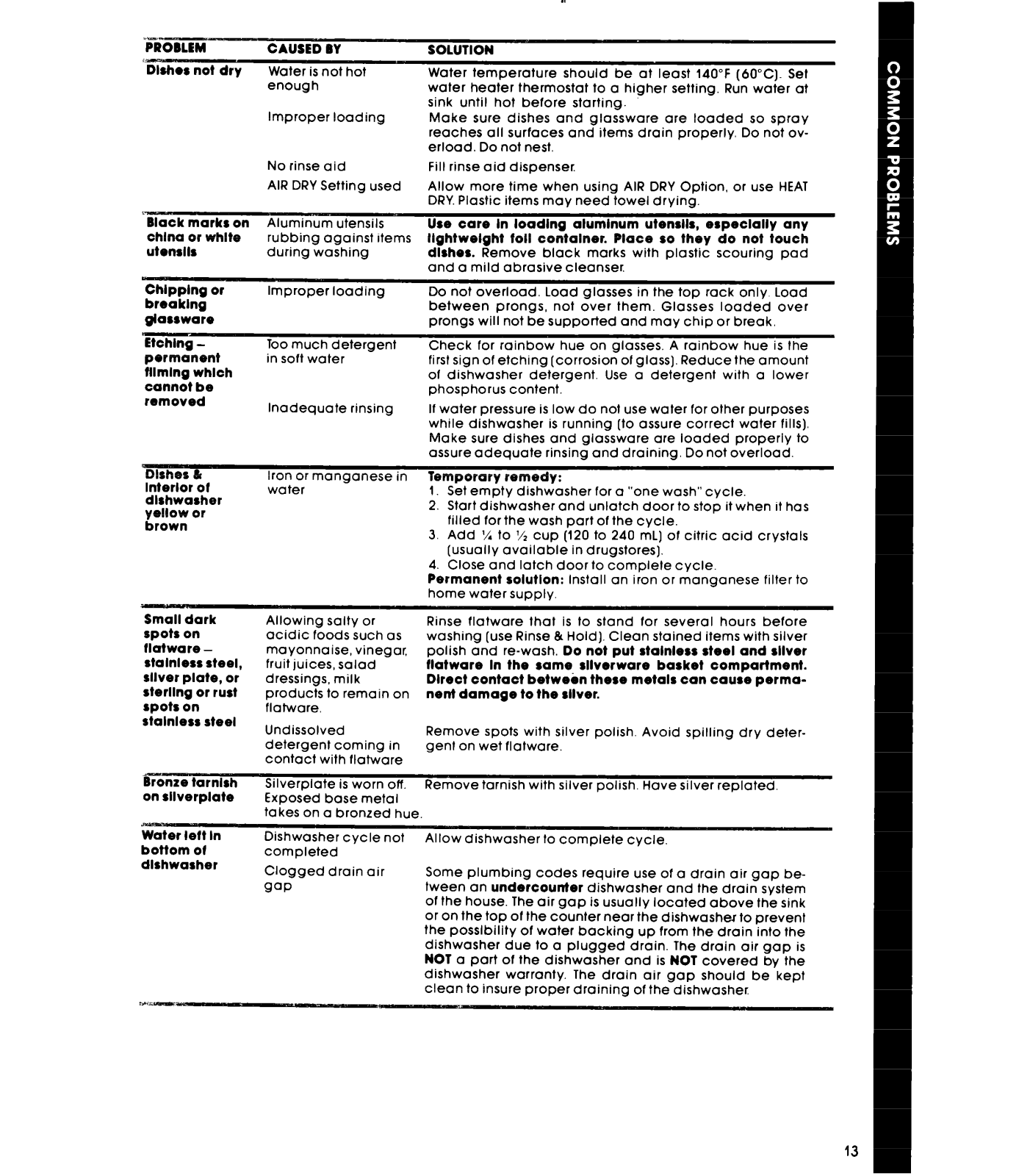

6 COMMON DISHWASHING PROBLEMS 12

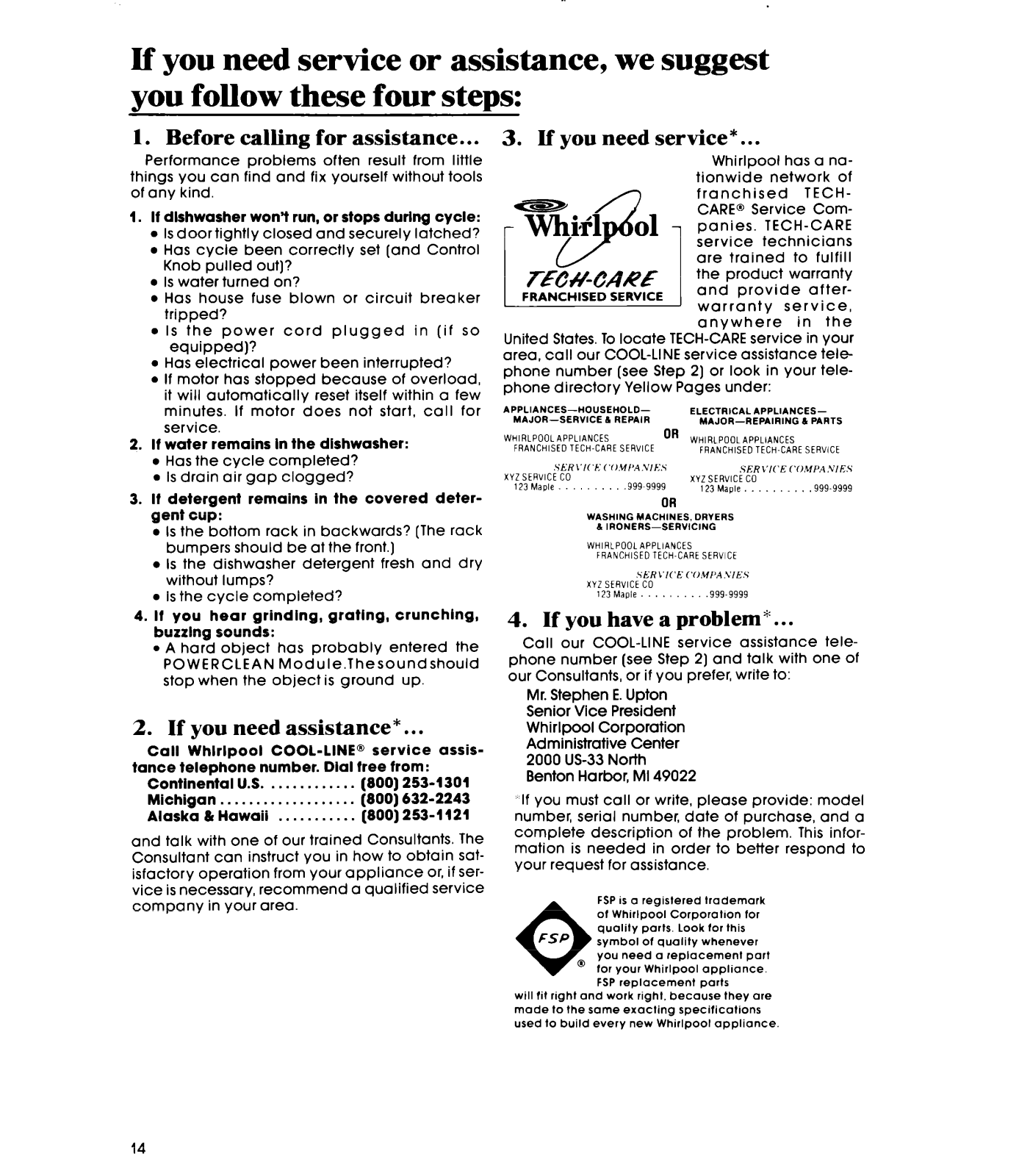

7 IF YOU NEED SERVICE OR ASSISTANCE 14
I. Before Calling for Assistance 14
2 If You Need Assistance 14
3. If You Need Service _. 14
*Tmk
4. If You Have a Problem 14
0 1985 Whirlpool Corporation
Before you use your dishwasher
It Is your personal responslblllty and obllgatlon to be sure your dlshwasher:
l
Is installed by a qualified installer.
l
Has been installed where it is protected from the elements.
l
Has been installed on a floor strong enough to support its weight.
l
Has been properly connected to electricity, water and drain.*
l
Has been properly electrically grounded.=
l
Is not used by children or anyone unable to operate it properly.
l
Is properly maintained.
-See installation instructions for complete information.
Page
8
i

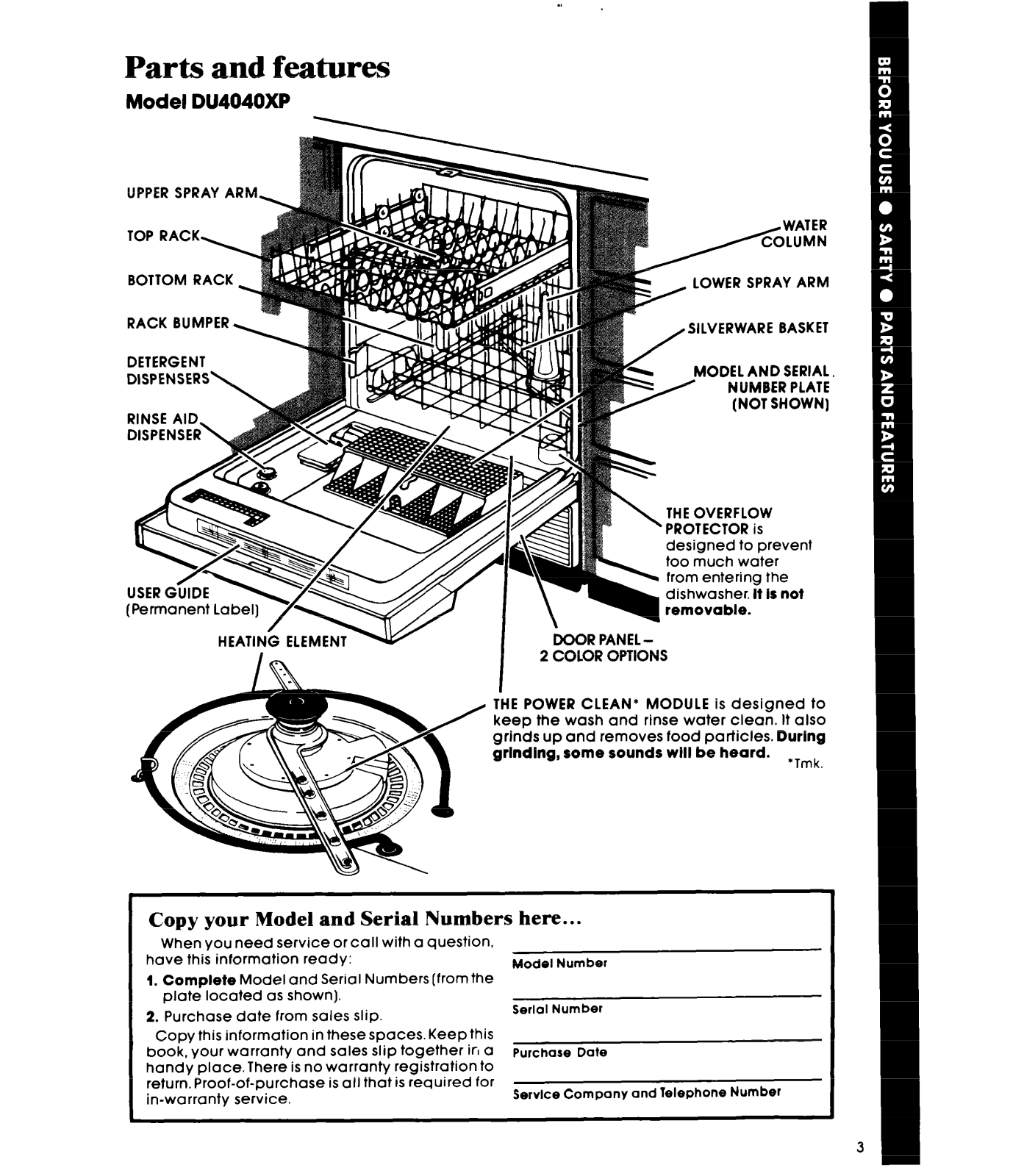

Parts and features
Model DU4040XP
UPPER SPRAY ARM
TOP RACK
BOTTOM RACK
RACK BUMPER
DETERGENT
USER GiIDE
--
( Pe rmanent
, WATER
COLUMN
.
LOWER SPRAY ARM
SILVERWARE BASKET
/
I
DOOR PANEL -
2 COLOR OPTIONS
i
MODEL AND SERIAL.
NUMBER PLATE
[NOT SHOWN)
THE OVERFLOW
PROTECTOR is
designed to prevent
too much water
from entering the
L dishwasher. It Is not
removable.
I
THE POWER CLEAN* MODULE is designed to
keep the wash and rinse water clean. It also
grinds up and removes food particles. During
grlndlng, some sounds will be heard.
‘Tmk,
Copy your Model and Serial Numbers here...
When you need service or call with a question,
have this information ready:
1. Complete Model and Serial Numbers [from the
plate located as shown).
2. Purchase date from sales slip.
Copy this information in these spaces. Keep this
book, your warranty and sales slip together in a
handY place. There is no warrantY registration to
return: Proof-of-purchase is all that is required for
in-warranty service.
Model Number
Serial Number
Purchase Date
Service Company and Telephone
Number
.

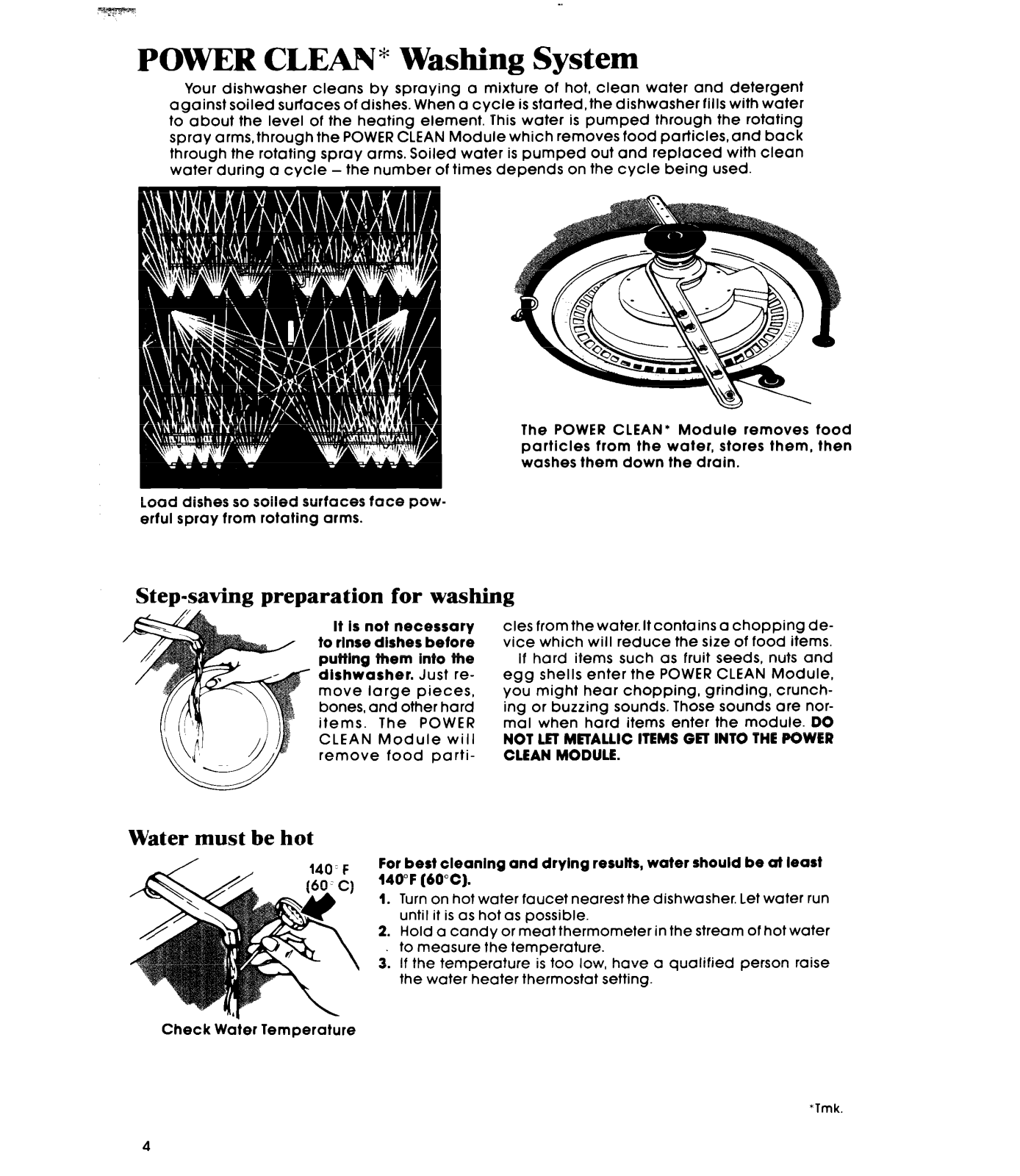

POWER CLEAN* Washing System
Your dishwasher cleans by spraying a mixture of hot, clean water and detergent
against soiled surfaces of dishes. When a cycle is started,the dishwasher fills with water
to about the level of the heating element. This water is pumped through the rotating
spray armsthrough the POWER CLEAN Module which removes food particle&and back
through the rotating spray arms. Soiled water is pumped out and replaced with clean
water during a cycle - the number of times depends on the cycle being used.
The POWER CLEAN* Module removes food
particles from the water, stores them, then
washes them down the drain.
Load dishes so soiled surfaces face powerful spray from rotating arms.
Step-saving preparation for washing
It is not necessary
to rinse dishes before
putting them into the
dishwasher. Just remove large pieces,
bones, and other hard
items. The POWER
CLEAN Module will
remove food parti-
Water must be hot
For best cleaning and drying resutts, water should be at least
140°F (60°C).
1. Turn on hot water faucet nearest the dishwasher. Let water run
until it is as hot as possible.
2. Hold a candy or meat thermometer in the stream of hot water
to measure the temperature.
3. If the temperature is too low, have a qualified person raise
the water heater thermostat setting.
cles from the water. It contains a chopping device which will reduce the size of food items.
If hard items such as fruit seeds, nuts and
egg shells enter the POWER CLEAN Module,
you might hear chopping, grinding, crunching or buzzing sounds. Those sounds are normal when hard items enter the module. DO
NOT LET MmALLIC ITEMS GET INTO THE POWER
CLEAN MODULE.
*Tmk.

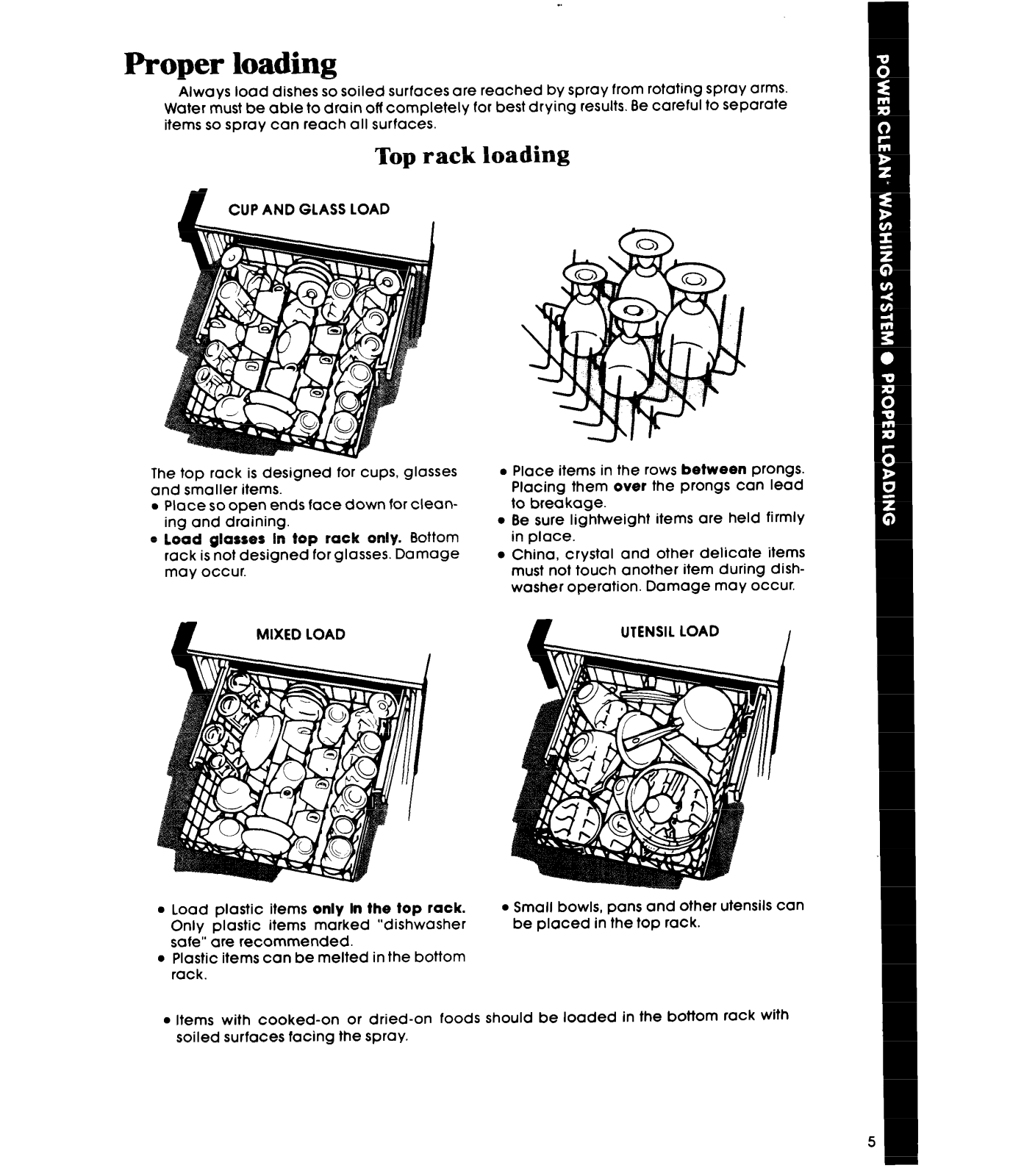

Proper loading
Always load dishes so soiled surfaces are reached by spray from rotating spray arms.
Water must be able to drain off completely for best drying results. Be careful to
items so spray can reach all surfaces.
Top rack loading
CUP AND GLASS LOAD
I
l
The top rack is designed for cups, glasses
and smaller items.
l
Place so open ends face down for cleaning and draining.
l
load glasses In top rack only. Bottom
rack is not designed for glasses. Damage
may occur.
Place items in the rows between prongs.
Placing them over the prongs can lead
to breakage.
Be sure lightweight items are held firmly
in place.
China, crystal and other delicate items
must not touch another item during dishwasher operation. Damage may occur.
Separate
MIXED LOAD
l
Load plastic items only in the top rack.
Only plastic items marked “dishwasher
safe” are recommended.
l
Plastic items can be melted in the bottom
rack.
l
Items with cooked-on or dried-on foods should be loaded in the bottom rack with
soiled surfaces facing the spray.
I
l
Small bowls, pans and other utensils can
be placed in the top rack.
UTENSIL LOAD
I
