Page 1

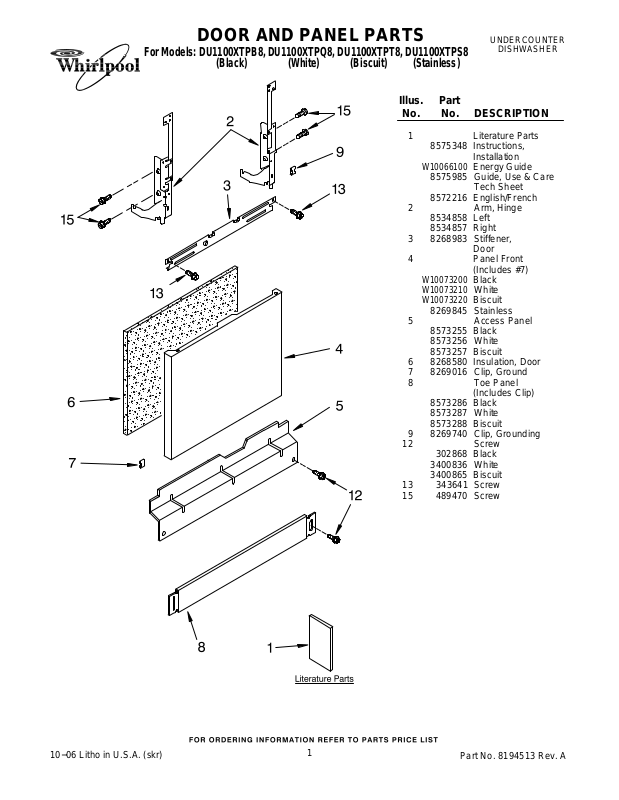

DOOR AND PANEL PARTS
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
UNDERCOUNTER
DISHWASHER
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8575348 Instructions,
Installation
W10066100
8575985 Guide, Use & Care
8572216 English/French
2 Arm, Hinge
8534858 Left
8534857 Right
3 8268983 Stiffener,
4 Panel Front
W10073200
W10073210
W10073220
8269845 Stainless
5 Access Panel
8573255 Black
8573256 White
8573257 Biscuit
6 8268580 Insulation, Door
7 8269016 Clip, Ground
8 Toe Panel
8573286 Black
8573287 White
8573288 Biscuit
9 8269740 Clip, Grounding
12 Screw
302868 Black
3400836 White
3400865 Biscuit
13 343641 Screw
15 489470 Screw
Energy Guide
Tech Sheet
Door
(Includes #7)
Black
White
Biscuit
(Includes Clip)
10−06 Litho in U.S.A. (skr)
1
Part No. 8194513 Rev. A
Page 2
CONTROL PANEL PARTS
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 Console Asm.
(Includes Active
Overlay & Insert)
8575785 Black
8575786 White
8575787 Biscuit
3 8546546 Clip, BI−Metal
W10056090
4
5 8524471 Actuator, Latch
6 661663 Fuse, Thermal
7 3400412 Screw
8 3369051 Screw (6)
9 Handle, Latch
8534984 Black
8534985 White
8534986 Biscuit
10 8524476 Bolt, Latch
W10076360
11
12 8269209 Switch, Door
Cover Control
Shield Assembly
Electronic
Control,
Electronic
2
8194513
Page 3
DOOR AND LATCH PARTS
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
3 8269311 Inner Door
(Also Order
Item 6)
5 8542603 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
8194513
Illus. Part
No. No. DESCRIPTION
7 8542566 Deflector, Vent
(Also Order
Item 6)
8 8565814 Dispenser,
Assembly
9 8269258 Seal, Front
3
Illus. Part
No. No. DESCRIPTION
12 8573175 Wiring Harness
Main
13 8281154 Screw
14 8269296 Seal,
Console/door
15 8535637 Bracket, Dispenser
16 8531865 Shield, Dispenser
17 8558307 Cap, Rinse Aid
Page 4
LOWER WASHARM PARTS
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8268333 Wash Arm Assembly
2 8268317 Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
(Also Order
Item 3)
4
8194513
Page 5
HEATER PARTS
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
(Black) (White) (Biscuit) (Stainless)
8194513
Illus. Part
No. No. DESCRIPTION
1 8563007 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 8269262 Bracket,
Heater Support
If heater element is
NOTE:
removed, it must be replaced.
5
Page 6

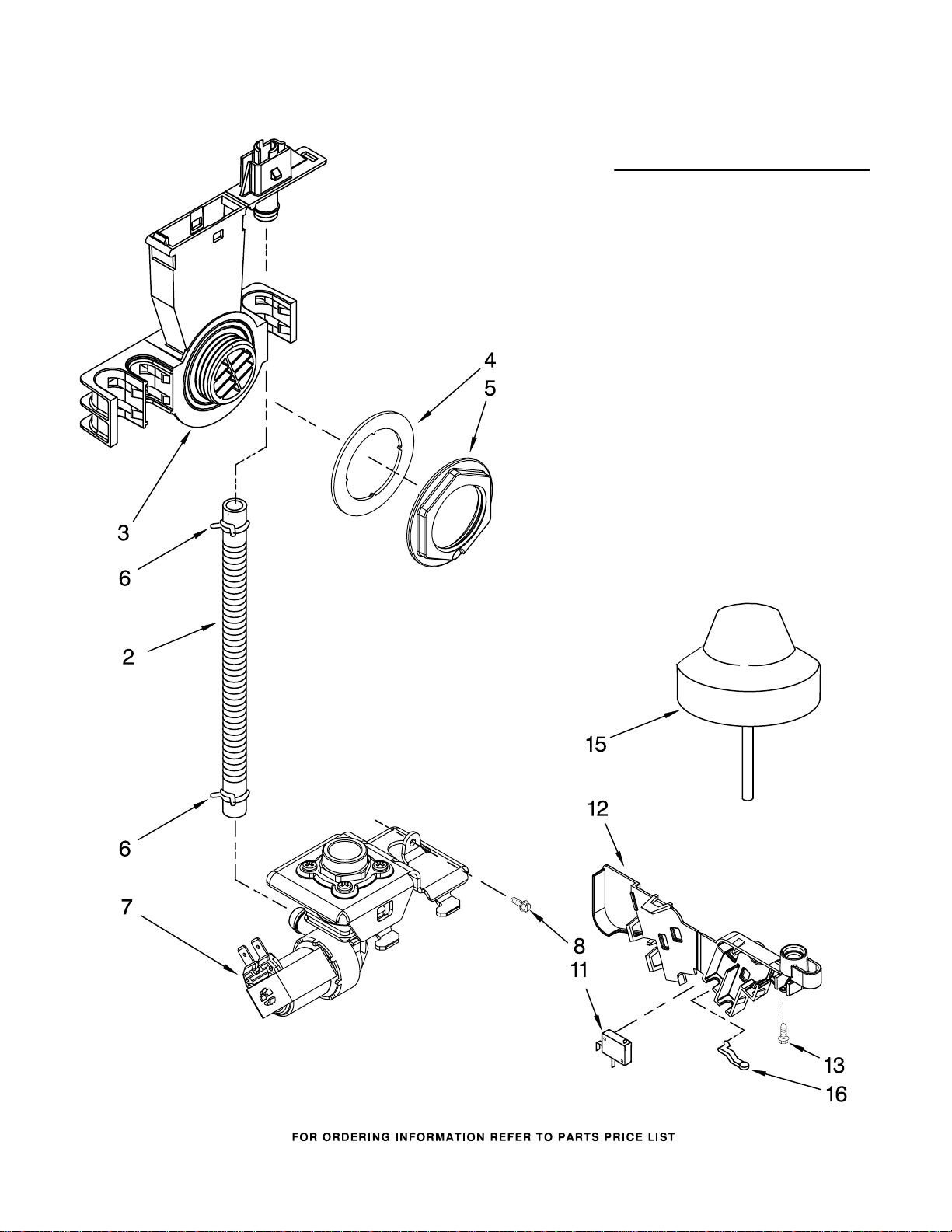

FILL AND OVERFILL PARTS
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531326 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563406 Fill Valve
Assembly
8 304392 Screw
11 8268909 Switch, Overfill
Control
12 8545881 Standpipe,
Overfill
13 304231 Screw
15 8268913 Float & Retainer
Assembly
16 8268892 Lever, Overflow
Switch
6
8194513
Page 7
TUB AND FRAME PARTS
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
(Black) (White) (Biscuit) (Stainless)
8194513
7
Page 8

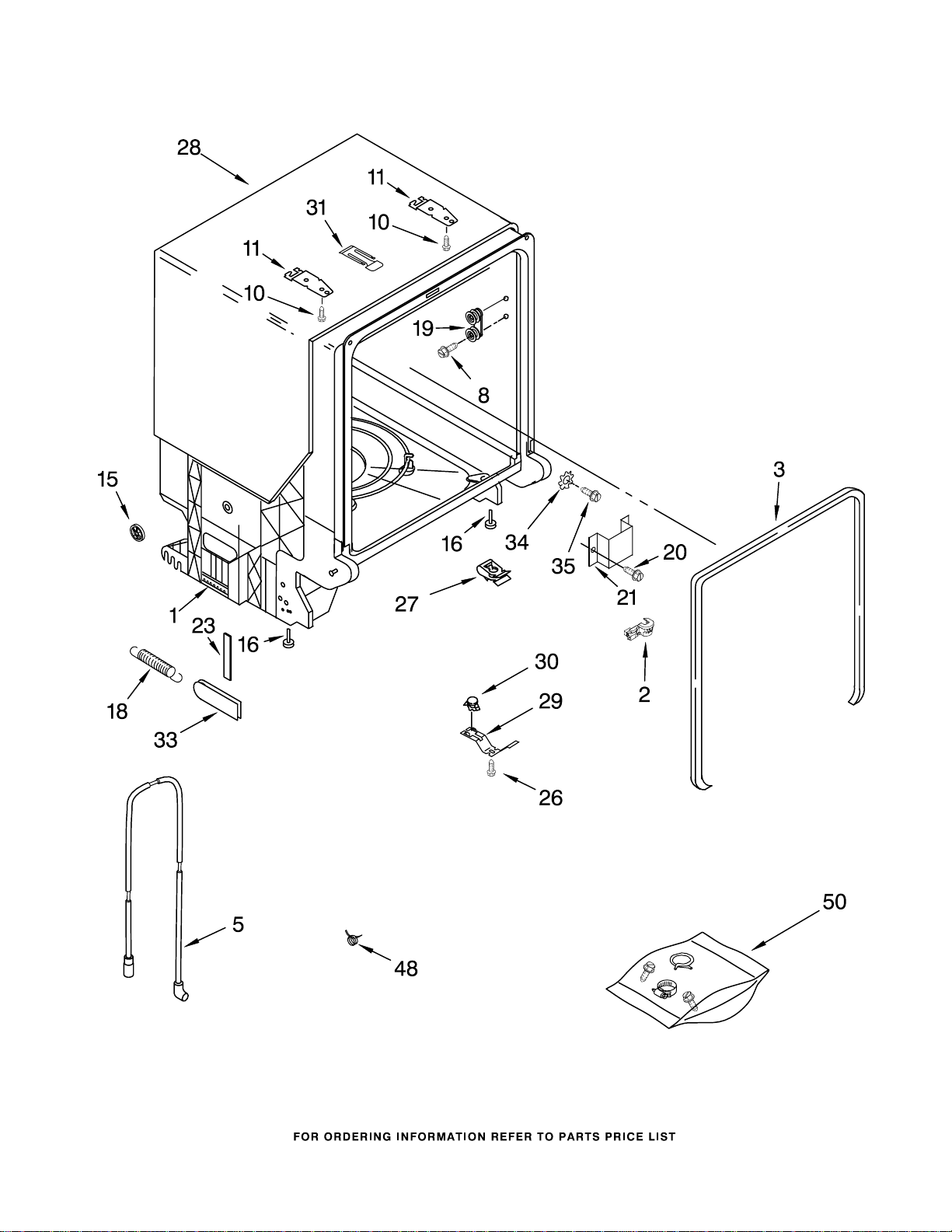

TUB AND FRAME PARTS
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1
W10008370
2 8573061 Strain Relief
3 8268888 Door Seal
5 8531022 Drain Loop
8 8533836 Screw (8)
10 3367670 Screw
11 8269145 Bracket,
15 8269831 Wheel Leg
16 8524584 Leveler, Leg
18 8524473 Spring, Door
19 8270016 Wheel & Mount
20 3400892 Screw
21 8268991 Cover, Terminal
23 8268961 Pad, Friction
26 304231 Screw
27 8269016 Clip, Grounding
28 8573240 Shield, Sound
29 3378595 Bracket,
30 661566 Thermostat
31 8580309 Strike, Plate
33 8268990 Bushing, Door
34 3378128 Washer
35 3400014 Screw
48 356138 Clamp, Hose (1)
50 8269297 Miscellaneous
Tub Assembly
With Check Valve
Undercounter
Balance
Assembly
Box
Tub
Thermostat
Spring
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
8
8194513
Page 9
PUMP AND MOTOR PARTS
For Models: DU1100XTPB7, DU1100XTPQ7, DU1100XTPT7, DU1100XTPS7
(Black) (White) (Biscuit) (Stainless)
8194513
9
Page 10

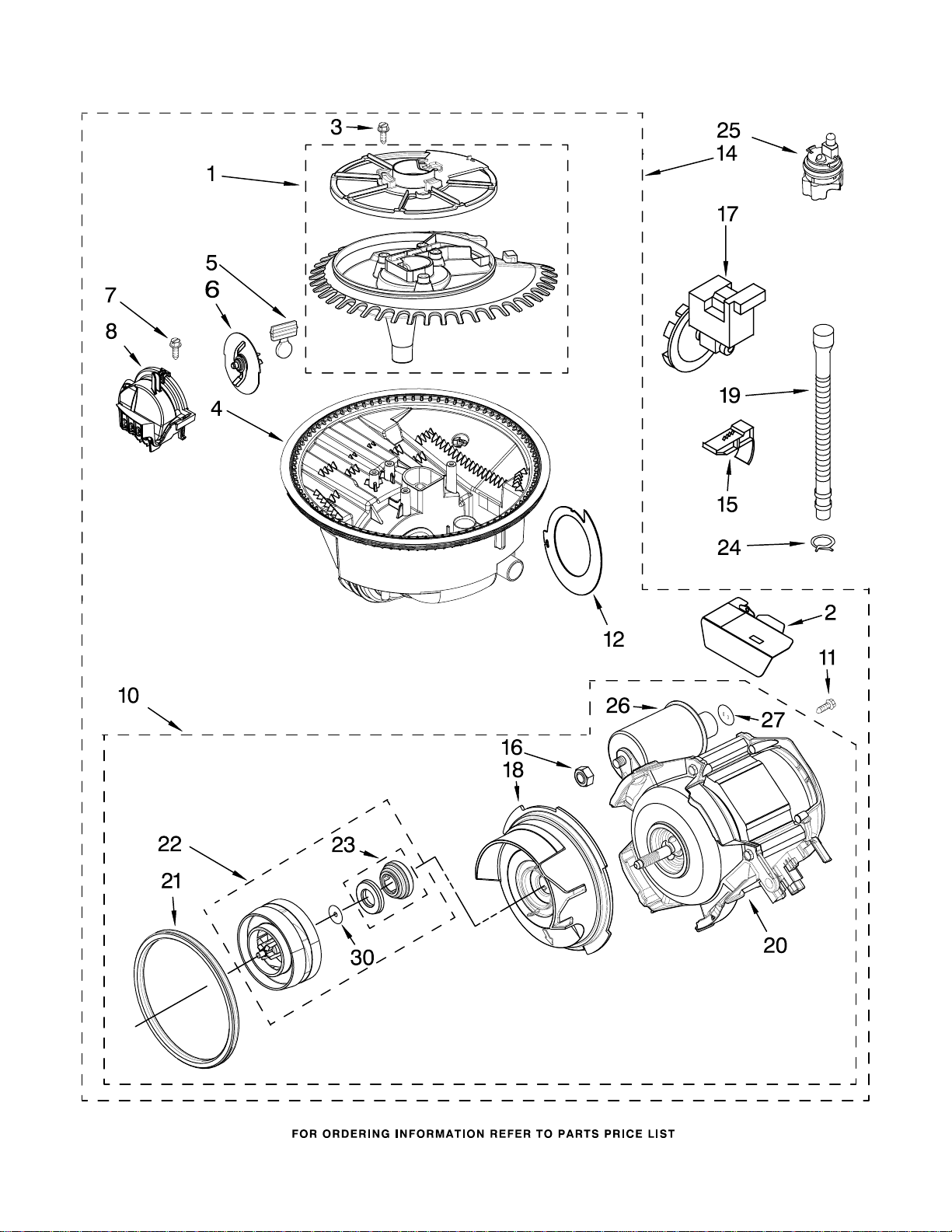

PUMP AND MOTOR PARTS
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
10 8534942 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
14 8572615 Sump & Motor
Assembly
15 8269524 Tab, Sump
16 8533949 Nut
17 661662 Pump, Drain
18 8531019 Volute, Back
(Also Order
Items 23 & 30)
19 8269144 Hose, Drain
20 8534941 Motor
21 8268397 Seal, Volute
22 8531017 Impeller Kit
(Also Order
Item 30)
23 8268403 Face Seal Assembly
(Also Order
Item 30)
24 356138 Clamp, Hose
W10055980
25
26 8269507 Capacitor
27 8534946 Shield,
30 8531018 Washer
Optical Water
Indicator
Capacitor
10
8194513
Page 11
UPPER RACK AND TRACK PARTS
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
(Black) (White) (Biscuit) (Stainless)
8194513
11
Page 12

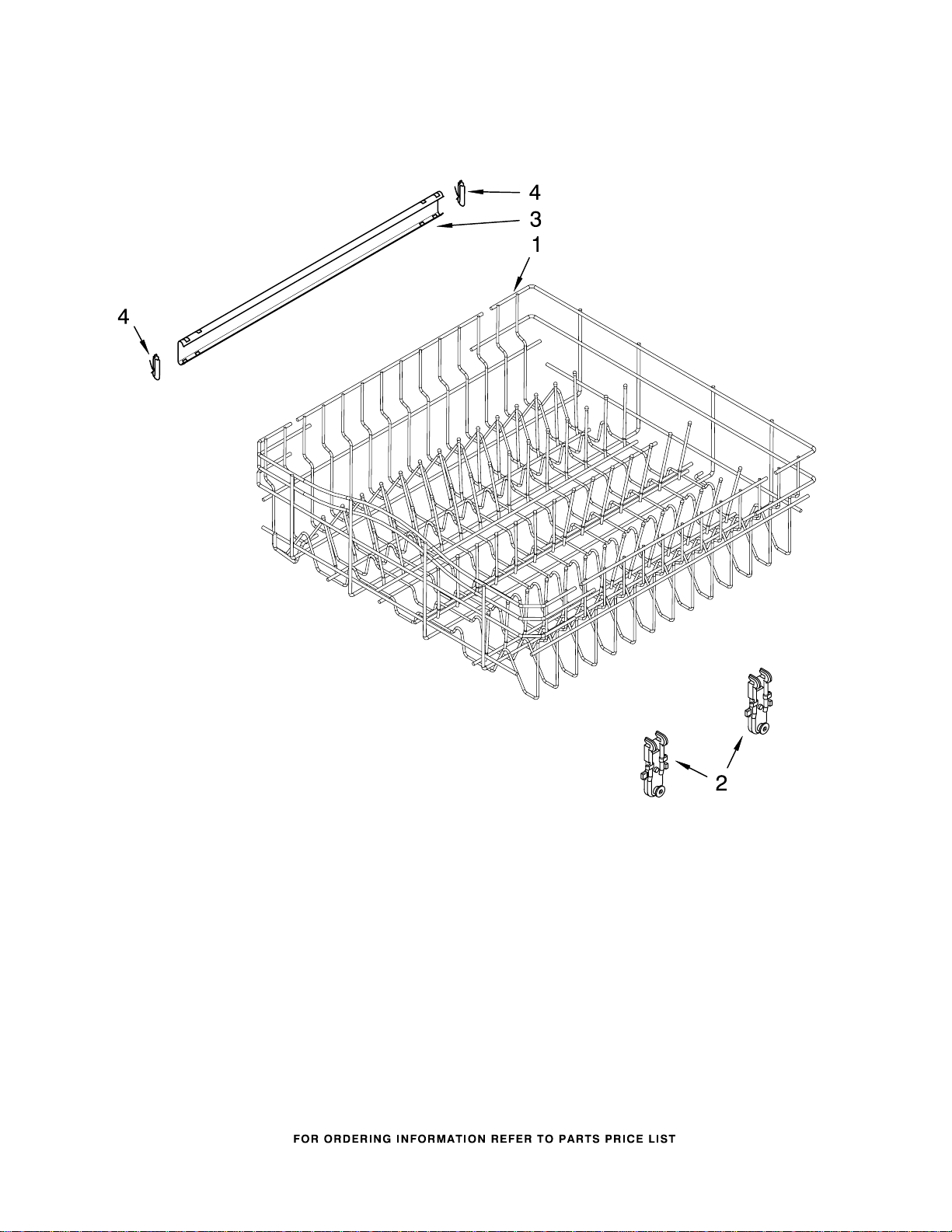

UPPER RACK AND TRACK PARTS
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8539214 Dishrack, Upper
2 8268655 Mount, Wheel
3 3385089 Track, Rack
4 8565920 Stop Track
12
8194513
Page 13

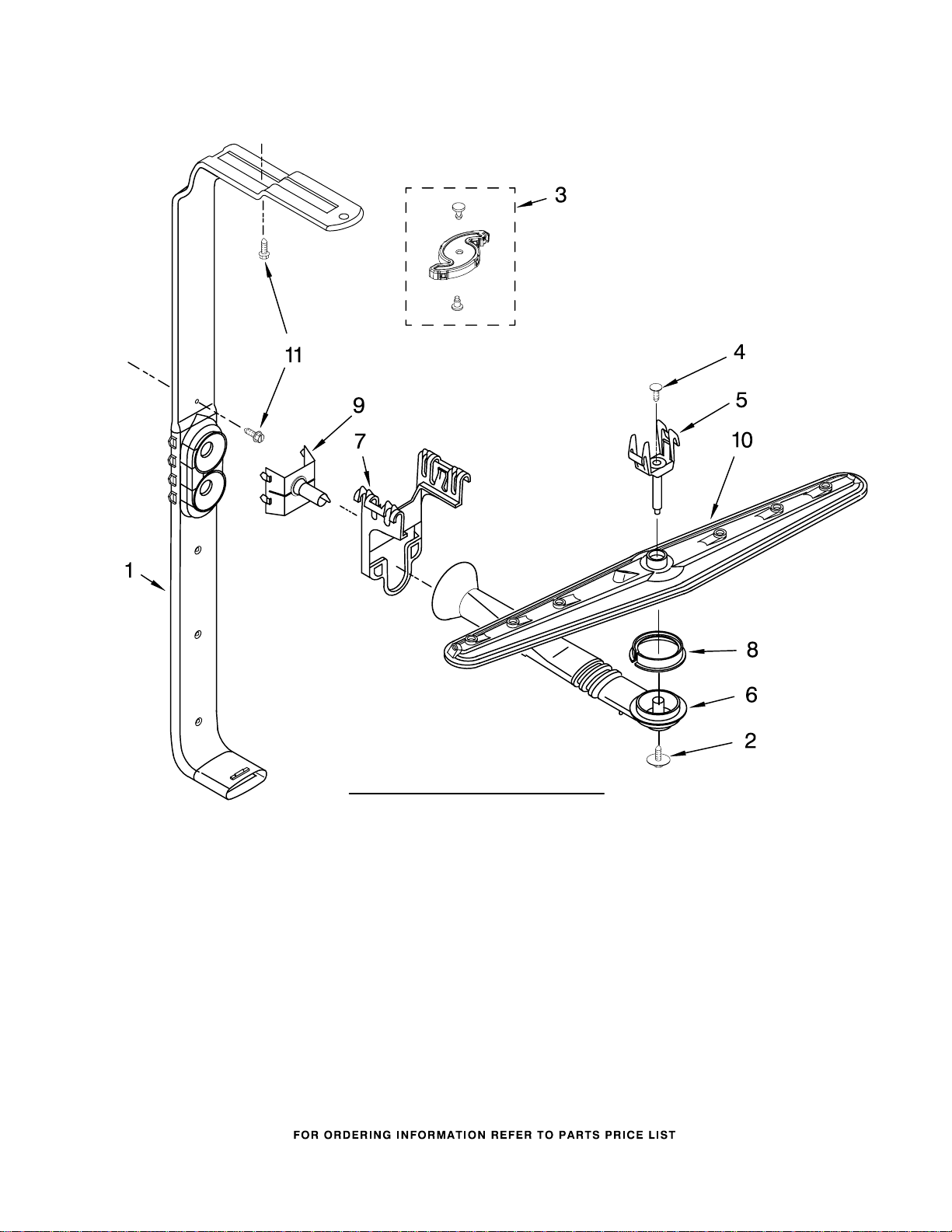

UPPER WASH AND RINSE PARTS
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
(Black) (White) (Biscuit) (Stainless)
8194513
Illus. Part
No. No. DESCRIPTION
1 8558968 Feed Tube
Assembly
(Also Includes
Items 3 & 9)
2 8533889 Screw
3 8557720 Spinner, 3rd
Level Wash
4 3400919 Cover, Screw
5 8268321 Mount
6 8268326 Manifold
7 8268325 Holder, Feed Tube
8 8268433 Seal, Sprayarm
9 8268293 Nozzle
10 8269024 Sprayarm
11 3400850 Screw
13
Page 14

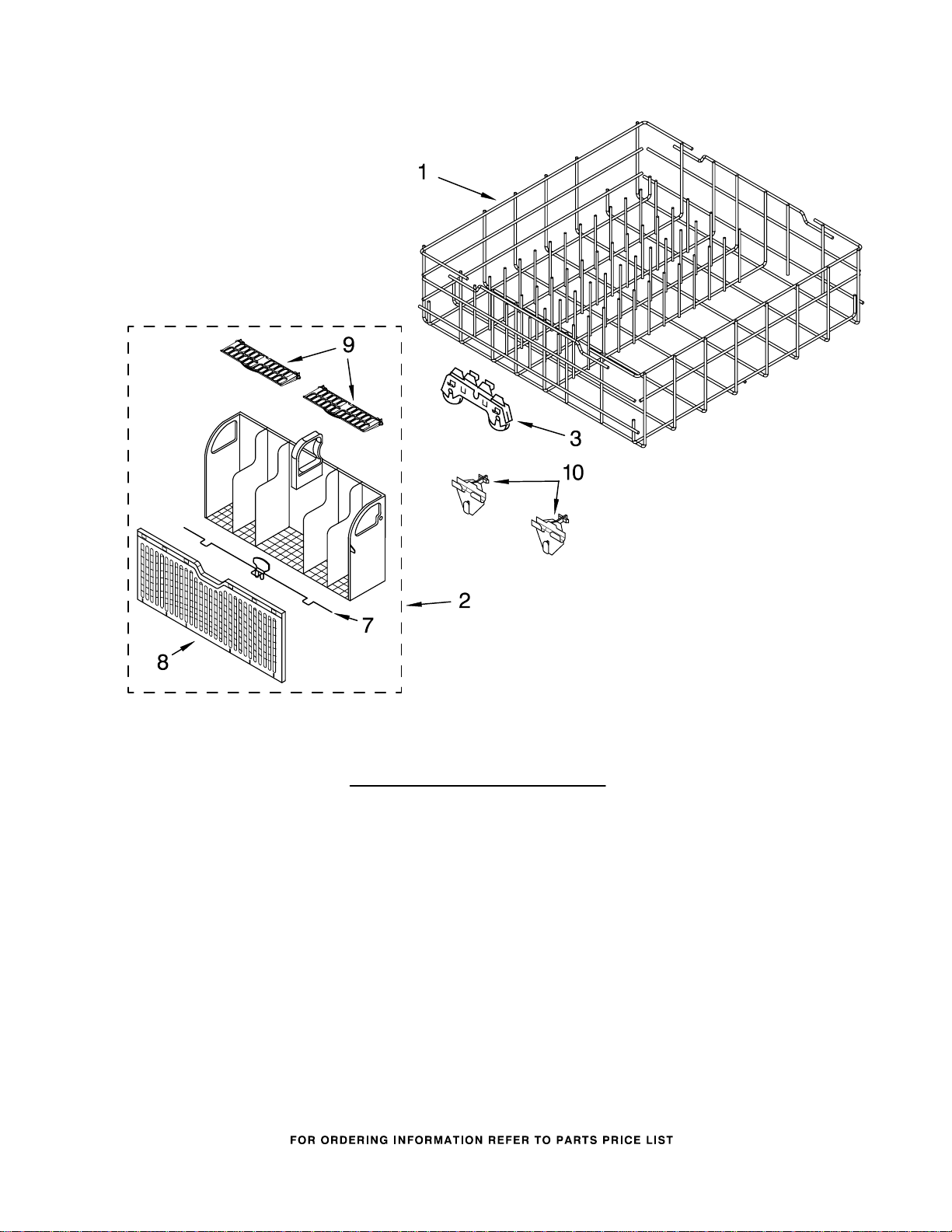

LOWER RACK PARTS
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
1 8539259 Lower Rack
Assembly
(Includes Item 3)
2 8535075 Silverware Basket
3 8268645 Wheel & Transport
Assembly
7 8539118 Latch Assembly
8 8535077 Door, Silverware
Basket
9 8535078 Lid, Silverware
Basket
10 8269308 Clip, Silverware
Basket
14
8194513
Page 15
OPTIONAL PARTS (NOT INCLUDED)
For Models: DU1100XTPB8, DU1100XTPQ8, DU1100XTPT8, DU1100XTPS8
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
ACCESSORIES
Side Panel Kits
8171656 White
8171657 Black
8171658 Biscuit
8171659 Stainless Steel
Custom Panel & Trim Kit
4396199 Black
4396200 White
4396201 Biscuit
Moisture Barrier Kit
4396277 Kit
Drain Hose
3385556 12 Ft.
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
4392899 Biscuit
4396603 Meteorite
Illus. Part
No. No. DESCRIPTION
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
285006 Superior Black
4392901 Biscuit
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit
POWER CORD KIT
4317824 Power Cord Kit
(Includes Power
Cord & Misc.
Hardware)
Illus. Part
No. No. DESCRIPTION
ANTI−TIP KIT
4396194 Floor Mount Kit
DISHRACK REPAIR
Tip Tine Repair Kit
(Enough for Two
Complete Dishracks)
4396838 White
4396840 Grey
Vinyl Touch−Up (4 oz.)
676453 White
676455 Grey
8194513
15
