Whirlpool DU1000, DU1048 User Manual
®
DISHWASHER
Use & Care Guide
For questions about features, operation/performance,
parts, accessories or service, call: 1-800-253-1301
or visit our website at www.whirlpool.com
In Canada, for assistance, installation or service,
call: 1-800-807-6777 or visit our website at
www.whirlpool.ca
LAVE-VAISSELLE
Guide d’utilisation
et d’entretien
Au Canada, pour assistance, installation ou service,
composez le 1-800-807-6777
ou visitez notre site web à
www.whirlpool.ca
W10021620
Table of Contents/Table des matières................2
Models/Modèles
DU1000, DU1048, DU1055, DU1200,
DU1201, DU1245, DU1248
TABLE OF CONTENTS
TABLE DES MATIÈRES
DISHWASHER SAFETY .................................................................3
Before Using Your Dishwasher....................................................4
PARTS AND FEATURES................................................................5
Control Panels.............................................................................. 6
START-UP GUIDE ..........................................................................6
Using Your New Dishwasher .......................................................6
Stopping Your Dishwasher ..........................................................7

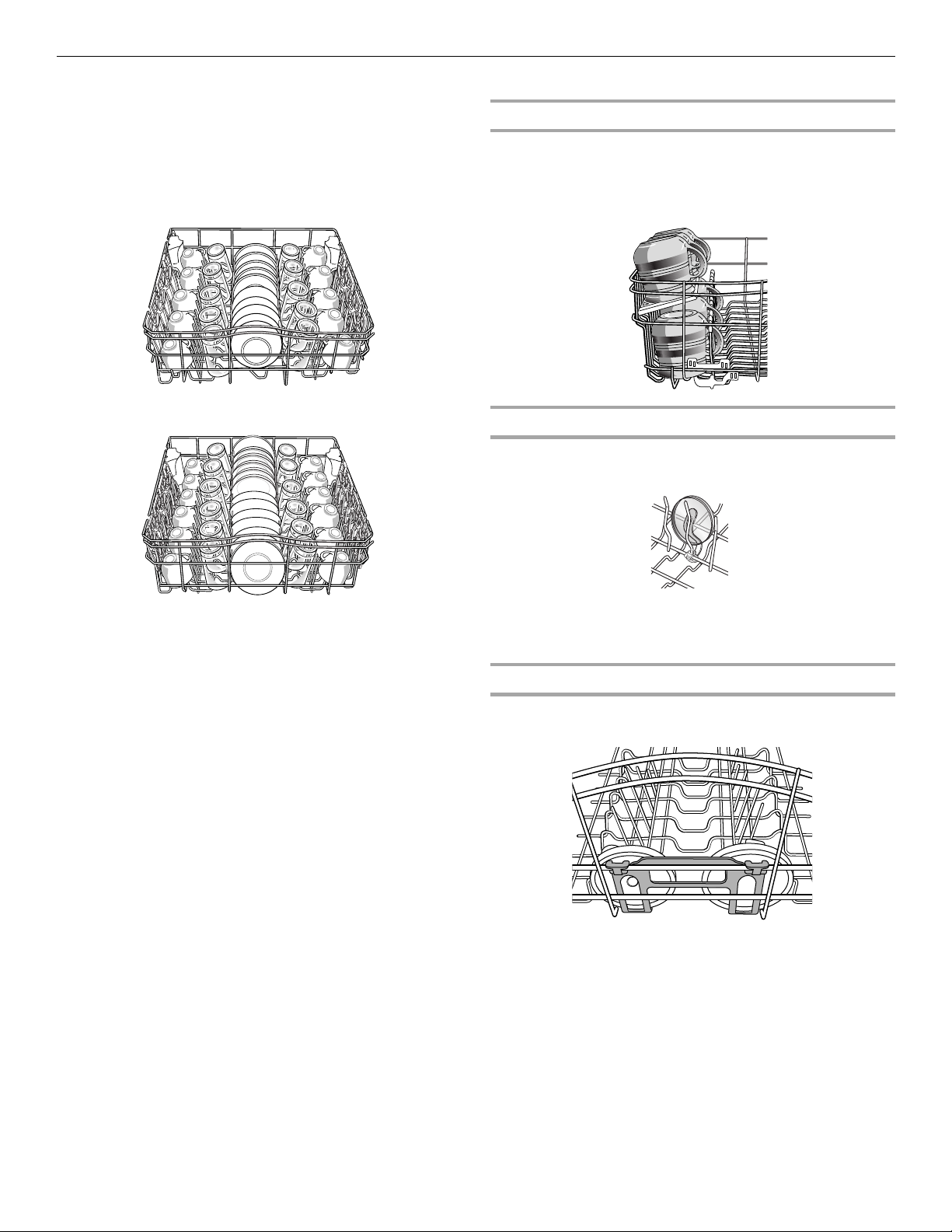

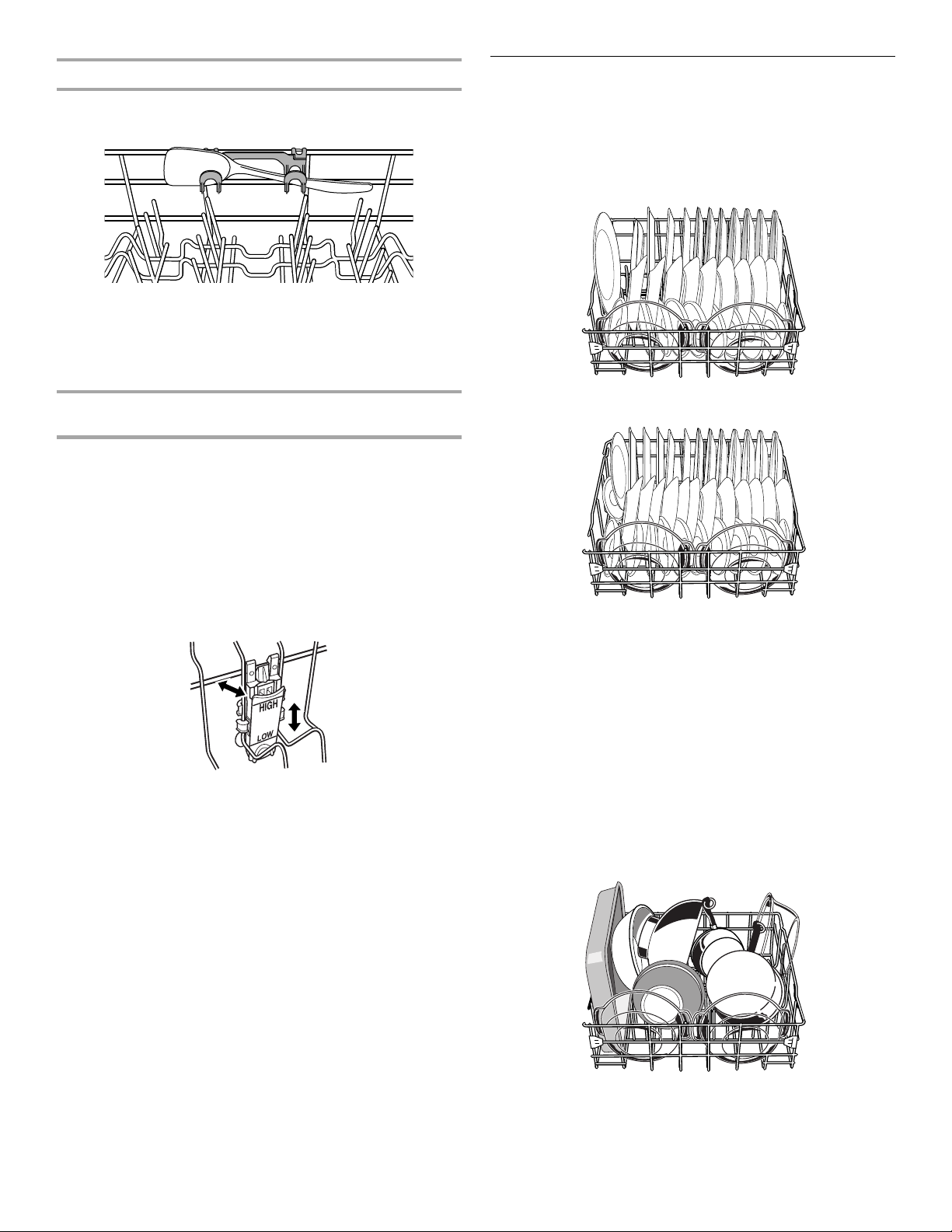

DISHWASHER LOADING.............................................................. 7
Loading Suggestions ...................................................................7
Loading Top Rack........................................................................7
Loading Bottom Rack ..................................................................9
Loading Silverware Basket ........................................................10
DISHWASHER USE......................................................................11
Detergent Dispenser ..................................................................11
Rinse Aid Dispenser...................................................................12
Dishwasher Efficiency Tips ........................................................12
Cycle Selection Charts...............................................................13
Canceling a Cycle ......................................................................14
Changing a Cycle or Setting ......................................................14
Adding Items During a Cycle .....................................................14
Option Selections.......................................................................14

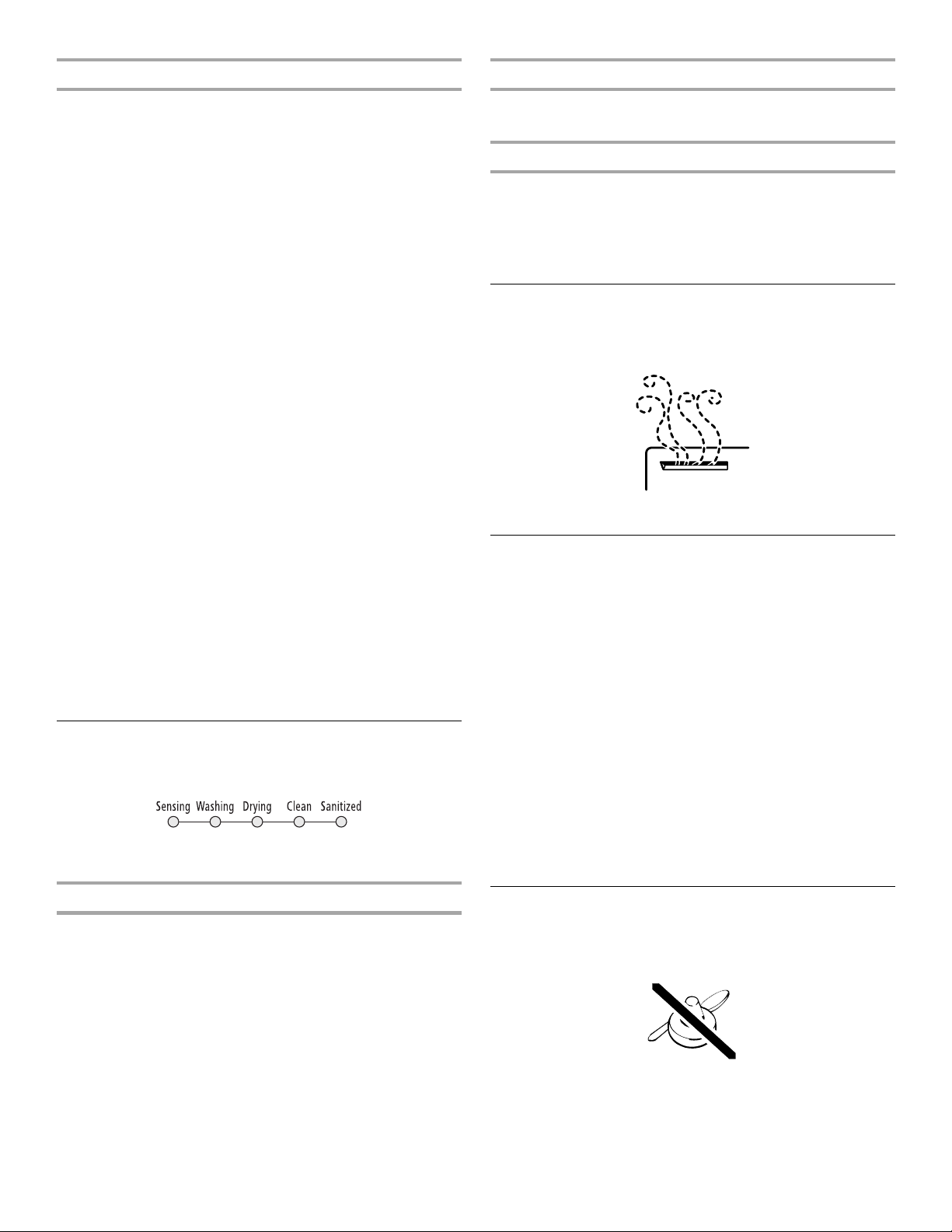

Cycle Status Indicators..............................................................15
Drying System............................................................................15
Sensor System...........................................................................15
Overfill Protection Float..............................................................15
WASHING SPECIAL ITEMS.........................................................16
DISHWASHER CARE ...................................................................17
Cleaning......................................................................................17
Drain Air Gap..............................................................................17
Storing........................................................................................17
TROUBLESHOOTING ..................................................................18
ASSISTANCE OR SERVICE.........................................................20
In the U.S.A. ...............................................................................20
In Canada ...................................................................................20
WARRANTY ..................................................................................21
SÉCURITÉ DU LAVE-VAISSELLE...............................................23
Avant d’utiliser le lave-vaisselle .................................................24
PIÈCES ET CARACTÉRISTIQUES ..............................................25
Tableaux de commande ............................................................26
GUIDE DE MISE EN MARCHE ....................................................26
Utilisation de votre nouveau lave-vaisselle................................26
Arrêt du lave-vaisselle ................................................................27
CHARGEMENT DU LAVE-VAISSELLE.......................................27
Suggestions de chargement......................................................27
Chargement du panier supérieur ...............................................28
Chargement du panier inférieur .................................................29
Chargement du panier à couverts .............................................30
UTILISATION DU LAVE-VAISSELLE...........................................32
Distributeur de détergent ...........................................................32
Distributeur d'agent de rinçage..................................................33
Conseils d’efficacité pour le lave-vaisselle ................................33
Tableaux de sélection de programmes .....................................34
Annulation d’un programme ......................................................35
Changement d’un programme ou réglage ................................35
Addition de vaisselle durant un programme..............................35
Sélection d’options.....................................................................35
Indicateurs d’état d’avancement du programme ......................37
Système de séchage..................................................................37
Système de détection ................................................................37
Dispositif de protection contre le débordement........................37
LAVAGE D’ARTICLES SPÉCIAUX ..............................................38
ENTRETIEN DU LAVE-VAISSELLE.............................................39
Nettoyage ...................................................................................39
Dispositif anti-refoulement .........................................................39
Remisage....................................................................................39
DÉPANNAGE.................................................................................40
ASSISTANCE OU SERVICE.........................................................42
Aux États-Unis............................................................................42
Au Canada..................................................................................42
GARANTIE.....................................................................................43
®
2
DISHWASHER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
When using the dishwasher, follow basic precautions, including the following:
follow instructions.
can be killed or seriously injured if you don't
You
instructions.
follow
■
Read all instructions before using the dishwasher.
■
Use the dishwasher only for its intended function.
■
Use only detergents or rinse agents recommended for use
in a dishwasher, and keep them out of the reach of children.
■
When loading items to be washed:
1) Locate sharp items so that they are not likely to damage
the door seal; and
2) Load sharp knives with the handles up to reduce the risk
of cut-type injuries.
■
Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent. For plastic items not so
marked, check the manufacturer's recommendations.
■
Do not touch the heating element during or immediately
after use.
■
Do not operate the dishwasher unless all enclosure panels
are properly in place.
SAVE THESE INSTRUCTIONS
■
Do not tamper with controls.
■
Do not abuse, sit on, or stand on the door, lid, or dish racks
of the dishwasher.
■
To reduce the risk of injury, do not allow children to play in
or on the dishwasher.
■
Under certain conditions, hydrogen gas may be produced in
a hot water system that has not been used for two weeks or
more. HYDROGEN GAS IS EXPLOSIVE. If the hot water
system has not been used for such a period, before using
the dishwasher turn on all hot water faucets and let the
water flow from each for several minutes. This will release
any accumulated hydrogen gas. As the gas is flammable,
do not smoke or use an open flame during this time.
■
Remove the door or lid to the washing compartment
when removing an old dishwasher from service or
discarding it.
3
Before Using Your Dishwasher
WARNING
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
WARNING
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector in
terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
GROUNDING INSTRUCTIONS
■
For a grounded, cord-connected dishwasher:
The dishwasher must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The dishwasher is
equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and
ordinances.
WARNING: Improper connection of the
equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or
service representative if you are in doubt whether the
dishwasher is properly grounded. Do not modify the
plug provided with the dishwasher; if it will not fit the
outlet, have a proper outlet installed by a qualified
electrician.
■
For a permanently connected dishwasher:
The dishwasher must be connected to a grounded
metal, permanent wiring system, or an equipmentgrounding conductor must be run with the circuit
conductors and connected to the equipmentgrounding terminal or lead on the dishwasher.
SAVE THESE INSTRUCTIONS
■ Install where dishwasher is protected from the elements.
Protect against freezing to avoid possible rupture of fill valve.
Such ruptures are not covered by the warranty. See “Storing”
section for winter storage information.
■ Install and level dishwasher on a floor that will hold the
weight, and in an area suitable for its size and use.
■ Remove all shipping plugs from hoses and connectors (such
as the cap on the drain outlet) before installing. See
Installation Instructions for complete information.
4

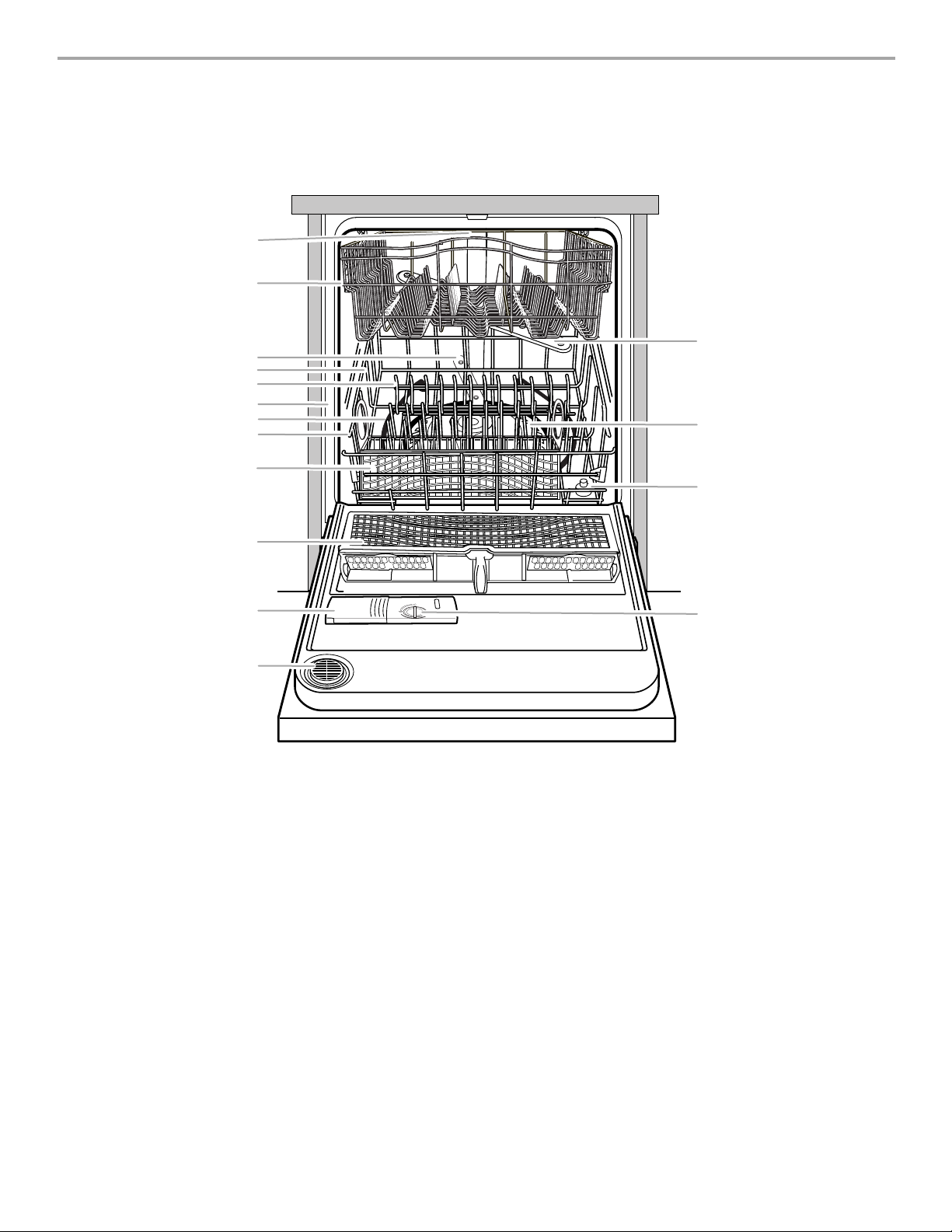

PARTS AND FEATURES
O
M
This manual covers several different models. The dishwasher you have purchased may have some or all of the parts and features listed
below.
A
B
C
D
E
F
G
H
I
N
J
K
L
A. Upper level wash
B. Top rack
C. Lower spray arm
D. Bottom rack
E. Fold-down tines (on some models)
F. Model and serial number label
G. Heating element
H. Water inlet opening (in tub wall)
I. Silverware basket
(on some models)
J. ANYWARE™ PLUS silverware
basket (on some models)
K. Detergent dispenser
L. Vent
M. Top spray arm
N. Filter module
O. Overfill protection float
P. Rinse aid dispenser
P
Other features your dishwasher
may have
Light item clips
Side clips
Utensil clips
Two position adjusters
Cup shelves
5
DU1000
DU1048, DU1055

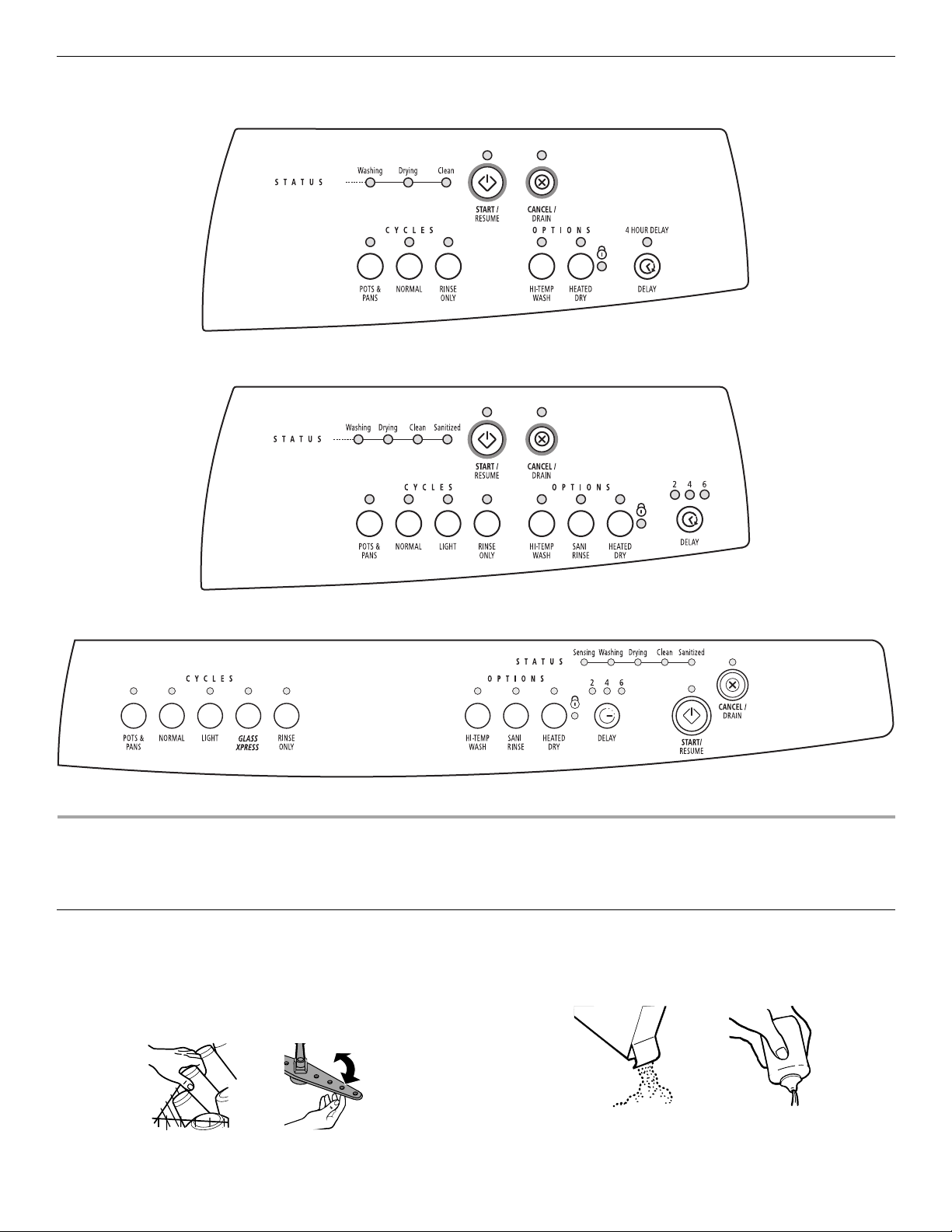

Control Panels
DU1200, DU1201, DU1245, DU1248

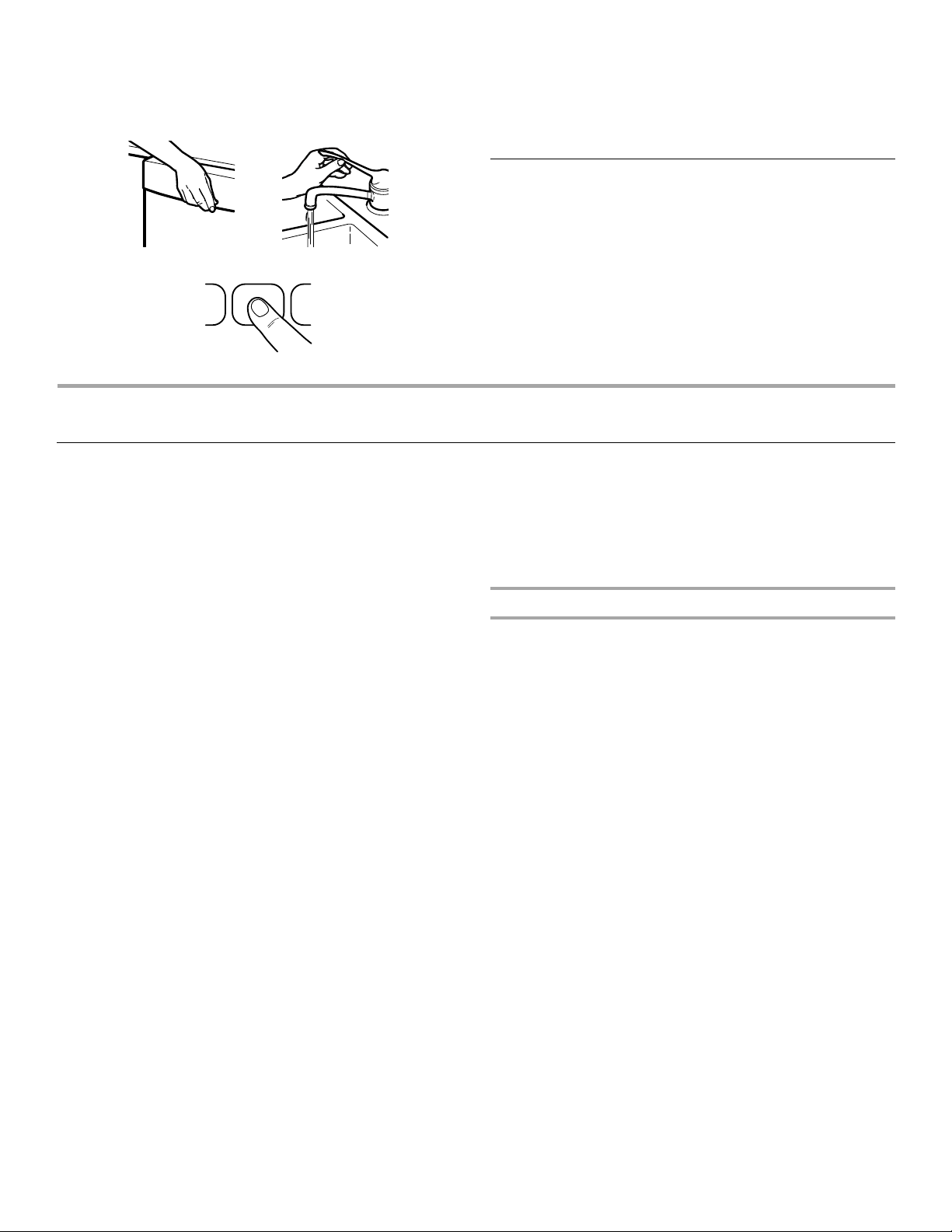

START-UP GUIDE
Before using your dishwasher, remove all packaging materials. Read this entire Use and Care Guide. You will find important safety
information and useful operating tips.
Using Your New Dishwasher
1. Scrape large food soil and hard items (toothpicks or bones)
from dishes.
2. Properly load the dishwasher. (See “Dishwasher Loading.”)
Make sure nothing keeps the spray arm(s) from spinning
freely.
3. Add detergent and check the rinse aid dispenser. Add rinse
aid if needed. (See “Dishwasher Use.”)
6
4. Push door firmly closed. The door latches automatically. Run
hot water at the sink nearest your dishwasher until the water
is hot. (See “Dishwasher Efficiency Tips.”) Turn off water.
5. Press the desired cycle and option selections.
DISHWASHER LOADING
6. Press START/RESUME.
NOTE: If the door is opened during a cycle or the power is
interrupted, the Start/Resume indicator flashes. The cycle will not
resume until the door is closed, and Start/Resume is pressed.
Stopping Your Dishwasher
You can stop your dishwasher anytime during a cycle.
1. Open the door slightly.
2. Wait for the spraying action to stop. Then open the door all
the way, if needed.
Close the door and press START/RESUME to continue the cycle.
OR
Press CANCEL/DRAIN. A 2-minute drain starts.
Loading Suggestions
■ Remove leftover food, bones, toothpicks and other hard
items from the dishes. It is not necessary to rinse the dishes
before putting them into the dishwasher. The wash module
removes food particles from the water. The module contains a
chopping device which will reduce the size of food items.
NOTE: If hard items such as fruit seeds, nuts, and eggshells
enter the wash module, you might hear chopping, grinding,
crunching, or buzzing sounds. These sounds are normal
when hard items enter the module. Do not let metallic items
(such as pot handle screws) get into the wash module.
Damage can occur.
■ It is important for the water spray to reach all soiled surfaces.
■ Load dishes so they are not stacked or overlapping, if
possible. For best drying, water must be able to drain from all
surfaces.
■ Make sure pot lids and handles, pizza pans, cookie sheets,
etc., do not interfere with the spray arm rotation.
■ Run a rinse cycle to keep dishes moist if you do not plan to
wash them soon. Foods such as eggs, rice, pasta, spinach,
and cooked cereals may be hard to remove if they are left to
dry over a period of time.
Quiet operating tips
To avoid thumping/clattering noises during operation:
■ Make sure lightweight load items are secured in the racks.
■ Make sure pot lids and handles, pizza pans, cookie sheets,
etc., do not touch interior walls or interfere with the rotation of
the spray arm.
■ Load dishes so they do not touch one another.
NOTE: For built-in models, keep sink drain plugs closed during
dishwasher operation to avoid noise transfer through drains.
Loading Top Rack
The top rack is designed for cups, glasses, and smaller items.
Many items, up to 9" (22 cm), fit in the top rack. (See
recommended loading patterns shown.)
NOTE: The features on your dishwasher rack may vary from the
drawings shown.
10 place setting
12 place setting
■ Place items so open ends face down for cleaning and
draining.
■ Load glasses in top rack only. The bottom rack is not
designed for glasses. Damage can occur.
■ Place cups and glasses in the rows between tines. Placing
them over the tines can lead to breakage and water spots.
■ China, crystal, and other delicate items must not touch each
other during dishwasher operation. Damage may occur.
■ Load lightweight plastic items in the top rack only. Only
plastic items marked “dishwasher safe” are recommended.
7
■ Load plastic items so the force of the spray does not move
them during the cycle.
■ To avoid chipping, do not let stemware touch other items.
■ Small bowls, pans, and other utensils can be placed in the
top rack. Load bowls in the center section for best stability.
Cup shelves (on some models)
Fold down the extra shelf on the left-hand or right-hand side of
the top rack to hold additional cups, stemware or long items such
as utensils and spatulas.
NOTE: The features on your dishwasher may vary from those
shown below.
Light item clips (on some models)
Side clip (on some models)
The side clip holds lightweight plastic items such as cups, lids, or
bowls in place during washing.
To move a clip
1. Pull the clip up and off horizontal rack wire.
2. Reposition the clip on another horizontal rack wire.
Utensil clip (on some models)
The utensil clip holds specialty cooking items (wooden spoons,
spatulas, and similar items).
The light item clips hold lightweight plastic items such as cups,
lids, or bowls in place during washing.
To move a clip
1. Pull the clip up and off the tine.
2. Reposition the clip on another tine.
To move a clip
1. Pull the clip up and off horizontal rack wire.
2. Reposition the clip on another horizontal rack wire.
Adjustable 2-position top rack (on some models)
You can raise or lower the top rack to fit tall items in either the top
or bottom rack. Raise the top rack to accommodate items up to
9" (22 cm) in the top rack and 13" (33 cm) in the bottom rack, or
lower the top rack to accommodate items up to 11" (28 cm) in
both the top and bottom racks. Two adjusters are located on
each side of the top rack. Each adjuster has 2 preset positions.
The high and low positions are marked on the adjuster.
To adjust the top rack
1. Hold the top rack with one hand near the adjuster.
2. With the other hand, pull out the top of the adjuster.
3. Raise or lower the rack to one of the preset positions.
4. Release the adjuster.
5. Repeat the steps for the remaining adjusters.
NOTE: The top rack must be level.
8
Loading Bottom Rack
The bottom rack is designed for plates, pans, casseroles, and
utensils. Many items, up to 13" (33 cm) tall, fit in the bottom rack.
(See recommended loading patterns shown.)
NOTE: The features on your dishwasher rack may vary from the
drawings shown.
■ Load cookie sheets, cake pans, and other large items at the
sides and back. Loading such items in front can keep the
water spray from reaching the detergent dispenser.
10 place setting
12 place setting
■ Do not load glasses, cups, or plastic items in the bottom
rack. Load small items in the bottom rack only if they are
secured in place.
■ Load plates, soup bowls, etc., between tines.
■ Overlap the edges of plates for large loads.
■ Load soup, cereal, and serving bowls in the rack in a variety
of ways depending upon their size and shape. Load bowls
securely between the rows of tines. Do not nest bowls
because the spray will not reach all surfaces.

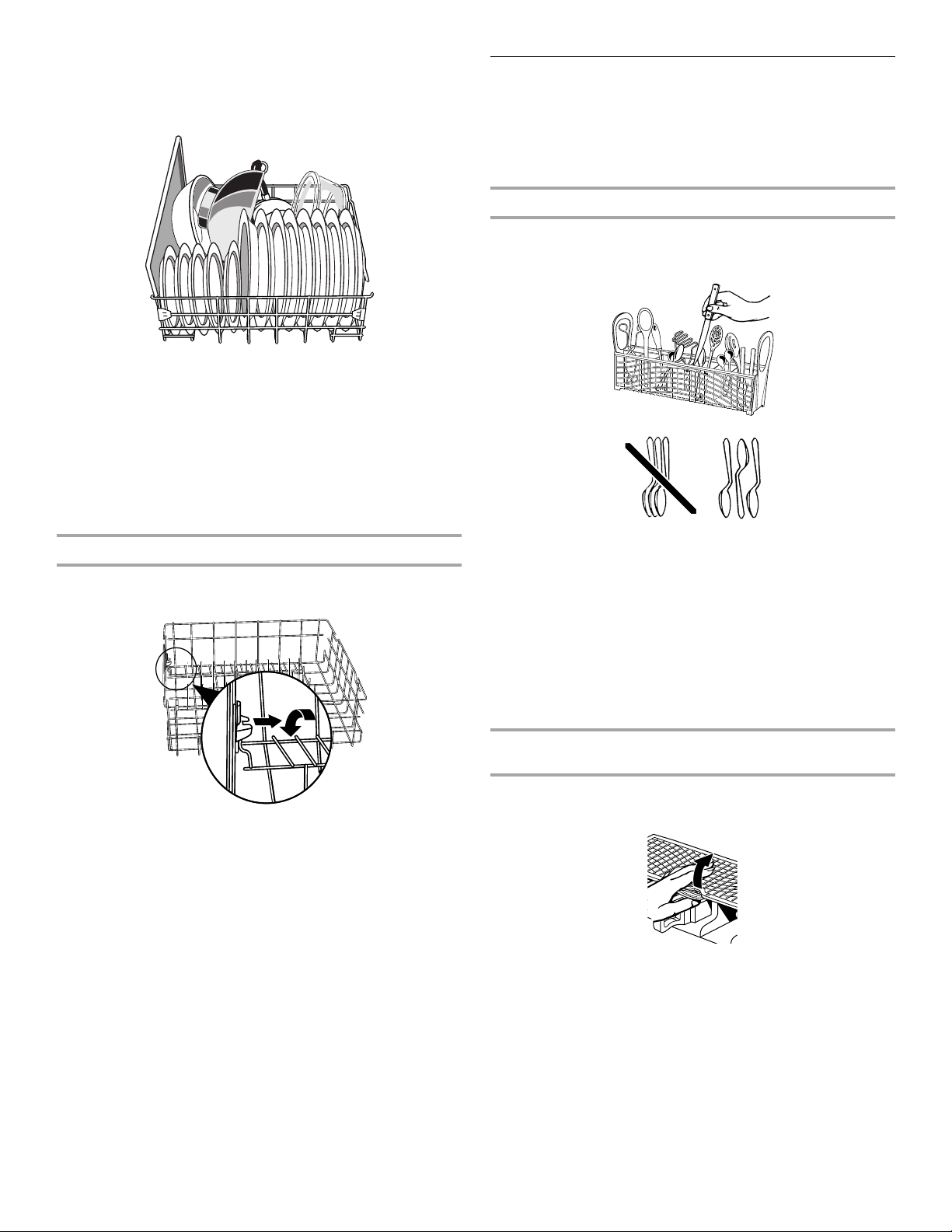

Mixed load
■ Secure heavily soiled cookware face down in the rack.
■ Make sure pot handles and other items do not stop rotation
of the spray arm(s). The spray arm(s) must move freely.
■ Do not load items between the bottom rack and the side of
the dishwasher tub because they might block the water inlet
opening.
Fold-down tines (on some models)
You can fold down one row of tines at the back of the bottom
rack.
1. Grasp the tip of the tine that is in the tine holder.
2. Gently pull the tine out of the tine holder.
3. Lay the row of tines down in the rack to make room for larger
dishes, bowls, pots, pans or roasters.
Utensil load
9

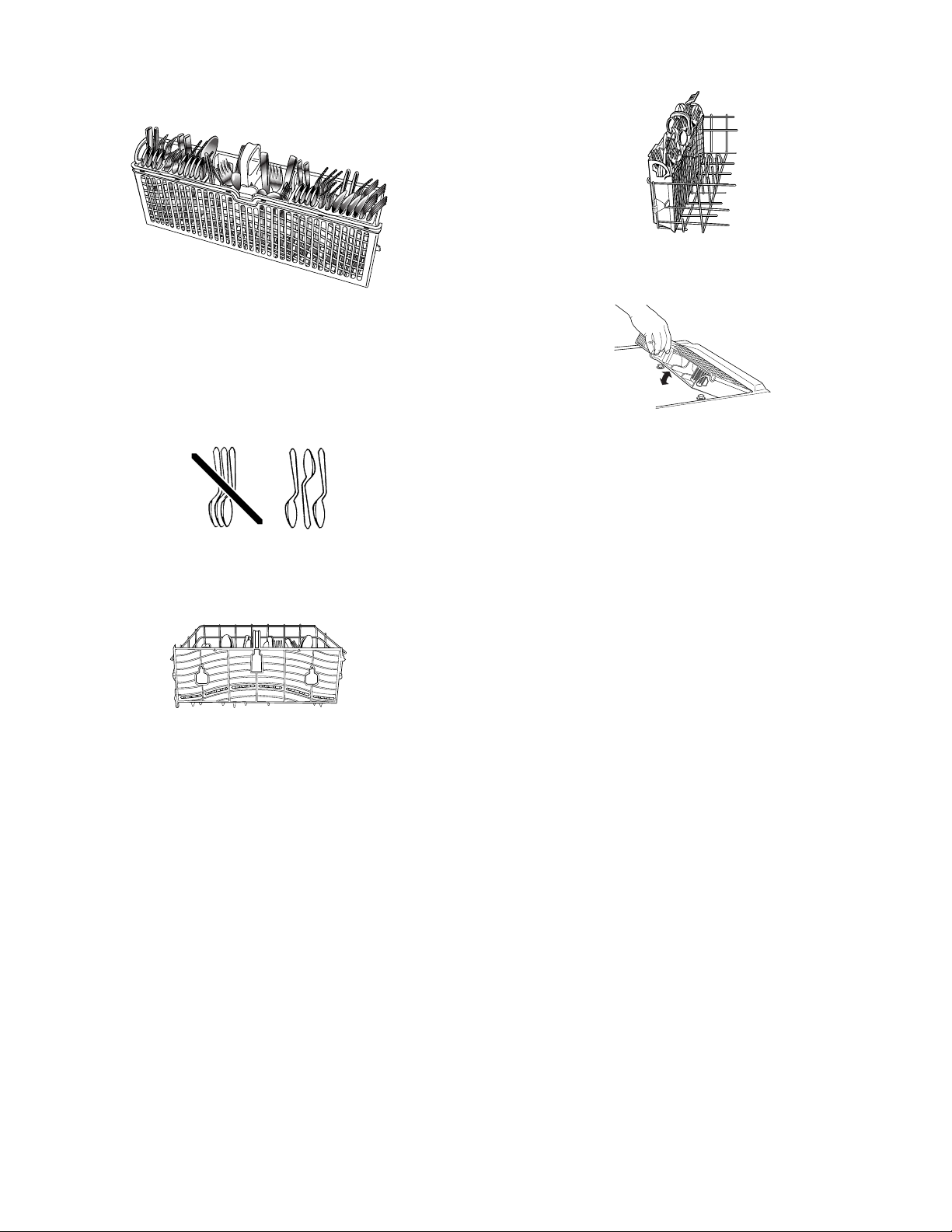

Loading Silverware Basket
Load the silverware basket while it is in the dishwasher or take
the basket out for loading on a counter or table top.
NOTE: Unload or remove the basket before unloading the racks
to avoid spilling water droplets onto the silverware.
Style 1 (on some models)
Mix items in each section of the basket with some pointing up
and some down to avoid nesting. Spray cannot reach nested
items.
IMPORTANT: Always load items (knives, skewers, etc.) pointing
down.
NOTES:
■ Do not load silver or silver-plated silverware with stainless
steel. These metals can be damaged by contact with each
other during washing.
■ Some foods (such as salt, vinegar, milk products, fruit juices,
etc.) can pit or corrode silverware. Run a rinse cycle if you do
not have a full load to wash immediately.
■ Use suggested loading patterns as shown to increase the
washability of your silverware, if your silverware basket has
these covers.
■ If your silverware basket does not have covers, or when
covers are up, mix items in each section of the basket with
some pointing up and some down to avoid nesting. Spray
cannot reach nested items.
IMPORTANT: Always load items (knives, skewers, etc.)
pointing down.
■ The silverware basket can be hung on the door or on the
bottom rack (see illustration).
■ The silverware basket can also be placed inside the bottom
rack.
Style 2 (on some models)
ANYWARE™ PLUS silverware basket
To open the silverware basket
Unlock the latch.
NOTE: Be sure the cover is completely latched before pulling out
the bottom rack and before closing the dishwasher door.
■ Place small items such as baby bottle caps, jar lids, corncob
holders, etc., in the section(s) with hinged cover(s). Close the
cover to hold small items in place.
To remove the basket from the door
1. Grasp the silverware basket by the handle. Slide it toward the
top of the door.
2. Lift the basket off the holding buttons.
To replace the basket in the door
1. Set the silverware basket on the holding buttons.
2. Slide the basket toward the bottom of the door until it locks
into place.
NOTES:
■ Do not load silver or silver-plated silverware with stainless
steel. These metals can be damaged by contact with each
other during washing.
■ Some foods (such as salt, vinegar, milk products, fruit juices,
etc.) can pit or corrode silverware. Run a rinse cycle if you do
not have a full load to wash immediately.
10
DISHWASHER USE
C

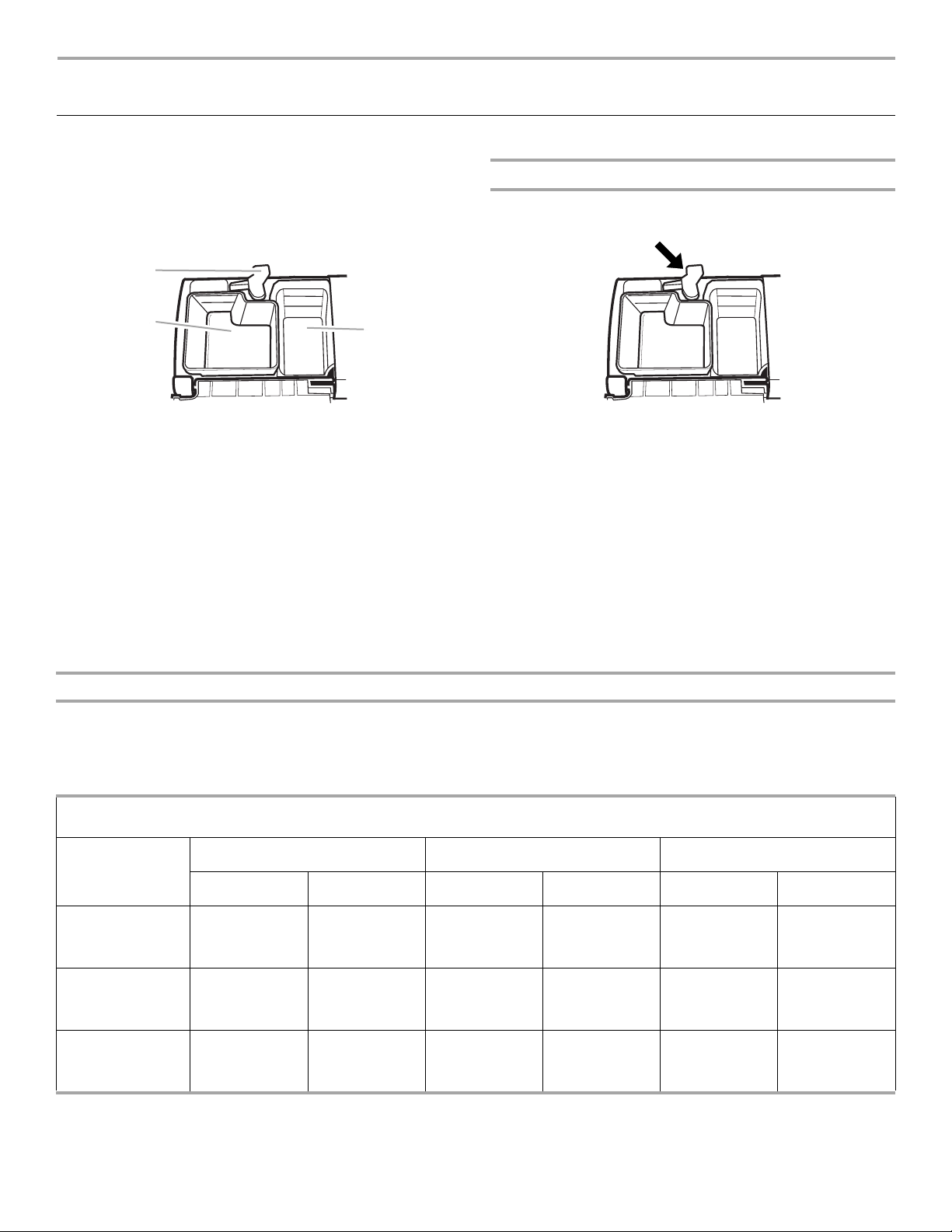

Detergent Dispenser
The detergent dispenser has two sections. The smaller Pre-Wash
section empties detergent into the dishwasher when you close
the door. The larger Main Wash section automatically empties
detergent into the dishwasher during the wash. (See the “Cycle
Selection Charts.”)
A
Hard Water
Soft Water
B
MAIN WASH
A. Cover latch
B. Main Wash section
C. Pre-Wash section
■ Use automatic dishwashing detergent only. Other detergents
can produce excessive suds that can overflow out of the
dishwasher and reduce washing performance.
■ Add detergent just before starting cycle.
■ Store tightly closed detergent in a cool, dry place. Fresh
automatic dishwasher detergent results in better cleaning.
NOTE: Do not use detergent with a rinse cycle.
Hard Water
Soft Water
PREWASH
Filling the dispenser
1. If the dispenser cover is closed, open the cover by moving
the cover latch to the right.
Hard Water
Soft Water
MAIN WASH
2. Add the correct amount of detergent to the Main Wash
section of the dispenser according to the chart below. If you
are using a tablet detergent, it must be placed in the Main
Wash section. (See “How much detergent to use.”)
3. Add the correct amount of detergent to the Pre-Wash section
of the dispenser, if needed, according to the chart below.
4. Close the dispenser cover.
It is normal for the cover to open partially when dispensing
detergent.
NOTE: See the “Cycle Selection Charts” for which section to fill
depending on the cycle selected.
Hard Water
Soft Water
PREWASH
How much detergent to use
■ The amount of detergent to use depends on the soil level of
your dishes, hardness of your water, and the type of
detergent. If you use too little, dishes will not be clean. If you
use too much in soft water, glassware will etch.
Detergent Dispenser fill recommendations per dish load soil level and water hardness
Water Hardness
Soft
(0-2 grains per
U.S. gallon)
Medium
(2-6 grains per
U.S. gallon)
Hard
(7 grains per U.S.
gallon and above)
Light Soil or Prerinsed Normal Soil Heavy Soil
Main Wash
section
4 tsp (20 mL)
Fill to Soft Water
line
6 tsp (30 mL)
Fill above the
Soft Water line
8 tsp (40 mL)
Fill to Hard Water
line
Pre-Wash
section
Empty 6 tsp (30 mL)
2 tsp (10 mL)
Fill to Soft Water
line
4 tsp (20 mL)
Fill to Hard Water
line
NOTE: Fill amounts shown are for standard powdered detergent. Amounts may vary if you use liquid or concentrated powdered
detergent. Tablet detergents should be placed in the main wash section of the detergent dispenser with the cover closed. Follow
instructions on the package when using liquid dishwasher detergent, concentrated powdered detergent or tablet detergent.
■ Water hardness can change over a period of time. Find out
your water’s hardness by asking your local water department,
water softener company, or county extension agent.
Main Wash
section
Fill above the
Soft Water line
6 tsp (30 mL)
Fill above the
Soft Water line
9 tsp (45 mL)
Fill cup
completely
Pre-Wash
section
2 tsp (10 mL)
Fill to Soft Water
line
4 tsp (20 mL)
Fill to Hard Water
line
7 tsp (35 mL)
Fill cup
completely
Main Wash
section
9 tsp (45 mL)
Fill cup
completely
9 tsp (45 mL)
Fill cup
completely
9 tsp (45 mL)
Fill cup
completely
Pre-Wash
section
7 tsp (35 mL)
Fill cup
completely
7 tsp (35 mL)
Fill cup
completely
7 tsp (35 mL)
Fill cup
completely
11

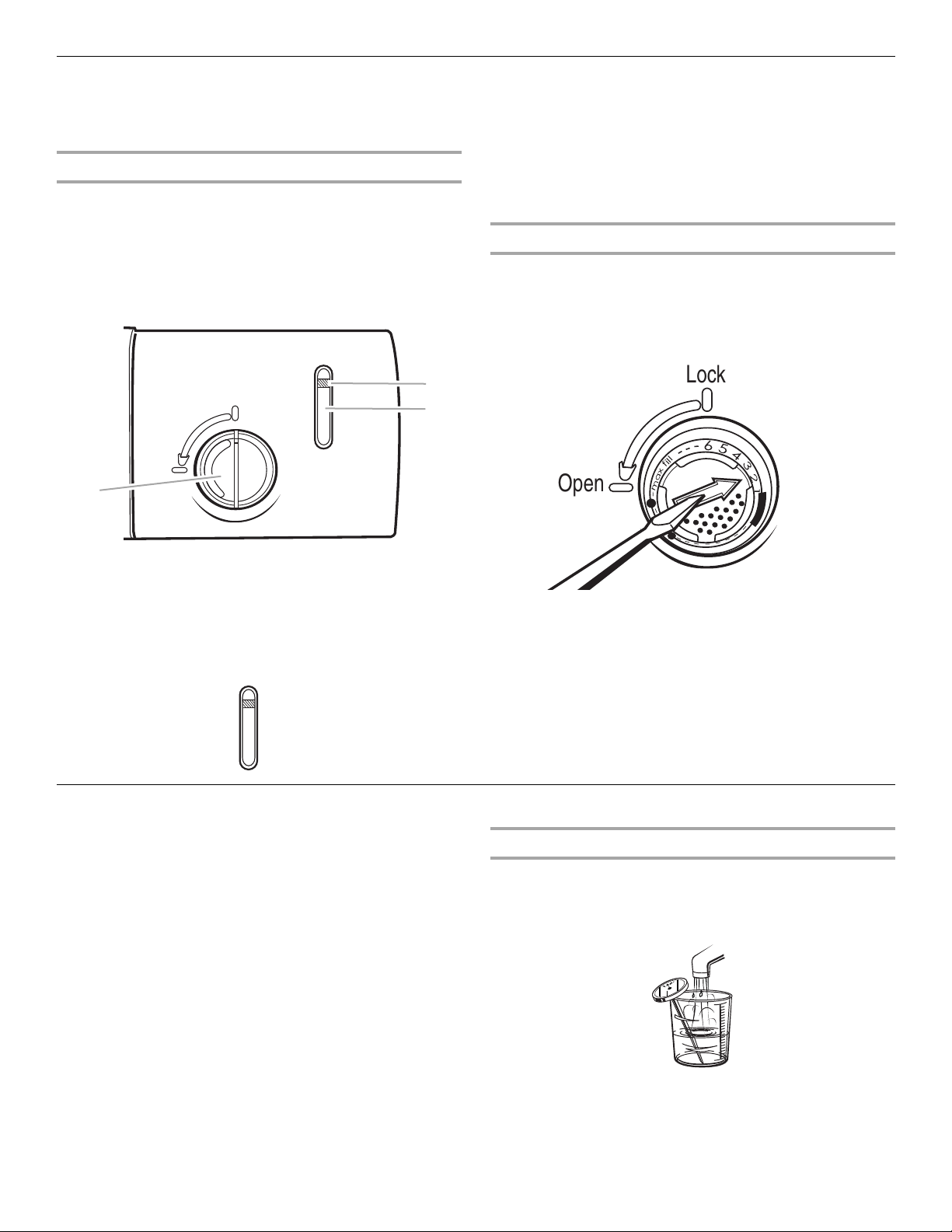

Rinse Aid Dispenser
B
C
IMPORTANT: Your dishwasher is designed to use a liquid rinse aid. The use of rinse aids greatly improves drying by allowing water to
drain from the dishes after the final rinse. They also keep water from forming droplets that can dry as spots or streaks. Do not use a
solid or bar-type rinse aid.
Filling the dispenser
The rinse aid dispenser holds 5 oz (150 mL) of rinse aid. Under
normal conditions, this will last for about 1 to 3 months.
1. Make sure the dishwasher door is fully open.
2. Turn the dispenser knob to “Open” and lift it out.
USE RINSE AID FOR
Full
BETTER DRYING
Lock
Add
Open
A
A. Dispenser knob
B. Indicator
C. Indicator window
4. Clean up any spilled rinse aid with a damp cloth.
5. Place the knob back into the opening and turn to the “Lock”
position.
Rinse aid setting
The amount of rinse aid released into the final rinse can be
adjusted. For most water conditions, the factory setting of 2 will
give good results. If you have hard water or notice rings or
calcium spots on your glasses or dishes, try a higher setting.
Lock
-
6
5
-
4
3
2
1
-
-
-
-
-
-
-
Open
-
fill
max
-
-
-
-
-
3. Pour rinse aid into the opening until the indicator points to
“Full.” Take care not to overfill. (When the rinse aid indicator
drops to the “Add” level, add more rinse aid.)
Full
To adjust the setting
1. Remove the dispenser knob.
2. Turn the arrow adjuster inside the dispenser to the desired
setting by either using your fingers or inserting a flat-blade
screwdriver into the center of the arrow and turning.
3. Replace the dispenser knob.
Add
Dishwasher Efficiency Tips
Hot water dissolves and activates the dishwashing detergent. Hot water also dissolves grease on dishes and helps glasses dry spotfree. For best dishwashing results, water should be 120°F (49°C) as it enters the dishwasher. Loads may not wash as well if the water
temperature is too low. Water that is too hot can make some soils harder to remove and cause certain detergent ingredients not to
function. If your water heater is located far from the dishwasher, it may be necessary to run the hot water at the faucet closest to the
dishwasher to minimize the amount of cold water in the water line.
To check water temperature
1. Run hot water at the faucet closest to your dishwasher for at
least 1 minute.
2. Place a candy or meat thermometer in a glass measuring
cup.
3. Check the temperature on the thermometer as the water is
running into the cup.
Additional efficiency tips
■ To save water and energy and time, do not rinse dishes
before putting them into the dishwasher.
■ Use a low energy, quick, or short cycle whenever possible.
These cycles use less hot water and energy than a normal
cycle.
■ Use a delay feature (on some models) to run your dishwasher
during off-peak hours. Local utilities recommend avoiding
heavy usage of energy at certain times of day.
■ During the summer, run your dishwasher at night. This
reduces daytime heat buildup in the kitchen.
■ Use the energy-saving dry option whenever possible. Allow
longer drying times (overnight) when using these options. Use
a rinse aid to improve drying.
12
■ Use cycles or options that add extra heat to the wash or rinse
portion of the cycle only when needed.
■ Run your dishwasher with full loads. Run a rinse cycle after
meals until the dishwasher is full.
■ If your home is equipped with a water softener, you may want
to avoid starting the dishwasher during the regeneration of
the softener, since this may contribute to poor wash
performance.
Normal
Use this cycle for loads with normal amounts of food soil. (The
energy-usage label is based on this cycle.) During the wash, the
wash action will repeatedly pause for several seconds.
Initial display time after rotating clock pattern: 64-84 min.
Use both detergent dispenser sections.
Cycle Selection Charts
Select the wash cycle and options desired and press START/
RESUME. The dishwasher starts filling once you press START/
RESUME, unless you select a delay wash. You can change
cycles and options as the machine is filling.
After completing a wash cycle, the dishwasher remembers the
cycle and options. It uses the same cycle and options again in
the next wash cycle, if you press only START/RESUME.
NOTE: If the door is opened during a cycle or the power is
interrupted, the Start/Resume indicator flashes. The cycle will not
resume until the door is closed and Start/Resume is pressed.
A “●” shows what steps are in each cycle. Your model may have
some or all of the cycles shown.
Display time is for models with the dual digit display on the
console.
These models meet the ENERGY STAR
efficiency.
Temperatures indicate where extra heat is added. The cycle
countdown (on some models) pauses at these points until water
reaches the temperature.
Water usage is shown in U.S. gallons/liters.
Pots & Pans
Use this cycle for hard-to-clean, heavily soiled pots, pans,
casseroles, and regular tableware. During the wash, the wash
action will repeatedly pause for several seconds.
Initial display time after rotating clock pattern: 92-99 min.
®
guidelines for energy
Pre-
Wash
Main
Wash
●●
120°F
(49°C)
Purge Rinse Final
●●
Heated
Rinse
140°F
(60°C)
Dry Mini-
● 71*
mum
Time
(min)
Light
soil
Water
Usage
(gal/L)
5.6-6.8/
21.2-25.7
Light (on some models)
Use this cycle for lightly soiled items or china and crystal.
During the wash, the wash action will repeatedly pause for
several seconds.
Initial display time after rotating clock pattern: 68-81 min.
Use main detergent dispenser section.
Rinse Main
Wash
●●
120°F
(49°C)
Purge Rinse Final
●●
Heated
Rinse
135°F
(57°C)
Dry Mini-
●
cycled
mum
Time
(min)
77*
Light
soil
Water
Usage
(gal/L)
5.9-6.8/
22.3-25.7
GLASS XPRESS™ cycle (on some models)
Use this cycle to quickly wash prerinsed glasses or dish loads.
This cycle does not dry.
NOTE: Time and water use do not vary in this cycle.
Initial display time after rotating clock pattern: 29 min.
Use main detergent dispenser section.
Use both detergent dispenser sections.
Pre-
Wash
Main
Wash
●●
140°F
(60°C)
Rinse Rinse Final
●●
Heated
Rinse
140°F
(60°C)
Dry Mini-
● 99*
mum
Time
(min)
Light
soil
Water
Usage
(gal/L)
6.9-7.8/
26.1-29.6
Pre-
Wash
Main
Wash
●●● ● 30 6.9/26.0
Rinse Rinse Final
Heated
Rinse
Dry Mini-
mum
Time
(min)
Water
Usage
(gal/L)
Rinse Only
Use this rinse cycle for rinsing dishes, glasses, and silverware
that will not be washed right away.
Initial display time after rotating clock pattern: 3 min.
Do not use detergent with this cycle.
Pre-
Wash
Main
Wash
Rinse Rinse Final
Heated
Rinse
● 10 1.8-/6.8
Dry Time
(min)
Water
Usage
(gal/L)
*If the incoming water is less than the recommended temperature
or food soils are heavy, the cycle will automatically compensate
by adding time, heat, and water as needed.
13
Canceling a Cycle
Anytime during a cycle, press CANCEL/DRAIN. Your dishwasher
starts a 2-minute drain, if needed, and clears all indicators.
NOTE: If your dishwasher does not need draining, the
dishwasher stops and clears all indicators.
To stop the drain
You can press CANCEL/DRAIN again to stop the drain
immediately. Be sure to drain the dishwasher before starting a
new cycle.
To clear the indicators
Press CANCEL/DRAIN before starting the dishwasher to clear all
options and cycles.
Changing a Cycle or Setting
During the first fill of a cycle
1. Press a new cycle and/or options.
2. Check the detergent dispensers. They must be filled properly
for the new cycle.
3. Press START/RESUME.
Hi-Temp Wash
Select this option to increase the target water temperature during
the wash portions of the cycle. Hi-Temp Wash raises the target
water temperature to 145ºF (63ºC) in the main wash. Heating the
water helps improve washing results. Hi-Temp Wash is useful
when loads contain baked-on food.
This option adds heat, wash time and water to the cycle.
NOTE: Hi-Temp Wash is an option with Pots & Pans and Normal
cycles. Selecting Hi-Temp Wash with the SANI RINSE™ option
has no effect, as it already raises the main wash to 145°F (63°C).
SANI RINSE™ Option
Select this option to raise the water temperature in the final rinse
to approximately 155°F (68°C). The SANI RINSE™ option adds
heat and time to the cycle. The Main Wash heating time will be
extended to reach 145°F (63°C). In the Pots & Pans and Normal
cycles, this high-temperature rinse sanitizes your dishes and
glassware in accordance with NSF/ANSI Standard 184 for
Residential Dishwashers. Certified residential dishwashers are
not intended for licensed food establishments.
NOTE: Use the SANI RINSE™ option with Pots & Pans and
Normal cycles. Only these sanitization cycles have been
designed to meet the NSF/ANSI requirements.

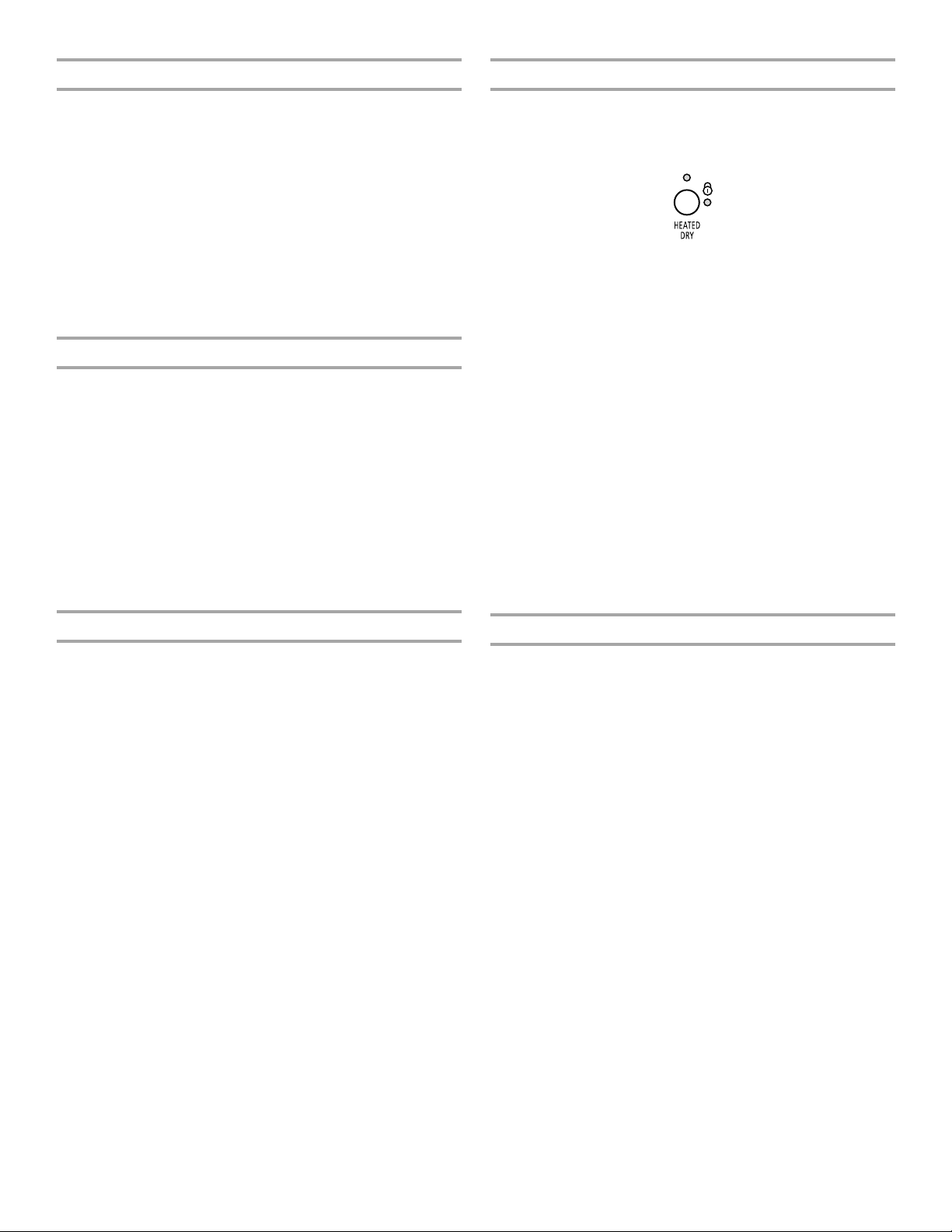

Heated Dry
After the first fill of a cycle
1. Press CANCEL/DRAIN. Your dishwasher starts a 2-minute
drain, if needed, and clears all indicators.
NOTE: If your dishwasher does not need draining, the
dishwasher stops and clears all indicators.
2. Check the detergent dispensers. They must be filled properly
for the new cycle.
3. Press a new cycle and/or options.
4. Press START/RESUME. (The door must be closed.)
Adding Items During a Cycle
You can add an item anytime before the main wash starts. Open
the door and check the detergent dispenser. If the cover is still
closed, you can add items.
To add items
1. Lift up the door latch to stop the cycle. Wait for the spraying
action to stop before opening the door.
2. Open the door. If the detergent dispenser cover is still closed,
add the item.
3. Close the door firmly until it latches.
4. Press START/RESUME. The dishwasher resumes the cycle
after a 5-second pause.
Option Selections
You can customize your cycles by pressing an option. If you
change your mind, press the option again to turn off the option,
or select a different option if desired.
You can change an option anytime before the selected option
begins. For example, you can turn off the drying option anytime
before drying begins.
After a wash cycle, the dishwasher remembers the options used.
It uses the same options in the next wash cycle, if you press only
START/RESUME.

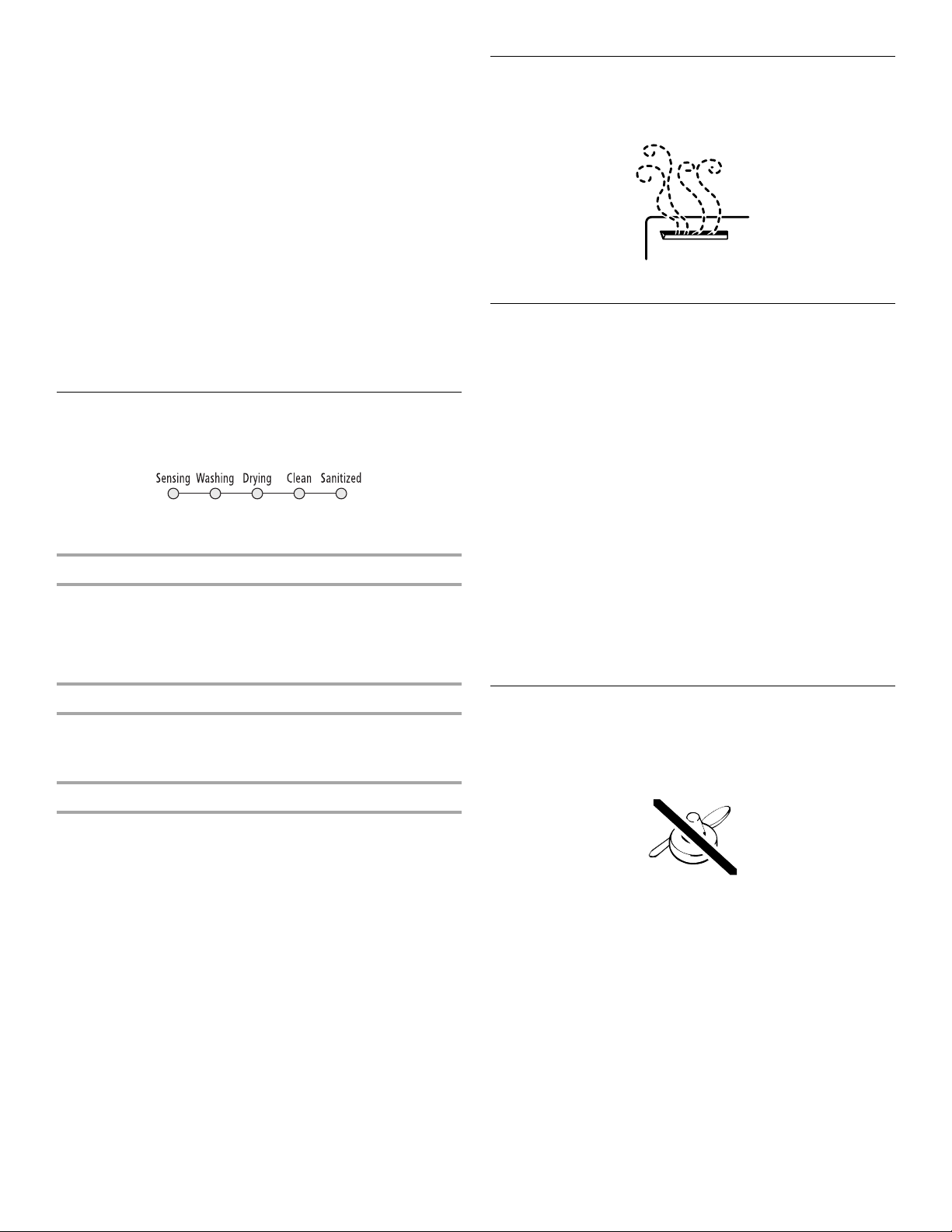

Select this option to dry dishes with heat.
Switching off Heated Dry skips the dry period. This is useful when
loads contain plastic dinnerware that may be sensitive to high
temperatures. The dishes take longer to dry and some spotting
may occur. Some items (such as plastics) may need towel drying.
For best drying, use a liquid rinse aid.
NOTE: Heated Dry is an option with all cycles, except GLASS
XPRESS™ and Rinse Only cycles. Heated Dry begins
automatically with all cycles unless you switch it off.
Lock
Use the lock to prevent unintended use of the dishwasher. You
can also use the lock feature to prevent unintended cycle or
option changes during a cycle.
When the lock is lit, all buttons are disabled.
NOTES:
■ The dishwasher door can be opened while the controls are
locked.
■ You can turn on the lock while the dishwasher is running. If
you open the door, unlock the controls and press START/
RESUME to restart. You can lock controls again, if desired.
To turn on the lock
Press and hold HEATED DRY for 4 seconds. The lock glows.
If you press any pad while your dishwasher is locked, the light
flashes 3 times and the selection is ignored.
To turn off the lock
Press and hold HEATED DRY for 4 seconds. The light turns off.
14
Loading...
