Whirlpool DU1055XTVQA, DU1055XTVTA, DU1055XTVSA, DU1055XTVDA, DU1055XTVBA Installation Guide
...
INSTALLATIONINSTRUCTIONS
UNDERCOUNTERDISHWASHER
PLASTICGIANT TUBMODELS
INSTRUCTIONSD'INSTALLATION
LAVE-VAISSELLESOUSCOMPTOIR
MODELESA TRESGRANDE CUVE EN PLASTIQUE
Table of Contents .............................................................. 2
Table des matieres .......................................................... 21
W10329310A
TABLEOF CONTENTS
DISHWASHER SAFETY ............................................................................... 2
INSTALLATION REQUIREMENTS ............................................................. 3
Tools and Parts ......................................................................................... 3
Location Requirements ............................................................................. 3
Drain Requirements .................................................................................. 5
Water Supply Requirements ..................................................................... 5
Electrical Requirements ............................................................................ 5
INSTALLATION INSTRUCTIONS ............................................................... 6
Prepare Cabinet Opening--Existing Utilities ............................................ 6
Prepare Cabinet Opening-- New Utilities ................................................. 6
Prepare and Route Water Line ................................................................. 7
Install Drain Hose ...................................................................................... 8
Prepare Dishwasher ................................................................................ 10
INSTALLATION INSTRUCTIONS (CONT.)
Make Power Supply Cord Connection .................................................. 11
Determine Cabinet Opening ................................................................... 13
Choose Attachment Option .................................................................... 13
Move Dishwasher Close to Cabinet Opening ........................................ 14
Connect to Water Supply ....................................................................... 16
Connect to Drain ..................................................................................... 16
Make Direct Wire Electrical Connection ................................................. 17
Secure Dishwasher in Cabinet Opening ................................................ 18
Complete Installation .............................................................................. 19
Check Operation ..................................................................................... 20
If Dishwasher Does Not Operate ............................................................ 20
Additional Tips ........................................................................................ 20
DISHWASHERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
You Need to:
• Slowly open dishwasher door while someone grasps the rear
of the dishwasher. Remove shipping materials, drain hose and
lower rack. Close dishwasher door until latched.
• Observe all governing codes and ordinances.
• Install this dishwasher as specified in these instructions.
• Installation should be performed by a qualified service
technician. The dishwasher must be installed to meet all
Tip Over Hazard
Do not use dishwasher until completely installed.
electrical and plumbing national and local codes and
ordinances.
Do not push down on open door.
Doing so can result in serious injury or cuts.
2
INSTALLATION
REQUIREMENTS

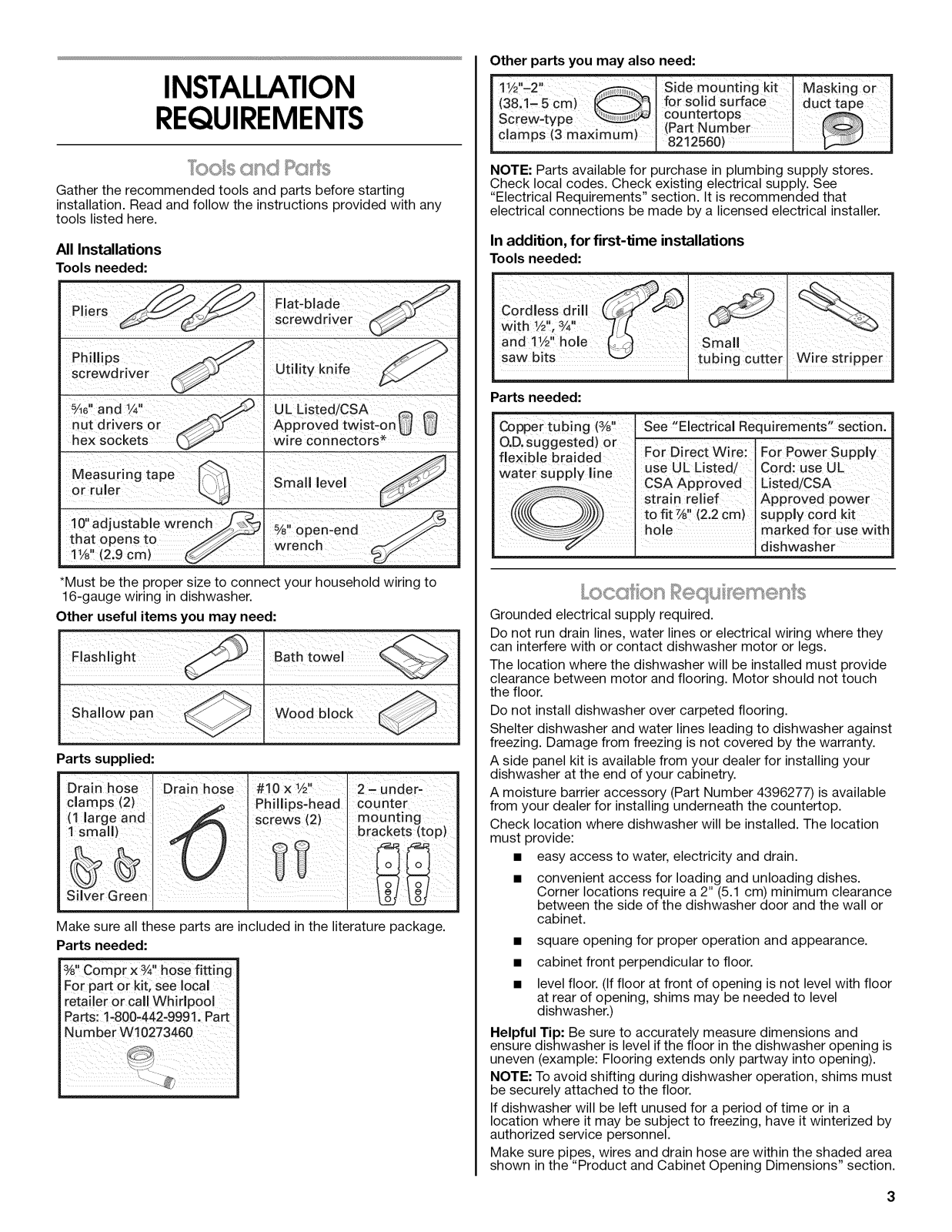

Gather the recommended tools and parts before starting
installation. Read and follow the instructions 3rovided with any
tools listed here.
All Installations
Toolsneeded:
Other parts you may also need:
--2
1'/2" " Sidem0unting kit
_Screw:type I c0untertops I
(38:!_ 5 cm) for solid surface Idu_
[clamPs(3 maximum)J (Part Number I8212560) J
NOTE: Parts available for purchase in plumbing supply stores.
Check local codes. Check existing electrical supply. See
"Electrical Requirements" section. It is recommended that
electrical connections be made by a licensed electrical installer.
In addition, for first-time installations
Tools needed:
with 1/2i[3/4_ Y/_ ] _
and 11/2 hole _/_ ] Sma
sawbks _ ] tubing cutter wire stripper
%0"and I/4"
nut drivers or
heX soCkets
Measuring tape
or ruler
10" adjustable wrenc
that opens to
11/8,!(2,9 cm)
*Must be the proper size to connect your household wiring to
16-gauge wiring in dishwasher.
Other useful items you may need:
Parts supplied:
Silver Green
Make sure all these parts are included in the literature package.
Parts needed:
%" compr ×¾, hose fitting
For part or kit, see local
retailer or call Whirlp0ol
Parts! 1,800-442-9991, Part
Number W10273460
UL LiSted/CSA _
APPrOVed twist-on U
wire connectors*
Parts needed:
CopPer tubing (3/_'! See "Electrical Requirements,, secti0nl
O.D Suggested)or
flexibebadedlr i For Direct Wire'., For Power Supply
water suna v ne use UL Dsted/ Cord: use UL
CSA Approved Listed/CSA
I strain App[oved power
tttt,tt. Ito fit % (2,2 €m) supply cord kit
hole marked for use with
Grounded electrical supply required.
Do not run drain lines, water lines or electrical wiring where they
can interfere with or contact dishwasher motor or legs.
The location where the dishwasher will be installed must provide
clearance between motor and flooring. Motor should not touch
the floor.
Do not install dishwasher over carpeted flooring.
Shelter dishwasher and water lines leading to dishwasher against
freezing. Damage from freezing is not covered by the warranty.
A side panel kit is available from your dealer for installing your
dishwasher at the end of your cabinetry.
A moisture barrier accessory (Part Number 4396277) is available
from your dealer for installing underneath the countertop.
Check location where dishwasher will be installed. The location
must provide:
• easy access to water, electricity and drain.
convenient access for loading and unloading dishes.
Corner locations require a 2" (5.1 cm) minimum clearance
between the side of the dishwasher door and the wall or
cabinet.
• square opening for proper operation and appearance.
• cabinet front perpendicular to floor.
• level floor. (If floor at front of opening is not level with floor
at rear of opening, shims may be needed to level
dishwasher.)
Helpful Tip: Be sure to accurately measure dimensions and
ensure dishwasher is level if the floor in the dishwasher opening is
uneven (example: Flooring extends only partway into opening).
NOTE: To avoid shifting during dishwasher operation, shims must
be securely attached to the floor.
If dishwasher will be left unused for a period of time or in a
location where it may be subject to freezing, have it winterized by
authorized service personnel.

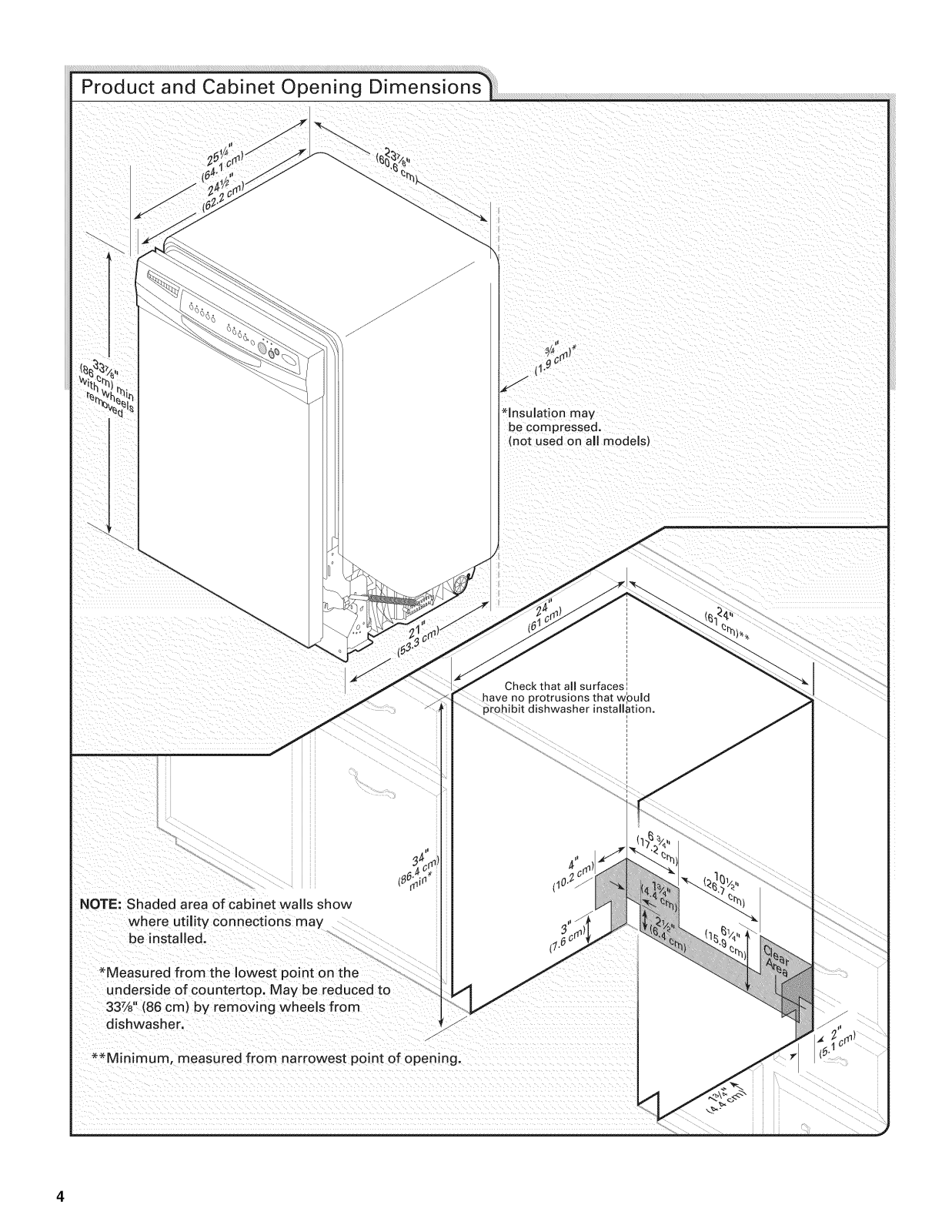

Make sure pipes, wires and drain hose are within the shaded area
shown in the "Product and Cabinet Opening Dimensions" section.
dishwasher
i ¸¸¸¸¸¸ql
*Insulation may
be compressed.
(not used on all models)
NOTE: Shaded area of cabinet walls show
where utility connections may
be instal ed.
*Measured from the lowest point on the
underside of countertop. May be reduced to
33%" (86 cm) by removing wheels from
dishwasher.
**Minimum, measured from narrowest point of opening.
Check that all surfaces',
have no protrusions that wpuld
prohibit dishwasher installation,

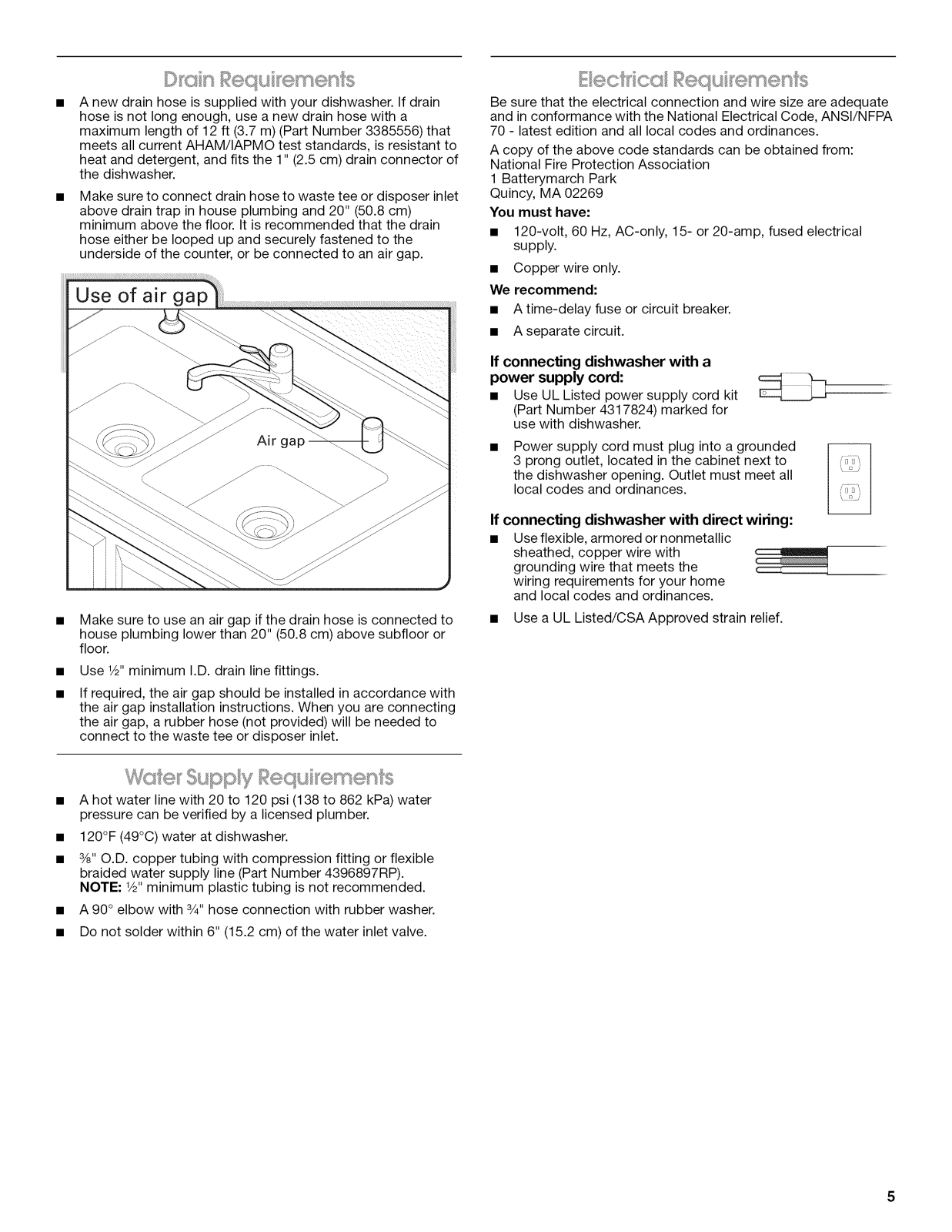

A new drain hose is supplied with your dishwasher. If drain
hose is not long enough, use a new drain hose with a
maximum length of 12 ft (3.7 m) (Part Number 3385556) that
meets all current AHAM/IAPMO test standards, is resistant to
heat and detergent, and fits the 1" (2.5 cm) drain connector of
the dishwasher.
Make sure to connect drain hose to waste tee or disposer inlet
above drain trap in house plumbing and 20" (50.8 cm)
minimum above the floor. It is recommended that the drain
hose either be looped up and securely fastened to the
underside of the counter, or be connected to an air gap.
Make sure to use an air gap if the drain hose is connected to
house plumbing lower than 20" (50.8 cm) above subfloor or
floor.
Use 1/2"minimum I.D. drain line fittings.
If required, the air gap should be installed in accordance with
the air gap installation instructions. When you are connecting
the air gap, a rubber hose (not provided) will be needed to
connect to the waste tee or disposer inlet.
Be sure that the electrical connection and wire size are adequate
and in conformance with the National Electrical Code, ANSI/NFPA
70 - latest edition and all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02269
You must have:
• 120-volt, 60 Hz, AC-only, 15- or 20-amp, fused electrical
supply.
• Copper wire only.
We recommend:
• A time-delay fuse or circuit breaker.
• Aseparate circuit.
If connecting dishwasher with a
power supply cord:
Use UL Listed power supply cord kit
(Part Number 4317824) marked for
use with dishwasher.
Power supply cord must plug into a grounded
3 prong outlet, located in the cabinet next to
the dishwasher opening. Outlet must meet all
local codes and ordinances.
If connecting dishwasher with direct wiring:
• Use flexible, armored or nonmetallic
sheathed, copper wire with
grounding wire that meets the
wiring requirements for your home
and local codes and ordinances.
• Use a UL Listed/CSA Approved strain relief.
pp)y 58eq(s emen s
A hot water line with 20 to 120 psi (188 to 862 kPa) water
pressure can be verified by a licensed plumber.
120°F (49°C) water at dishwasher.
3/8"O.D. copper tubing with compression fitting or flexible
braided water supply line (Part Number 4396897RP).
NOTE: 1/2"minimum plastic tubing is not recommended.
A 90° elbow with 3/4"hose connection with rubber washer.
Do not solder within 6" (15.2 cm) of the water inlet valve.

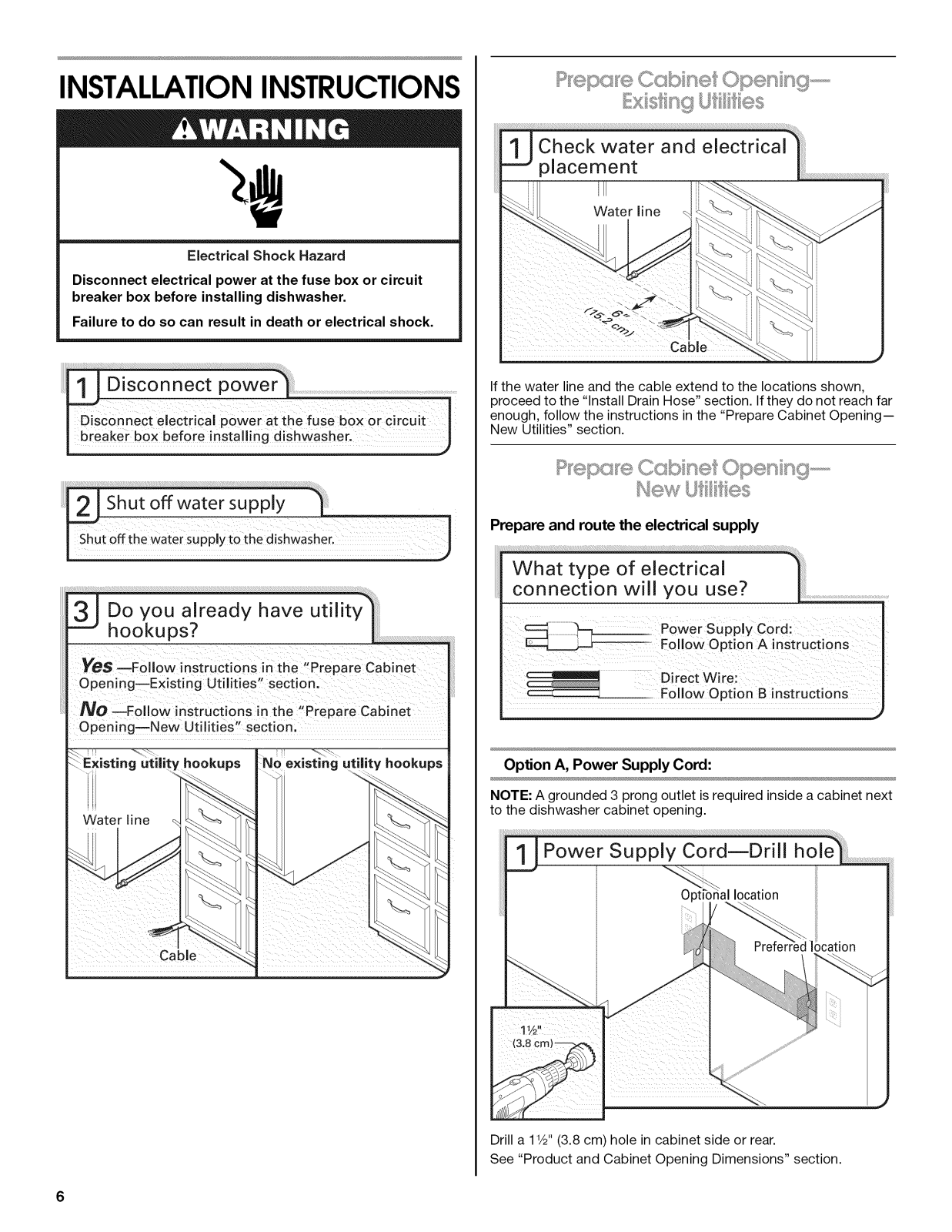

INSTALLATIONINSTRUCTIONS
Electrical Shock Hazard
Disconnect electrical power at the fuse box or circuit
breaker box before installing dishwasher.
Failure to do so can result in death or electrical shock.
I Disconnect electrical power at the fuse boxoi Circuit I
! breaker box before installing diShWaSher. J
i5; ¢i£; ,){(i_)_,_ii;iii i:i!_;;_ii' i!__;i;iiii;;i ii¸i¸__i¸Ii!!!!;;;;;;;;;i;;S;;;;;;;;;!iiI;@;IS¸;()i,);i;iii!;i;i;i!S;£;!{i£;;i;i/;#ii;ii;)i;;i_)iq iii;;;%
Existng Ulliies
If the water line and the cable extend to the locations shown,
proceed to the "Install Drain Hose" section. If they do not reach far
enough, follow the instructions in the "Prepare Cabinet Opening--
New Utilities" section.
''%s% = i .,_
ew U _s
shUt off the water supply to the dishWaSher.
;;;i;sss£;;;£s ;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;! ;;i%;
hookups?
_Folow instructi0ns !n the !,Prepare Cabinet
Opening--EXisting Utiities section:
NouFoloW instruCtions in the Prepare cabinet
openiig_New Ut!lities 'seCtiOn:
_: Existing Utility hookups ity hookups
Water line _
Prepare and route the electrical supply
connection will you use?
Option A, Power Supply Cord:
NOTE: A grounded 3 prong outlet is required inside a cabinet next
to the dishwasher cabinet opening.
S Power Supply Cord--Drill
Uptonal location
Drill a 1Y2"(3.8 cm) hole in cabinet side or rear.
See "Product and Cabinet Opening Dimensions" section.
6
Wood cabinet: Sand the hole until smooth.
Metal cabinet: Cover hole with grommet included with power
supply cord kit.
Route cable from power supply through cabinet hole (cable must
extend to the right front side of cabinet opening). Tape cable to
the floor in area shown. This will prohibit cable from moving when
dishwasher is moved into cabinet opening.
Option B, Direct Wire:
Helpful Tip: Wiring the dishwasher will be easier if you route the
cable into the cabinet opening from the right-hand side.
irect Wire m Drill ho
:Y4!'
Optional_locatior
ii: iliiii!i
Drill a 3/4"(1.9 cm) hole in right-hand cabinet side or rear.
See "Product and Cabinet Opening Dimensions" section.
P epcs_e c_s_d_8o_e 4£:_<___ e
Helpful Tip: Routing the water line through the left side of cabinet
opening will make water connection easier.
Drill a V2"(1.3 cm) hole in the cabinet side or rear.
_, ;s;;;;;;; xxx> ; ; ;s;;;;;;;;;;;;;;;; s¸;;;;;;;;;;;;;_;s; s;;;;; __ ;;;;;s;;;;;;;;;s;;;;;;;;;;;;s ;;s s _;s;;;;;;;;;;;;;;;
_, _ '_i_!'iii_i_!!__!_!ii!i_Ii?_!!!!_i_!iiiiiiiiii
Wood cabinet: Sand the hole until smooth.
Metal cabinet: Cover hole with grommet (Part Number 302797 -
not provided).
Measure overall length of copper tubing or flexible braided water
supply line. Attach to the hot water line using a connection
configuration that is in compliance with local codes and
ordinances. The water line to the dishwasher should have a
manual shutoff valve.
Slowlyroutewatersupplylinethroughholeincabinet.(Ifyouare
usingcoppertubing,itwillbendandkinkeasily,sobegentle.)It
shouldbefarenoughintothecabinetopeningtoconnectittothe
dishwasherinletonthefrontleftsideofthedishwasher.
Slowlyturnwatershutoffvalveto"ON"position.Flushwaterinto
ashallowpanuntilcleartogetridofparticlesthatcouldclogthe
inletvalve.Turnshutoffvalveto"OFF"position.
Connectthe3/8"compressionfittingtothewatersupplylineprior
toinstallingtheunitintothecabinetopening.Attachsuchthatthe
3/4"connectionisfacingupwardasshownabove.
Coppertubingonly:Putthetubingintothe90°elbowfittingasfar
asitwillgo(thecoppertubingbendsandkinkseasily).Slidethe
nutandferruleforwardandstartthenutontotheelbowthreads.
Flexiblebraidedconnection:Securenuttoelbowusing3/8"open
endedwrenchoradjustablewrench.
NOTE:DonotuseTeflon®ttapewithcompressionfittings.
IMPORTANT:Alwaysuseanewdrainhose.Checklocalcodesto
determinewhetheranairgapisrequired.
Coppertubingonly:Slidenut,thenferrule,about1"(2.5cm)onto
coppertubing.
NOTE:Toavoidvibrationduringoperation,routethewatersupply
linesothatitdoesnottouchthedishwasherbase,frameormotor.
8
Ifneeded,drilla1V2"(3.8 cm) diameter hole in cabinet wall or side
of the opening closest to the sink.
Route drain hose as shown through hole in cabinet to the front
center of opening where drain connection will be made. Tape
drain hose to the floor in area shown. This will prohibit it from
moving when dishwasher is moved into cabinet opening.
1-®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.
Connect drain hose to waste tee Or Waste disp0ser
using one 0fthe f011owing OPtiOnS:
: Opt!0n A; waste d!sP0se[, n0 air gap
Opti0nB;' N0 waste disposer _ no air gap
Option C, Waste disposer, with air gap
Option D, N0 waste diSP0ser _with air gap
IMPORTANT: The drain hose connection of the disposer or a
waste tee must be made before the drain trap and at least 20"
(50.8 cm) above the floor where the dishwasher will be installed.
Helpful Tip: To reduce vibration of the hose, keep the hose away
from the floor.

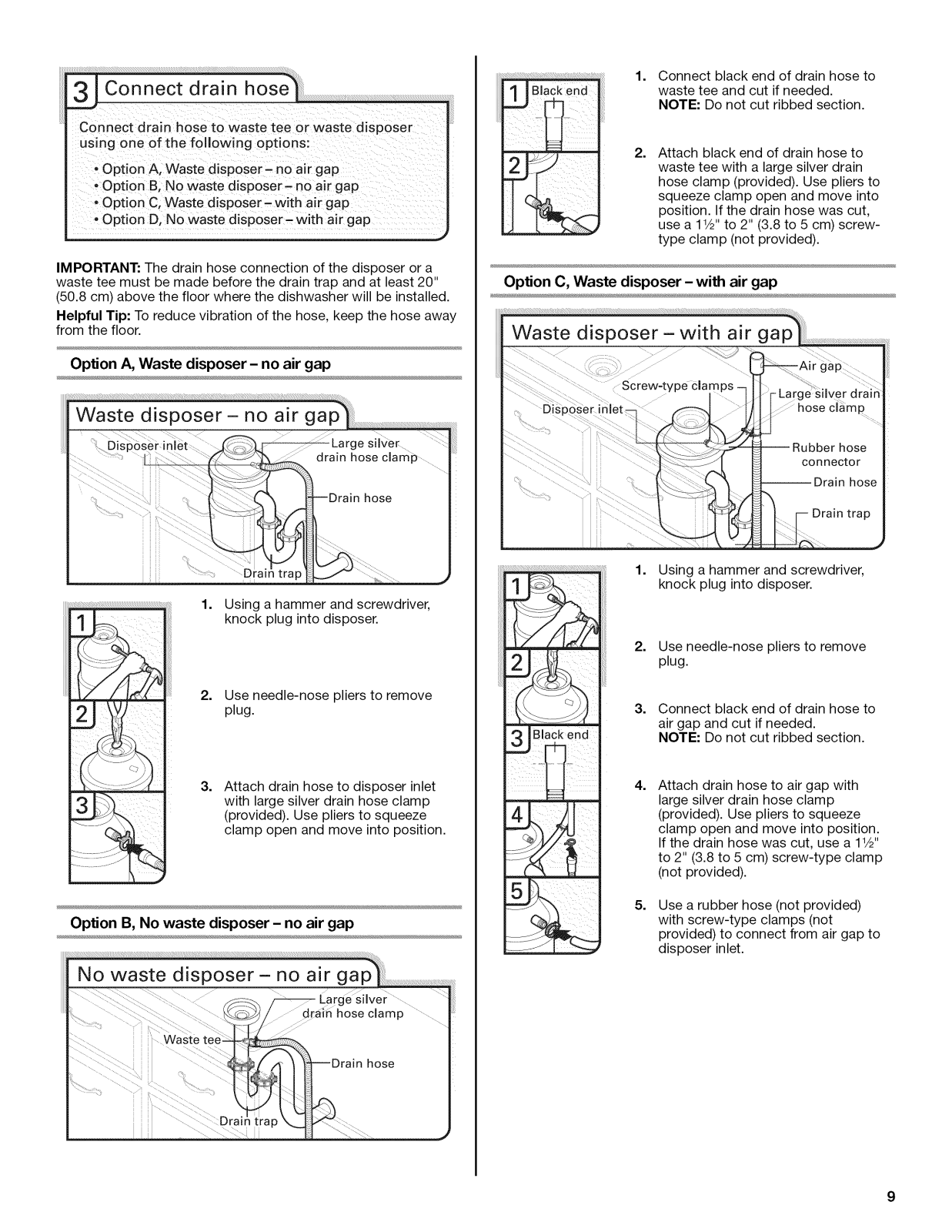

Option A, Waste disposer - no air gap
1. Connect black end of drain hose to
waste tee and cut if needed.
NOTE: Do not cut ribbed section.
iiii .....
2. Attach black end of drain hose to
waste tee with a large silver drain
hose clamp (provided). Use pliers to
squeeze clamp open and move into
position. If the drain hose was cut,
use a 1_/2"to 2" (3.8 to 5 cm) screw-
type clamp (not provided).
Option C, Waste disposer - with air gap
Drain trap
_i_iiii!iiii¸_ii!ii¸!__!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!i¸!;!; i; ;!i
1. Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle-nose pliers to remove
plug.
3.
Attach drain hose to disposer inlet
with large silver drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
Option B, Nowaste disposer - no airgap
i iii
1. Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle-nose pliers to remove
plug.
3. Connect black end of drain hose to
air gap and cut if needed.
NOTE: Do not cut ribbed section.
4=
Attach drain hose to air gap with
large silver drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
If the drain hose was cut, use a 1W'
to 2" (3.8 to 5 cm) screw-type clamp
(not provided).
5=
Use a rubber hose (not provided)
with screw-type clamps (not
provided) to connect from air gap to
disposer inlet.

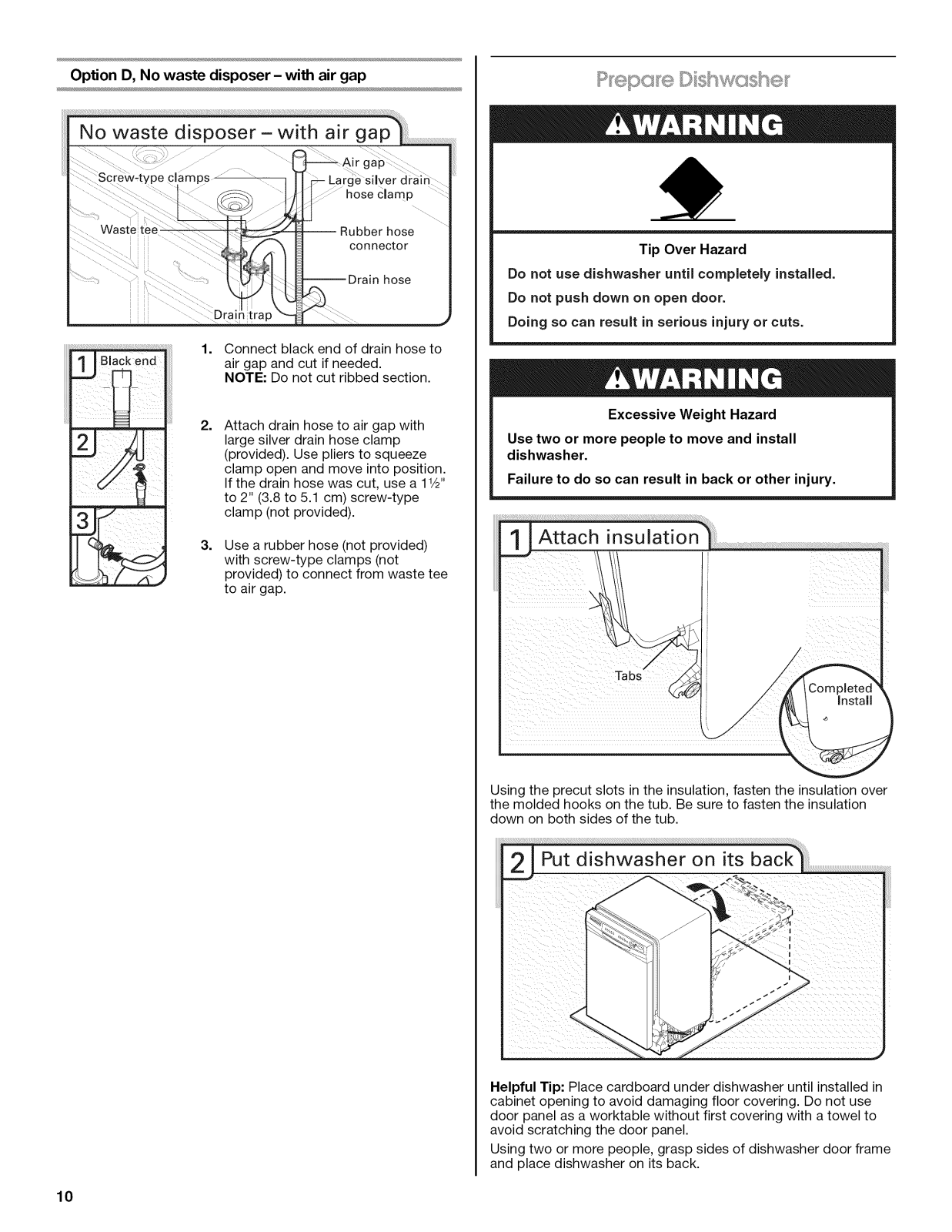

Option D, No waste disposer - with air gap
Connect black end of drain hose to
air gap and cut if needed.
,
NOTE: Do not cut ribbed section.
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
2.
Attach drain hose to air gap with
large silver drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
If the drain hose was cut, use a 1V2"
to 2" (3.8 to 5.1 cm) screw-type
clamp (not provided).
Use a rubber hose (not provided)
with screw-type clamps (not
provided) to connect from waste tee
to air gap.
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
Using the precut slots in the insulation, fasten the insulation over
the molded hooks on the tub. Be sure to fasten the insulation
down on both sides of the tub.
10
Helpful Tip: Place cardboard under dishwasher until installed in
cabinet opening to avoid damaging floor covering. Do not use
door panel as a worktable without first covering with a towel to
avoid scratching the door panel.
Using two or more people, grasp sides of dishwasher door frame
and place dishwasher on its back.
connection will you use?

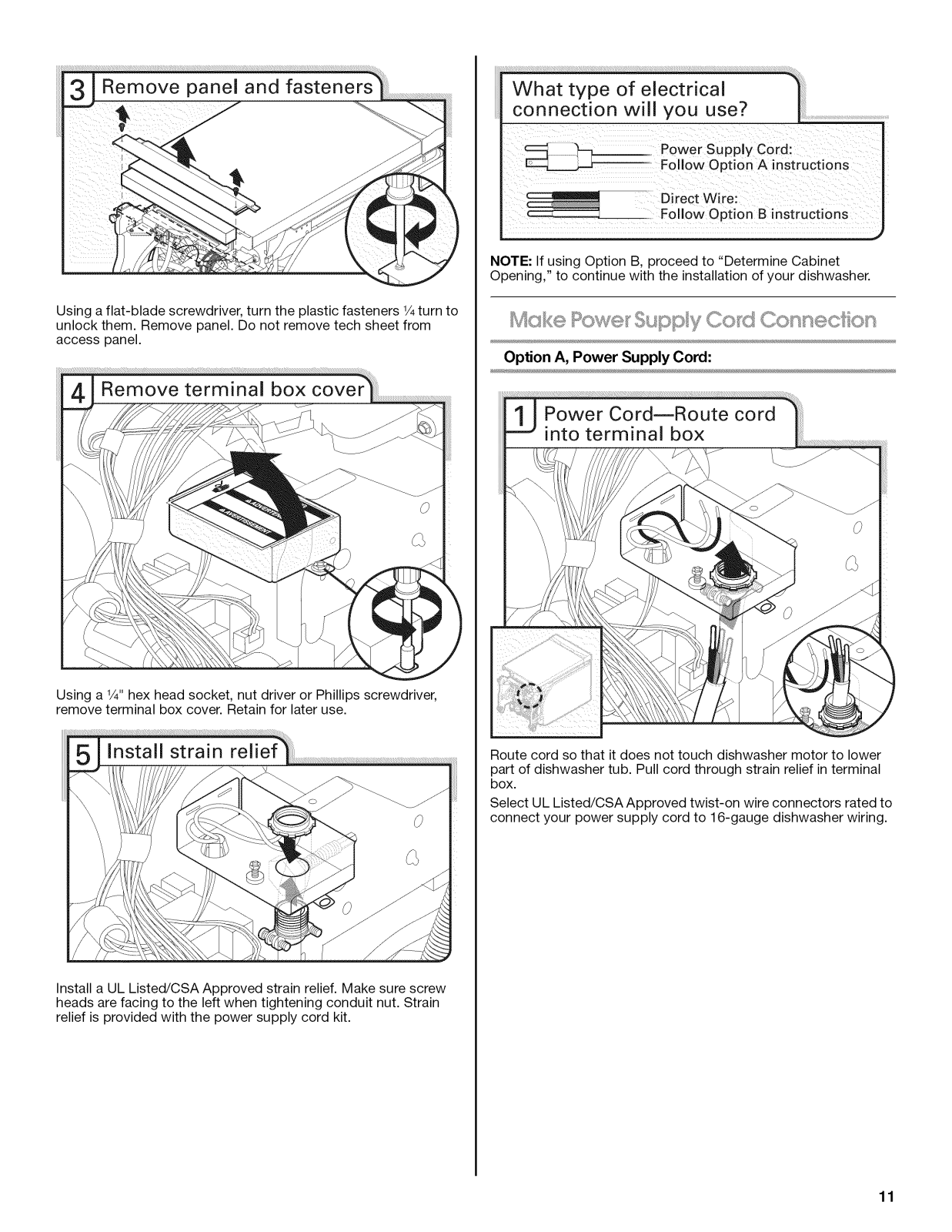

Using a flat-blade screwdriver, turn the plastic fasteners 1/4turn to
unlock them. Remove panel. Do not remove tech sheet from
access panel.
__ Power Supply Cord:
Follow Option A instructions
Direct Wi re"
- , Follow Option B instructions
NOTE: If using Option B, proceed to "Determine Cabinet
Opening," to continue with the installation of your dishwasher.
Option A, Power Supply Cord:
J
_s
Using a 1/4"hex head socket, nut driver or Phillips screwdriver,
remove terminal box cover. Retain for later use.
Install a UL Listed/CSA Approved strain relief. Make sure screw
heads are facing to the left when tightening conduit nut. Strain
relief is provided with the power supply cord kit.
Route cord so that it does not touch dishwasher motor to lower
part of dishwasher tub. Pull cord through strain relief in terminal
box.
Select UL Listed/CSA Approved twist-on wire connectors rated to
connect your power supply cord to 16-gauge dishwasher wiring.
11

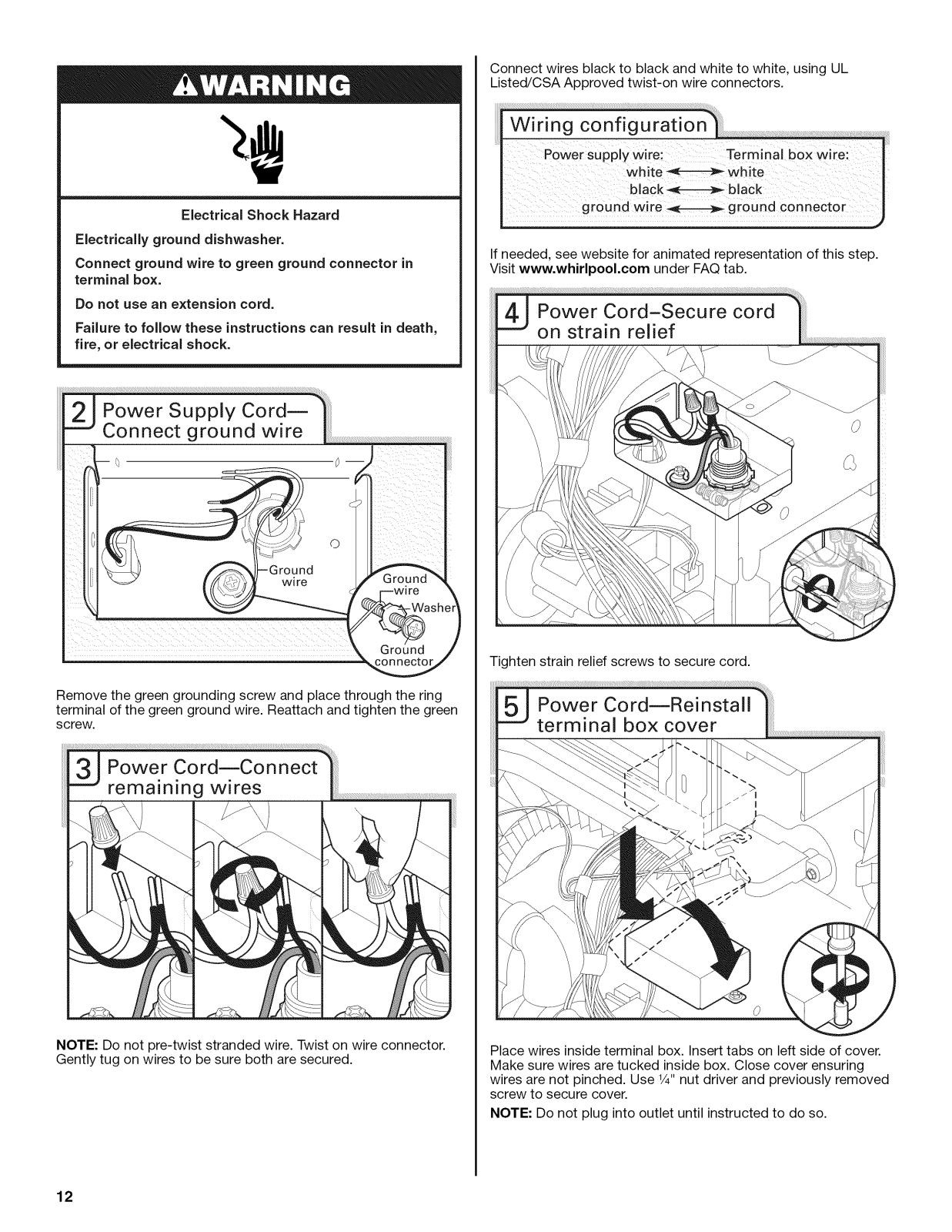

Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector in
terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Connect wires black to black and white to white, using UL
Listed/CSA Approved twist-on wire connectors.
If needed, see website for animated representation of this step.
Visit www.whirlpool.com under FAQ tab.
41 Power Cord-Secure cor
--" on strain relief
2_ Power Supply Cord=
Connect ground wire
.... l
o
he)
Remove the green grounding screw and place through the ring
terminal of the green ground wire. Reattach and tighten the green
screw.
0
Tighten strain relief screws to secure cord.
NOTE: Do not pre-twist stranded wire. Twist on wire connector.
Gently tug on wires to be sure both are secured.
12
Place wires inside terminal box. Insert tabs on left side of cover.
Make sure wires are tucked inside box. Close cover ensuring
wires are not pinched. Use 1/4"nut driver and previously removed
screw to secure cover.
NOTE: Do not plug into outlet until instructed to do so.
Loading...
