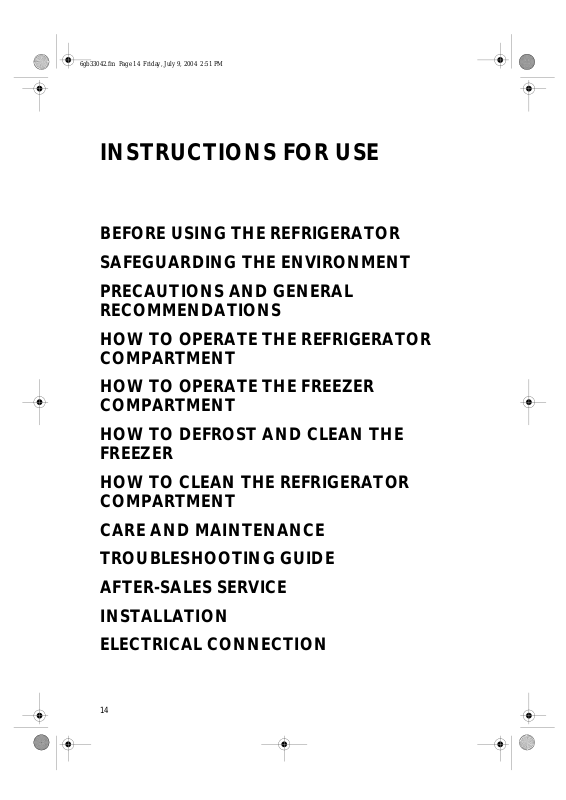

INSTRUCTIONS FOR USE
BEFORE USING THE REFRIGERATOR
SAFEGUARDING THE ENVIRONMENT
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
HOW TO OPERATE THE FREEZER
COMPARTMENT
HOW TO DEFROST AND CLEAN THE
FREEZER
HOW TO CLEAN THE REFRIGERATOR
COMPARTMENT
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE
AFTER-SALES SERVICE
INSTALLATION
ELECTRICAL CONNECTION
14
Page 2
6gb33042.fm Page 15 Friday, July 9, 2004 2:51 PM
BEFORE USING THE REFRIGERATOR
•
Your new appliance is exclusively for domestic
use.
freezer compartment
The
used for freezing fresh and cooked food,
making ice cubes, and storing frozen and deepfrozen food;
procedure
The refrigerator compartment, which has
an automatic defrost feature,
storage of fresh food and beverages.
To get the most out of your new appliance,
read the user handbook thoroughly. The
handbook contains a description of the
appliance and useful tips for storing food.
Keep this handbook for future
consultation.
defrosting is a manual
.
can be
is used for the
1.
After unpacking the appliance, check for
damage and make sure that the door shuts
properly. Any damage must be reported to
your dealer within 24 hours after delivery of the
appliance.
2. Wait at least three hours without moving
the appliance before switching on. This will
give the refrigerant circuit time to settle
and operate efficiently.
3.
Installation of the appliance and electrical
connections must be carried out by a qualified
electrician, in accordance with the
manufacturer's instructions and local
regulations.
SAFEGUARDING THE ENVIRONMENT
Packing
1.
The packaging material is entirely recyclable, and
marked with the recycling symbol.
Follow local regulations for scrapping.
Keep the packaging materials (plastic bags,
polystyrene parts, etc.) out of reach of children, as
they are potentially dangerous.
2. Scrapping
The appliance is made using recyclable materials.
Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
Make the appliance unusable by cutting off the
power cord.
The appliance must be delivered to an authorized
collection centre for the recovery of refrigerant gas.
Before scrapping, remove the door and shelves so
that children cannot easily climb inside the
appliance.
Information:
This appliance does not contain CFCs
(replaced with R134a) or HFCs (replaced with
R600a - Isobutane). For more information, refer to
the identification data plate affixed to the appliance.
Appliances with Isobutane (R600a)
Isobutane is a natural gas with low environmental
impact. Caution is required, however, since
isobutane is flammable. Therefore, it is essential to
ensure that refrigerant pipelines are not damaged.
Declaration of conformity
•
This appliance is intended to come into contact
with foodstuffs and is manufactured in
conformity with European Directives
89/109/EEC, 90/128/EEC, 02/72/EEC.
•
This appliance is designed, manufactured, and
retailed in compliance with:
- the safety objectives of the Low Voltage
Directive 73/23/EEC;
- the protection requirements of the “EMC”
Directive 89/336/EEC amended by Directive
93/68/EEC;
- the electrical safety of the appliance can only
be guaranteed if the product is connected to
an approved earth connection.
15
Page 3
6gb33042.fm Page 16 Friday, July 9, 2004 2:51 PM
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
•
Use the
storing fresh foods and the
compartment
storing frozen foods and freezing fresh foods
(only in the compartment marked ).
•
Do not cover or obstruct the air vents of the
appliance.
•
Do not store liquids in glass containers in the
low temperature compartment - risk of
bursting.
•
Do not eat ice cubes or ice lollies immediately
after taking them out of the low temperature
compartment - risk of “cold” burns.
•
Do not allow children to play or hide inside the
appliance - risk of becoming trapped and
suffocating.
•
After installation, make sure that the
refrigerator is not standing on the power cable.
•
Make sure that the refrigerator is not near a
heat source.
refrigerator compartment
low temperature
only for making ice cubes,
only for
•
To ensure proper ventilation leave a 1 cm space
on both sides and above the refrigerator and do
not obstruct or cover any air vents.
•
Do not use mechanical devices or any means
other than those recommended by the
manufacturer to speed up the defrosting
process.
•
Do not damage the refrigerant circuit.
•
Do not use electrical appliances inside the
freezer compartments, unless such appliances
are specifically recommended by the
manufacturer.
•
Do not ingest the contents (non-toxic) of the
ice packs (if provided).
•
Before servicing or cleaning the appliance,
unplug it from the mains or disconnect the
electrical power supply.
•
The power cable may only be replaced by an
authorized person.
•
Do not place hot containers (hotter than
50 - 60 °C) on top of the appliance.
16
Page 4
6gb33042.fm Page 17 Friday, July 9, 2004 2:51 PM
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
This appliance is a refrigerator with a star freezer
compartment.
Defrosting of the refrigerator compartment is completely
automatic.
Optimal performance is obtained at temperatures between
+16°C and +32°C.
Switching on the refrigerator for the first time
Insert the plug into the mains socket.
The thermostat is used to adjust the temperature of both
compartments: refrigerator and freezer.
How to adjust the temperature of the compartments:
1.
For correct operation and optimum storage of food,
advisable to set the thermostat to 2-3/MED.
2.
To adjust the temperature in the refrigerator compartment,
turn the thermostat control knob:
•lowest/MIN
temperatures;
•highest/MAX
temperatures.
thermostat set to 0: no operation, no light.
Note:
The ambient air temperature, frequency of door opening and the
position of the appliance can affect internal temperatures. These
factors must be taken into account when setting the thermostat.
How to use the refrigerator compartment
Position the food as illustrated in the figure.
A. Cooked food
B. Fish, meat
C. Fruit and vegetables
D. Bottles
E. Eggs
F. Butter, cheese and dairy products
Notes:
•
The space between the shelves and the rear wall of the
refrigerator compartment must be unobstructed to allow
circulation of air.
•
Do not place food in direct contact with the rear wall of the
refrigerator compartment.
•
Do not place hot food in the refrigerator or freezer.
•
Store liquids in closed containers.
•
Storing vegetables with a high water content can result in
condensation in the crisper drawer: this will not affect the
correct operation of the appliance.
numbers for the
numbers for the
LEAST COLD
COLDEST
it is
internal
internal
17
Page 5
6gb33042.fm Page 18 Friday, July 9, 2004 2:51 PM
HOW TO OPERATE THE FREEZER
COMPARTMENT
The freezer is a star
This compartment can be used to store frozen foods for the
period of time indicated on packaging. The freezer can also
be used to freeze fresh food by positioning it on the rack;
place frozen food in the lower part of the compartment so
that there is no contact with fresh food that has yet to be
frozen.
The quantity of fresh food that can be frozen in 24 hours is
shown on the rating plate.
Important:
Before freezing, wrap and seal fresh food in:
•
aluminium foil, cling film, air and water-tight plastic bags,
polythene containers with lids or freezer containers suitable
for freezing fresh food.
•
In the event of a power cut, the freezer compartment will
maintain a sufficiently low temperature for food storage.
However, it is advisable to avoid opening the compartment
door during such periods.
Important:

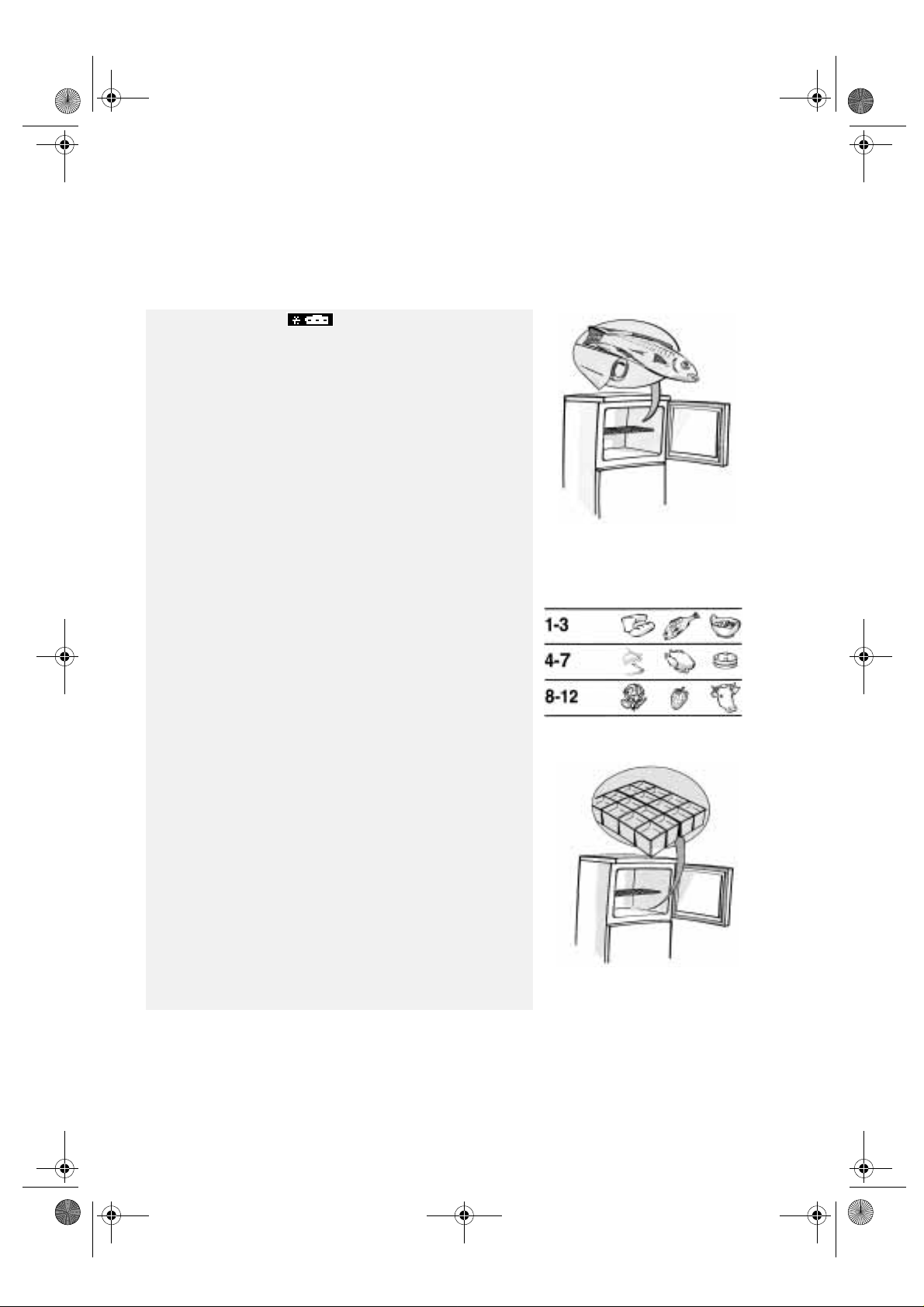

The table alongside shows the recommended maximum
storage time for frozen fresh foods.
When purchasing frozen food products:
•
Ensure that the packaging is not damaged (frozen food in
damaged packaging may have deteriorated). If the package is
swollen or has damp patches, it may not have been stored
under optimal conditions and defrosting may have already
begun.
•
When shopping, leave frozen food purchases until last and
transport the products in a thermally insulated cool bag.
•
Place the items in the freezer compartment as soon as you get
home.
•
If food has defrosted even partially, do not re-freeze it.
Consume within 24 hours.
•
Avoid, or reduce temperature variations to the minimum.
Respect the best-before date on the package.
•
Always observe the storage information on the package.
Making ice cubes
•
Fill the ice cube tray 3/4 with water and place it at the bottom
of the freezer compartment.
Do not use sharp or pointed instruments to detach the tray if
it is stuck to the compartment bottom.
compartment.
MONTHS
FOOD
18
Page 6
6gb33042.fm Page 19 Friday, July 9, 2004 2:51 PM
HOW TO DEFROST AND CLEAN THE
FREEZER
Defrost the freezer compartment once or twice a year,
or when the ice on the walls reaches a thickness of
about 3 mm. If possible, defrost the freezer when it is
nearly empty.
1.
Remove the food from the freezer, wrap in newspaper
and group together in a cool place or in a portable cooler.
2. Disconnect the appliance from the mains power
supply
.
3.
Leave the door open to allow the frost to melt.
4.
Remove the defrost water from the compartment
bottom.
5.
Clean the interior using a sponge dampened in a solution
of warm water and neutral detergent.
Do not use abrasive products.
6.
Rinse the interior and dry thoroughly.
Note: Do not use sharp or pointed metal instruments
to scrape off ice; do not heat the freezer compartment
artificially.
HOW TO CLEAN THE REFRIGERATOR
COMPARTMENT
Periodically clean the inside of the refrigerator
compartment.
Defrosting of the refrigerator compartment is
completely automatic.
Droplets of water on the rear wall of the refrigerator
compartment indicate that the periodic automatic defrost
cycle is in progress.
The defrost water is automatically routed to a drain outlet
and into a container from which it evaporates.

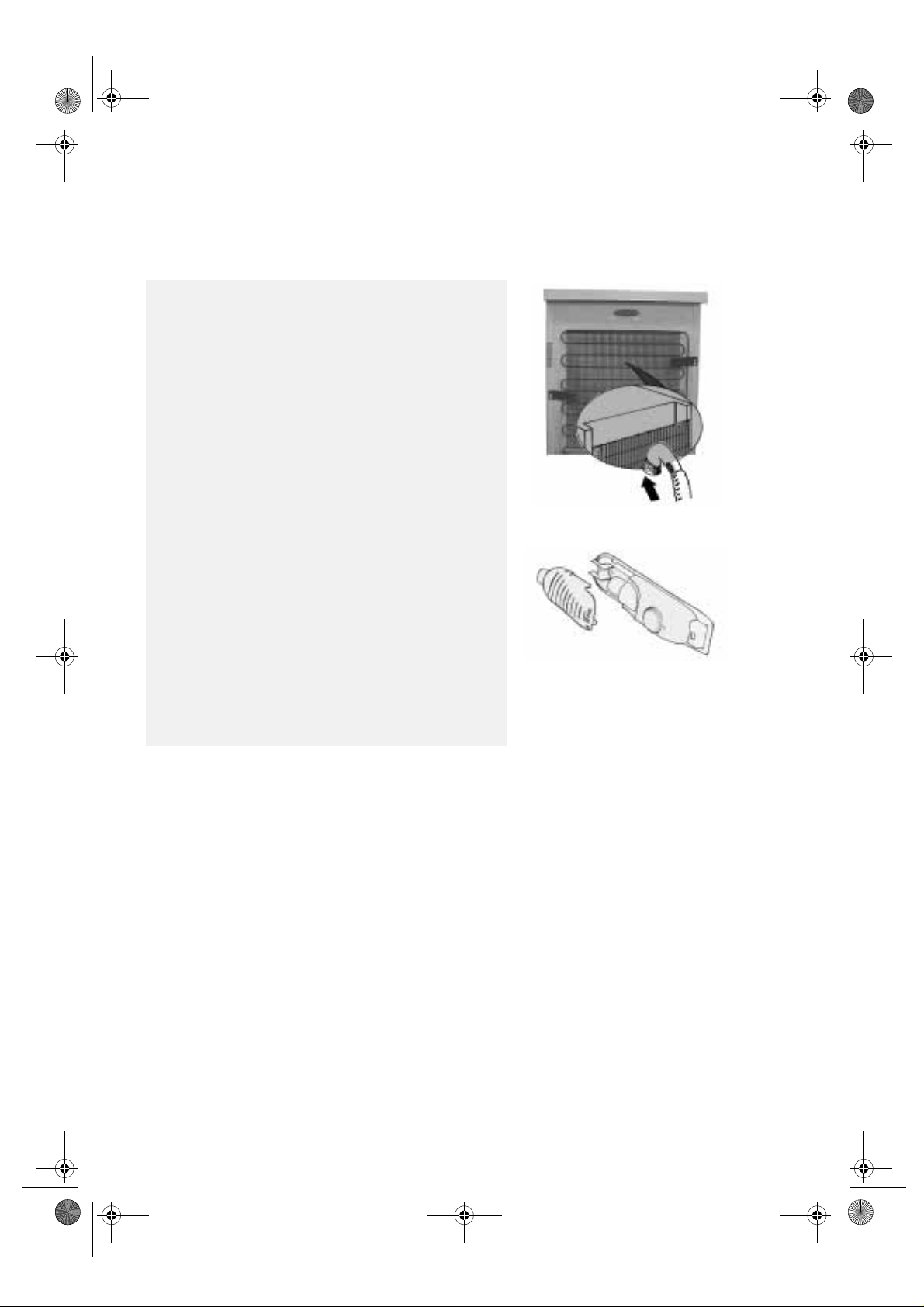

Clean the defrost water drain outlet regularly using the tool
supplied with the appliance in order to ensure defrost water
is removed correctly.
Before carrying out any cleaning operations, disconnect the
appliance from the power supply.
•
Use a sponge dampened in lukewarm water and/or
neutral detergent.
•
Rinse the interior and dry with a soft cloth.
Do not use abrasive products.
19
Page 7
6gb33042.fm Page 20 Friday, July 9, 2004 2:51 PM
CARE AND MAINTENANCE
•
Periodically clean air vents and the condenser at the rear
of the appliance with a vacuum cleaner or a brush.
•
Clean the outside using a soft cloth.
Prolonged disuse
1.
Empty the refrigerator.
2.
Disconnect the appliance from the power supply.
3.
Defrost and clean the interior.
4.
In the event of prolonged disuse, leave the door open to
prevent the formation of mould, odours and oxidation.
5.
Clean the appliance.
•
Clean the inside of the low temperature compartment
(where fitted) when defrosting.
•
Periodically clean the inside of the refrigerator
compartment with a sponge dampened in warm water
and/or neutral detergent. Rinse and dry with a soft cloth.
Do not use abrasive products.
•
Clean the outside with a soft damp cloth.
Do not use abrasive products, scourers, stain-removers
(e.g. acetone, trichloroethylene) or vinegar.
Replacing bulbs:
When replacing the bulb, proceed as follows:
•
Unplug the appliance from the mains
•
Squeeze the tabs on the sides of the lamp cover and
remove it.
•
Replace the bulb with a new one, maximum 15 W.
•
Put the lamp cover back on and wait 5 minutes before
plugging the appliance back into the mains.
TROUBLESHOOTING GUIDE
1. The appliance is not working.
•
Is there a power failure?
•
Is the plug properly inserted in the socket?
•
Is the double-pole switch on?
•
Has the fuse blown?
•
Is the power cord damaged?
•
Is the thermostat set to 0 (Stop)?
2. Temperature inside the compartments is
not low enough.
•
Is the door shut properly?
•
Is the appliance installed near a heat source?
•
Is the thermostat setting correct?
•
Are the air circulation grilles blocked?
3. Temperature inside the refrigerator
compartment is too low.
•
Is the thermostat setting correct?
4. Water collects at the bottom of the
refrigerator compartment.
•
Is the defrost water drain blocked?
20
5. The inside light is not working.
Perform the checks for problem 1, then:
•
Disconnect the appliance from the mains
power supply.
To inspect the bulb, refer to the instructions
and illustration on the attached table.
•
Check the bulb and if necessary replace it.
Replace using maximum 15W bulb.

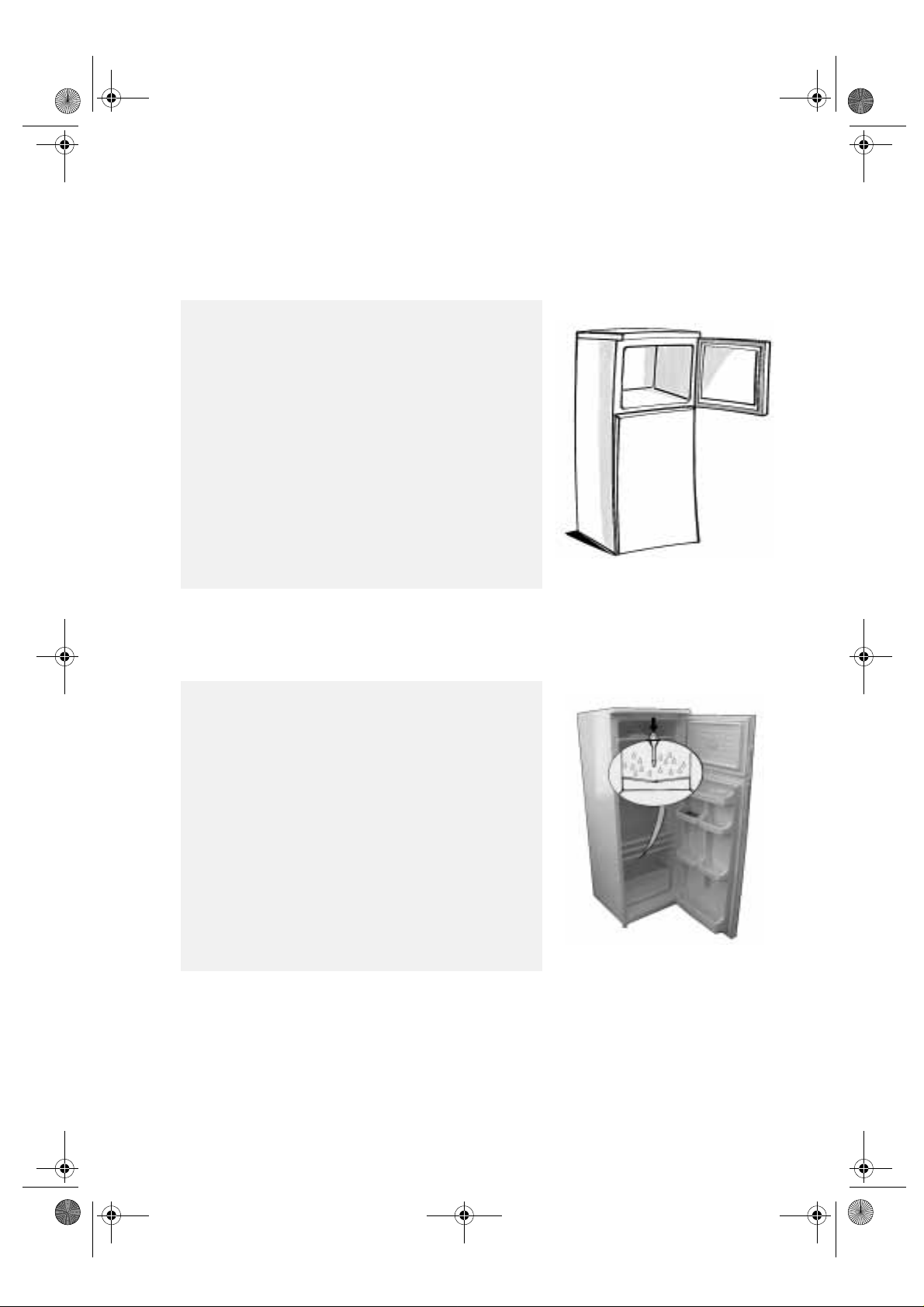

6. Excessive frost build-up in the freezer
compartment
•
Is the door shut properly?
•
Is food obstructing proper door closure?
Notes:
• The front edge of the appliance may be
hot. This prevents the formation of
condensation and is not a defect.
• Gurgling and hissing noises due to
expansion in the refrigerant circuit are
normal.
Page 8
6gb33042.fm Page 21 Friday, July 9, 2004 2:51 PM
AFTER-SALES SERVICE
Before contacting After-Sales Service:
1.
See if you can solve the problem yourself with
the help of the “Troubleshooting guide”.
2.
Switch the appliance on again to see if the
problem persists.
If it does, switch off and wait for about an hour
before switching on.
3.
If the problem persists after this course of
action, contact After-sales Service.
Specify:
•
the nature of the problem,
•
the model,
•
the Service number (the number after the word
SERVICE on the rating plate on the inside of the
appliance),
•
your full address,
•
your telephone number and area code.
Note: The direction of door opening can be
changed. If this operation is performed by
After-sales Service it is not covered by the
warranty.
INSTALLATION
•
Install the appliance away from heat sources.
•
Install the appliance in a dry, well-ventilated
place.
•
Do not obstruct the top and bottom vent
zones.
•
Clean the inside (see chapter “How to clean the
refrigerator compartment”).
•
Fit the accessories supplied.
Electrical connection
• Electrical connections must be made in
accordance with local regulations.
•
Voltage and power consumption are indicated
on the rating plate (at the side of the crispers).

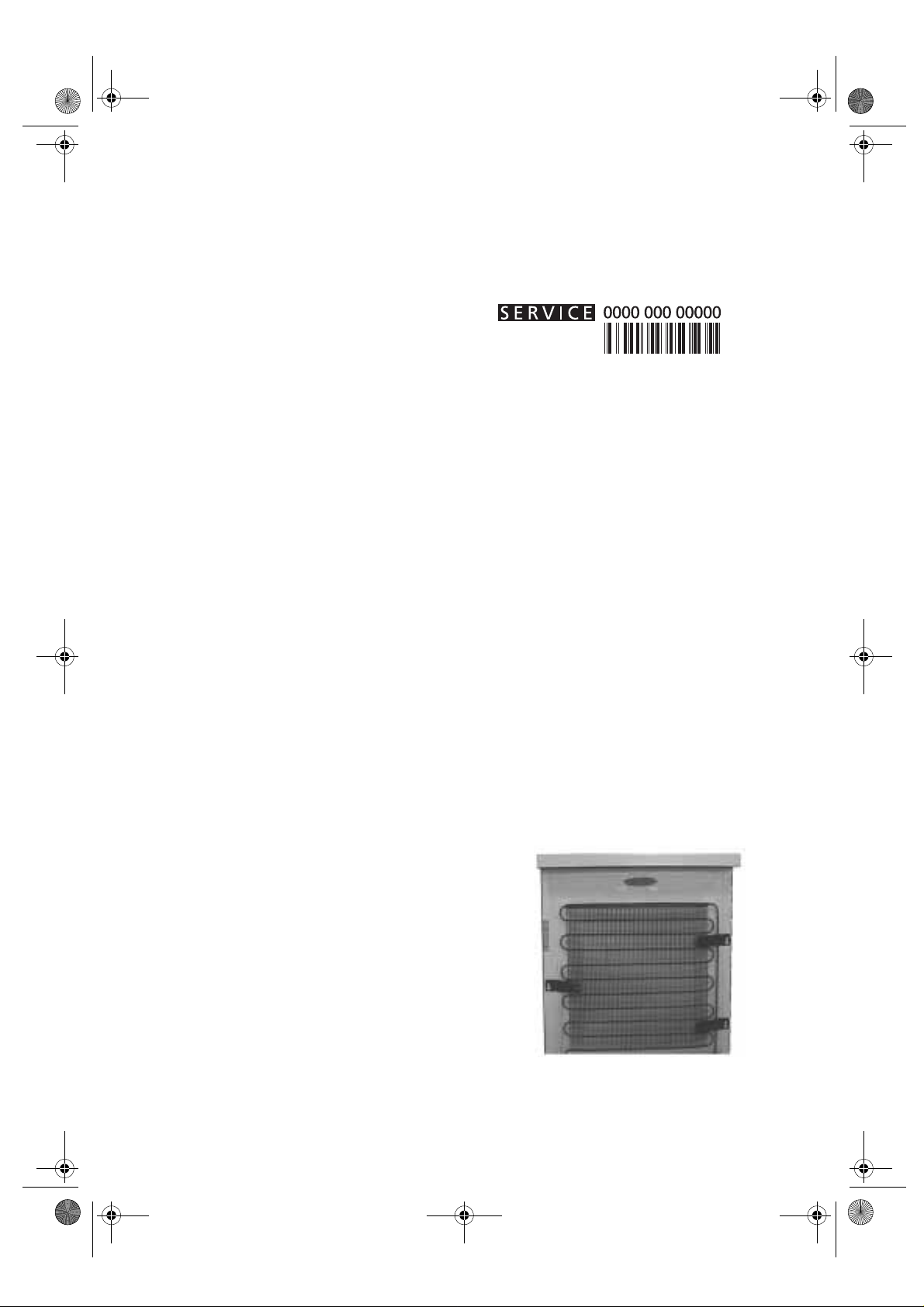

Freestanding appliances (not built-in)
•
Fit the spacers (if supplied) on the rear of the
condenser positioned at the back of the
appliance (see figure).
•
To optimize appliance efficiency, leave a 5 cm
gap above the appliance and make sure that
adjacent kitchen units are sufficiently distanced
to allow air circulation.
•
Ensure that the appliance is level, using the
front adjustment feet if necessary.
• Regulations require that the appliance is
earthed. The Manufacturer declines all
liabilities for injury to persons or animals
or damage to property resulting from
failure to observe these regulations.
•
If the plug and socket are not of the same type,
have the socket replaced by a qualified
electrician.
•
Do not use extension leads or adapters.
Disconnecting the appliance
•
It must be possible to disconnect the appliance
by unplugging it or by means of a two-pole
switch fitted upline of the socket.
21
Page 9
6gb33042.fm Page 22 Friday, July 9, 2004 2:51 PM

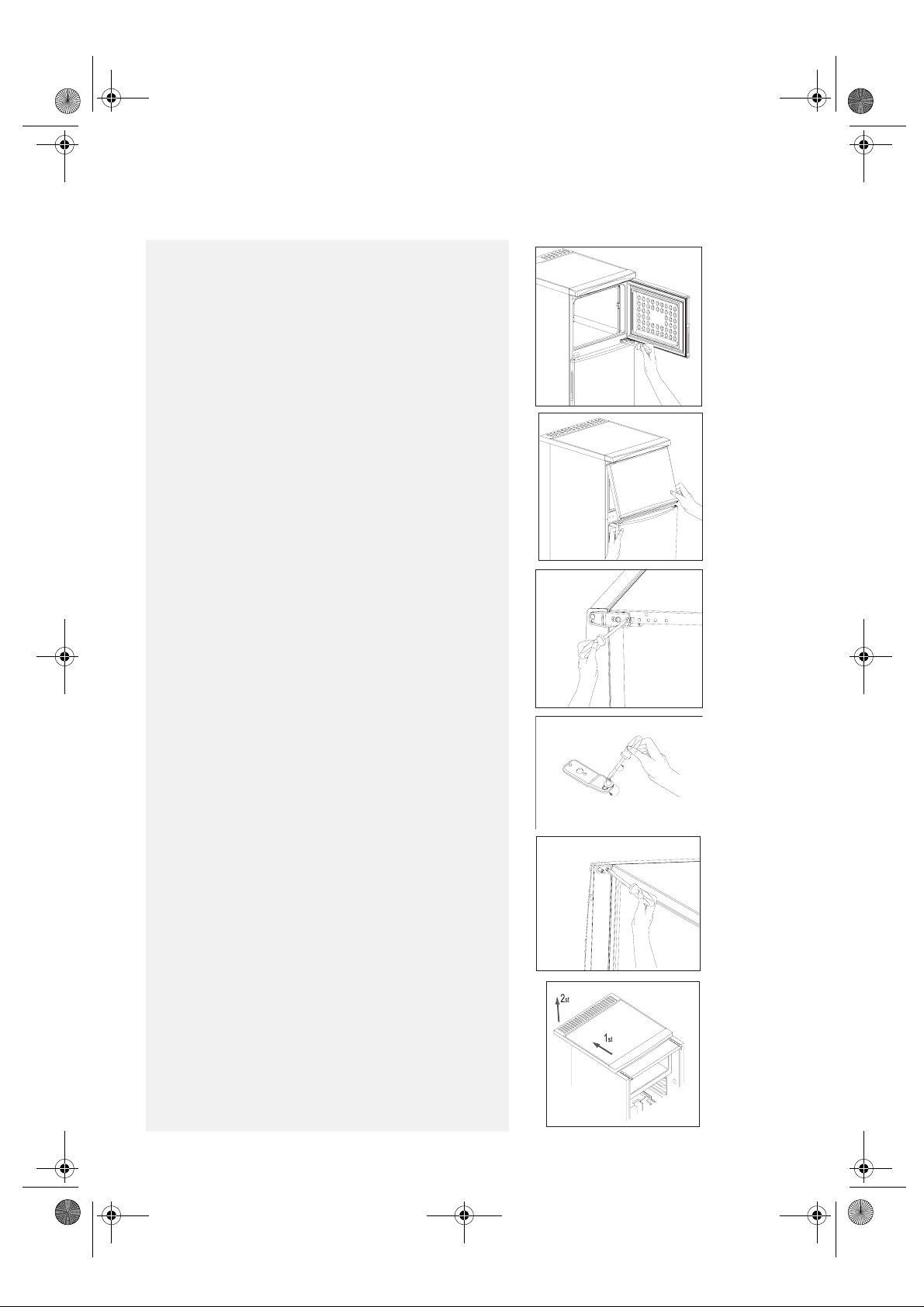

Door reversibility
1.
Unscrew the 2 fixing screws securing the central hinge
and remove the 2 covers (Fig. 1).
2.
Lift the doors off together with the central hinge by pulling
them towards you (Fig. 2).
3.
Lay the appliance on its left side, unscrew the fixing
screws securing the 2 feet and remove them (Fig. 3).
Fig. 1
Fig. 2
4.
Unscrew the pin from the bottom hinge and screw it on
the other hinge (Fig. 4). Screw down the hinge with the
pin on the left and the other on the right.
5.
Unscrew the fixing screws on the left and right of the top
panel (Fig. 5).
6.
To remove the top panel, slide it back and then lift it off
(Fig. 6).
Fig. 3
Fig. 4
Fig. 5
Fig. 6
22
Page 10
6gb33042.fm Page 23 Friday, July 9, 2004 2:51 PM

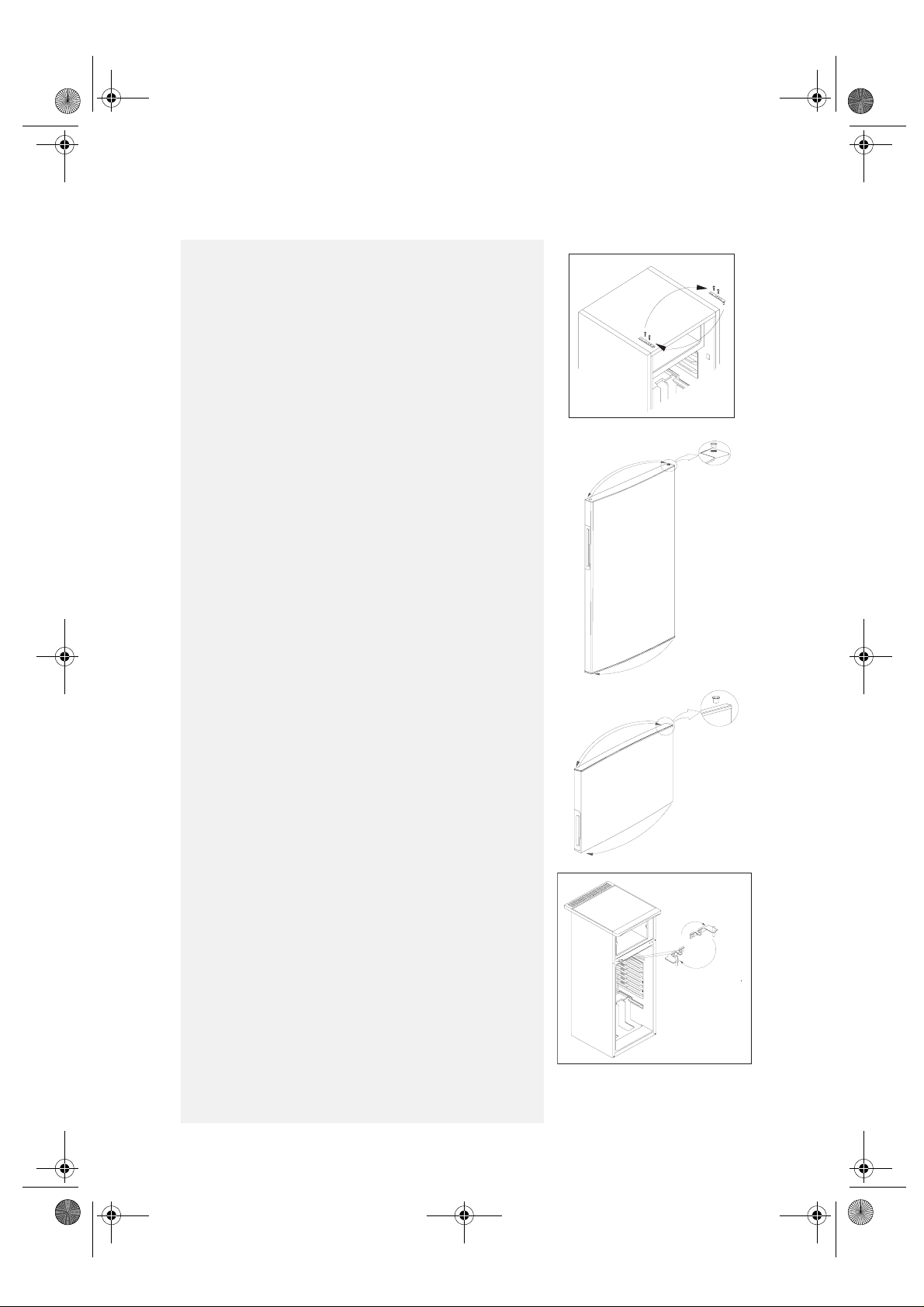

7.
Unscrew the fixing screws securing the right and left
hinges, remove them and refit them on opposite sides
(Fig. 7). Refit the top panel, following the same steps as at
points 6 and 5.
Fig. 7
8.
Position the bushings and top covers from the right hand
side on the left (Fig. 8 and 9). Remove the bottom right
bushing and fit it on the left (Fig. 8 and 9).
9.
Refit the central hinge by rotating it 180°. Refit the 2 doors
on the central hinge, following the same steps as at point
2. Secure the hinge with the 2 screws (Fig. 10).
Fig. 8
Fig. 9
Fig. 10
23
Page 11
6gb33042.fm Page 24 Friday, July 9, 2004 2:51 PM
ELECTRICAL CONNECTION
1) For Great Britain only
Warning - this appliance must be earthed

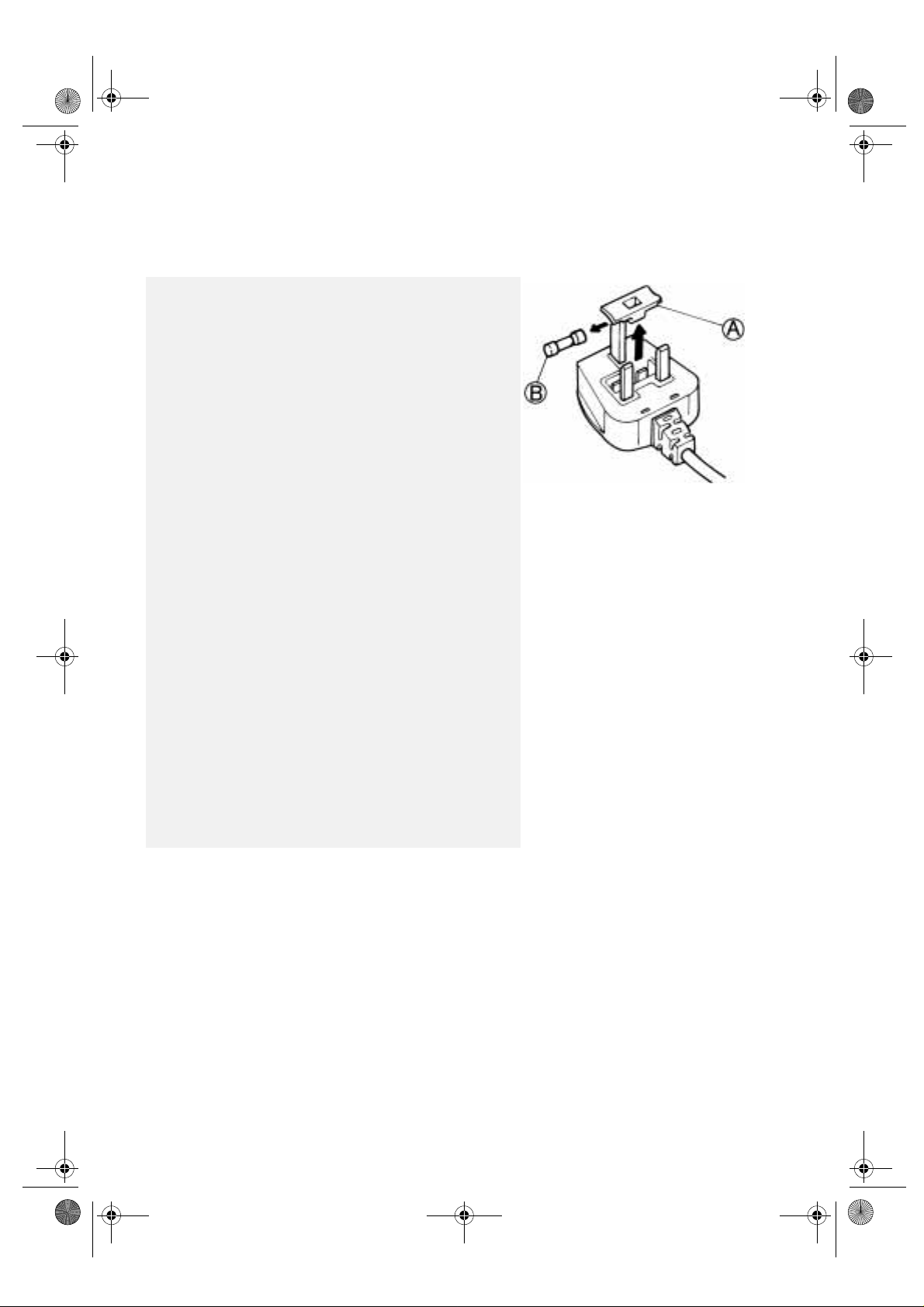

Fuse replacement
If the mains lead of this appliance is fitted with a BS 1363A
13amp fused plug, to change a fuse in this type of plug use an
A.S.T.A. approved fuse to BS 1362 type and proceed as follows:
1.
Remove the fuse cover (A) and fuse (B).
2.
Fit replacement 13A fuse into fuse cover.
3.
Refit both into plug.
Important:
The fuse cover must be refitted when changing a fuse and if the
fuse cover is lost the plug must not be used until a correct
replacement is fitted.
Correct replacement are identified by the colour insert or the
colour embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical
store.
2) For the Republic of Ireland only
The information given in respect of Great Britain will frequently
apply, but a third type of plug and socket is also used, the
2-pin, side earth type.
3) Socket outlet / plug (valid for both countries)
If the fitted plug is not suitable for your socket outlet, please
contact Whirlpool Service for further instruction. Please do no t
attempt to change plug yourself. This procedure needs to be
carried out by a qualified Whirlpool technician in compliance
with the manufactures instructions and current standard safety
regulations.
24
Loading...
