Whirlpool DP 175, DP 178, DPA 25 INSTRUCTION FOR USE

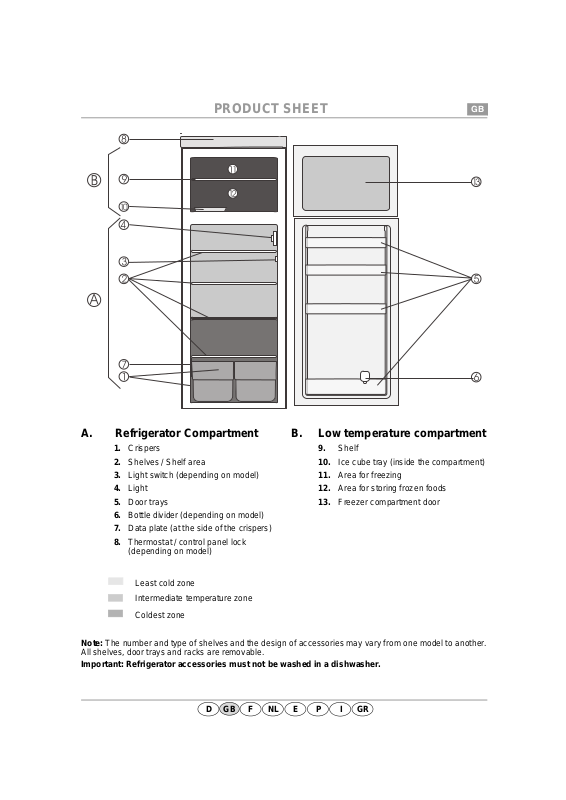

PRODUCT SHEET

A. Refrigerator Compartment

1. Crispers

2. Shelves / Shelf area

3. Light switch (depending on model)

4. Light

5. Door trays

6. Bottle divider (depending on model)

7. Data plate (at the side of the crispers)

8. Thermostat / control panel lock

(depending on model)

Least cold zone Intermediate temperature zone

Coldest zone

Note: The number and type of shelves and the design of accessories may vary from one model to another. All shelves, door trays and racks are removable.

Important: Refrigerator accessories must not be washed in a dishwasher.

D F NL E P

B. Low temperature compartment

9. Shelf

10. Ice cube tray (inside the compartment)

11. Area for freezing

12. Area for storing frozen foods

13. Freezer compartment door

The fridge-freezer is switched on by means of the thermostat located on the frame/top section. This thermostat is used to adjust the temperature in both the refrigerator and freezer compartments.

Control panel

1. Thermostat knob (depending on model)

Thermostat set to 0/Off: compartment refrigeration switched off. Thermostat set to 1-min: minimum refrigeration. Thermostat set to 7-max: maximum refrigeration.

The recommended thermostat setting is 3-4/med.

The fridge-freezer can operate at ambient temperatures between +16°C and + 32°C. Note: Ambient air temperature, the frequency of door opening and the position of the appliance can affect

the internal temperatures of the refrigerator. These factors must be taken into account when setting the thermostat.

Light - how to replace the bulb

Before replacing the bulb, remove the power plug from the mains socket. Next: 1 - Hold the diffuser as shown and squeeze it slightly. 2 - Slide it towards the rear of the appliance. 3 - Unscrew the light bulb as illustrated in the picture.

5019 636 33025
