Whirlpool WDP350PAAW5, WDP350PAAW3, WDP350PAAW1, WDP350PAAW2, WDP350PAAB5 Installation Guide

iNSTALLATiON iNSTRUCTiONS

PORTABLEDISHWASHER

PLASTICGIANT TUB MODELS

iNSTRUCTiONS D'INSTALLATION

LAVE-VAISSELLEENCASTRE

MODELES A TRESGRANDE CUVE EN PLASTIQUE

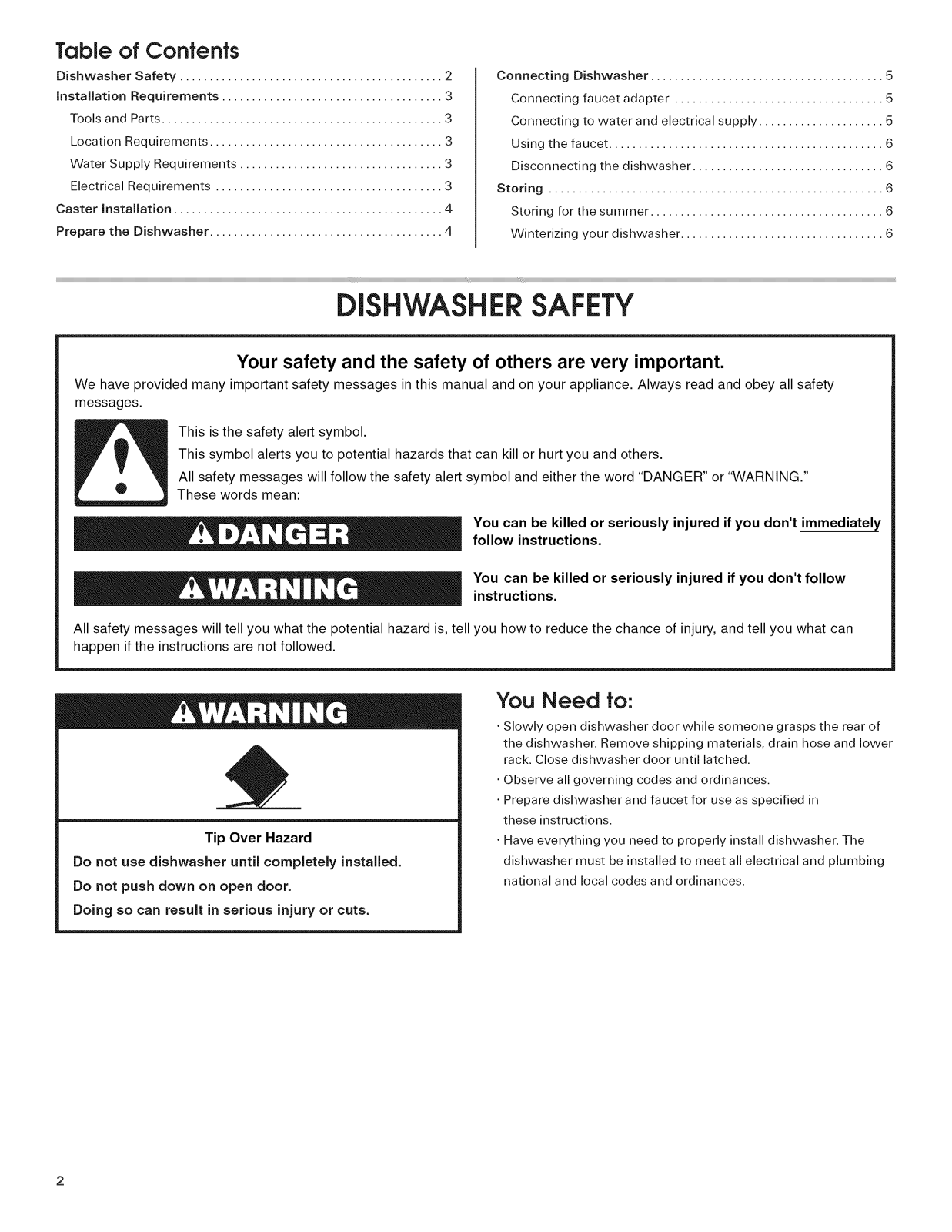

Table of Contents ................................................ 2

Table des mati_res ............................................... 7

W10255025A

Table of Contents

Dishwasher Safety ............................................2

InstallationRequirements .....................................3

Toolsand Parts...............................................3

Location Requirements .......................................3

Water Supply Requirements ..................................3

ElectricalRequirements ......................................3

Caster Installation.............................................4

Prepare the Dishwasher .......................................4

Connecting Dishwasher ....................................... 5

Connecting faucet adapter ................................... 5

Connecting to water and electrical supply ..................... 5

Using the faucet .............................................. 6

Disconnecting the dishwasher ................................ 6

Storing ........................................................ 6

Storing for the summer ....................................... 6

Winterizing your dishwasher .................................. 6

DISHWASHERSAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.

This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:

You can be killed or seriously injured if you don't immediately
follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.

You Need fo:

• Slowly open dishwasher door while someone grasps the rear of
the dishwasher. Remove shipping materials, drain hose and lower

rack. Close dishwasher door until latched.

• Observe all governing codes and ordinances.

• Prepare dishwasher and faucet for use as specified in
these instructions.

Tip Over Hazard

Do not use dishwasher unti_ completely installed.

Do not push down on open door.
Doing so can result in serious injury or cuts.

• Have everything you need to properly install dishwasher. The
dishwasher must be installed to meet all electrical and plumbing

national and local codes and ordinances.

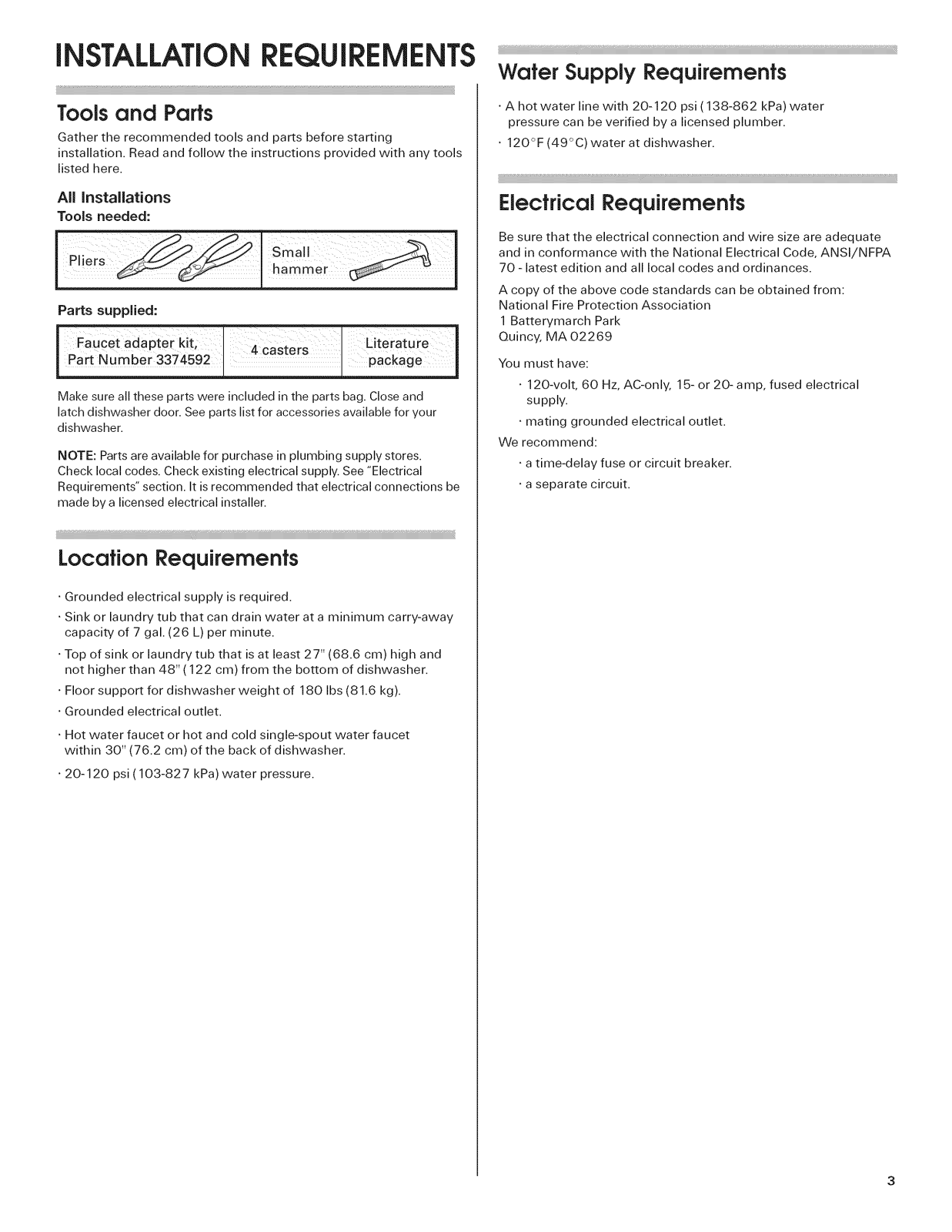

iNSTALLATiON REQUIREMENTS

Water Supply Requirements

Tools and Parts

Gather the recommended tools and parts before starting
installation. Read and follow the instructions provided with any tools

listed here.

All installations

Tools needed:

Pliers _Sy _ ,small I

i

Parts supplied:

FauCet adapte[ kit;

! Part NUmbers374592 ] cas! e S [ Literature Ij

Make sure all these parts were included in the parts bag. Close and
latch dishwasher door. See parts list for accessories available for your

dishwasher.

NOTE: Parts are available for purchase in plumbing supply stores.
Check local codes. Check existing electrical supply. See "Electrical
Requirements" section. It is recommended that electrical connections be
made by a licensed electrical installer.

•nammer _ j

• A hot water line with 20-120 psi (138-862 kPa) water
pressure can be verified by a licensed plumber.

• 120°F (49°C) water at dishwasher.

Electrical Requirements

Be sure that the electrical connection and wire size are adequate
and in conformance with the National Electrical Code, ANSl/NFPA

70 - latest edition and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02269

You must have:

• 120-volt, 60 Hz, AC-only, 15- or 20- amp, fused electrical
supply.

• mating grounded electrical outlet.

We recommend:

• a time-delay fuse or circuit breaker.

• a separate circuit.

Location Requirements

• Grounded electrical supply is required.

• Sink or laundry tub that can drain water at a minimum carry-away
capacity of 7 gal. (26 L) per minute.

• Top of sink or laundry tub that is at least 27" (68.6 cm) high and
not higher than 48" ( 122 cm) from the bottom of dishwasher.

• Floor support for dishwasher weight of 180 Ibs (81.6 kg).

• Grounded electrical outlet.

• Hot water faucet or hot and cold single-spout water faucet

within 30" (76.2 cm) of the back of dishwasher.

• 20-120 psi (103-827 kPa) water pressure.

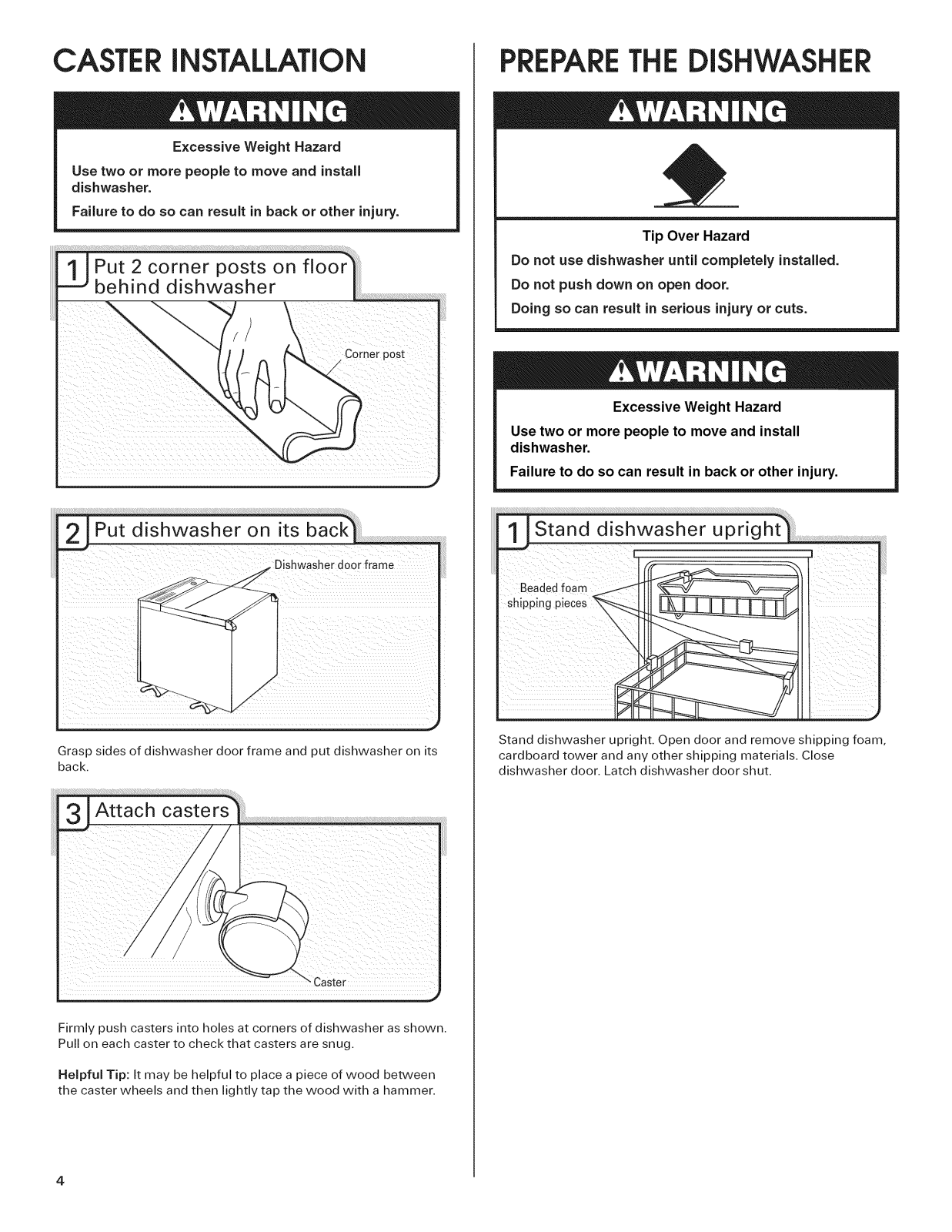

CASTER iNSTALLATiON

Excessive Weight Hazard

Use two or more people to move and install
dishwasher.

Failure to do so can result in back or other injury.

PREPARETHEDISHWASHER

Tip Over Hazard

Do not use dishwasher until completely installed.
Do not pushdown on open door.

Doingso can result in serious injury or cuts.

Excessive Weight Hazard

Usetwo or more people to move and install

dishwasher.
Failure to do so can result inback or other injury.

Grasp sides of dishwasher door frame and put dishwasher on its
back.

Firmly push casters into holes at corners of dishwasher as shown.
Pull on each caster to check that casters are snug.

Helpful Tip: It may be helpful to place a piece of wood between
the caster wheels and then lightly tap the wood with a hammer.

4

Stand dishwasher upright. Open door and remove shipping foam,
cardboard tower and any other shipping materials. Close

dishwasher door. Latch dishwasher door shut.
