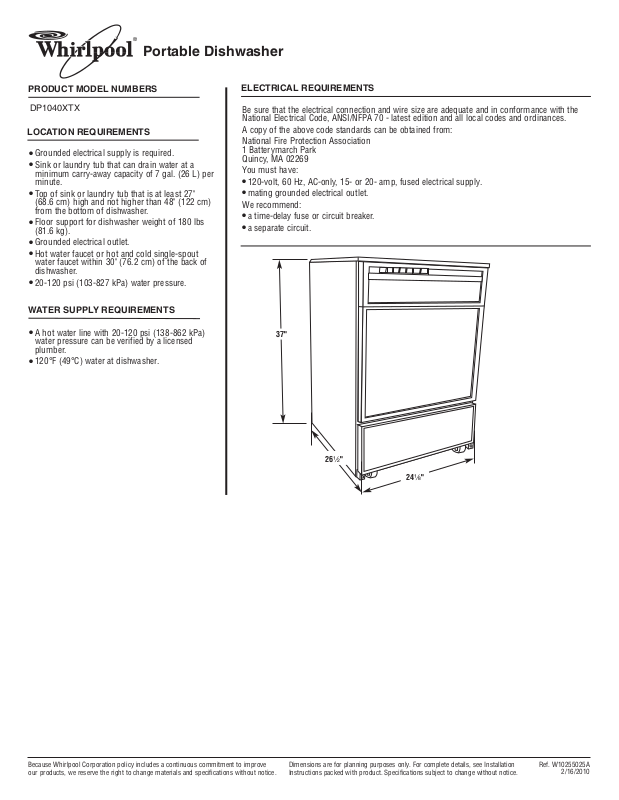

Whirlpool DP1040XTX Dimension Guide
Portable Dishwasher
®
PRODUCT MODEL NUMBERS
DP1040XTX
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10255025A
2/16/2010
37"
26¹⁄₂"
24¹⁄₈"
LOCATION REQUIREMENTS
●
Grounded electrical supply is required.
●
Sink or laundry tub that can drain water at a
minimum carry-away capacity of 7 gal. (26 L) per
minute.
●
Top of sink or laundry tub that is at least 27"
(68.6 cm) high and not higher than 48" (122 cm)
from the bottom of dishwasher.
●
Floor support for dishwasher weight of 180 lbs
(81.6 kg).
●
Grounded electrical outlet.
●
Hot water faucet or hot and cold single-spout
water faucet within 30" (76.2 cm) of the back of
dishwasher.
●
20-120 psi (103-827 kPa) water pressure.
WATER SUPPLY REQUIREMENTS
●
A hot water line with 20-120 psi (138-862 kPa)
water pressure can be verified by a licensed
plumber.
●
120°F (49°C) water at dishwasher.
ELECTRICAL REQUIREMENTS
Be sure that the electrical connection and wire size are adequate and in conformance with the
National Electrical Code, ANSI/NFPA 70 - latest edition and all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02269
You must have:
●
120-volt, 60 Hz, AC-only, 15- or 20- amp, fused electrical supply.
●
mating grounded electrical outlet.
We recommend:
●
a time-delay fuse or circuit breaker.
●
a separate circuit.
