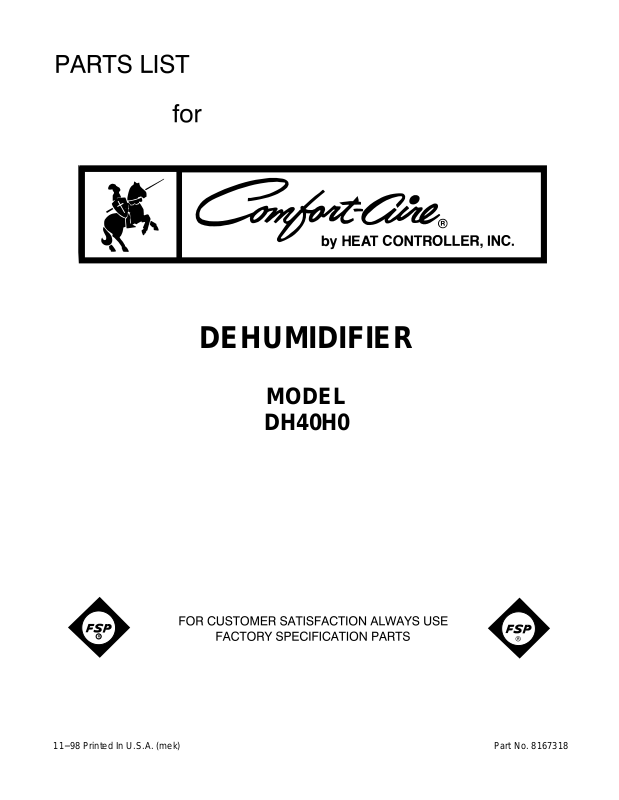

Page 1
DEHUMIDIFIER
MODEL
DH40H0
11−98 Printed In U.S.A. (mek)
Part No. 8167318
Page 2
AIR FLOW AND CONTROL PARTS
For Model: DH40H0
Illus. Part
No. No. DESCRIPTION
2 1168670 Humidistat,
Control
3 1168770 Assembly,
Control Panel
4 1168687 Knob
5 488480 Screw,
Sm #8 x 1/2
7 Panel,
Air System
1168758 Left Side
1168759 Right Side
8 1182134 Escutcheon
9 1168781 Barrier, Bucket
Fill Switch
10 1168730 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air
System
13 1168699 Switch, Bucket
Fill/Check
14 487871 Screw,
8−32 x 3/8
15 1168703 Cord, Appliance
16 1168666 Plate, Orifice
22 1180504 Relief, Strain
23 1168735 Support, Air
System
25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard
8167318
2
Page 3

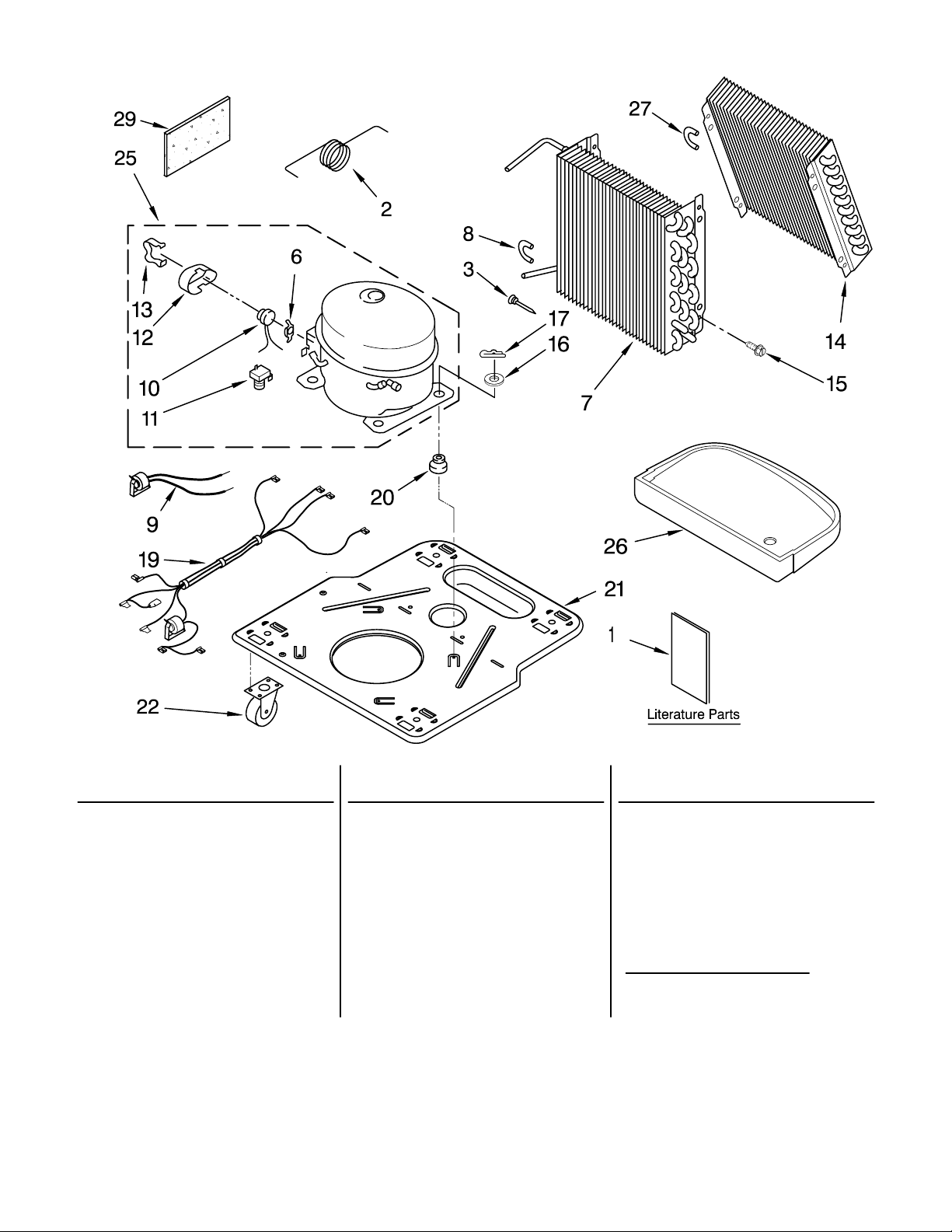

UNIT PARTS
For Model: DH40H0
Illus. Part
No. No. DESCRIPTION
1 LITERATURE PARTS
LIT1168765
LIT1182182
2 1168728 Tube, Restrictor
3 1162526 Strainer
6 950061 Spring, Overload
7 1168724 Condenser
8 708532 Bend, Return (9)
9 1168777 Deicer, Bimetal
Wiring Diagram
Use & Care Guide
(Length 36.00")
Production Compressor Requires Production Electrical Components.
Service Compressor Requires Service Electrical Components.
For Further Information, Refer to Standard Brand and Related Components.
Illus. Part
No. No. DESCRIPTION
10 1163837 Overload,
Protector
11 950058 Relay, Start
12 950055 Cover, Terminal
13 950056 Retainer, Cover
14 1168726 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 680975 Washer
17 24364001 Clip, Compressor
19 1168701 Harness, Wire
20 1168722 Grommet (4)
21 1168654 Base
22 1164241 Caster (4)
3
Illus. Part
No. No. DESCRIPTION
25 1164774 Compressor,
(Complete
Assembly)
26 1168761 Pan, Drain
27 854624 Bend, Return (9)
29 1162650 Insulation
(Restrictor Tube)
REFRIGERANT CHARGE
8.00 OZ.
8167318
Page 4

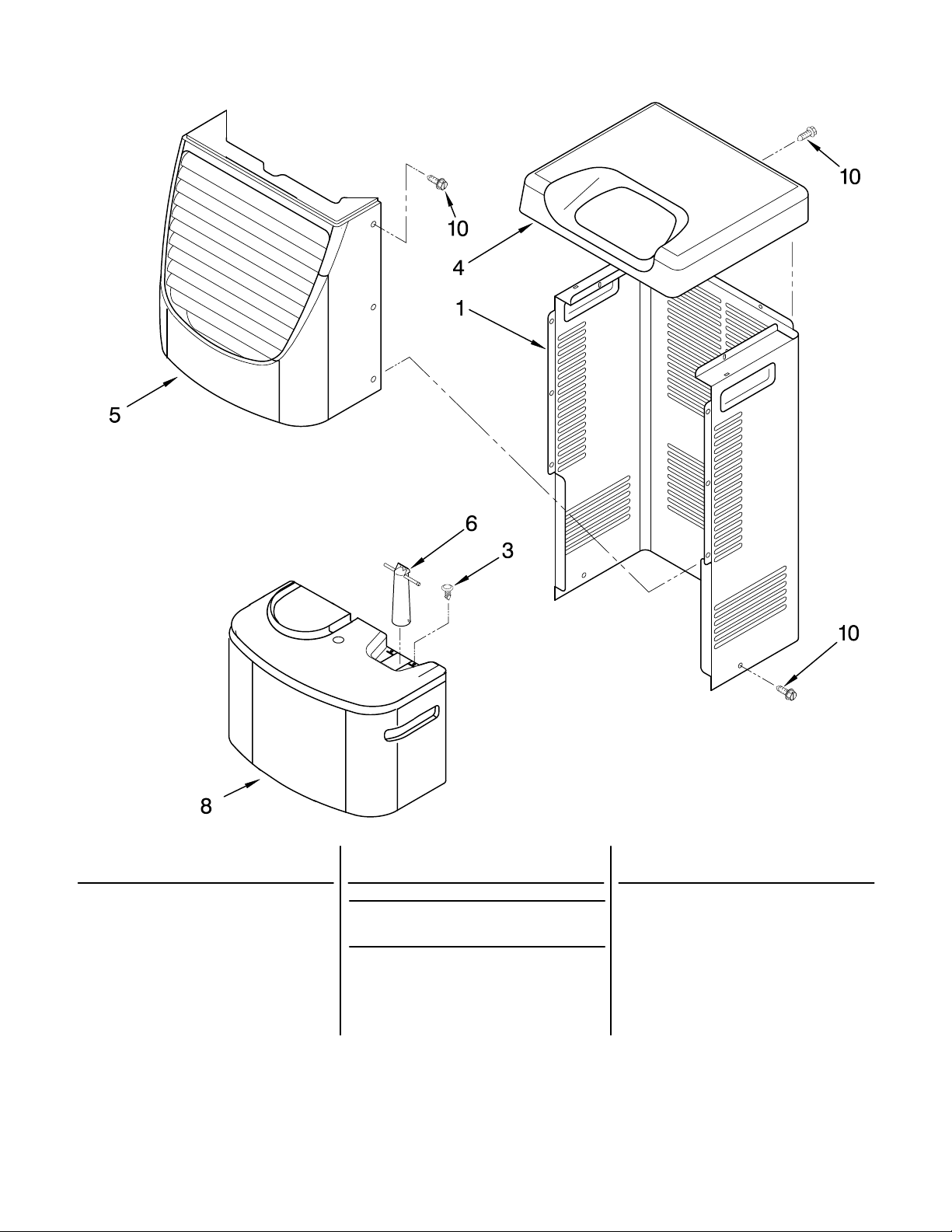

CABINET PARTS
For Model: DH40H0
Illus. Part
No. No. DESCRIPTION
1 1168667 Cabinet
3 1168762 Clip, Float
4 1168652 Cover, Top
5 1182059 Cover, Front
6 1172075 Float
8 1172079 Bucket,
Condensate
10 1168744 Screw
8167318
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
and Optional Parts Not Included
484310 Epoxy, Tube
(Aluminum Repair)
505168 Tape, No Drip
Valve, Access
4
Illus. Part
No. No. DESCRIPTION
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865 Seal, Ring
Access Valve
(20 Pack)
