Whirlpool CVT 163 AP, CVT 143 AP, WV1701 W, WV1701 X, CV S65 AP User Manual
...

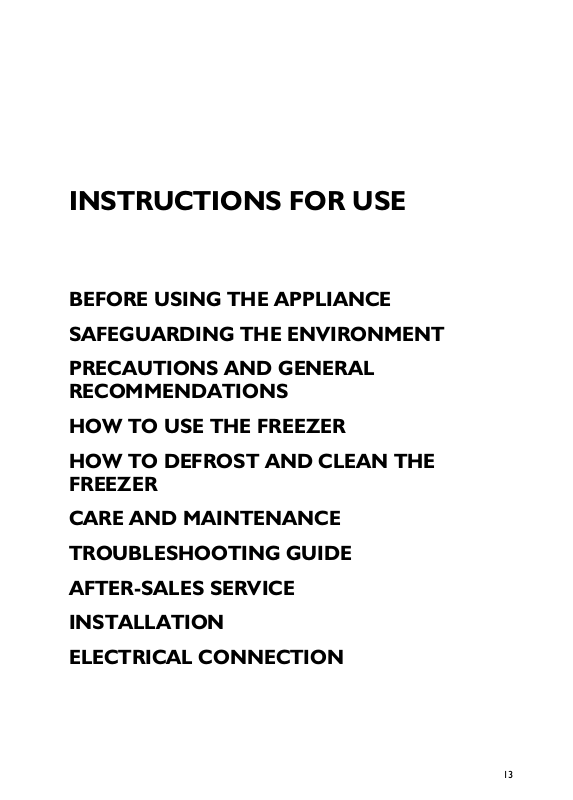

INSTRUCTIONS FOR USE
BEFORE USING THE APPLIANCE
SAFEGUARDING THE ENVIRONMENT
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
HOW TO USE THE FREEZER
HOW TO DEFROST AND CLEAN THE
FREEZER
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE
AFTER-SALES SERVICE
INSTALLATION
ELECTRICAL CONNECTION
13
BEFORE USING THE APPLIANCE
•
Your new appliance is designed exclusively for
domestic use.
To ensure best use of your appliance,
carefully read the instructions which contain
a description of the appliance and advice on
storing and preserving food.
Keep this handbook for future reference.
1.
After unpacking the appliance, make sure it is
not damaged and that the door closes
properly. Any damage must be reported to the
dealer within 24 hours of delivery of the
appliance.
2.
Wait at least two hours before switching the
appliance on, in order to ensure that the
refrigerant circuit is fully efficient.
3.
Make sure installation and the electrical
connection are carried out by a qualified
technician according to the manufacturer's
instructions and in compliance with the local
safety regulations
4.
Clean the inside of the appliance before using it.
SAFEGUARDING THE ENVIRONMENT
1.Packing
The packing material is 100% recyclable and
bears the recycling symbol. Comply with the
local regulations for disposal. Keep the packing
materials (plastic bags, polystyrene parts, etc.)
out of the reach of children, as they are a
potential source of danger.
2.Scrapping/Disposal
The appliance is manufactured using recyclable
material.
This appliance is marked in compliance with
European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring the correct scrapping of this
appliance, you can help prevent potentially
negative consequences for the environment and
the health of persons.
The symbol on the appliance, or on the
accompanying documents, indicates that this
appliance should not be treated as domestic
waste but must be taken to a suitable collection
centre for the recycling of electrical and
electronic equipment.
When scrapping the appliance, make it unusable
by cutting off the power cable and removing the
doors and shelves so that children cannot easily
climb inside.
Scrap the appliance in compliance with local
regulations on waste disposal, taking it to a
special collection centre; do not leave the
appliance unattended even for a few days, since
it is a potential source of danger for children. For
further information on the treatment, recovery
and recycling of this product, contact your
competent local office, the household waste
collection service or the shop where you
purchased the appliance.
Information:
This appliance does not contain CFCs.
The refrigerant circuit contains R134a (HFCs) or
R600a (HCs), see the rating plate inside the
appliance.
Appliances with isobutane (R600a): Isobutane is
a natural gas without environmental impact but
is flammable. Therefore, make sure the
refrigerant circuit pipes are not damaged.
This product contains Fluorinated Greenhouse
Gases covered by the Kyoto Protocol, the
refrigerant gas being in a hermetically sealed
system.
Refrigerant gas: R134a has a Global Warming
Potential (GWP) 1300.
Declaration of conformity
•
This appliance is intended for storing food and
is manufactured in conformity with European
regulation (EC) No. 1935/2004.
•
This product has been designed,
manufactured and marketed in compliance
with:
- the safety objectives prescribed in the Low
Voltage Directive 2006/95/CE (which replaced
Directive 73/23/CEE as amended);
- the protection requirements of the “EMC”
89/336/CEE directive, amended by Directive
93/68/CEE.
•
Electrical safety of the appliance is guaranteed
only if it is connected to an efficient and
approved earthing system
.
14
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
•
Use the refrigerator compartment only for
storing fresh food and beverages and use the
freezer compartment only for storing frozen
food, freezing fresh food and making ice
cubes.
•
During installation, make sure the appliance
does not damage the power cable.
•
Do not store glass containers with liquids in
the freezer since they may burst.
•
Do not eat ice cubes or ice lollies immediately
after taking them out of the freezer since they
may cause cold burns.
•
Before servicing or cleaning the appliance,
unplug it from the mains or disconnect the
electrical power supply.
•
Make sure that the appliance is not near a heat
source.
•
Do not store or use petrol, gas or flammable
liquids in the vicinity of the appliance or other
electrical appliances. The fumes can create a
fire hazard or explosion.
•
To ensure adequate ventilation, leave a space
on both sides and above the appliance and
follow the installation instructions.
•
Keep the appliance ventilation openings free.
•
All appliances equipped with an ice maker or
water dispenser must be connected to a
mains water supply that delivers potable
water only (with water pressure between 1.7
and 8.1 bar (25 and 117 PSI)). Ice makers and/
or water dispensers not directly connected to
a mains water supply must be filled with
potable water only.
•
Install and level the appliance on a floor strong
enough to take its weight and in an area
suitable for its size and use.
•
For the water connection, use the pipe
supplied with the new appliance and do not
use that of the previous appliance.
•
The appliance must be handled and installed
by two or more persons.
•
Place the appliance in a dry and wellventilated place. The appliance is set for
operation at specific ambient temperature
ranges, according to the climatic class
indicated on the data plate: The appliance may
not work properly if it is left for a long period
at a temperature above or below the
indicated range.
Climatic Class Amb. T. (°C) Amb. T. (°F)
SN From 10 to 32 From 50 to 90
N From 16 to 32 From 61 to 90
ST From 18 to 38 From 64 to 100
T From 18 to 43 From 64 to 110
•
Be careful not to damage the floors when you
move the appliance (e.g. parquet flooring).
•
Do not use mechanical, electric or chemical
means other than those recommended by the
Manufacturer to speed up the defrost process.
•
Do not damage the refrigerator’s refrigerant
circuit pipes.
•
Do not use or place electrical appliances
inside the compartments if they are not of the
type expressly authorised by the
Manufacturer.
•
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety. Children
should be supervised to ensure that they don't
play with the appliance.
•
Power cable modification or replacement must
only be carried out by qualified personnel.
•
Do not use single/multiple adapters or
extension cables.
•
It must be possible to disconnect the
appliance from the mains by unplugging it or
by means of a two-pole switch fitted upline of
the socket.
•
Ensure that the voltage indicated on the
appliance data plate corresponds to the
domestic supply voltage
•
Do not swallow the contents (non-toxic) of
the ice packs (if provided).
•
The Manufacturer declines any liability if the
above recommendations and precautions are
not respected.
15
