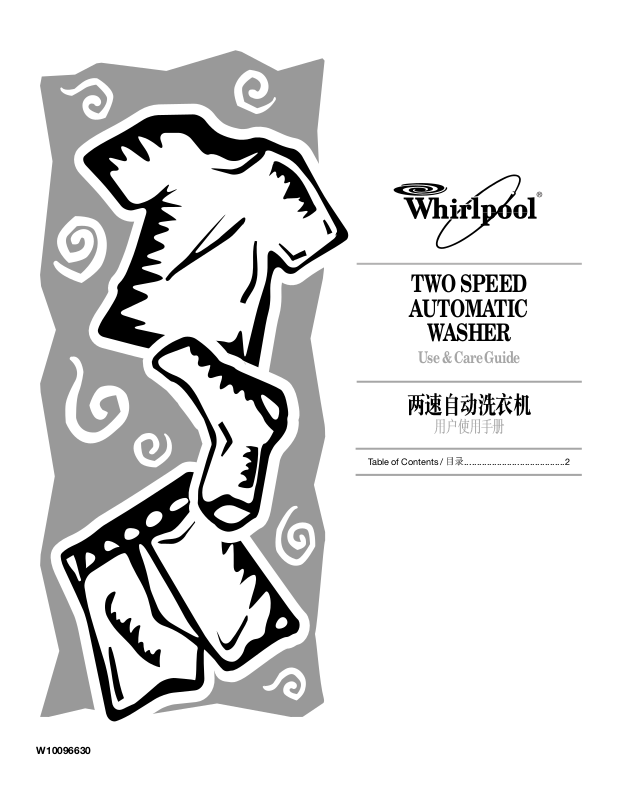

TWO SPEED

AUTOMATIC

WASHER

Use & Care Guide

Table of Contents /

........................................2

W10096630

Page 2

TABLE OF CONTENTS

WASHER SAFETY ..........................................................................3

PARTS AND FEATURES................................................................4

WASHER USE.................................................................................5

Understanding Washer Cycles ....................................................5

Loading......................................................................................... 5

Normal Sounds ............................................................................5

Starting Your Washer...................................................................6

Washer Symbols .......................................................................... 7

Selecting a Cycle and Time .........................................................8

Rinse and Spin ............................................................................. 8

Drain and Spin.............................................................................. 8

Adding Liquid Chlorine Bleach ....................................................8

Adding Liquid Fabric Softener ..................................................... 8

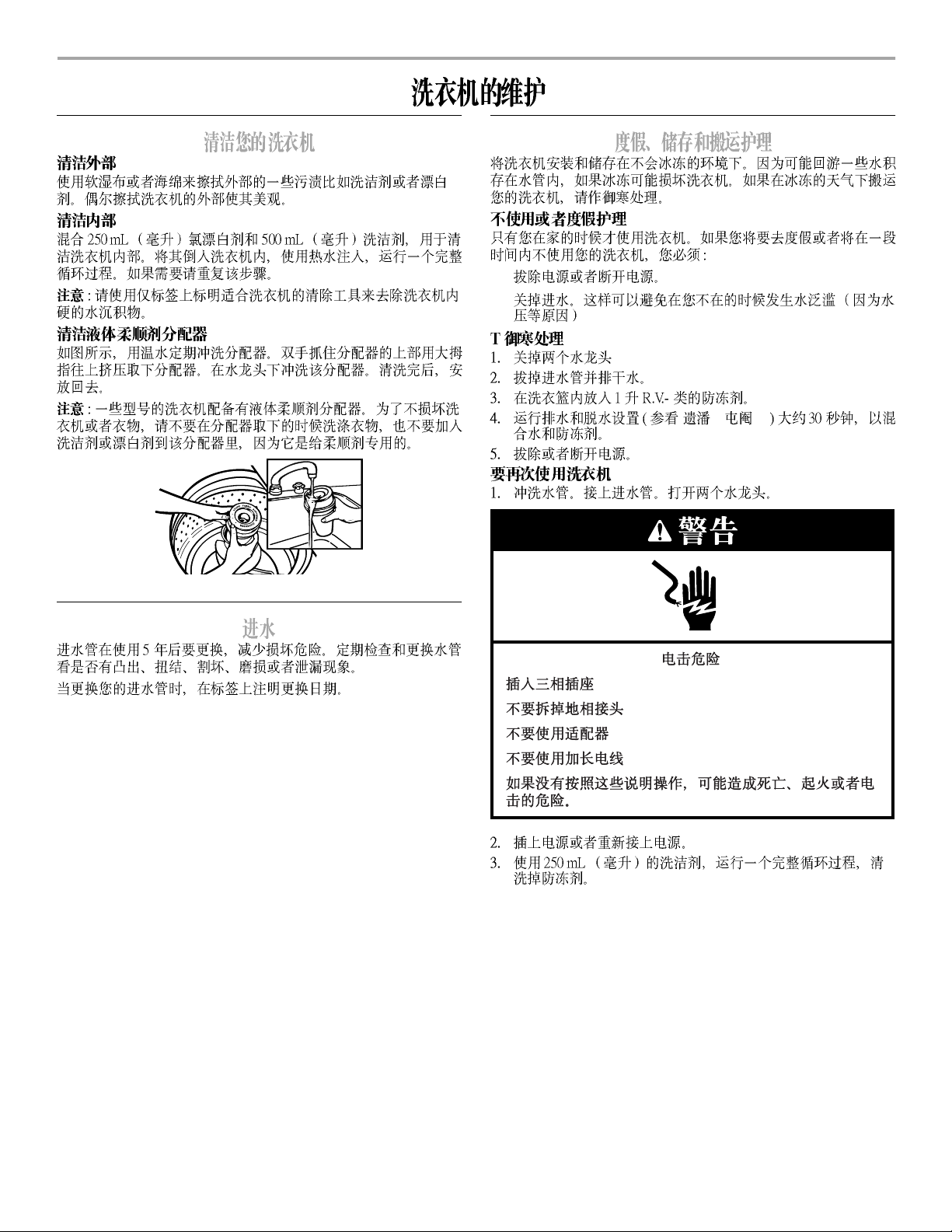

WASHER CARE ............................................................................. 9

Cleaning Your Washer .................................................................9

Water Inlet Hoses.........................................................................9

Vacation, Storage and Moving Care............................................ 9

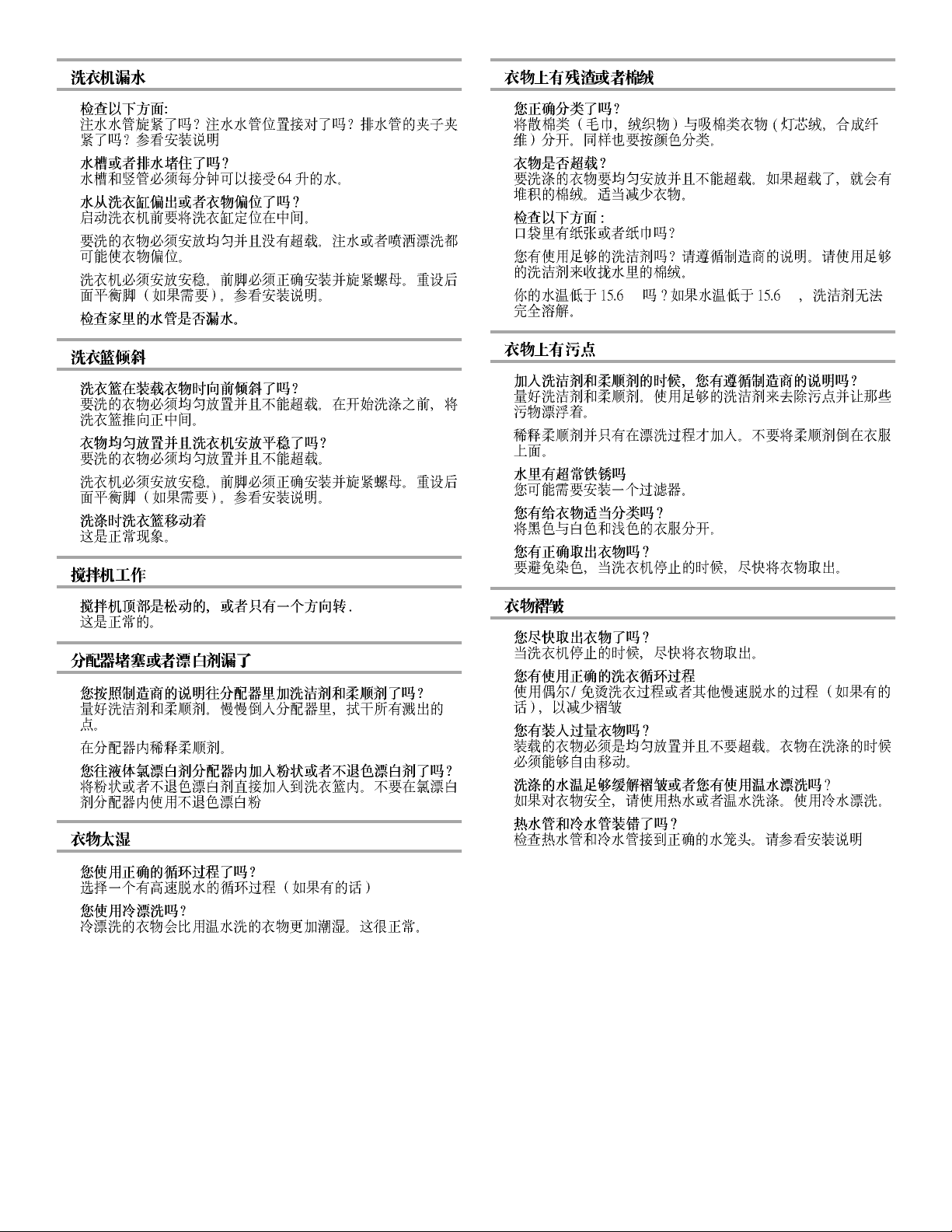

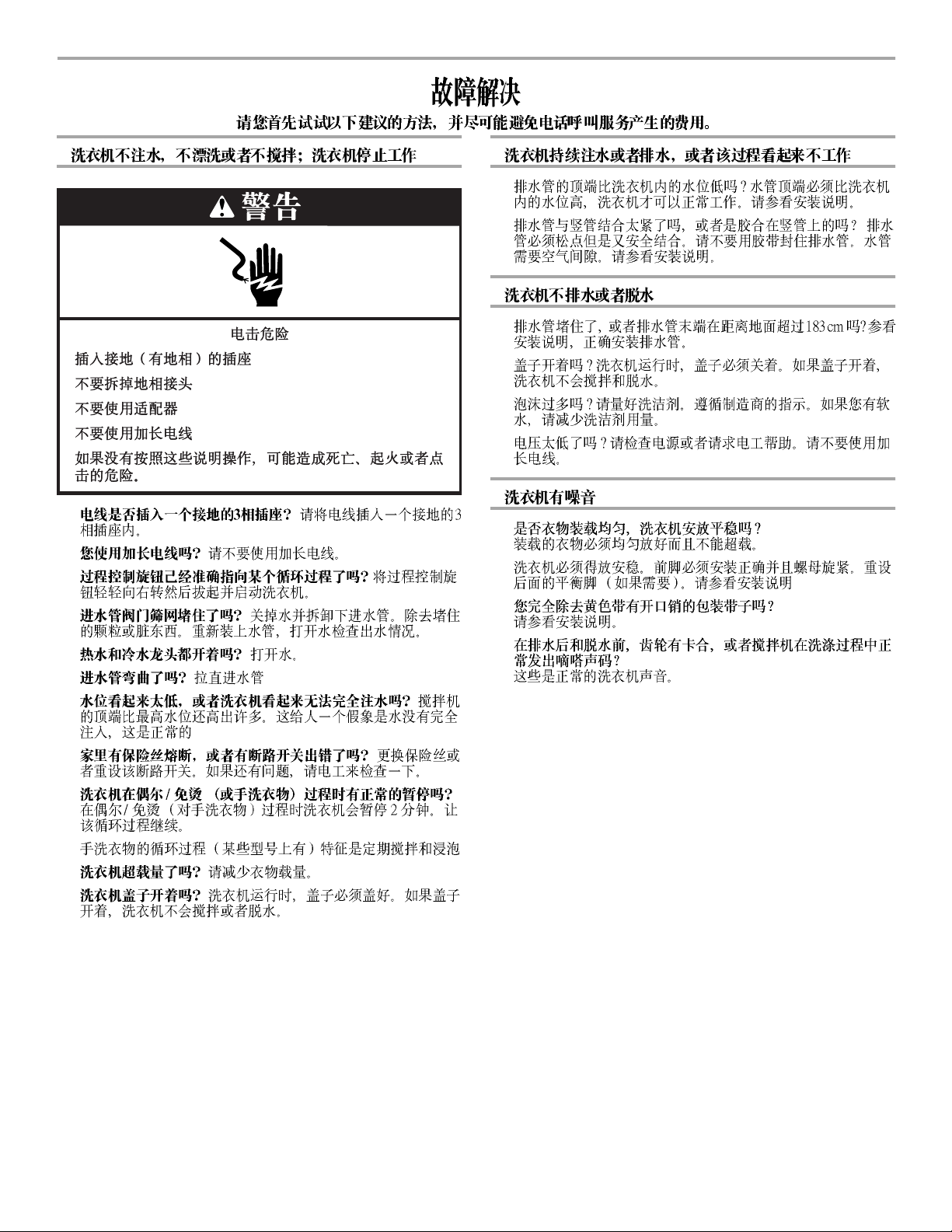

TROUBLESHOOTING ..................................................................10

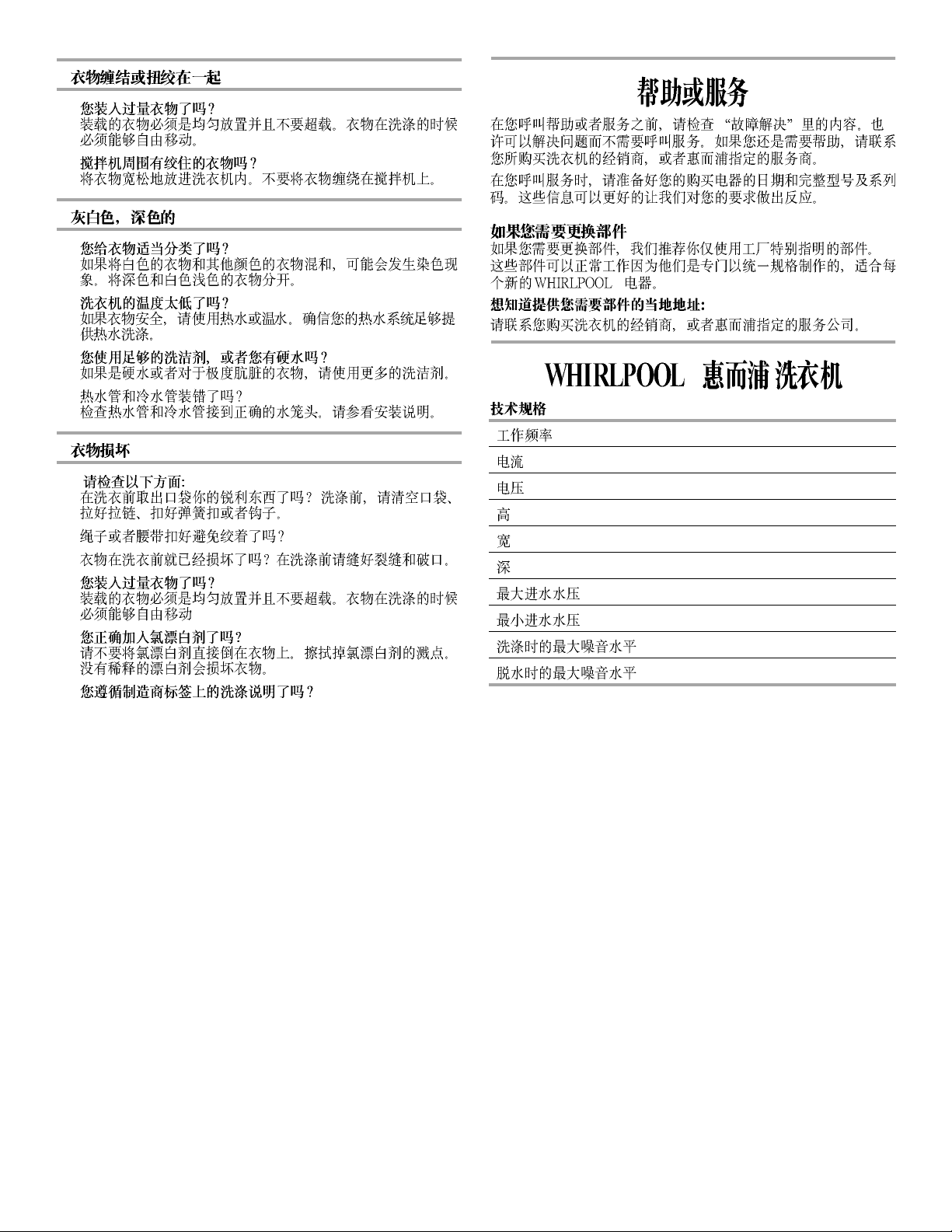

ASSISTANCE OR SERVICE.........................................................12

WHIRLPOOL

WASHER ...............................................................12

..............................................................................14

.....................................................................................15

.. ..............................................................................16

......................................................................16

.....................................................................................16

................................................................................. 16

..................................................................17

.................................................................................18

..................................................................19

.................................................................................19

................................................................................. 19

......................................................................19

.......................................................................... 19

................................................................................20

..........................................................................20

............................................................................................20

...............................................................20

.........................................................................................21

.....................................................................................23

WHIRLPOOL

WASHER

.................................23

Page 3

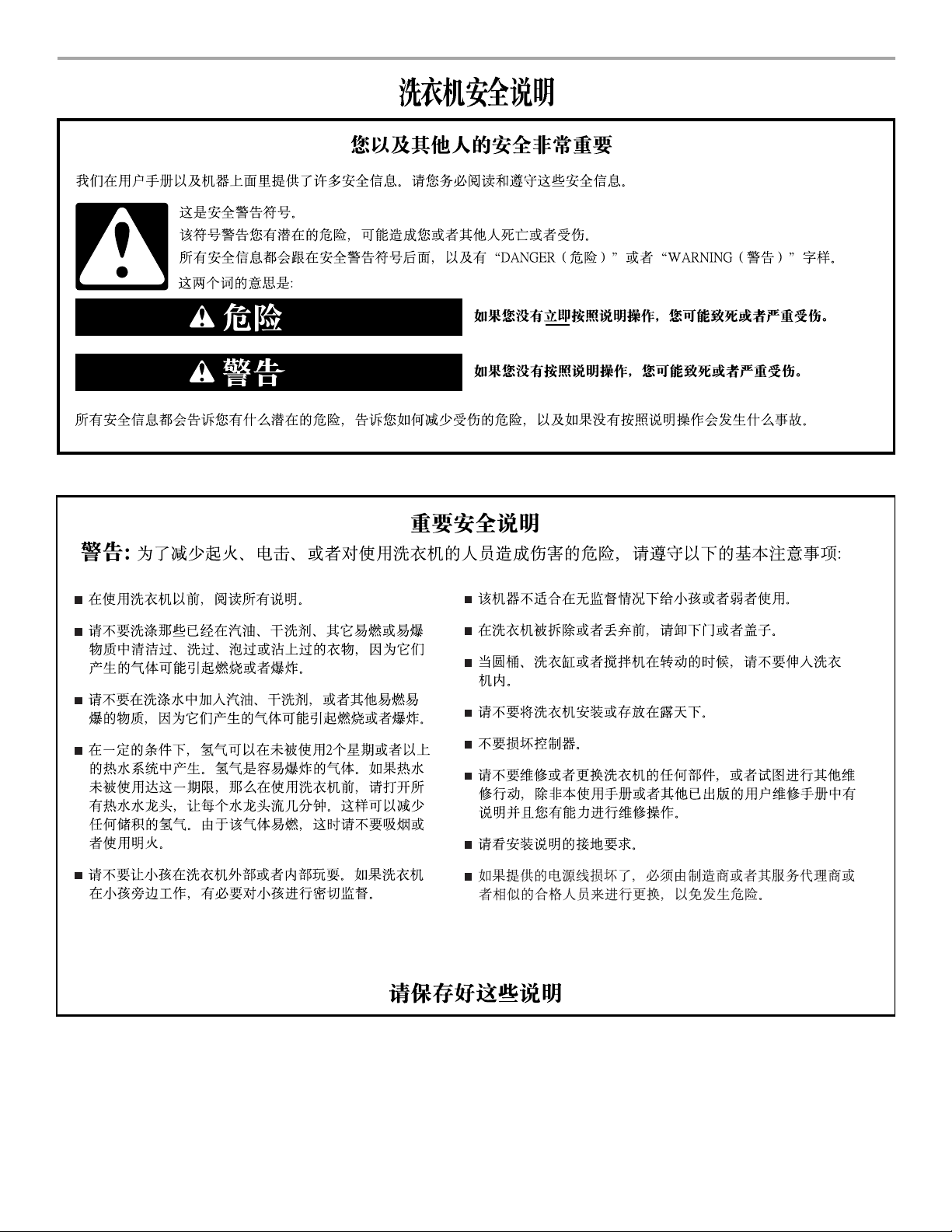

WASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

follow instructions.

can be killed or seriously injured if you don't

You instructions.

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions,

including the following:

■ Read all instructions before using the washer.

■ Do not wash articles that have been previously cleaned

in, washed in, soaked in, or spotted with petrol, drycleaning solvents, other flammable or explosive substances as they give off vapours that could ignite or explode.

■ Do not add petrol, dry-cleaning solvents, or other

flammable, or explosive substances to the wash water. These substances give off vapours that could ignite or explode.

■ Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washing machine, turn on all hot water taps and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

■ Do not allow children to play on or in the washer. Close

supervision of children is necessary when the washer is used near children.

■ The appliance is not intended for use by young children or

infirm persons without supervision.

■ Before the washer is removed from service or discarded,

remove the door or lid.

■ Do not reach into the washer if the drum, tub or agitator is

moving.

■ Do not install or store the washer where it will be exposed to

the weather.

■ Do not tamper with controls.

■ Do not repair or replace any part of the washer or attempt

any servicing unless specifically recommended in this Use and Care Guide or in published user-repair instructions that you understand and have the skills to carry out.

■ See Installation Instructions for earthing requirements.

■ If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

SAVE THESE INSTRUCTIONS

Page 4

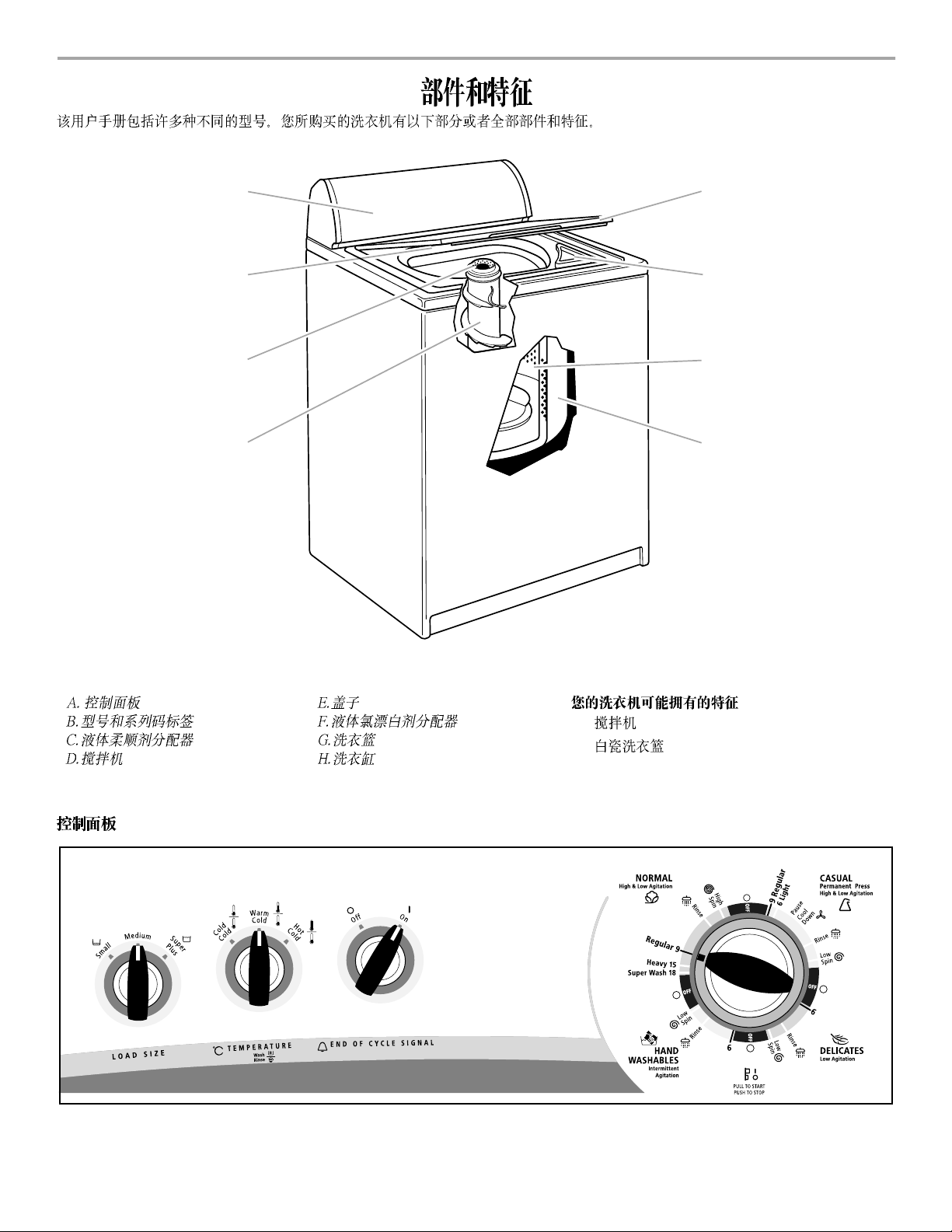

PARTS AND FEATURES

This manual covers several different models. The washer you have purchased may have some or all of the parts and features listed below.

A. Control panel B. Model and serial number label C. Liquid fabric softener dispenser D. Agitator

Control panel

E. Lid

F. Liquid chlorine bleach dispenser G. Basket H. Tub

Other features your washer may have

■

Agitator

White porcelain basket

■

Page 5

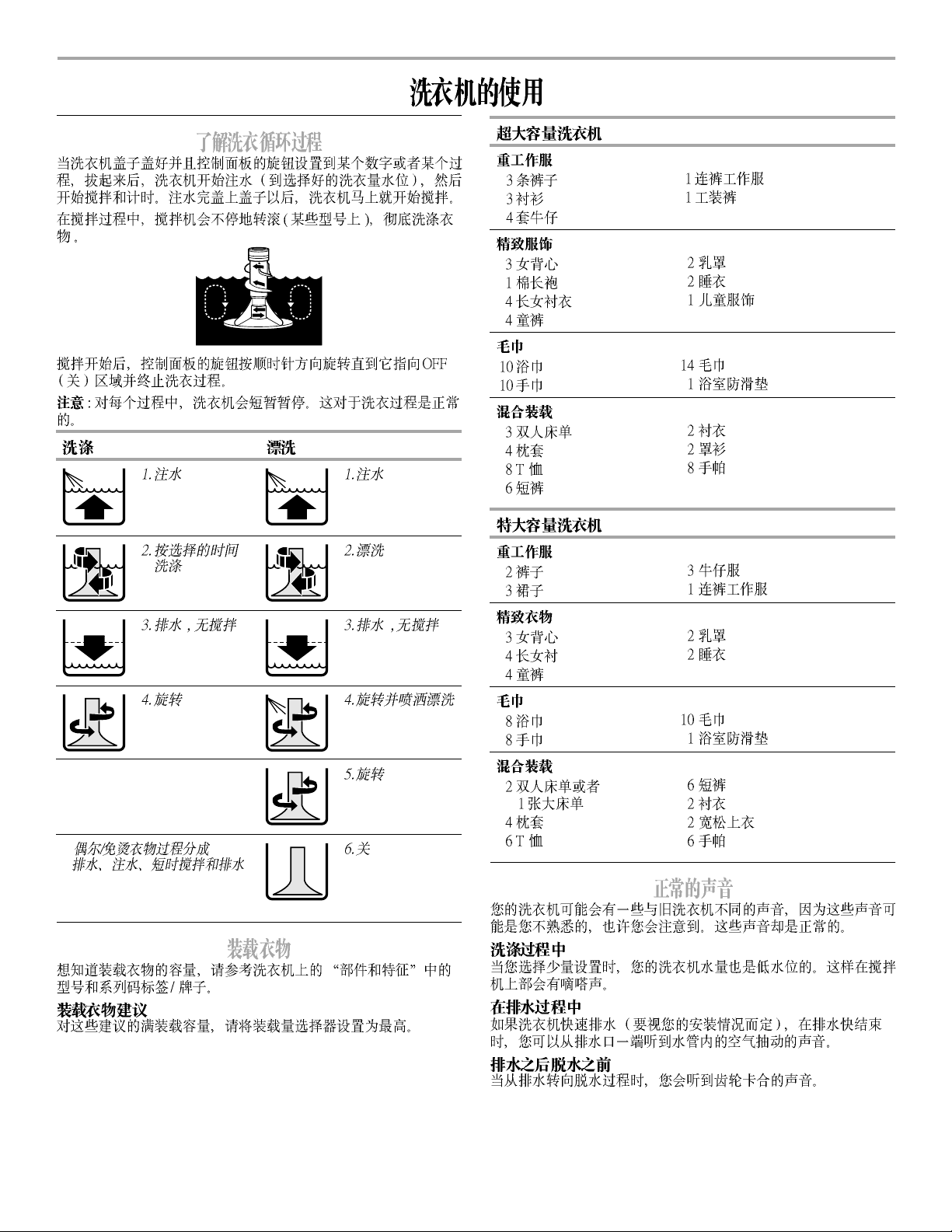

WASHER USE

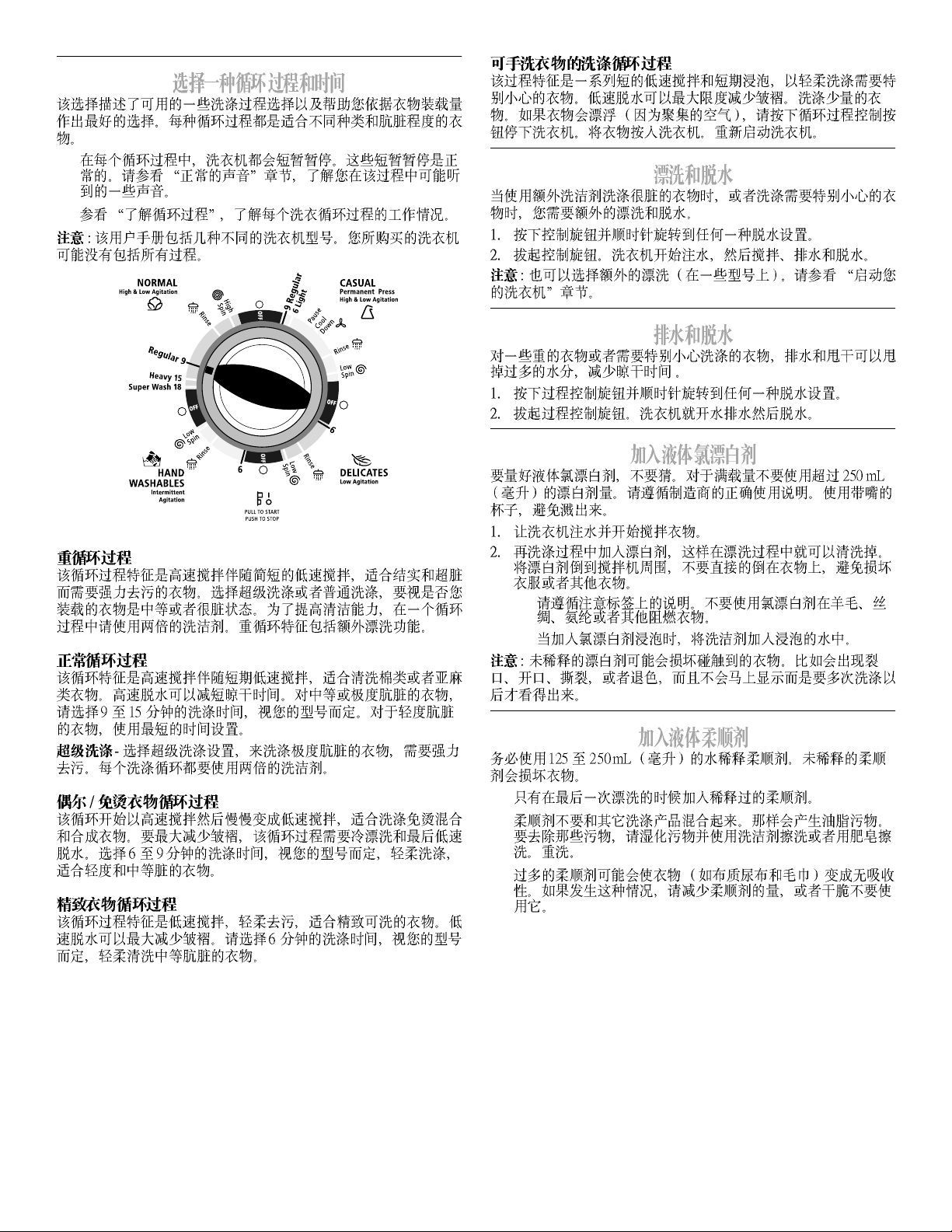

Understanding Washer Cycles

When the washer lid is closed and the Cycle Control knob is set to a number or cycle and pulled out, the washer ﬁlls (to the selected load size) before agitation and timing start. The washer begins agitating immediately after ﬁlling; agitation occurs with the washer lid down.

During agitation, the agitator creates a continuous rollover action (on some models) that provides a thorough cleaning of the wash load.

After agitation starts, the Cycle Control knob turns clockwise until it points to an OFF area and the cycle ends.

NOTE: The washer pauses brieﬂy throughout each cycle. These

pauses are normal for washer operation.

WASH RINSE

1. Fill 1. Fill

2. Wash selected time

†

3. Drain

No agitation

4. Spin 4. Spin-Spray rinse

2. Rinse

†

3. Drain No agitation

5. Spin

SUPER CAPACITY PLUS WASHERS

Heavy Work Clothes

3 pair pants 3 shirts 4 pair jeans

Delicates

3 camisoles 1 quilted robe 4 slips 4 panties

Towels

10 bath towels 10 hand towels

Mixed Load

3 double sheets 4 pillowcases 8 T-shirts 6 pair shorts

1 coverall 1 overall

2 bras 2 nighties 1 baby’s dress

14 washcloths

1 bath mat

2 shirts 2 blouses 8 handkerchiefs

EXTRA LARGE CAPACITY WASHERS

Heavy Work Clothes

2 pair pants 3 shirts

Delicates

3 camisoles 4 slips 4 panties

Towels

8 bath towels 8 hand towels

Mixed Load

2 double sheets or

1 king size sheet 4 pillowcases 6 T-shirts

3 pair jeans 1 coverall

2 bras 2 nighties

10 washcloths

1 bath mat

6 pair shorts 2 shirts 2 blouses 6 handkerchiefs

†

The Casual/Permanent Press cycle partially drains, ﬁlls, agitates brieﬂy, and drains.

6. Off

For rated load capacity, refer to the model and serial label/plate, located on your washer as shown in “Parts and Features.”

Loading suggestions

For these suggested full-sized loads, set the LOAD SIZE selector to the highest load size setting.

Normal Sounds

Your new washer may make sounds your old one didn’t. Because the sounds might be unfamiliar, you may be concerned about them. These sounds are normal.

During washing

When you select a small load size setting, your washer has a lower water level. This can cause a clicking sound from the upper part of the agitator.

During drain

If water is drained quickly from your washer (depending on your installation), you may hear air being pulled through the pump during the end of draining.

After drain and before spin

When the cycle changes from draining to spinning, you may hear gears engaging.

Page 6

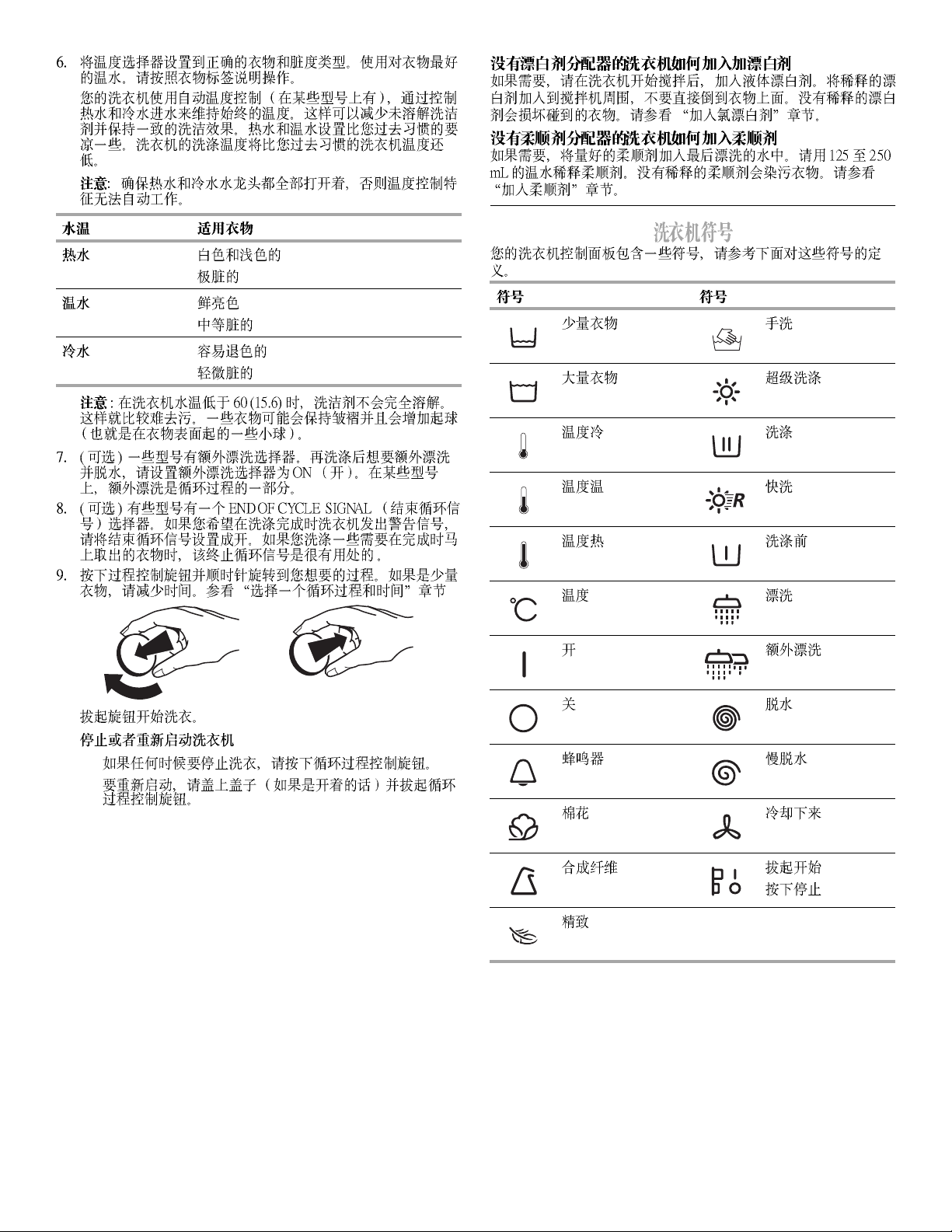

Starting Your Washer

WARNING

Fire Hazard

Never place items in the washer that are dampened with gasoline or other flammable fluids.

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on it (including cooking oils).

Doing so can result in death, explosion, or fire.

WARNING

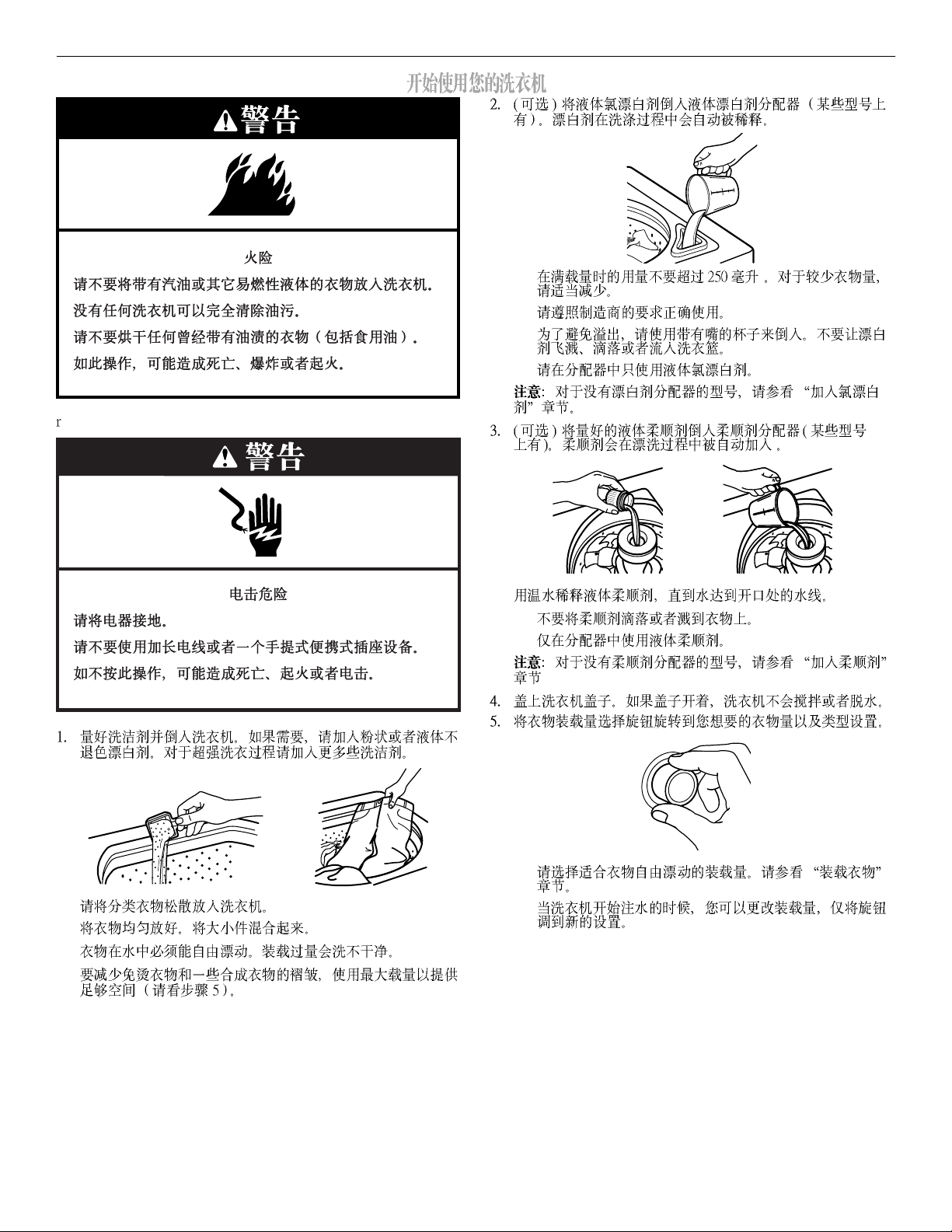

2. (OPTIONAL) Pour measured liquid chlorine bleach into the liquid chlorine bleach dispenser (on some models). Bleach will be diluted automatically during the wash part of the cycle.

■ Do not use more than 250 mL for a full load. Use less with

a smaller load size.

■ Follow the manufacturer’s directions for proper use.

■ To avoid spilling, use a cup with a pouring spout. Do not

let bleach splash, drip, or run down into the washer basket.

■ Use only liquid chlorine bleach in this dispenser.

NOTE: On models without a bleach dispenser, see “Adding Liquid Chlorine Bleach.”

3. (OPTIONAL) Pour measured liquid fabric softener into the liquid fabric softener dispenser (on some models). Softener is added automatically during the rinse portion of the cycle.

Electrical Shock Hazard

Electrically earth this appliance.

Do not use an extension cord or an electrical portable outlet device.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Measure detergent and pour it into the washer. If desired, add powdered or liquid color safe bleach. Add extra detergent for the Super Wash cycle.

Drop a sorted load of clothes loosely into your washer.

■ Load evenly to maintain washer balance. Mix large and small

items.

■ Items should move easily through the wash water.

Overloading can cause poor cleaning.

■ To reduce wrinkling of permanent press clothes and some

synthetic knits, use a large load size to provide more space (see Step 5).

Dilute liquid fabric softener by ﬁlling the dispenser with warm water until liquid reaches the crossbar in the opening.

■ Do not spill or drip any fabric softener on the clothes.

■ Use only liquid fabric softener in this dispenser.

NOTE: On models without a fabric softener dispenser, see “Adding Liquid Fabric Softener.”

4. Close the washer lid. Washer will not agitate or spin with the lid open.

5. Turn the LOAD SIZE selector to the correct setting for your wash load and the type of fabric being washed.

■ Choose a load size that allows the load to move freely for

best fabric care. See “Loading.”

■ You may change the load size selection after the washer

has started ﬁlling by turning the selector to a different setting.

Page 7

6. Set the TEMPERATURE selector to the correct setting for the type of fabric and soils being washed. Use the warmest water safe for fabric. Follow garment label instructions.

Your washer uses automatic temperature control (on some models) to maintain a uniform water temperature by regulating the incoming hot and cold water. This helps eliminate undissolved detergent and ensures consistent cleaning results. The Hot and Warm settings on this washer will be cooler than you are accustomed to. Wash temperatures in this washer are lower than the temperatures you may be used to in conventional washers.

NOTE: Make sure that both the hot and cold water taps are fully turned on, or the automatic temperature control feature will not work properly.

Water Temp Use For

Hot Whites and pastels

Heavy soils

Warm Bright colors

Moderate to light soils

Cold Colors that bleed or fade

Light soils

NOTE: In wash water temperatures colder than 60ºF (15.6ºC), detergents do not dissolve well. Soils can be difﬁcult to remove. Some fabrics can retain wear wrinkles and have increased pilling (the formation of small lint-like balls on the surface of garments).

7. (OPTIONAL) Some models have an EXTRA RINSE selector. For an additional rinse and spin at the end of a wash cycle, set the EXTRA RINSE selector to ON. On some models, the Extra Rinse feature is part of the cycle.

8. (OPTIONAL) Some models have an END OF CYCLE SIGNAL selector. Set the END OF CYCLE SIGNAL selector to ON if you want your washer to alert you when the wash cycle is complete. The signal is helpful when you are washing items that should be removed from the washer as soon as the cycle ends.

9. Push in the Cycle Control knob and turn it clockwise to the wash cycle you want. Reduce the wash time when using a small load size setting. See “Selecting a Cycle and Time.”

Adding bleach to models without a bleach dispenser

If desired, add measured liquid chlorine bleach after the washer starts agitating. Pour diluted bleach around the agitator, not directly onto the load. Undiluted bleach will damage any fabric it touches. See “Adding Liquid Chlorine Bleach.”

Adding softener to models without a fabric softener dispenser

If desired, add measured liquid fabric softener to the ﬁnal rinse water. Always dilute fabric softener with 125 to 250 mL of warm water. Undiluted fabric softener can stain fabrics. See “Adding Liquid Fabric Softener.”

Washer Symbols

The control panel of your washer contains symbols. Refer to the chart below for a deﬁnition of those symbols.

Symbols Symbols

Small Load Hand Washables

Large Load Super Wash

Cold Temperature

Warm Temperature

Hot Temperature

Temperature Rinse

On Extra Rinse

Off Spin

Wash

Quick Wash

Prewash

Pull out the Cycle Control knob to start the washer.

To stop or restart your washer

■ To stop the washer at any time, push in the Cycle Control

knob.

■ To restart the washer, close the lid (if open) and pull out

the Cycle Control knob.

Buzzer Slow Spin

Cotton Cool Down

Synthetics Pull Start

Push Stop

Delicates

Page 8

Selecting a Cycle and Time

This section describes the available wash cycles and will help you make the best cycle selections for your wash loads. Each cycle is designed for different types of fabric and soil levels.

■ The washer pauses brieﬂy throughout each cycle. These

pauses are normal. Refer to “Normal Sounds” to learn more about the sounds you may hear during a wash cycle.

■ Refer to “Understanding Cycles” to learn what happens

during a wash cycle.

NOTE: This manual covers several different washer models. The washer you have purchased will not have all of the cycles described.

Hand Washables cycle

This cycle features a series of brief, low-speed agitations and short soaks to gently clean special-care items. Low spin speeds minimize wrinkling. Wash small loads. If items appear to be ﬂoating (due to trapped air), stop the washer by pushing in the Cycle Control knob. Push items down into the washer. Restart the washer.

Rinse and Spin

When using extra detergent for heavily soiled clothes, or washing special-care items, you may ﬁnd an extra rinse and spin are needed.

1. Push in the Cycle Control knob and turn it clockwise to any of the Rinse settings.

2. Pull out the Cycle Control knob. The washer ﬁlls to the selected load size, agitates, drains, and spins.

NOTE: An Extra Rinse option is available (on some models). See “Starting Your Washer.”

Drain and Spin

A drain and spin may help shorten drying times for some heavy fabrics or special-care items by removing excess water.

1. Push in the Cycle Control knob and turn it clockwise to any of the Spin settings.

2. Pull out the Cycle Control knob. The washer drains, then spins.

Heavy cycle

This cycle features high-speed agitation followed by brief periods of low-speed agitation for cleaning sturdy fabrics and heavily soiled loads that need maximum soil removal. Select Super Wash or Regular depending on whether your load is moderately or heavily soiled. For improved cleaning, use twice the amount of detergent recommended for a wash cycle. The Heavy cycle features Extra Rinse as part of the cycle.

Normal cycle

This cycle features high-speed agitation followed by a brief period of low-speed agitation for cleaning cottons and linens. High spin speeds shorten drying time. Select 9 to 15 minutes of wash time, depending on your model, for loads that are moderately or heavily soiled. For lightly soiled loads, use the shortest time setting.

Super Wash - Select the Super Wash setting to wash heavily soiled loads that need maximum soil removal. Use twice the amount of detergent recommended for a wash cycle.

Casual/Permanent Press cycle

This cycle starts with high-speed agitation and then steps down to low-speed agitation for cleaning permanent press blends and synthetic fabrics. To minimize wrinkling, this cycle features a cool-down rinse and a low-speed ﬁnal spin. Select 6 to 9 minutes of wash time, depending on your model, to clean lightly to moderately soiled loads.

Delicates cycle

This cycle features low-speed agitation for gentle soil removal from delicate items and washable knits. Low spin speeds minimize wrinkling. Select 6 minutes of wash time, depending on your model, to clean lightly to moderately soiled loads.

Adding Liquid Chlorine Bleach

Always measure liquid chlorine bleach. Do not guess. Do not use more than 250 mL for a full load. Follow manufacturer’s directions for proper use. Use a cup with a pouring spout to avoid spilling.

1. Let the washer ﬁll and begin agitating the load.

2. Add bleach to the wash cycle so it can be removed in the

rinse cycle. Pour bleach around the agitator, not directly onto the load to avoid damaging clothing or other items in the load.

■ Follow directions on the care labels. Do not use chlorine

bleach on wool, silk, spandex, acetates, or some ﬂameretardant fabrics.

■ When soaking with chlorine bleach, add detergent to

soak water.

NOTE: Undiluted bleach will damage any fabric it touches. The damage appears as rips, holes, tears, or color loss and may not show up until several washings later.

Adding Liquid Fabric Softener

Always dilute fabric softener with 125 to 250 mL warm water. Undiluted fabric softener can stain fabrics.

■ Add diluted fabric softener only in the ﬁnal rinse.

■ Fabric softener should not be mixed with other laundry

products. Greasy stains can form. To remove greasy stains, wet the stain and rub with liquid detergent or a bar of soap. Rewash.

■ Too much fabric softener can make some items (cloth diapers

and towels) nonabsorbent. If this happens, use less fabric softener, or do not use it every time.

Page 9

WASHER CARE

Cleaning Your Washer

Cleaning the exterior

Use a soft, damp cloth or sponge to wipe up any spills such as detergent or bleach. Occasionally wipe the outside of your washer to keep it looking new.

Cleaning the interior

Clean your washer interior by mixing 250 mL of chlorine bleach and 500 mL of detergent. Pour this into your washer and run it through a complete cycle using hot water. Repeat this process if necessary.

NOTE: Remove any hard water deposits using only cleaners labeled for washer use.

Cleaning the liquid fabric softener dispenser

Flush dispenser periodically with warm water, as shown. Remove the dispenser by grasping the top of the dispenser with both hands and squeezing and pushing upward with thumbs. Clean the dispenser by rinsing it under a water faucet. Replace it after cleaning.

NOTE: Some models are equipped with a liquid fabric softener dispenser. To avoid damage to the washer or clothing, do not wash clothes with the liquid fabric softener dispenser removed or add detergent or bleach to this dispenser; it is for liquid fabric softener only.

Vacation, Storage and Moving Care

Install and store your washer where it will not freeze. Because some water may stay in the hoses, freezing can damage your washer. If storing or moving your washer during freezing weather, winterize it.

Non-use or vacation care

Operate your washer only when you are at home. If you will be on vacation or not using your washer for an extended period of time, you should:

■ Unplug washer or disconnect power.

■ Turn off the water supply to the washer. This helps avoid

accidental ﬂooding (due to a water pressure surge) while you are away.

To winterize washer

1. Shut off both water faucets.

2. Disconnect and drain water inlet hoses.

3. Put 1 L of R.V.-type antifreeze in the basket.

4. Run washer on a drain and spin setting (see “Drain and Spin”)

for about 30 seconds to mix the antifreeze and water.

5. Unplug washer or disconnect power.

To use washer again

1. Flush water pipes and hoses. Reconnect water inlet hoses.

Turn on both water faucets.

WARNING

Water Inlet Hoses

Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear or leaks are found.

When replacing your inlet hoses, mark the date of replacement on the label with a permanent marker.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

2. Plug in washer or reconnect power.

3. Run the washer through a complete cycle with 250 mL of

detergent to clean out antifreeze.

Page 10

TROUBLESHOOTING

First try the solutions suggested here and possibly avoid the cost of a service call...

Washer won’t ﬁll, rinse or agitate; washer stops

WARNING

Electrical Shock Hazard

Plug into a grounded (earthed) outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

■ Is the power cord plugged into an earthed 3 prong outlet?

Plug power cord into an earthed 3 prong outlet.

■ Are you using an extension cord? Do not use an extension

cord.

■ Is the indicator on the Cycle Control knob properly lined

up with a cycle? Turn the Cycle Control knob to the right slightly and pull to start.

■ Are the water inlet valve screens clogged? Turn off the

water and remove inlet hoses from the washer. Remove any accumulated ﬁlm or particles. Reinstall hoses, turn on water and check for leaks.

■ Are both the hot and cold water faucets turned on? Tur n

on the water.

■ Is the water inlet hose kinked? Straighten the hoses.

■ Does the water level seem too low, or does the washer

appear to not ﬁll completely? The top of the agitator is much higher than the highest water level. This creates a perception that the washer is not ﬁlling completely. This is normal.

■ Has a household fuse blown, or has a circuit breaker

tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.

■ Is the washer in a normal pause in the Casual/Permanent

Press (or Hand Washables) cycle?

The washer pauses for about 2 minutes in the Casual/ Permanent Press cycle. Allow the cycle to continue.

The Hand Washables cycle (on some models) features periods of agitation and soak.

■ Is the washer overloaded? Wash smaller loads.

■ Is the lid open? The lid must be closed during operation.

Washer will not agitate or spin with the lid open.

Washer continues to ﬁll or drain, or the cycle seems stuck

■ Is the top of drain hose lower than the water level in

washer? The top of the hose must be higher than the water level in the washer for proper operation. See the Installation Instructions.

■ Does the drain hose ﬁt too tightly in the standpipe, or is it

taped to the standpipe? The drain hose should be loose yet ﬁt securely. Do not seal the drain hose with tape. The hose needs an air gap. See the Installation Instructions.

Washer won’t drain or spin

■ Is the drain hose clogged, or the end of the drain hose

more than 183 cm above the ﬂoor?

See the Installation Instructions for proper installation of drain hose.

■ Is the lid open?

The lid must be closed during operation. Washer will not agitate or spin with the lid open.

■ Is there excessive sudsing?

Always measure detergent. Follow manufacturer’s directions. If you have very soft water, you might need to use less detergent.

■ Is your voltage low?

Check your electrical source or call an electrician. Do not use an extension cord.

Washer makes noise

■ Is the load balanced, and is the washer level?

The wash load should be balanced and not overloaded.

The washer must be level. The front feet should be properly installed and the nuts tightened. Reset the rear leveling legs (if needed). See the Installation Instructions.

■ Did you completely remove the yellow shipping strap with

cotter pins?

See the Installation Instructions.

■ Are the gears engaging after the drain and before spin, or

is the upper part of agitator clicking during wash?

These are normal washer noises.

Page 11

Washer leaks

Residue or lint on load

■ Check the following:

Are the ﬁll hoses tight? Are the ﬁll hose washers properly seated? Is the drain hose clamp properly installed? See the Installation Instructions.

■ Is the sink or drain clogged?

Sink and standpipe must be able to handle 64 L of water per minute.

■ Is water deﬂecting off the tub ring or the load?

Center the tub before starting the washer.

The wash load should be balanced and not overloaded. The ﬁll or spray rinses can deﬂect off the load.

The washer must be level. The front feet should be properly installed and the nuts tightened. Reset the rear leveling legs (if needed). See the Installation Instructions.

■ Check household plumbing for leaks.

Washer basket is crooked

■ Was the washer basket pulled forward during loading?

The wash load should be balanced and not overloaded. Push the basket to the center before starting wash.

■ Is the load balanced, and is the washer level?

The wash load should be balanced and not overloaded.

The washer must be level. The front feet should be properly installed and the nuts tightened. Reset the rear leveling legs (if needed). See the Installation Instructions.

■ The washer basket moves while washing.

This is normal.

Agitator operation

■ The top of the agitator is loose, or moves in only one

direction.

This is normal.

Dispensers clogged or bleach leaking

■ Did you follow the manufacturer’s directions when adding

detergent and fabric softener to the dispensers? Measure detergent and fabric softener. Slowly pour into the dispensers. Wipe up all spills.

Dilute fabric softener in the fabric softener dispenser.

■ Did you put powdered or color-safe bleach into the liquid

chlorine bleach dispenser?

Add powdered or liquid color-safe bleach directly to the basket. Do not use the chlorine bleach dispenser for colorsafe bleach.

■ Did you sort properly?

Sort lint givers (towels, chenille) from lint takers (corduroy, synthetics). Also sort by color.

■ Did you overload the washer?

The wash load must be balanced and not overloaded. Lint can be trapped in the load if overloaded. Wash smaller loads.

■ Check the following:

Was paper or tissue left in the pockets?

Did you use enough detergent? Follow manufacturer’s directions. Use enough detergent to hold the lint in the water.

Is your water colder than 15.6˚C? Wash water colder than

15.6˚C may not completely dissolve the detergent.

Stains on load

■ Did you follow the manufacturer’s directions when adding

detergent and fabric softener?

Measure detergent and fabric softener. Use enough detergent to remove soil and hold it in suspension.

Dilute fabric softener and add to the rinse portion of a cycle only. Do not drip fabric softener onto clothes.

■ Is there above average iron (rust) in water?

You may need to install an iron ﬁlter.

■ Did you properly sort the load?

Sort dark clothes from whites and lights.

■ Did you unload the washer promptly?

To avoid dye transfer, unload the washer as soon as it stops.

Load is wrinkled

■ Did you unload the washer promptly?

Unload the washer as soon as it stops.

■ Did you use the right cycle for the load being washed?

Use the Casual/Permanent Press cycle or another cycle with low spin speeds (if available) to reduce wrinkling.

■ Did you overload the washer?

The wash load must be balanced and not overloaded. Loads should move freely during washing.

■ Was the wash water warm enough to relax wrinkles, or

are you using warm rinses?

Use hot or warm washes if safe for the load. Use cold rinse water.

■ Are the hot and cold water hoses reversed?

Check that the hot and cold water hoses are connected to the right faucets. See the Installation Instructions.

Load too wet

■ Did you use the right cycle for the load being washed?

Select a cycle with a higher spin speed (if available).

■ Did you use a cold rinse?

Cold rinses leave loads wetter than warm rinses. This is normal.

Page 12

Load is tangled or twisted

■ Did you overload the washer?

The wash load must be balanced and not overloaded. Loads should move freely during washing.

■ Did you wrap items around the agitator?

Drop items loosely into the washer. Do not wrap items around the agitator.

Gray whites, dingy colors

■ Did you properly sort the load?

Dye transfer can occur when mixing whites and colors in a load. Sort dark clothes from whites and lights.

■ Was the wash temperature too low?

Use hot or warm washes if safe for the load. Make sure your hot water system is adequate to provide a hot water wash.

■ Did you use enough detergent, or do you have hard

water?

Use more detergent for washing heavy soils in cold or hard water.

■ Are the hot and cold water hoses reversed?

Check that the hot and cold water hoses are connected to the right faucets. See the Installation Instructions.

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, contact the dealer from whom you purchased the washer, or a Whirlpool designated service company.

When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts

If you need to order replacement parts, we recommend that you only use factory speciﬁed parts. These parts will ﬁt right and work right because they are made with the same precision used to build every new WHIRLPOOL

To locate replacement parts in your area:

Contact the dealer from whom you purchased the washer, or a Whirlpool designated service company.

WHIRLPOOL

Technical Speciﬁcations

Frequency of Operation 50 Hz

appliance.

WASHER

Garment damage

■ Check the following:

Were sharp items removed from pockets before washing? Empty pockets, zip zippers, snap or hook fasteners before washing.

Were strings and sashes tied to avoid tangling?

Were items damaged before washing? Mend rips and broken threads in seams before washing.

■ Did you overload the washer?

The wash load must be balanced and not overloaded. Loads should move freely during washing.

■ Did you properly add chlorine bleach?

Do not pour chlorine bleach directly onto load. Wipe up bleach spills. Undiluted bleach will damage fabrics.

■ Did you follow the manufacturer’s care label instructions?

Amps 5.0 A

Volts 220 V~

Height 108 cm

Width 68 cm

Depth 65 cm

Maximum Water Inlet Pressure 690 kPa

Minimum Water Inlet Pressure 34.5 kPa

Maximum Working Noise Level During Wash Cycle

Maximum Working Noise Level During Spin Cycle

62 dBa

72 dBa
