Whirlpool KGI 2902/B, CFF 933, CKGIC 3258/2, CKGIC 2957/2, CR 317 SE User Manual

78962-gb.fm5 Page 12 Monday, November 8, 1999 6:50 PM

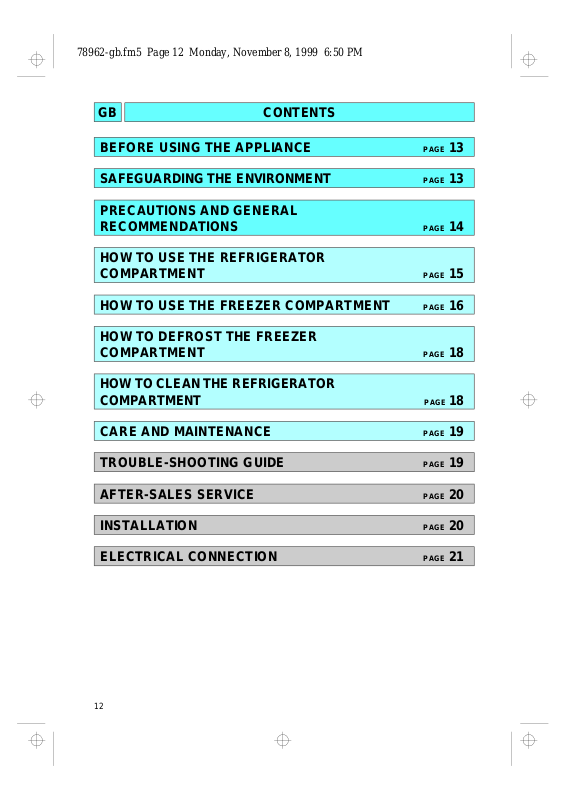

GB CONTENTS

BEFORE USING THE APPLIANCE PAGE 13

SAFEGUARDING THE ENVIRONMENT PAGE 13

PRECAUTIONS AND GENERAL
RECOMMENDATIONS

PAGE 14

HOW TO USE THE REFRIGERATOR
COMPARTMENT

PAGE 15

HOW TO USE THE FREEZER COMPARTMENT PAGE 16

HOW TO DEFROST THE FREEZER
COMPARTMENT

PAGE 18

HOW TO CLEAN THE REFRIGERATOR
COMPARTMENT

PAGE 18

CARE AND MAINTENANCE PAGE 19

TROUBLE-SHOOTING GUIDE PAGE 19

AFTER-SALES SERVICE PAGE 20

INSTALLATION PAGE 20

ELECTRICAL CONNECTION PAGE 21

12

78962-gb.fm5 Page 13 Monday, November 8, 1999 6:50 PM

BEFORE USING THE APPLIANCE

Your new appliance is a combined fridge freezer
exclusively for domestic use.

The freezer compartment can be
used to deep freeze fresh and cooked food,
make ice cubes, and for the storage of frozen
and deep-frozen food; defrosting the freezer is

a manual procedure. The refrigerator
compartment, which has an automatic defrost

feature, is used for the storage of fresh food and
beverages.

To get the most out of your new appliance,
read the user handbook thoroughly. The
handbook contains a description of the
appliance and useful tips for storing food.

SAFEGUARDING THE ENVIRONMENT

1. Packing

The packaging material is 100% recyclable
(marked with recycling symbol). Adhere to local
regulations when disposing of packaging
material.

The packaging material (plastic bags,
polystyrene parts, etc.) is potentially dangerous
and must be kept out of reach of children.

2. Product

The appliance is made from recyclable materials
and must be scrapped in accordance with local
waste disposal regulations.

Make the appliance unusable by cutting off the
power cord. The appliance must be consigned to
an authorised collection centre for the recovery
of refrigerant gas.

Keep this handbook for future consultation.

1. After unpacking the appliance, make sure

that the doors shut properly. Any damage
must be reported to your retailer within 24
hours after delivery of the appliance.

2. Wait at least two hours without moving
the appliance before connecting it to the
power supply.

3. Appliance installation and electrical

connections must be carried out by a
qualified technician in accordance with the
manufacturer’s instructions and local
regulations.

Information:

This appliance does not contain CFCs (replaced
with R134a) or HFCs (replaced with R600a ­Isobutane). For information, refer to the rating
plate affixed to the appliance.

13

78962-gb.fm5 Page 14 Monday, November 8, 1999 6:50 PM

PRECAUTIONS AND GENERAL RECOMMENDATIONS

• Use the refrigerator compartment only for

storing fresh food and beverages and use the
freezer compartment only for storing frozen
food, freezing fresh food and making ice
cubes.

• Do not cover or close the air vents.

• Do not store liquids in glass containers in the

freezer compartment - danger of bursting.

• Do not eat ice cubes or ice lollies immediately
after taking them out of the freezer
compartment - risk of “cold” burns.

• Do not allow children to play or hide inside
the appliance - risk of becoming entrapped
and suffocating.

• Do not ingest the contents (non-toxic) of the
ice packs.

• Before cleaning or servicing, always unplug
the appliance or switch the power supply off.

Declaration of conformity

• This appliance is intended to come into

contact with foodstuffs and conforms to D.L.
108 of 25.01.1992 (European Directive 89/
109/EEC).

This appliance is designed, built and sold in
compliance with:

• the safety provisions of the “Low Voltage”

Directive 73/23/EEC;

• the protection requirements of “EMC”
Directive 89/336/EEC, modified by Directive
93/68/EEC;

• complies with efficiency requirements of
Directive 96/57/EEC.

Information
Appliances with isobutane(R600a)

Isobutane is a naturally occurring low
environmental impact gas. Caution is required,
however, because Isobutane is inflammable.
Take care not to damage the pipelines of the
refrigerant circuit.

14
