INSTALLATION

BEFORE INSTALLING THE REFRIGERATOR

WATER CONNECTION

ELECTRICAL CONNECTION

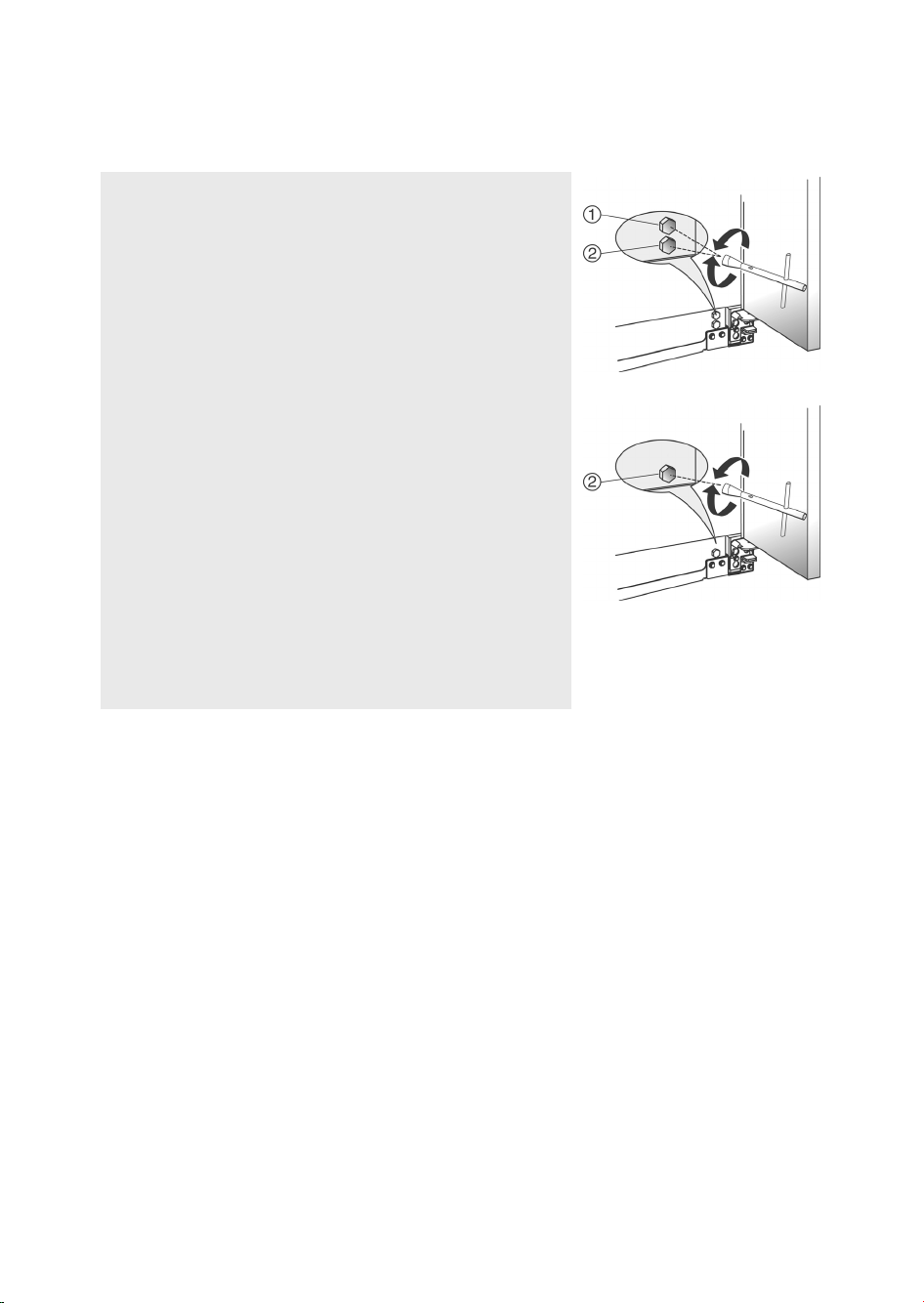

LEVELLING YOUR REFRIGERATOR

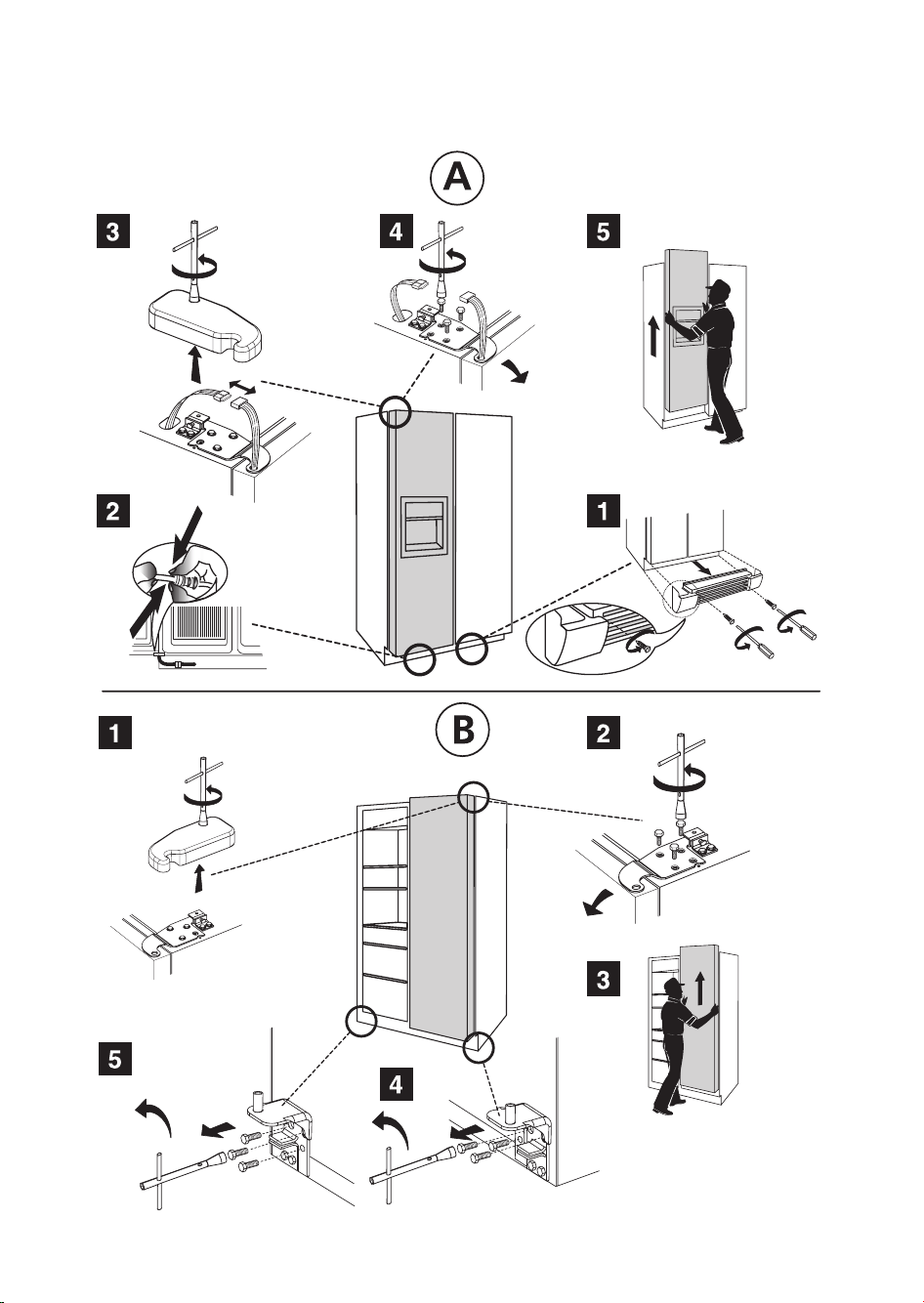

REMOVING THE FREEZER DOOR (A)

REMOVING THE REFRIGERATOR DOOR (B)

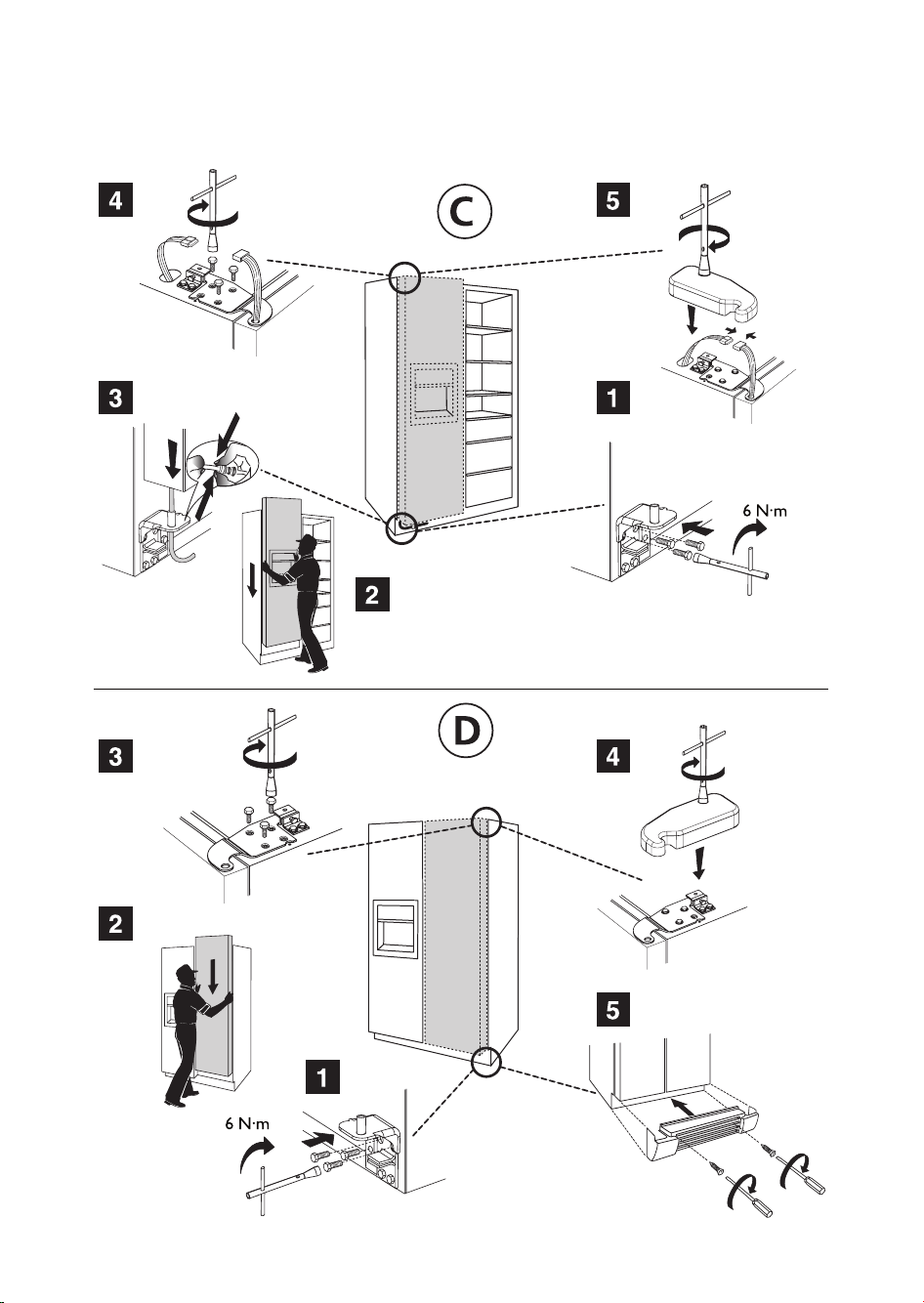

MOUNTING THE FREEZER DOOR (C)

MOUNTING THE REFRIGERATOR DOOR (D)

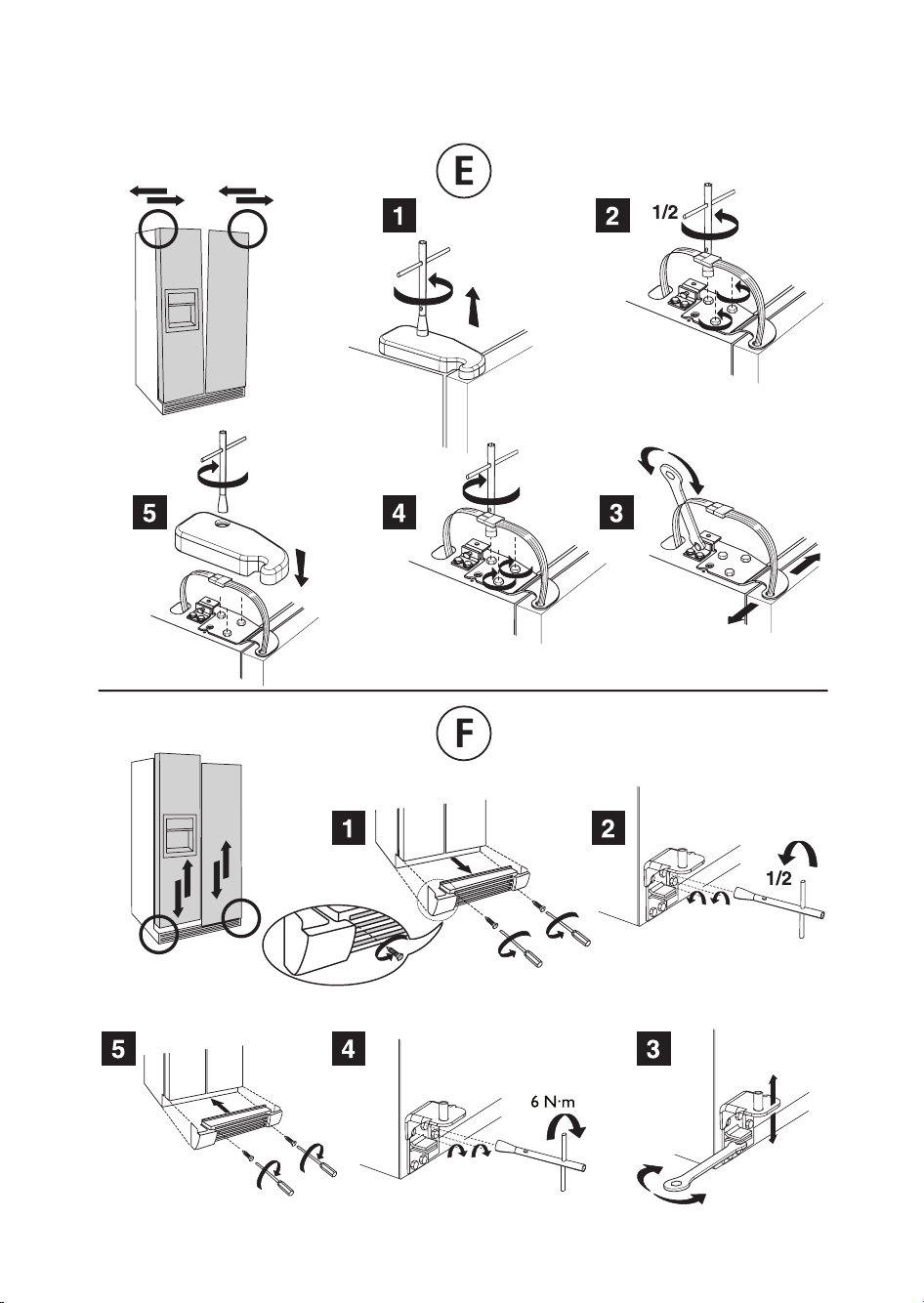

HORIZONTAL ALIGNMENT OF FREEZER
AND REFRIGERATOR DOORS (E)

VERTICAL ALIGNMENT OF FREEZER AND
REFRIGERATOR DOORS (F)

4

Disconnect the appliance from the mains power supply before
starting operations.

• The ice maker and water circuit must be connected to a water supply
of potable and/or chemically purified water.

• The water connection must be carried out in compliance with local
regulations.

• The appliance is supplied with a water tube, 2.330 m long, already
attached to the back of the product.

• Remove the shipping tape from the gray coiled water tubing on the
rear of the appliance.

• Connect the transition connector (1) to the household water supply
(2).

• Make sure that the water tube is not twisted.

• The appliance is pre-set for operation at pressures between 1.7 and

8.1 bar (25 and 117 PSI).

• Open the water tap. Check for and eliminate any leaks.

• The appliance does not require any adjustment or water drain.

WATER CONNECTION

Regulations require that the appliance is earthed. The manufacturer
declines all liability for injury to persons or animals and for damage to
property resulting from failure to observe the prescriptions.
Make sure that the installation and the electrical connection are carried
out by a qualified technician according to the manufacturer’s instructions
and local safety regulations.
If your new appliance is provided with a plug with no earth wire, connect
your green/yellow earth wire (A) to the earth screw located on the
appliance (B) (see figure).
Ensure that the voltage indicated on the appliance data plate corresponds
to the mains voltage.
The plug of the appliance must be easily accessible even after installation
so that the appliance can be unplugged if necessary. If this is not possible,
connect the appliance to the mains supply by means of a two-pole switch
with minimum break distance between contacts of 3 mm, fitted at an
easily accessible point.
If the power supply cable plug and socket are not of the same type,
replace the socket.
Do not use extension leads or adapters.
After installation, make sure that the appliance is not standing on the
power supply cable.
Disconnect the appliance from the power supply by unplugging it. Do not
pull the power supply cable.

ELECTRICAL CONNECTION

Your new appliance is a FULL NO FROST model
exclusively for domestic use, i.e. both refrigerator and
freezer compartments are provided with an
automatic defrosting function.
This manual contains indications and warnings for
correct and safe installation of the appliance - read it
carefully before starting installation operations.
The model you have purchased may differ slightly
with respect to some descriptions in this manual,
since this manual covers several models.
Keep this manual for future consultation. If you sell
the appliance give it to the new buyer.

Install the appliance in a dry and well-ventilated place.
Avoid locations in direct sunlight or near a source of
heat (oven, heating, etc.). If this cannot be avoided,
install the appliance respecting the following minimum
distances:

Coal or paraffin stoves: 30 cm

Electric and/or gas stoves: 3 cm
To allow product handling and sufficient air
circulation, leave at least 1 cm clearance at the sides,
above the appliance, and between the rear panel and
the wall.

BEFORE INSTALLING THE REFRIGERATOR
