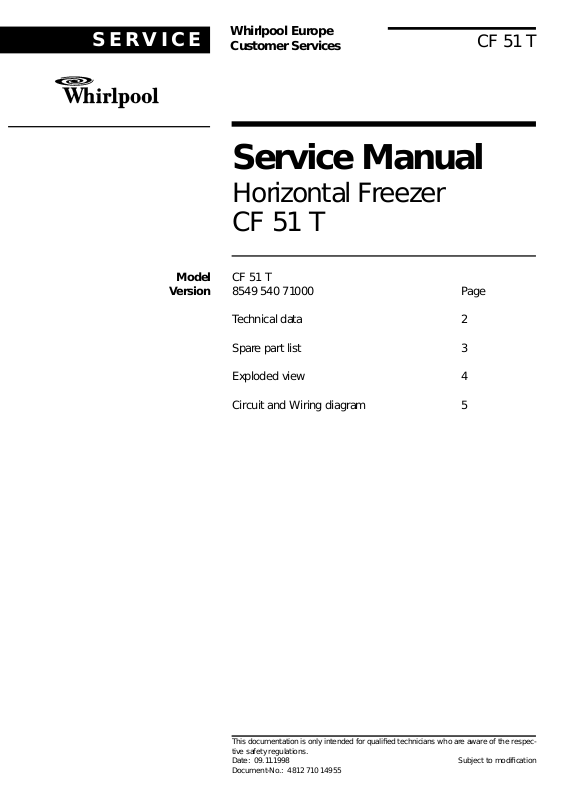

SERVICE
Model CF 51 T Version 8549 540 71000 Page
Whirlpool Europe Customer Services
Service Manual
Horizontal Freezer CF 51 T
CF 51 T
Technical data 2
Spare part list 3
Exploded view 4
Circuit and Wiring diagram 5
This documentation is only intended for qualified technicians who are aware of the respec­tive safety regulations. Date: 09.11.1998 Subject to modification Document-No.: 4812 710 14955
Page 2
09.11.1998 / Page 2 CF 51 T Whirlpool Europe Doc. No: 4812 710 14955 8549 540 71000 Customer Service
Technical data
Dimensions
Height 88.4 cm Width 134.5 cm Depth 64.2 cm
Capacity
gross 478 l
Electrical connection
Voltage 220 - 240 V Frequency 50 Hz
Compressor
SERVICE
Type B 1119 Z Capacity (CECOMAF) 96 W
Refrigerant
Type R 134 a Quantity 145 g
Thermostat switching value
Switch on temperature min. - 14 ˚C Switch on temperature max. - 23.5 ˚C Switch off temperature min. - 20 ˚C Switch off temperature max. - 29.5 ˚C
Page 3
<Datum-SNI> / Page 4 CF51T Whirlpool Europe Doc. No: <DokNr-SNI> 8549 540 71000 Customer Service
SERVICE
Spare part list
Model CF 51 T Service No. 854954071000 Version 854954071000
Pos. No. 12NC Code Description from to
012 0 4819 528 78036 Foot 040 0 4819 417 19585 Hinge 040 7 4819 462 58187 Cover,hinge 040 8 4819 462 58354 Cover,hinge 070 7 4819 458 58384 Grid,air
101 0 4819 442 69325 Door,freezer 111 0 4819 498 78464 Handle,door 111 1 4819 462 88135 Handle,cover 130 2 4819 417 38118 Lock 130 3 4819 401 18332 Hook
130 4 4819 532 58291 Washer 130 5 4819 462 58402 Cover ,lock 130 6 4819 404 79522 Support 191 4 4819 468 18197 Gasket 204 3 4819 442 78229 Separator
241 0 4819 458 68203 Basket 252 0 4819 464 18155 Casing 301 0 4819 459 48702 Control cover 321 0 4819 381 18108 Lens red 321 1 4819 381 18246 Lens green
335 0 4819 411 28789 Knob thermostat 350 0 4819 134 48513 Pilot lamp 402 0 4819 360 38615 Compressor NB1119Z 442 0 4819 361 78227 Propeller,motor 442 1 4819 404 79496 Bracket
443 0 4819 515 38001 Fan wheel 220 V 491 0 4819 462 79046 Lid f. connection block 561 0 4819 282 28594 Protect,motor 561 2 4819 290 68198 Connectionblock 566 2 4819 271 28766 Thermostat A 1082 R4523
614 0 4819 280 68047 Relay , PTC 740 0 4819 511 48651 Condenser 740 4 4819 404 49922 Bracket 764 0 4819 480 28144 Dryer 781 0 4819 462 88134 Panel f.drain
934 2 4819 492 68431 Spring
Page 4
09.11.1998 / Page 4 CF 51 T Whirlpool Europe Doc. No: 4812 710 14955 8549 540 71000 Customer Service
Exploded view
SERVICE
Page 5
SERVICE
Whirlpool Europe CF 51 T 09.11.1998 / Page 5 Customer Service 8549 540 71000 Doc. No: 4812 710 14955
Circuit and Wiring diagram
