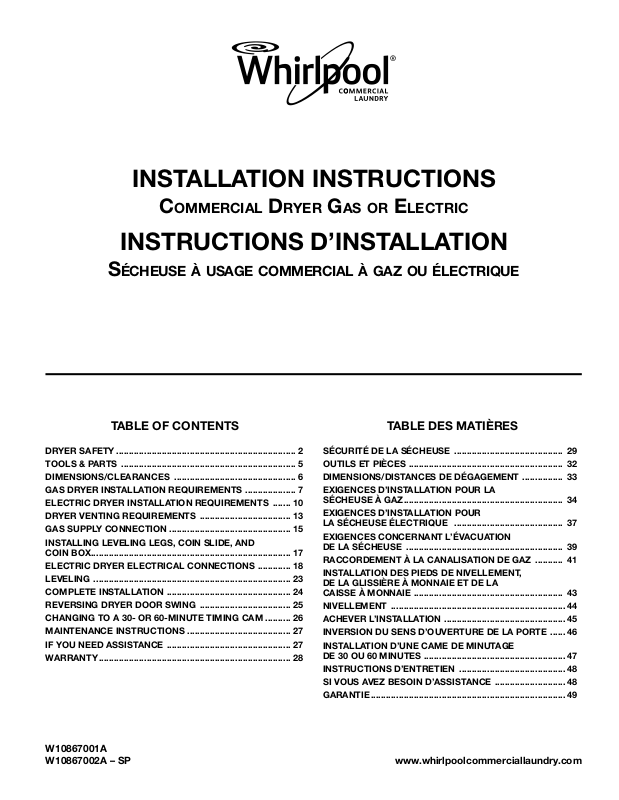

INSTALLATION INSTRUCTIONS

COmmeRCIAL DRyeR GAS OR eLeCTRIC

INSTRUCTIONS D’INSTALLATION

SéCheUSe à USAGe COmmeRCIAL à GAz OU éLeCTRIqUe

TABLE OF CONTENTS

DRYER SAFETY ....................................................................... 2

TOOLS & PARTS ..................................................................... 5

DIMENSIONS/CLEARANCES ................................................ 6

GAS DRYER INSTALLATION REQUIREMENTS .................... 7

ELECTRIC DRYER INSTALLATION REQUIREMENTS ....... 10

DRYER VENTING REQUIREMENTS .................................... 13

GAS SUPPLY CONNECTION ................................................ 15

INSTALLING LEVELING LEGS, COIN SLIDE, AND

COIN BOX ............................................................................... 17

ELECTRIC DRYER ELECTRICAL CONNECTIONS ............. 18

LEVELING .............................................................................. 23

COMPLETE INSTALLATION ................................................. 24

REVERSING DRYER DOOR SWING .................................... 25

CHANGING TO A 30- OR 60-MINUTE TIMING CAM .......... 26

MAINTENANCE INSTRUCTIONS ......................................... 27

IF YOU NEED ASSISTANCE ................................................. 27

WARRANTY ............................................................................ 28

TABLE DES MATIÈRES

SÉCURITÉ DE LA SÉCHEUSE ........................................... 29

OUTILS ET PIÈCES ............................................................. 32

DIMENSIONS/DISTANCES DE DÉGAGEMENT ................ 33

EXIGENCES D’INSTALLATION POUR LA

SÉCHEUSE À GAZ ............................................................... 34

EXIGENCES D’INSTALLATION POUR

LA SÉCHEUSE ÉLECTRIQUE ........................................... 37

EXIGENCES CONCERNANT L’ÉVACUATION

DE LA SÉCHEUSE .............................................................. 39

RACCORDEMENT À LA CANALISATION DE GAZ ........... 41

INSTALLATION DES PIEDS DE NIVELLEMENT, DE LA GLISSIÈRE À MONNAIE ET DE LA

CAISSE À MONNAIE ........................................................... 43

NIVELLEMENT ..................................................................... 44

ACHEVER L’INSTALLATION ................................................ 45

INVERSION DU SENS D’OUVERTURE DE LA PORTE ...... 46

INSTALLATION D’UNE CAME DE MINUTAGE

DE 30 OU 60 MINUTES ........................................................ 47

INSTRUCTIONS D’ENTRETIEN .......................................... 48

SI VOUS AVEZ BESOIN D’ASSISTANCE ............................ 48

GARANTIE ............................................................................. 49

W10867001A W10867002A – SP

www.whirlpoolcommerciallaundry.com

Page 2

DRYER SAFETY

■ It is recommended that the owner post, in a prominent location, instructions for the customer’s use in the event the customer

smells gas. This information should be obtained from your gas supplier.

■ Post the following warning in a prominent location.

Page 3

DRYER SAFETY

IMPORTANT: When discarding or storing your old clothes dryer, remove the door.

Page 4

DRYER SAFETY

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of re, electric shock, or injury to persons when using the dryer, follow basic

precautions, including the following:

■ Read all instructions before using the dryer.

■ This dryer is intended only for drying clothes and textiles

that have been washed in water. Do not use for any other purpose.

■ WARNING: If you smell gas, do not use the dryer or any

electrical equipment nearby. Warn other people to clear the area. Contact the dryer owner immediately.

■ Do not place items exposed to cooking oils in your dryer.

Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch re.

■ Do not dry articles that have been previously cleaned

in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other ammable, or explosive substances as they give off vapors that could ignite or explode.

■ Do not dry unwashed items in the dryer.

■ Do not allow children to play on or in the dryer. Close

supervision of children is necessary when the dryer is used near children.

■ Before the dryer is removed from service or discarded,

remove the door to the dryer compartment.

■ Do not reach into the dryer if the drum is moving.

■ Do not open door while dryer is in operation. It will stop.

■ Do not install or store the dryer where it will be exposed

to water and/or the weather.

■ Do not tamper with controls.

■ Clean dryer lint screen before or after each load.

■ Do not use this dryer without the lint screen in place.

■ Do not repair or replace any part of the dryer or attempt

any servicing unless specically recommended in this Installation Instructions or in published user-repair instructions that you understand and have the skills to carry out.

■ Do not use fabric softeners or products to eliminate static

unless recommended by the manufacturer of the fabric softener or product.

■ Do not use heat to dry articles containing foam rubber or

similarly textured rubber-like materials.

■ The nal part of a tumble dryer cycle occurs without

heat (cool-down cycle) to ensure that the articles are left at a temperature that ensures that the items will not be damaged.

■ WARNING: Never stop a tumble dryer before the end of

the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. (Avoids risk of spontaneous combustion).

■ Keep area around the exhaust opening and adjacent

surrounding areas free from the accumulation of lint, dust, and dirt.

■ The interior of the dryer and dryer exhaust vent should be

cleaned periodically by qualied service personnel.

■ See “Electrical Requirements” section for grounding

instructions.

SAVE THESE INSTRUCTIONS

Page 5

TOOLS & PARTS

Tools Needed:

8" (203 mm) 8" (203 mm) or 10" (254 mm) Flat-Blade Screwdriver Phillips Screwdriver or 10" (254 mm) Adjustable Wrench Pipe Wrench that opens to 1" (25 mm)

Torx®† T-20 Security 1" (25 mm) Hex-Head 5⁄16" (8 mm) Socket Wrench Pliers (that open to Screwdriver or Bit Socket Wrench 19/16" [39 mm])

Level Utility Knife 1/4" (6 mm) Nut Driver 27" (686 mm) Wood Block

Caulk Gun and Caulk Vent Clamps Pipe-Joint Compound Putty Knife (for installing new exhaust vent) Suitable for Gas Type

Flashlight (optional) 1" (25 mm) Ruler or Measuring Tape Open-End Wrenches

Parts Supplied:

Foot Boots (4) Leveling Legs (4) Security Cone

(on some models)

/16" Hex Head –

18 x 2½" Security Bolt

(on some models)

3-Pin 60-Minute Timing Cam

(on some models)

6-Pin 30-Minute Timing Cam

(on some models)

Service Door Lock Assembly

(on some models)

$0.75

252525

$1.00

25252525

$1.25

2525252525

$1.50

25 2525252525

$1.75

25 25 2525252525

$2.00

25 25 252525252525

Coin Slide Decal Kit

(on some models)

†® TORX and T25 are registered trademarks of Acument Intellectual Properties, LLC.

Page 6

DIMENSIONS/CLEARANCES

Dimensions

Side View Back View

291/4"

35"

(889 mm)

(25 mm)

(743 mm)

(660 mm)

/2"

(191 mm)

26"

/4"

(210 mm)

31/4"

(83 mm)

11/2"

(38 mm)

(140 mm)

/2"

(686 mm)

Electric

131/2"

(343 mm)

Gas

/2"

(343 mm)

27"

(273 mm)

4" dia

(102 mm)

103/4

(83 mm)

36"

(914 mm)

(electric models)

(953 mm)

(gas models)

31/4"

371/2"

41"

(1042 mm)

Clearances

Front View, Recessed Opening Side View, Recessed In Closet

14" max

(356 mm)

(0 mm)

15"

(381 mm)

(0 mm)

14" max

(356 mm)

(0 mm)

15"

(381 mm)

(25 mm)

Closet Door to

Front of Dryer

3"/3"

(76 mm)

3"/3"

(76 mm)

48"

/48"

(310 cm2)

24"

24" (155 cm2)

Page 7

GAS DRYER INSTALLATION REQUIREMENTS

(155 cm

Location Requirements

Your dryer can be installed in a basement, laundry room, or recessed area.

This dryer is not intended for installation in a mobile home. Companion appliance location requirements should also be

considered. IMPORTANT: Do not install or store the dryer where it will be

exposed to water and/or the weather. Proper installation is your responsibility.

You will need:

■ A grounded electrical outlet located within 6 ft. (1.8 m) of

where the power cord is attached to the back of the dryer. See “Electrical Requirements.”

■ A level oor with a maximum slope of 1" (25 mm) under

entire dryer. Installing the dryer on soft oor surfaces, such as carpets or surfaces with foam backing, is not recommended.

Gas dryer installation clearances

■ The location must be large enough to allow the dryer door to

be fully opened.

■ Additional spacing should be considered for ease of

installation and servicing. The door opens more than 180°.

■ Additional clearances might be required for wall, door, and

oor moldings.

■ Additional spacing of 1" (25 mm) on all sides of the dryer is

recommended to reduce noise transfer.

When installing a gas dryer: IMPORTANT: Observe all governing codes and ordinances.

■ Check code requirements: Some codes limit or do not

permit installation of clothes dryers in garages, closets, or sleeping quarters. Contact your local building inspector.

■ Make sure that lower edges of the cabinet, plus the back

and bottom sides of the dryer, are free of obstructions to permit adequate clearance of air openings for combustion air. See “Recessed Area and Closet Installation Instructions” below for minimum spacing requirements.

Recessed Area and Closet Installation Instructions

This dryer may be installed in a recessed area or closet. For recessed area and closet installations, minimum clearances can be found on the warning label on the rear of the dryer or in “Dimensions/Clearances.”

The installation spacing is in inches and is the minimum allowable. Additional spacing should be considered for ease of installation, servicing, and compliance with local codes and ordinances.

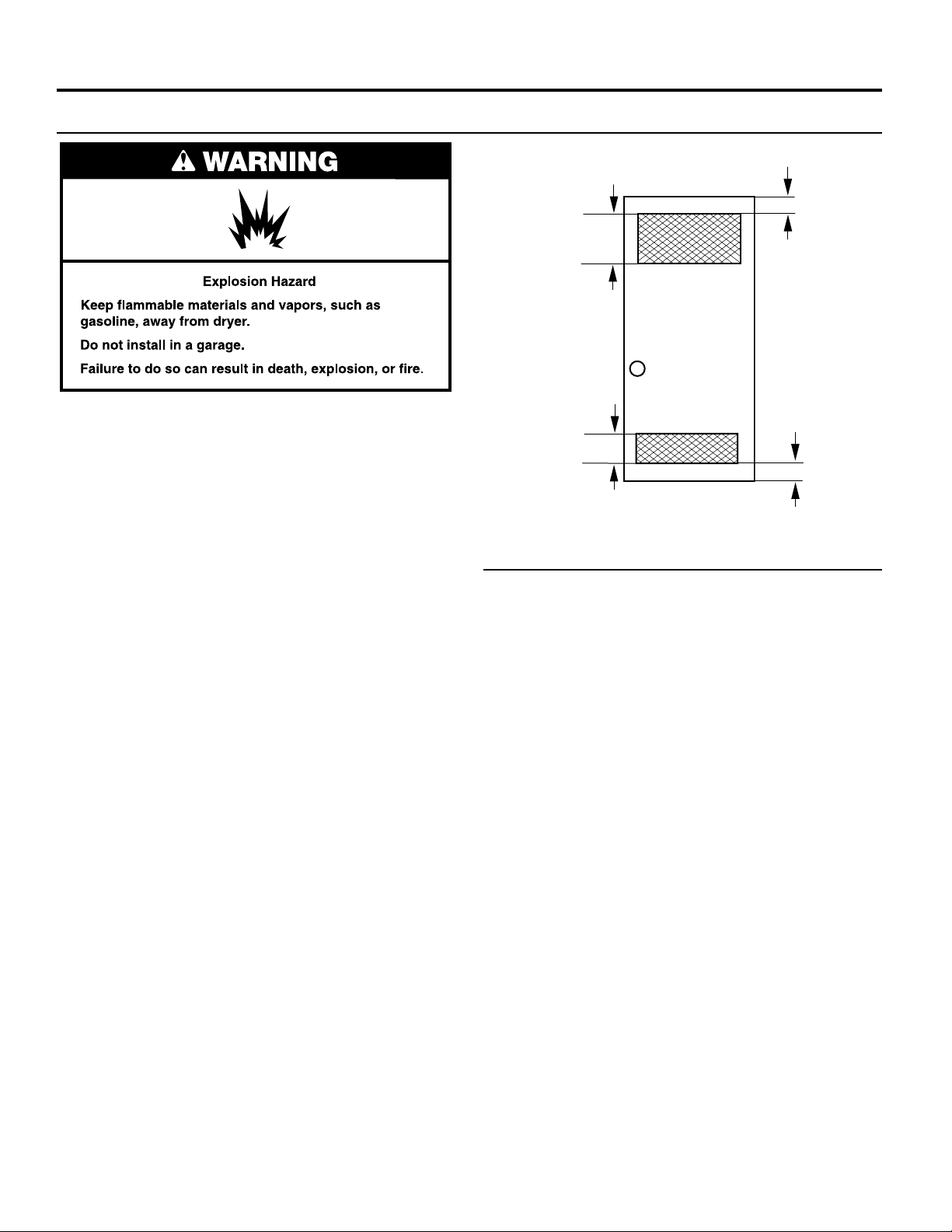

If closet door is installed, the minimum unobstructed air opening in the top and bottom is required. The unobstructed opening needs to be 1 square inch per 1,000 Btu (252 kcal) of gas burner output. Output on North American gas dryers is typically 22,000 Btu; however, Canadian dryers may have lower output. Louvered doors with equivalent air openings are acceptable.

The dryer must be exhausted outdoors. No other fuel-burning appliance may be installed in the same

closet as the dryer.

48 in.

(310 cm2)

Front

View

24 in.

Closet

Door

door

)

(76 mm)

Page 8

GAS DRYER INSTALLATION REQUIREMENTS

Electrical Requirements

Gas Dryer Grounding

GROUNDING INSTRUCTIONS

■

For a grounded, cord-connected dryer:

This dryer must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This dryer is equipped with a cord having an equipmentgrounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock. Check with a qualied electrician or service representative or personnel if you are in doubt as to whether the dryer is

IMPORTANT: The dryer must be electrically grounded in accordance with local codes and ordinances or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, latest edition, or Canadian Electrical Code, CSA C22.1. If codes permit and a separate ground wire is used, it is recommended that a qualied electrical installer determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park, Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, Ohio 44131-5575

■ Do not ground to a gas pipe.

■ Do not have a fuse in the neutral or ground circuit.

■ A 120 volt, 60 Hz, AC only, 15- or 20-amp, fused electrical

circuit is required. A time-delay fuse or circuit breaker is also recommended. It is recommended that a separate circuit serving only this dryer be provided.

■ This dryer is equipped with a power supply cord having a

3-prong grounding plug.

■ To minimize the possibility of shock, the cord must be

plugged into a mating, 3 prong, grounding-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualied electrician.

■ If codes permit and a separate ground wire is used, it is

recommended that a qualied electrician determine that the ground path is adequate.

■ Check with a qualied electrician if you are not sure the

dryer is properly grounded.

properly grounded. Do not modify the plug provided with the dryer: if it will not t the outlet, have a proper outlet installed by a qualied electrician.

SAVE THESE INSTRUCTIONS

Page 9

Gas Supply

GAS DRYER INSTALLATION REQUIREMENTS

IMPORTANT: Observe all governing codes and ordinances.

This installation must conform with all local codes and ordinances. In the absence of local codes, installation must conform with American National Standard, National Fuel Gas Code ANSI Z223.1/NFPA 54 or CAN/CSA B149.

A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park, Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, Ohio 44131-5575

The design of this dryer has been certied by CSA International for use at altitudes up to 10,000 feet (3048 m) above sea level at the B.T.U. rating indicated on the model/serial plate. Burner input adjustments are not required when the dryer is operated up to this elevation.

When installed above 10,000 feet (3048 m), a four percent (4%) reduction of the burner B.T.U. rating shown on the model/ serial plate is required for each 1,000 foot (305 m) increase in elevation. For assistance when converting to other gas types and/or installing above 10,000 feet (3048 m) elevation, contact your local service company.

Page 10

(155 cm

)

ELECTRIC DRYER INSTALLATION REQUIREMENTS

Location Requirements

The dryer must be exhausted outdoors.

48 in.

(310 cm2)

(76 mm)

Your dryer can be installed in a basement, laundry room, or recessed area.

This dryer is not intended for installation in a mobile home. Companion appliance location requirements should also be

considered. IMPORTANT: Do not install or store the dryer where it will be

exposed to water and/or the weather. Proper installation is your responsibility.

You will need:

■ A grounded electrical outlet located within 6 ft. (1.8 m) of

where the power cord is attached to the back of the dryer. See “Electrical Requirements.”

■ A level oor with a maximum slope of 1" (25 mm) under

entire dryer. Installing the dryer on soft oor surfaces, such as carpets or surfaces with foam backing, is not recommended.

Electric dryer installation clearances

■ The location must be large enough to allow the dryer door

to be fully opened.

■ Additional spacing should be considered for ease of

installation and servicing. The door opens more than 180°.

■ Additional clearances might be required for wall, door, and

oor moldings.

■ Additional spacing of 1" (25 mm) on all sides of the dryer is

recommended to reduce noise transfer.

Recessed Area and Closet Installation Instructions

The installation spacing is in inches and is the minimum allowable. Additional spacing should be considered for ease of installation, servicing, and compliance with local codes and ordinances.

If closet door is installed, the minimum unobstructed air opening in the top and bottom is required. Louvered doors with equivalent air openings are acceptable.

Front

View

24 in.

)

Closet

Door

door

(76 mm

Electrical Requirements – U.S.A. only

It is your responsibility:

■ To contact a qualied electrical installer.

■ To be sure that the electrical connection is adequate and in

conformance with the National Electrical Code, ANSI/NFPA 70-latest edition and all local codes and ordinances.

■ The National Electrical Code requires a 4-wire power supply

connection for homes built after 1996, dryer circuits involved in remodeling after 1996, and all mobile home installations.

■ A copy of the above code standards can be obtained from:

National Fire Protection Association, One Batterymarch Park, Quincy, MA 02269.

■ To supply the required 3 or 4 wire, single phase, 120/240

volt, 60 Hz., AC only electrical supply (or 3 or 4 wire, 120/208 volt electrical supply, if specied on the serial/ rating plate) on a separate 30-amp circuit, fused on both sides of the line. A time delay fuse or circuit breaker is recommended. Connect to an individual branch circuit. Do not have a fuse in the neutral or grounding circuit.

■ Do not use an extension cord.

■ If codes permit and a separate ground wire is used, it is

recommended that a qualied electrician determine that the ground path is adequate.

Page 11

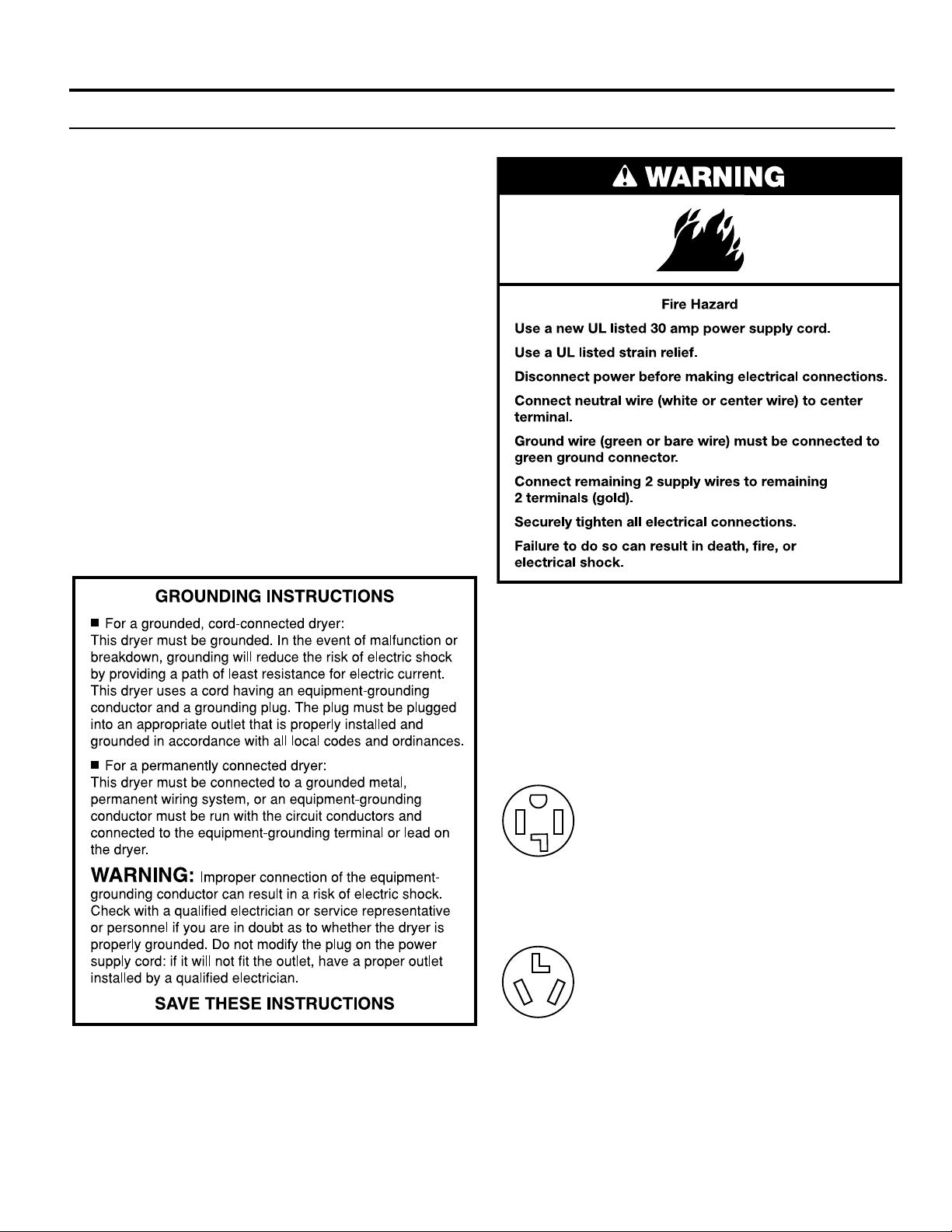

ELECTRIC DRYER INSTALLATION REQUIREMENTS

Electrical Requirements – U.S.A. only (cont.)

Electrical Connection

To properly install your dryer, you must determine the type of electrical connection you will be using and follow the instructions provided for it here.

■ This dryer is manufactured ready to install with a 3-wire

electrical supply connection. The neutral ground conductor is permanently connected to the neutral conductor (white wire) within the dryer. If the dryer is installed with a 4-wire electrical supply connection, the neutral ground conductor must be removed from the external ground connector (green screw), and secured under the neutral terminal (center or white wire) of the terminal block. When the neutral ground conductor is secured under the neutral terminal (center or white wire) of the terminal block, the dryer cabinet is isolated from the neutral conductor.

■ If local codes do not permit the connection of a neutral

ground wire to the neutral wire, see “Optional 3-wire connection” section.

■ A 4-wire power supply connection must be used when the

appliance is installed in a location where grounding through the neutral conductor is prohibited. Grounding through the neutral is prohibited for (1) new branch-circuit installations and (2) areas where local codes prohibit grounding through the neutral conductor.

Electric Dryer Grounding

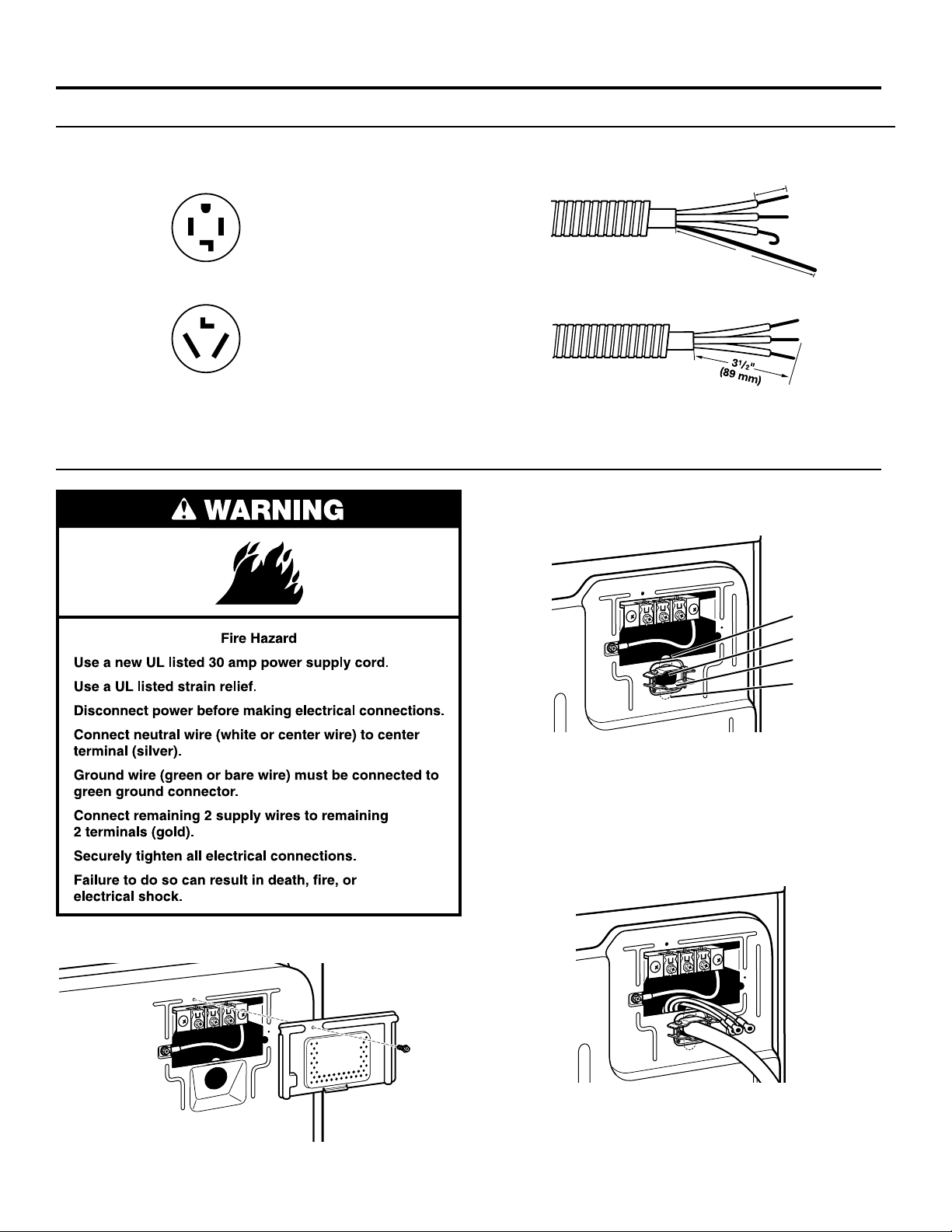

Electric Dryer Power Supply Cord

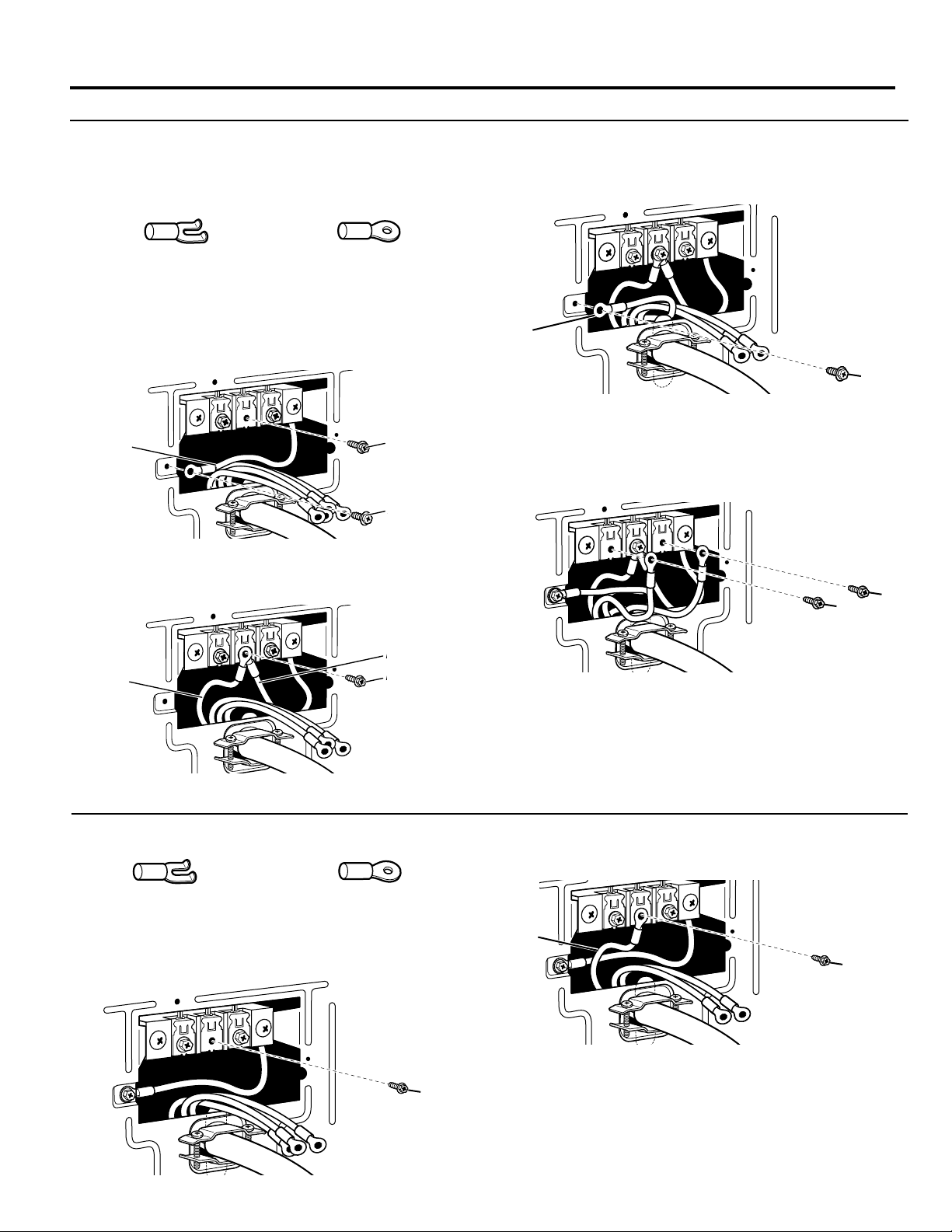

If using a power supply cord:

Use a UL listed power supply cord kit marked for use with clothes dryers. The kit should contain:

■ A UL listed 30-amp power supply cord, rated 120/240 volt

minimum. The cord should be type SRD or SRDT and be at least 4 ft. (1.22 m) long. The wires that connect to the dryer must end in ring terminals or “U” shaped spade terminals with upturned ends.

■ A UL listed strain relief.

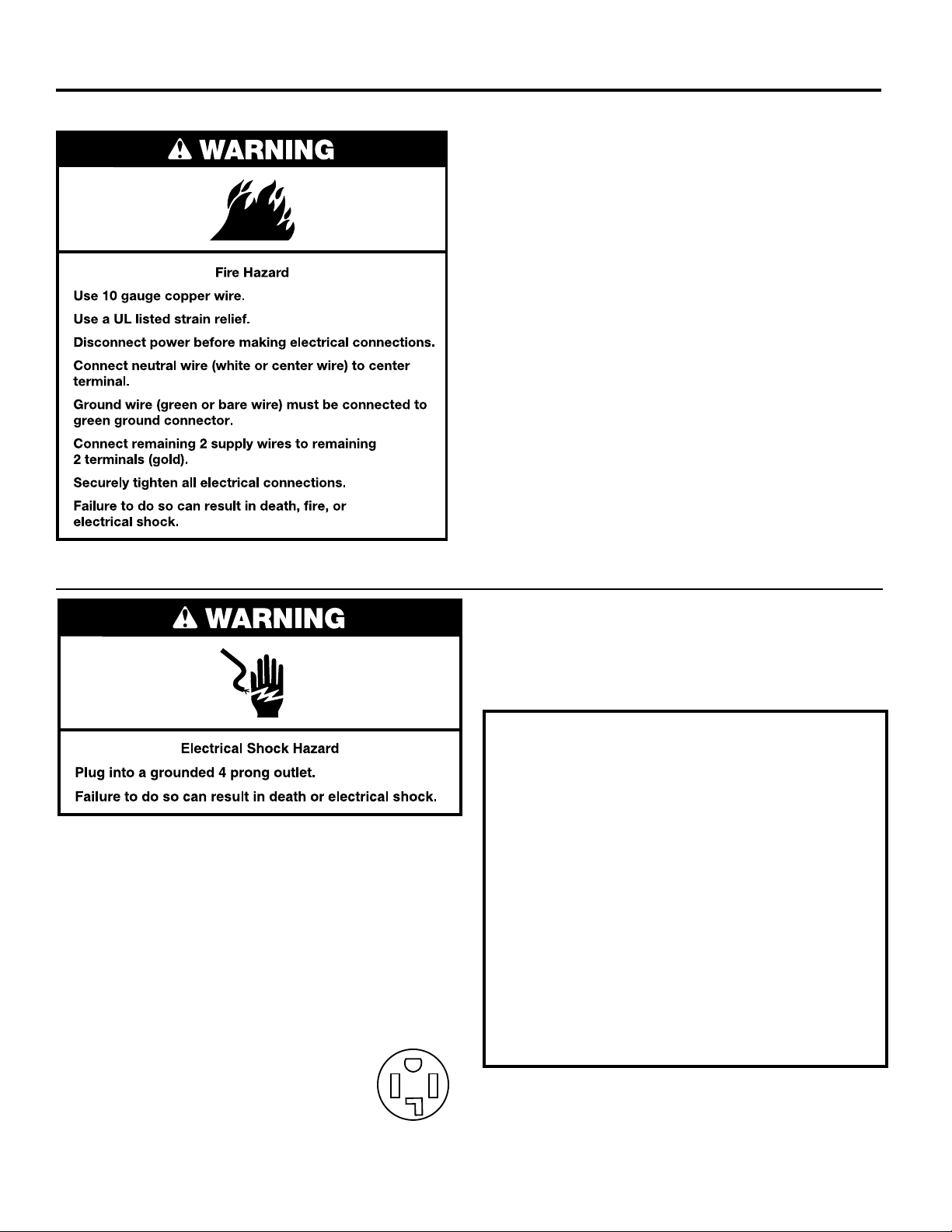

If your outlet looks like this:

Then choose a 4-wire power supply cord with ring or spade terminals and UL listed strain relief. The 4-wire power supply cord, at least 4 ft. (1.22 m) long, must have four 10-gauge copper wires and match a 4-wire receptacle of NEMA Type 14-30R.

4-Wire

Receptacle

(14-30R)

If your outlet looks like this:

3-Wire

Receptacle

(10-30R)

The ground wire (ground conductor) may be either green or bare. The neutral conductor must be identied by a white cover.

Then choose a 3-wire power supply cord with ring or spade terminals and UL listed strain relief. The 3-wire power supply cord, at least 4 ft. (1.22 m) long, must have three 10-gauge copper wires and match a 3-wire receptacle of NEMA Type 10-30R.

Page 12

ELECTRIC DRYER INSTALLATION REQUIREMENTS

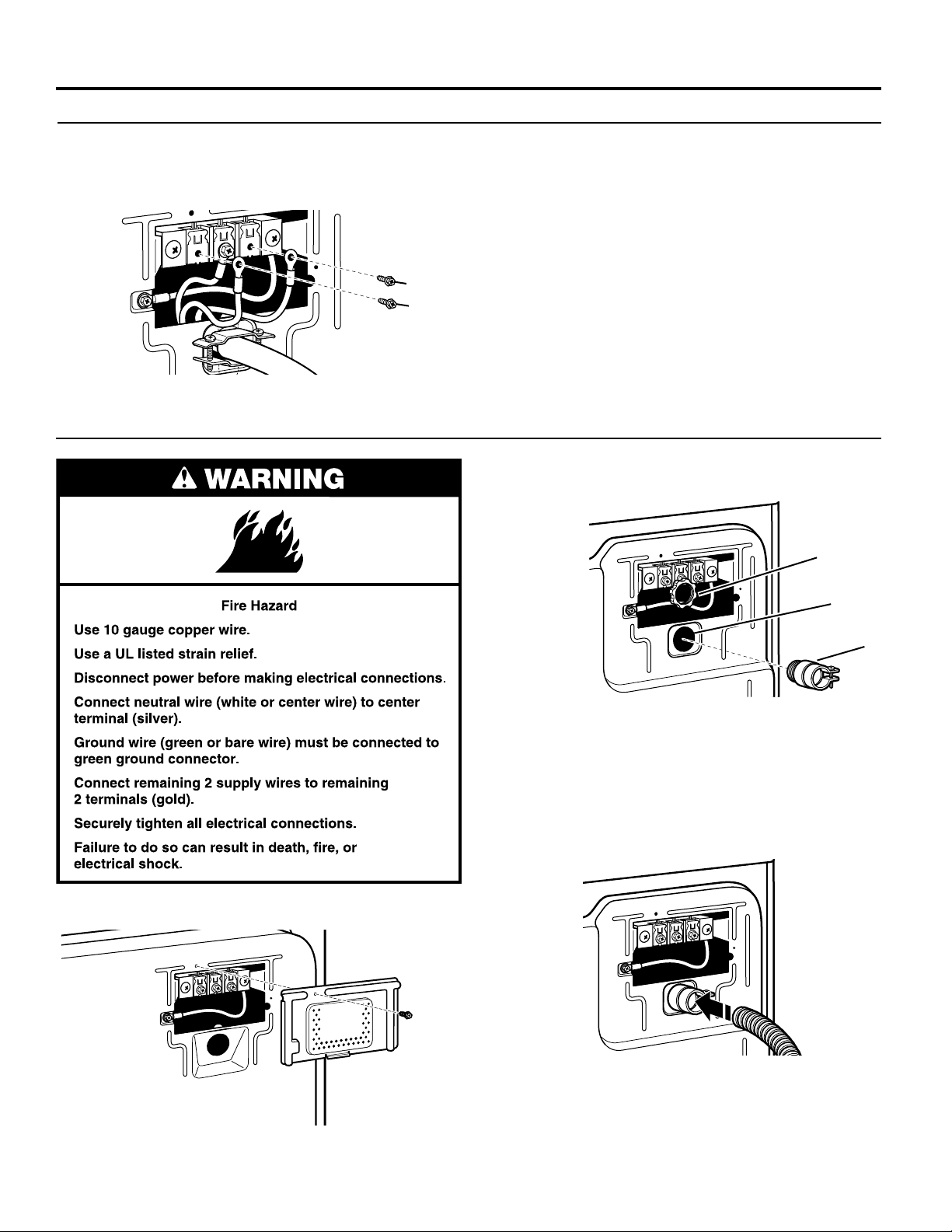

Direct Wire

If connecting by direct wire:

Power supply cable must match power supply (4-wire or 3-wire) and be:

■ Flexible armored cable or nonmetallic sheathed copper

cable (with ground wire), covered with exible metallic conduit. All current-carrying wires must be insulated.

■ 10-gauge solid copper wire (do not use aluminum).

■ At least 5 ft. (1.52 m) long.

Electrical Requirements – Canada only

It is your responsibility:

■ To contact a qualied electrical installer.

■ To be sure that the electrical connection is adequate

and in conformance with the Canadian Electrical Code, C22.1 – latest edition and all local codes. A copy of the above codes standard may be obtained from: Canadian Standards Association, 178 Rexdale Blvd., Toronto, ON M9W 1R3 CANADA.

■ To supply the required 4 wire, single phase, 120/240 volt,

60 Hz., AC only electrical supply on a separate 30-amp circuit, fused on both sides of the line. A time-delay fuse or circuit breaker is recommended. Connect to an individual branch circuit.

■ This dryer is equipped with a CSA International

Certied Power Cord intended to be plugged into a standard 14-30R wall receptacle. The cord is 5 ft (1.52 m) in length. Be sure wall receptacle is within reach of dryer’s nal location.

4-Wire

Receptacle

(14-30R)

■ Do not use an extension cord.

If you are using a replacement power supply cord, it is recommended that you use Power Supply Cord Replacement Part Number 9831317. For further information, please reference the service numbers located in the “Assistance or Service” section.

GROUNDING INSTRUCTIONS

■

For a grounded, cord-connected dryer:

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock. Check with a qualied electrician or service representative or personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the plug provided with the dryer: if it will not t the outlet, have a proper outlet installed by a qualied electrician.

SAVE THESE INSTRUCTIONS

Page 13

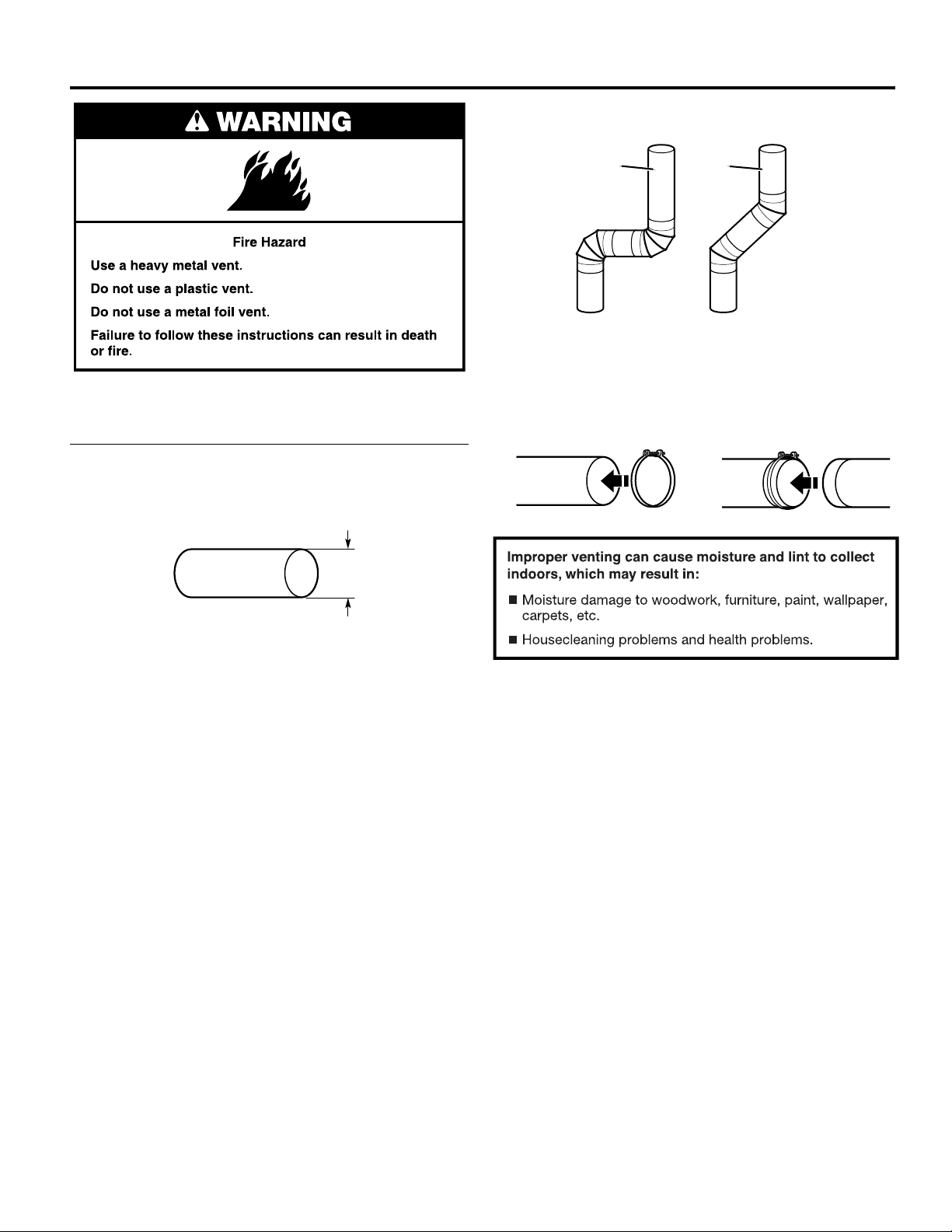

DRYER VENTING REQUIREMENTS

Elbows:

■ 45° elbows provide better airow than 90° elbows.

WARNING: To reduce the risk of re, this dryer MUST BE EXHAUSTED OUTDOORS.

IMPORTANT: Observe all governing codes and ordinances.

Dryer exhaust must not be connected into any gas vent, chimney, wall, ceiling, attic, crawlspace, or a concealed space of a building. Only rigid or exible metal vent shall be used for exhausting.

(102 mm)

Good

Better

Clamps:

■ Use clamps to seal all joints.

■ Exhaust vent must not be connected or secured with screws

or other fastening devices that extend into interior of duct and catch lint. Do not use duct tape.

4" (102 mm) Heavy, Metal Exhaust Vent

■ Only a 4" (102 mm) heavy, metal exhaust vent and clamps

may be used.

■ Do not use plastic or metal foil vent.

Rigid metal vent:

■ Recommended for best drying performance and to avoid

crushing and kinking.

Flexible metal vent: (Acceptable only if accessible to clean)

■ Must be fully extended and supported in nal dryer location.

■ Remove excess to avoid sagging and kinking that may result

in reduced airow and poor performance.

■ Do not install in enclosed walls, ceilings, or oors.

■ The total length should not exceed 7

⁄4 ft. (2.4 m).

NOTE: If using an existing vent system, clean lint from entire length of the system and make sure exhaust hood is not plugged with lint. Replace plastic or metal foil vents with rigid metal or exible metal vents. Review “Vent System Chart” and, if necessary, modify existing vent system to achieve best drying performance.

Page 14

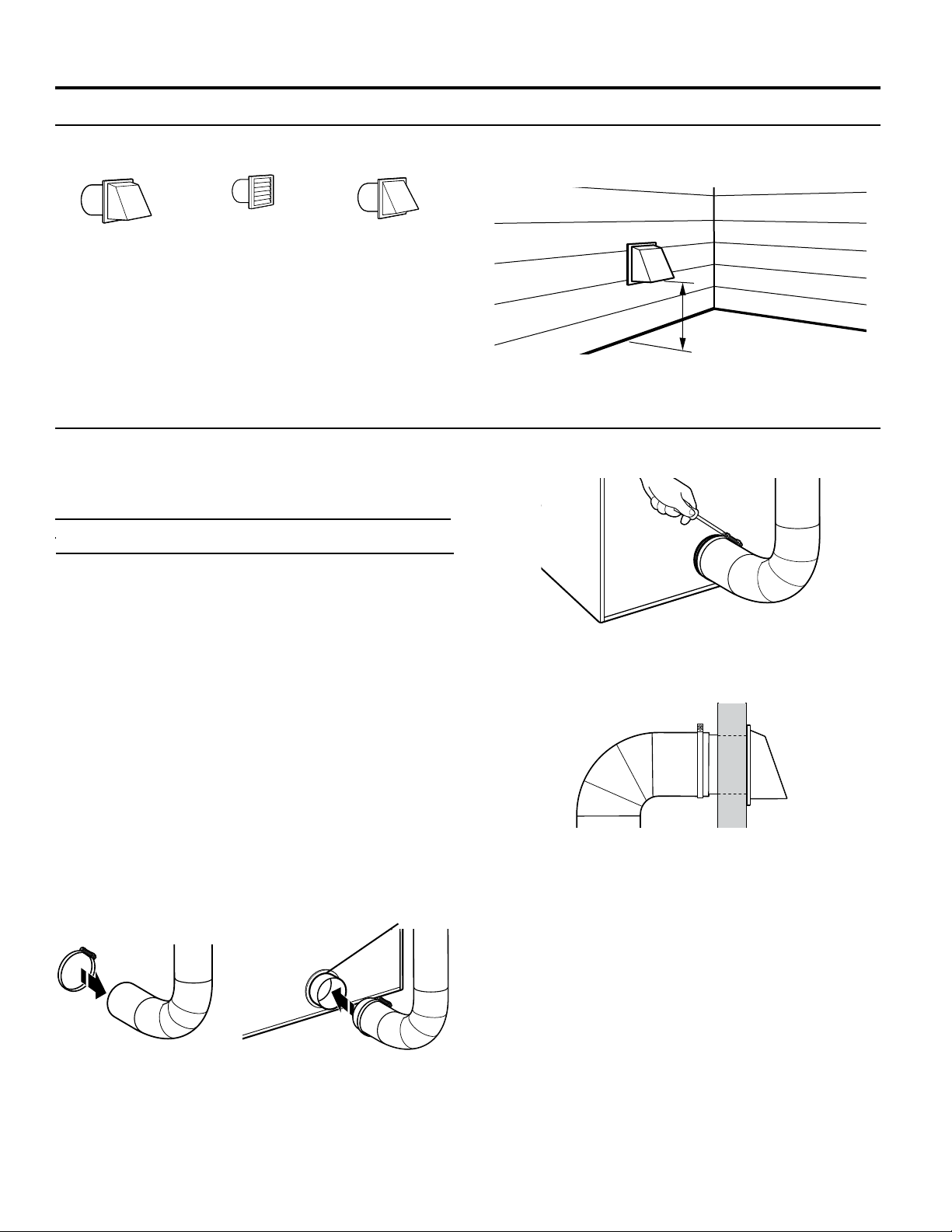

DRYER VENTING REQUIREMENTS

Vent Hoods

4" (102 mm) Diameter Exhaust Hoods

Exhaust hood must be at least 12" (305 mm) from the ground or any object that may be in the path of the exhaust (such as owers, rocks, bushes, or snow).

Box Hood Louvered Hood Angled Hood

Vent System Length

Maximum Vent Length/Vent Connection

Maximum length of vent system depends upon the type of vent used, number of elbows, and type of exhaust hood.

Vent System Chart (Rigid Metal Vent) No. of Box and Angled

90˚ Turns Louvered Hood Hood 0 64 ft. (19.5 m) 58 ft. (17.7 m) 1 54 ft. (16.5 m) 48 ft. (14.6 m) 2 44 ft. (13.4 m) 38 ft. (11.6 m) 3 35 ft. (10.7 m) 29 ft. (8.8 m) 4 27 ft. (8.2 m) 21 ft. (6.4 m)

For vent systems not covered by the vent specication chart, see your parts distributor.

Provision must be made for enough air for combustion and ventilation. (Check governing codes and ordinances.) See “Recessed Area and Closet Installation Instructions” in the “Location Requirements” sections.

A 4" (102 mm) outlet hood is preferred. However, a 2 (64 mm) outlet exhaust hood may be used. A 2 outlet creates greater back pressure than other hood types. For permanent installation, a stationary vent system is required.

Connect Vent

1. If connecting to existing vent, make sure the vent is clean.

2. Using a 4" (102 mm) clamp, connect vent to exhaust outlet

in dryer.

⁄2"

⁄2" (64 mm)

Vent Collar

12" min.

(305 mm)

3. Tighten hose clamp with Phillips screwdriver.

4. Make sure the vent is secured to exhaust hood with

a 4" (102 mm) clamp.

5. Move dryer into nal position. Do not crush or kink vent.

Make sure dryer is level.

NOTE: Testing for proper ventilation should be done with a Manometer. Minimum: 0.01" (0.2 mm). Maximum: 0.6" (16 mm).

NOTE: Do not remove vent collar.

Page 15

DRYER VENTING REQUIREMENTS

30˚ max.

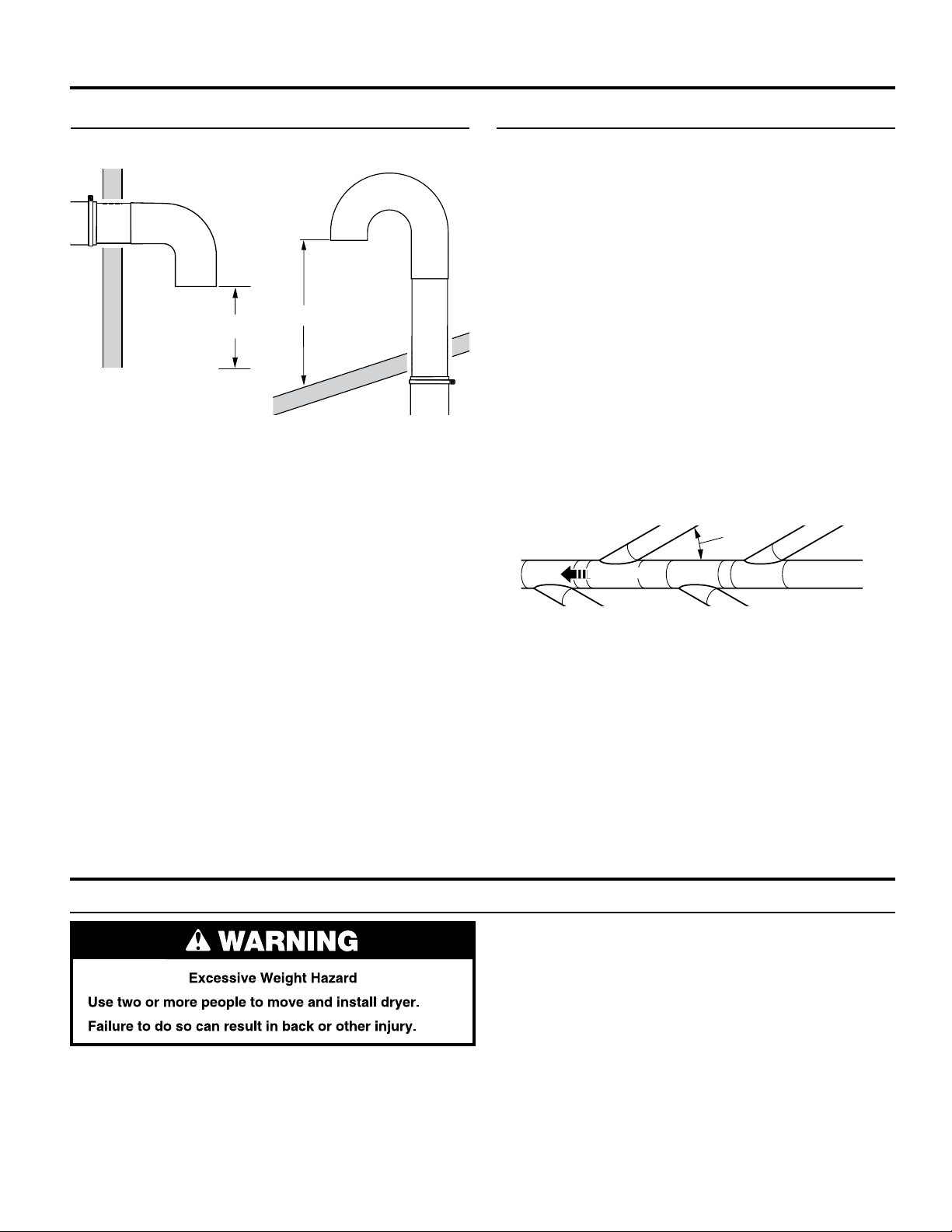

If an Exhaust Hood Cannot be Used Multiple Dryer Venting

The outside end of main vent should have a sweep elbow directed downward.

24" min.

12" min.

(305 mm)*

* Minimum clearance above any

accumulation of snow, ice, or debris such as leaves

(610 mm)

If main vent travels vertically through the roof, rather than through wall, install a 180° sweep elbow on end of vent at least 2 ft. (610 mm) above surface of roof.

The opening in wall or roof shall have a diameter 1⁄2" (13 mm) larger than vent diameter. Vent should be centered in opening.

Do not install screening over end of vent for best performance.

A main vent can be used for venting a group of dryers. The main vent should be sized to remove 5663 l/min. (200 CFM) of air per dryer. Large-capacity lint screens of proper design may be used in main vent if checked and cleaned frequently. The room where the dryers are located should have make-up air (air supply) equal to or greater than CFM of all the dryers in the room.

Back-draft dampers are available from your distributor and should be installed in the vent of each dryer to keep exhausted air from returning into dryers and to keep exhaust in balance within main vent. Unobstructed return air openings are required.

Although usually each single-load dryer should have an unobstructed outdoor air opening of 24 in.

on 1 in.

[6.5 cm2] per 1,000 Btu [252 kcal]), common make-up air openings are also acceptable. Set up common openings so the make-up air is distributed equally to all of the dryers. Keep in mind that the coverage area must be increased by 33% to account for the use of registers or louvers over the openings. Also, make-up air openings should not be installed near the location where exhaust vents exit the building.

Each vent should enter the main vent at an angle pointing in the direction of the airow. Vents entering from the opposite side should be staggered to reduce the exhausted air from interfering with the other vents.

(154 cm2) (based

Make Gas Connection

1. Connect gas supply to dryer. Use a pipe thread compound

approved for the type of gas supplied. If exible metal tubing is used, be certain there are no kinks.

If necessary for service, depending on model: Open the toe panel by removing the 2

from the bottom of the panel. Then lift up on the panel while pulling the bottom of the panel away from the dryer.

⁄4" hex-head screws

Air Flow

Air ow

The maximum angle of each vent entering the main vent should be no more than 30°.

Keep air openings free of dry cleaning uid fumes. Fumes create acids which, when drawn through the dryer heating units, can damage dryers and items being dried.

A clean-out cover should be located on the main vent for periodic cleaning of the vent system.

NOTE: For more dryer venting information, please refer to Whirlpool document W10100920.

GAS SUPPLY CONNECTION

Open the toe panel. Use a putty knife to press on the toe panel lock located at the center top of the toe panel. Pull downward on the toe panel to open. Toe panel is hinged at the bottom.

2. Open the shut-off valve in the gas supply line and make sure

the dryer has its own gas supply opened.

3. Test all connections by brushing on an approved

noncorrosive leak-detection solution. Bubbles will show a leak. Correct any leaks found.

Page 16

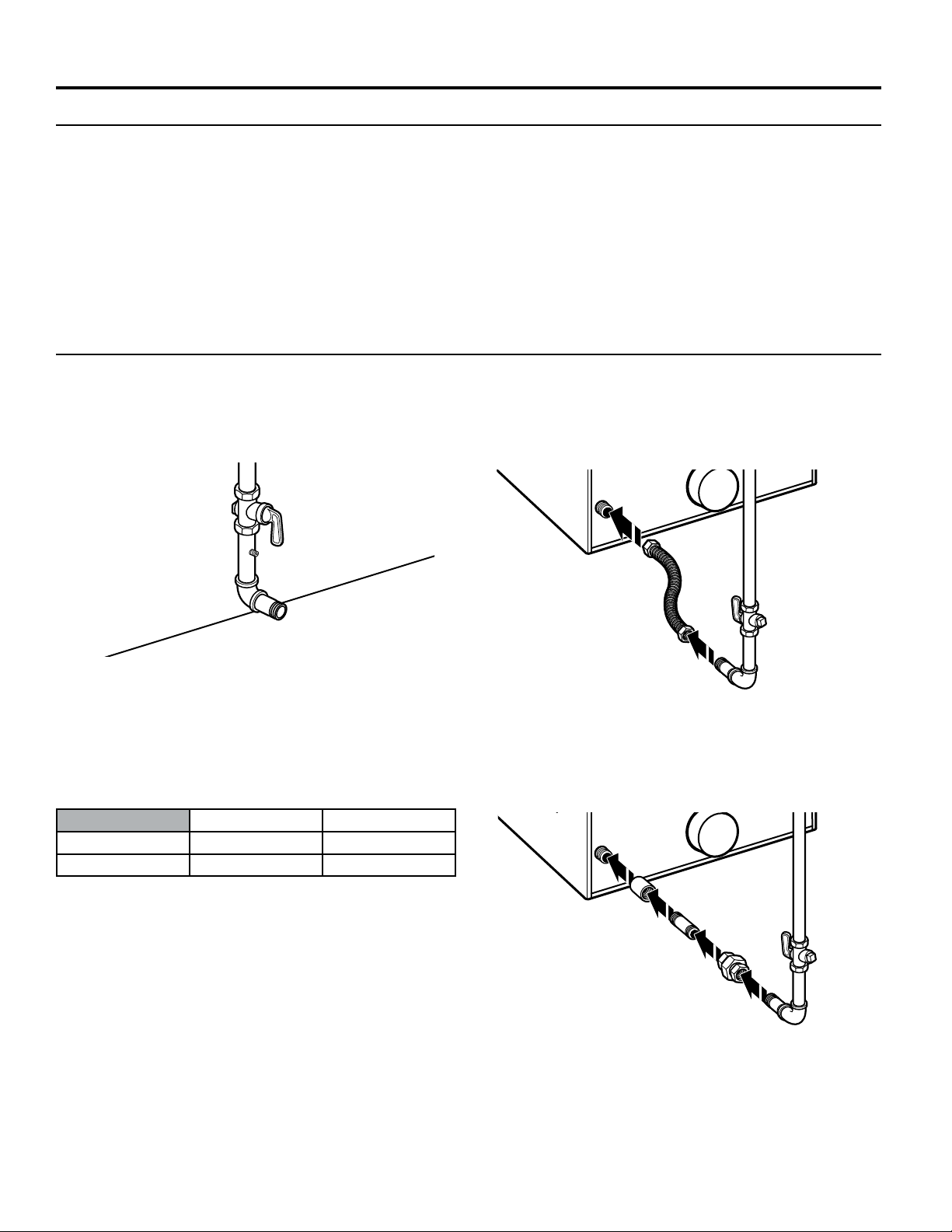

GAS SUPPLY CONNECTION

Type of Gas

This dryer is equipped for use with natural gas. It is designcertied by CSA International for LP (propane and butane) gases with appropriate conversion. No attempt shall be made to convert dryer from gas specied on serial/rating plate for use with a different gas without consulting the serving gas supplier. Conversion must be done by a qualied service technician.

Gas conversion kit part numbers are listed near gas valve burner base.

Gas Supply Line

Recommended Method

Provide a gas supply line of 1⁄2" (13 mm) rigid (IPS) pipe to dryer location. Pipe joint compounds that resist action of LP gas must be used. Do not use TEFLON piping or tubing size can be 1⁄2" (13 mm) minimum. Usually, LP gas suppliers determine size and materials used in the system.

®†

tape. With LP gas,

Flexible Metal Appliance Connector

It is recommended that a new exible stainless steel gas line, design-certied by CSA International, be used for connecting the dryer to the gas supply line. (The gas pipe which extends through the lower rear of the dryer is provided with 3⁄8" male pipe thread.)

Gas Supply Pressure Testing

A 1/8" NPT minimum plugged tapping, accessible for gauge testing, must be installed immediately downstream of the installed shut-off valve to the dryer (as shown above). The dryer must be disconnected from the gas supply piping system during any pressure testing of the system at test pressures in excess of 1/2" psig (352 kg/m gas supply are listed in inches of water in the table below:

Minimum

Maximum

Alternate Method

The gas supply may also be connected using 3⁄8" (10 mm) approved copper or aluminum tubing. If the total length of the supply line is more than 20 ft. (6.1 m), larger tubing will be required.

If using natural gas, do not use copper tubing. Pipe joint compounds that resist action of type of gas supplied must be used.

Shut-off valve required

The supply line must be equipped with a manual shut-off valve installed within 6 ft. (1.8 m) of dryer in accordance with National Fuel Gas Code, ANSI Z223.1. This valve should be located in same room as dryer. It should be in a location that allows ease of opening and closing. Do not block access to shut-off valve. In Canada, an individual manual shut-off valve must be installed in accordance with the B149 installation codes CAN/CGA B149.1 and CAN/CGA B149.2.

). The expected pressures for the

Natural Gas LP Gas

5.2" (132.1 mm) 8.0" (203.2 mm)

10.5" (266.7 mm) 13.0" (330.2 mm)

NOTE: Do not kink or damage the exible stainless steel gas line when moving the dryer.

Rigid Pipe Connection

The rigid pipe connection requires a combination of pipe ttings to obtain an in-line connection to the dryer.

†®TEFLON is a registered trademark of Chemours.

Page 17

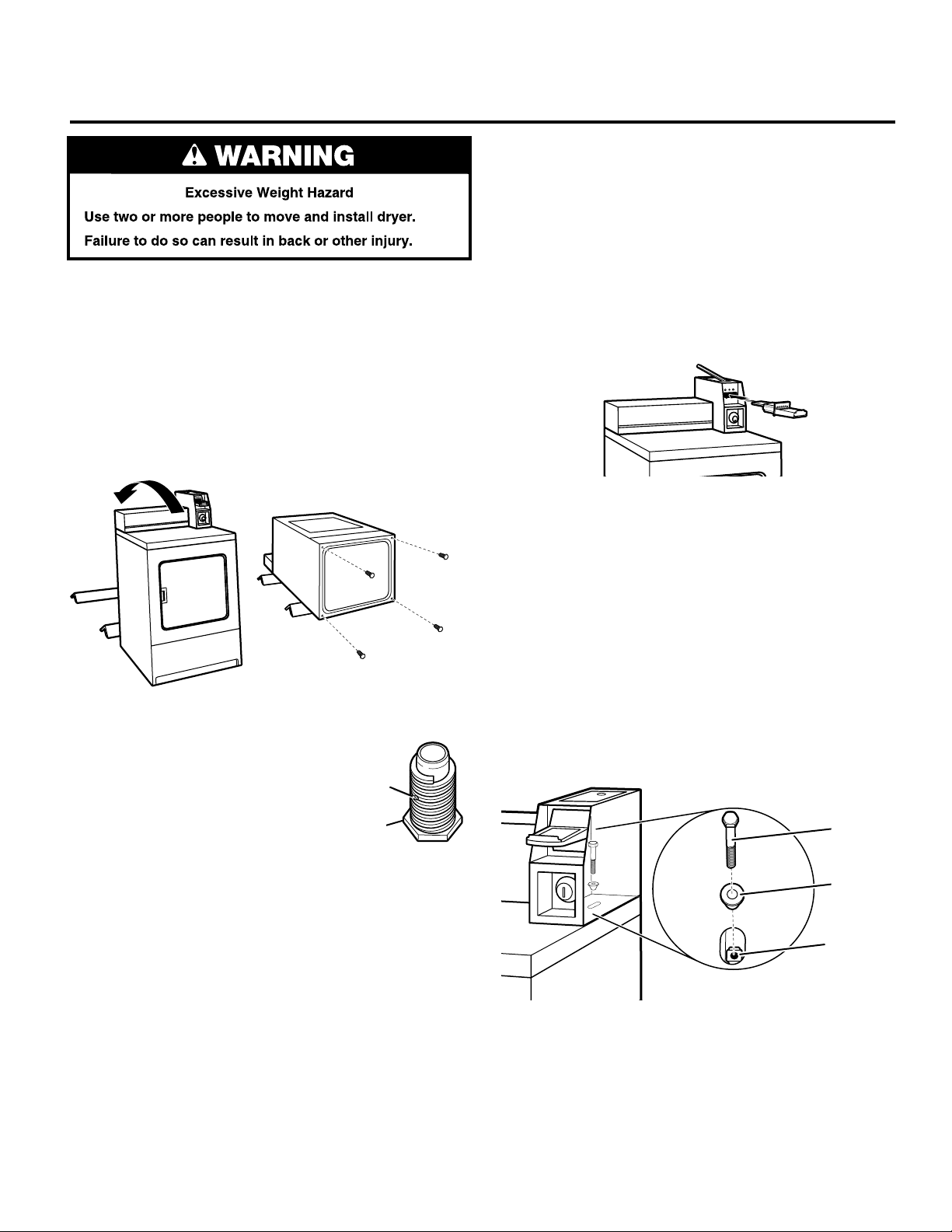

INSTALLING LEVELING LEGS, COIN SLIDE,

security bolt

security cone

cage nut

1. Prepare dryer for leveling legs NOTE: Slide dryer onto cardboard or hardboard before moving

to avoid damaging oor covering. Using two or more people, move dryer to desired installation

location. Take tape off front corners of dryer. Open dryer and remove

the literature and parts packages. Wipe drum interior with a damp cloth to remove any dust.

Take two cardboard corners from the dryer carton and place them on the oor in back of the dryer. Firmly grasp the body of the dryer and gently lay it on its back on the cardboard corners.

AND COIN BOX

On some models: The meter case houses the factory-installed

accumulator timer with actuating arm or service switch. The factory-installed timer is set to provide 45 minutes (4 pins)

of drying time when activated by the coin slide. Timer cams for 30-minute (6 pins) and 60-minute (3 pins) drying times are included in the parts bag.

The coin slide mechanism, service door lock and key, and coin box lock and key may not be included but are available from the usual industry sources.

1. Install coin slide and coin box

Remove the service door of the meter case by lifting it up at the back. Install the money-accepting device. (Refer to manufacturer’s instructions for proper installation.)

For dryers using coin slides, use the adapter kit supplied with the dryer.

Install the meter case service door. Put the coin box with lock and key in the meter case opening.

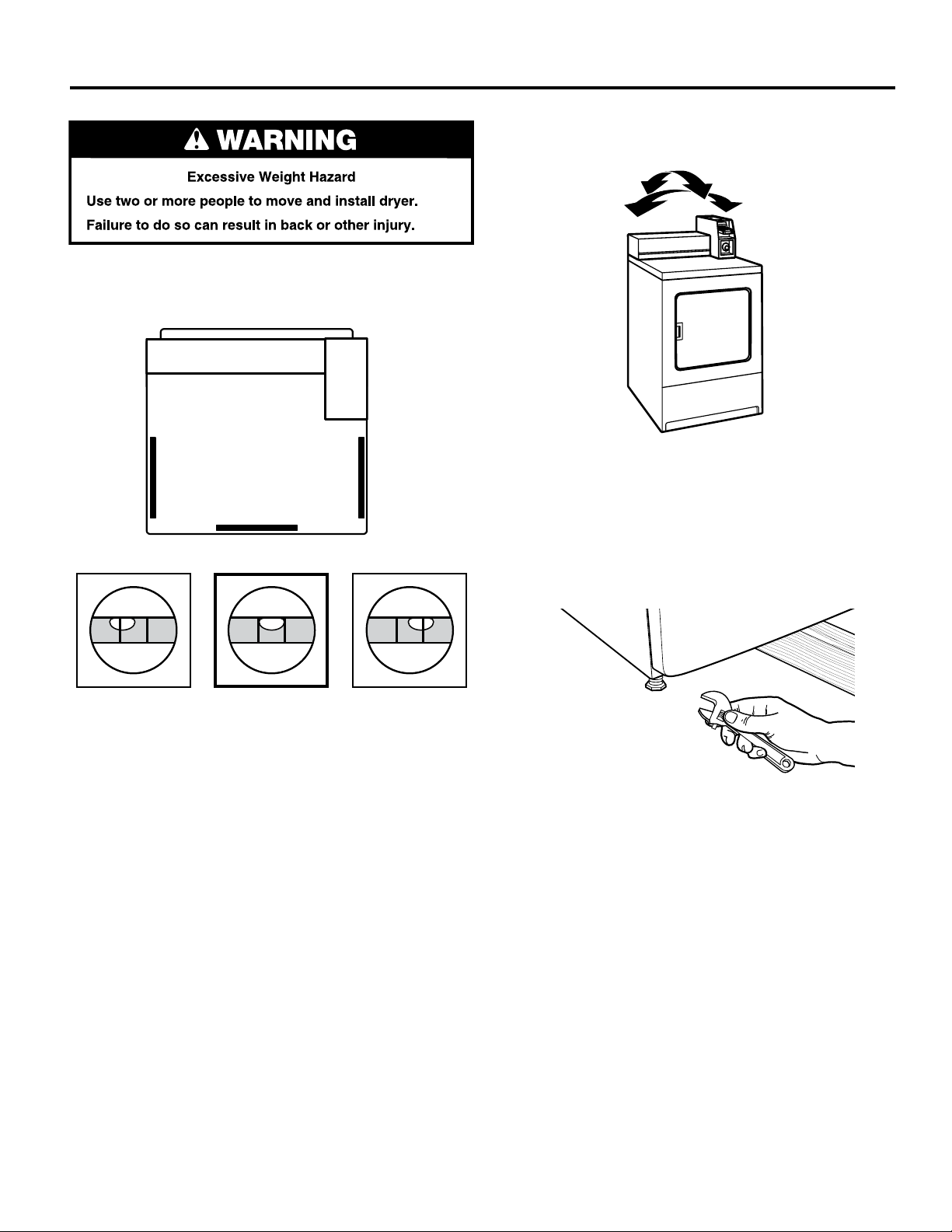

Remove cardboard or hardboard from under dryer. Adjust the legs of the dryer up or down until the dryer is level.

(appearance may vary)

2. Screw in leveling legs

Examine leveling legs and nd diamond marking. Screw legs into leg holes by hand. Use an adjustable wrench or 1" (25 mm) hex-head socket wrench to nish turning legs until diamond marking is no longer visible. Then t a covered foot boot over each leg foot.

To protect the oor, use a large piece of cardboard from the dryer carton. Stand dryer up on the cardboard. Slide the dryer until it is close to its nal location. Leave enough room for electrical connection and to connect the exhaust vent

A longer leveling foot is available if needed on extremely sloped oors, Part Number 279810.

Diamond Marking

Foot

2. Install added security device

Check that power is not supplied to the dryer. Open and remove the service door. Insert the narrow part of the security cone into the oblong hole

in the bottom rear of the meter case assembly. Pass the security bolt through this cone and thread it by hand

into the cage nut below the oblong hole. Tighten the security bolt by hand a few turns before using a

wrench to tighten until snug.

Security Bolt

Security Cone

Cage Nut

NOTE: Installing the security bolt provides added security, but

will add to the service time when the top needs to be removed or lifted for servicing the dryer.

Page 18

ELECTRIC DRYER ELECTRICAL CONNECTIONS (FOR U.S.A. ONLY)

Connection Options

Power Cord

4-wire receptacle (NEMA Type 14-30R) Go to "Power Supply Cord Connection" section.

3-wire receptacle (NEMA Type 10-30R) Go to "Power Supply Cord Connection" section.

NOTE: If local codes do not permit connection of a cabinet-ground conductor to neutral wire, go to “Connecting 3-Wire Connection: Optional” section. This connection may be used with either a power supply cord or a direct wire connection.

Direct Wire

4-wire direct Go to "Direct Wire Connection" section.

(127 mm)

3-wire direct Go to "Direct Wire Connection" section.

(25 mm)

Power Supply Cord Connection

Power Supply Cord Strain Relief

1. Insert strain relief.

Remove Terminal Block Cover

Remove the screws from a ¾" (19 mm) UL listed strain relief (UL marking on strain relief). Put the tabs of the two clamp sections (C) into the hole below the terminal block opening (B) so that one tab is pointing up (A) and the other is pointing down (D), and hold in place. Tighten strain relief screws just enough to hold the two clamp sections (C) together.

2. Insert power cord into strain relief.

Remove hold-down screw and terminal block cover.

Put power supply cord through the strain relief. Be sure that the wire insulation on the power supply cord is inside the strain relief. The strain relief should have a tight t with the dryer cabinet and be in a horizontal position. Do not further tighten strain relief screws at this point.

Page 19

ELECTRIC DRYER ELECTRICAL CONNECTIONS (FOR U.S.A. ONLY)

Connecting 4-Wire Connection: Power Supply Cord

IMPORTANT: A 4-wire connection is required for mobile

homes and where local codes do not permit the use of 3-wire connections.

Standard Power Supply Cord Connectors

Flanged Spade Connector Ring Connector Connecting Neutral Ground and Neutral Wires

1. Remove center terminal block screw (A) and the neutral

ground wire (B) by removing the green external ground conductor screw (C).

2. Connect neutral ground wire (B) and neutral wire (white or

center wire) (D) of power supply cord under center terminal block screw (A). Tighten screw.

Connecting Power Cord Ground Wire

3. Connect ground wire (green or bare) (E) of power supply cord

under green external ground conductor screw (C). Tighten screw.

Connecting Remaining Wires

4. Connect remaining wires under outer terminal block screws

(F). Tighten screws. Finally, reinstall terminal block cover to dryer rear panel. Secure cover with hold-down screw. Now go to "Venting Requirements."

Connecting 3-Wire Connection: Power Supply Cord

Standard Power Cord Connectors

Flanged Spade Connector Ring Connector

Connecting Neutral Wire

1. Loosen or remove center terminal block screw (A).

2. Connect neutral wire (white or center wire) (D) of power

supply cord under center terminal block screw (A). Tighten screw.

Page 20

ELECTRIC DRYER ELECTRICAL CONNECTIONS (FOR U.S.A. ONLY)

Connecting 3-Wire Connection: Power Supply Cord (cont.)

3. Connect remaining wires under outer terminal block screws

(F). Tighten screws. Finally, reinstall terminal block cover to dryer rear panel. Secure cover with hold-down screw. Now go to "Venting Requirements."

Direct Wire Connection

Direct Wire Strain Relief

1. Insert strain relief.

Remove Terminal Block Cover

Unscrew the removable conduit connector (A) and any screws from a ¾" (19 mm) UL listed strain relief (UL marking on strain relief). Put the threaded section of the strain relief (C) through the hole below the terminal block opening (B). Reaching inside the terminal block opening, screw the removable conduit connector (A) onto the strain relief threads.

2. Insert conduit into strain relief and tighten clamp.

Remove hold-down screw and terminal block cover.

Put direct wire cable through the strain relief. The strain relief should have a tight t with the dryer cabinet and be in a horizontal position. Tighten strain relief screw against the direct wire cable.

Page 21

ELECTRIC DRYER ELECTRICAL CONNECTIONS (FOR U.S.A. ONLY)

Connecting 4-Wire Connection: Direct Wire

IMPORTANT: A 4-wire connection is required for mobile

homes and where local codes do not permit the use of 3-wire connections.

Direct wire cable must have 5 ft. (1.52 m) of extra length so dryer can be moved if needed.

Strip 5" (127 mm) of outer covering from end of cable, leaving bare ground wire at 5" (127 mm). Cut 1

⁄2" (38 mm) from 3 remaining wires. Strip insulation back 1" (25 mm). Shape ends of wires into a hook shape.

Connecting Neutral Ground and Neutral Wires

1. Remove center terminal block screw (A) and the neutral

ground wire (B) by removing the green external ground conductor screw (C).

Connecting Direct Wire Ground

3. Connect ground wire (green or bare wire) (E) of direct wire

cable under green external ground conductor screw (C). Tighten screw.

Connecting Remaining Wires

4. Connect remaining wires under outer terminal block screws

(F). Squeeze hooked ends together and tighten screws. Finally, reinstall terminal block cover to dryer rear panel. Secure cover with hold-down screw. Now go to "Venting Requirements."

2. Connect neutral ground wire (B) and place hooked end (hook

facing right) of neutral wire (white or center wire) (D) of direct wire cable under center terminal block screw (A). Squeeze hooked ends together and tighten screw.

Page 22

ELECTRIC DRYER ELECTRICAL CONNECTIONS (FOR U.S.A. ONLY)

Connecting 3-Wire Connection: Direct Wire

Use where local codes permit connecting cabinet-ground conductor to neutral wire.

Direct wire cable must have 5 ft. (1.52 m) of extra length so dryer can be moved if needed.

Strip 3½" (89 mm) of outer covering from end of cable. Strip insulation back 1" (25 mm). If using 3-wire cable with ground wire, cut bare wire even with outer covering. Shape ends of wires into a hook shape.

Connecting Neutral Wire

1. Loosen or remove center terminal block screw (A).

2. Place hooked end of neutral wire (white or center wire)

(D) of direct wire cable under center terminal block screw (A), hook facing right. Squeeze hooked end together and tighten screw.

Connecting 3-Wire Connection: Optional

Use for direct wire or power supply cord where local codes do not permit connecting cabinet-ground conductor to neutral wire.

1. Remove center terminal block screw (A). Also remove

neutral ground wire (B) by removing green external ground conductor screw (C).

3. Connect remaining wires under outer terminal block

screws (F). Squeeze hooked ends together and tighten screws. Finally, reinstall terminal block cover to dryer rear panel. Secure cover with hold-down screw. Now go to "Venting Requirements."

3. Connect remaining wires under outer terminal block screws

(F). Tighten screws.

2. Connect neutral ground wire (B) and neutral wire (white or

center wire) (D) of power supply cord/cable under center terminal block screw (A). Tighten screw.

4. Connect a separate copper ground wire (G) under the

green external ground conductor screw (C) to an adequate ground. Finally, reinstall terminal block to dryer rear panel. Secure cover with hold-down screw. Now go to "Venting Requirements."

Page 23

LEVELING

Leveling your dryer properly reduces excess noise and vibration.

1. Remove cardboard from beneath dryer. Place a level on top edges of dryer, checking each side and front. If not level, tip dryer and adjust legs up or down as shown in Step 3, repeating as necessary.

(appearance may vary)

2. Grip dryer from top and rock back and forth, making sure all

four legs are rmly on oor. Repeat, rocking dryer from side to side. If dryer rocks, go to Step 3 and adjust leveling legs.

(appearance may vary)

3. If dryer is not level, use a 1" or 25 mm open-end or

adjustable wrench to turn the leveling leg counterclockwise to lower the dryer or clockwise to raise the dryer. Recheck levelness of dryer and that all four legs are rmly in contact with the oor. Repeat as needed.

HELPFUL TIP: You may want to prop up front of dryer about 4" (102 mm) with a wood block or similar object that will support weight of dryer.

Not Level LEVEL Not Level

Page 24

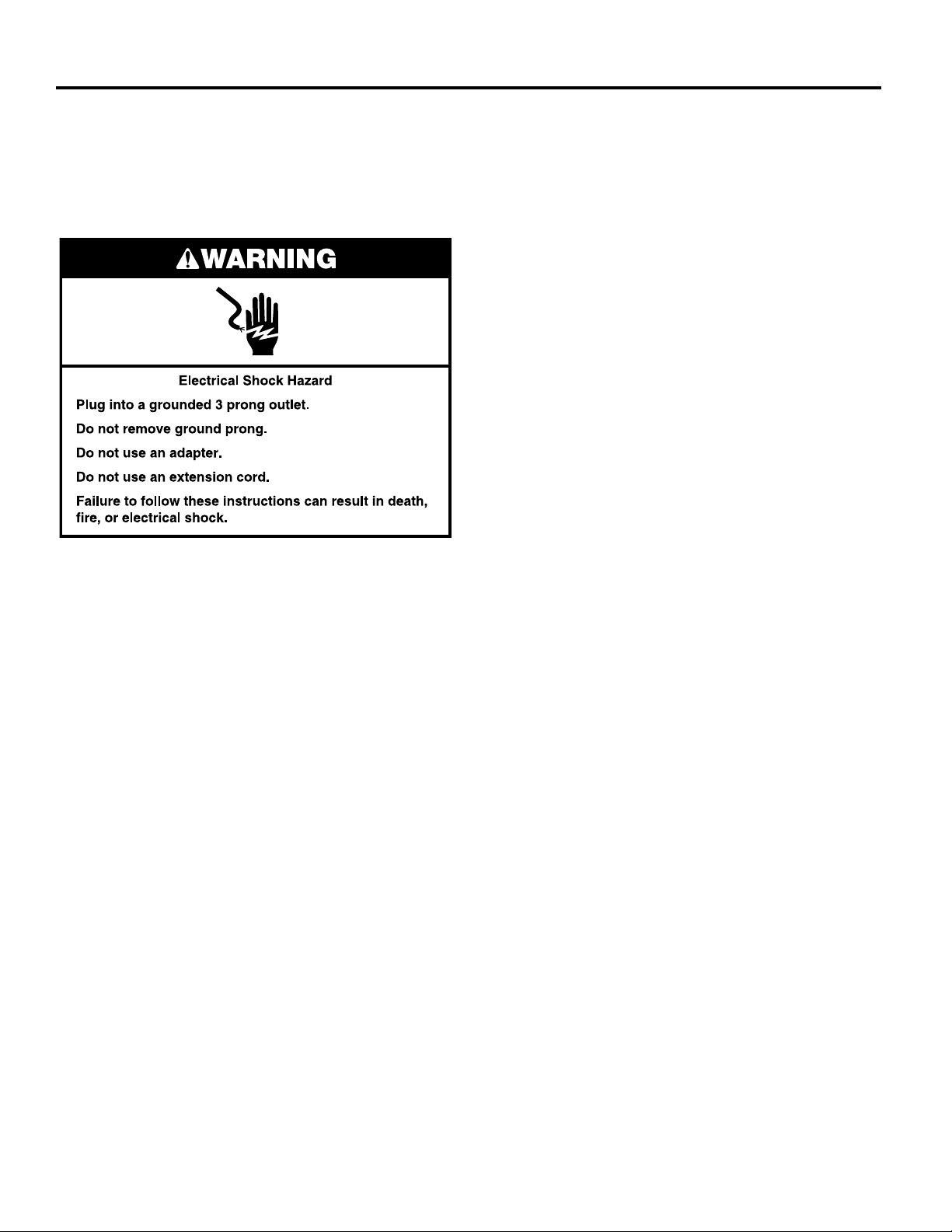

COMPLETE INSTALLATION

1. Check the electrical requirements. Be sure that you have the

correct electrical supply and the recommended grounding method. See “Electrical Requirements.”

2. Check that all parts are now installed. If there is an extra part,

go back through the steps.

3. Check that you have all of your tools.

4. Dispose of/recycle all packaging materials.

6. Check dryer operation (on some models, some accumulated

time may be on the timer due to factory testing). Close dryer door. Depending on model, turn timer-set knob to the right or insert coins and press slide in slowly. (Operating time will accumulate per number of coinslide depressions, depending on model, and type of timing cam used.) Push START button. Using a full heat cycle (not the air cycle), let the dryer run for at least ve minutes. Dryer will stop when time is used up.

NOTE: Dryer door must be closed for dryer to operate. When door is open, dryer stops, but timer continues to run. To restart dryer, close door and push START button.

7. Open the dryer door. Check that the inside of the dryer is

warm. If the burner does not ignite and you can feel no heat inside the dryer, shut off dryer for ve minutes. Check that all supply valve controls are in “ON” position and that the electrical cord is plugged in. Repeat ve-minute test.

8. If drying time is too long, make sure that the lint screen is

clean and that there are no obstructions to airow in the dryer vent system.

9. Restart the dryer and allow it to complete a full heat cycle

(not air cycle) to make sure it is working properly.

5. Plug into a grounded outlet, or connect power.

Page 25

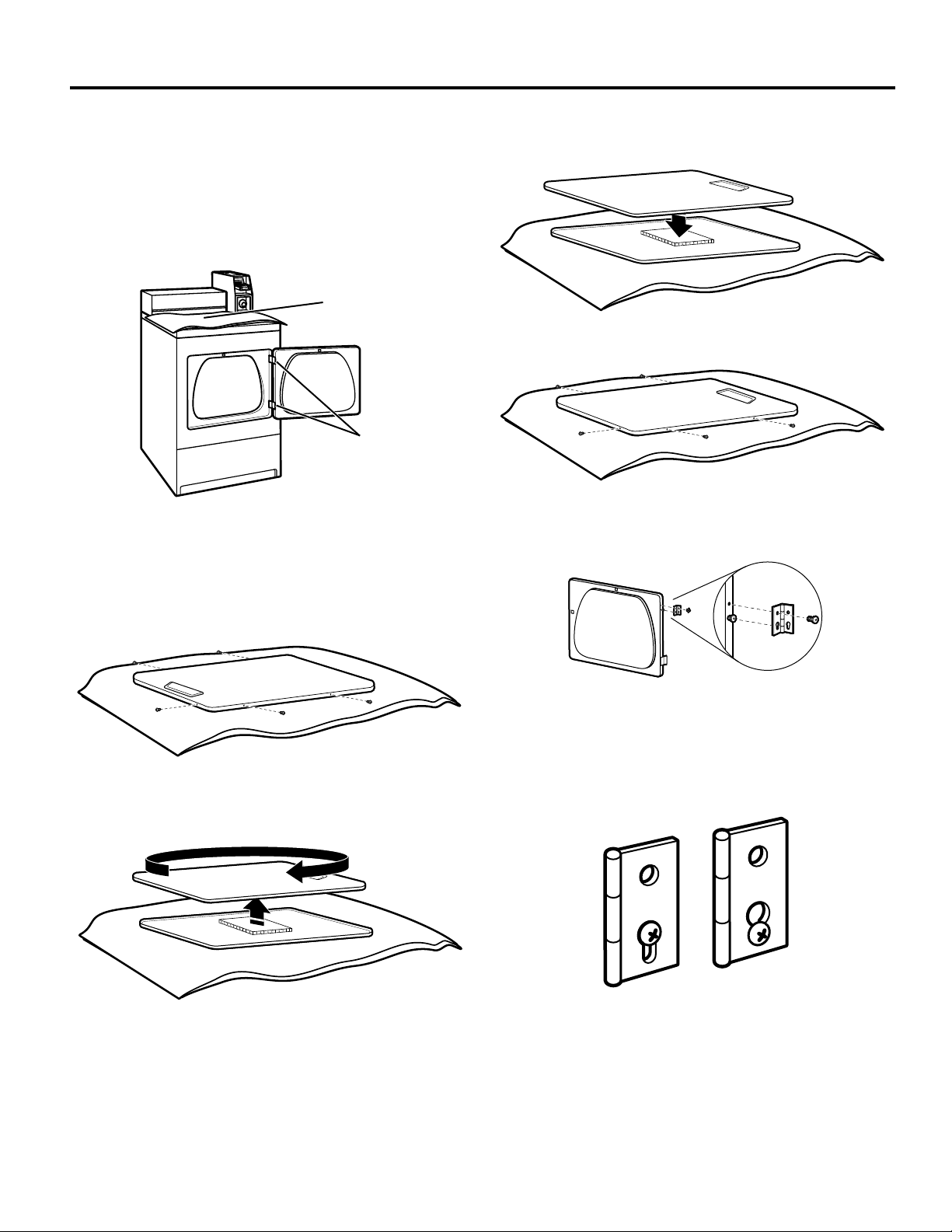

REVERSING DRYER DOOR SWING (OPTIONAL)

You can change your door swing from a right-side opening to left-side opening, if desired.

Remove the Door Assembly

1. Place a towel or soft cloth on top of dryer or work space to

avoid scratching of the surface.

2. Open dryer door. Remove bottom screws from cabinet side

of hinges. Loosen (do not remove) top screws from cabinet side of hinges.

Towel

Hinges

(appearance may vary)

3. Lift door until top screws in cabinet are in large part of hinge

slot. Pull forward off screws. Set door (handle side up) on top of dryer. Remove top screws from cabinet.

4. Remove screws attaching hinges to door.

5. Remove screws at top, bottom, and side of door (5 screws).

7. Be certain to keep cardboard spacer centered between

doors. Reattach outer door panel to inner door panel so handle is on the side where hinges were just removed.

8. Reattach screws at top, bottom, and side of door (5 screws).

9. Attach door hinges to dryer door so that larger hole is at the

bottom of the hinge and the hinge pin is toward the door front.

6. Holding door over towel on dryer, grasp sides of outer door

and gently lift to separate it from inner door. Do not use a putty knife to pry apart. Do not pull on door seal or plastic door catch.

10. Remove the 4 screws that attach 2 plugs on the left side.

Attach plugs to right side using the same 4 screws.

11. Insert screws into bottom holes on left side of cabinet.

Tighten screws halfway. Position door so large end of door hinge slot is over screws. Slide door up so screws are in bottom of slots. Tighten screws. Insert and tighten top screws in hinges.

12. Close door and check that door strike aligns with door

catch. If needed, slide door catch left or right within slot to adjust alignment.

Page 26

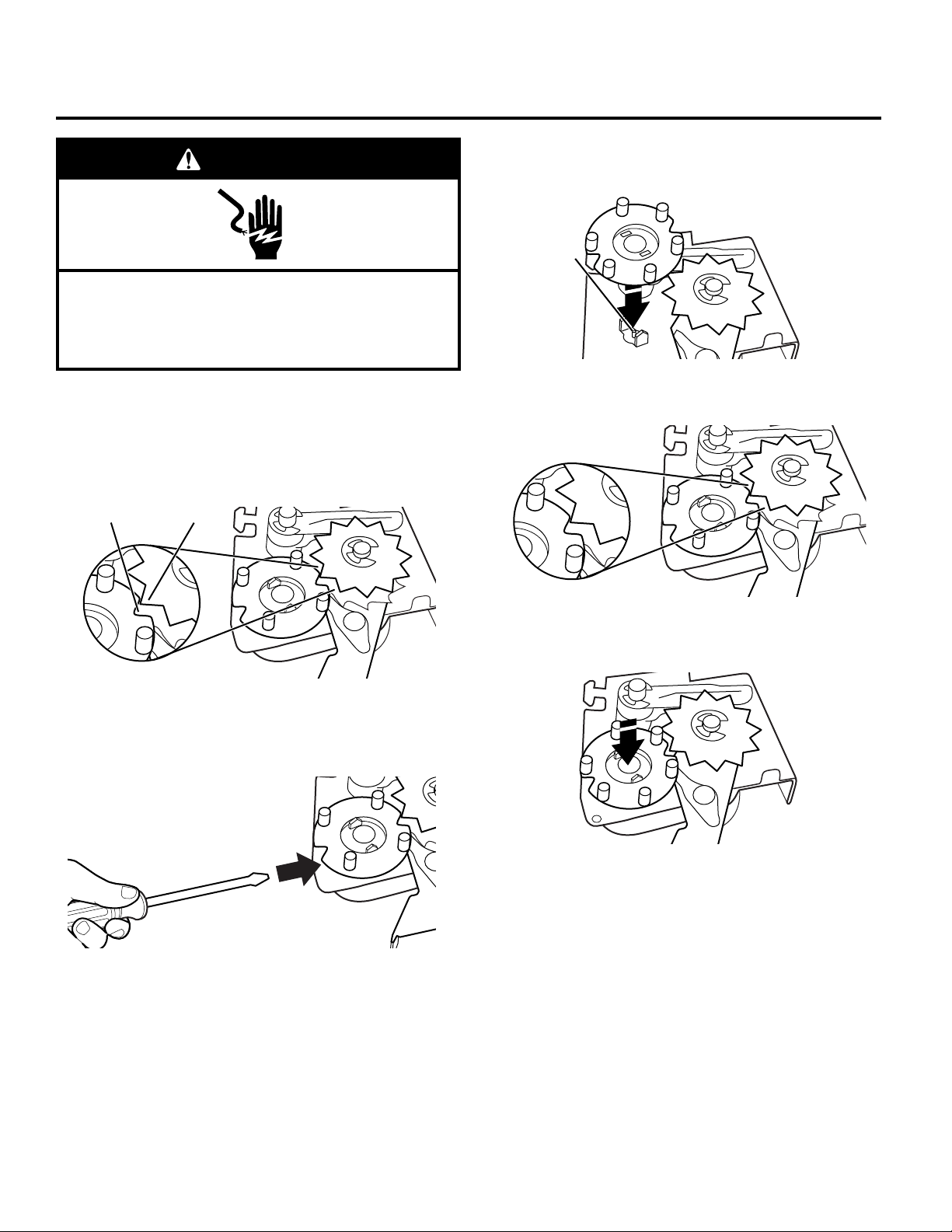

CHANGING TO A 30- OR 60-MINUTE TIMING CAM

(on some models)

5. Place new cam (hub side down) over clock shaft. Line up at

WARNING

Electrical Shock Hazard

Disconnect power before making cam changes.

Failure to follow these instructions can result in death or electrical shock.

side of shaft with at side of cam hole. Check that drive lug is in place.

Drive Lug

Coin-slide models: You can install the 30-minute or 60-minute

timing cam (shipped with dryer) as follows:

1. Unplug dryer or disconnect power.

2. Unlock meter case.

3. Turn the timing cam by hand until the V-shaped notch lines

up below the ratchet tooth.

V-Shaped Notch

4. Insert a narrow, at-blade screwdriver under the timing cam

near the clock shaft. Gently lift cam straight up and off shaft, making sure that the V-shaped notch clears the ratchet tooth.

Ratchet Tooth

6. Turn cam until V-shaped notch lines up with ratchet tooth.

7. Press cam down in place on clock shaft. Make sure that

V-shaped notch clears the ratchet tooth.

8. Close and lock the meter case.

9. Plug in dryer or reconnect power.

Page 27

MAINTENANCE INSTRUCTIONS

■ Clean lint screen before and after each cycle.

■ Removing accumulated lint:

From inside the dryer cabinet: Lint should be removed every 2 years or more often,

depending on dryer usage. Cleaning should be done

by a qualied person. From the exhaust vent: Lint should be removed every 2 years, or more often,

depending on dryer usage.

■ Keep area around dryer clear and free from combustible

materials, gasoline, and other ammable vapors and liquids.

■ Keep dryer area clear and free from items that would

obstruct the ow of combustion and ventilation air.

If dryer does not operate, check the following:

■ Electrical supply is connected.

■ Circuit breaker is not tripped or house fuse is not blown.

■ Door is closed.

■ Controls are set in a running or “on” position.

■ START button has been pushed rmly.

■ For gas dryers, check that gas supply shut-off valves are set

in open position.

IF YOU NEED ASSISTANCE

Contact your authorized Commercial Laundry distributor. To locate your authorized Commercial Laundry distributor, or for web inquiries, visit www.WhirlpoolCommercialLaundry.com.

If you cannot locate your distributor, the Commercial Laundry Support Center will answer any questions about operating or maintaining your dryer not covered in the Installation Instructions.

Just dial 1-800 NO BELTS (1-800-662-3587) — the call is toll free. When you call, you will need the dryer model number and serial number. Both numbers can be found on the serial-rating plate

located in the dryer door opening.

Page 28

WHIRLPOOL® COMMERCIAL LAUNDRY

LIMITED WARRANTY

1. All other costs including labor, transportation, shipping, or custom duties for

covered parts.

2. Factory speciﬁed replacement parts if this commercial appliance is used for other

than normal, commercial use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions.

3. Service calls to correct the installation of your commercial appliance, to instruct

you on how to use your commercial appliance, to replace or repair house fuses, or to correct external wiring or plumbing.

4. Service calls to repair or replace appliance light bulbs, air ﬁlters, or water ﬁlters.

Consumable parts are excluded from warranty coverage.

5. Damage resulting from improper handling of product during delivery, theft,

accident, alteration, misuse, abuse, ﬁre, ﬂood, acts of God, improper installation, installation not in accordance with local electrical or plumbing codes, or use of products not approved by Whirlpool.

6. Pick up and delivery. This commercial appliance is designed to be repaired on

location.

7. Repairs to parts or systems resulting from unauthorized modiﬁcations made to

the commercial appliance.

8. The removal and reinstallation of your commercial appliance if it is installed in an

inaccessible location or is not installed in accordance with published installation instructions.

9. Damage resulting from exposure to chemicals.

10. Changes to the building, room, or location needed in order to make the

commercial appliance operate correctly.

11. Factory speciﬁed replacement parts on commercial appliances with original

model/serial numbers that have been removed, altered, or cannot be easily determined.

12. Discoloration, rust, or oxidation of stainless steel surfaces.

13. Factory speciﬁed replacement parts as a result of incorrect diagnosis or repair

by an “out of network” service company.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

90 DAY LIMITED WARRANTY

(PARTS AND LABOR)

For 90 days from the original date of purchase, when this commercial appliance is installed, maintained, and operated according to the instructions attached to or furnished with the product, Whirlpool Corporation (hereafter “Whirlpool”) will pay for factory speciﬁed replacement parts and repair labor to correct defects in materials or workmanship that existed when this commercial appliance was purchased.

TWO

YEAR LIMITED WARRANTY

(PARTS ONLY)

For the ﬁrst two years from the original date of purchase, when this commercial appliance is installed, maintained, and operated according to the instructions attached to or furnished with the product, Whirlpool will pay for factory speciﬁed replacement parts to correct defects in materials or workmanship that existed when this commercial appliance was purchased.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Whirlpool recommends that you use an “in network” service provider to diagnose and repair your Commercial Laundry product. Whirlpool will not be responsible under this warranty to provide additional replacement parts as a result of incorrect diagnosis or repair by an “out of network” service company. This limited warranty is valid in the United States or Canada and applies only when the commercial appliance is used in the country in which it was purchased. This limited warranty is effective from the date of the original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO TWO YEARS OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or ﬁtness, so this limitation may not apply to you. This warranty gives you speciﬁc legal rights, and you also may have other rights that vary from state to state or province to province.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you speciﬁc legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this Warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty.

08/16

IF YOU NEED SERVICE:

Contact your authorized Whirlpool® Commercial Laundry distributor. To locate your authorized Whirlpool® Commercial Laundry distributor, call:

1-800-662-3587, or for web inquiries, visit www.WhirlpoolCommercialLaundry.com.

For written correspondence:

Whirlpool

Commercial Laundry Service Department

2000 N M 63

Benton Harbor, Michigan 49022-2632 USA

90 DAY LIMITED WARRANTY

WHAT IS COVERED

WHAT IS NOT COVERED

Page 29

W10867001A W10867002A – SP

09/16
