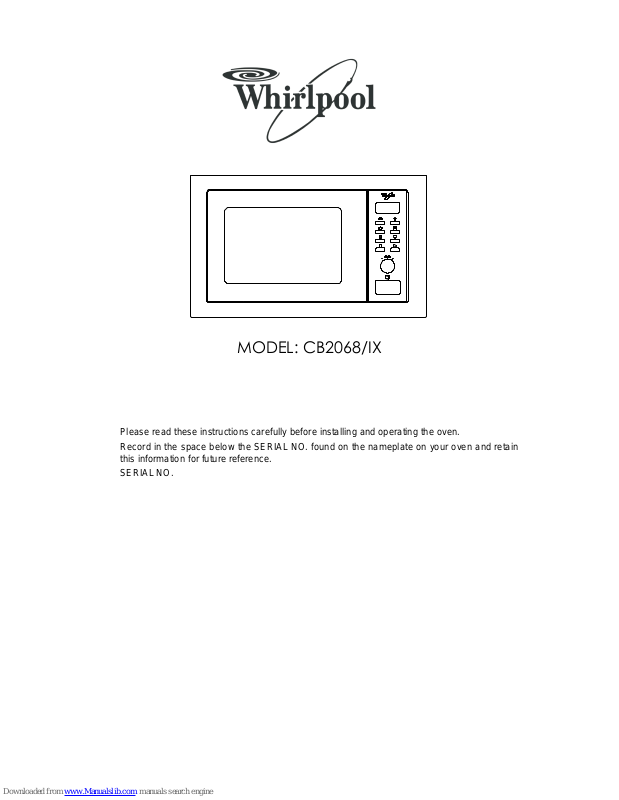

Whirlpool CB2068IX User Manual

Page 1

MODEL: CB2068/IX

Please read these instructions carefully before installing and operating the oven. Record in the space below the SERIAL NO. found on the nameplate on your oven and retain

this information for future reference. SERIAL NO.

Page 2

PPRREECCAAUUTTIIOONNSS TTOO AAVVOOIIDD PPOOSSSSIIBBLLEE EEXXPPOOSSUURREE TTOO

EEXXCCEESSSSIIVVEE MMIICCRROOWWAAVVEE EENNEERRGGYY

Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the

Door (bent),

Hinges and latches (broken or loosened),

Door seals and sealing surfaces.

The oven should not be adjusted or repaired by anyone except properly qualified service

personnel.

CCOONNTTEENNTTSS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY ------------------------------------------------------------------------------------ 1 SPECIFICATIONS* ------------------------------------------------------------------------------------------ 2 BEFORE YOU CALL FOR SERVICE ----------------------------------------------------------------- 2 INSTALLATION ----------------------------------------------------------------------------------------------- 2 GROUNDING INSTRUCTIONS ------------------------------------------------------------------------ 3 RADIO INTERFERENCE ---------------------------------------------------------------------------------- 3 IMPORTANT SAFETY INSTRUCTIONS ----------------------------------------------------------- 3 MICROWAVE COOKING PRINCIPLES ------------------------------------------------------------ 4 UTENSILS GUIDE ------------------------------------------------------------------------------------------- 4 PART NAMES -------------------------------------------------------------------------------------------------- 6 CONTROL PANEL -------------------------------------------------------------------------------------------- 7 HOW TO SET THE OVEN CONTROLS ------------------------------------------------------------- 8

Setting digital clock --------------------------------------------------------------------------------------- 8 Microwave cooking ---------------------------------------------------------------------------------------- 8 Grill ------------------------------------------------------------------------------------------------------------ 8 Combination 1 ---------------------------------------------------------------------------------------------- 9 Combination 2 ---------------------------------------------------------------------------------------------- 9 Speed Defrost ---------------------------------------------------------------------------------------------- 9 Weight Defrost --------------------------------------------------------------------------------------------- 9 Beverage -------------------------------------------------------------------------------------------------- 10 Multi stage cooking ------------------------------------------------------------------------------------- 10 Child Lock ------------------------------------------------------------------------------------------------- 10 Quick Start ------------------------------------------------------------------------------------------------- 11 Auto Cook ------------------------------------------------------------------------------------------------- 11

CLEANING AND CARE ---------------------------------------------------------------------------------- 12

Page 3

Power Supply 230V~50Hz

SSPPEECCIIFFIICCAATTIIOONNSS**

BBEEFFOORREE YYOOUU CCAALLLL FFOORR SSEERRVVIICCEE

IINNSSTTAALLLLAATTIIOONN

Power Consumption (Microwave) 1200W Power Consumption (Grill) 1000W Microwave Power Output 800W Operation Frequency 2450MHz Outside Dimensions 316mm(H) 464mm(W)×340mm(D) Oven Cavity Dimensions 219mm(H) ×298mm(W) ×325mm(D) Oven Capacity 20Litres Cooking Uniformity Turntable System Net Weight Approx. 13.6kg

If the oven fails to operate:

Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.

Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

Check to ensure that the control panel is programmed correctly and the timer is set.

Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFY THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

Make sure that all the packing materials are removed from the inside of the door.

WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and

sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.

Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.

For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

Do not operate the oven without glass tray, roller support, and shaft in their proper positions.

Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.

The socket must be readily accessible so that it can be easily unplugged in an emergency.

Do not use the oven outdoors.

Page 4

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding

GGRROOUUNNDDIINNGG IINNSSTTRRUUCCTTIIOONNSS

RRAADDIIOO IINNTTEERRFFEERREENNCCEE

IIMMPPOORRTTAANNTT SSAAFFEETTYY IINNSSTTRRUUCCTTIIOONNSS

plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note

If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury

resulting from failure to observe the electrical connection procedures. The wires in this cable main are colored in accordance with the following code: Green and Yellow = EARTH Blue = NEUTRAL Brown = LIVE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

Clean door and sealing surface of the oven.

Reorient the receiving antenna of radio or television.

Relocate the microwave oven with respect to the receiver.

Move the microwave oven away from the receiver.

Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch

circuits.

When using electrical appliance basic safety precautions should be followed, including the following: WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave

energy:

1. Read all instructions before using the appliance.

2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors

in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for

industrial or laboratory use.

3. Do not operate the oven when empty.

4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been

damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent

or a similarly qualified person in order to avoid a hazard.

5. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult

supervision due to the temperatures generated.

6. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given

so that the child is able to use the oven in a safe way and understands the hazards of improper use.

Page 5

7. To reduce the risk of fire in the oven cavity:

MMIICCRROOWWAAVVEE CCOOOOKKIINNGG PPRRIINNCCIIPPLLEESS

a. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.

b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.

c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity

when not in use.

8. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.

9. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle

the container.

10. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

11.

Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may

explode even after microwave heating has ended.

12. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

13. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked

before serving in order to avoid burns.

14. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed

to handle the utensil.

15. Utensils should be checked to ensure that they are suitable for use in microwave oven.

16. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation

which involves the removal of any cover which gives protection against exposure to microwave energy.

17. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM

(Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or

used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For

Class B equipment is equipment suitable for use in domestic establishments and in establishments directly

connected to a low voltage power supply network which supplies buildings used for domestic purpose.for

domestic purpose.

18.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for their safety.

19.

Children should be supervised to ensure that they do not play with the appliance.

1. Arrange food carefully. Place thickest areas towards outside of dish.

2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely

overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large

items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the

dish to the outside.

UUTTEENNSSIILLSS GGUUIIDDEE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the

container and heat the food.

Page 6

2. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.

3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which

may cause sparks and/or fires.

4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.

5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don’t use too

much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils. COOKWARE MICROWAVE GRILL COMBINATION Heat–Resistant Glass Yes Yes Yes Non Heat–Resistant Glass No No No Heat–Resistant Ceramics Yes Yes Yes Microwave–Safe Plastic Dish Yes No No Kitchen Paper Yes No No Metal Tray No Yes No Metal Rack No Yes No Aluminum Foil & Foil Containers No Yes No

Page 7

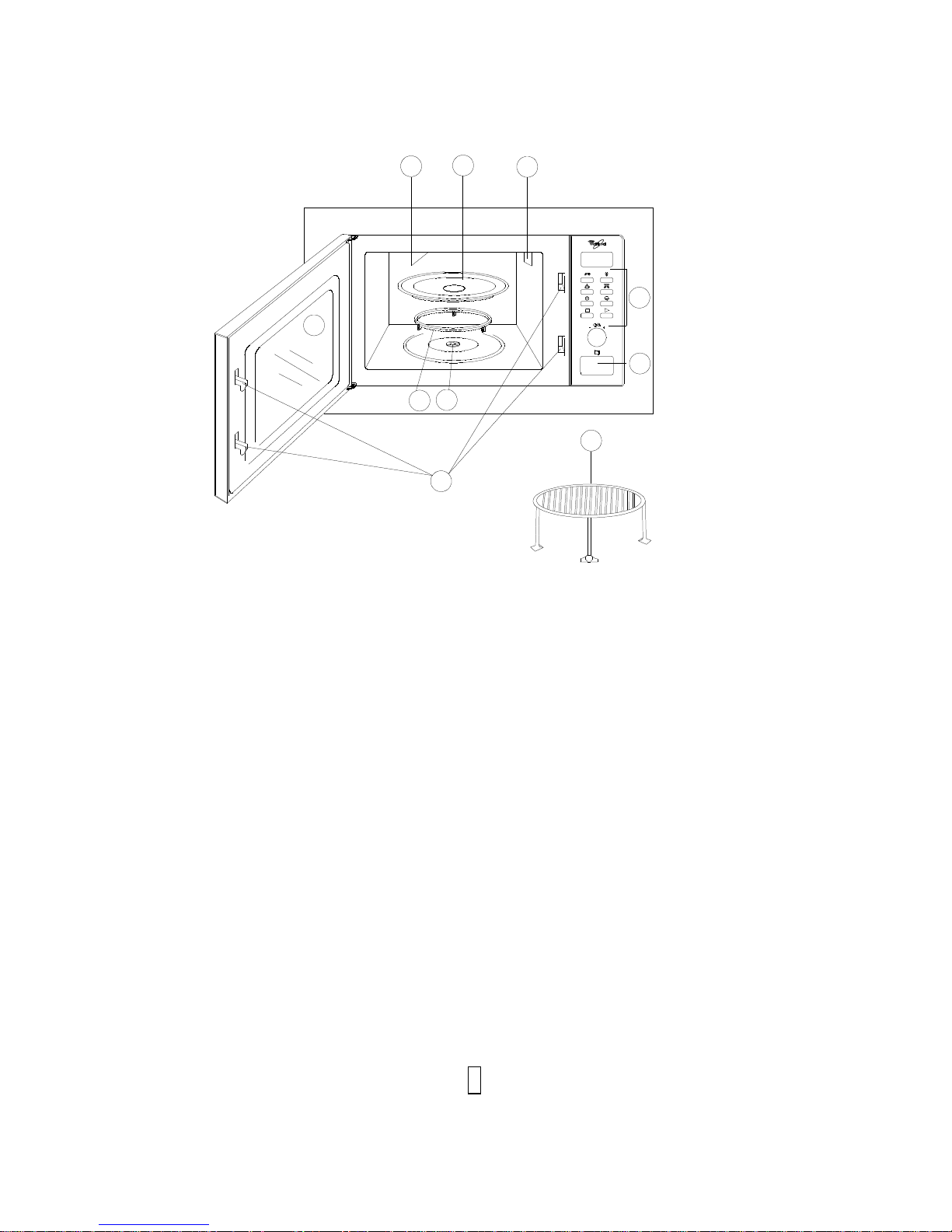

PPAARRTT NNAAMMEESS

Door Safety Lock System

Oven Window

Turntable Support

Shaft

Door Release Button

Control Panel

Wave Guide

(Please do not remove the mica plate covering the wave guide.)

Glass Tray

Grill Heater

10.

Metal Rack

Page 8

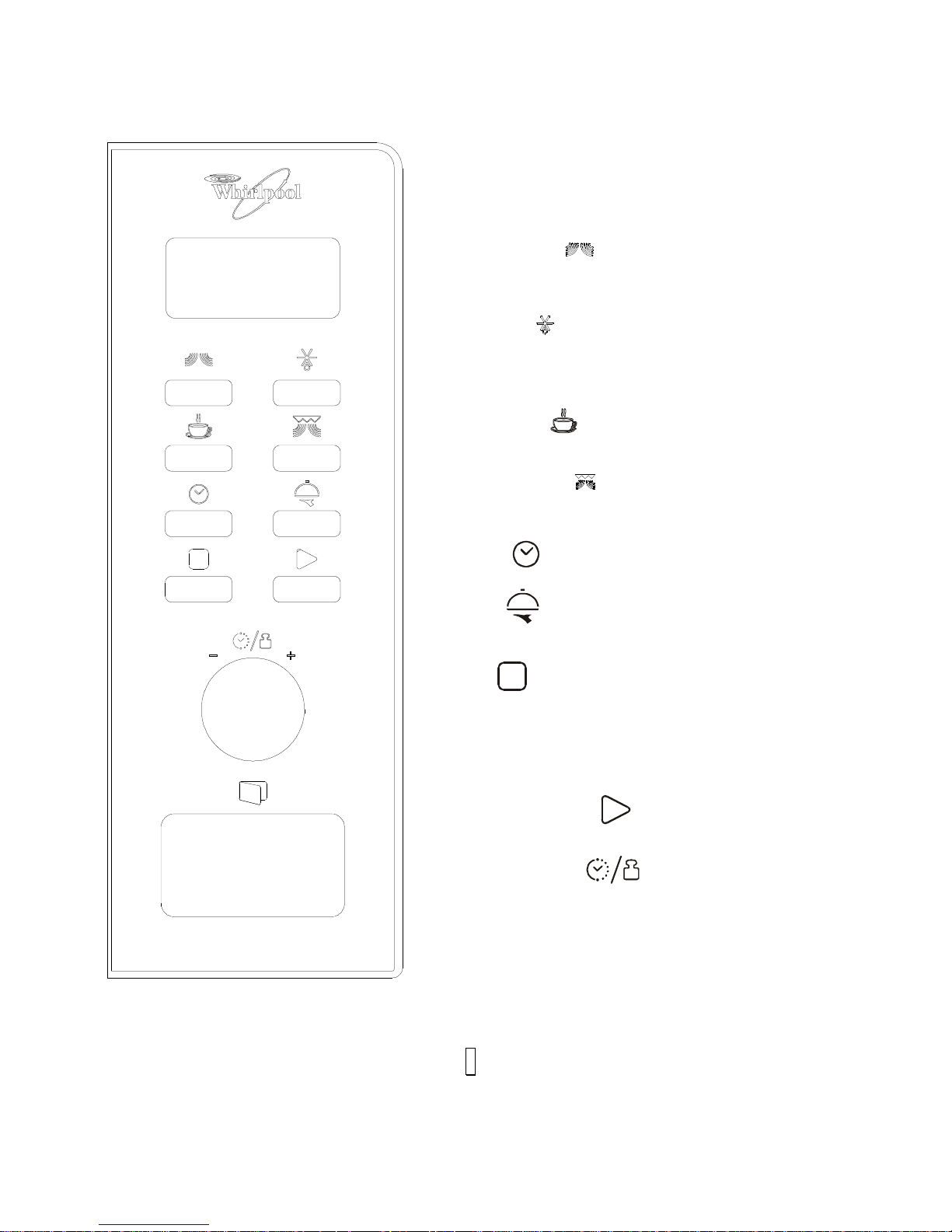

CCOONNTTRROOLL PPAANNEELL

●

MENU ACTION SCREEN

Cooking time, power, action indicators, weight or serving and clock time are displayed.

●

MICROWAVE( )

Touch this button a number of times to set microwave cooking power level.

●

DEFROST( )

Press this button once to defrost food base on time. Press this button twice to defrost food base on weight.

●

BEVERAGE( )

Touch to heat beverage.

●

GRILL/COMBI.( )

Touch to set a combination cooking with grilling and microwave.

●

CLOCK( )

Use to set clock function.

●

MENU( )

Use to cook 7 popular kinds of food with weight or serving inputed.

●

STOP( )

Press to cancel setting or reset the oven before setting a cooking program.

Press once to temporarily stop cooking, or twice to cancel cooking altogether.

●

START/EXPRESS( )

Use to start program or setting quick start function.

●

TIME/WEIGHTE( )

Turn to input cooking time ,weight or serving of food.

Page 9

 When the oven is plugged in initially, one sound of “DE” will be heard with”CLOCK”and“1:01“ displaying.

HHOOWW TTOO SSEETT TTHHEE OOVVEENN CCOONNTTRROOLLSS

 Each time a button is touched, a beep will sound to acknowledge the touch.  If programs are forced to stop for 20 seconds when be set, system will back to waiting state.  When program ended, buzzer will sound with “End” displayed, this situation will continue every 2

minutes until you press any button or open the door.

 During cooking cycle, press STOP button once to stop it, twice to cancel it, press START/EXPRESS

button to start again.

Setting digital clock

With the oven ready for input, press the CLOCK button once or twice to set the digital clock in 12 hours or 24 hours cycle.

FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30 .

Press CLOCK button once or twice.

Turn TIME/WEIGHT to indicate the hour digit 8.

Press CLOCK button once.

Turn TIME/WEIGHT dial to indicate the minute digits until the screen shows 8: 30.

Press CLOCK to confirm the setting.

Note : To check clock time during cooking, press the CLOCK button once, the time will be displayed for 3 seconds.

Microwave cooking

To cook with microwave power alone, press the MICROWAVE button a number of times to select a cooking power level, and then use the TIME/WEIGHT dial to set a desired cooking time. The longest cooking time is 95minutes.

For example, suppose you want to cook for 1 minute at 60% of microwave power.

Place the food into the oven,close the door.

Press MICROWAVE button 3 times.

PRESS MICROWAVE BUTTON COOKING POWER

Once 100%

Twice 80% 3 times 60% 4 times 40% 5 times 20% 6 times 00%

Turn the TIME/WEIGHT dial to 1:00.

Press START/EXPRESS to confirm.

Note：You can check the present power by pressing MICROWAVE button.

Grill

The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages of

Page 10

piece of chicken. It is also suitable for hot sandwiches and au gratin dishes. For example, suppose you want to grill for 12 minutes.

Place the food into the oven,close the door.

Press GRILL/COMBI. button once.

Turn the TIME/WEIGHT dial to 12:00.

Press START/EXPRESS to cofirm.

Note : The longest time you can set is 95 minutes.

Combination 1

The longest cooking time is 95 minutes. 30% time for microwave cooking, 70% for grill cooking. Use for fish, potatoes or au gratin. FOR EXAMPLE: Suppose you want to set combination 1 cooking for 25 minutes.

Place the food into the oven,close the door.

Press GRILL/COMBI. button twice.

Turn TIME/WEIGHT to 25:00.

Press START/EXPRESS to confirm.

Combination 2

The longest cooking time is 95minutes. 55% time for microwave cooking, 45% for grillcooking. Use for puddings omelettes, baked potatoes

and poultry. FOR EXAMPLE: Suppose you want to set combination 2 cooking for 12 minutes.

Place the food into the oven,close the door.

Press GRILL/COMBI. button 3 times.

Turn TIME/WEIGHT dial to 12:00.

Press START/EXPRESS to confirm.

Note : You can check the present combination power by pressing GRILL/COMBI. Button.

Speed Defrost

The longest time you can set is 95 mintes. FOR EXAMPLE: Suppose you want to defrost beef.

Place the food into the oven,close the door.

Press DEFROST button once.

Turn TIME/WEIGHT dial to input desired defrost time.

Press START/EXPRESS to confirm.

Note: In the middle of cooking time, the system will pause and arise sounds to remind you to turn over the food until you depress the START/EXPRESS button start to enter into the next defrosting stage.

Weight Defrost

The oven allows the defrosting of meat, poultry, and seafood. The time and the defrosting power are

Page 11

adjusted automatically once the weight is programmed. The range weight of frozen foods varies between 100g and 1800g.

FOR EXAMPLE: Suppose you want to defrost shrimp.

1. Place the food into the oven,close the door.

2. Press DEFROST button twice.

3. Turn TIME/WEIGHT dial to input correct weight of food.

4. Press START/EXPRESS to confirm. Note: In the middle of cooking time, the system will pause and arise sounds to remind you to turn over

the food until you depress the START/EXPRESS button start to enter into the next defrosting stage.

Beverage

The oven will running with preset time, you just need to inpput servings of your beverage (200ml/cup), you can at most input 3 servings one time.

FOR EXAMPLE: If the user want to heat a cup of coffee .

1. Place the beverage into the oven,close the door.

2. Press Beverage button once.

3. Turn the TIME/WEIGHT (or press BEVERAGE button repeatedly)to select desired serving.

4. Press START/EXPRESS to confirm.

Multi stage cooking

This function allows the oven to start with at most 2 stage cooking programs. FOR EXAMPLE: You want to set follow program:

①Microwave cooking ②Grill cooking

1. Place the food into the oven,close the door.

2. Press MICROWAVE button several times to input desired power level.

3. Turn TIME/WEIGHTdial to input desired cooking time.

4. Press GRILL/COMBI. button once.

5. Turn the TIME/WEIGHT to input desired cooking time.

6. Press START/EXPRESS to cofirm. Note : For this function,only Microwave cooking and Grill cooking can be set in it.

Child Lock

Use to prevent unsupervised operation of the oven by little children. To set the CHILD LOCK: In the waiting mode, the door closing for 1 minutes，CHILD LOCK will self-setting, a beep sounds and LOCK indicator lights. Cooking program is over for 10 minues, and another 1 minute passed, CHILD LOCK will self-setting, a beep sounds and LOCK indicator lights. During child lock program, press START/EXPRESS once,“door“ will display for 10 seconds to remind the state. The oven can not be operated.

To cancel the CHILD LOCK:

Open the oven door once, CHILD LOCK is cancel.Oven return to waiting mode.

Page 12

Quick Start

This feature allows you to start the oven quickly. Place food into oven，and close it.Press START/EXPRESS a number of times to set the cooking

time,the longest time you can set is 10 minutes, the oven starts work at full power level immediately.You can add more cooking time by pressing START/EXPRESS button even when it running already.

Auto Cook

For food or the following cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this food.

FOR EXAMPLE:To cook 200g of rice.

Place food into oven，and close it.

Press MENU button several times to select you desired food in menu.

Turn TIME/WEIGHTdial to input weight(or serving).

Press START/EXPRESS to cofirm.

Auto Cook Menu

Code Food/cooking mode

A-1 Rice (g) A-2 Spaghetti (g)* A-3 Potatoes (each 230g) A-4 Reheat (g) A-5 Fish (g) A-6 Gilled chicken(g) A-7 Gilled Beef(g)

1. The result of auto cooking depends on factors such as the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.

2. *Add boiling water before cooking.

3. Menus A-6 and A-7, You need to turn food oven when the cooking programs pause.

Page 13

CCLLEEAANNIINNGG AANNDD CCAARREE

Turn off the oven and remove the power plug from the wall socket before cleaning.

Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.

Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.

If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.

It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

10.

When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

11.

The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

12.

Please do not dispose this appliance into the domestic rubbish bin, it should be disposed to the particular disposal center provided by the municipalities.

13.

When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.
