Whirlpool C 858 BL INSTRUCTION FOR USE
Before using the dishwasher, read the user instructions!
C 858

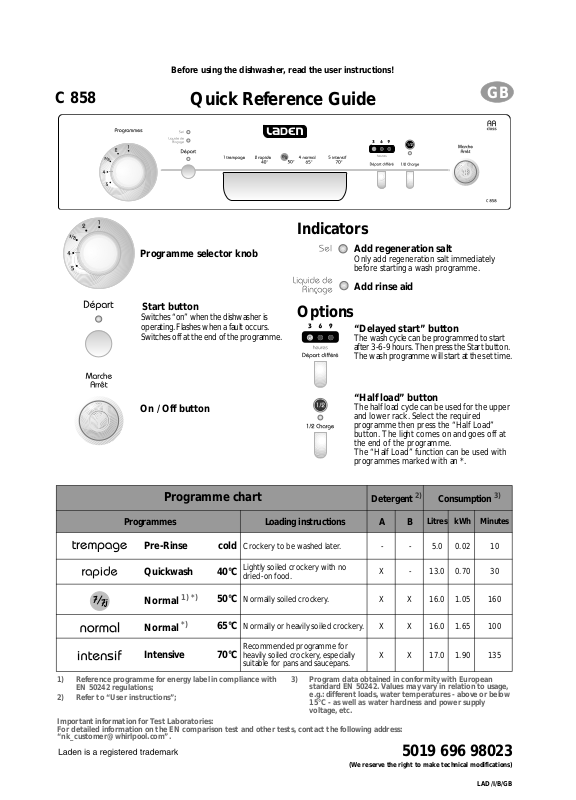

Quick Reference Guide
Programme selector knob
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
On / Off button
Indicators
Add regeneration salt
Only add regeneration salt immediately
before starting a wash programme.
Add rinse aid
Options
“Delayed start” button
The wash cycle can be programmed to start
after 3-6-9 hours. Then press the Start button.
The wash programme will start at the set time.
“Half load” button
The half load cycle can be used for the upper
and lower rack. Select the required
programme then press the “Half Load”
button. The light comes on and goes off at
the end of the programme.
The “Half Load” function can be used with
programmes marked with an *.
GB
Programme chart
Detergent
Programmes Loading instructions A B
Pre-Rinse cold
Quickwash 40°C
Normal
Normal
1) *)
*)
Intensive 70°C
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions”;
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address:
“nk_customer@whirlpool.com”.
Crockery to be washed later. - - 5.0 0.02 10
Lightly soiled crockery with no
dried-on food.
Normally soiled crockery. X X 16.0 1.05 160
50°C
Normally or heavily soiled crockery. X X 16.0 1.65 100
65°C
Recommended programme for
heavily soiled crockery, especially
suitable for pans and saucepans.
3) Program data obtained in conformity with European
standard EN 50242. Values may vary in relation to usage,
e.g.: different loads, water temperatures - above or below
15°C - as well as water hardness and power supply
voltage, etc.
X - 13.0 0.70 30
X X 17.0 1.90 135
(We reserve the right to make technical modifications)
2)
Consumption
Litres kWh Minutes
3)
5019 696 98023
LAD/I/B/GB
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
How to fill the
detergent dispenser
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
Press the ON/OFF button.
Large compartment
With each wash cycle.
Small compartment
For programmes with pre-wash
only.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
The last programme selected will light up.
Select the desired programme (using the specific button or knob).
The corresponding indicator lamp lights up.
A:
ABC
B:
Select options
Press the Start button
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
Only after the START button has switched off: Press the ON/
All the indicator lamps switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
“Change programme”
Press the ST ART button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and
press the START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
OFF
button.
LAD/II/B2/GB
