Whirlpool C 834, C 835 INSTRUCTION FOR USE
Before using the dishwasher, read the user instructions!
_
C 835

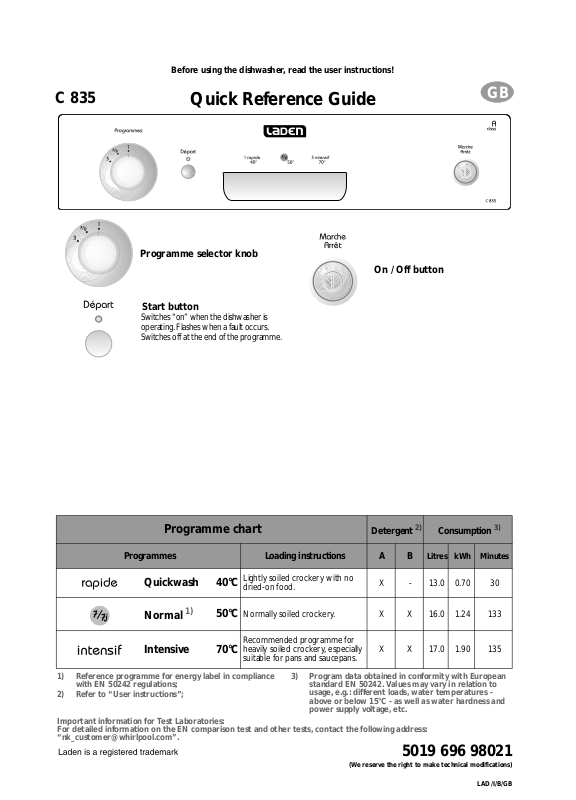

Quick Reference Guide
Programme selector knob
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
GB
On / Off button
Programme chart
Programmes Loading instructions A B
Quickwash 40°C
Normal
1)
Intensive 70°C
1) Reference programme for energy label in compliance
with EN 50242 regulations;
2) Refer to “User instructions”;
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address:
customer@whirlpool.com”.
“nk
Lightly soiled crockery with no
dried-on food.
Normally soiled crockery. X X 16.0 1.24 133
50°C
Recommended programme for
heavily soiled crockery, especially
suitable for pans and saucepans.
3) Program data obtained in conformity with European
standard EN 50242. Values may vary in relation to
usage, e.g.: different loads, water temperatures above or below 15°C - as well as water hardness and
power supply voltage, etc.
Detergent
X - 13.0 0.70 30
X X 17.0 1.90 135
2)
Consumption
Litres kWh Minutes
3)
5019 696 98021
(We reserve the right to make technical modifications)
LAD/I/B/GB
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
How to fill the
detergent dispenser
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
Press the ON/OFF button.
Large compartment
With each wash cycle.
Small compartment
For programmes with pre-wash
only.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
The last programme selected will light up.
Select the desired programme (using the specific button or knob).
The corresponding indicator lamp lights up.
A:
ABC
B:
Select options
Press the Start button
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
Only after the START button has switched off: Press the ON/
All the indicator lamps switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
“Change programme”
Press the ST ART button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and
press the START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
OFF
button.
LAD/II/B2/GB
