Page 1
User Manual
www.whirlpool.eu/register
Page 2
2
USER MANUAL
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance,
please register your appliance on www.whirlpool.eu/register
INDEX
HEALTH & SAFETY GUIDE ................................................................. 3
Safety instructions ........................................................................................ 3
USE & CARE GUIDE ....................................................................... 5
Product Description ......................................................................................5
Accessories* ...............................................................................................5
Control panel ..............................................................................................6
Refrigerator light ...........................................................................................7
Shelves ....................................................................................................7
Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
No-frost refrigerator compartment .........................................................................7
How to use the appliance .................................................................................8
First time use ..............................................................................................8
Refrigerator compartment and food storage ................................................................8
How to store fresh food and beverage ......................................................................8
Freezer compartment and food storage .....................................................................9
Removing the freezer drawer container .....................................................................9
Tips for freezing and storing fresh food .....................................................................9
Frozen food: shopping tips .................................................................................9
Storage times for home frozen foods ......................................................................10
Defrosting the freezer compartment .......................................................................10
Functional sounds ........................................................................................10
Alarm table ...............................................................................................11
Recommendation in case of no use of the appliance .......................................................11
Cleaning and maintenance ..............................................................................11
Troubleshooting .........................................................................................12
After-sales service .......................................................................................13
INSTALLATION GUIDE ...................................................................14
Page 3
EN
3
Health & Safety guide
SAFETY INSTRUCTIONS
IMPORTANT TO BE READ AND OBSERVED
Before using the appliance, read these safety
instructions. Keep them nearby for future reference.
These instructions and the appliance itself provide
important safety warnings, to be observed at all
times. The manufacturer declines any liability for
failure to observe these safety instructions, for
inappropriate use of the appliance or incorrect
setting of controls.
Very young children (0-3years) should be kept
away from the appliance. Young children (3-8years)
should be kept away from the appliance unless
continuously supervised. Children from 8years old
and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge can use this appliance only if they
are supervised or have been given instructions on
safe use and understand the hazards involved.
Children must not play with the appliance. Cleaning
and user maintenance must not be carried out by
children without supervision.
PERMITTED USE
CAUTION: The appliance is not intended to be
operated by means of an external switching device,
such as a timer, or separate remote controlled system.
This appliance is intended to be used in household
and similar applications such as: sta kitchen areas
in shops, oces and other working environments;
farm houses; by clients in hotels, motels, bed &
breakfast and other residential environments.
This appliance is not for professional use. Do not
use the appliance outdoors.
The bulb used inside the appliance is specically
designed for domestic appliances and is not suitable
for general room lighting within the home (EC
Regulation 244/2009).
The appliance is designed for operation in places
where the ambient temperature comes within the
following ranges, according to the climatic class
given on the rating plate. The appliance may not
work properly if it is left for a long time at a
temperature outside the specied range.
Climatic Class Amb. T. (°C)
SN: From 10 to 32 °C; N: From 16 to 32 °C
ST: From 16 to 38 °C; T: From 16 to 43 °C
This appliance does not contain CFCs. The
refrigerant circuit contains R600a (HC). Appliances
with Isobutane (R600a): isobutane is a natural gas
without environmental impact, but is ammable.
Therefore, make sure the refrigerant circuit pipes are
not damaged, especially when emptying the
refrigerant circuit.
WARNING: Do not damage the appliance
refrigerant circuit pipes.
WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear
of obstruction.
WARNING: Do not use mechanical, electric or
chemical means other than those recommended by
the Manufacturer to speed up the defrost process.
WARNING: Do not use or place electrical devices
inside the appliance compartments if they are not of
the type expressly authorised by the Manufacturer.
WARNING: Ice makers and/or water dispensers
not directly connected to the water supply must be
lled with potable water only.
WARNING: Automatic ice-makers and/or water
dispensers must be connected to a water supply
that delivers potable water only, with mains water
pressure between 0.17 and 0.81MPa (1.7 and 8.1bar).
Do not store explosive substances such as aerosol
cans and do not place or use gasoline or other
ammable materials in or near the appliance.
Do not swallow the contents (non-toxic) of the
ice packs (provided with some models). Do not eat
ice cubes or ice lollies immediately after taking them
out of the freezer since they may cause cold burns.
For products designed to use an air lter inside
an accessible fan cover, the lter must always be in
position when the refrigerator is in function.
Do not store glass containers with liquids in the
freezer compartment since they may break.
Do not obstruct the fan (if included) with food items.
After placing the food check that the door of the
compartments closes properly, especially the freezer
door.
Damaged gaskets must be replaced as soon as
possible.
Use the refrigerator compartment only for storing
fresh food and the freezer compartment only for
storing frozen food, freezing fresh food and making
ice cubes.
Avoid storing unwrapped food in direct contact
with internal surfaces of the refrigerator or freezer
compartments.
Appliances could have special compartments (Fresh
Food Compartment, Zero Degree Box, etc.). Unless
specied in the specic booklet of product, they can
be removed, maintaining equivalent performances.
C-Pentane is used as blowing agent in the
insulation foam and it is a ammable gas.
INSTALLATION
The appliance must be handled and installed by
two or more persons- risk of injury. Use protective
gloves to unpack and install- risk of cuts.
Page 4
4
Health & Safety guide
Installation, including water supply (if any) and
electrical connections, and repairs must be carried
out by a qualied technician. Do not repair or replace
any part of the appliance unless specically stated in
the user manual. Keep children away from the
installation site. After unpacking the appliance, make
sure that it has not been damaged during transport.
In the event of problems, contact the dealer or your
nearest After-sales Service. Once installed, packaging
waste (plastic, styrofoam parts etc.) must be stored
out of reach of children - risk of suocation. The
appliance must be disconnected from the power
supply before any installation operation - risk of
electric shock. During installation, make sure the
appliance does not damage the power cable- risk of
re or electric shock. Only activate the appliance
when the installation has been completed.
Be careful not to damage the oors (e.g. parquet)
when moving the appliance. Install the appliance on
a oor or support strong enough to take its weight
and in a place suitable for its size and use. Make sure
the appliance is not near a heat source and that the
four feet are stable and resting on the oor, adjusting
them as required, and check that the appliance is
perfectly level using a spirit level. Wait at least two
hours before switching the appliance on, to ensure
that the refrigerant circuit is fully ecient.
To guarantee adequate ventilation, leave a space
on both sides and above the appliance. The distance
between the rear of the appliance and the wall
behind the appliance should be 50 mm, to avoid
access to hot surfaces. A reduction of this space will
increase the Energy consumption of product.
WARNING: To avoid a hazard due to instability,
positioning or xing of the appliance must be done
in accordance with the manufacturer instructions. It
is forbidden to place the refrigerator in such way
that the metal hose of gas stove, metal gas or water
pipes, or electrical wires are in contact with the
refrigerator back wall (condenser coil).
ELECTRICAL WARNINGS
It must be possible to disconnect the appliance
from the power supply by unplugging it if plug is
accessible, or by a multi-pole switch installed
upstream of the socket in accordance with the
wiring rules and the appliance must be earthed in
conformity with national electrical safety standards.
Do not use extension leads, multiple sockets or
adapters. The electrical components must not be
accessible to the user after installation. Do not use
the appliance when you are wet or barefoot. Do not
operate this appliance if it has a damaged power
cable or plug, if it is not working properly, or if it has
been damaged or dropped.
If the supply cord is damaged, it must be replaced
with an identical one by the manufacturer, its service
agent or similarly qualied persons in order to avoid
a hazard- risk of electric shock.
CLEANING AND MAINTENANCE
WARNING: Ensure that the appliance is switched
o and disconnected from the power supply before
performing any maintenance operation; never use
steam cleaning equipment- risk of electric shock.
Do not use abrasive or harsh cleaners such as
window sprays, scouring cleansers, ammable
uids, cleaning waxes, concentrated detergents,
bleaches or cleansers containing petroleum
products on plastic parts, interior and door liners or
gaskets. Do not use paper towels, scouring pads, or
other harsh cleaning tools.
DISPOSAL OF PACKAGING MATERIALS
The packaging material is 100% recyclable and is marked with the recycle
symbol
.
The various parts of the packaging must therefore be disposed of
responsibly and in full compliance with local authority regulations
governing waste disposal.
DISPOSAL OF HOUSEHOLD APPLIANCES
This appliance is manufactured with recyclable or reusable materials.
Dispose of it in accordance with local waste disposal regulations.
For further information on the treatment, recovery and recycling of
household electrical appliances, contact your local authority, the
collection service for household waste or the store where you purchased
the appliance. This appliance is marked in compliance with European
Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
negative consequences for the environment and human health.
The symbol
on the product or on the accompanying documentation
indicates that it should not be treated as domestic waste but must be
taken to an appropriate collection center for the recycling of electrical
and electronic equipment.
ENERGY SAVING TIPS
Install the appliance in a dry, well ventilated room far away from any heat
source (eg. radiator, cooker, etc.) and in a place not exposed directly to
the sun. If required, use an insulating plate.
To guarantee adequate ventilation follow installation instructions.
Insucient ventilation at the back of the product increases energy
consumption and decreases cooling eciency.
Frequent door opening might cause an increase in Energy Consumption.
The internal temperature of the appliance and the Energy Consumption
may be aected also by the ambient temperature, as well as location of
the appliance. Temperature setting should take into consideration these
factors.
Reduce door opening to a minimum.
When thawing frozen food , place in the refrigerator. The low temperature
of the frozen products cools the food in the refrigerator. Allow warm
food and drinks to cool down before placing in the appliance.
Positioning of the shelves in the refrigerator has no impact on the
ecient usage of energy. Food should be placed on the shelves in such
way to ensure proper air circulation (food should not touch each other
and distance between food and rear wall should be kept).
You can increase storage capacity of frozen food by removing baskets
and, if present, Stop Frost shelf.
Do not worry about noises coming from the compressor which are
described as normal noises in this product’s Quick Guide.
Page 5
EN
5
Use & Care guide
ACCESSORIES*
EG G TRAY BOTTLE SEPARATOR ICE TRAY
* Available only on certain models
PRODUCT DESCRIPTION
Refrigerator Compartment
1. Fan*
2. Fan cover*
3. Electronic control panel/light unit
4. Shelves
5. Rating plate with commercial name
6. Fruits and vegetables crisper
7. Door reversibility kit
8. Door trays
9. Egg tray*
10. Bottle separator*
11. Bottle balcony*
12. Door seal
Freezer Compartment
12. Door seals
13. Freezer drawers
14. Shelves
15. Bottom drawer: coolest zone best
for freezing fresh food
16. Ice tray*
3
4
5
7
12
13
1
6
16
15
2
8
11
9
10
14
Page 6
6
Use & Care guide
LED LIGHT
The light system inside the fridge compartment uses LEDs
light, allowing a better lightning as
well as very low energy consumption.
If the LED light system does not work,
please contact the Service to replace
it.
Important: The refrigerator
compartment light switches on when
the refrigerator door is opened.
If the door is kept open for more than 8 minutes the light
will be automatically switched o.
6TH SENSE
This function automatically works to ensure the optimal
conditions to preserve the stored food. The “6th Sense”
function is automatically activated when:
• a large amount of food is loaded into the refrigerator
• the refrigerator door is left open for a long time
• a prolonged power failure takes place, causing the
internal temperature of the appliance to increase to
values that cannot guarantee safe storage of food.
FAST COOLING
The use of the Fast Cooling function is recommended
to increase the cooling capacity of the refrigerator
compartment when placing a very high quantity of food
within it.
To activate the Fast Cooling function, press and hold for 3
seconds the Temperature button on the control panel till all
the 3 LEDs will turn on.
The function is automatically deactivated after 24 hours and
return to previous selected set point.
The function can be manually deactivated by pressing and
holding for 3 seconds the Temperature button on the
control panel.
Note: Fast Cooling function should be also switched ON before
placing fresh food to be frozen in the freezer compartment, in
order to maximize the freezing capacity.
TEMPERATURE SETTING
Press the Temperature button on the control panel to
adjust the temperature from the warmest through the
lower to the coldest level. Pressing the Temperature button,
the temperature setting will change cyclically. At rst
plug-in of appliance temperature setpoint is present at
medium position (factory setting). Following table shows
temperature setpoints:
Led on Led o
High temp.
Med-high temp.
Medium temp.
Med-low temp.
Low temp.
Fast Cooling
Note: Displayed set points correspond to the average
temperature throughout the whole refrigerator.
FAN*
The Fan improves temperature distribution inside the
refrigerator compartment, allowing better preservation of
stored food. By default, the fan is switched on. To turn o
the fan press the button of fan. Please note that when the
fan is switched on it will not continuously work. The fan will
start/stop working depending on the temperature and/or
humidity level inside the fridge. It is therefore absolutely
normal if the fan does not move even if the fan is switched
on. If the appliance has the Fan it can be equipped with
the antibacterial lter. Remove it from the box placed
in the crisper drawer and insert into the fan cover. The
replacement procedure is included in the lter box.
ANTIBACTERIAL FILTER*
Remove it from the box placed in the Fruit and vegetable
drawer and insert into the cover of fan. The replacement
procedure is included in the lter box. Replace it every
6 months to ensure optimal protection inside your
refrigerator. Visit the website page or contact consumer
service to purchase the lter.
FREEZING FRESH FOOD
Place fresh food to be frozen on the shelf in the freezer
compartment, avoiding direct contact with food that is
already frozen. The quantity of fresh food that can be frozen
in 24 hours is written on the rating plate. To freeze fresh
food, place the freezer compartment shelf in the bottom
position.
CONTROL PANEL
1. Indicator Leds (to display the
current temperature setpoint or the
Fast Cooling function)
2. Fast Cooling Button/
Temperature Button
2
1
* Available only on certain models
Page 7
EN
7
Use & Care guide
REFRIGERATOR LIGHT
The light system inside the fridge compartment uses LEDs
light, allowing a better lightning as well as very low energy
consumption.
If the LED light system does not work, please contact the
Service to replace it.
Important: The refrigerator compartment light switches on
when the refrigerator door is opened .
If the door is kept open for more than 8 minutes the light will
be automatically switched o.
SHE LVES
All shelves, aps and pull-out baskets are removable.
DOOR
DOOR REVERSIBILITY
Note: The direction of door opening can be changed. If this
operation is performed by After-sales Service it is not covered by
the warranty.

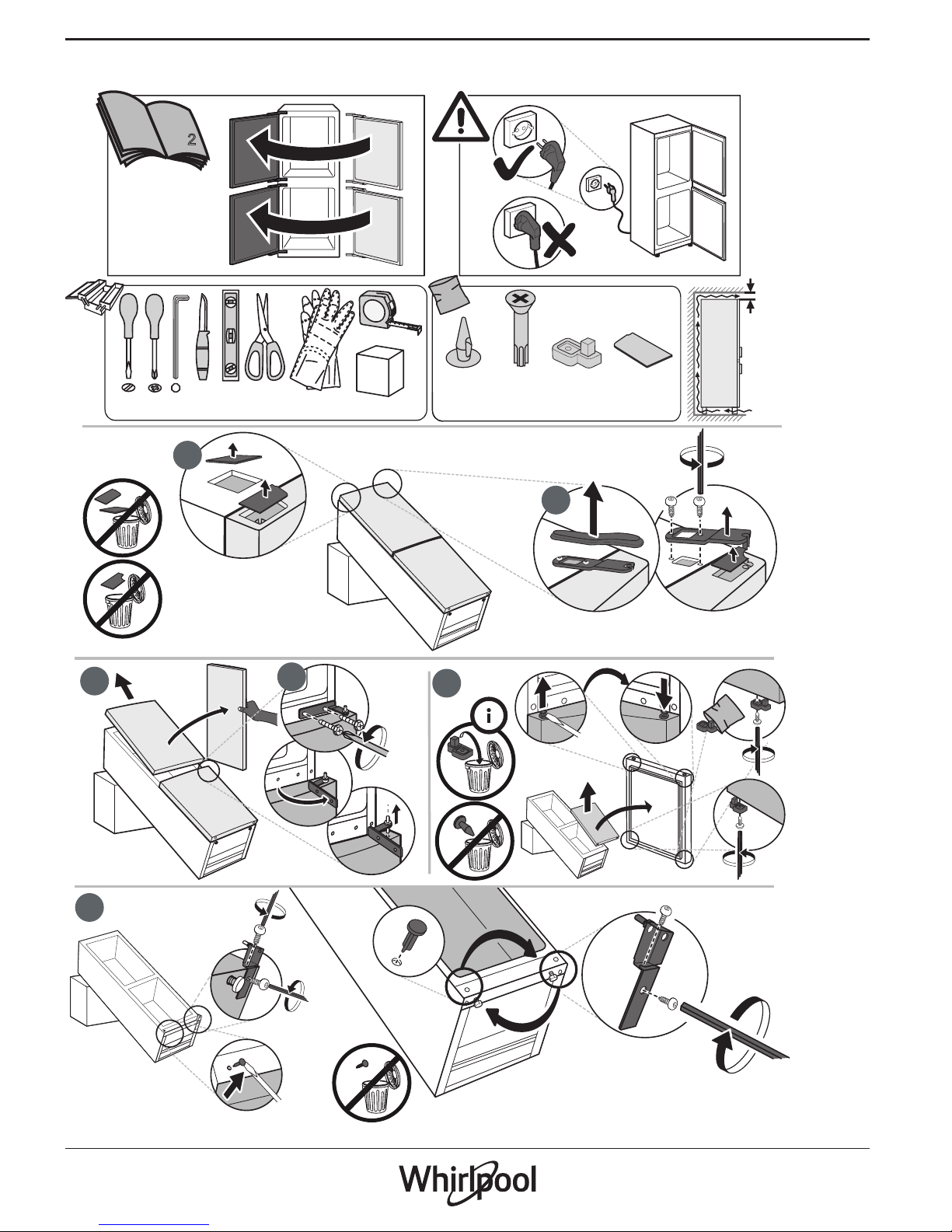

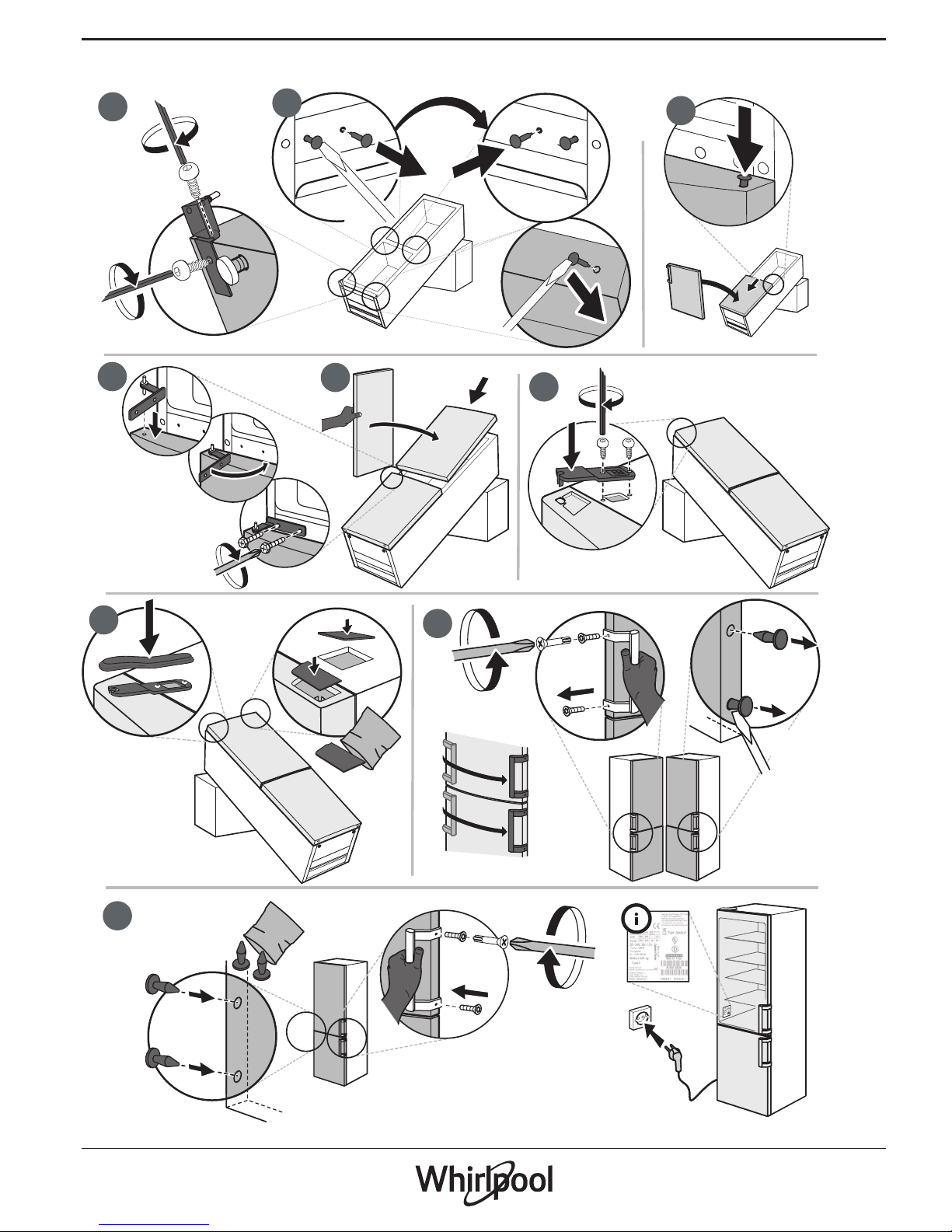

Follow instruction in Installation Guide.
NOFROST REFRIGERATOR COMPARTMENT
Refrigerator compartment defrosting is completely
automatic. Droplets of water on the rear wall inside the
refrigerator compartment indicate that the automatic defrost
phase is in progress.
The defrost water is automatically run into a drain hole and
collected in a container, where it evaporates.
* Available only on certain models
Page 8
8
Use & Care guide
HOW TO USE THE APPLIANCE
FIRST TIME USE
Wait at least two hours, after the installation, before
connecting the appliance to the power supply.
Connect the appliance to the power supply it starts the
operation automatically. The ideal storage temperatures for
the food are preset in the factory.
After turning the appliance on, you must wait for 4-6 hours
for the correct storage temperature to be reached for a
normally lled appliance. Position the antibacterial antiodour
lter in the fan as demonstrated in the lter packaging (if
available).
REFRIGERATOR COMPARTMENT AND FOOD STORAGE
The refrigerator compartment allows for the storage of
fresh food and drink. The refrigerator compartment defrosts
completely automatically. The occasional presence of drops
of water on the internal back wall of the compartment is a
sign of the automatic defrosting phase. The defrosting water
is channelled into a drain and then collected in a container,
where it evaporates.
Note: the ambient temperature, how often the doors are
opened and the position of the appliance may aect the internal
temperatures in the two compartments. Set the temperatures
depending on these factors.
In very humid conditions, condensation may form in the
refrigerator compartment, especially on the glass shelves.
In this case, it is recommended that you close containers with
liquids in (e.g. a pot of stock), wrap up food with a high water
content (e.g. vegetables) and turn on the fan, if there is one.
All of the drawers, door shelves and shelves can be removed.
AIR VENTILATION
The natural circulation of air in the refrigerator compartment
results in zones with dierent temperatures. It is coldest
directly above the fruits and vegetables crisper and at the
rear wall. It is warmest at the top front of the compartment.
Insucient ventilation results in an increase in energy
consumption and reduction of the refrigerating performance.
HOW TO STORE FRESH FOOD AND BEVERAGE
Foods which give o a large amount ethylene gas (apples,
apricots, pears, peaches, avocado, gs, prunes, blueberries,
mellons, beans) and those that are sensitive to this gas, such
as fruit vegetables and salad, should always be separated or
wrapped so as not to reduce the storage life; for example do
not store tomatoes together with kiwi fruits or cabbage.
Do not store food too close together to enable sucient air
circulation. Use recyclable plastic, metal, aluminum and glass
containers and cling lm to wrap foods.
If you have a little quantity of food to store in the refrigerator,
we recommend to use the shelves above the crisper for
fruits and vegetables since this is the coolest area of the
compartment. Always use closed containers for liquids and
for food that may give o or be tainted by odor or avor
transfer or cover them. To avoid bottles falling over, you can
use the bottle holder (available on selected models).
Legend
TEMPERATE ZONE
Suggested for the storage of tropical fruit, cans,
drinks, eggs, sauces, pickles, butter, jam
COOL ZONE
Suggested for storage of cheese, milk, dairy
food, delicatessen, yogurt
FRUIT & VEGETABLE DRAWER
Page 9
EN
9
Use & Care guide
FREEZER COMPARTMENT AND FOOD STORAGE
The freezer compartment allows for the storage of
frozen food (for the period indicated on the packaging) and
the freezing of fresh food.
The quantity of fresh food that can be frozen in 24 hours is
written on the rating plate.
Arrange the fresh food in the freezing area inside the freezer
compartment, leaving enough space around the food
packages to allow air to circulate freely. It is advisable that
you do not re-freeze food that has partially defrosted. It is
important to wrap the food in a way that prevents the ingress
of water, humidity or condensation.
To get more volume, the freezer compartment can be used
without the freezer drawers. Make sure that the door is closed
properly.
ICE CUBES
Fill 2/3 of the ice tray with water and put it back in the freezer
compartment. Do not use sharp or pointed objects to remove
the ice under any circumstances.
Legend
FREEZING ZONE DRAWER
(MAX COOL ZONE) Suggested to freeze fresh/
cooked food.
FREEZER DRAWER
REMOVING THE FREEZER DRAWER CONTAINER
• Open the freezer door.
• Pull the upper container upwards by the right and left
corners (1).
• Remove the drawer (2).
• Install the upper container in the reverse order.
1
2
TIPS FOR FREEZING AND STORING FRESH FOOD
• We recommend to label and date all your frozen food.
Adding a label will help you to identify foods and to
know when they should be used before their quality
deteriorates.Do not re-freeze defrosted food.
• Before freezing, wrap and seal fresh food in: aluminium
foil, cling lm, air and water-tight plastic bags, polythene
containers with lids or freezer containers suitable for
freezing fresh food.
• Food must be fresh, mature and of prime quality in order
to obtain high quality frozen food.
• Fresh vegetables and fruit should preferably be frozen
as soon as they are picked to maintain the full original
nutritional value, consistency, colour and avor. Some
meat, especially game, should be hung before it is frozen.
• Always leave hot food to cool before placing in the
freezer.
• Eat fully or partially defrosted foods immediately. Do not
refreeze unless the food is cooked after it has thawed.
Once cooked, the thawed food can be refrozen.
• Do not freeze bottles with liquid.
FROZEN FOOD: SHOPPING TIPS
When purchasing frozen food products:
• Ensure that the packaging is not damaged (frozen food
in damaged packaging may have deteriorated). If the
package is swollen or has damp patches, it may not have
been stored under optimal conditions and defrosting
may have already begun.
• When shopping, buy frozen foods at the end of your trip
and transport them in a thermally insulated cool bag.
• Once at home, place the frozen foods immediately in the
freezer.
• If food has defrosted even partially, do not refreeze it.
Consume within 24 hours.
• Avoid or reduce temperature variations to the minimum.
Respect the best-before date on the package.
• Always observe the storage information on the package.
Page 10
10
Use & Care guide
STORAGE TIMES FOR HOME FROZEN FOODS
Product Storage period
Butter or margarine 6 months
Cheese 3 months
Fish
Shellsh
2/3 months
1 month
Fruits (except citrus) 8-12 months
Ice cream or sherbet 2/3 months
Meat
Ham- sausage
Roasts (beef-pork- lamb)
Steaks or chops (beef-lamb-pork)
2 months
8/12 months
4 months
Milk, fresh uid 1-3 months
Poultry (chicken-turkey) 5- 7 months
Vegetables 8-12 months
DEFROSTING THE FREEZER COMPARTMENT
The freezer should be defrosted once or twice a year or when
excessive frost is present (3 mm thickness). The formation of
frost is normal.
The amount and rate at which frost accumulates depends on
room conditions and how often the door is open.
To defrost the unit, switch o the product and take out all
food.
Leave the freezer door open to allow the frost to melt.
Use the box under the bottom front of the
appliance to collect water (showed on the
gure).
Clean the inside of the freezer. Rinse and
dry thoroughly.
Switch the appliance back on and store the food inside.
FUNCTIONAL SOUNDS
Sounds coming from your appliances are normal since it has
a number of fans and engines to regulate performances that
switch on and o automatically.
SOME OF THE FUNCTIONAL SOUNDS CAN BE
REDUCED THROUGH:
• Leveling the appliance and installing it on an even
surface.
• Separating and avoiding contact between the appliance
and furniture.
• Checking if the internal components are correctly placed.
• Checking if bottles and containers are not in contactwith
each other.
SOME OF THE FUNCTIONAL SOUNDS YOU MIGHT
HEAR
1. A hissing sound when switching on the appliance for the
rst time or after a long pause.
2.
A gurgling sound when refrigerant uid enters into the
pipes.
3. BRRR sound is from the compressor running.
4.
Buzzing sound when water valve or fan start working.
5.
A cracking sound when compressor starts.
6.
The CLICK is from the thermostat which adjusts how
often the compressor is running.
Page 11
EN
11
Use & Care guide
ALARM TABLE
Alarm type Signal Cause Cure
Door open alarm. Refrigerator Light blinks. The door has remained open
for more than 5 minutes.
Close the door.
Door open alarm. Refrigerator Light OFF. The door has remained open
for more than 8 minutes.
Close the door.
Malfunction. Any temperature indicators
blinks.
Product malfunction. Contact the After-sales
Service.
RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE
IN THE EVENT OF NONUSE OF THE APPLICANCE
Disconnect the appliance from the power supply, empty it,
defrost it (if necessary) and clean it.
Keep the doors slightly ajar to let air circulate inside the
compartments. By doing this, you avoid the development of
mould and bad odours.
IN THE EVENT OF AN INTERRUPTION TO THE
POWER SUPPLY
Keep the doors closed so the food stays cold for as long as
possible. Do not re-freeze food that has partially defrosted. If
there is a prolonged power cut, the black out alarm may also
activate (in products with electronics).
CLEANING AND MAINTENANCE
Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical
power supply.
Never use abrasives. Never clean refrigerator parts with ammable uids.
Do not use steam cleaners.
The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a
dry cloth.
• Periodically clean the appliance with a cloth and a
solution of lukewarm water and neutral detergent
specically for refrigerator interiors.
• Clean the outside of the appliance and the door seal with
a damp cloth and dry with a soft cloth.
• Condenser placed in the rear of the appliance should be
cleaned regularly using a vacuum cleaner.
Important:
• The buttons and control panel display must not be
cleaned with alcohol or alcohol-derived substances, but
with a dry cloth.
• The refrigeration system pipes are located near the
defrost pan and can become hot. Periodically clean them
with a vacuum cleaner.
To ensure the constant and correct
ow of the defrosting water, regularly
clean the inside of the drain situated
in the back wall of the refrigerator
compartment near the fruit and
vegetable drawer using the utensil
provided.
Page 12
12
Use & Care guide
TROUBLESHOOTING
What to do if... Possible reasons Solutions
The appliance is not
working.
There may be an appliance power
supply problem.
• Check if power cable plugged into a live socket with the
proper voltage.
• Check if the protection devices and fuses of the electrical
system in your home
There is water in the
defrost pan.
This is normal in hot, damp
weather. The pan can even be half
full.
• Make sure the appliance is level so that the water does
not overow.
The edges of the
appliance cabinet,
which come in contact
with the door seal, are
warm to the touch.
This is not a defect.
This is normal in hot weather and
when the compressor is running.
The light does not work. The light may need replacing.
The appliance may be in On/
Stand-by model.
• Make sure if the protection devices and fuses of the
electrical system in your home work well.
• Check if the power cable is plugged into a live socket
with the proper voltage
• In case the LEDs are broken the user must call the Service
for exchange of the same type available only at our Aftersales Service Centers or authorized dealers.
The motor seems to run
too much.
Motor running time depends on
dierent things: number of door
openings, amount of food stored,
temperature of the room, setting
of the temperature controls.
• Make sure that the appliance controls are correctly set.
• Check if there is not a large amount of food been added
to the appliance.
• Check that the door is not opened too often.
• Check that the door close properly.
The appliance
temperature is too high.
There could be various causes (see
“Solutions”).
• Make sure that the condenser (back the appliance) is free
of dust and u.
• Make sure that the door properly closed.
• Make sure that the door seals properly tted.
• On hot days or if the room is warm, the motor naturally
runs longer.
• If the appliance door has been left open for a while or
if large amounts of food have been stored, the motor
will run longer in order to cool down the interior of the
appliance.
The doors do not open
and close properly.
There could be various causes (see
“Solutions”).
• Check that food packages are not blocking the door.
• Check that the internal parts or automatic ice maker are
not out of position.
• Check that the door seals are not dirty or sticky.
• Ensure the appliance is level.
Page 13
EN
13
Use & Care guide
AFTERSALES SERVICE
BEFORE CALLING THE AFTERSALES SERVICE
1. See if you can solve the problem by yourself with the help
of the suggestions given in the TROUBLESHOOTING.
2. Switch the appliance o and back on again to see if the
fault persists.
IF AFTER THE ABOVE CHECKS THE FAULT STILL
OCCURS, GET IN TOUCH WITH THE NEAREST
AFTERSALES SERVICE
To receive assistance, call the number shown on the
warranty booklet or follow the instructions on the website
www . whirlpool . eu
When contacting our Client After sales service, always specify:
• a brief description of the fault;
• the type and exact model of the appliance;
• the service number (number after the word Service on
the rating plate). The service number is also indicated on
the guarantee booklet;
•
your full address;
• your telephone number.
If any repairs are required, please contact an authorised aftersales service (to guarantee that original spare parts will be
used and repairs carried out correctly).
Page 14
14
2
1
6
c
5
1x 1x4x
c
a
b
c
C
A
B
1x
D
50mm
c
a
c
a
c
3
2
b
4
Page 15
15
12
15
10
9
B
b
A
B
b
11
b
D
13
14
a
7
8
c
a
c

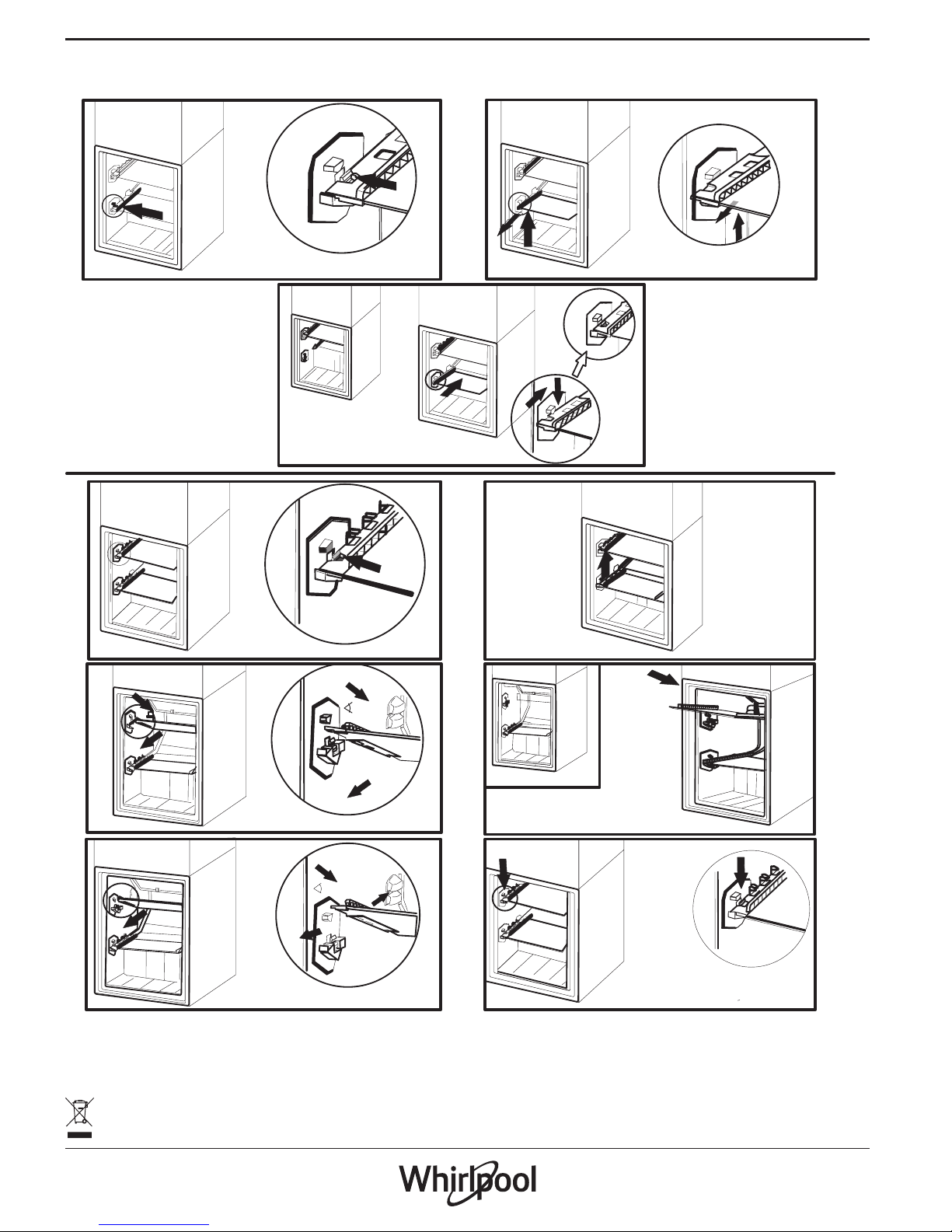

Page 16
16
400011046815
1
2
2
1
1
2
45
o
1
2
1
45
o
1
2
3
1
2
3
1
2
34
56
Loading...
