Whirlpool AWZ 8479, ADP 4547 WH Quick Reference Guide

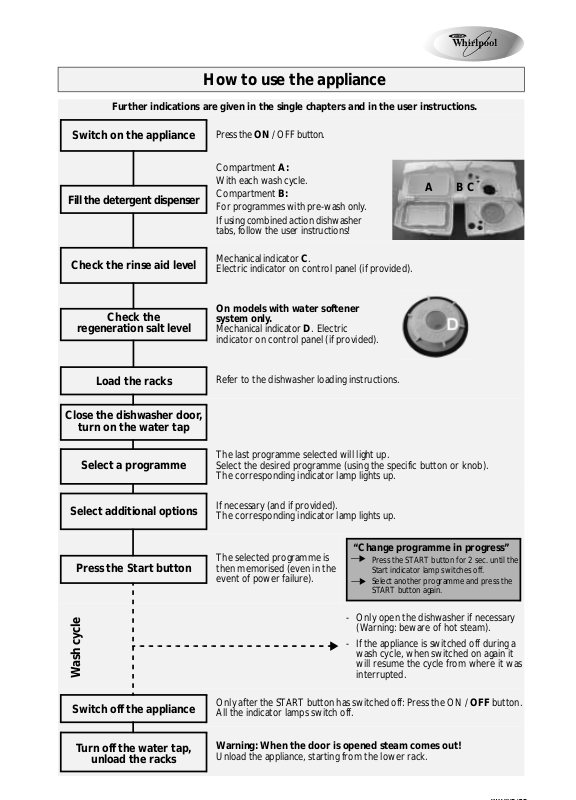

How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
Fill the detergent dispenser
Check the rinse aid level
Check the
regeneration salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
Press the ON / OFF button.
Compartment
With each wash cycle.
Compartment
For programmes with pre-wash only.
If using combined action dishwasher
tabs, follow the user instructions!
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
The last programme selected will light up.
Select the desired programme (using the specific button or knob).
The corresponding indicator lamp lights up.
A:
B:
ABC
Select additional options
Press the Start button
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
If necessary (and if provided).
The corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
Only after the START button has switched off: Press the ON /
All the indicator lamps switch off.
Warning: When the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
“Change programme in progress”
Press the START button for 2 sec. until the
Start indicator lamp switches off.
Select another programme and press the
START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
OFF
button.
Dishwasher loading instructions and racks provided
Upper rack:
Multi-purpose support (A):
Depending on the position, for longhandles utensils, cups and glasses. May
be used in three different positions.
Crockery holders (B):
Depending on the position, for example
plates, cups and long-stemmed glasses.
Revolving glass support (C):
Depending on the position, for example
small or long-stemmed glasses.
Long-handled utensils (e.g.
carving forks, knives) must be
arranged with the sharp end
facing in towards the appliance
Half Load:
Load the upper rack (see description
of Options).
Place the cutlery basket (D) in the
upper rack.
Rack height adjustment
(also when loaded):
• Lower adjustment: pull out the
two rack handles outwards (E)
and lower the rack.
• Upper adjustment: pull the two
handles (E) upwards until the rack
clicks into place (Factory setting).
The rack must be level on both
sides.
Removing the top rack to provide
clearance for large items of
crockery in the bottom rack:
Open the rack guide retainers (F) on
the right and left and remove the top
rack.
When the upper rack is in place the
retainers must always be closed.
1)
2)
.
depending on the model
Retainer
closed
F
Retainer
F
open
Lower rack:
Depending on the model with fixed or
tilting plate holders (G).
Half Load:
Load the lower rack (see description
of Options).
Greater washing power, particularly
for plates and saucepans.
Cutlery basket (J) or (H):
Some models are provided with a grid
(I) that can be fitted onto the cutlery
basket to keep items separated.
Cutlery basket (D), if provided, for
appliances with half load only.
Sharp knives and forks that might
cause injury must be placed in the
cutlery basket with the sharp end
facing downwards.
Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a
dishwasher , for e xample wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery.
Spare parts which are sold separately:
1)
Multi-purpose support (A) - N. AMH 369 series.
2)
Revolving glass support (C) - N. WGH 1000 series.
