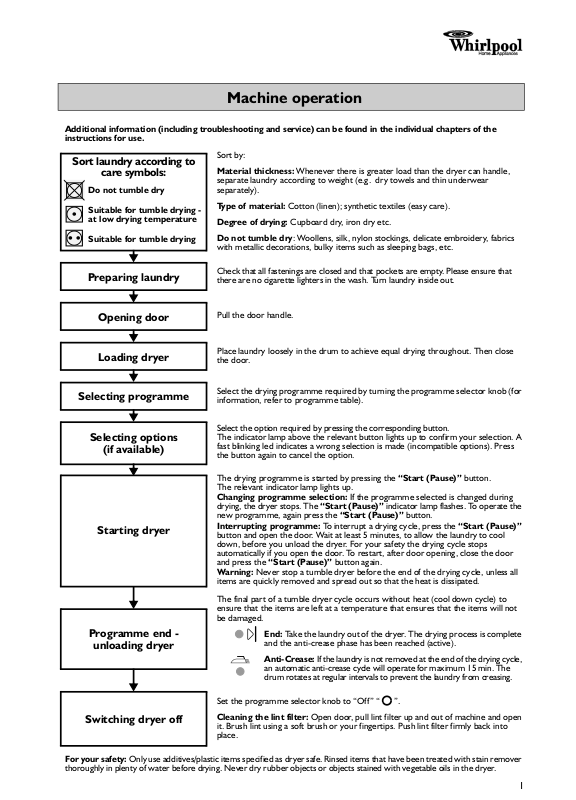

Machine operation
Additional information (including troubleshooting and service) can be found in the individual chapters of the
instructions for use.
Sort laundry according to
care symbols:
Do not tumble dry
Suitable for tumble drying -
at low drying temperature
Suitable for tumble drying
Sort by:
Material thickness:
separate laundry according to weight (e.g. dry towels and thin underwear
separately).
Type of material:
Degree of drying:
Do not tumble dry
with metallic decorations, bulky items such as sleeping bags, etc.
Whenever there is greater load than the dryer can handle,
Cotton (linen); synthetic textiles (easy care).
Cupboard dry, iron dry etc.
: Woollens, silk, nylon stockings, delicate embroidery, fabrics
Preparing laundry
Opening door
Loading dryer
Selecting programme
Selecting options
(if available)
Starting dryer
Programme end -
unloading dryer
Check that all fastenings are closed and that pockets are empty. Please ensure that
there are no cigarette lighters in the wash. Turn laundry inside out.
Pull the door handle.
Place laundry loosely in the drum to achieve equal drying throughout. Then close
the door.
Select the drying programme required by turning the programme selector knob (for
information, refer to programme table).
Select the option required by pressing the corresponding button.
The indicator lamp above the relevant button lights up to confirm your selection. A
fast blinking led indicates a wrong selection is made (incompatible options). Press
the button again to cancel the option.
The drying programme is started by pressing the
The relevant indicator lamp lights up.
Changing programme selection:
drying, the dryer stops. The
new programme, again press the
Interrupting programme:
button and open the door. Wait at least 5 minutes, to allow the laundry to cool
down, before you unload the dryer. For your safety the drying cycle stops
automatically if you open the door. To restart, after door opening, close the door
and press the
Warning:
items are quickly removed and spread out so that the heat is dissipated.
The final part of a tumble dryer cycle occurs without heat (cool down cycle) to
ensure that the items are left at a temperature that ensures that the items will not
be damaged.
“Start (Pause)”
Never stop a tumble dryer before the end of the drying cycle, unless all
Take the laundry out of the dryer. The drying process is complete
End:
and the anti-crease phase has been reached (active).
Anti-Crease:
an automatic anti-crease cycle will operate for maximum 15 min. The
drum rotates at regular intervals to prevent the laundry from creasing.
If the programme selected is changed during
“Start (Pause)”
“Start (Pause)”
To interrupt a drying cycle, press the
button again.
If the laundry is not removed at the end of the drying cycle,
“Start (Pause)”
indicator lamp flashes. To operate the
button.
button.
“Start (Pause)”
Set the programme selector knob to “Off” “ ”.
Switching dryer off
For your safety:
thoroughly in plenty of water before drying. Never dry rubber objects or objects stained with vegetable oils in the dryer.
Only use additives/plastic items specified as dryer safe. Rinsed items that have been treated with stain remover
Cleaning the lint filter:
it. Brush lint using a soft brush or your fingertips. Push lint filter firmly back into
place.
Open door, pull lint filter up and out of machine and open
1
Page 2
2
Wet
load
70’
160’
60’
140’
50’
125’
45’
100’
25’
60’
20’
60’
15’
55’
10’
50’
(in minutes)
drying times
Approximate
Ver y
delay
Gentle Buzzer Start
Vo lu me
wet
of load
load
in kg
85’
3.0
X X X
180’
8.0
80’
X X X
3.0
165’
8.0
Normal temperature
70’
150’
X X X
3.0
8.0
Max. 8 kg
50’
3.0
X X X
125’
8.0
25’
1.0
X X X
75’
4.0
25’
1.0
70’
20’
60’
15’
55’
X X X
4.0
Low temperature
X X X
1.0
4.0
Max. 4 kg
1.0
X X X
4.0
PROGRAMME OVERVIEW OPTIONS
Drying level
Multi-layered, thick laundry such as: terry
towels, dish cloths and dry towels, bed linen,
underwear, terry towelling bath robes.
Multi-layered, thick laundry such as: terry
towels, dish cloths and dry towels, bed linen,
underwear, terry towelling bath robes.
EXTRA DRY
CUPBOARD DRY PLUS
Similar types of laundry which do not
require ironing such as: dry towels, bed
linen, underwear, baby clothes, T-shirts,
cotton socks.
CUPBOARD DRY
Laundry which requires ironing such as:
bed and table linen, dry towels, T-shirts,
polo shirts, work clothes.
IRON DRY
Laundry with thick, multi-layered areas:
bed and table linen, track suits, blankets.
EXTRA DRY
Laundry with thick, multi-layered areas:
bed and table linen, track suits, blankets.
CUPBOARD DRY PLUS
Laundry which does not require ironing
such as: shirts, blouses, T-shirts, sportswear.
CUPBOARD DRY
Laundry which requires ironing such as:
trousers, dresses, skirts, shirts, blouses.
IRON DRY
Page 3
...you want to correctly
care for and clean your
dryer:
...you want to check the
dryer yourself first:
(If your machine is not
functioning correctly, please
check the following points
before phoning for the
customer service – also refer
to relevant chapter in the
instructions for use).
How to proceed if ...
Clean the filter at the end
of every cycle.
Please de-install once a
year the air hose and
remove the lint inside.
Drying takes too long
laundry is not dry enough.
The dryer will not operate
(after a power failure,
always press the “Start
(Pause)” button).
• Open the door.
• Pull the filter upwards.
• Brush lint using a soft brush or your
fingertips.
• Push the filter back into place.
• Has the correct drying programme
been selected?
• Was the inserted laundry too wet
(washing machine spin speed less than
1000 rpm?)
• Is the lint filter dirty (filter indicator
light on)?
• Is the room temperature too high?
• Are the “End” “ ” and “Anticrease”
“ ” indicator lamps lighting up? The
drying cycle is complete and the
laundry can be taken out.
• If the drying result does not meet your
expectation, select a more dry
programme.
• Is the plug properly inserted into the
mains electricity socket?
• Is there a power failure?
•Has the fuse blown?
• Is the door properly closed?
• Has a drying programme been
selected?
•Has the
• Has the start delay option been
• Is the dryer overloaded? Please remove
“Start (Pause)”
pressed?
selected ?
a part of the load.
button been
Lint filter indicator lamp
on.
AFTER-SALES SERVICE
If the fault is still present once the above checks have been undertaken or should the fault occur for a second time, switch
the machine off. Please contact your after-sales service representative (for more information, refer to the warranty manual).
Please have the following details ready when calling your after-sales service representative:
• The nature of the fault.
• The dryer type and model.
• The service code (the number after the word Service on the
adhesive rating plate) on the right-hand side when the door is open.
• Is the lint filter clean?
• Is the vent hose blocked?
• Is the outside vent hose adaptor blocked?
3
Page 4
Before using the machine, please also read the instructions for use carefully!
AWZ 8000/PRO

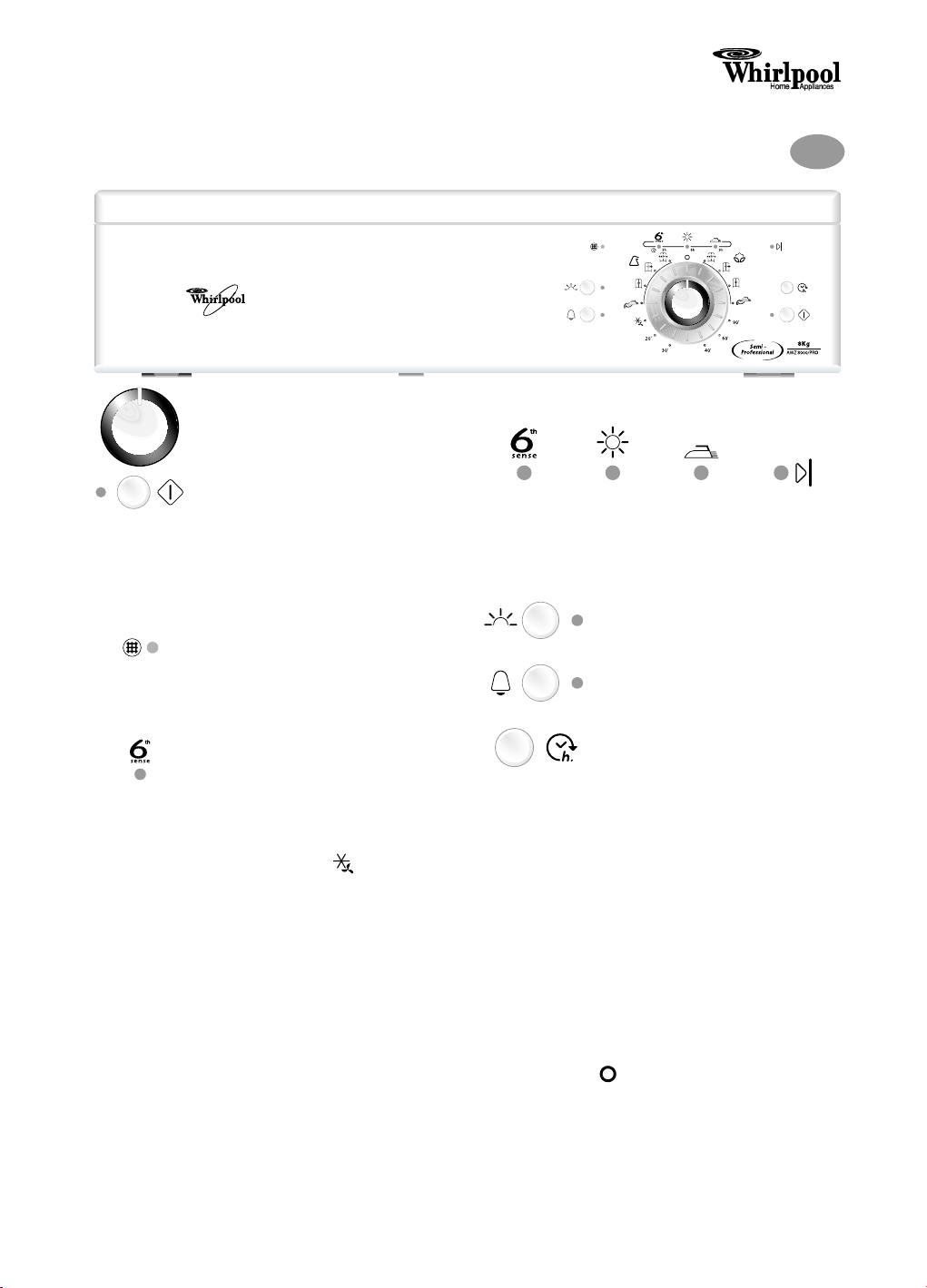

Programme selector knob
The drying programme is selected by
turning this knob.
“Start (Pause)” button
The drying programme is started by
pressing this button. The indicator lamp
flashes during the selection phase and
lights up during drying.
Indicator lamps
Filter
The indicator lamp lights up when the
filter needs cleaning.
Clean the filter at the end of every
cycle.
Overdry protection
The indicator lamp lights up when a
humidity controlled program is selected,
to indicate the working protection
function. Function is not active in time
controlled programmes 20’, 30’, 40’,
60’, 90’ and “Airing” “ ”.
Quick Reference Guide
Programme sequence
Overdry
protection
Options
Drying
Gentle
Reduces drying intensity
(recommended for delicate items).
Buzzer
Signals/sounds end of drying cycle.
Delayed Start
Delays the start of the drying cycle by
3 to 9 hours. Each time the button is
pressed, the start time is delayed by 3
hours.
Then press the
button to confirm the final selection
and to start the dryer. The delayed
start indicator lamp flashes and the
countdown counts down in 1-hour
intervals. The countdown is indicated
by the indicator lamp. During the
countdown, the drum will turn from
time to time to re-distribute the
laundry. To cancel or change the
previously set time delay, set the
programme selector knob to “Off”
“ ” or open the door.
Anti-
crease
“Start (Pause)”
of cycle
GB
End
Whirlpool is a registered trademark of Whirlpool USA
5019 307 01424
(Subject to technical modifications)
4
Page 5
Failure codes
In case of a malfunction of the appliance, a failure indication is shown or some LED lights
are blinking:
different layouts of blinking LED lights)
F02
F05
F06
F13
(depending on the dryer model you have, the failure is displayed in letters or by

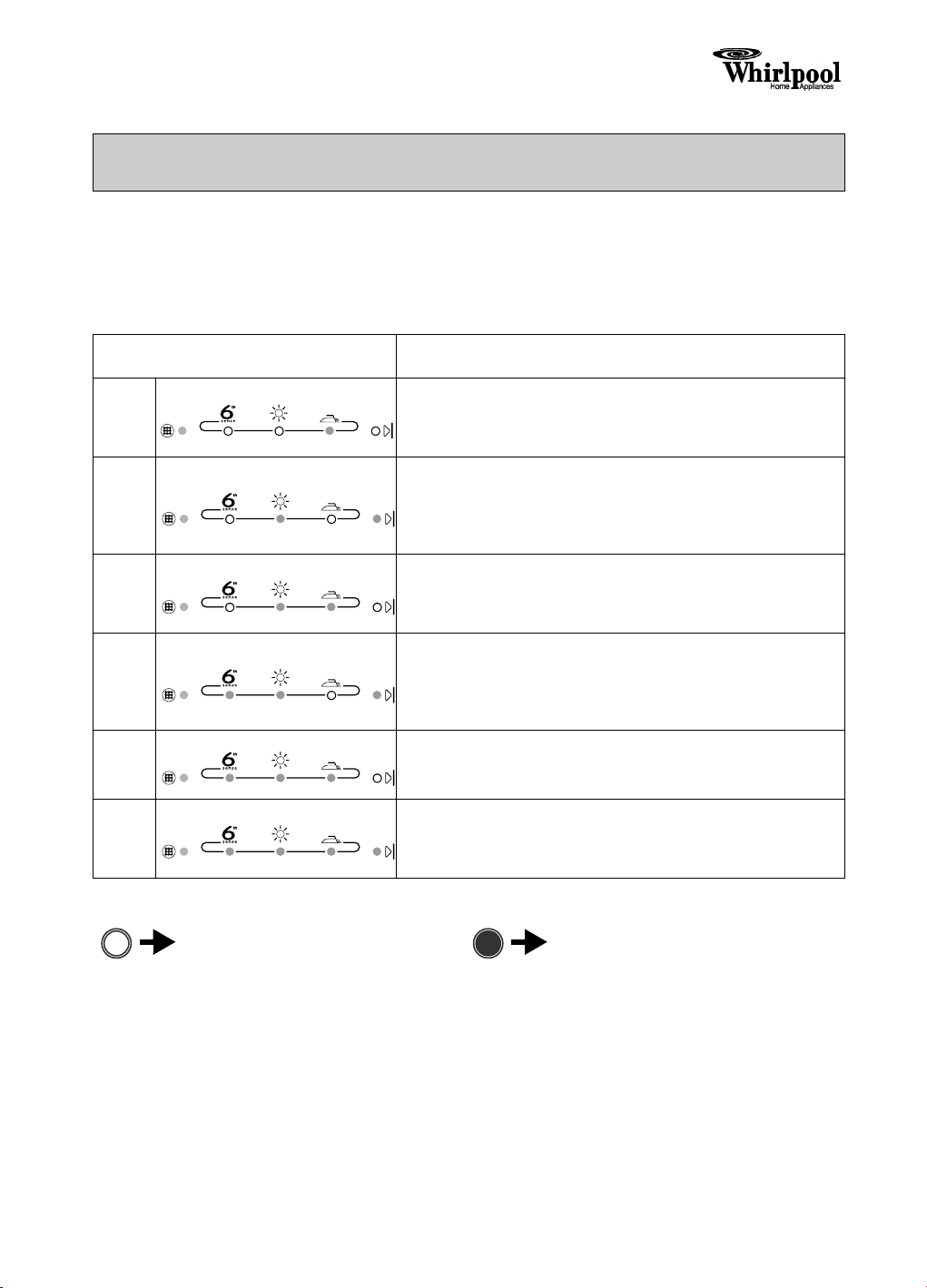

Message displayed Check needed by customer before Service call
Turn OFF the dryer. Unplug the dryer for more than 3 seconds.
Plug the dryer and start a new cycle with humid laundry. If the
problem persists, please call Customer Service.
Turn OFF the dryer. Unplug the dryer for more than 3 seconds.
Clean the lint filter. Check if the ambient temperature is more than
5°C. Plug the dryer. Start a new cycle with humid laundry. If the
problem persists, please call Customer Service.
Turn OFF the dryer. Unplug the dryer. Empty the bottle. Clean the
fluff filter. Plug the dryer. Start a new cycle with humid laundry. If
the problem persists, please call Customer Service.
Turn OFF the dryer. Remove the load. Start the cycle again. If the
cycle starts, the dryer was overloaded. Stop the dryer and re-load
it again with half amount of laundry. If the failure indication occurs
again, please call Customer Service.
F14
F15
LED is not blinking LED is on or blinking
AFTER-SALES SERVICE
If the fault is still present once the above checks have been undertaken or should the fault occur for a second
time, switch the machine off. Please contact your After-Sales service representative (for more information, refer
to the warranty manual).
Please, have the following details ready when calling your after-sales service representative:
• The nature of the fault.
• The dryer type and model.
• The service code (the number after the word Service on the adhesive rating plate) on the right-hand side
when the door is open.
If the dryer appears damaged or defective, unplug the appliance and contact the machine owner for contacting
our After-Sales Service.
Turn OFF the dryer. Unplug the dryer. Call the Customer Service.
Turn OFF the dryer. Turn ON the dryer and restart the same
programme as before. If the same failure occurs again, turn OFF
the dryer. Unplug the dryer. Call the Customer Service.
5
