Page 1

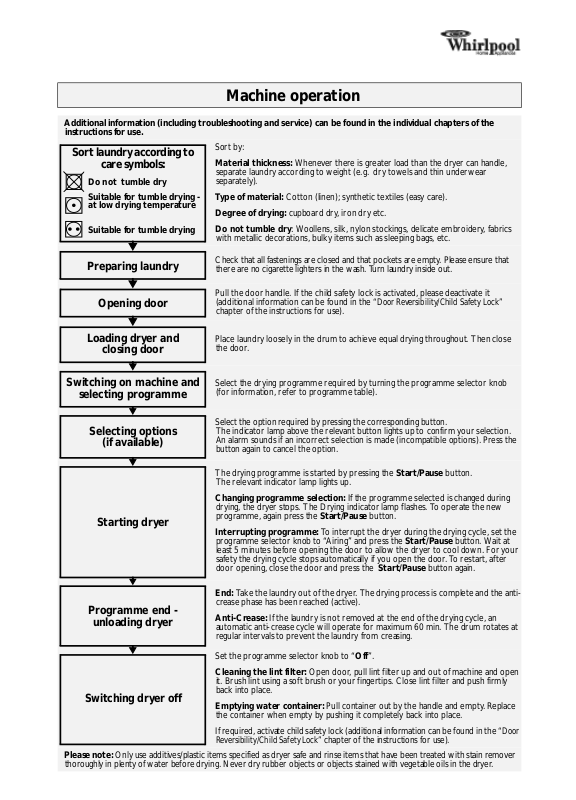

Machine operation
Additional information (including troubleshooting and service) can be found in the individual chapters of the
instructions for use.
Sort laundry according to
care symbols:
Do not tumble dry
Suitable for tumble drying -
at low drying temperature
Suitable for tumble drying
Sort by:
Material thickness:
separate laundry according to weight (e.g. dry towels and thin underwear
separately).
Type of material:
Degree of drying:
Do not tumble dry
with metallic decorations, bulky items such as sleeping bags, etc.
Whenever there is greater load than the dryer can handle,
Cotton (linen); synthetic textiles (easy care).
cupboard dry, iron dry etc.
: Woollens, silk, nylon stockings, delicate embroidery, fabrics
Preparing laundry
Opening door
Loading dryer and
closing door
Switching on machine and
selecting programme
Selecting options
(if available)
Starting dryer
Check that all fastenings are closed and that pockets are empty. Please ensure that
there are no cigarette lighters in the wash. Turn laundry inside out.
Pull the door handle. If the child safety lock is activated, please deactivate it
(additional information can be found in the “ Door Reversibility/Child Safety Lock”
chapter of the instructions for use).
Place laundry loosely in the drum to achieve equal drying throughout. Then close
the door.
Select the drying programme required by turning the programme selector knob
(for information, refer to programme table).
Select the option required by pressing the corresponding button.
The indicator lamp above the relevant button lights up to confirm your selection.
An alarm sounds if an incorrect selection is made (incompatible options). Press the
button again to cancel the option.
The drying programme is started by pressing the
The relevant indicator lamp lights up.
Changing programme selection:
drying, the dryer stops. The Drying indicator lamp flashes. To operate the new
programme, again press the
Interrupting programme:
programme selector knob to “Airing” and press the
least 5 minutes before opening the door to allow the dryer to cool down. For your
safety the drying cycle stops automatically if you open the door. To restart, after
door opening, close the door and press the
If the programme selected is changed during
Start/Pause
To interrupt the dryer during the drying cycle, set the
Start/Pause
button.
Start/Pause
button.
Start/Pause
button again.
button. Wait at
End:
T ake the laundry out of the dryer. The drying process is complete and the anti-
Programme end -
unloading dryer
Switching dryer off
Please note:
thoroughly in plenty of water before drying. Never dry rubber objects or objects stained with vegetable oils in the dryer.
Only use additives/plastic items specified as dryer safe and rinse items that have been treated with stain remover
crease phase has been reached (active).
Anti-Crease:
automatic anti-crease cycle will operate for maximum 60 min. The drum rotates at
regular intervals to prevent the laundry from creasing.
Set the programme selector knob to “
Cleaning the lint filter:
it. Brush lint using a soft brush or your fingertips. Close lint filter and push firmly
back into place.
Emptying water container:
the container when empty by pushing it completely back into place.
If required, activate child safety lock (additional information can be found in the “Door
Reversibility/Child Safety Lock” chapter of the instructions for use).
If the laundry is not removed at the end of the drying cycle, an
Off
”.
Open door, pull lint filter up and out of machine and open
Pull container out by the handle and empty. Re place
Page 2
Cotton
A
Programmes / Drying levels
Ready to wear
Cupboard dry *
Iron dry
Overview of programmes Options
Type of t ext ile
Multi-layered, thick laundry such as: terry to wels, dish
cloths and dry towels, bed linen, underwear, terry
towelling bath robes.
Similar types of laundry which do not require ironing
such as: dry towels, bed linen, underwear, baby
clothes, T-shirts, cotton socks.
Laundry which requires ironing such as: bed and table
linen, dry towels, T-shirts, polo shirts, work clothes.
Fabrics
Cotton or linen hot wash /coloured
laundry
Max. 6 kg
Volume of
load
kg
3.0
6.0
3.0
6.0
3.0
6.0
Gentle Buzzer
X X
X X
X X
Approximate
drying times
(in minutes)
Very
wet
load
95’
160’
85’
150’
70’
120’
Wet
load
80’
130’
70’
120’
60’
100’
Ready to wear
Cupboard dry *
Mixed Fabrics
Iron dry
Cupboard dry
Delicate plus
Laundry is aired and refreshed for 30 minutes
without heating.
Airing
Completes drying or dries single items (suitable
for all fabrics).
Time
* Test programme in accordance with EN 61121.
Laundry with thick, multi-layered areas such as: bed
and table linen, track suits, anoraks, blankets.
Laundry which does not require ironing such as:
shirts, blouses, T-shirts, sportswear.
Laundry which requires ironing such as: trousers,
dresses, skirts, shirts, blouses.
Low drying intensity for delicates and items labelled
with , such as: trousers, dresses, shirts, blouses.
Synthetic, mixed fibre or cotton
easy care (ironing not required)
Laundry made from synthetic
fibres such as polyamide, nylon,
laundry
Max. 2.5 kg
polyacrylic, etc.
Max. 2.5 kg
iring
1.0
2.5
1.0
2.5
1.0
2.5
2.5
X X
X X
X X
X X
50’
70’
40’
60’
30’
50’
115’ 100’
- - - - -
- X X
40’
50’
30’
40’
20’
30’
Page 3
...you want to correctly
care for and clean your
dryer:
...you want to check the
dryer yourself first:
(If your machine is not
functioning correctly, please
check the following points
before phoning for the
customer service – also refer
to relevant chapter in the
instructions for use)
How to proceed if ...
Clean the filter at the end
of every cycle.
Empty the water container
at the end of each drying
cycle.
Drying takes too long /
laundry is not dry enough
The dryer will not operate
(after a power failure,
always press the
Start/Pause button).
Lint filter or water
container indicator
lamp on.
Water droplets underneath
the dryer.
• Open the door.
• Pull the filter upwards.
•Open the filter.
• Brush lint using a soft brush or your
fingertips.
• Close the filter.
• Push the filter back into place.
• Pull the handle to remove the water
container.
• Empty the water container.
• Replace the water container when
empty by pushing it
place.
• Has the correct drying programme been
selected?
• Was the inserted laundry too wet
(washing machine spin speed less than
800rpm? When the spinning speed is less
than 800 rpm, a water container fault
may occur during the drying cycle)?
• Is the lint filter dirty (filter indicator light
on)?
• Is the heat exchanger dirty? (for more
information, refer to the instructions for
use)
• Is the room temperatu re too high?
• Are the END and Anti-crease indicator
lamps lighting up? The drying cycle is
complete and the laundry can be taken
out.
• Is the plug properly inserted into the
mains electricity socket?
• Is there a power failure?
•Has the fuse blown?
• Is the door properly closed?
• Has a drying programme been selected?
•Has the
• Is the lint filter clean?
• Is the water container empty?
• Has the water container been inserted
• Is the heat exchanger clean?
• Has the heat exchanger been inserted
• Has any fluff on the heat exchanger seal
• Has any fluff on the door seal been
• Has the water container been inserted
Start/Pause
pressed?
correctly?
correctly?
been wiped away?
wiped away?
correctly?
completely
button been
back in
AFTER-SALES SERVICE
If the fault is still present once the above checks have been undertaken or should the fault occur for a second time, switch the
machine off. Please contact your after-sales service representative (for more information, refer to the warranty manual).
Please have the following details ready when calling your after-sales service representative:
• the nature of th e fa ult.
• the dryer type and model
• the service code (the number after the word Service on the adhesive
rating plate) on the right-hand side when the door is open.
Page 4
Before using the machine, please also read the instructions for use carefully!
AWZ 7814 AL
Programme selector knob
The drying programme is selected by turning
this knob.
Start/Pause button
The drying programme is started by pressing
this button. The indicator lamp flashes during
the selection phase and lights up during
drying.
Indicator lamps
Filter
The indicator lamp lights up when the filter
and/or heat exchanger need cleaning.
Clean the filter at the end of every cycle.
Water container
The indicator lamp lights up when the water
container needs to be emptied. The drying
cycle is automatically interrupted. Empty the
container and restart the drying programme.
Empty the water container after every
drying cycle
Overdry Protection
The indicator lamp lights up when a humidity
controlled program is selected, to indicate
the working protection function. Function is
not active in time controlled programs
and Airing.
40' 60'
Quick Reference Guide
Programme sequence
th
6
Sense
Options
.
20'
+
Drying
Buzzer
Signals/sounds end of drying cycle.
Gentle
Reduces drying intensity
(recommended for delicate items).
End
of cycle
GB
Anti-
crease
Whirlpool is a registered trademark of Whirlpool USA
5019 307 00457
(Subject to technical modifications)
