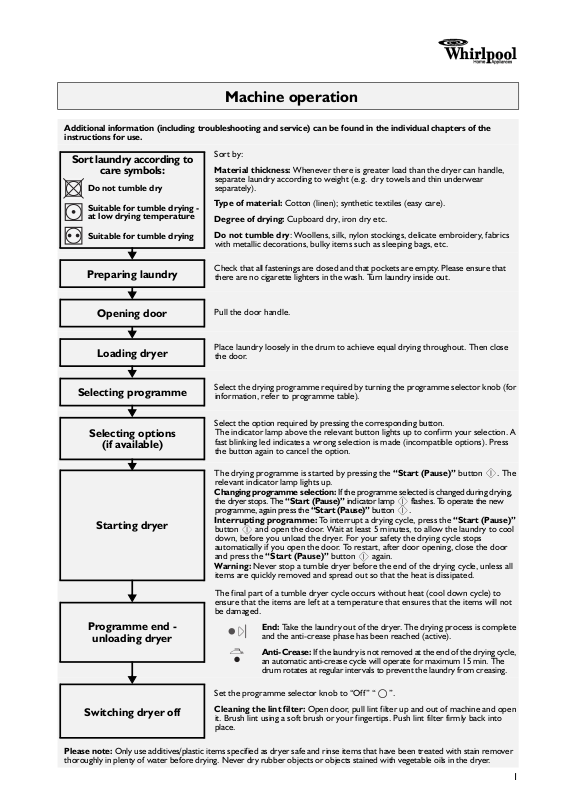

Page 1
Machine operation
Sort laundry according to
care symbols:
Do not tumble dry
Suitable for tumble drying -
Suitable for tumble drying
at low drying temperature
Preparing laundry
Opening door
Loading dryer
Selecting programme
Selecting options
(if available)
Starting dryer
Programme end -
unloading dryer
Switching dryer off
Additional information (including troubleshooting and service) can be found in the individual chapters of the
instructions for use.
Sort by:
Material thickness: Whenever there is greater load than the dryer can handle,
separate laundry according to weight (e.g. dry towels and thin underwear
separately).
Ty p e o f m a t e r ial: Cotton (linen); synthetic textiles (easy care).
Degree of drying: Cupboard dry, iron dry etc.
Do not tumble dry: Woollens, silk, nylon stockings, delicate embroidery, fabrics
with metallic decorations, bulky items such as sleeping bags, etc.
Check that all fastenings are closed and that pockets are empty. Please ensure that
there are no cigarette lighters in the wash. Turn laundry inside out.
Pull the door handle.
Place laundry loosely in the drum to achieve equal drying throughout. Then close
the door.
Select the drying programme required by turning the programme selector knob (for
information, refer to programme table).
Select the option required by pressing the corresponding button.
The indicator lamp above the relevant button lights up to confirm your selection. A
fast blinking led indicates a wrong selection is made (incompatible options). Press
the button again to cancel the option.
Please note: Only use additives/plastic items specified as dryer safe and rinse items that have been treated with stain remover
thoroughly in plenty of water before drying. Never dry rubber objects or objects stained with vegetable oils in the dryer.
The drying programme is started by pressing the “Start (Pause)” button . The
relevant indicator lamp lights up.
Changing programme selection: If the programme selected is changed during drying,
the dryer stops. The “Start (Pause)” indicator lamp flashes. To operate the new
programme, again press the “Start (Pause)” button .
Interrupting programme: To interrupt a drying cycle, press the “Start (Pause)”
button and open the door. Wait at least 5 minutes, to allow the laundry to cool
down, before you unload the dryer. For your safety the drying cycle stops
automatically if you open the door. To restart, after door opening, close the door
and press the “Start (Pause)” button again.
Warning: Never stop a tumble dryer before the end of the drying cycle, unless all
items are quickly removed and spread out so that the heat is dissipated.
The final part of a tumble dryer cycle occurs without heat (cool down cycle) to
ensure that the items are left at a temperature that ensures that the items will not
be damaged.
End: Take the laundry out of the dryer. The drying process is complete
and the anti-crease phase has been reached (active).
Anti-Crease: If the laundry is not removed at the end of the drying cycle,
an automatic anti-crease cycle will operate for maximum 15 min. The
drum rotates at regular intervals to prevent the laundry from creasing.
Set the programme selector knob to “Off” “ ”.
Cleaning the lint filter: Open door, pull lint filter up and out of machine and open
it. Brush lint using a soft brush or your fingertips. Push lint filter firmly back into
place.
1
Page 2
Programmes / Drying levels
Cotton
Mixed fabrics
Delicate
plus
Airing
Drying
times
Overview of programmes Options
Ty p e of tex til e
Fabrics
Vo lu m e
of load
kg
Gentle Rapid
Cotton
Buzzer Anti-
crease
Start
delay
Approximate
drying times
(in minutes)
Ve ry
Wet
wet
load
load
Ready to wear
Cupboard dry *
Iron dry *
Ready to wear
Cupboard dry *
Iron dry
Delicate plus
Laundry is aired and refreshed for 30
minutes without heating.
Multi-layered, thick laundry such as: terry
towels, dish cloths and dry towels, bed linen,
underwear, terry towelling bath robes.
Similar types of laundry which do not require
ironing such as: dry towels, bed linen,
underwear, baby clothes, T-shirts, cotton socks.
Laundry which requires ironing such as: bed
and table linen, dry towels, T-shirts, polo
shirts, work clothes.
Laundry with thick, multi-layered areas such
as: bed and table linen, track suits, anoraks,
blankets.
Laundry which does not require ironing
such as: shirts, blouses, T-shirts, sportswear.
Laundry which requires ironing such as:
trousers, dresses, skirts, shirts, blouses.
Low drying intensity for delicates and items
labelled with , such as: trousers, dresses,
shirts, blouses.
Cotton or linen hot wash /
coloured laundry
Max. 7 kg
Synthetic, mixed fibre or cotton
easy care (ironing not required)
laundry
Max. 3.5 kg
Laundry made from synthetic
fibres such as polyamide, nylon,
polyacrylic, etc.
Max. 2.5 kg
3.0
7.0
3.0
7.0
3.0
7.0
1.0
3.5
1.0
3.5
1.0
3.5
X X X X X
X X X X X
X X X X X
X - X X X
X - X X X
X - X X X
85’
160’
70’
130’
50’
110’
25’
65’
20’
50’
15’
45’
70’
140’
50’
110’
45’
90’
20’
45’
15’
45’
10’
40’
2.5 - - X X X 60’ 45’
- - - X - X - -
Completes drying for min.3-5 full size
textiles (suitable for all fabrics).
* Test programme in accordance with EN 61121.
- X - X X X
2
Page 3
...you want to correctly
care for and clean your
dryer:
...you want to check the
dryer yourself first:
(If your machine is not
functioning correctly, please
check the following points
before phoning for the
customer service – also refer
to relevant chapter in the
instructions for use).
How to proceed if ...
Clean the filter at the end
of every cycle.
Please de-install once a
year the air hose and
remove the lint inside.
Drying takes too long
laundry is not dry enough.
The dryer will not operate
(after a power failure,
always press the “Start
(Pause)” button ).
Lint filter indicator lamp on.
•Open the door.
• Pull the filter upwards.
• Brush lint using a soft brush or your
fingertips.
• Push the filter back into place.
• Has the correct drying programme
been selected?
• Was the inserted laundry too wet
(washing machine spin speed less than
1000 rpm?)
• Is the lint filter dirty (filter indicator
light on)?
• Is the room temperature too high?
• Are the “End” “ ” and “Anticrease”
“ ” indicator lamps lighting up? The
drying cycle is complete and the laundry
can be taken out.
• If the drying result does not meet your
expectation, select a more dry
programme.
• Is the plug properly inserted into the
mains electricity socket?
• Is there a power failure?
•Has the fuse blown?
• Is the door properly closed?
• Has a drying programme been selected?
•Has the “Start (Pause)” button
been pressed?
• Has the start delay option been selected ?
• Is the dryer overloaded? Please
remove a part of the load.
• Is the lint filter clean?
• Is the vent hose blocked?
• Is the outside vent hose adaptor blocked?
AFTER-SALES SERVICE
If the fault is still present once the above checks have been undertaken or should the fault occur for a second time, switch
the machine off. Please contact your after-sales service representative (for more information, refer to the warranty
manual).
Please have the following details ready when calling your after-sales service representative:
• The nature of the fault.
• The dryer type and model.
• The service code (the number after the word Service on the
adhesive rating plate) on the right-hand side when the door is open.
3

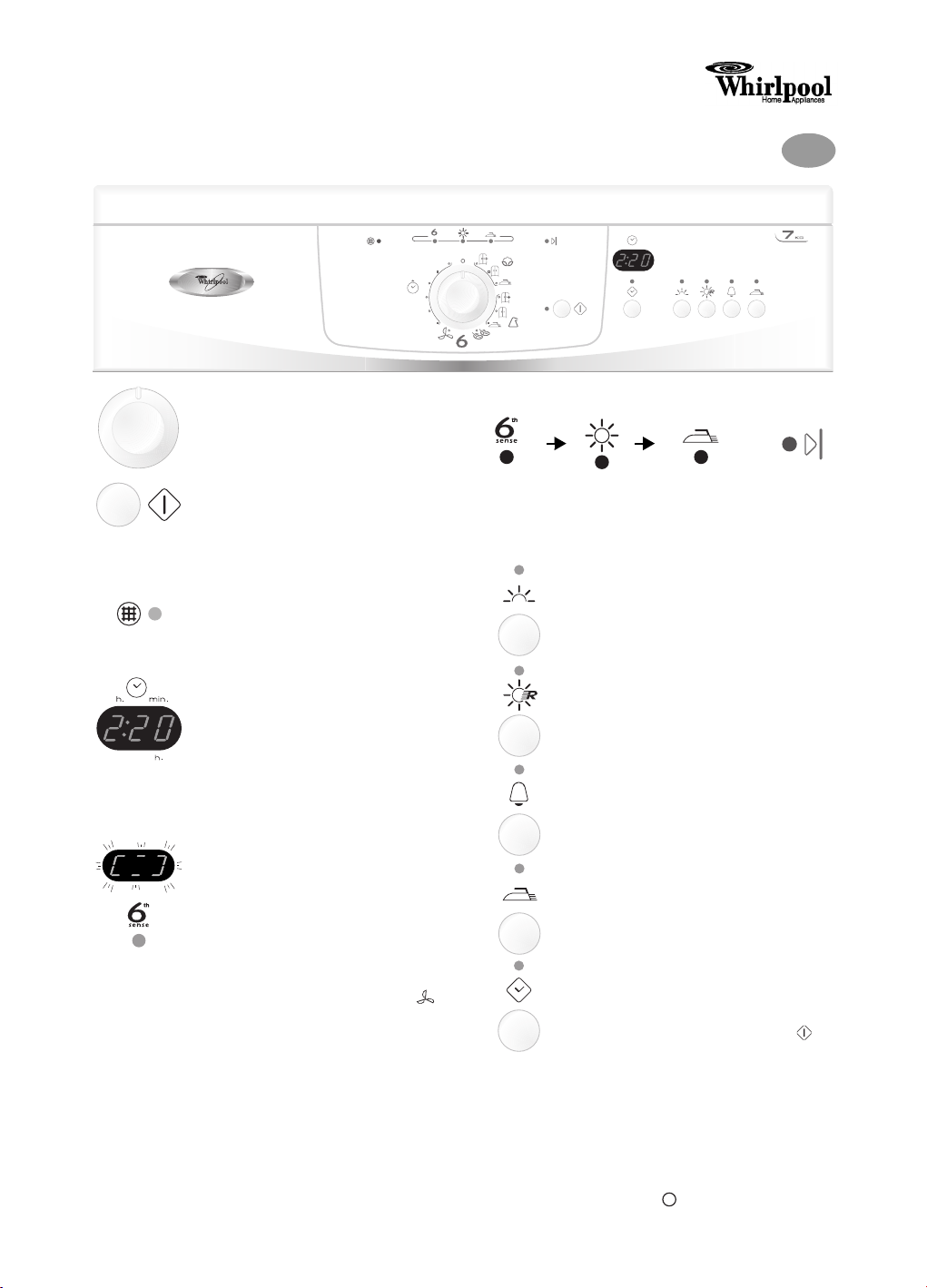

Page 4
Before using the machine, please also read the instructions for use carefully!
Whirlpool is a registered trademark of Whirlpool USA
40
th
sense
th
sense
h. min.
h.
AWZ 770
20
30
60
90
10
+
AWZ 770
Programme selector knob
The drying programme is selected by turning
this knob.
“Start (Pause)” button
The drying programme is started by pressing
this button. The indicator lamp flashes during
the selection phase and lights up during drying.
Indicator lamps
Filter
The indicator lamp lights up when the filter
needs cleaning.
Clean the filter at the end of every cycle.
Time remaining display
Depending on the programme selected, once
the drying cycle has been started, a default
drying time is displayed. The time displayed is
corrected by a few minutes depending on the
volume, type and dampness of the laundry.
The drying time specified is a calculated
value which will be updated during the
drying programme.
The flashing lines indicate that the calculation is
running. The remaining time will be updated.
Overdry protection
The indicator lamp lights up when a humidity
controlled program is selected, to indicate
the working protection function. Function is
not active in time controlled programmes
10’, 20’, 30’, 40’, 60’, 90’ and “Airing” “ ”.
Quick Reference Guide
Programme sequence
Overdry
protection
Options
Drying
Gentle
Reduces drying intensity (recommended for
delicate items).
Rapid Cotton
Shortens drying duration (recommended for
thin items of the same size).
Buzzer
Signals/sounds end of drying cycle.
Anticrease
Prevents laundry from creasing up to 12
hours. Buzzer and Anticrease cannot be
selected together.
Delayed Start
Delays the start of the drying cycle by 1 to 12
hours. Each time the button is pressed, the
start time is delayed by 1 hour.
Then press the “Start (Pause)” button to
confirm the final selection and to start the dryer.
The delayed start indicator lamp flashes and
the countdown counts down in 1-hour
intervals. The countdown is indicated by the
indicator lamp above the button flashing.
During the countdown, the drum will turn
from time to time to re-distribute the
laundry. To cancel or change the previously
set time delay, set the programme selector
knob to “Off” “ ” or open the door.
GB
Anti-
crease
5019 307 01506
(Subject to technical modifications)
End
of cycle
4
