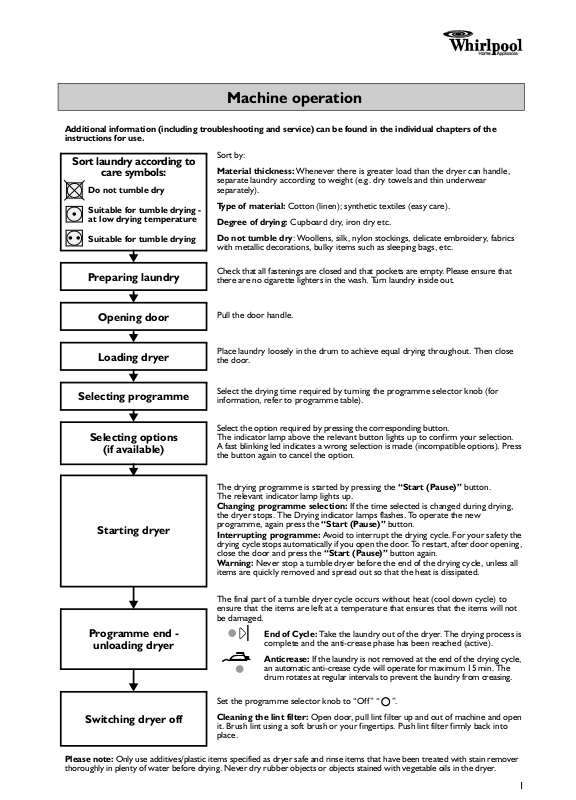

Machine operation
Additional information (including troubleshooting and service) can be found in the individual chapters of the
instructions for use.
Sort laundry according to
care symbols:
Do not tumble dry
Suitable for tumble drying -
at low drying temperature
Suitable for tumble drying
Sort by:
Material thickness:
separate laundry according to weight (e.g. dry towels and thin underwear
separately).
Type of material:
Degree of drying:
Do not tumble dry
with metallic decorations, bulky items such as sleeping bags, etc.
Whenever there is greater load than the dryer can handle,
Cotton (linen); synthetic textiles (easy care).
Cupboard dry, iron dry etc.
: Woollens, silk, nylon stockings, delicate embroidery, fabrics
Preparing laundry
Opening door
Loading dryer
Selecting programme
Selecting options
(if available)
Starting dryer
Check that all fastenings are closed and that pockets are empty. Please ensure that
there are no cigarette lighters in the wash. Turn laundry inside out.
Pull the door handle.
Place laundry loosely in the drum to achieve equal drying throughout. Then close
the door.
Select the drying time required by turning the programme selector knob (for
information, refer to programme table).
Select the option required by pressing the corresponding button.
The indicator lamp above the relevant button lights up to confirm your selection.
A fast blinking led indicates a wrong selection is made (incompatible options). Press
the button again to cancel the option.
The drying programme is started by pressing the
The relevant indicator lamp lights up.
Changing programme selection:
the dryer stops. The Drying indicator lamps flashes. To operate the new
programme, again press the
Interrupting programme:
drying cycle stops automatically if you open the door. To restart, after door opening,
close the door and press the
Warning:
items are quickly removed and spread out so that the heat is dissipated.
Never stop a tumble dryer before the end of the drying cycle, unless all
If the time selected is changed during drying,
“Start (Pause)”
Avoid to interrupt the drying cycle. For your safety the
“Start (Pause)”
“Start (Pause)”
button.
button again.
button.
The final part of a tumble dryer cycle occurs without heat (cool down cycle) to
ensure that the items are left at a temperature that ensures that the items will not
be damaged.
Programme end -
unloading dryer
Set the programme selector knob to “Off” “ ”.
Switching dryer off
Please note:
thoroughly in plenty of water before drying. Never dry rubber objects or objects stained with vegetable oils in the dryer.
Only use additives/plastic items specified as dryer safe and rinse items that have been treated with stain remover
Cleaning the lint filter:
it. Brush lint using a soft brush or your fingertips. Push lint filter firmly back into
place.
End of Cycle:
complete and the anti-crease phase has been reached (active).
Anticrease:
an automatic anti-crease cycle will operate for maximum 15 min. The
drum rotates at regular intervals to prevent the laundry from creasing.
Take the laundry out of the dryer. The drying process is
If the laundry is not removed at the end of the drying cycle,
Open door, pull lint filter up and out of machine and open
1
Page 2
delay
2
Gentle Buzzer Start
**
TIME
DRYING
RECOMMENDED
in kg
of load
Vol um e
X X X
85 min
120 min
3.0
6.0
X X X
60 min
100 min
3.0
6.0
X X X
45 min
75 min
3.0
6.0
3.0 60 min X X X
3.0 35 min X X X
3.0 20 min X X X
Overview of programmes Options
DRYING LEVEL
Multi-layered, thick laundry such as: terry
towels, terry towelling bath robes.
EXTRA DRY
Similar types of laundry which do not
require ironing such as: dry towels, bed
linen, underwear, baby clothes, T-shirts,
cotton socks.
CUPBOARD DRY *
Laundry which requires ironing such as: bed
and table linen, dry towels, T-shirts, polo
shirts, work clothes.
IRON DRY *
Laundry made of synthetic, mixed fibre or
cotton with thick, multi-layered areas such
EXTRA DRY
max. 6.0 kg
Cotton
as: bed and table linen, track suits, anoraks,
blankets.
Laundry which does not require ironing
such as: shirts, blouses, T-shirts,
sportswear.
CUPBOARD DRY *
Laundry which requires ironing such as:
trousers, dresses, skirts, shirts, blouses.
IRON DRY *
max. 3.0 kg
Easy care
Test programmes according EN 61121, tested with maximum rated load capacity.**The drying times refer to average household load sizes, which are spinned with textile typical spinning speeds.
If the laundry is at the end of the drying cycles still wet, the drying time needs to be set to a longer cycle time.
*
Page 3
...you want to correctly
care for and clean your
dryer:
...you want to check the
dryer yourself first:
(If your machine is not
functioning correctly, please
check the following points
before phoning for the
customer service – also refer
to relevant chapter in the
instructions for use).
How to proceed if...
Clean the filter at the end
of every cycle.
Please de-install once a
year the air hose and
remove the lint inside.
Drying takes too long
laundry is not dry enough.
The dryer will not operate
(after a power failure,
always press the “Start
(Pause)” button).
• Open the door.
• Pull the filter upwards.
• Brush lint using a soft brush or your
fingertips.
• Push the filter back into place.
• Has the correct drying time been
selected?
• Was the inserted laundry too wet
(washing machine spin speed less than
1000 rpm?)
• Is the lint filter dirty (filter indicator
light on)?
• Is the room temperature too high?
• Are the “End of cycle” “ ” and
“Anticrease” “ ” indicator lamps
lighting up? The drying cycle is complete
and the laundry can be taken out.
• If the drying result does not meet your
expectation, select a longer drying time.
• Is the plug properly inserted into the
mains electricity socket?
• Is there a power failure?
•Has the fuse blown?
• Is the door properly closed?
• Has a drying time been selected?
•Has the
• Has the start delay option been selected?
• Is the dryer overloaded? Please
“Start (Pause)”
pressed?
remove a part of the load.
button been
• Is the lint filter clean?
Lint filter indicator lamp on.
AFTER-SALES SERVICE
If the fault is still present once the above checks have been undertaken or should the fault occur for a second time, switch
the machine off. Please contact your after-sales service representative (for more information, refer to the warranty manual).
Please have the following details ready when calling your after-sales service representative:
• The nature of the fault.
• The dryer type and model.
• The service code (the number after the word Service on the
adhesive rating plate) on the right-hand side when the door is open.
• Is the vent hose blocked?
• Is the outside vent hose adaptor blocked?
3
Page 4
Before using the machine, please also read the instructions for use carefully!

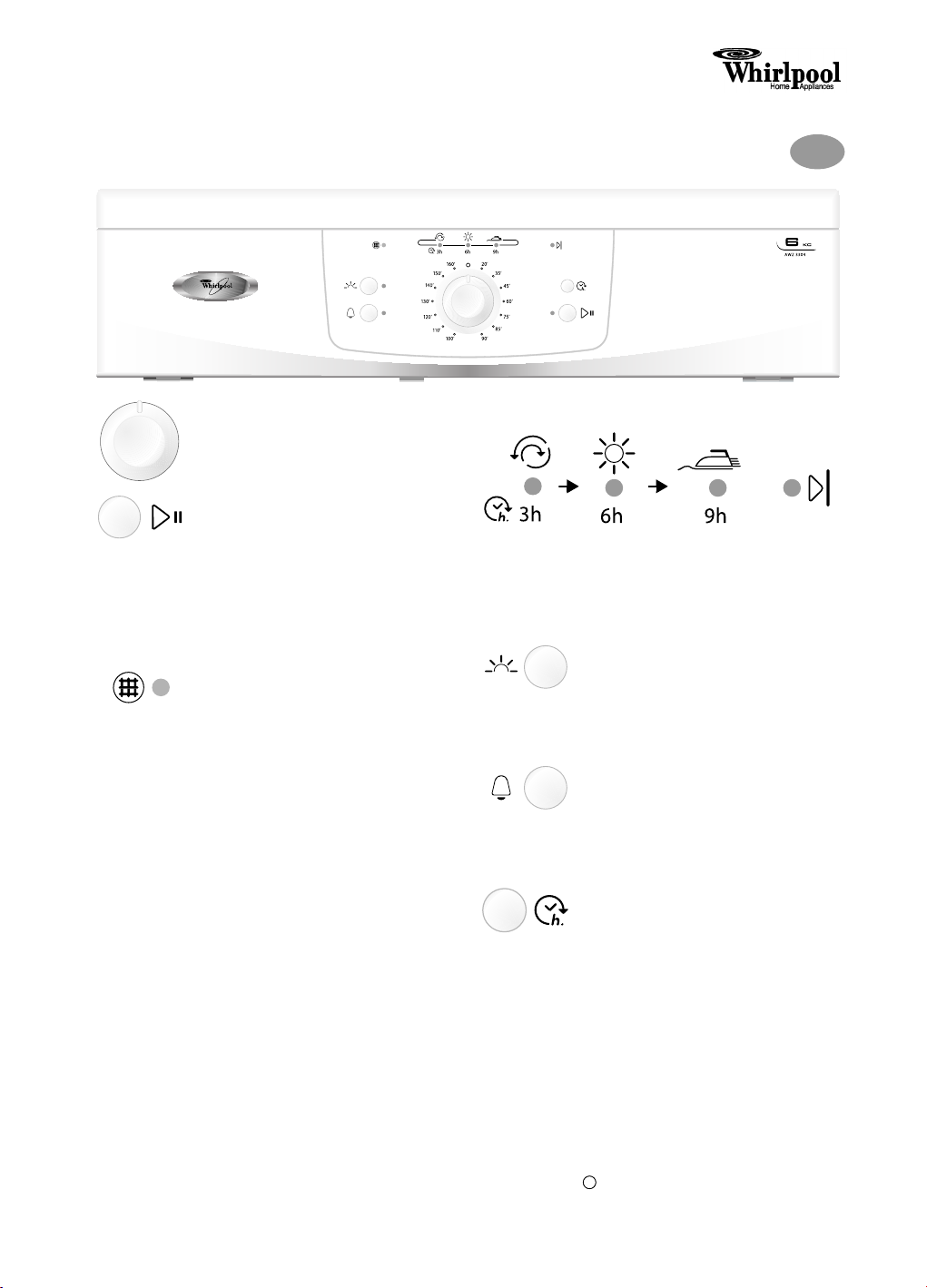

AWZ 3304
Programme selector knob
The drying programme is selected by
turning this knob.
“Start (Pause)” button
The drying programme is started by
pressing this button. The indicator lamp
flashes during the selection phase and
lights up during drying.
Indicator lamps
Clean filter
The indicator lamp lights up when the
filter needs cleaning.
Clean the filter at the end of every
cycle.
Quick Reference Guide
Programme sequence
Drum
Reverse
Options
Drying Anticrease
Gentle
Reduces drying intensity (recommended
for delicate items).
Buzzer
Signals/sounds end of drying cycle.
GB
+
End of
Cycle
Whirlpool is a registered trademark of Whirlpool USA
Start delay
Delays the start of the drying cycle by 3
to 9 hours.
Press the start delay button and
selection appears on the programme
sequence. Then press the
(Pause)”
selection and to start the dryer. During
start delay phase, the time selected led
is blinking. During countdown, the
remaining time is indicated. To cancel
the previously set time delay, set the
programme selection knob to “Off”
“ ” or press the start delay button to
make the 3 lights off.
button to confirm the final
5019 307 01429
(Subject to technical modifications)
“Start
4
