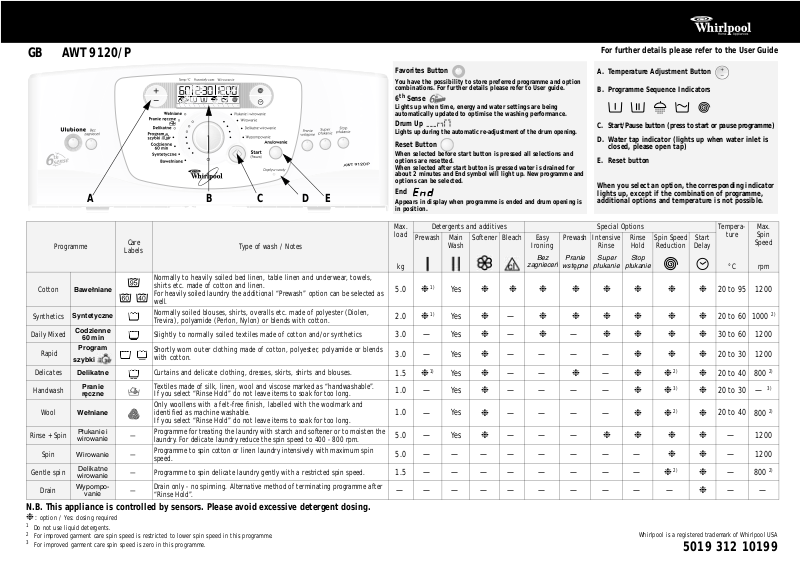

Whirlpool AWT 9120/P PROGRAM CHART

AWT 9120/P

For further details please refer to the User Guide

CABED

Programme

Cotton

Synthetics

Daily Mixed

Rapid

Delicates

Handwash

Wool

Rinse + Spin

Spin

Gentle spin

Drain

Bawełniane

Syntetyczne

Codzienne

60 min

Program

szybki

Delikatne

Pranie ręczne

Wełniane

Płukanie i wirowanie

Wirowanie

Delikatne

wirowanie

Wypompo-

vanie

N.B. This appliance is controlled by sensors. Please avoid excessive detergent dosing.

❉

option / Yes: dosing required

Do not use liquid detergents.

For improved garment care spin speed is restricted to lower spin speed in this programme.

For improved garment care spin speed is zero in this programme.

Care

Labels

—

— — —

Type of wash / Notes

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

For heavily soiled laundry the additional “Prewash” option can be selected as well.

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Slightly to normally soiled textiles made of cotton and/or synthetics Shortly worn outer clothing made of cotton, polyester, polyamide or blends

with cotton. Curtains and delicate clothing, dresses, skirts, shirts and blouses.

Textiles made of silk, linen, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long. Programme for treating the laundry with starch and softener or to moisten the

laundry. For delicate laundry reduce the spin speed to 400 - 800 rpm. Programme to spin cotton or linen laundry intensively with maximum spin

speed. Programme to spin delicate laundry gently with a restricted spin speed. Drain only - no spinning. Alternative method of terminating programme after

“Rinse Hold”.

Favorites Button

You have the possibility to store preferred programme and option combinations. For further details please refer to User guide.

6th Sense

Lights up when time, energy and water settings are being automatically updated to optimise the washing performance.

Drum Up

Lights up during the automatic re-adjustment of the drum opening.

Reset Button

When selected before start button is pressed all selections and options are resetted. When selected after start button is pressed water is drained for about 2 minutes and End symbol will light up. New prog ramme and options can be selected.

End

Appears in display when programme is ended and drum opening is in position.

Max. load

5.0

2.0

3.0

1.5

1.0

5.0

1.5

Detergents and additives Special Options Tempera-

Prewash Main

❉

— —

❉

— — —

Softener Bleach Easy

Wash

Yes

Yes Yes

Yes

❉❉ ❉ ❉ ❉ ❉ ❉ ❉

❉ ❉

❉ ❉ ❉

Ironing

zagnieceń

— —

Prewash Intensive

Pranie

Bez

wst

❉❉❉❉❉❉ ❉

—— —— ——

—— —— —— ——

—— — ————— — — — ————— — — —❉

A. Temperature Adjustment Button

B. Programme Sequence Indicators

C. Start/Pause button (press to start or pause programme) D. Water tap indicator (lights up when water inlet is

closed, please open tap)

E. Reset button

When you select an option, the corresponding indicator lights up, except if the combination of programme, additional options and temperature is not possible.

Rinse

Hold

Stop

Spin Speed

Reduction

—

Rinse

Super

pne

płukanie

❉❉ ❉❉

❉❉❉

❉

—

❉❉

❉❉ 3)❉ ❉❉

❉❉ ❉❉

❉❉

————— — — — — —

Whirlpool is a registered trademark of Whirlpool USA

Max. Spin

Speed

°C

rpm

Start

Delay

ture

20 to 95 1200

20 to 60

1000

30 to 60 1200 20 to 30 1200

❉

❉ ❉

20 to 40 20 to 30

20 to 40

— — — ——

800

—

800

1200 1200

800

5019 312 10199

CONSUMPTION DATA

Programme

Temperature Selector

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes)* Cotton 95/40 5.0 49**/48 1.60/0.60 2:00/2:05 Cotton 60 5.0 48 0.95 2:05

Daily Mixed 40 3.0 45 0.45 1:00

Synthetics 60/40 2.0 55/50 0.70/0.50 1:30/1:15 Rapid Plus 30 3.0 35 0.40 0:30

Delicates 40 1.5 50 0.50 0:45

Wool 40 1.0 50 0.50 0:45

Handwash 30 1.0 35 0.40 0:35

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash. The data on the “Energy Label” refer to the programme “Cotton 60°C”. * The remaining time indicator can similarly deviate from the values in the table, because it takes into account the

household conditions applicable at that time.

**To reduce the w ater temperature , som e cold water is added at the en d of the m ain wash cycle , before the pump d rains th e water out.

PREPARATION OF WASH CYCLE

1. Close the drum door flaps and check that they are properly locked.

2. Add detergents and additives into the dispenser to no more then the

“MAX”

level mark, as follows:

• Programme with pre and main wash

• Main wash prog ramm e with out pr ewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3. Turn the

programme selector knob

to the desired programme. The remaining time of the chosen programme is shown in the display (in hours and minutes) and the indicator light of the

“Start/Pause”

button flashes. The predefefined temperature & spin speed corresponding to the selected programme are indicated in the display. The temperature (

+/-

and spin speed can be changed by pressing the corresponding button.

SELECT THE DESIRED OPTION

When you select an option authorized by the programme, the corresponding indicator lights up, except if the combination of programme, additional options and temperature is not possible. “Easy Ironing” button

• Can be used together with “Cotton”, “Synthetic” and “Daily Mixed” progr amm es to mak e ir oning easi er.

• Increases the water quantity in rinsing and the

clothes are spun in a softer manner.

“Prewash” button

• Only for heavily soiled loads (for example mud, granular dirt).

“Intensive Rinse” button

• The amount of water is increased to en sure a mor e intensive rinse.

• This option is particularly suitable for areas with very soft water or washing linen laundry for

)

people with skin allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing from fading.

• This option is particularly recommended for the “Synthetic”, “Delicate” and “Daily Mixed”

programmes.

• Use this option if you want to postpone spinni ng to a later time, or if you want to drain only.

Note:

The programme with “Rinse Hold” stops when

the “Rinse Hold” is indicated in the display.

Appliance in “Rinse Hold”:

• If you want to continue the programme press

“Start/Pause”

the

button again: The programme will terminate automatically with the selected spin cycle. If the load is dry then please press the

“Start/Pause”

button.

• If you do not wish to spin the load, turn the programme selector knob to the “Drain” programme and pr ess th e “

Start/Pause

” button.

“Spin Speed Reduction” button

• Every programme has an automatically allocated maximum spin speed.

• Press the button until you have reached the requested spin speed indicated in th e display. If the spin speed “0” is selected, the final spin

•

is cancelled, but not the intermediate spins. The programme ends with a drain cycle.

START DELAY

The “Start Delay” button allows the user to run the appliance at his convenience, for example at night when electricity is cheaper.

• Select programme, temperature and options.

• Press the “Start Delay” button several times to

select the delay time by 1 to 24 h ours (selected delay is indicated in display);

• Press the “ light of th e “

Start/Pause

” button. The indicator

” button lights up, the

lamp of the “Start Delay” button flashes and th e selected delay is indicated in the display.

• The time delay indication disappears when the programme starts and is replaced by the remaining time.

• The number of hours preselected can be reduced later by pressing the “Start Delay” button again.

To cancel the pre-selected “Start Delay”

• Turn the programme selector to th e “” position.

• Reselect the desired programme and options and press the “

Start/Pause

” button.

PROGRAMME START

Open the tap and press the “ The indicator light of the “

Start/Pause

” button.

” button

lights up. At programme start the sequences reach ed by the programme are indicated in the display .

Note

: If there's a power cut during the cycle, the programme will continue automatically from where it was interrupted.

LID LOCK

For safety reasons, the lid is locked during certain phases of the cycle. At the end of the cycle or during an interruption, the lid unlocks automatically after about 1 minute.

END OF WASH CYCLE

• Upon programme end “” is shown in the display.

1. Turn the programme selector to the “”

position.

2. Close the tap.

Open the lid and the door flaps and unload the

appliance.

CHANGE THE PROGRAMME OR OPTIONS DURING THE CYCLE

Start/Pause

Press

button. Select new programme and/or new options, temperature and spin speed and press

Start/Pause

button again. The new programme will continue at the same position where the previous programme was interrupted. Do not add detergent for this programme.

Note:

The “Start Delay” and “Prewash” cannot be

selected after a programme change.

PAUSE/INTERRUPT A PROGRAMME

If, for adding some forgotten pieces of clothing or any other reasons, you wish to interrupt or pause the programme for a certain time and continue it later:

1. Press the “

Start/Pause

” button.

The light flashes.

2. After the desired pause, press again on the

Start/Pause

“

” button.

CANCEL PROGRAMME

To cancel a programme please press

Reset Button

for 3 seconds.

Note:

After power cuts or disconnection from the mains after programme end, the LCD display may show the previously selected settings. In this case we suggest to check laundry’s humidity in drum. If laundry is damp, the cycle finished properly. Unload the drum and press

Reset Button

for 3 seconds before selecting a new cycle for next laundry.
