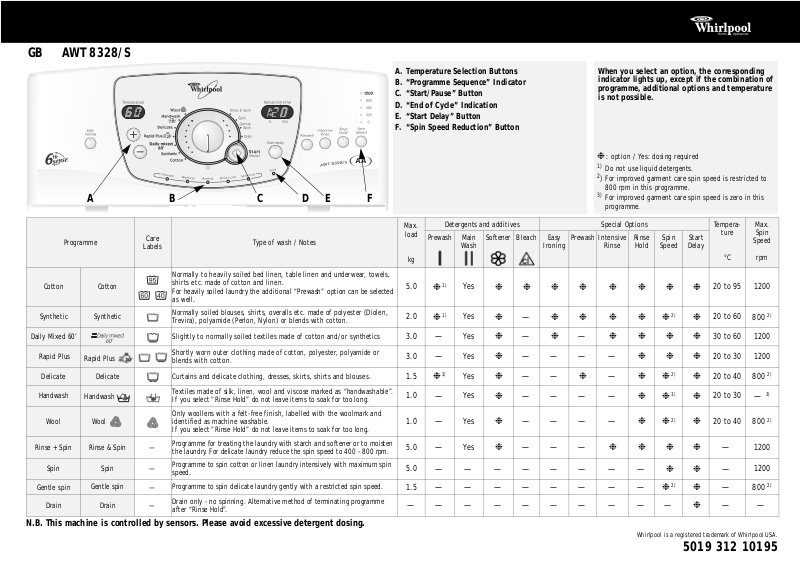

Whirlpool AWM 5080, AWT 8328S PROGRAM CHART

AWT 8328/S

CFAB ED

Programme

Cotton

Synthetic

Daily Mixed 60’ Slightly to normally soiled textiles made of cotton and/or synthetics

Rapid Plus

Delicate

Handwash

Wool

Rinse + Spin

Spin

Gentle spin

Drain

Cotton

Synthetic

Rapid Plus

Delicate

Handwash

Wool

Rinse & Spin

Spin

Gentle spin

Drain

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

Care

Labels

—

— — —

Type of wash / Notes

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

For heavily soiled laundry the additional “Prewash” option can be selected as well.

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Shortly worn outer clothing made of cotton, polyester, polyamide or blends with cotton.

Curtains and delicate clothing, dresses, skirts, shirts and blouses. Textiles made of silk, linen, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long. Programme for treating the laundry with starch and softener or to moisten

the laundry. For delicate laundry reduce the spin speed to 400 - 800 rpm. Programme to spin cotton or linen laundry intensively with maximum spin

speed. Programme to spin delicate laundry gently with a restricted spin speed. Drain only - no spinning. Alternative method of terminating programme

after “Rinse Hold”.

A. Temperature Selection Buttons B. “Programme Sequence” Indicator C. “Start/Pause” Button D. “End of Cycle” Indication

When you select an option, the corresponding indicator lights up, except if the combination of programme, additional options and temperature is not possible.

E. “Start Delay” Button F. “Spin Speed Reduction” Button

❉

: option / Yes: dosing required

Do not use liquid detergents.

) For improved garment care spin speed is restricted to

800 rpm in this programme.

For improved garment care spin speed is zero in this programme.

Max. load

5.0

2.0

3.0

1.5

1.0

5.0

1.5

Detergents and additives Special Options Tempera-

Prewash Main

❉

— —

❉

—

Softener Bleach Easy

Wash

Yes

Yes Yes Yes Yes Yes

Yes

❉❉❉❉❉❉❉❉

❉ ❉ ❉ ❉ ❉

❉

Prewash Intensive

— —

Ironing

❉❉❉❉❉ ❉

—

Rinse

❉❉❉❉

———— ——

❉

—

————

———

❉❉❉❉

Rinse

Hold

Speed

❉❉❉ ❉❉ ❉❉ 3)❉

❉❉

———————— ————————❉

——————————

Whirlpool is a registered trademark of Whirlpool USA.

Spin

Start

Delay

ture

°C

20 to 95 1200

❉

20 to 60 30 to 60 1200 20 to 30 1200

❉

20 to 40 20 to 30

❉

20 to 40

—

❉❉

❉ ❉

— — ——

5019 312 10195

Max. Spin

Speed

rpm

800

—

800

1200

800

CONSUMPTION DATA

Programme

Temperature Selector

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes)* Cotton 95/40 5.0 49**/48 1.60/0.60 2:00/2:05 Cotton 60 5.0 48 0.95 2:05

Daily Mixed 60’ 40 3.0 45 0.45 1:00

Synthetic 60/40 2.0 55/50 0.70/0.50 1:30/1:15

Rapid Plus 30 3.0 35 0.40 0:30

Delicate 40 1.5 50 0.50 0:45

Wool 40 1.0 50 0.50 0:45

Handwash 30 1.0 35 0.40 0:35

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash. The data on the “Energy Label” refer to the programme “Cotton 60°C”. * The remaining time indicator can similarly deviate from the values in the table, because it takes into account the

household conditions applicable at that time.

**To reduce the w ater temper ature, some cold water is ad d ed at th e en d o f th e m ain w ash cycle, before th e pump dr ain s th e

water out.

PREPARATION OF WASH CYCLE

1. Close the drum doors and check that they are properly locked.

2. Add detergents and additives into the dispenser to no more then the

“MAX”

level mark, as follows:

• Programme with pre and main wash

• Main wash progr amm e without p rew ash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3. Turn the

programme selector knob

to the desired programme. The remaining time display shows the duration of the chosen programme (in hours and minutes) and the indicator light of the

“Start/Pause”

button flashes. The programme sequence and the predefined spin speed indication corresponding to the selected programme lights up.

The preselected temperature can be altered by pressing the “+” or “-” button.

SELECT THE DESIRED OPTION

When you select an option authorized by the programme, the corresponding indicator lights up, except if the combination of programme,

“Easy Ironing” button

• Can be used together with “Cotton”, “Synth etic ” an d “Daily Mixed 60’” programmes to m ake ir oning easi er.

• Increases the water quantity in rinsing and the clothes are spun in a softer manner.

“Prewash” button

• Only for heavily soiled loads (for example sand, granular dirt).

“Intensive Rinse” button

• The amoun t of w ater is increased to en sure a mor e intensive rinse.

• This option is particularly suitable for areas with very soft water, washing baby linen and people with skin allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from fading.

• This option is particularly recommended for the “Synthetic”, “Delicate” and “Daily Mixed 60’” programmes.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

Note:

The programme with “Rinse Hold” stops when the “Rinse Hold” indicator light flashes on the “Programme Sequence Indicator”.

additional options and temperature is not possible.

Appliance in “Rinse Hold”:

• Press the “Rinse Hold” button again: the programme will terminate automatically with the selected spin cycle.

• If you do not wish to spin the cloth es , turn the programme selector kn ob to the “Dr ain” programm e and press the “

Start/Pause

” button again.

“Spin Speed Reduction” button

• Every programme has an automatically allocated maximum spin speed.

• Press the button to set another spin speed. If the spin speed “0” is selected, the final spin

•

is cancelled, but not the intermediate spins. The programme ends with a drain cycle.

START DELAY

The “Start Delay” button allows the user to run the machine at his convenience, for example at night when electricity is cheaper.

• Select programme, temperature and options.

• Press the “Start Delay” button several times to select the delay time by 1 to 19 hours;

•Press the “ light of th e

Start/Pause

“Start/Pause”

” button. The indicator

button lights up an d

the lamp of the “Start Delay” button flashes.

• The time delay indication disappears when the programme starts and is replaced by the remaining time.

• The number o f hours preselected can be reduced later by pressing the “Start Delay” button again.

To cancel the “Start Delay” option

• Turn the prog ramm e selector to th e “ ” position.

• Reselect the desired programme and options and press the “

Start/Pause

” button.

PROGRAMME START

Turn on the tap and press the “ button. The indicator light of the “

Start/Pause

”

” button lights up. The indicator lamp shows the sequence reached by the programme. After starting the programme, the programme sequence indicator signals the Wash, Rinse and Spin phases.

Note

: If there is a power interruption or if the appliance is disconnected during the cycle, the programme will run again from the point where it was interrupted.

LID LOCK

For safety reasons, the lid is locked during certain phases of the cycle. At the end of the cycle or during an interruption, the lid unlocks automatically after about 1 minute.

END OF WASH CYCLE

• The remaining time is on “0: 00” and the “End” lamp lights up.

1. Turn the programme selector to the “ ”

position.

2. Turn the tap off.

Open the lid and the drum doors and unload

the machine.

CHANGE THE PROGRAMME OR OPTIONS DURING THE CYCLE

1. Select the new programme using the

programme selector. If necessary, select the additional options and the spin speed. The luminous indicator of the

“Start/Pause”

button flashes. Note: the “Start Delay” and “Prewash” options cannot be selected after a programme change.

Press the

“Start/Pause

” button. The new programme selected continues at the same position where the previous programme was interrupted.

Note:

Do not add detergent for this

programme.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the programme for a certain time and continue it later:

1. Press the

“Start/Pause”

button. The light

flashes.

2. After the desired pause, press again on the

“Start/Pause”

button.

CANCEL PROGRAMME

1. Set the programme selector to “Drain”.

2. Press the

“Start/Pause”

button to start the

“Drain” programme.

Whirlpool is a registered trademark of Whirlpool USA.

5019 312 10195
