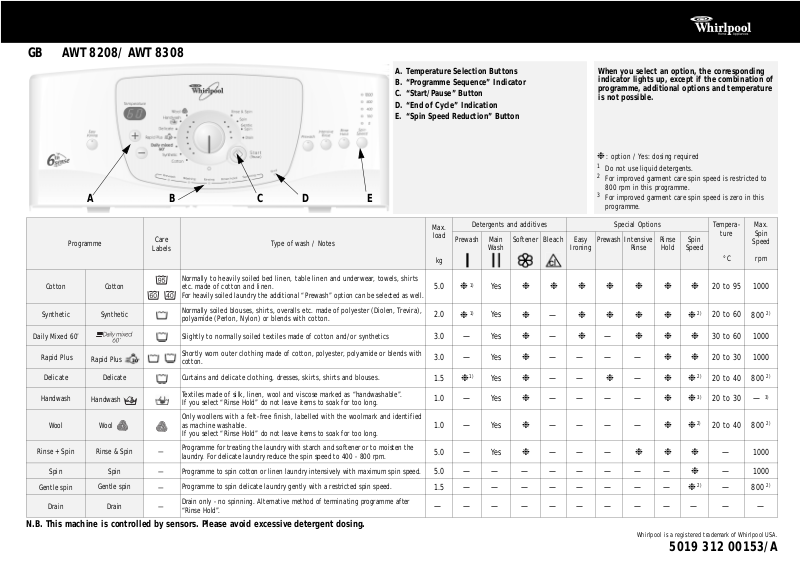

Whirlpool AWT 8308 PROGRAM CHART

AWT 8208/ AWT 8308

CEAB D

Programme

Cotton

Synthetic

Daily Mixed 60’ Slightly to normally soiled textiles made of cotton and/or synthetics

Cotton

Synthetic

Care

Labels

Type of wash / Notes

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

For heavily soiled laundry the additional “Prewash” option can be selected as well.

Normally soiled blouses, shirts , over alls etc . m ad e o f polyester (Di olen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

A. Temperature Selection Buttons B. “Programme Sequence” Indicator C. “Start/Pause” Button D. “End of Cycle” Indication E. “Spin Speed Reduction” Button

Max. load

5.0

2.0

3.0

Detergents and additives Special Options Tempera-

Prewash Main

❉

—

Softener Bleach Easy

Wash

Yes

When you select an option, the corresponding indicator lights up, except if the combination of programme, additional options and temperature is not possible.

❉

: option / Yes: dosing required

Do not use liquid detergents.

For improved garment care spin speed is restricted to 800 rpm in this programme.

For improved garment care spin speed is zero in this programme.

Ironing

Prewash Intensive

Rinse

Hold

Spin

Speed

❉❉❉❉❉❉❉

❉

—

❉

—

❉❉❉❉❉ ❉

—

❉❉❉

ture

°C

Max. Spin

Speed

rpm

20 to 95 1000

20 to 60

800

30 to 60 1000

Rapid Plus

Delicate

Handwash

Wool

Rinse + Spin

Spin

Gentle spin

Drain

Rapid Plus

Delicate

Handwash

Wool

Rinse & Spin

Spin

Gentle spin

Drain

Shortly worn outer clothing made of cotton, polyester, polyamid e or blends with cotton.

Curtains and delicate clothing, dresses, skirts, shirts and blouses. Textiles made of silk, linen, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long. Programme for treating the laundry with starch and softener or to moisten the

—

laundry. For delicate laundry reduce the spin speed to 400 - 800 rpm. Programme to spin cotton or linen laundry intensively with maximum spin speed.

—

Programme to spin delicate laundry gently with a restricted spin speed.

—

Drain only - no spinning. Alternative method of terminating programme after

—

“Rinse Hold”.

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

3.0

1.5

1.0

5.0

1.5

❉

—

Yes

Yes Yes

Yes

❉

————

❉

——

❉

————

❉

————

❉

———

❉❉

❉

—

❉❉ ❉❉

❉❉

❉❉❉

———————— ————————❉

20 to 30 1000

20 to 40

20 to 30

20 to 40

❉

— —

—

800

—

800

1000 1000

800

—————————— — —

Whirlpool is a registered trademark of Whirlpool USA.

5019 312 00153/A

CONSUMPTION DATA

Programme

Temperature Selector

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes)* Cotton 95/40 5.0 49**/48 1.60/0.60 2:00/2:05 Cotton 60 5.0 48 0.95 2:05

Daily Mixed 60’ 40 3.0 45 0.45 1:00

Synthetic 60/40 2.0 55/50 0.70/0.50 1:30/1:15

Rapid Plus 30 3.0 35 0.40 0:30

Delicate 40 1.5 50 0.50 0:45

Wool 40 1.0 50 0.50 0:45

Handwash 30 1.0 35 0.40 0:35

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash. The data on the “Energy Label” refer to the programme “Cotton 60°C”. * The remaining time indicator can similarly deviate from the values in the table, because it takes into account the

household conditions applicable at that time.

**To reduce the w ater temper ature, some cold water is ad d ed at th e en d o f th e m ain w ash cycle, before th e pump dr ain s th e

water out.

PREPARATION OF WASH CYCLE

1. Close the drum doors and check that they are properly locked.

2. Add detergents and additives into the dispenser to no more then the

“MAX”

level mark, as follows:

• Programme with pre and main wash

• Main wash programm e withou t prew ash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3. Turn the

programme selector knob

to the desired programme. The indicator light of the

“Start/Pause”

button flashes. The programme sequence and the predefined spin speed indication corresponding to the selected programme lights up.

The preselected temperature can be altered by pressing the “+” or “-” button.

SELECT THE DESIRED OPTION

When you select an option authorized by the programme, the corresponding indicator lights up, except if the combination of programme, additional options and temperature is not possible.

“Easy Ironing” button

• Can be used together with “Cotton”, “Syntheti c” an d “Daily Mixed 60’” programmes to m ake ir oning easi er.

• Increases the water quantity in rinsing and the clothes are spun in a softer manner.

“Prewash” button

• Only for heavily soiled loads (for example sand, granular dirt).

“Intensive Rinse” button

• The amoun t of water is in creased to ensur e a more intensive rinse.

• This option is particularly suitable for areas with very soft water, washing baby linen and people with skin allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from fading.

• This option is particularly recommended for th e “Synthetic”, “Delicate” and “Daily Mixed 60’” programmes.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

Note:

The programme with “Rinse Hold” stops when the “Rinse Hold” indicator light flashes on the “Programme Sequence Indicator”.

Appliance in “Rinse Hold”:

• Press the “Rinse Hold” button again: the

programme will terminate automatically with the selected spin cycle.

• If you do not wish to spin the clothes, turn the

programme selector knob to th e “Drain” programm e and press the “

Start/Pause

” button again.

“Spin Speed Reduction” button

• Every programme has an automatically

allocated maximum spin speed.

• Press the button to set another spin speed.

If the spin speed “0” is selected, the final spin

•

is cancelled, but not the intermediate spins. The programme ends with a drain cycle.

PROGRAMME START

Turn on the tap and press the “ button. The indicator light of the “

Start/Pause

”

” button lights up. The indicator lamp shows the sequence reached by the programme. After starting the programme, the programme sequence indicator signals the Wash, Rinse and Spin phases.

Note

: If there is a power interruption or if the appliance is disconnected during the cycle, the programme will run again from the point where it was interrupted.

LID LOCK

For safety reasons, the lid is locked during certain phases of the cycle. At the end of the cycle or during an interruption, the lid unlocks automatically after about 1 minute.

END OF WASH CYCLE

• The “End” lamp lights up.

1. Turn the programme selector to the “ ” position.

2. Turn the tap off. Open the lid and the drum doors and unload

the machine.

CHANGE THE PROGRAMME OR OPTIONS DURING THE CYCLE

1. Select the new programme using the programme selector. If necessary, select the additional options and the spin speed. The luminous indicator of the

“Start/Pause”

button flashes. Note: the “Start Delay” and “Prewash” options cannot be selected after a programme change.

Press the

“Start/Pause

” button. The new programme selected continues at the same position where the previous programme was interrupted.

Note:

Do not add detergent for this

programme.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the programme for a certain time and continue it later:

1. Press the

“Start/Pause”

button. The light

flashes.

2. After the desired pause, press again on the

“Start/Pause”

button.

CANCEL PROGRAMME

1. Set the programme selector to “Drain”.

2. Press the

“Start/Pause”

button to start the

“Drain” programme.
