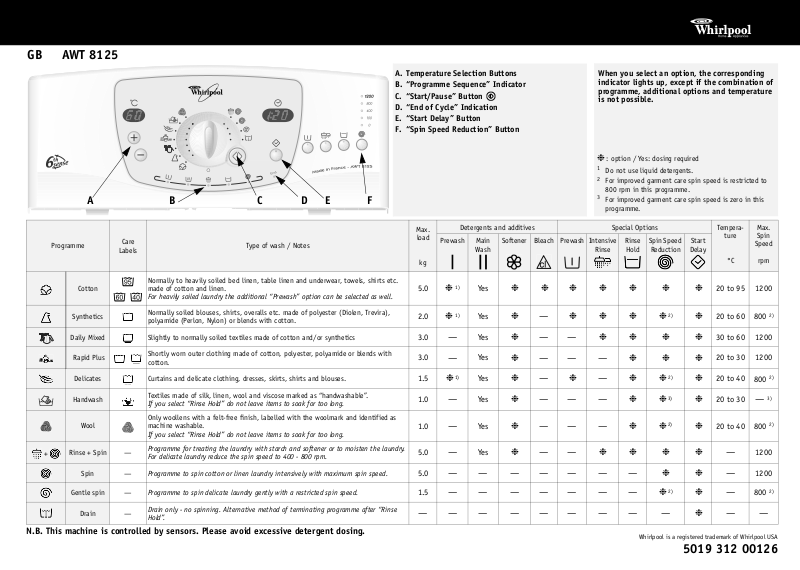

GB
AWT 8125
CFAB ED
Programme
Cotton
Synthetics
Daily Mixed Slightly to normally soiled textiles made of cotton and/or synthetics
Care
Labels
Type of wash / Notes
Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc.
made of cotton and linen.
For heavily soiled laundry the additional “Prewash” option can be selected as well.
Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira),
polyamide (Perlon, Nylon) or blends with cotton.
A. Temperature Selection Buttons
B. “Programme Sequence” Indicator
C. “Start/Pause” Button
D. “End of Cycle” Indication
E. “Start Delay” Button
F. “Spin Speed Reduction” Button
Max.
load
kg
5.0
2.0
3.0
Detergents and additives Special Options Tempera-
Prewash Main
1)
❉
1)
❉
—
Softener Bleach Prewash Intensive
Wash
Yes
Yes
Yes
❉❉❉❉❉ ❉ ❉
❉
❉
—
❉❉❉❉
——
When you select an option, the corresponding
indicator lights up, except if the combination of
programme, additional options and temperature
is not possible.
❉
: option / Yes: dosing required
1
Do not use liquid detergents.
2
For improved garment care spin speed is restricted to
800 rpm in this programme.
3
For improved garment care spin speed is zero in this
programme.
Max.
Spin
Speed
rpm
Rinse
Rinse
Hold
Spin Speed
Reduction
Start
Delay
ture
°C
20 to 95 1200
2)
❉❉ ❉❉
20 to 60
❉
30 to 60 1200
800
2)
Rapid Plus
Delicates Curtains and delicate clothing, dresses, skirts, shirts and blouses.
Handwash
Rinse + Spin —
+
Gentle spin —
Wool
Spin —
Drain —
Shortly worn outer clothing made of cotton, polyester, polyamide or blends with
cotton.
Textiles made of silk, linen, wool and viscose marked as “handwashable”.
If you select “Rinse Hold” do not leave items to soak for too long.
Only woollens with a felt-free finish, labelled with the woolmark and identified as
machine washable.
If you select “Rinse Hold” do not leave items to soak for too long.
Programme for treating the laundry with starch and softener or to moisten the laundry.
For delicate laundry reduce the spin speed to 400 - 800 rpm.
Programme to spin cotton or linen laundry intensively with maximum spin speed.
Programme to spin delicate laundry gently with a restricted spin speed.
Drain only - no spinning. Alternative method of terminating programme after “Rinse
Hold”.
N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.
3.0
1.5
1.0
1.0
5.0
5.0
1.5
—
❉
—
—
—
———————
———————❉
Yes
1)
Yes
Yes
Yes
Yes
❉
❉
❉
❉
❉
—— —
—
❉
—
—— —
—— —
——
❉❉ ❉❉
❉❉❉
❉❉
2)
❉❉ 3)❉
❉❉
2)
❉❉
2)
——— ——— —— —
Whirlpool is a registered trademark of Whirlpool USA
20 to 30 1200
❉
❉
❉
❉
20 to 40
20 to 30
20 to 40
—
—
—
——
800
—
800
1200
1200
800
2)
3)
2)
2)
5019 312 00126
CONSUMPTION DATA
Programme
Temperature Selector
(°C)
Load
(kg)
Water
(l)
Energy
(kWh)
Approx. Programme
Duration
(hours : minutes)*
Cotton 95/40 5.0 49**/48 1.60/0.60 2:00/2:05
Cotton 60 5.0 48 0.95 2:05
Daily Mixed 40 3.0 45 0.45 1:00
Synthetics 60/40 2.0 55/50 0.70/0.50 1:30/1:15
Rapid Plus 30 3.0 35 0.40 0:30
Delicates 40 1.5 50 0.50 0:45
Wool 40 1.0 50 0.50 0:45
Handwash 30 1.0 35 0.40 0:35
Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized
conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in
the table in relation to the water supply pressure and temperature, the load and the type of wash. The data on the “Energy
Label” refer to the programme “Cotton 60°C” .
* The remaining time indicator can similarly deviate from the values in the table, because it takes into account the
household conditions applicable at that time.
**To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.
PREPARATION OF WASH CYCLE
1. Close the drum doors and check that they are
properly locked.
2. Add detergents and additives into the dispenser to
no more then the
“MAX”
level mark, as follows:
• Programme with pre and main wash
• Main wash programme without prewash
• Fabric softeners and conditioners
• Chlorine bleach
• Stain remover agents
• Anti-scale agents (if necessary)
3. Turn the
programme selector knob
to the
desired programme.
The remaining time display shows the duration of
the chosen programme (in hours and minutes) and the
indicator light of the
“Start/Pause”
button flashes.
The programme sequence and the predefined
spin speed indication corresponding to the
selected programme lights up.
The preselected temperature can be altered by
pressing the “+” or “-” button.
SELECT THE DESIDERED OPTION
When you select an option authorized by the
programme, the corresponding indicator lights up,
except if the combination of programme,
additional options and temperature is not possible.
“Prewash” button
• Only for heavily soiled loads (for example sand,
granular dirt).
“Intensive Rinse” button
• The amount of water is increased to ensure a more
intensive rinse.
• This option is particularly suitable for areas with
very soft water, washing baby linen and people
with skin allergies.
“Rinse Hold” button
• The laundry remains in the last rinse water
without progressing to the final spin cycle to
avoid creasing and prevent colours from fading.
• This option is particularly recommended for the
“Synthetics” , “Delicates” and “Daily
Mixed” programmes.
• This function is particularly useful if you want to
postpone spinning to a later time, or if you want
to drain only.
Note:
The programme with “Rinse Hold” stops
when the “Rinse Hold” indicator light flashes on the
“Programme Sequence Indicator”.
Appliance in “Rinse Hold” :
• Press the “Rinse Hold” button again: the
programme will terminate automatically with the
selected spin cycle.
• If you do not wish to spin the clothes, turn the
programme selector knob to the
“Drain” programme and press the “
Start/Pause
”
button again.
“Spin Speed Reduction” button
• Every programme has an automatically
allocated maximum spin speed.
• Press the button to set another spin speed.
If the spin speed “0” is selected, the final spin
•
is cancelled, but not the intermediate spins.
The programme ends with a drain cycle.
START DELAY
The “Start Delay” button allows the user to run
the machine at his convenience, for example at
night when electricity is cheaper.
• Select programme, temperature and options.
• Press the “Start Delay” button several times
to select the delay time by 1 to 19 hours;
• Press the “
indicator light of the
Start/Pause
” button . The
“Start/Pause”
button
lights up and the lamp of the “Start Delay”
button flashes.
• The time delay indication disappears when the
programme starts and is replaced by the
remaining time.
• The number of hours preselected can be reduced
later by pressing the “Start Delay”
button again.
To cancel the “Start Delay” option
• Turn the programme selector to the “”
position.
• Reselect the desired programme and options
and press the “
Start/Pause
” button .
PROGRAMME START
Turn on the tap and press the “
button . The indicator light of the “
Pause
” button lights up. The indicator lamp shows
Start/Pause
Start/
”
the sequence reached by the programme. After
starting the programme, the programme sequence
indicator signals the Wash , Rinse and
Spin phases.
Note
: If there is a power interruption or if the
appliance is disconnected during the cycle, the
programme will run again from the point where it
was interrupted.
LID LOCK
For safety reasons, the lid is locked during certain
phases of the cycle. At the end of the cycle or
during an interruption, the lid unlocks
automatically after about 1 minute.
END OF WASH CYCLE
• The remaining time is on “0:00” and the “End”
lamp lights up.
1. Turn the programme selector to the “”
position.
2. Turn the tap off.
Open the lid and the drum doors and unload
3.
the machine.
CHANGE THE PROGRAMME OR OPTIONS DURING
THE CYCLE
1. Select the new programme using the
programme selector. If necessary, select the
additional options and the spin speed. The
luminous indicator of the
“Start/Pause”
button flashes.
Note:
the “Start Delay” and “Prewash”
options cannot be selected after a programme
change.
2.
Press the
“Start/Pause
” button . The new
programme selected continues at the same
position where the previous programme was
interrupted.
Note:
Do not add detergent for this
programme.
PAUSE/INTERRUPT A PROGRAMME
If, for any reason, you wish to interrupt the
programme for a certain time and continue it later:
1. Press the
“Start/Pause”
button . The light
flashes.
2. After the desired pause, press again on the
“Start/Pause”
button .
CANCEL PROGRAMME
1. Set the programme selector to “Drain” .
2. Press the
“Start/Pause”
button to start
the “Drain” programme.
