SERVICE
Model AWT 8123 D
Version 8561 812 10430 Page
Whirlpool Europe
Customer Services
AWT 8123 D
Service Manual
Washing machine
Toploader
AWT 8123 D
Technical data 2 - 3
Spare part list 4
Exploded view 5 - 6

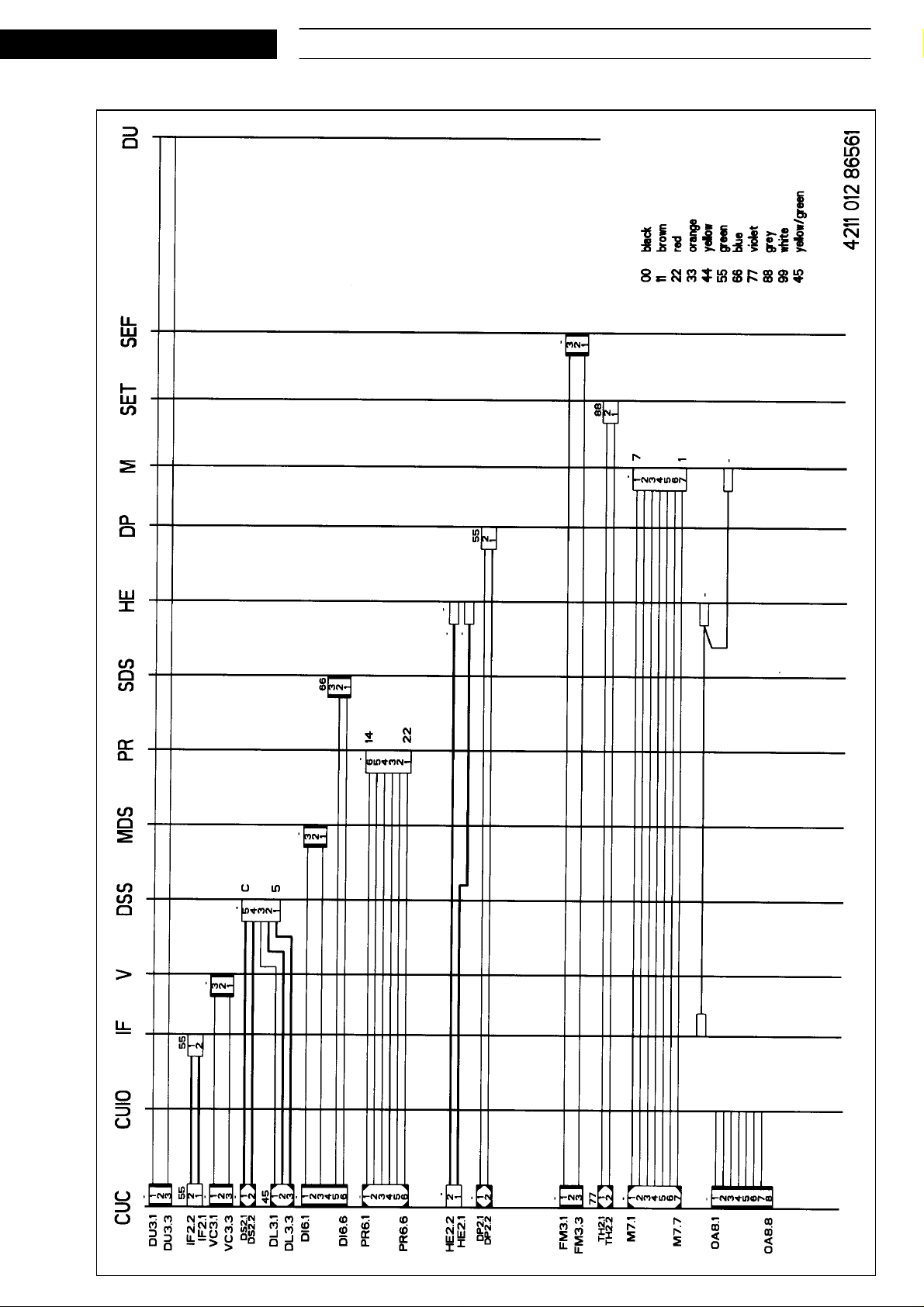

Wiring diagram 7

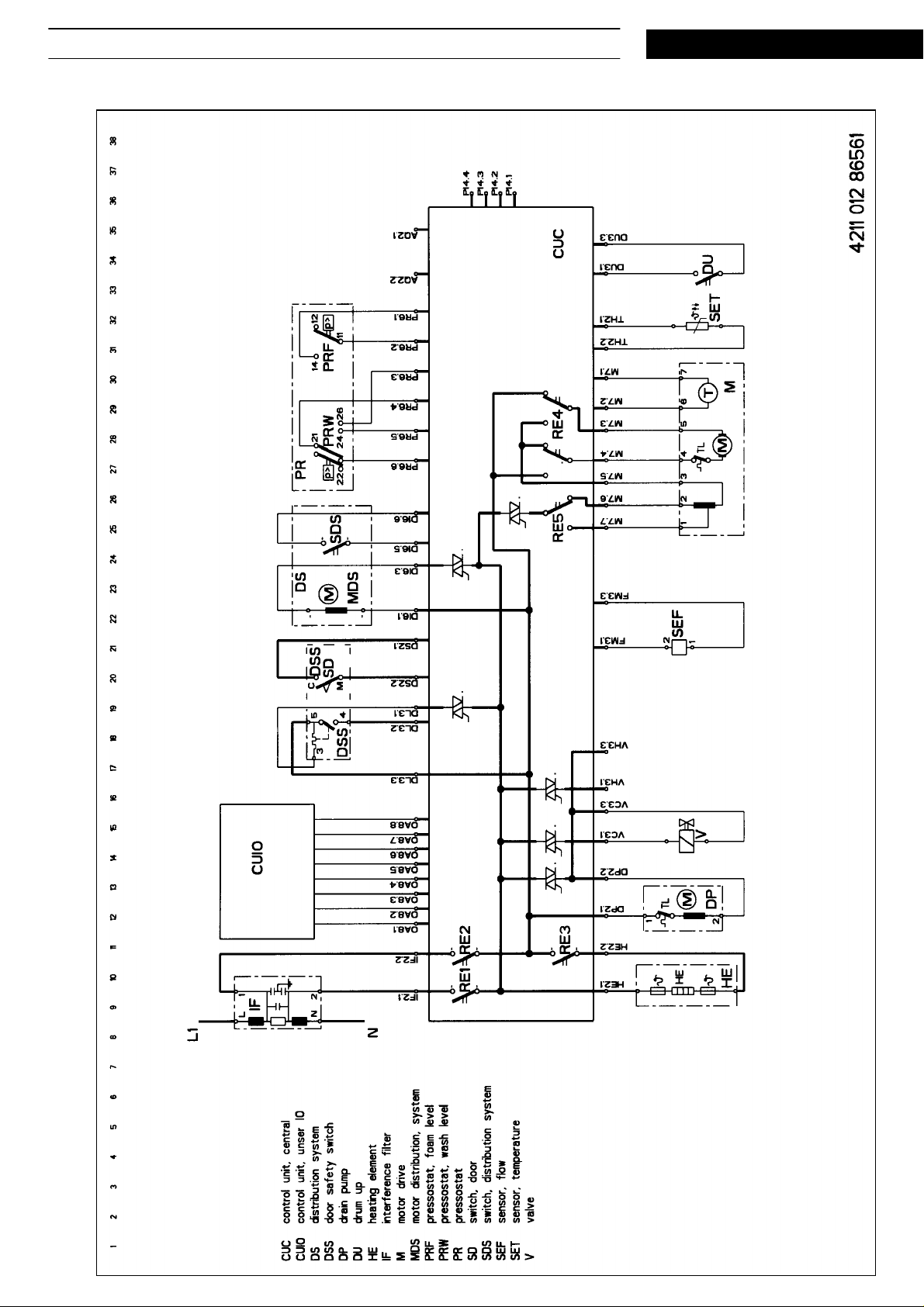

Circuit diagram 8

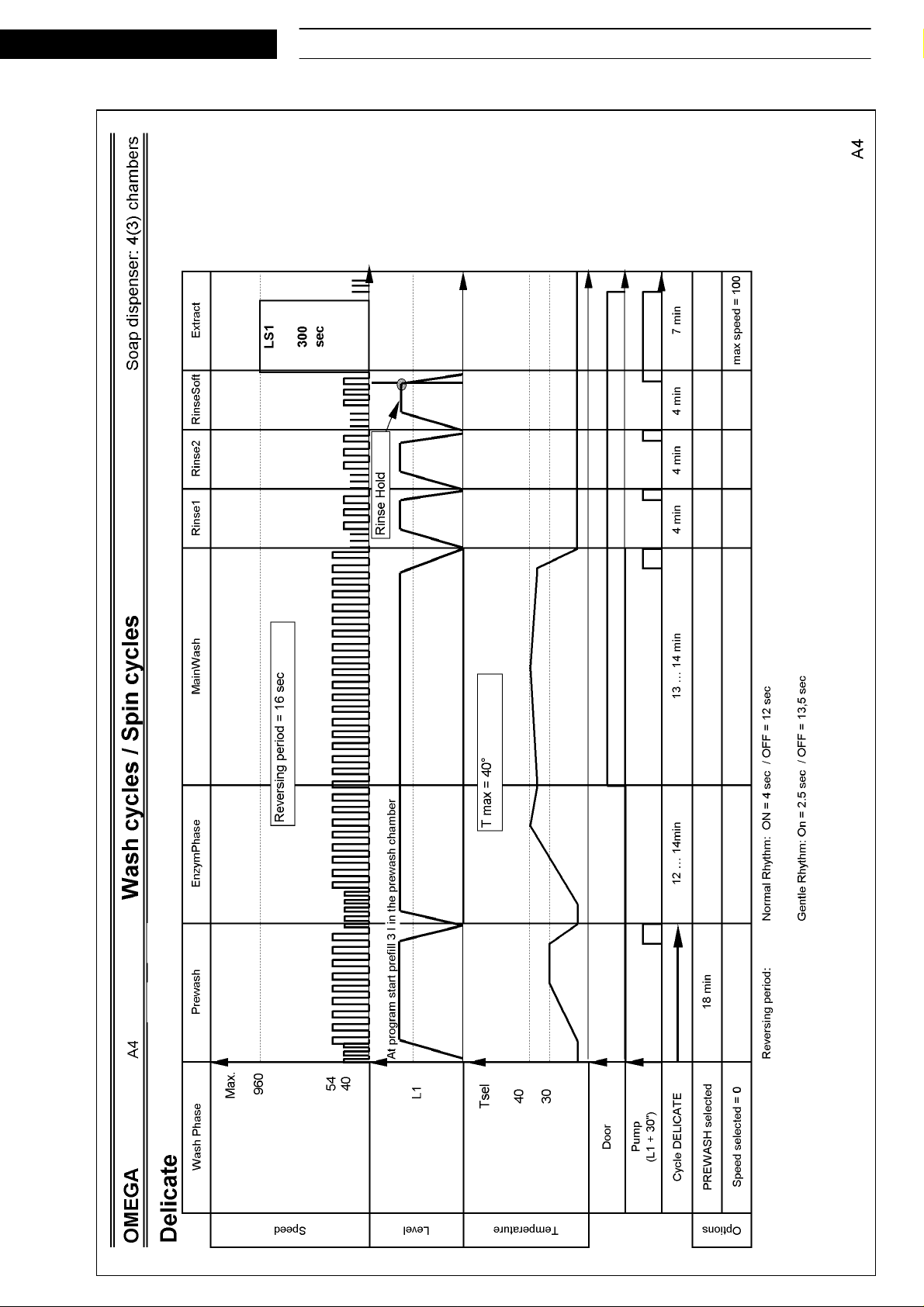

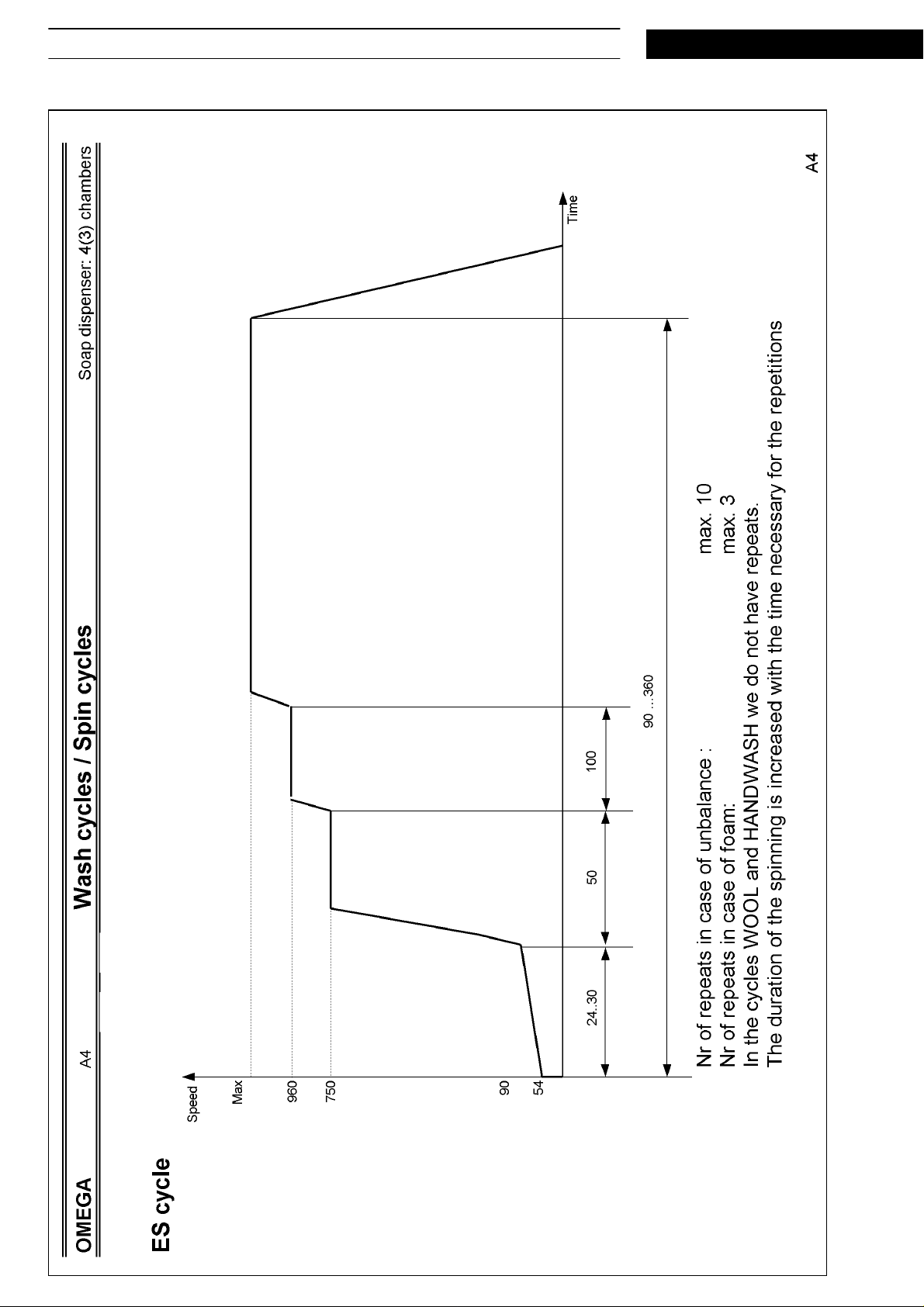

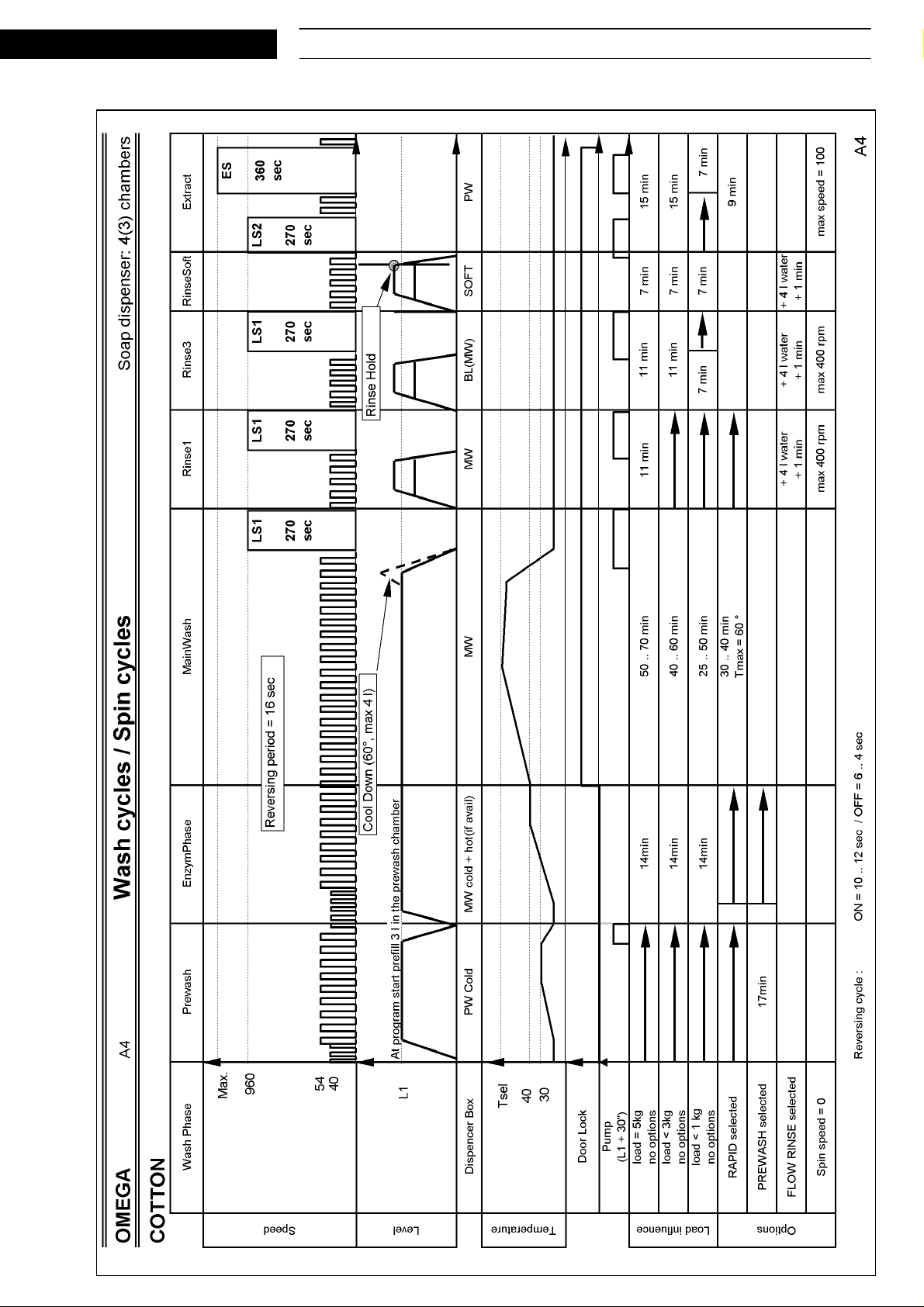

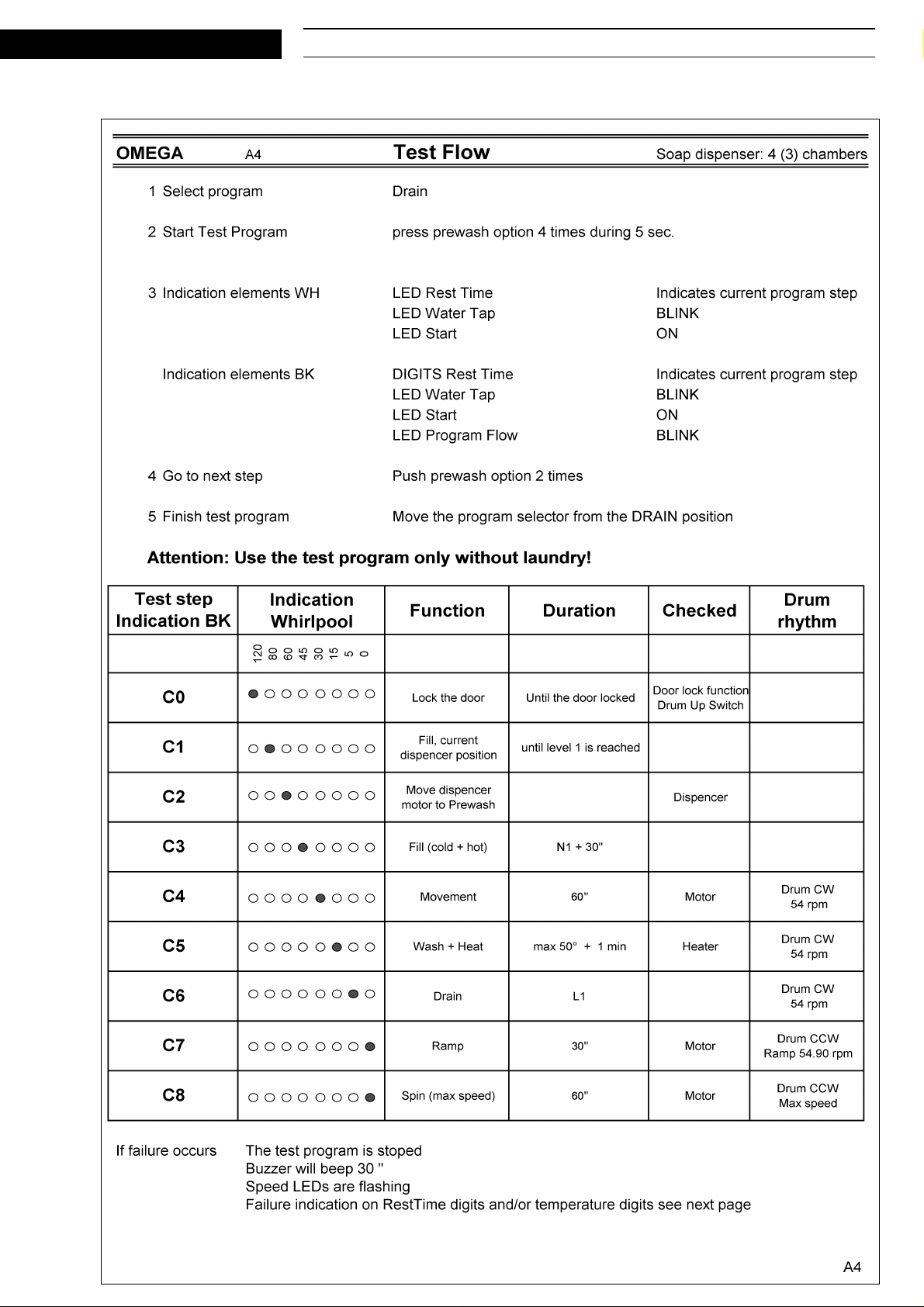

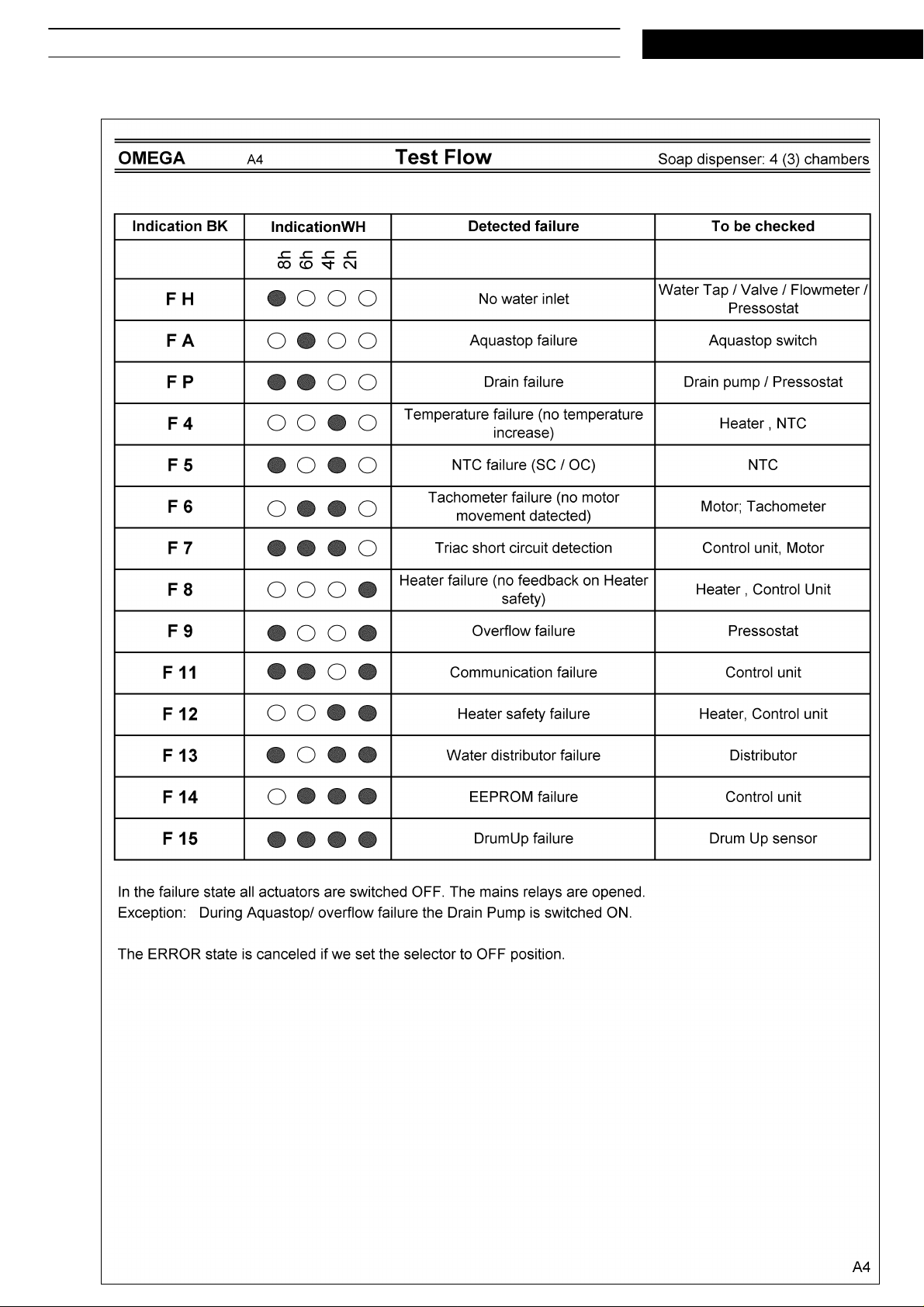

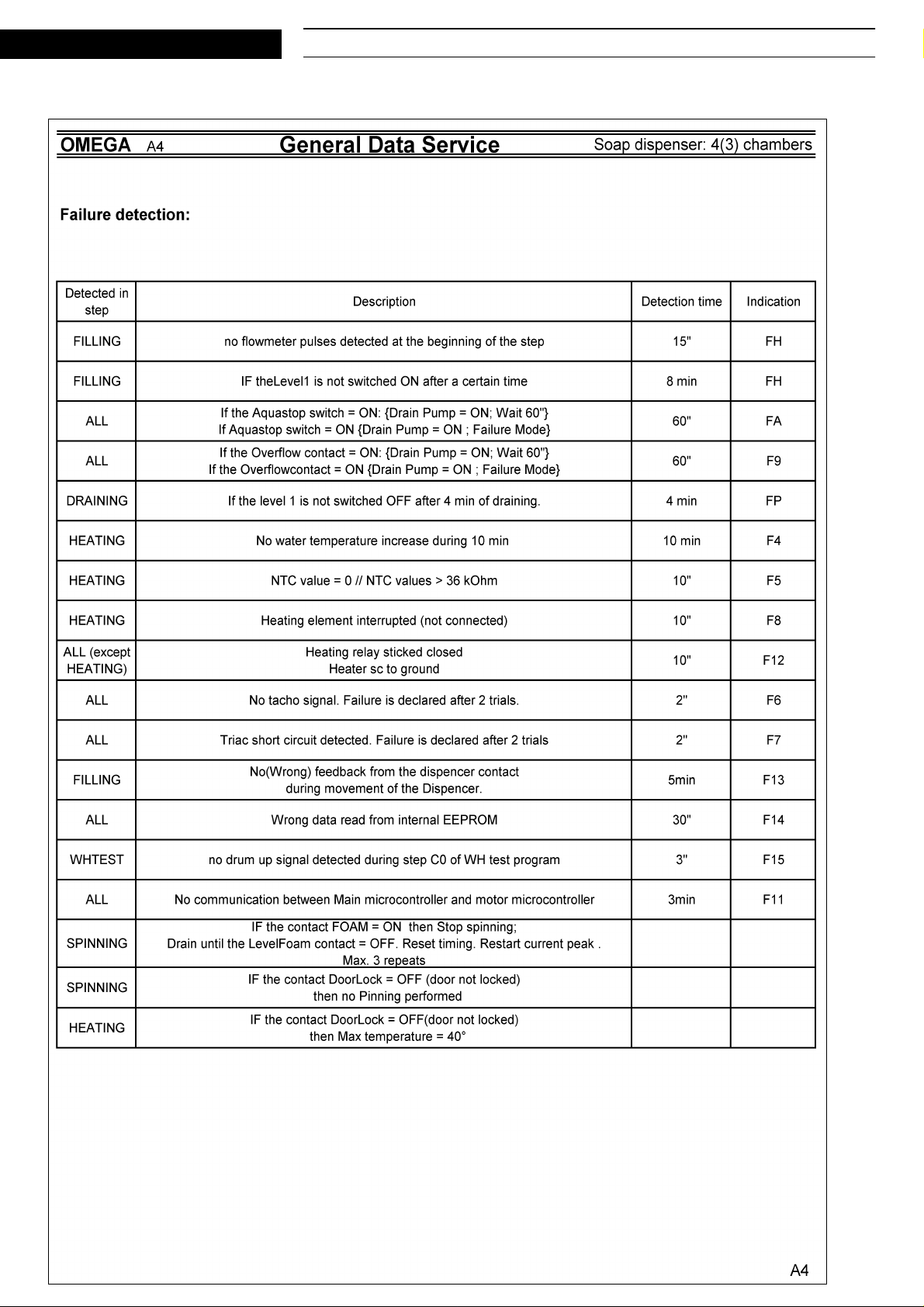

Program chart 9 - 14
Text/Legend 15 - 18
Family A4
This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
Date: 20.06.2000 (Mod. 01) Subject to modification
Document-No.: 4812 712 14941
13.12.1999 / Page 2 AWT 8123 D Whirlpool Europe
Doc. No: 4812 712 14941 8561 812 10430 Customer Service
Technical data
SERVICE
Dimensions
Height 85 cm
Width 40 cm
Depth 60 cm
Weight
Without packing 62 kg
Main connection
Voltage 230 V
Frequency 50 Hz
Power consumption 2.3 kW
Fuse rating 10 A
Drum
Volume 42 l
Wash spin 54 rpm
Ramp spin 95 rpm
Speed spinning 1200 rpm
Capacity of dry laundry
Door lock (5-pol.)
Lock time (0-85˚C) <5“
Unlock time after 30“ on 70± 30“
Nominal voltage 250 V
Nominal current contacts:
4 - 5 16 (4) A
Heating element
Kind of heating Tubular heating element with
NTC-sensor
Nominal voltage 230 V
Nominal power 2050 W
Heat conductor
resistance 22-28 Ω
Resistance NTC:
0˚C 35.9 kΩ
30˚C 9.8 kΩ
40˚C 6.9 kΩ
50˚C 4.8 kΩ
60˚C 3.4 kΩ
70˚C 2.4 kΩ
90˚C 1.7 kΩ
Cotton/coloured laundry 5/ 4,5 kg
Cotton rapid 3 kg
Easy care 2.5 kg
Easy care rapid 1.5 kg
Delicate 1.5 kg
Wool 1 kg
Pressostat
Nominal current
Contacts:
11 - 12 4 (4) A 24V DC/3 mA
11 - 14 4 (4) A 24V DC/3 mA
21 - 12 4 (4) A 24V DC/3 mA
21 - 24 16 (4) A 24V DC/3 mA
21 - 26 1 (1) A 24V DC/3 mA
Contactsystem:
11 - 12 - 14 jump contacts
21 - 22 - 24 jump contacts
21 - 26 slow action contacts
Water inlet valve
Water temperature max. 80 ˚C
Rated flow > 1 bar 8 l/min.
Pressure range 0.2-10 bar
Nominal voltage 220-240 V
Frequency 50 Hz
Starting voltage 0.2-10 bar 160 V
Nominal current 40 mA
Nominal power 8.8± 10% VA
Nominal resistor (20˚C) 3.8± 10% Ω
Flowmeter
Type 1458 00
Switch power nominal 25± 20% mW
Switch current nominal 5 ± 20% mA
Switch votage nominal DC 5 ± 10% V
Contact resistance < 200 mΩ
Drain pump (synchronus)
Nominal voltage 230 V
Nominal current 0.3 A
Nominal consumption 34 W
Frequency 50 Hz
Resistor (coil) 155 ± 7% Ω
Motor protection 170 ˚C
Capacity (1.25m height) 15± 2 l/min
SERVICE
Technical data
Whirlpool Europe AWT 8123 D 13.12.1999 / Page 3
Customer Service 8561 812 10430 Doc. No: 4812 712 14941
Program timer
Type Electronic
Fab. Omega (Timer A4)
Nominal voltage 230 V
Frequency 50 Hz
Ambient temperature to 70 ˚C
Storage temperature to 85 ˚C
Motor
Type MCA 52/64 - 148 / ALE
i = 1 :13.4
Pulley diameter 21.4 mm
Resistance:
Contact 1 - 2 68.7 ± 7% Ω
Collector directly 1.90 ± 7% Ω
Field winding 2 - 3 2.17 ± 7% Ω
Field winding 1 - 3 1.35 ± 7% Ω
Tacho pole pairs 16
Sense of rotaion in spinning,
in view on pulley side clockwise
Push button switch
Start stop SST
Prewash SPW
Intensive rinse SRI
Rinse hold SRS
Spin speed reduction SSR
Start delay STD
Remaining time RT
Radio interference supression
Nominal voltage 230 V
Nominal capacity 1µ FX1+2x22nFY
Nominal inductance 2 x 1 mH
Nominal resistance 470 kΩ
Temperature selector switch
Positions 7
Spin speed selector switch
Positions 7
Program selector switch
Positions 11
Option
Drum-up DU
20.06.2000 (Mod. 01) / Page 4 AWT8123D Whirlpool Europe
Doc. No: 4812 712 14941 8561 812 10430 Customer Service
Spare part list
Model AWT 8123 D
Service No. 856181210430
Version 856181210430
SERVICE
Pos. No. 12NC Code Description
002 0 4812 459 38016 Flap
002 1 4812 459 38017 Hinge flap
004 0 4812 440 19496 Drip tray assy
010 0 4812 458 48349 Door frame inner
010 1 4812 440 19566 Frame Top
011 0 4812 462 48054 Foot
012 1 4812 528 78035 Lever f. trolley
012 3 4812 528 78038 Wheel front
012 4 4812 528 78039 Axle front trolley
012 6 4812 528 78037 Cam f. trolley
012 7 4812 528 78044 Trolley kit front
012 8 4812 528 78046 Foot adjustable rear
021 0 4812 440 19534 Front,panel
022 0 4812 440 19492 Side panel right
022 1 4812 440 19493 Side panel left
024 0 4812 440 19495 Rear panel
040 0 4812 417 18815 Hinge bolt
061 0 4812 466 88466 Counter weight left
061 1 4812 466 88465 Counter weight right
065 0 4812 310 18454 Insulation right
065 1 4812 310 18455 Insulation left
065 2 4812 310 18456 Insulation left
065 3 4812 310 18457 Insulation front
081 4 4812 529 18042 Shock absorber kit
100 1 4812 440 19489 Lid outer
Pos. No. 12NC Code Description
521 1 4812 323 18006 Actuator f. Distribution
571 0 4812 281 28393 Valve,magnet
581 0 4812 271 28389 Pressostat A4
581 1 4812 271 18011 Meter,flow OMEGA
623 3 4812 418 18224 Brake Kit-up
630 0 4812 271 38364 Door lock
701 0 4812 530 28863 Hose cold fill
702 2 4812 530 28882 Hose Flowm./Nozzlebox
702 3 4812 530 28864 Hose valve/flowmeter
707 0 4812 526 48044 Nozzle box cold cpl.
712 4 4812 418 68162 Siphon f. softener
712 5 4812 418 68163 Siphon f. bleach
712 6 4812 418 68164 Clip SOAP DISPENSER
712 9 4812 418 68168 Soap dispenser kit
717 0 4812 323 18012 Cam Actuator A4
717 1 4812 323 18023 Lever adjustment A4
717 2 4812 323 18009 Lever,arm
753 0 4812 418 68182 Chamber,air
754 0 4812 530 28859 Drainhose
754 1 4812 530 28832 Lock eco
754 2 4812 530 28829 Flange eco
781 0 4812 530 28861 Hose,draining
782 0 4812 530 28866 Hose Pressostat
787 0 4812 530 28865 Hose Air Exhaust
794 0 4812 530 58098 Gasket Airtrap
100 3 4812 440 19512 Lid inner cpl.
100 5 4812 440 19535 Lid
110 4 4812 440 19553 Handle cpl.
191 1 4812 492 98012 Strap f. Doorbellow
191 2 4812 310 18484 Kit Bellow (MH) 5cm
200 0 4812 418 18222 Tub
201 0 4812 440 19487 Cover f. Tub
220 0 4812 418 18227 Drum porte 210 mm
223 0 4812 418 48474 Drum lifter
223 1 4812 418 48475 Drum lifter 84mm
271 0 4812 358 18158 Belt
272 0 4812 528 88077 Pulley 298 (MH)
290 0 4812 532 68069 Seal f. Tub
301 0 4812 452 10169 Control panel
321 0 4812 452 10138 Insert panel 13 LEDS
331 0 4812 412 58818 Knob Timer
331 1 4812 412 58817 Knob Options
332 0 4812 410 28578 Button on/off
332 1 4812 410 28579 Button Option
339 0 4812 413 58947 Adapter Shaft
339 1 4812 413 18241 Adapter
350 0 4812 214 58039 Display A4
400 0 4812 361 58133 Motor AC6 MCA 52 TF
421 0 4812 121 18142 Interf.filter 1,00 uF
430 0 4812 360 18385 Pump MH
900 0 4812 290 68157 Strap SNP 8
900 1 4812 401 18431 Clamp to pump
900 2 4812 401 18432 Support Cable/Hose
900 3 4812 401 18449 Clamp Flowm. Hose
900 6 4812 400 18048 Pin
900 8 4812 401 18447 Clamp top frame
901 0 4819 401 18529 Clamp,hose
904 0 4812 401 18412 Stopper
910 0 4812 502 48347 Screw,selftap f. Lid
910 1 4812 502 38151 Screw 4x14
910 2 4812 502 48346 Screw 3.5X14
910 3 4812 502 18404 Screw
910 5 4812 502 18401 Screw M8X 35
910 6 4812 502 18399 Nut Push in M 8
910 7 4812 502 38152 Screw 4,8x19
910 8 4812 502 48348 Screw ST 4,2X 11
921 0 4812 400 18047 Washer
930 1 4812 492 48085 Torsions spring
930 2 4812 492 48086 Spring
930 3 4812 323 18011 Spring f. Lever
941 2 4812 310 18483 Bearing kit
953 0 4812 325 68001 Shaft seal
953 1 4812 520 28073 Ring counterface
953 2 4812 530 68017 O-Ring
962 0 4812 440 19497 Cover f. Motor
451 0 4812 259 28703 Heating element with hole
451 1 4812 259 28692 Resistor,NTC
490 0 4812 321 18066 Cable,mains EU/2m
490 1 4812 321 18067 Strain relief
521 0 4812 282 18475 Control board
993 0 4812 530 28875 Bow
SERVICE
Exploded view
Whirlpool Europe AWT 8123 D 13.12.1999 / Page 5
Customer Service 8561 812 10430 Doc. No: 4812 712 14941
13.12.1999 / Page 6 AWT 8123 D Whirlpool Europe
Doc. No: 4812 712 14941 8561 812 10430 Customer Service
Exploded view
SERVICE
