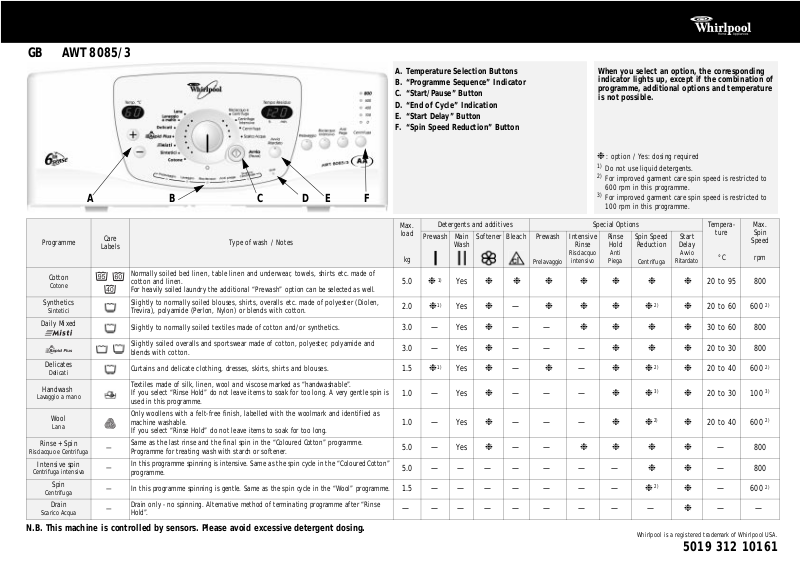

Whirlpool AWT 8085/3 PROGRAM CHART

AWT 8085/3

CFAB ED

Programme

Cotton

Cotone

Synthetics

Sintetici

Daily Mixed

Delicates

Delicati

Handwash

Lavaggio a mano

Wool

Lana

Rinse + Spin

Risciacquo e Centrifuga

Intensive spin

Centrifuga intensiva

Spin

Centrifuga

Drain

Scarico Acqua

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

Care

Labels

—

Type of wash / Notes

Normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

For heavily soiled laundry the additional “Prewash” option can be selected as well.

Slightly to normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Slightly to normally soiled textiles made of cotton and/or synthetics. Slightly soiled overalls and sportswear made of cotton, polyester, polyamide and

blends with cotton. Curtains and delicate clothing, dresses, skirts, shirts and blouses. Textiles made of silk, linen, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long. A very gentle spin is used in this programme.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long. Same as the last rinse and the final spin in the “Coloured Cotton” programme.

Programme for treating wash with starch or softener. In this programme spinning is intensive. Same as the spin cycle in the “Coloured Cotton”

programme. In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme. Drain only - no spinning. Alternative method of terminating programme after “Rinse

Hold”.

A. Temperature Selection Buttons B. “Programme Sequence” Indicator C. “Start/Pause” Button D. “End of Cycle” Indication

When you select an option, the corresponding indicator lights up, except if the combination of programme, additional options and temperature is not possible.

E. “Start Delay” Button F. “Spin Speed Reduction” Button

❉

: option / Yes: dosing required

Do not use liquid detergents.

For improved garment care spin speed is restricted to 600 rpm in this programme.

For improved garment care spin speed is restricted to 100 rpm in this programme.

Max. load

5.0

2.0

3.0

1.5

1.0

5.0

1.5

Detergents and additives Special Options Tempera-

Prewash Main

❉

— —

❉

—

— ———— — — —

Softener Bleach Prewash

Wash

Yes

Yes Yes

Yes

❉❉ ❉ ❉ ❉ ❉ ❉

❉ ❉ ❉ ❉

❉

Intensive

Rinse

Risciacquo

Prelavaggio

— ——

intensivo

❉❉❉❉

❉❉ ❉ ❉

—— — —

❉

—

—— —

——

❉❉ ❉ ❉

Rinse

Spin Speed

Hold

Reduction

Anti

Piega

Centrifuga

❉❉❉ ❉❉

❉❉

———— — — —❉

————— — — — —

Whirlpool is a registered trademark of Whirlpool USA.

Max. Spin

Speed

rpm

Start

Delay

Avvio

Ritardato

ture

°C

20 to 95 800

20 to 60

❉

600

30 to 60 800

20 to 30 800

20 to 40

❉

20 to 30

❉

20 to 40

❉

— —

❉ ❉

— ——

600

100

600

800

600

5019 312 10161

CONSUMPTION DATA

Programme

Temperature Selector

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes)* Cotton 95/40 5.0 49**/48 1.60/0.60 2:00/2:05 Cotton 60 5.0 48 0.95 2:05

Synthetics 60/40 2.0 55/50 0.70/0.50 1:30/1:15

Daily Mixed 40 3.0 45 0.45 1:00

Rapid Plus 30 3.0 35 0.40 0:30

Delicates 40 1.5 50 0.50 0:45

Handwash 30 1.0 35 0.40 0:35

Wool 40 1.0 50 0.50 0:45

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash. The data on the “Energy Label” refer to the programme “Cotton 60°C”. * The remaining time indicator can similarly deviate from the values in the table, because it takes into account the

household conditions applicable at that time.

**To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

PREPARATION OF WASH CYCLE

1. Close the drum flaps and check that they are properly locked.

2. Add detergents and additives into the dispenser to no more then the

• Programme with pre and main

wash

• Main wash programme with out prew ash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3. Turn the programme. The remaining time display shows the duration of the chosen programme (in hours and minutes) and the indicator light of the The programme sequence and the predefined spin speed indication corresponding to the selected programme lights up.

programme selector knob

“MAX“

level mark, as follows:

“Start/Pause”

to the desired

button flashes.

The preselected temperature can be altered by pressing the “+” or “-” button.

SELECT THE DESIRED OPTION

When you select an option authorized by the programme, the corresponding indicator lights up, except if the combination of programme, additional options and temperature is not possible. “Prewash” button

• Only for heavily soiled loads (for example sand, granular dirt).

“Intensive Rinse” button

• The amount of water is increased to ensure a more intensive rinse.

• This option is particularly suitable for areas with very soft water, washing baby linen and people with skin allergies.

“Rinse Hold” button

• The laundry remains in the last rin se water with out progressing to the final spin cycle to avoid creasing and prevent colours from fading.

• This option is particularly recommended for the “Synthetics”, “Delicates” and “Daily Mixed” programmes.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

Note:

The programme stops to “Rinse Hold” when the “Rinse Hold” light indicator programme is on during the cycle.

Appliance in “Rinse Hold”:

• Press the “Rinse Hold” button again: the programme will te rminate autom atically with th e selected spin cycle.

• If you do not wish to spin the clothes, turn the programme selector knob to the “Drain” programme and press the “ again.

“Spin Speed Reduction” button

• Every programme has an automatically allocated maximum spin speed.

• Press the button to set another spin speed.

• If the spin speed “0” is selected, the final spin is cancelled, but not the intermediate spins. The programme ends with a drain cycle.

Start/Pause

” button

START DELAY

The “Start Delay” button allows the user to run the machine at his convenience, for example at night when electricity is cheaper.

• Select programme, temperature and options.

• Press the “Start Delay” button several times to select the delay time by 1 to 19 hours;

• Press the “ light of the the lamp of the “Start Delay” button flashes.

• The time delay indication disappears when the programme starts and is replaced by the remaining time.

• The number of hours preselected can be reduced later by pressing the “Start Delay” button again.

To cancel the “Start Delay” option

• Turn the programme selector to the “ ” position.

• Reselect the desired progr amme an d opti ons an d press the “

Start/Pause

“Start/Pause”

Start/Pause

” button. The indicator

button lights up and

” button.

PROGRAMME START

Turn on the tap and press the “ The indicator light of the “ up. The indicator lamp shows the sequence reached by the programme. After starting the programme, the programme sequence indicator signals the Wash, Rinse and Spin phases.

Note

: If there is a power interruption or if the appliance is disconnected during the cycle, the programme will run again from the point where it was interrupted.

Start/Pause

” button.

” button lights

DOOR LOCK

For safety reasons, the door is locked during certain phases of the cycle. At the end of the cycle or during an interruption, the door unlocks automatically after about 1 minute.

END OF WASH CYCLE

• The remainin g time is on “0: 00” an d the “End” lamp lights up.

1. Turn the programme selector to the “ ”

position.

2. Turn the tap off.

3. Open the door and the drum flaps and unload

the machine.

CHANGE THE PROGRAMME OR OPTIONS DURING THE CYCLE

1. Select the new programme using the programme

selector. If necessary, select the additional options and the spin speed. The luminous indicator of the Note: the “Start Delay” and “Prewash” options cannot be selected after a programme change.

2. Press the

programme selected continues at the same position where the previous programme was interrupted. Note: Do not add detergent for this programme.

“Start/Pause”

“Start/Pause

button flashes.

” button. The new

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the programme for a certain time and continue it later:

1. Press the

flashes.

After the desired pause, press again on the

“Start/Pause”

button.

button. The light

CANCEL PROGRAMME

1. Set the programme selector to “Drain”.

2. Press the

“Drain” programme.

“Start/Pause”

Whirlpool is a registered trademark of Whirlpool USA.

button to start the

5019 312 10161
