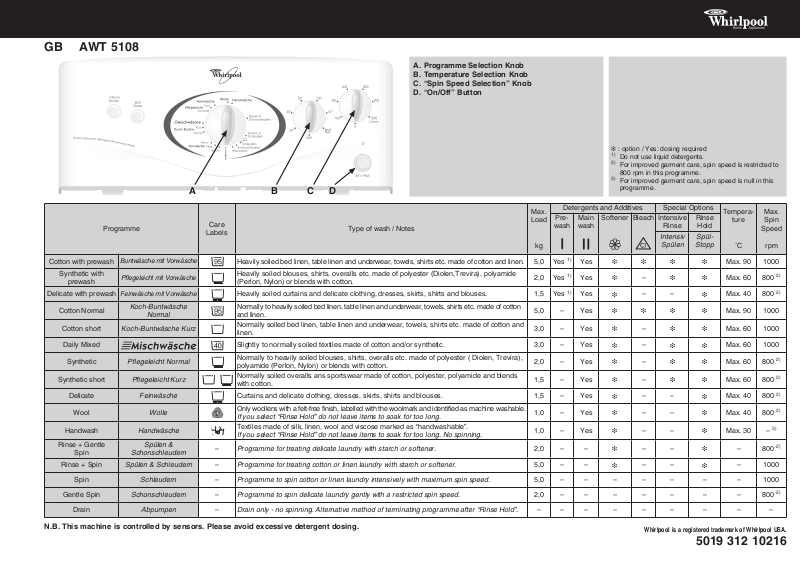

Whirlpool AWT 5108/A PROGRAM CHART







GB AWT 5108

A DCB

A. Programme Selection Knob
B. Temperature Selection Knob
C. “Spin Speed Selection” Knob
D. “On/Off” Button

i : option / Yes: dosing required

1)

Do not use liquid detergents.

2)

For improved garment care, spin speed is restricted to

800 rpm in this programme.

3)

For improved garment care, spin speed is null in this

programme.

Max.

Programme

Cotton with prewash

Synthetic with

prewash

Delicate with prewash

Cotton Normal

Buntwäsche mit Vorwäsche

Pflegeleicht mit Vorwäsche

Feinwäsche mit Vorwäsche

Koch-Buntwäsche

Normal

Cotton short Koch-Buntwäsche Kurz

Care

Labels

Type of wash / Notes

Heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen. 5,0 Yes 1)Yes

Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen,Trevira), polyamide
(Perlon, Nylon) or blends with cotton.

Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses. 1,5 Yes 1)Yes

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton
and linen.

Normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and
linen.

Load

2,0 Yes 1)Yes

5,0 – Yes

3,0 – Yes

Daily Mixed Slightly to normally soiled textiles made of cotton and/or synthetic. 3,0 – Yes

Synthetic Pflegeleicht Normal

Synthetic short Pflegeleicht Kurz

Normally to heavily soiled blouses, shirts, overalls etc. made of polyester ( Diolen, Trevira),
polyamide (Perlon, Nylon) or blends with cotton.

Normally soiled overalls ans sportswear made of cotton, polyester, polyamide and blends
with cotton.

2,0 – Yes

1,5 – Yes

Delicate Feinwäsche Curtains and delicate clothing, dresses, skirts, shirts and blouses. 1,5 – Yes

Wool Wolle

Handwash Handwäsche

Rinse + Gentle

Spin

Spülen &

Schonschleudern

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of silk, linen, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long. No spinning.

1,0 – Yes

1,0 – Yes

– Programme for treating delicate laundry with starch or softener. 2,0 – –

Rinse + Spin Spülen & Schleudern – Programme for treating cotton or linen laundry with starch or softener. 5,0 – –

Detergents and Additives Special Options

Pre-

Main

wash

Softener Bleach Intensive

wash

kg

i i i i

i

i

–

– –

i i i i

i

i

i

i

i

i

i

i

i

–

–

–

–

– –

– –

– –

– –

– –

Rinse

Intensiv

Spülen

i i

i i

i i

i i

i i

Rinse

Hold

Spül­Stopp

i

i

i

i

i

i

Tempera-

ture

°C

Max. 90 1000

Max. 60 800

Max. 40 800

Max. 90 1000

Max. 60 1000

Max. 60 1000

Max. 60 800

Max. 60 800

Max. 40 800

Max. 40 800

Max. 30 –

Spin Schleudern – Programme to spin cotton or linen laundry intensively with maximum spin speed. 5,0 – – – – – – – 1000

Gentle Spin Schonschleudern – Programme to spin delicate laundry gently with a restricted spin speed. 2,0 – – – – – – – 800

Drain Abpumpen – Drain only - no spinning. Alternative method of terminating programme after “Rinse Hold”. – – – – – – – – –

Max.
Spin

Speed

rpm

– 800

– 1000

2)

2)

2)

2)

2)

2)

3)

2)

2)

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

Whirlpool is a registered trademark of Whirlpool USA.

5019 312 10216

CONSUMPTION DATA

Programme

Temperature

Selector

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes)
Cotton 90 5,0 63* 1,80 2:05
Cotton 60 5,0 55 0,95 2:05
Cotton 40 5,0 55 0,55 2:05

Daily Mixed 40 3,0 49 0,48 1:00

Synthetic 60 2,0 56 0,80 1:30
Synthetic 40 2,0 56 0,40 1:30

Delicate 40 1,5 60 0,55 0:45

Wool 40 1,0 60 0,50 0:40

Handwash 30 1,0 60 0,30 0:50

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized
conditions in compliance with standard IEC 60456. Consumption data in the home may vary with respect to the values in
the table in relation to the water supply pressure and temperature, the load and the type of wash.

The data on the “Energy Label” refer to the programme “Cotton 60°C”.

* To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the
pump drains the water out.

PREPARATION OF WASH CYCLE SELECT THE DESIRED OPTION

1. Load the machine, close the drum doors and
check that they are properly locked.

2. Add detergents and additives into the
dispenser to no more then the “MAX” level

mark, as follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3. Turn the programme selector knob to the
desired programme.

4. Turn the temperature selector knob to the
desired temperature.

5. Turn the spin speed selector knob to the
desired spin speed. If the spin speed “0” is
selected, the final spin is cancelled, but not the
intermediate spins. The programme ends with
a drain cycle.

Selecting or deselecting an option can be done
at any time during the programme. The option
will be applied as long as the corresponding
programme phase has not been executed yet.

“Intensive Rinse” button

• One rinse cycle is added to ensure a more

intensive rinse.

• This option is particulary suitable for areas with
very soft water, washing baby linen and people
with detergents allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water

without progressing to the final spin cycle to
avoid creasing and prevent colours from fading.

• This option is particularly recommended for the
“Synthetic”, “Delicate” and “Daily Mixed”
programmes.

• This function is particularly useful if you want to
postpone spinning to a later time, or if you want
to drain only.

Note: The programme selector knob stops on .

Appliance in “Rinse Hold”:

• Press the “Rinse Hold” button again: the

programme will terminate automatically with
the selected spin cycle.

• If you do not wish to spin the clothes, press the
“On/Off” button, turn the programme selector
knob to the “Drain” programme and press the
“On/Off” button again.

PROGRAMME START

Turn on the tap and press the “On/Off” button.
The indicator light of the “On/Off” button lights up.
Note: If there is a power interruption or if the
appliance is disconnected during the cycle, the
programme will run again from the point where it
was interrupted.

END OF WASH CYCLE

• The programme selector knob is in the Stop

position “ “.

1. Press the “On/Off” button to switch off
the machine.

2. Cancel the option.

3. Turn the tap off.

4. Wait for the lid to unlock (about 1 minute).

5. Open the lid and the drun doors and unload
the machine.

CHANGE THE PROGRAMME DURING THE
WASH CYCLE

1. Switch off machine by pressing the “On/Off”
button.

2. Select the new programme.

3. Start programme by pressing the “On/Off”

button again.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the
programme for a certain time and continue it later:

1. Press the “On/Off” button.

2. After the desired pause, press again the
“ON/Off” button.

CANCEL PROGRAMME

1. Switch off the machine by pressing the
“On/Off” button.

2. Set the programme selector to “Drain”.

3. Press the “On/Off” button again to start the
“Drain” programme.

Whirlpool is a registered trademark of Whirlpool USA.

5019 312 10216
