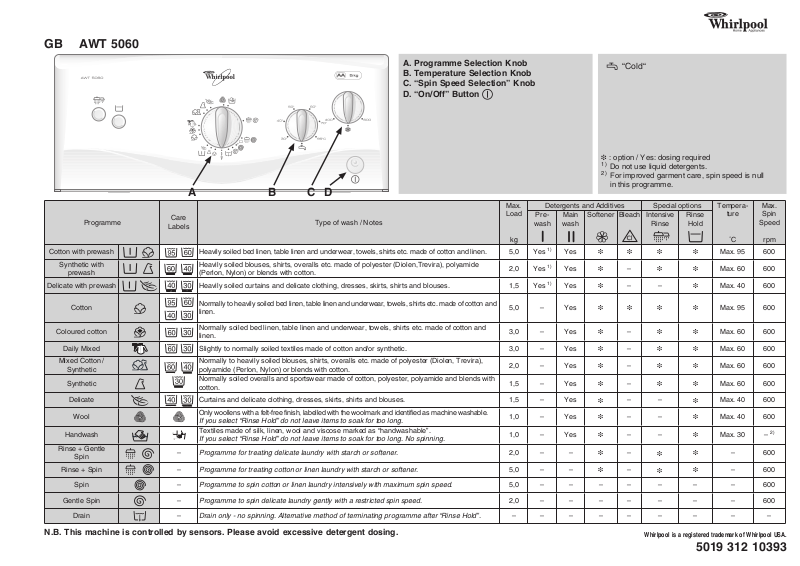

Whirlpool AWT 5060 PROGRAM CHART
GB AWT 5060
A. Programme Selection Knob
B. Temperature Selection Knob
“Cold“
C. “Spin Speed Selection” Knob
D. “On/Off” Button
i : option / Yes: dosing required
1)
Do not use liquid detergents.
2)
For improved garment care, spin speed is null
in this programme.
A DCB
Max.
Programme
Cotton with prewash Heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen. 5,0 Yes 1)Yes
Synthetic with
prewash
Delicate with prewash Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses. 1,5 Yes 1)Yes
Cotton
Coloured cotton
Daily Mixed Slightly to normally soiled textiles made of cotton and/or synthetic. 3,0 – Yes
Mixed Cotton /
Synthetic
Synthetic
Delicate Curtains and delicate clothing, dresses, skirts, shirts and blouses. 1,5 – Yes
Wool
Handwash
Rinse + Gentle
Spin
Rinse + Spin – Programme for treating cotton or linen laundry with starch or softener. 5,0 – –
Spin – Programme to spin cotton or linen laundry intensively with maximum spin speed. 5,0 – – – – – – – 600
Gentle Spin – Programme to spin delicate laundry gently with a restricted spin speed. 2,0 – – – – – – – 600
Drain – Drain only - no spinning. Alternative method of terminating programme after “Rinse Hold”. – – – – – – – – –
Care
Labels
Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen,Trevira), polyamide
(Perlon, Nylon) or blends with cotton.
Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and
linen.
Normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and
linen.
Normally to heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira),
polyamide (Perlon, Nylon) or blends with cotton.
Normally soiled overalls and sportswear made of cotton, polyester, polyamide and blends with
cotton.
Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.
If you select “Rinse Hold” do not leave items to soak for too long.
Textiles made of silk, linen, wool and viscose marked as “handwashable”.
If you select “Rinse Hold” do not leave items to soak for too long. No spinning.
– Programme for treating delicate laundry with starch or softener. 2,0 – –
Type of wash / Notes
Load
kg
2,0 Yes 1)Yes
5,0 – Yes
3,0 – Yes
2,0 – Yes
1,5 – Yes
1,0 – Yes
1,0 – Yes
Detergents and Additives Special options Tempera-
Pre-
Main
wash
Softener Bleach Intensive
wash
i i i i
i
i
i i i i
i
i
i
i
i
i
i
i
i
Rinse
–
– –
–
–
–
–
– –
– –
– –
–
–
i i
i i
i i
i i
i i
i
i
Rinse
Hold
i
i
i
i
i
i
ture
°C
Max. 95 600
Max. 60 600
Max. 40 600
Max. 95 600
Max. 60 600
Max. 60 600
Max. 60 600
Max. 60 600
Max. 40 600
Max. 40 600
Max. 30 –
– 600
– 600
Max.
Spin
Speed
rpm
2)
N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.
Whirlpool is a registered trademark of Whirlpool USA.
5019 312 10393
CONSUMPTION DATA
Temperature
Programme
Cotton 95 5,0 67* 1,80 2:05
Cotton 60 5,0 59 0,95 2:05
Cotton 40 5,0 59 0,55 2:05
Daily Mixed 40 3,0 49 0,48 1:00
Synthetic 60 2,0 56 0,80 1:30
Synthetic 40 2,0 56 0,40 1:30
Delicate 40 1,5 60 0,55 0:45
Wool 40 1,0 60 0,50 0:40
Handwash 30 1,0 60 0,30 0:50
Prewash cycle increases programme duration by approximately 15 min. Consumption values were
measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in
the home may vary with respect to the values in the table in relation to the water supply pressure and
temperature, the load and the type of wash.
The data on the “Energy Label” refer to programme “Cotton 60°C”.
* To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the
pump drains the water out.
Selector
(°C)
Load
(kg)
Water
(l)
Energy
(kWh)
Approx. Programme
Duration
(hours : minutes)
PREPARATION OF WASH CYCLE SELECT THE DESIRED OPTION
1. Load the machine, close the drum doors and
check that they are properly locked.
2. Add detergents and additives into the
dispenser to no more then the “MAX” level
mark, as follows:
• Programme with pre and main wash
• Main wash programme without prewash
• Fabric softeners and conditioners
• Chlorine bleach
• Stain remover agents
• Anti-scale agents (if necessary)
3. Turn the programme selector knob to the
desired programme.
4. Turn the temperature selector knob to the
desired temperature.
5. Turn the spin speed selector knob to the
desired spin speed. If the spin speed “ ” is
selected, the final spin is cancelled and the
programme ends with a drain cycle.
Selecting or deselecting an option can be done
at any time during the programme. The option
will be applied as long as the corresponding
programme phase has not been executed yet.
“Intensive Rinse” button
• The amount of water is increased to ensure a
more intensive rinse.
• This option is particulary suitable for areas with
very soft water, washing baby linen and people
with detergents allergies.
“Rinse Hold” button
• The laundry remains in the last rinse water
without progressing to the final spin cycle to
avoid creasing and prevent colours from fading.
• This option is particularly recommended for the
“Synthetic” , “Delicate” and “Daily
Mixed” programmes.
• This function is particularly useful if you want to
postpone spinning to a later time, or if you want
to drain only.
Note: The programme selector knob stops on .
Appliance in “Rinse Hold” :
• Press the “Rinse Hold” button again: the
programme will terminate automatically with
the selected spin cycle.
• If you do not wish to spin the clothes, press the
“On/Off” button , turn the programme
selector knob to the “Drain” programme and
press the “On/Off” button again.
PROGRAMME START
Turn on the tap and press the “On/Off” button .
The indicator light of the “On/Off” button lights
up.
Note: If there is a power interruption or if the
appliance is disconnected during the cycle, the
programme will run again from the point where it
was interrupted.
END OF WASH CYCLE
• The programme selector knob is in the Stop
position.
1. Press the “On/Off” button to switch off
the machine.
2. Cancel the option.
3. Turn the tap off.
4. Wait for the lid to unlock (about 1 minute).
5. Open the lid and the drum doors and unload
the machine.
CHANGE THE PROGRAMME DURING
THE WASH CYCLE
1. Switch off machine by pressing the “On/Off”
button .
2. Select the new programme.
3. Start programme by pressing the “On/Off”
button again.
PAUSE/INTERRUPT A PROGRAMME
If, for any reason, you wish to interrupt the
programme for a certain time and continue it later:
1. Press the “On/Off” button .
2. After the desired pause, press again the
“On/Off” button .
CANCEL PROGRAMME
1. Switch off the machine by pressing the
“On/Off” button .
2. Set the programme selector to “Drain”.
3. Press the “On/Off” button again to start
the “Drain” programme .
Whirlpool is a registered trademark of Whirlpool USA.
5019 312 10393
