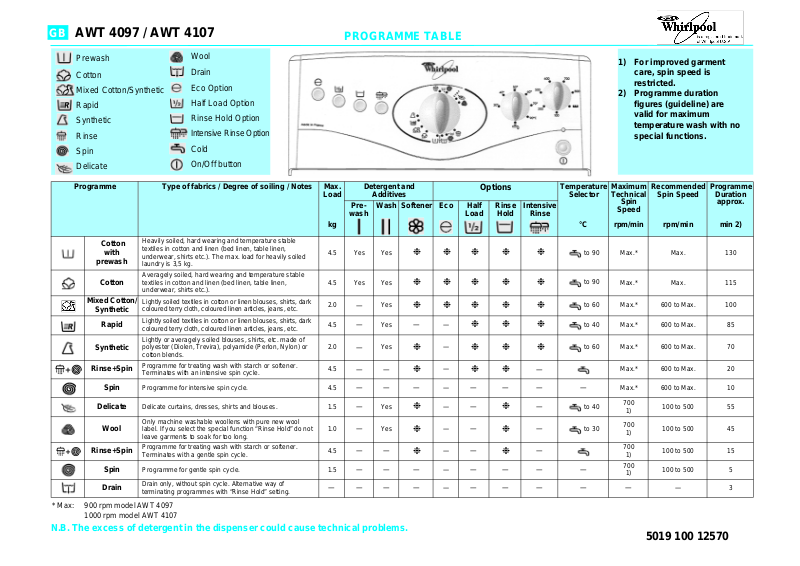

Whirlpool AWT 4107, AWT 4097 PROGRAM CHART

AWT 4097 / AWT 4107

PROGRAMME TABLE

Prewash Cotton

Mixed Cotton/Synthetic Rapid Synthetic Rinse Spin Delicate

Programme Type of fabrics / Degree of soiling / Notes Max.

Cotton

with

prewash

Cotton

Mixed Cotton/

Synthetic

Rapid

Synthetic

Rinse+Spin

Spin

Delicate

Wool

Rinse+Spin

Spin

Drain

* Max: 900 rpm model AWT 4097

1000 rpm model AWT 4107

Heavily soiled, hard wearing and temperature stable textiles in cotton and linen (bed linen, table linen, underwear, shirts etc.). The max. load for heavily soiled laundry is 3,5 kg.

Averagely soiled, hard wearing and temperature stable textiles in cotton and linen (bed linen, table linen, underwear, shirts etc.).

Lightly soiled textiles in cotton or linen blouses, shirts, dark coloured terry cloth, coloured linen articles, jeans, etc.

Lightly or averagely soiled blouses, shirts, etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or cotton blends.

Programme for treating wash with starch or softener. Terminates with an intensive spin cycle.

Programme for intensive spin cycle. 4.5

Delicate curtains, dresses, shirts and bl ouses. 1.5 Only machine washable woollens with pure new wool

label. If you select the special f uncti on “Ri nse Ho ld” do no t leave garments to soak for too long.

Programme for treating wash with starch or softener. Terminates with a gentle spin cycle.

Programme for gentle spin cycle. 1.5 Drain only, without spin cycle. Alternative way of

terminating programmes with “Rinse Hold” setting.

Wool Drain Eco Option Half Load Option Rinse Hold Option Intensive Rinse Option Cold On/Off button

Load

4.5 Yes Yes

2.0

4.5

2.0

4.5

1.0

4.5

——— —

Detergent and

Additives

Pre-

Wash Softener Eco Half

wash

Yes

—

Yes

—

Yes

—

—— —— —

Yes

—

Yes

—

—— —— —

N.B. The excess of detergent in the dispenser could cause technical problems.

Options

Rinse

Load

Hold

Intensive

Rinse

❉❉❉❉ ❉

❉❉❉❉ ❉ ❉❉❉❉ ❉

—

❉ ❉

❉ ❉ ❉

—

❉❉ ❉

—

❉❉ ❉

—

❉❉

—

—— — —

—

—— — —

—

—— — — —

❉ ❉ ❉

—

Temperature

Selector

°C

to 90

to 60

to 40

to 60

to 40

to 30

1) For improved garment care, spin speed is restricted.

2) Programme duration figures (guideline) are valid for maximum temperature wash with no special functions.

Maximum Technical

Spin

Speed

rpm/min

Max.* Max. 130

Max.* Max. 115

Max.* 600 to Max. 100

Max.* 600 to Max. 85

Max.* 600 to Max. 70

Max.* 600 to Max. 20

Max.* 600 to Max. 10

700

Recommended

Spin Speed

rpm/min

100 to 500 55

100 to 500 45

100 to 500 15

100 to 500 5

—

Programme

5019 100 12570

Duration

approx.

min 2)

CONSUMPTION DATA

Programme Temperature

Selector

(°C)

Cotton + Intensive Rinse 90 4.5 72 1.8 115

Cotton 60 4.5 59 1.15 115

Mixed + Intensive Rinse 60 2.0 66 0.8 100

Mixed 40 2.0 54 0.4 100

Rapid + Half Load 40 2.5 49 0.5 85

Synthetic + Half Load 30 1.5 45 0.3 70

Delicate 40 1.5 70 0.65 55

Wool 40 1.0 70 0.55 45

Prewash cycle increases programme duration by approx. 15 minutes. Consumption values were measured in normalized conditions in compliance with Standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

Load

(kg)

Water

(l)

Energy

(kWh)

Programme

Duration

(min)

ADDING DETERGENT AND ADDITIVES

Add the detergent and the additives into the dispenser as follows:

• Programmes with pre- and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Stain remover agents

• Anti-scale agents (water hardness 4)

Important:

• Be careful not to fill more than the

• For programmes with prewash: do not use liquid detergents.

• For programmes without prewash from cold to 40° C it is

recommended to use a liquid detergent to avoid whitish residues on the coloured laundry.

“MAX”

level mark.

CLOSE THE DOOR AND SELECT THE PROGRAMME

1. Turn the

2. Turn the

3. Turn the

programme selector knob temperature knob spin speed selector

to the required temperature.

to the required setting.

clockwise to the desired programme .

PRESS ANY DESIRED SPECIAL OPTION BUTTON(S).

Eco button “”

• The wash time is extended and the water temperature is reduced.

• This function saves about 30% in energy without compromising the excellent results of the wash.

Half Load button “ ”

• Reduces water consumption in the cottons and easy care programmes, above all during the prewash and the rinse.

• Especially suitable for lightly soiled or small loads (reduce the detergent quantity).

Rinse Hold button “”

• The laundry remains in the last rinse water without progressing to the spin cycle to avoid creasing and prevent colours from changing.

• This option is particularly recommended for the programmes Synthetic “” or Delicate “”.

• This function is particularly useful if you want to postpone spinning to a later time or when you do

not wish to spin the clothes.

Note:

The programme selector knob stops on the position “”.

Terminate the Rinse Hold option:

• Press the Rinse Hold button again; the programme will terminate automatically with the spin cycle for the preset wash programme.

• If you do not wish to spin the clothes, turn the programme knob to the drain programme “” and push the On/Off button “”.

Intensive Rinse button “”

• The water level increases for improved rinsing efficiency.

• This option is particularly suitable for areas with very soft water when washing baby linen and

helps people with allergies.

PROGRAMME START

Open the tap and press the On/Off button “”. The pilot lamp lights up.

DOOR LOCK

During the running programme the door cannot be opened.The door locks automatically in all programmes. If the programme is stopped or the electrical power supply is terminated, the door lock will open after approximately 1 minute.

PROGRAMME END

• The programme selector knob is at “Stop”.

1. Press the On/Off button “”.

2. Cancel the special options by pressing the appropriate buttons.

3. Turn the water supply tap off.

4. Wait for the door to unlock (about 1 minute).

5. Open the door and the drum flaps and unload the machine.

SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER PROGRAMME START

1. Press the On/Off button “” to switch off the appliance.

2. Select the new programme, temperature, spin speed and options.

3. Press the On/Off button “” to switch on the appliance.

TO STOP, RESET A PROGRAMME BEFORE THE END

1. Press the On/Off button “” to switch off the appliance.

2. Set the programme selector to drain “”.

3. Press the On/Off button “” to start the drain programme. Only open the door when the programme selector is at “Stop” and the door is unlocked (after

approximately 1 minute).

5019 100 12570
