GB
A. “Door open” indication
This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately, e.g.:
B.“Service” indication
C.“Water tap closed” indication
D.“Clean pump” indication

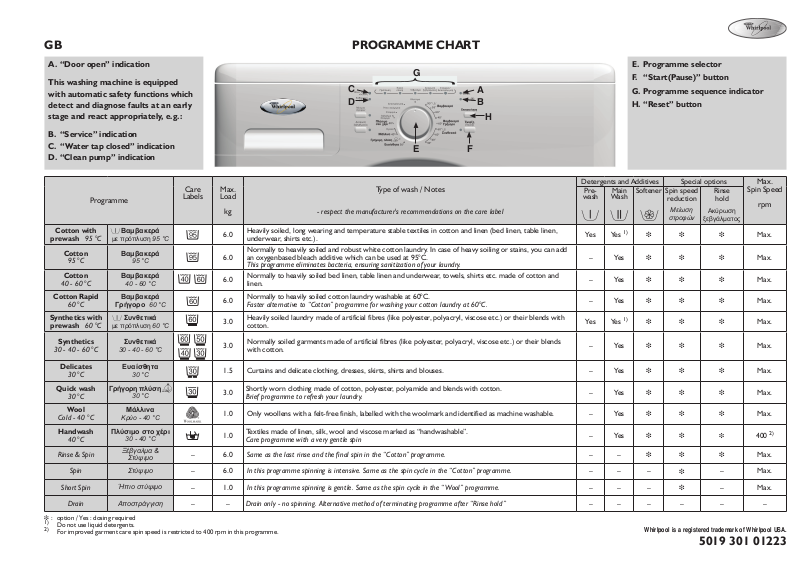

PROGRAMME CHART
|
G |
E. Programme selector |
||
|
F. “Start(Pause)” button |
|||
C |
|
|
A |
|
|
|
G. Programme sequence indicator |
||
|
|
|||
D |
|
|
B |
H. “Reset” button |
|
|
|
|
H |
|
|
|
|
E F
|
|
|
Care |
|
Type of wash / Notes |
Detergents and Additives |
Special options |
Max. |
||||
|
|
|
Max. |
|
|
|
|
|
Spin Speed |
|||
|
|
|
Pre- |
Main |
Softener |
Spin speed |
Rinse |
|||||
|
Programme |
Labels |
Load |
|
wash |
Wash |
|
reduction |
hold |
rpm |
||
|
|
|
|
kg |
- respect the manufacturer's recommendations on the care label |
|
|
|
Μείωση |
Ακύρωση |
||
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
στροφών |
ξεβγάλματος |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Cotton with |
Βαμβακερά |
|
6.0 |
Heavily soiled, long wearing and temperature stable textiles in cotton and linen (bed linen, table linen, |
Yes |
Yes 1) |
i |
i |
i |
Max. |
||
prewash |
95 °C |
με πρόπλυση 95 °C |
|
|
underwear, shirts etc.). |
|
|
|
|
|
|
|
Cotton |
Βαμβακερά |
|
|
Normally to heavily soiled and robust white cotton laundry. In case of heavy soiling or stains, you can add |
|
|
|
|
|
|
||
|
6.0 |
an oxygenbased bleach additive which can be used at 95°C. |
– |
Yes |
i |
i |
i |
Max. |
||||
95 °C |
|
95 °C |
|
|||||||||
|
|
|
This programme eliminates bacteria, ensuring sanitization of your laundry. |
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
||
Cotton |
Βαμβακερά |
|
6.0 |
Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and |
– |
Yes |
i |
i |
i |
Max. |
||
40 - 60 °C |
40 - 60 °C |
|
linen. |
|||||||||
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
||
Cotton Rapid |
Βαμβακερά |
|
6.0 |
Normally to heavily soiled cotton laundry washable at 60°C. |
– |
Yes |
i |
i |
i |
Max. |
||
60 °C |
|
Γρήγορο 60 °C |
|
Faster alternative to “Cotton” programme for washing your cotton laundry at 60°C. |
||||||||
|
|
|
|
|
|
|
|
|
||||
Synthetics with |
Συνθετικά |
|
3.0 |
Heavily soiled laundry made of artificial fibres (like polyester, polyacryl, viscose etc.) or their blends with |
Yes |
Yes 1) |
i |
i |
i |
Max. |
||
prewash |
60 °C |
με πρόπλυση 60 °C |
|
|
cotton. |
|
|
|
|
|
|
|
Synthetics |
Συνθετικά |
|
3.0 |
Normally soiled garments made of artificial fibres (like polyester, polyacryl, viscose etc.) or their blends |
– |
Yes |
i |
i |
i |
Max. |
||
30 - 40 - 60 °C |
30 - 40 - 60 °C |
|
with cotton. |
|||||||||
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
||
Delicates |
Ευαίσθητα |
|
1.5 |
Curtains and delicate clothing, dresses, skirts, shirts and blouses. |
– |
Yes |
i |
i |
i |
Max. |
||
30 °C |
|
30 °C |
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
||
Quick wash |
Γρήγορη πλύση |
|
3.0 |
Shortly worn clothing made of cotton, polyester, polyamide and blends with cotton. |
– |
Yes |
i |
i |
i |
Max. |
||
30 °C |
|
30 °C |
|
Brief programme to refresh your laundry. |
||||||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Wool |
|
Μάλλινα |
|
1.0 |
Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable. |
– |
Yes |
i |
i |
i |
Max. |
|
Cold - 40 °C |
Κρύο - 40 °C |
|
||||||||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
||
Handwash |
Πλύσιμο στο χέρι |
|
1.0 |
Textiles made of linen, silk, wool and viscose marked as “handwashable”. |
– |
Yes |
i |
i |
i |
400 2) |
||
40 °C |
|
30 - 40 °C |
|
|
Care programme with a very gentle spin |
|
|
|
|
|
|
|
Rinse & Spin |
Ξέβγαλμα & |
– |
6.0 |
Same as the last rinse and the final spin in the “Cotton” programme. |
– |
– |
i |
i |
i |
Max. |
||
Στύψιμο |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
||
Spin |
|
Στύψιμο |
– |
6.0 |
In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme. |
– |
– |
– |
i |
– |
Max. |
|
|
|
|
|
|
|
|
|
|
|
|
||
Short Spin |
Ήπιο στύψιμο |
– |
1.0 |
In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme. |
– |
– |
– |
i |
– |
Max. |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Drain |
|
Αποστράγγιση |
– |
– |
Drain only - no spinning. Alternative method of terminating programme after “Rinse hold” |
– |
– |
– |
– |
– |
– |
|
|
|
|
|
|
|
|
|
|
|
|
|
i :
1)
2)
option / Yes : dosing required |
|
Do not use liquid detergents. |
Whirlpool is a registered trademark of Whirlpool USA. |
For improved garment care spin speed is restricted to 400 rpm in this programme. |
|
|
5019 301 01223 |
CONSUMPTION DATA
|
Temperature |
Load |
Water |
Energy |
Approx. Programme |
Programme |
|
|
|
|
Duration |
|
(°C) |
(kg) |
(l) |
(kWh) |
(hours : minutes) |
Cotton |
95 |
6.0 |
59 * |
1.90 |
2:00 |
Cotton ** |
60 |
6.0 |
49 |
0.90 |
4 :00 |
Cotton ** |
60 |
3.0 |
37 |
0.69 |
2:20 |
Cotton |
40 |
6.0 |
54 |
0.65 |
2:45 |
Cotton ** |
40 |
3.0 |
37 |
0.58 |
2:30 |
Cotton Rapid |
60 |
6.0 |
49 |
1.02 |
2:30 |
Synthetics |
60 |
3.0 |
50 * |
0.70 |
1:30 |
Synthetics |
40 |
3.0 |
46 |
0.50 |
1:15 |
Delicates |
30 |
1.5 |
50 |
0.50 |
0:45 |
Quick wash |
30 |
3.0 |
40 |
0.40 |
0:30 |
Wool |
40 |
1.0 |
55 |
0.60 |
0:45 |
Handwash |
40 |
1.0 |
45 |
0.60 |
0:40 |
Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.Water and energy consumption refer to the default setting of the programmes; selecting special options or modifying spin speed or temperature will change the consumption data.
The programme duration may differ from the values indicated above as it depends on the operation conditions applicable at that time (see also “Troubleshooting Guide” in your Instructions for Use).
*To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.
**Reference programmes for Energy Label.
ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME
Add detergents as indicated on the front page and as described in the chapter “Detergent and Additives” in your Instructions for Use.
•Turn the programme selector to the desired programme and temperature.
•The indication lamp next to “Start(Pause)” button blinks.
SELECT ANY DESIRED OPTION
Push the button of any option desired - the respective indication lamp lights up.
If the combination of programme and additional option(s) is not possible, the indication lights switch off automatically. Unsuitable combinations of options are deselected automatically.
“Spin speed reduction” button
•Reduces the predetermined automatic maximum spin speed to treat your laundry more gently.
“Rinse hold” button
•The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from changing.
•Particularly useful if you want to postpone spinning to a later time, or if you want to drain only.
Note: The programme stops to “Rinse hold” at the time the “Rinse hold” light in the programme sequence indication is on. The indication lamp next to the “Start(Pause)” button blinks.
Terminate the “Rinse hold” option :
•Press the “Start(Pause)” button ; the programme will terminate automatically with the final spin cycle for the present wash programme.
•If you do not wish to spin the clothes, turn the programme selector to the “Drain” programme and press the “Start(Pause)” button .
PROGRAMME START
Open the tap and press the “Start(Pause)” button. The indication lamp next to the “Start (Pause)” button lights up. The programme sequence indicator shows the current programme phase, running from left to right through Wash, Rinse, Spin/Drain.
“DOOR OPEN” INDICATION
Before starting and after end of a programme, the lamp lights to show the the door can be opened. As long as a wash programme is running, the door remains locked and must on no account be forced open. In case you have an urgent need to open
it during a running programme, refer to “Cancel (Reset) a running programme before the end”.
FAILURE INDICATIONS
In case of any failures or irregularities, consult the “Troubleshooting Guide” in your Instructions for Use.
“Service”
Lighting up of the “Service” indication can be caused by a fault in an electrical component.
“Water tap closed”
The washing machine has no or insufficient water supply; the water tap might be closed or the water inlet hose kinked.
“Clean pump”
Waste water is not pumped out. The drain hose may be kinked or the filter must be cleaned (see “Cleaning the filter” in your Instructions for Use).
PROGRAMME END
• All the lights of the programme sequence indicator are off, and the “Door open” indication lights up.
1.Turn the programme selector to the “Off/O” position.
2.Close the water tap.
3.Open the door and unload the machine.
4.Leave the door ajar to allow the drum to dry.
CHANGE PROGRAMME AND/OR OPTIONS AFTER PROGRAMME START
1.Press the “Start(Pause)” button to pause the programme. The light blinks.
2.Select the new programme (with temperature), and any options if you want.
3.Press the “Start(Pause)” button again. The new programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.
CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END
The “Reset” button cancels a programme before the end.
•Press and hold the “Reset” button for a few seconds.
Any existing water is drained out. It may last some time until the door can be opened.
