Whirlpool AWO7D 7800/2 INSTRUCTION FOR USE

30106432GB.fm Page 1 Monday, November 22, 2010 11:40 AM

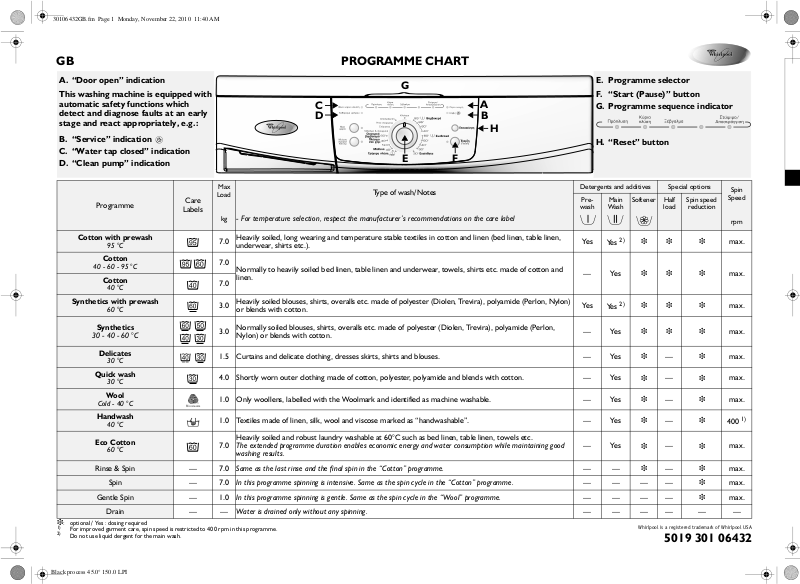

GB PROGRAMME CHART

A. “Door open” indication This washing machine is equipped with

automatic safety functions which detect and diagnose faults at an early stage and react appropriately, e.g.:

B. “Service” indication C. “Water tap closed” indication D. “Clean pump” indication

Max

Programme

Cotton with prewash

Synthetics with prewash

optional / Yes : dosing required

❉

For improved garment care, spin speed is restricted to 400 rpm in this programme.

Do not use liquid dergent for the main wash.

95 °C

Cotton

40 - 60 - 95 °C

Cotton

40 °C

60 °C

Synthetics

30 - 40 - 60 °C

Delicates

30 °C

Quick wash

30 °C

Wool

Cold - 40 °C

Handwash

40 °C

Eco Cotton

60 °C

Rinse & Spin — 7.0

Spin — 7.0

Gentle Spin — 1.0

Drain — —

Care

Labels

Load

- For temperature selection, respect the manufacturer’s recommendations on the care label

Heavily soiled, long wearing and temperature stable textiles in cotton and linen (bed linen, table linen,

7.0 underwear, shirts etc.).

7.0 Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and

linen.

7.0

Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon)

3.0 or blends with cotton.

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon,

3.0 Nylon) or blends with cotton.

1.5 Curtains and delicate clothing, dresses skirts, shirts and blouses.

4.0 Shortly worn outer clothing made of cotton, polyester, polyamide and blends with cotton. — Yes

1.0 Only woollens, labelled with the Woolmark and identified as machine washable. — Yes

1.0 Textiles made of linen, silk, wool and viscose marked as “handwashable”. — Yes

Heavily soiled and robust laundry washable at 60°C such as bed linen, table linen, towels etc.

7.0

The extended programme duration enables economic energy and water consumption wh washing results.

Same as the last rinse and the final spin in the “Cotton” programme. In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme. In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme. Water is drained only without any spinning.

C D

}

Type of wash/Notes

E. Programme selector F. “Start (Pause)” button

G. Programme sequence indicator

H. “Reset” button

ile maintaining good

Detergents and additives Special options

Pre-

wash

Ye s

Main

Softener Half

Was h

Ye s

—Yes

Ye s

—Yes

— Yes

❉❉ ❉

❉

—Yes

—— ———— ———— ———— — —

❉

Whirlpool is a registered trademark of Whirlpool USA

load

—

Spin speed

reduction

❉

Spin

Speed

rpm

max.

400

max.

max. max. max.

5019 301 06432

Black process 45.0° 150.0 LPI

30106432GB.fm Page 2 Monday, November 22, 2010 11:40 AM

CONSUMPTION DATA

Temperature

Programme

(°C) Cotton 95 7.0 74 Cotton

60 7.0 54 1.33 2:20

Load

(kg)

Water

(l)

Energy

Approx. Programme

Duration

(kWh)

(hours : minutes)

2.10 2:10

Cotton 40 7.0 69 0.75 2:10

Synthetics 60 3.0 50

0.80 1:35

Synthetics 40 3.0 46 0.50 1:20

Delicates 30 1.5 60 0.50 0:45

Quick wash 30 4.0 45 0.40 0:30

Wool 40 1.0 60 0.50 0:45

Handwash 40 1.0 45 0.50 0:40

Eco Cotton 60 7.0 54 0.91 4:00

Consumption values were measured in normalized conditions in compliance with Standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains

the water out. Reference Programme for Energy Label.

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add detergent as indicated on the front page and as described in your Instructions for Use. Close the door and turn the

programme selector

to the

desired programme and temperature. The indication lamp next to the

“Start (Pause)”

button flashes.

SELECT ANY DESIRED OPTION

Push the button(s) of any option(s) desired - the respective indication lamp lights up.

When the combination of programme and additional option(s) is not possible, the indication lights switch off automatically. Unsuitable combinations of options are deselected automatically.

“Half load” button

• Reduces water consumption, above all during rinsing.

• Suitable for lightly soiled laundry and small loads (max. 3 kg).

“Spin speed reduction” button

• Reduces the predetermined automatic maximum spin speed to treat your laundry more gently.

PROGRAMME START

Open the tap and press the

“Start (Pause)”

button. The indication lamp next to the

(Pause)”

button lights up. The programme

“Start

sequence indicator shows the current programme phase, running from left to right through Wash, Rinse, Spin/Drain.

When the programme phase is finished, the corresponding indication goes out.

“DOOR OPEN” INDICATION

Before starting and after end of a programme, the lamp lights to show that the door can be opened. As long as a wash programme is running, the door remains locked and must on no account be forced open. In case you have an urgent need to open it during a running programme, refer to “Cancel (Reset) a running programme before the end”.

RED INDICATIONS

“Service”

Lighting up of the “Service” indication can be caused by a fault in an electrical component. Refer to the “Troubleshooting Guide” in your “Instructions for Use”; if the fault persists, contact our After Sales Service.

“Water tap closed”

The appliance has no or insufficient water supply. Open the water tap; if the indication still lights up, refer to the “Troubleshooting Guide” in the Instructions for Use.

“Clean pump”

Waste water is not pumped out. Check whether the drain hose is kinked or the filter must be cleaned; in the latter case refer to the Instructions for Use (“Removing the Filter”).

PROGRAMME END

• All the lights of the programme sequence indicator are off, and the “Door open” indication lights up.

1. Turn the programme selector to the “Off/O” position.

2. Close the water tap.

3. Open the door and unload the machine.

4. Leave the door ajar to allow the drum to dry.

CHANGE PROGRAMME AND/OR OPTIONS AFTER PROGRAMME START

1. Press the

“Start (Pause)”

button to pause the

programme. The light flashes.

2. Select the new programme (with temperature), any options and another spin speed if you want.

3. Press the

“Start (Pause)”

button again. The new programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.

CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END

The

“Reset”

button cancels a programme before

the end.

•Press the

“Reset”

button for at least 3 seconds. Any existing water is drained out before the door can be opened.
